| Product type | 2-way active studio monitor |
| Brand | Palmer |
| Model | Studimon 5 |
| Dimensions (W x H x D) | 190 x 268 x 215 mm |
| Weight | 3.84 kg |
| Power supply | 100-240 V AC, 50-60 Hz |
| Power (RMS) | 2 x 30 W (30 W woofer + 30 W tweeter) |
| Frequency response | 70 - 20,000 Hz (-3 dB) |
| Woofer | 5" (127 mm) magnetically shielded |
| Tweeter | 0.75" (19 mm) silk dome |
| Crossover frequency | 2500 Hz |
| Dispersion angle | 120° x 120° |
| Input connectors | Balanced XLR (3-pin) and balanced 6.35 mm TRS jack |
| Input impedance | 10 kΩ |
| Input sensitivity | 500 mV |
| Signal-to-noise ratio | 85 dB |
| Max SPL | 110 dB (1 kHz) |
| Protection circuits | Short circuit, overheating |
| Control elements | Volume (counterclockwise decreases), power on/off switch |
| Display | Orange power LED on front panel |
| Cabinet material | Birch plywood (15 mm) / MDF (15 mm) |
| Cabinet type | Bass reflex |
| Included accessories | Power cable, user manual |
| Maintenance | Clean with a dry cloth; do not open the device |
| Safety | Do not expose to water or flames; disconnect during storms |
| Spare parts | Fuse of same type and rating; contact an authorized service center |
Frequently Asked Questions - Studimon 5 Palmer
User questions about Studimon 5 Palmer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Monitor in PDF format for free! Find your manual Studimon 5 - Palmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Studimon 5 by Palmer.
USER MANUAL Studimon 5 Palmer
be true to your sound
POWERED 5" REFERENCE NEARFIELD STUDIO MONITOR
PSTUDIMON5
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO
ENGLISH
SAFETY INFORMATION 3
INTRODUCTION 5
SETUP AND POSITIONING OF THE STUDIO
MONITOR 5
CABLING 5
CONNECTIONS, CONTROL AND DISPLAY
ELEMENTS 6
TECHNICAL SPECIFICATIONS 7
MANUFACTURER'S DECLARATIONS 8
DEUTSCH
We have designed this product to operate reliably over many years. Palmer® stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User's Manual carefully, so that you can begin making optimum use of your Palmer® product quickly. You can find more information about Palmer® at our Internet site www.palmer-germany.com.

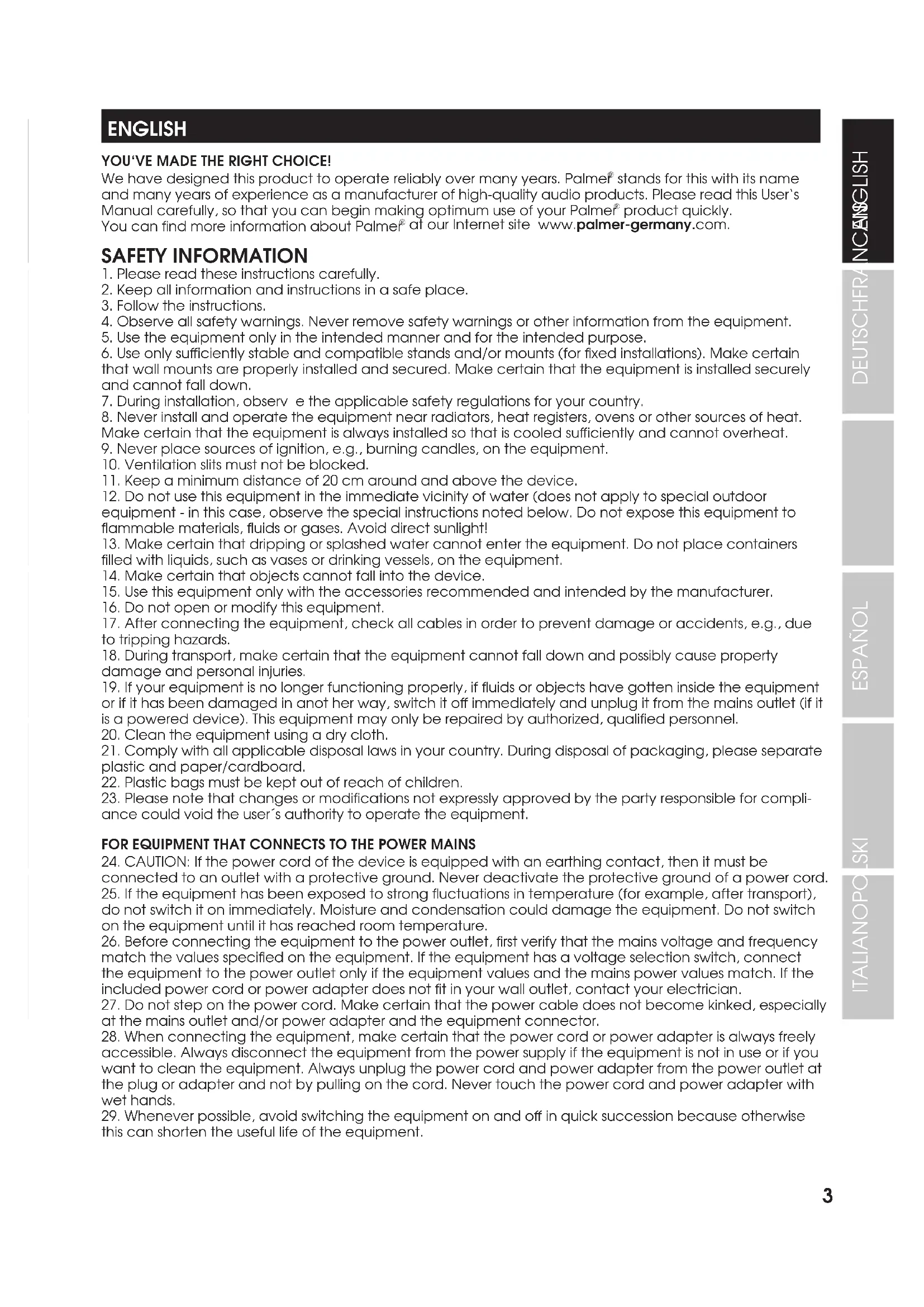

SAFETY INFORMATION
- Please read these instructions carefully.
- Keep all information and instructions in a safe place.
- Follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Use the equipment only in the intended manner and for the intended purpose.
- Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
- During installation, observ e the applicable safety regulations for your country.
- Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
- Never place sources of ignition, e.g., burning candles, on the equipment.
- Ventilation slits must not be blocked.
- Keep a minimum distance of 20 cm around and above the device.
- Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases. Avoid direct sunlight!
- Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
- Make certain that objects cannot fall into the device.
- Use this equipment only with the accessories recommended and intended by the manufacturer.
- Do not open or modify this equipment.
- After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
- During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
- If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
- Clean the equipment using a dry cloth.
- Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
- Plastic bags must be kept out of reach of children.
- Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS
- CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
- If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
- Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
- Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
- When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
-
Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
-
IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.
- To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
- If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
- Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.
The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock.
The warning triangle with exclamation mark indicates important operating and maintenance instructions.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device.
Warning! This device is designed for use below 2000 metres in altitude.
Warning! This product is not intended for use in tropical climates.
CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS!
This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks.
Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
INTRODUCTION
The compact and powerful Palmer STUDIOMON 5 is a 2-way nearfield studio monitor with bi-amping technology. It has a magnetically shielded 5-inch woofer with elastic rubber surround, a 0.75-inch tweeter with silk calotte, and a bassreflex port for extended low frequency performance. The speakers are run with 30 watt class AB amplifiers that provide a well-defined sound, and have a high dynamic range and excellent transient response. Balanced line inputs, with XLR and 6.35 mm jacks complete the professional features.
Scope of delivery: Power cable, user manual
SETUP AND POSITIONING OF THE STUDIO MONITORS
The Palmer STUDIMON5 control loudspeakers are nearfield monitors that are best positioned around one meter from the listening position. Set the monitors up upright, with the tweeter at the top, so that your listening position, the left and right monitors form an equilateral triangle. The speakers should also be set up at the same height as your listening position. The tweeter of the monitor should be at around ear height, or in other words directly aimed at the ears. If possible, do not position the monitors in the corner of a room, and avoid direct side wall, ceiling or ground reflection in the direction of the listening position. Using separate monitor stands prevents mechanical coupling with a surface. Because spatial conditions often mean that optimal monitor and listening positions cannot be achieved, equalization with a multi-band equalizer may be required. Purposefully arranged acoustic absorbers also help optimize room acoustics. Set the monitors up in the listening room in such a way that there is no asymmetry in the monitor positioning (e.g. one monitor in a corner, the other standing freely in the room), as this asymmetry can create a drastically differing frequency response between the two monitors and prevent accurate, homogeneous stereo sound.
note bottom
Listening position
end
CABLING
Cabling with unbalanced signal cables (e.g. shielded cables with mono jack plugs) is fundamentally possible, however, due to their lower susceptibility to interference, balanced cabling with shielded XLR cables is preferable.
CONNECTIONS, CONTROL AND DISPLAY ELEMENTS
IEC power socket with integrated fuse holder. A suitable power cable is included in delivery.
IMPORTANT NOTE: Only replace the fuse with a fuse of the same type. Please note the inscription on the housing. If a fuse trips repeatedly, please contact an authorized service center.
2 POWER ON / OFF
On / off switch for the device power supply. The studio monitor should always be the last device to be switched on in the signal chain, and the first to be switched off.
3 INPUT XLR
Balanced line input with female 3-pin XLR jack. Both input jacks are wired in parallel. Do not use both input jacks at the same time.
4 INPUT TRS (Tip - Ring - Sleeve)
Balanced line input with 6.35 mm jack. Both input jacks are wired in parallel. Do not use both input jacks at the same time.
5 VOLUME MIN - MAX
Turn the volume control counterclockwise to turn down the volume, and clockwise to turn it up. Set the left and right monitors to the same volume level to achieve homogeneous stereo sound.
6 BASS REFLEX OPENING
Do not place any items in the bass reflex opening, do not place items directly behind the bass reflex opening and do not cover the opening. Failure to observe these rules can lead to altered sound dispersion and cause undesired noise.
7 POWER LED
The power LED on the front of the monitor lights up as soon as the device has been correctly connected to the mains and it has been switched on.
8 TWEETER
Tweeter with 19 mm silk calotte and 28 mm neodymium magnet.
9 WOOFER
Magnetically shielded 127 mm woofer with polypropylene membrane, rubber surround and ventilated magnet system (80 mm ferrite magnet).
TECHNICAL SPECIFICATIONS
| Item number: PSTUDIMON5 | |
| Product type: Studio monitor | |
| Type: 2-way active | |
| Large subwoofer: 5" (magnetically shielded) | |
| Large subwoofer (mm): 127 mm (magnetically shielded) | |
| Magnet woofer: Ferrite (80 mm) | |
| Woofer brand: Custom model | |
| Large HF driver: 0.75" (silk calotte) | |
| Large HF driver (mm): 19 mm (silk calotte) | |
| Magnet HF driver: Neodymium (28 mm) | |
| HF driver brand: Custom model | |
| Crossover frequency (LF - HF): 2500 Hz | |
| Filter type: | Analog 24 dB Linkwitz/Riley filter |
| Beam angle (H x V): | 120° x 120° |
| Amplifier class: | Class A/B |
| Power (RMS): | 2 x 30 W (30 W LF + 30 W HF) |
| Frequency response: | 70 - 20000 Hz (-3 dB) |
| Maximum sound pressure: | 110 dB (1 kHz) |
| Input impedance: | 10 kOhm |
| Input sensitivity: 500 mV | |
| Signal-to-noise ratio: | 85 dB |
| Protection circuits: | Short circuit, overheating |
| Control elements: | Volume controller, power switch (on/off) |
| Display elements: | Power LED (orange) |
| Line input connections: 6.35 mm jack (balanced)XLR (balanced) | |
| Power supply: Switching power supply | |
| Operating voltage: | 100 V - 240 V AC, 50 - 60 Hz |
| Power consumption (max.): | 85 W |
| Ambient temperature (running): | 0 °C - 40 °C |
| Relative humidity: < 80% (non-condensing) | |
| Housing material: | Birch plywood (15 mm) / MDF (15 mm) |
| Housing surface: | Stained / coated |
| Housing color: | Black |
| Housing design: Bassreflex | |
| Dimensions (W x H x D): | 190 x 268 x 215 mm |
Weight: 3.84 kg
Included accessories: Power cable
MANUFACTURER'S DECLARATIONS
MANUFACTURER'S WARRANTY & LIMITATIONS OF LIABILITY
You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_PALMER5bb2340e52a8c.pdf To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email: Info@adamhall.com / +49 (0)6081 / 9419-0.
CORRECT DISPOSAL OF THIS PRODUCT
(valid in the European Union and other European countries with a differentiated waste collection system)
This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.
DEUTSCH
(Valid in the European Union and other European countries with waste separation)
