USER MANUAL Monicon PMC1 Palmer

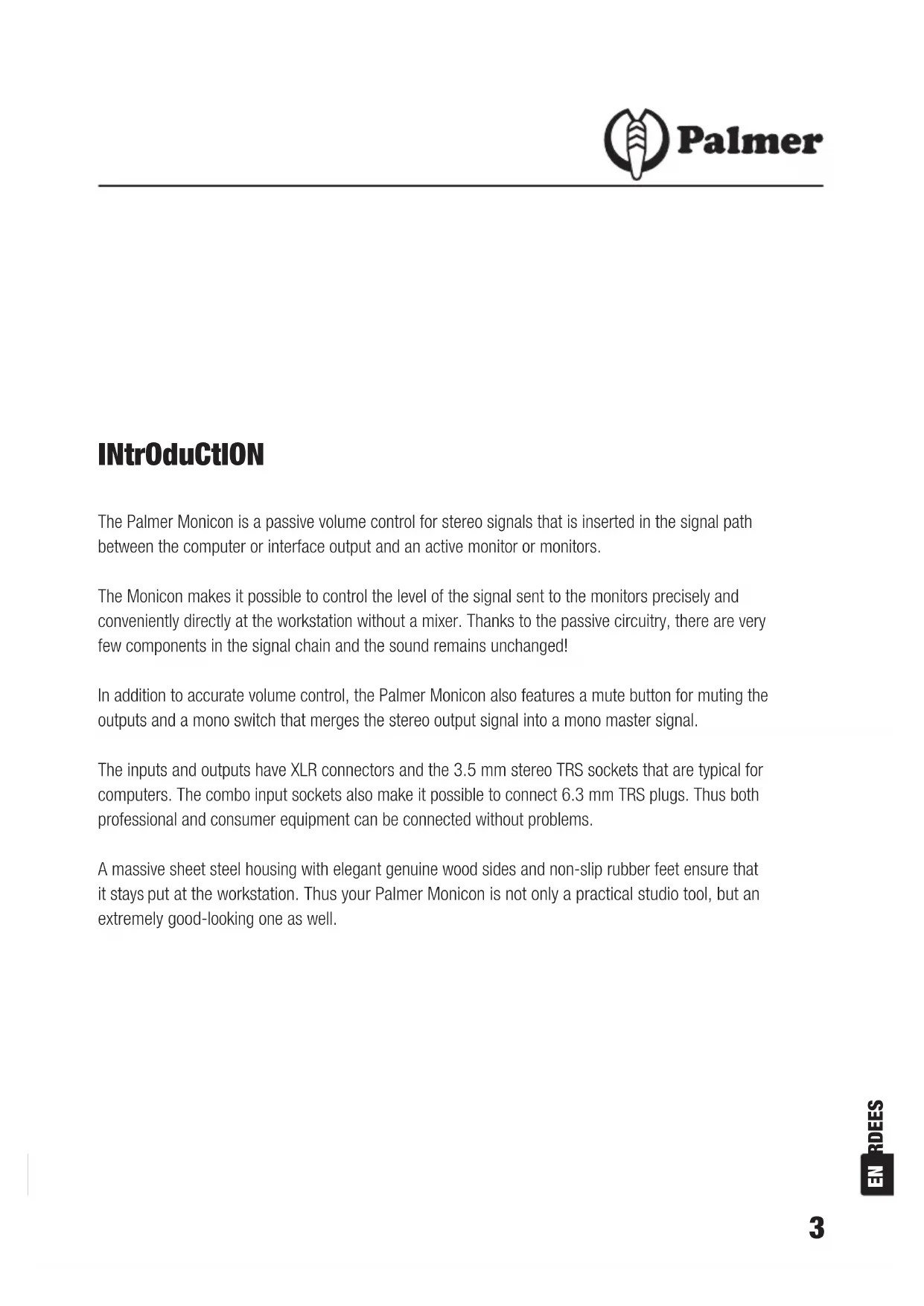

PMC1 MONICON Passive Monitor ControllerINtrOduCtION The Palmer Monicon is a passive volume control for stereo signals that is inserted in the signal path between the computer or interface output and an active monitor or monitors. The Monicon makes it possible to control the level of the signal sent to the monitors precisely and conveniently directly at the workstation without a mixer. Thanks to the passive circuitry, there are very few components in the signal chain and the sound remains unchanged! In addition to accurate volume control, the Palmer Monicon also features a mute button for muting the outputs and a mono switch that merges the stereo output signal into a mono master signal. The inputs and outputs have XLR connectors and the 3.5 mm stereo TRS sockets that are typical for comput ers. The combo input sockets also make it possible to connect 6.3 mm TRS plugs. Thus both professional and consumer equipment can be connected without problems. A massive sheet steel housing with elegant genuine wood sides and non-slip rubber feet ensure that it stays put at the workstation. Thus your Palmer Monicon is not only a practical studio tool, but an extremely good- looking one as well.

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain

that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observe the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat.

Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equip-

ment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.

12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled

with liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to

17. During transport, make certain that the equipment cannot fall down and possibly cause property damage

and personal injuries.

18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment

or if it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate

plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

FOr EquIpMENt thAt CONNECtS tO thE pOwEr MAINS:

22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be con-

nected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.EN FRDE ES

23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport),

do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.

24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency

match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at

the mains outlet and/or power adapter and the equipment connector.

26. When connecting the equipment, make certain that the power cord or power adapter is always freely ac-

cessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.

27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise

this can shorten the useful life of the equipment.

28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows

repeatedly, please contact an authorised service centre.

29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter

from the power outlet.

30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be

unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.

31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or

before extended periods of disuse. CAutION: CAUTION

RISK OF ELECTRIC SHOCK

Never remove the cover, because otherwise there may be a risk of electric shock. There are no user service- able parts inside. Have repairs carried out only by qualified service personnel. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions.EN ENDE ES

CAutION – hIGh VOLuME LEVELS wIth AudIO prOduCtS! This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of produc- ing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB. CAutION! IMpOrtANt INFOrMAtION ABOut LIGhtING prOduCtS

1. Do not look into the beam from a distance of less than 40 cm.

2. Do not stare into the beam for extended periods at short-to-medium distances.

3. Do not view the beam directly with optical instruments such as magnifiers.

4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals!

For this reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.CONTROLS

Stereo inputs: in XLR/Combo and 3.5 mm stereo TRS versions. Use either the XLR inputs OR the stereo TRS input. Using both inputs simultaneously increases the risk of ground loops.

Stereo outputs: in XLR/m and 3.5 mm stereo TRS versions. Use either the XLR output OR the stereo TRS output. Using both outputs simultaneously increases the risk of ground loops.

Mono: the output signals are merged into a master mono output signal and sent to all outputs.

Mute: for muting the outputs.

Attenuation: This allows you to control the volume.

5SpECIFICAtIONS Product type: monitor controller Type: passive Number of channels: 2 Number of inputs: 2 Input connections: XLR-TRS combo / 3.5 mm stereo TRS Input type: balanced / unbalanced Maximum input level: +20 dBu Input impedance: 10k balanced / 5k unbalanced Number of outputs: 2 Output connections: XLR/m, 3.5 mm stereo TRS Output type: balanced / unbalanced Max output level: +20 dBu Output impedance: 600 ohms Frequency response: 10 Hz - 40 kHz +/- 1dB THD: 0,001 % Max. attenuation: 85 dB (attenuator) 112 db (attenuator + mute) Controls: Attenuation, Mute, Mono Housing material: Sheet steel / genuine solid wood Housing surface: powder-coated Dimensions (W x H x D): 164 mm x 85 mm x 62 mm Weight: 690 g

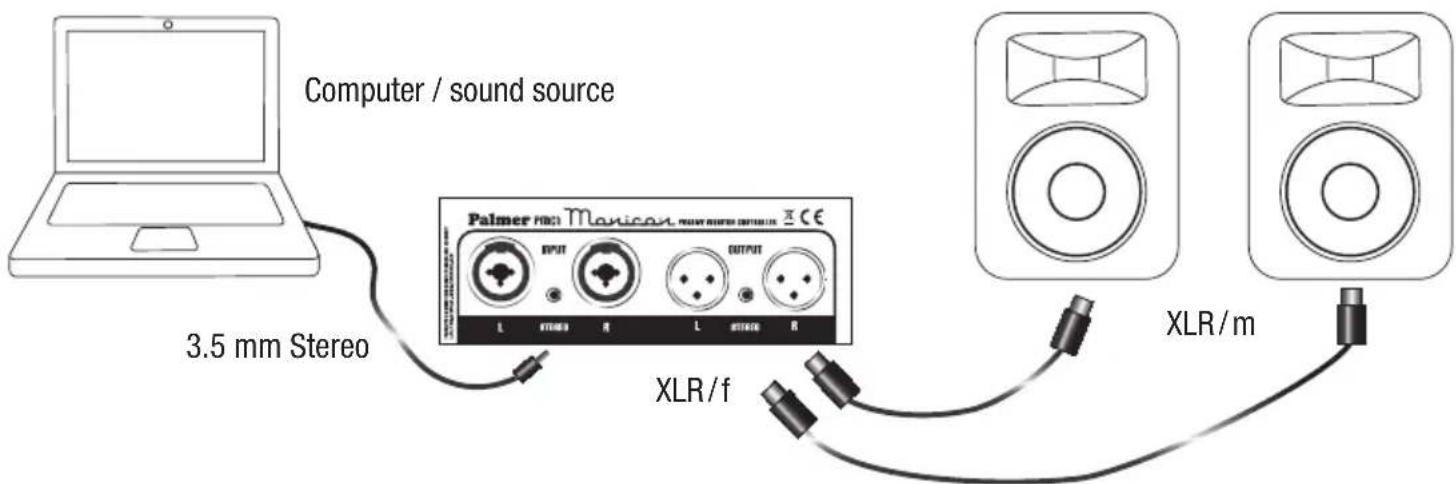

• Connect the output of the Monicon to your monitors.

• Set the output volume of your computer to maximum.

• Turn the volume control of the Monicon to full attenuation (all the way to the left).

• Now turn on your monitors.

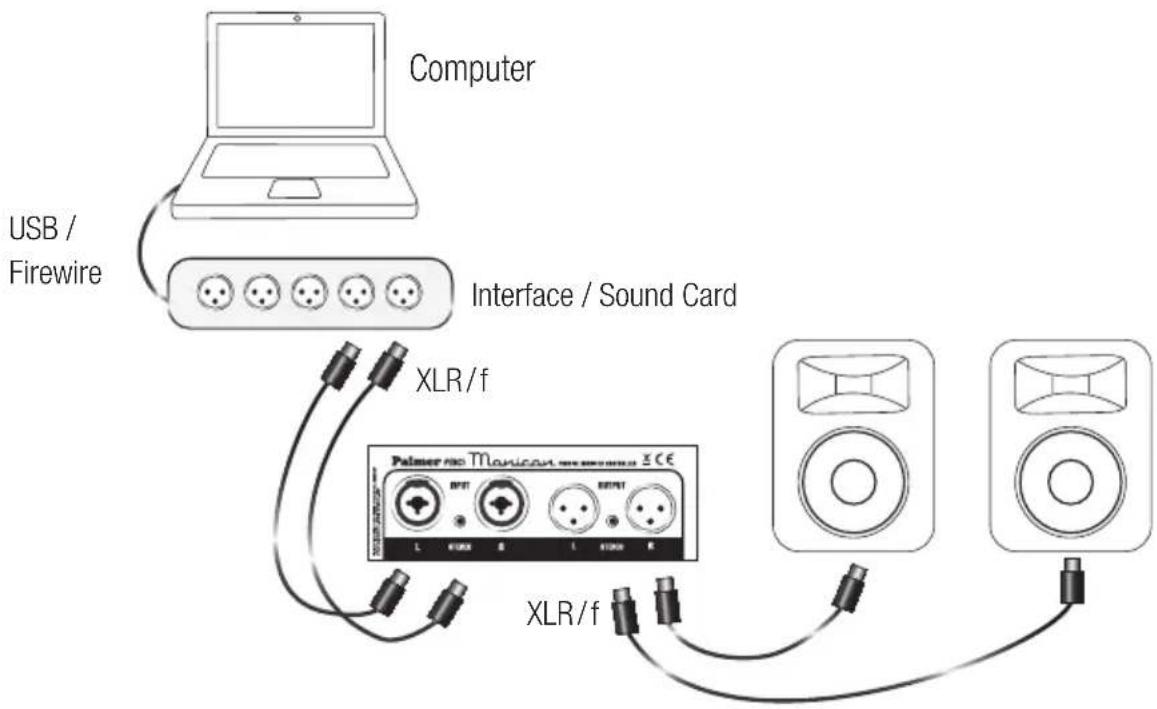

XLR / f XLR / m Computer / sound sourceCONNECtION OF AN INtErFACE If you have an interface with XLR or 6.3 mm TRS outputs, it also to use balanced connections. To do this, use high-quality shielded patch or microphone cables. NOTE: MAKE CERTAIN THAT YOUR MONITORS ARE TURNED OFF SO THAT NO LOUD NOISES (POPS) OCCUR WHEN THE PLUGS ARE INSERTED.

• Connect the left/right outputs of the interface to the inputs of the Monicon.

• Connect the output of the Monicon to your monitors.

• Set the output volume of your computer to maximum or the master control of your software to 0dB.

• Turn the volume control of the Monicon to full attenuation (all the way to the left).

• Now turn on your monitors.

MANuFACturEr’S wArrANtY This warranty covers the Adam Hall, LD Systems, Defender, Palmer, and Cameo brands. It applies to all products distributed by Adam Hall. This warranty declaration does not affect the statutory warranty claims against the manufacturer, but expands them with additional warranty claims vis-a-vis Adam Hall. Adam Hall warrants that the Adam Hall product that you have purchased from Adam Hall or from an Adam Hall authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years (please inquire on a product-by-product basis) from the date of purchase. The warranty period begins on the date on which the product was purchased, proof of which must be produced (through presentation of the invoice or the delivery note with the date of purchase) in the event of a warranty claim. Should products of the brands named above be in need of repair within the limited warranty period, you are entitled to warranty service according to the terms and conditions stated here. During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. In the event of repair or replacement during the Limited Warranty Period, the replaced original parts and/or products become property of Adam Hall. In the unlikely event that the product which you purchased has a recurring failure, Adam Hall has the right, at its discretion, to replace the defective product with another product, provided that the new product is at least equivalent to the product being replaced with regard to the technical specifications. Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product. The manufacturer’s warranty does not cover – expendable parts (e. g., recharge- able batteries) - products from which the serial number has been removed or with a serial number that has been damaged as a result of an accident - damage due to improper use, user error or other external reasons

• damage to devices operated outside the usage parameters stated in the documentation included with the product

• damage due to the use of replacement parts not manufactured, sold or recommended by Adam Hall,

• damage due to modification or servicing by anyone other than Adam Hall. These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.EN ENDE ES

LIMItAtION OF LIABILItY If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use. Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party. This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however, in the event of claims for damages in connection with personal injuries. This manufacturer’s warranty grants you specific rights; depending on jurisdiction (nation or state), you may be be entitled to additional claims. You are advised to consult applicable state or national laws for a full determination of your rights. rEquEStING wArrANtY SErVICE To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product. EC dECLArAtION OF CONFOrMItY The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be found at www.adamhall.com. prOpEr dISpOSAL OF thIS prOduCt (wAStE ELECtrICAL ANd ELECtrONIC EquIpMENt) (Valid in the European Union and other European countries with waste separation) This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.EN FRDE ES

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal ENVIrONMENtAL prOtECtION ANd ENErGY CONSErVAtION Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug. Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifica- tions. The photocopying, the translation, and all other forms of copying of fragments or of the integrlity of this user’s manual is prohibited.EN FRDE ES
