| Brand | MEDION |
| Model | Life S61388 (MD 43388) |
| Product type | Soundbar with subwoofer |
| Soundbar dimensions (W x H x D) | 90 x 6,5 x 12,8 cm |
| Soundbar weight | 3,1 kg |
| Subwoofer dimensions (W x H x D) | 24 x 42 x 24 cm |
| Subwoofer weight | 4,6 kg |
| Soundbar power supply | 21,0 V ⎓ 3,0 A (power adapter) |
| Subwoofer power supply | 220-240 V~, 50/60 Hz |
| Total output power | Soundbar: 2 x 8,5 W RMS (front) + 2 x 17 W RMS (rear) + 1 x 20 W RMS (center); Subwoofer: 1 x 50 W RMS |
| Supported audio formats | Dolby® Digital, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, Dolby® Vision |
| Bluetooth | Version 5.0, class II, A2DP and AVRCP profiles, range up to 10 m |
| Connectors | 2 HDMI inputs, 1 HDMI output (ARC) with CEC, optical input, AUX input (3.5 mm jack), micro-USB port (service) |
| Main functions | Sound effects (NORMAL, VOICE, MUSIC, MOVIE), Vertical Surround, bass adjustment, remote control, wall-mountable |
| Operating ambient temperature | 0 °C to 35 °C, relative humidity max. 80% (non-condensing) |
| Storage temperature | -20 °C to 60 °C |
| Maintenance and cleaning | Unplug before cleaning, use a soft dry cloth. Do not use solvents or chemicals. |
| Important safety instructions | Do not open the casing, avoid moisture and water splashes, use on a stable surface, do not cover the device. |
| Remote control batteries | 2 AAA LR03 batteries (included) |
| Package contents | Soundbar, subwoofer, power adapter, remote control with batteries, wall mounts, user manual |
Frequently Asked Questions - Life S61388 (MD 43388) MEDION
User questions about Life S61388 (MD 43388) MEDION
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Soundbar in PDF format for free! Find your manual Life S61388 (MD 43388) - MEDION and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Life S61388 (MD 43388) by MEDION.
USER MANUAL Life S61388 (MD 43388) MEDION
Technical line drawing of a rectangular electronic device with two circular ports and internal components, labeled with numbers 3 (no text or symbols on the device itself)natural_image
Simple line drawing of a room layout with a monitor, bookshelf, and cabinet (no text or symbols)
HINWEIS!
1. Information about this user manual....41
1.1. Explanation of symbols 41
2. Proper use
3. Safety information
3.1. Ensure that the device is mounted securely ....44
3.2. Power supply 45
3.3. Handling batteries .....JT.4
3.4. Ambient temperature 48
3.5. If there are defects....48
4. Package contents
5. Device overview
5.1. Front....50
5.2. Back....50
5.3. Operating buttons and display (front) 50
5.4. Connections (rear) 5
5.5. Subwoofer (back) 5
5.6. Remote control....53
6. Preparing for first use 54
6.1. Inserting batteries in the remote control ....54
6.2. Setting up the soundbar ....54
6.3. Wall mounting the soundbar 55
7. Connecting audio devices....56
7.1. Connecting audio devices via AUX IN ....56
7.2. Connecting audio devices via the optical connection ....57
7.3. Important information regarding HDMI CEC/HDMI ARC ....57
7.4. Connecting televisions via HDMI ARC....58
7.5. Connecting other external devices via HDMI IN 1/HDMI IN 2 ....58
8. Using the soundbar 58
8.1. Connecting the soundbar and subwoofer to the power supply .....58
8.2. Switching the soundbar on/off 59
8.3. Switching the subwoofer on/off ....59
8.4. Connecting the soundbar and subwoofer 59
9. Connecting devices via Bluetooth ^® 60
10. Operation 61
10.1. Selecting the audio source....61
10.2. Setting the display brightness....61
10.3. Setting the volume....61
10.4. Muting audio output 62
10.5. Setting sound effects....62
10.6. Setting the bass 62
10.7. Setting the vertical surround sound effect ....62
- Audio playback in Bluetooth ^® mode 62
- Maintenance 63
- Cleaning 63
- Storing the device when not in use....63
- Troubleshooting 64
- EU Declaration of Conformity....64
16.1. Trademark information 64 - Disposal 65
- Technical specifications 66
- Service information 68
- Privacy statement 69
- Legal Notice.... 70

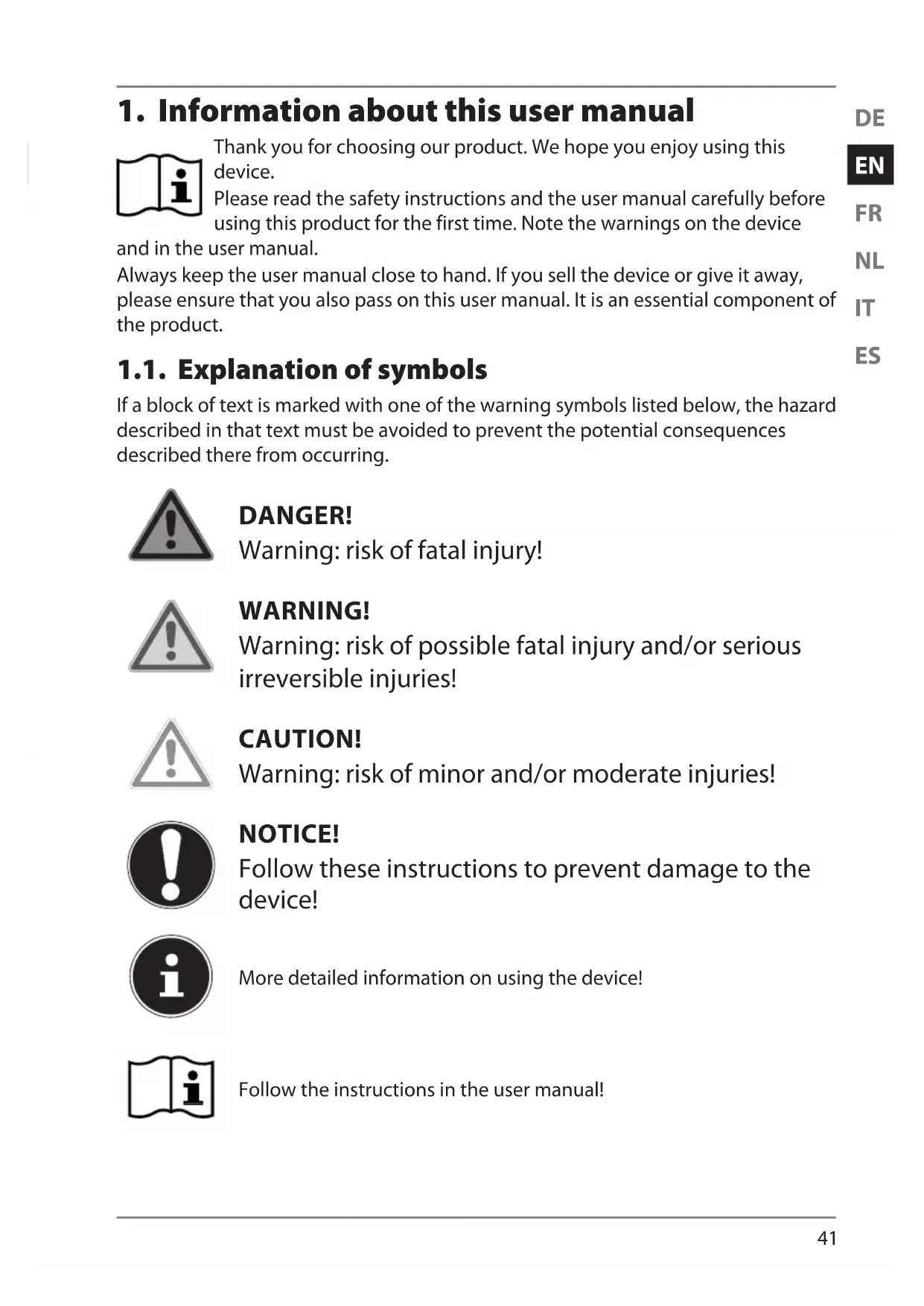

1. Information about this user manual
Thank you for choosing our product. We hope you enjoy using this device.
Please read the safety instructions and the user manual carefully before using this product for the first time. Note the warnings on the device and in the user manual.
Always keep the user manual close to hand. If you sell the device or give it away, please ensure that you also pass on this user manual. It is an essential component of the product.
1.1. Explanation of symbols
If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.
DANGER!
Warning: risk of fatal injury!
WARNING!
Warning: risk of possible fatal injury and/or serious irreversible injuries!
CAUTION!
Warning: risk of minor and/or moderate injuries!
NOTICE!
Follow these instructions to prevent damage to the device!
More detailed information on using the device!
Follow the instructions in the user manual!
WARNING!
Warning: risk of electric shock!
WARNING!
Warning: danger due to loud volume!
Protection class II
Electrical devices in protection class II are devices that have double and/or reinforced insulation throughout, and do not have the option of connecting a protective earth. The housing of an electrical device in protection class II, with surrounding insulating material, might either form all of the additional or reinforced insulation, or part of it.
Indoor use
Devices with this symbol are intended solely for indoor use.
Symbol for direct current (DC)
Symbol for alternating current (AC)
CE labelling
Products that feature this symbol meet the requirements of the EU directives (see section entitled “Declaration of Conformity”).
Manufactured under licence of Dolby Laboratories.
Dolby, Dolby Vision, Dolby Atmos and the double D symbol are registered trademarks of Dolby Laboratories.
The HDMI logo and High Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC.
- Bullet point/information on steps during operation
▶ Instruction to be followed
■ Safety instructions to be followed
2. Proper use
This device is designed to output audio signals. The soundbar is designed to be connected to televisions. It can also be connected to other devices, such as portable CD or MP3 players, computers/notebooks, smartphones and stereo systems.
The device is only intended for private use and not for industrial/commercial use.
Note that no liability will be accepted if this product is not used for its intended purpose:
■ Do not modify the device without our express agreement and do not use any accessories that have not been supplied or approved by us.
■ Only use replacement parts or accessories that we have supplied or approved.
■ Comply with all the information in this user manual, especially the safety information. Any other use is considered improper and can cause personal injury or property damage.
3. Safety information
WARNING!
Risk of injury due to improper use!
This device is not suitable for use by people (including children) with reduced physical, sensory or mental capabilities or with insufficient experience or knowledge unless properly supervised by a person responsible for their safety or these people have been instructed in how to use the device safely and have fully understood the possible dangers.
■ Never leave children unattended near electrical equipment. Children are not always able to recognise and avoid possible dangers.
3.1. Ensure that the device is mounted securely
WARNING!
Risk of injury due to electric shock!
There is a risk of electric shock due to live cables and wiring.
■ Install the device in a suitable location, and take care not to hit any hidden electrical cables or pipework when drilling.
■ Do not place containers that are filled with liquid, e.g. vases, on or near the device and its mains cable. Such containers may tip over and the liquid may impair the electrical safety of the device.
■ Protect the device and all other devices connected to it from dampness, water drops or water spray. To prevent malfunctions, keep the device dust-free, away from sources of heat, and out of direct sunlight.
■ Do not place naked flames such as lit candles on or near the device.
■ Do not use the device in potentially explosive atmospheres. This includes petrol stations, fuel storage areas and areas where solvents are processed, for example. This device must also not be used in areas with particle-laden air (for example flour or wood dust).
■ Do not expose the device to extreme conditions. It is designed exclusively for use indoors.
Avoid:
• high humidity or wet conditions
• extremely high or low temperatures
- direct sunlight
- naked flames.
■ Do not cover the device (with newspapers, covers etc.) to prevent overheating.
■ Do not place any objects on the cables as they may be damaged.
■ To prevent the device from falling, only install and operate it and its components on a sturdy, level, vibration-free surface.
■ All multimedia devices that are connected to the device must comply with the requirements of the Low Voltage Directive.
3.2. Power supply
WARNING!
Risk of injury due to electric shock!
There is a risk of electric shock due to live cables and wiring.
■ Install the device close to power sockets, which must always be easily accessible. Position the cables so that no one can tread on them or trip over them.
- To disconnect the device from the power supply, remove the device's plug from the power socket. Always hold the plug firmly when unplugging it. To prevent damage, never pull on the cable.
■ Only operate the device from an earthed 220–240 V \~ 50/60 Hz socket. Contact the local energy supplier if you have any questions about the power supply at the installation location.
- Stop using the device’s plug if the housing or the cable connecting it to the device are damaged.
- Never open the device housing. Touching live parts or attempting to modify the device’s electrical or mechanical functionality puts you at risk, and may also damage the device.
■ Disconnect the device from the power supply if it is not going to be used for a longer period of time or during a thunderstorm.
3.3. Handling batteries
The remote control is battery-operated. Please note the following:
- Keep new and used batteries out of the reach of children.
■ Do not swallow batteries as they can cause chemical burns!
WARNING!
Risk of chemical burns!
The remote control contains two batteries. If these batteries are swallowed, they can cause serious internal chemical burns within two hours which may prove fatal.
- Seek medical help immediately if you think that batteries may have been swallowed or secreted in any part of the body.
■ Remove leaking batteries from the device immediately. Clean the contacts before inserting new batteries. Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, rinse the affected areas immediately with plenty of clean water and consult a doctor as soon as possible. Risk of chemical burns from battery acid!
■ Stop using the remote control if you cannot close the battery compartment securely, and keep it well away from children.
WARNING!
Risk of explosion!
Risk of explosion if batteries are replaced incorrectly.
■ There is a risk of explosion if batteries are replaced incorrectly! Always use new batteries of the same type. Never use old and new batteries together.
■ Never try to recharge non-rechargeable batteries. Risk of explosion!
■ Never expose the batteries to excessive heat (such as direct sunlight, fire or similar).
■ Store batteries in a cool, dry place. Strong direct heat can damage batteries. Do not expose the device to sources of intense heat.
■ Never short-circuit batteries.
■ Never throw batteries into a fire.
■ Pay attention to the polarity (+/−) when inserting the batteries.
■ Remove flat batteries from the device.
■ If the device is not going to be used for a longer period of time, remove the batteries.
3.4. Ambient temperature
■ The device can be operated at an ambient temperature of 0^ C to +35^ C.
■ When switched off, the device can be stored at temperatures of between -20 °C and +60 °C.
■ Only use the device indoors in dry rooms.
DANGER!
Risk of electric shock!
Major changes in temperature or fluctuations in humidity can cause moisture to build up within the device due to condensation – this can cause an electrical short circuit.
■ After transporting the device, wait until it has reached ambient temperature before switching it on.
3.5. If there are defects
If the device or mains cable is damaged, unplug the mains cable from the power socket immediately.
■ Do not use the device or its accessories if they are damaged, generate smoke or emit unusual operating noises. In this case, disconnect the power supply immediately.
■ Never, under any circumstances, attempt to open and/or repair the device yourself.
■ Contact our Service Centre if you experience technical problems.
4. Package contents
DANGER!
Risk of choking and suffocation!
There is a risk of choking and suffocation if plastic film or small parts are breathed in or swallowed.
- Keep packaging away from children.
■ Do not allow children to play with the packaging material.
■ The packaging material is not a toy!
Remove the product from the packaging and remove all packaging material.
▶ Check your purchase to ensure that all items are included. If anything is missing, please contact our Service Centre within 14 days of purchase.
Before each use, check the device for any damage.
▶ Contact our Service Centre if you find any damage.
The following items are supplied with your product:
- Soundbar
- Subwoofer
• Mains adapter for soundbar - Remote control incl. 2 x AAA LR03 batteries
• Wall mounts incl. fastening materials - User manual and warranty documents
5. Device overview

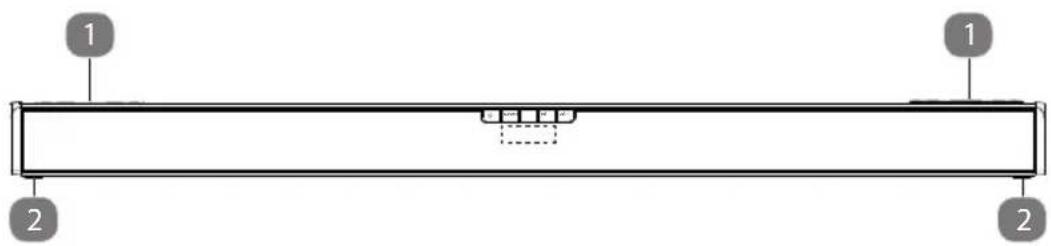

5.1. Front
1) Speaker for vertical surround sound effect
2) Feet

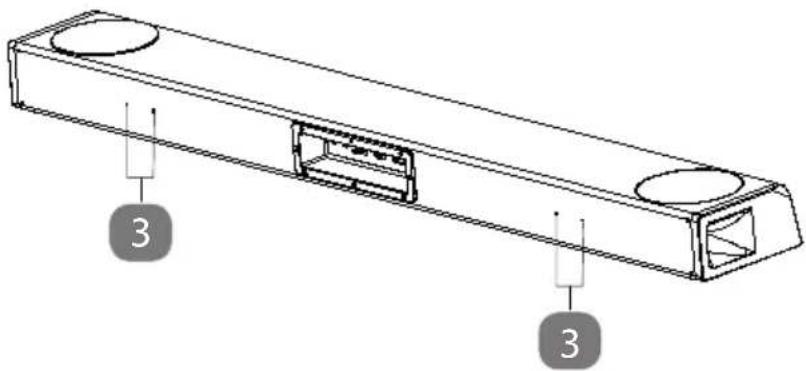

5.2. Back

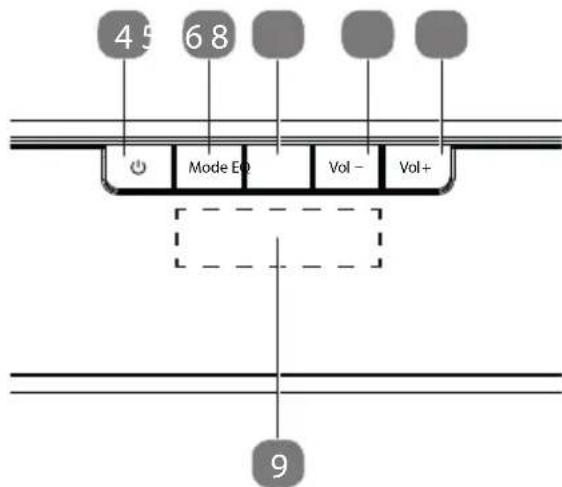

5.3. Operating buttons and display (front)
4) Shortdress when not in use: set the display brightness
Press and hold when not in use: switch on the soundbar Short press when in use: set the display brightness
Press and hold when in use: switch soundbar to standby mode
5) Mode Short press: select audio source
Press and hold: terminate/re-establish Bluetooth® connection
6) EQ Select equaliser settings
7) Vol - Short press: decrease the volume
Press and hold: continually decrease the volume
8) Vol + Short press: increase the volume
Press and hold: continually increase the volume
9) Display

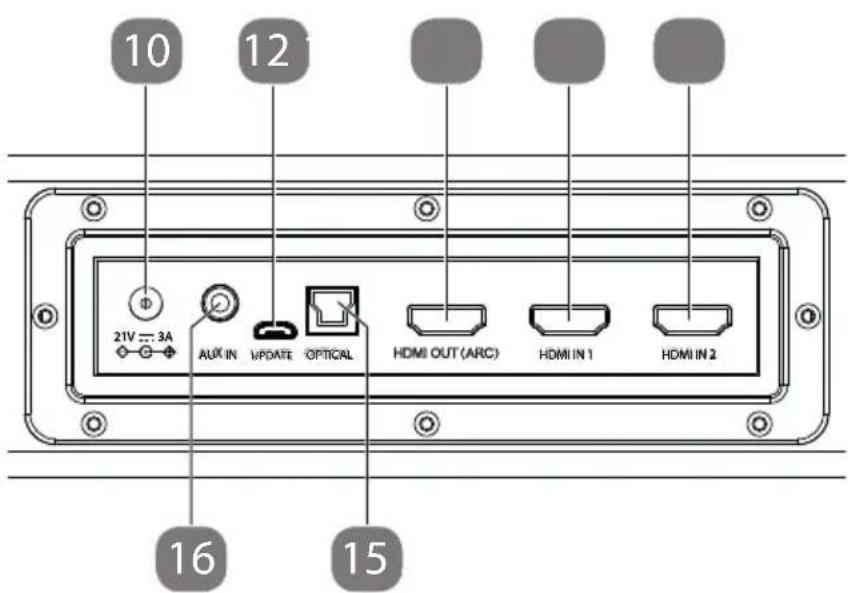

5.4. Connections (rear)
10) 21.0 V---3.0 A Connection socket for mains adapter
11) UPDATE Software update port (Only for authorised service personnel!)
12) HDMI OUT (ARC) Output port for ARC-enabled TVs, computers and other audio output devices
13) HDMI IN 1 Input port for DVD player and other audio output devices
14) HDMI IN 2 Input port for DVD player and other audio output devices
15) OPTICAL Optical input for TV and other audio output devices
16) AUX IN Connection socket for TV and other audio output devices (3.5 mm jack)

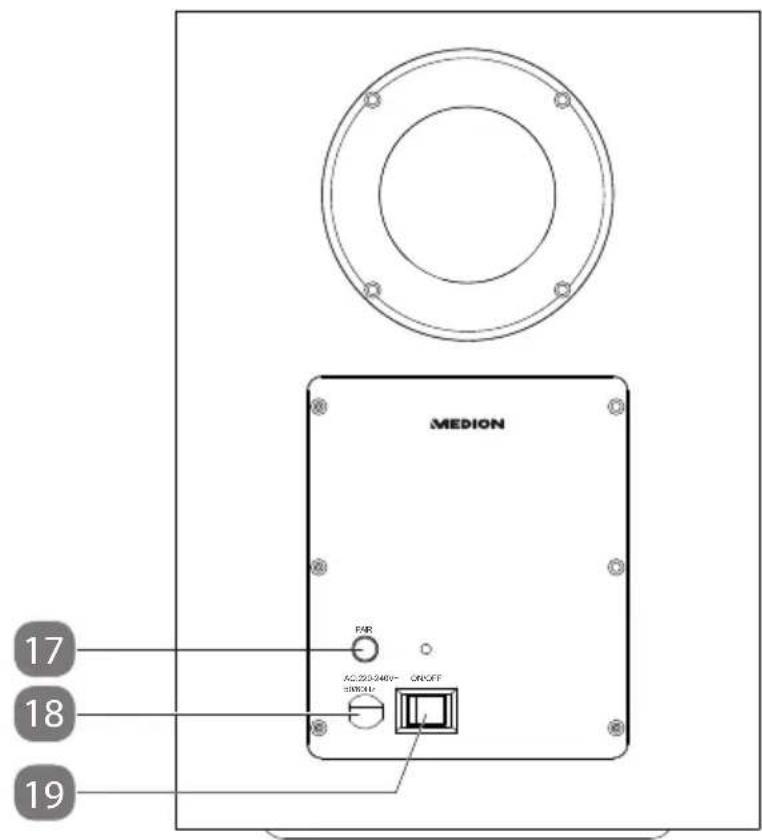

5.5. Subwoofer (back)
17) PAIR Press and hold: enable connection mode to manually connect the subwoofer to the soundbar
18) AC Connection socket for mains cable (220–240 V, 50/60 Hz)
19) ON/OFF On/off switch

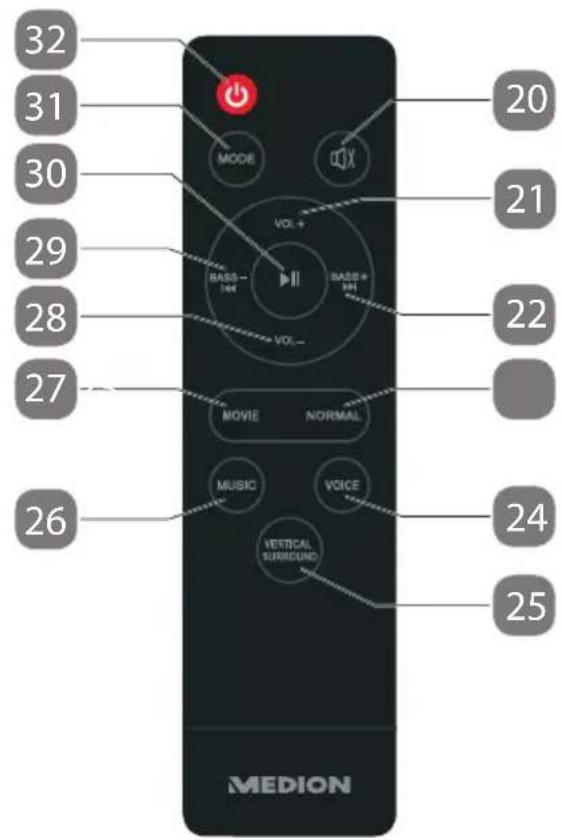

5.6. Remote control
20)
Mute/unmute the soundbar
21)
Short press: increase the volume
Press and hold: continually increase the volume
22)
Amplify bass;
In Bluetooth mode: play next track
23)
NORMAL
Set equaliser sound effect to NORMAL
24)
VOICE
Set equaliser sound effect to VOICE
25) VERTICAL SURROUND
Short press: switch on/off the vertical surround sound effect
Press and hold: establish/terminate the connection to the subwoofer
26) MUSIC Set equaliser sound effect to MUSIC
27) MOVIE Set equaliser sound effect to MOVIE
28) VOL - Short press: decrease the volume
Press and hold: continually decrease the volume
29) Reduce bass;
In Bluetooth mode: play previous track
30)
In Bluetooth mode: start/pause playback
31) MODE Short press: select audio source
Press and hold: terminate/re-establish the Bluetooth connection
32) Shortpress when not in use: set the display brightness
Press and hold when not in use: switch on the soundbar
Short press when in use: set the display brightness
Press and hold when in use: switch soundbar to standby mode
6. Preparing for first use
6.1. Inserting batteries in the remote control
Replace the batteries before using the device for the first time or if the device fails to react to commands from the remote control properly.
To do so, proceed as follows:
▶ Gently press the battery compartment locking tab towards the bottom of the remote control and pull the battery compartment cover upwards to remove it.
Remove the old batteries and dispose of them in accordance with legal regulations.
Insert two new AAA (LR03) batteries. Check the battery polarity is correct.
Place the battery compartment cover with the locking tab pointing upwards back onto the battery compartment and press it downwards until it audibly clicks into place.
6.2. Setting up the soundbar
- Position the soundbar and subwoofer on a stable, level surface close to an easily accessible power socket.
▶ Position the subwoofer close to the soundbar.
NOTICE!
Risk of damage!
Risk of damage to the device due to improper use of the devices.
■ To prevent the device from falling, only install and operate it and its components on a sturdy, level and vibration-free surface.
■ Some aggressive varnishes can corrode the rubber feet on the device. If necessary, place the device on a non-slip underlay.
6.3. Wall mounting the soundbar
As an alternative to placing the device on a flat surface, you can mount the soundbar on a wall.
Before mounting on a wall, check that the wall has the required load bearing capacity. MEDION AG shall not be liable for damage resulting from incorrect or non-professional mounting.
WARNING!
Risk of injury due to electric shock!
There is a risk of electric shock due to live cables and wiring.
■ Install the device in a suitable location, and take care not to hit any hidden electrical cables or pipework when drilling.
There are four pre-drilled holes on the back of the soundbar for fitting the supplied wall mounts.

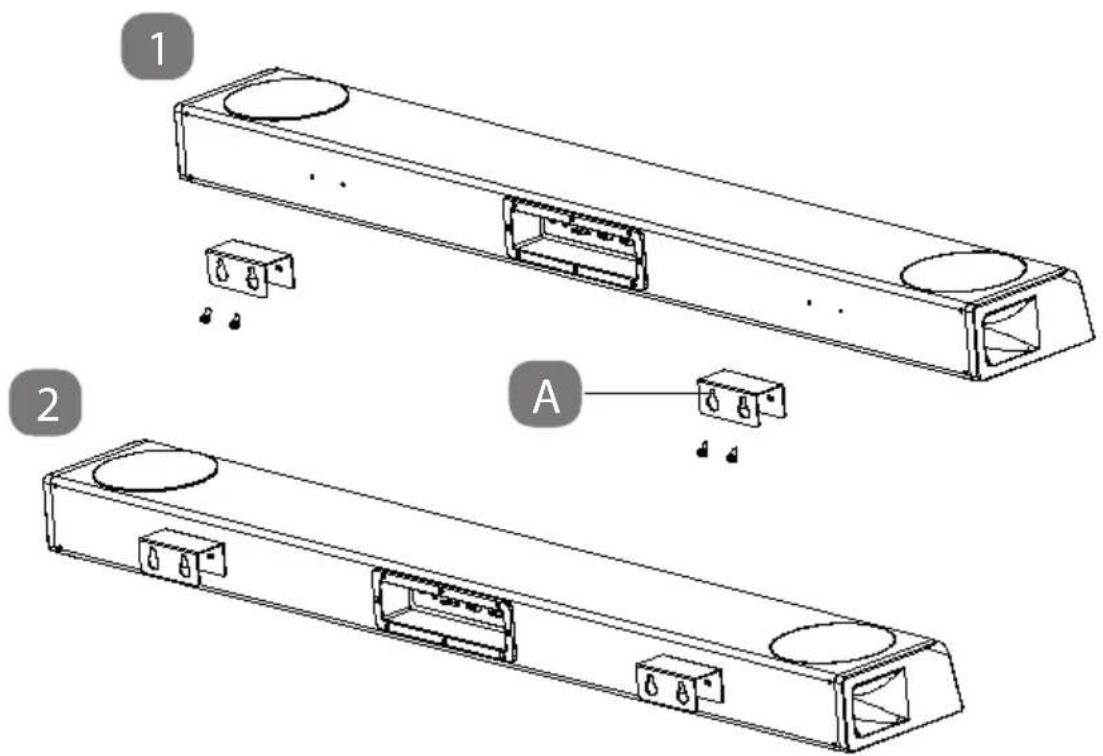

▶ Attach the two wall mounts to the back of the device (one on the left and one on the right) using 2 of the supplied screws for each wall mount (see illustration, step 1).
Make sure that the narrower part of the screw openings points upwards (see illustration, item A).
▶ Hold the wall mounts in place at the desired mounting point and mark the four drill holes required.
The distance between the two wall mounts is 525 mm. The distance between the two screws on each side is 35 mm.
Drill the holes. To do so, use an appropriate drill bit for the respective surface (dia. 6 mm, depending on the wall type).
▶ Push the wall plugs (M6 x 26) into the drill holes.
Screw four suitable screws (e.g. raised countersunk head screws, 4 mm x 30 mm) into the drill holes. Leave the screw heads protruding from the wall by approx. 2 mm.
Place the wider part of the wall mounts on the screw heads, then gently press the soundbar downwards until the screws lock into place on the wall mounts.
7. Connecting audio devices
You can connect a wide range of different audio output devices to the soundbar, such as a television, MP3 or CD player, receiver, computer etc.
▶ Switch off all the devices before connecting them to each other.
Also comply with the information in the user manual for the device you want to connect to the soundbar.
7.1. Connecting audio devices via AUX IN
7.1.1. Audio cable with 2 x 3.5 mm diameter jacks
You will need an audio cable with 2 x 3.5 mm diameter jacks (not supplied) to connect an output device to the soundbar using the headphone output socket on the output device.
▶ Set the output device to a medium volume level and then switch it off.
Insert the jack plug into the soundbar's AUX IN socket.
Insert the other jack plug into the headphone output socket on the output device.
7.1.2. Audio cable with cinch plugs
You will need an audio cable with cinch plugs, 1 x 3.5 mm jack -> 2 x cinch (not supplied) to connect an audio device to the soundbar using the cinch outputs on the audio device.
▶ Set the output device to a medium volume level and then switch it off.
Insert the jack plug into the soundbar's AUX IN socket.
Insert the red and white cinch plugs at the other end of the cable into the corresponding colour-coded output sockets on the audio device.
Devices such as stereo receivers or televisions usually have one red and one white audio output socket. These are usually marked as OUT, AUDIO OUT, LINE OUT or similar.
7.2. Connecting audio devices via the optical connection
You can connect digital amplifiers or televisions with an optical digital output to the soundbar via the OPTICAL connection. To do this, you will need an optical digital cable (fibre optic cable, not supplied with the soundbar, but available from specialist retailers).
▶ Set the output device to a medium volume level and then switch it off.
Plug the optical digital cable connector into the OPTICAL connection socket on the soundbar.
Plug the other optical digital cable connector into the corresponding digital output socket on your output device.
If no sound is output, switch the audio output format on your output device to PCM (Pulse Code Modulation) mode.
7.3. Important information regarding HDMI CEC/ HDMI ARC
7.3.1. HDMI CEC (Consumer Electronics Control)
CEC enables all devices connected via HDMI to communicate with each other. This connection then means that you can use the remote control for your television, for example, to adjust the volume on your device or mute it.
In order to use HDMI CEC functions, all components connected must support HDMI CEC. The name and range of functions may vary depending on the manufacturer. To this end, please note the information in the user manual for the device in question. All HDMI cables that support HDMI 1.3 standard or later also support HDMI CEC.
7.3.2. HDMI ARC (Audio Return Channel)
Using ARC means not only that audio signals are received via HDMI, but that these signals can also be sent back along the same cable.
In order to use HDMI ARC functions, all components connected must support HDMI ARC. In addition, you will need at least one "High Speed" HDMI cable (version 1.4 or later, not supplied).
7.4. Connecting televisions via HDMI ARC
Proceed as follows to connect your television to the soundbar via HDMI ARC:
▶ Set the volume on your television to a medium level.
▶ Switch off the television and the soundbar.
Connect the HDMI OUT (ARC) port on the soundbar to the HDMI IN (ARC) port on your television.
▶ Enable the ARC and CEC functions on your television and set the sound output to PCM (Pulse Code Modulation), if necessary.
Please note that the name of the HDMI IN ARC port and the CEC function may vary depending on the manufacturer of your television. For more detailed information, refer to the corresponding user manual.
7.5. Connecting other external devices via HDMI IN 1/HDMI IN 2
You can connect other audio output devices with HDMI ports (e.g. game consoles, receivers etc.) to the soundbar using the HDMI IN 1 or HDMI IN 2 port.
To do so, proceed as follows:
▶ Set the volume on your audio output device to a medium level.
▶ Switch off the audio output device and the soundbar.
Connect a suitable HDMI cable (not supplied) to the HDMI OUT port on your audio output device.
Connect the other end of the HDMI cable to the HDMI IN 1 or HDMI IN 2 port on the soundbar.
Also comply with the user manuals for the external devices.
8. Using the soundbar
8.1. Connecting the soundbar and subwoofer to the power supply
▶ Check that all the devices you want to connect are connected to the soundbar.
Connect the supplied mains adapter to the connection socket (21.0 V --- 3.0 A) on the soundbar and plug the other end into an easily accessible power socket.
STDBY appears on the display.
Plug the permanently installed mains cable AC on the subwoofer into an easily accessible power socket.
8.2. Switching the soundbar on/off
▶ Switch on the soundbar by pressing and holding the ⏻ button on the remote control or the soundbar.
The soundbar switches on and starts. This process takes several seconds, during which time ON flashes on the display. As soon as the soundbar has started fully, the last selected source is shown on the display.
If a TV or an external device is connected via the AUX socket or HDMI ports, the soundbar will switch on automatically a few seconds after the television or the external device is switched on.
If the TV or the external device is disconnected or switched off, the soundbar will switch off automatically after approximately 15 minutes. If the volume of the television or external device is set too low, the soundbar will also switch off after approximately 15 minutes (but only if the devices are connected via AUX).
When the device is in use, press and hold the ⏻ button on the soundbar or on the remote control to switch the soundbar into standby mode.
8.3. Switching the subwoofer on/off
▶ Set the on/off switch on the back of the subwoofer to I to switch on the subwoofer.
▶ Set the on/off switch on the back of the subwoofer to 0 to switch off the subwoofer.
8.4. Connecting the soundbar and subwoofer
The soundbar and subwoofer connect automatically the first time they are used. Once the connection is successful, the Pairing LED on the back of the subwoofer lights up blue continuously.
If the Pairing LED is flashing, the automatic connection has failed. To connect the devices manually, proceed as follows:
▶ Switch on the soundbar and the subwoofer.
▶ Press and hold the PAIR button on the back of the subwoofer until the Pairing LED flashes quickly.
▶ Next, press and hold the VERTICAL SOUND button on the remote control until the connection process starts and SW P is shown on the soundbar display.
The Pairing LED lights up blue continuously as soon as the connection between the soundbar and subwoofer has been established successfully.
If the subwoofer is switched on after the soundbar, it always starts with the bass level set to 30% by default. Use the and buttons to set the desired bass level.
9. Connecting devices via Bluetooth®
In Bluetooth mode, you can receive audio signals wirelessly from an external Bluetooth-enabled audio output device. Make sure the two devices are not more than 10 metres apart.
Only one Bluetooth device can be paired with the soundbar at a time.
To connect a Bluetooth-enabled audio output device, proceed as follows:
▶ Switch on the soundbar.
Then press the MODE button on the soundbar or remote control until BLUE is shown on the display.
The device is now in connection (pairing) mode.
The soundbar attempts to automatically connect itself to the last audio output device connected via Bluetooth. If this is not possible, the device remains in search mode and BLUE flashes on the display.
▶ Switch on the Bluetooth function on your audio output device and activate search mode on it to pair the two devices.
For more information about the Bluetooth function of your audio output device, please refer to its user manual.
The device name of the soundbar "MD 43388" will be displayed in the device list on your audio output device as soon as the signal is found.
▶ Select the soundbar and pair the two devices. If you are prompted to enter a password, enter "0000".
Device pairing is complete when BLUE lights up continuously on the display and the soundbar emits an acoustic signal.
To disconnect an active Bluetooth connection, press and hold the MODE button on the remote control or the soundbar until BLUE flashes on the display and an acoustic signal is emitted from the soundbar.
To re-establish the Bluetooth connection with the last connected device, press and hold the MODE button on the remote control or soundbar until BLUE lights up on the display continuously and an acoustic signal is emitted from the soundbar.
If you have connected the soundbar to a Bluetooth device that supports the A2DP and AVRCP profiles (Audio Video Remote Control), the soundbar is used as an output medium and the audio signals are only output through the soundbar.
In case of an incoming call, music playback is interrupted and only continues when the call has ended.
For additional operating controls, use the controls on your audio output device.
10. Operation
10.1. Selecting the audio source
▶ Press the MODE button on the remote control or the soundbar once or several times to select the desired audio source.
The selected audio source is shown on the display:
| Display Operating mode | |
| “STDBY” Standby mode | |
| “AUX” AUX IN operating mode | |
| “BLUE” Bluetooth mode | |
| “HDMI1/HDMI2” HDMI IN 1 or HDMI IN 2 operating mode | |
| “ARC” HDMI OUT (ARC) operating mode | |
| “OPT” OPTICAL operating mode |
10.2. Setting the display brightness
In standby mode or when the device is in use, press the ⏻ button on the soundbar or the remote control to set one of three display brightness levels.
10.3. Setting the volume
▶ Press the Vol + button on the soundbar or on the remote control to increase the volume.
▶ Press the Vol - button on the soundbar or on the remote control to decrease the volume.
The current volume setting is shown on the display.
▶ Press and hold Vol + /Vol - to continuously increase/decrease the volume. Release the button when the desired volume setting is displayed.
10.4. Muting audio output
▶ Press the 📄 button on the remote control to mute audio playback on the soundbar.
When the mute function is active, MUTE flashes on the display.
10.5. Setting sound effects
▶ Press the EQ button on the soundbar or one of the NORMAL, VOICE, MOVIE, MUSIC buttons on the remote control to set the corresponding sound effect.
10.6. Setting the bass
▶ Press the ^BASS+ button on the remote control to amplify the subwoofer base effect.
▶ Press the BASS button on the remote control to reduce the subwoofer base effect. The corresponding bass setting in the control range -5 to +5 is shown on the display.
10.7. Setting the vertical surround sound effect
Use the VERTICAL SURROUND button on the remote control to set the vertical surround sound effect.
▶ Press the VERTICAL SURROUND button to switch on the sound effect.
SR ON is shown on the display.
▶ Press the VERTICAL SURROUND button again to switch off the sound effect.
SR OFF is shown on the display.
When playing back audio/video material with a Dolby Atmos ^™ soundtrack, ATMOS is shown on the soundbar display when playback starts. When playing back audio/video material without a Dolby Atmos ^™ soundtrack, PCM is shown on the soundbar display when playback starts.
11. Audio playback in Bluetooth® mode
If you have connected the soundbar to a device that supports the A2DP and AVRCP profiles (Audio Video Remote Control), the soundbar is used as an output medium and all audio signals are only output via the soundbar.
If you have connected the soundbar with your Bluetooth-enabled mobile phone, the music playing through the soundbar is interrupted when you receive a call, and only continues when you finish the call.
▶ Press the ▶ll button on the remote control to start playing tracks.
▶ To pause playback, press the ▶ll button again. Press this button again to resume playback.
During playback, press the BASS button once to jump to the start of the track.
▶ Press the BASS+ button to skip to the next track.
12. Maintenance
WARNING Risk of injury due to electric shock!
■ Never, under any circumstances, attempt to open repair the device yourself. There is a risk of electric shock!
Please contact our Service Centre if you have technical problems with your device. Repairs must only be performed by our authorised service partners.
Contact our Service Centre if...
• the device is not working correctly
- liquid has got into the device
- the device has been dropped or its housing is damaged.
13. Cleaning
■ Before cleaning the devices, always disconnect them from the power supply by unplugging the mains plug.
- Only use a dry, soft cloth to clean the device. Do not use chemical solutions or cleaning products because these may damage the device’s surface and/or inscriptions.
Furniture is often coated with varnishes or plastics which are cleaned with a wide range of cleaning agents. Some of these cleaning agents contain ingredients which might damage the soundbar's base material, and cause it to become soft.
■ If necessary, place an non-slip mat underneath.
14. Storing the device when not in use
If you do not intend to use the devices over a longer period of time, unplug them from the power supply and store in a cool, dry place.
▶ Ensure that the devices are protected from dust, dirt and extreme temperature variations.
15. Troubleshooting
If the device stops working properly, please refer to the troubleshooting table shown below to see if you can resolve the problem yourself.
▶ Never attempt to repair the device yourself. If a repair is necessary, please contact our Service Centre or a suitable authorised repair workshop.
| Cause Troubleshooting | |
| Faulty connections and cables | ▸ Check all the cable connections for damage, ensure the correct cables have been used and check that the Bluetooth® connection is active.▸ Check that all the connected devices have an adequate electricity supply. |
| No sound can be heard | ▸ Check the volume setting on the output device. If necessary, increase the volume. |
| Distorted sound | ▸ Change the position of the soundbar to avoid disruptive external influences.▸ Move the objects responsible for the distortion (mobile phone or similar) away from the device. |
| No bass from the subwoofer | ▸ Check if the subwoofer is connected to the soundbar and, if necessary, connect the devices manually. |
16. EU Declaration of Conformity
CE MEDION AG hereby declares that this device complies with the fundamental requirements and the other relevant provisions of:
• Radio Equipment Directive 2014/53/EU
• Ecodesign Directive 2009/125/EC (and Ecodesign Regulation 2019/1782)
• RoHS Directive 2011/65/EU.
You can download the complete EU Declaration of Conformity at www.medion.com/conformity.
16.1. Trademark information
The HDMI logo and High Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC.
The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by the manufacturer under licence.
The USB ^™ word mark and logos are registered trademarks of the USB Implementers Forum, Inc. and are used by the manufacturer under licence.
Dolby, Dolby Audio, Dolby Atmos and the double D symbol are registered trademarks of Dolby Laboratories and are used by the manufacturer under licence.
Other trademarks are the property of their respective owners.
17. Disposal
PACKAGING
Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.
DEVICE
All old devices marked with the symbol shown must not be disposed of in normal household waste.
In accordance with Directive 2012/19/EU, the device must be properly disposed of at the end of its service life.
This involves separating the materials in the device for the purpose of recycling and minimising the environmental impact.
Take old devices to an electrical scrap collection point or a recycling centre. Before doing so, remove the batteries from the remote control and take them to a separate collection point for used batteries.
Contact your local waste disposal company or your local authority for more information on this subject.
BATTERIES
Do not dispose of used batteries with normal household rubbish.
Batteries must be disposed of correctly. For this purpose, retailers that sell batteries and local collection points provide containers in which you can dispose of them. Contact your local waste disposal company or your local authority for more information.
In connection with the sale of batteries or the supply of devices containing batteries, we are obliged to draw your attention to the following:
As the end user, you are legally required to return used batteries.
The crossed-out wheelie bin symbol means that the battery must not be disposed of with household rubbish.
18. Technical specifications
Soundbar
Dimensions (WxHxD): 90 x 6.5 x 12.8 cm
Weight: 3.1 kg
Input voltage: 21.0 V
- - - 3.0 A
Maximum transmission power: <-10 dBm
Subwoofer transmission frequency: 5732 MHz \~ 5848 MHz
Power output: Front speaker: 2 x 8.5 W RMS
Rear speaker: 2 x 17 W RMS
Centre speaker: 1x 20 W RMS
Connections: 1 x 3.5 mm jack audio input
1 x digital audio input (optical)
2 x HDMI inputs
1 x HDMI (ARC) output with CEC
Mains cable connection
1 x micro USB port (only for service updates)
Supported formats: Dolby® Digital, Dolby Digital Plus
Digital Plus TM,
Dolby® TrueHD, Dolby Atmos®, Dolby® Vision
Bluetooth specification: V5.0, Class II
Bluetooth profile:
A2DP, AVRCP
Max. Bluetooth transmission power:
3.9 dBm
Bluetooth frequency:
2402 MHz \~ 2480 MHz
Bluetooth range:
Max. 10 m (depending on environmental conditions)
Mains adapter (soundbar)
Manufacturer:
Shenzhen Adition Audio Science & Technology Co., Ltd
Importer:
MEDION AG
Am Zehnthof 77
45307 Essen
Germany
HR number: HRB 13274
Model name: AD6502103000EU
Mains adapter (soundbar)
Input voltage/current/input AC frequency:
220–240 V\~, 50–60 Hz, 1.5 A max.
Output voltage/current: 21.0 V
3.0 A
Power output: 63.0 W
Average efficiency during operation: 89.18%
Efficiency with low load (10%): 88.48%
Power consumption with zero load: 0.17 W
Relevant load conditions
Percentage of output current according to type plate
Load condition 1 100% ± 2%
Load condition 2 75% ± 2%
Load condition 3 50% ± 2%
Load condition 4 25% ± 2%
Load condition 5 10% ± 1%
Load condition 6 0% (zero load)
Subwoofer
Dimensions (WxHxD): 24 x 42 x 24 cm
Weight: 4.6 kg
Input voltage: 220–240 V\~, 50–60 Hz
Power consumption: 65 W
Power output: 1 x 50 W RMS
General data
Ambient temperature (during operation):
0 °C to +35 °C at a relative air humidity of max. 80% (non-condensing)
Ambient temperature (storage): -20 °C to +60 °C at a relative air humidity of max. 80% (non-condensing)
Remote control: 2 x 1.5 V
--- batteries, AAA LR03
(supplied)
Range: approximately 6 m
19. Service information
Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:
- In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at community.medion.com.
• Alternatively, use our contact form at www.medion.com/contact. - You can also contact our Service team via our hotline or by post.
| Opening times Hotline number UK | |
| Mon – Fri: 08.00 – 20.00Sat – Sun: 10.00 – 16.00 | 0333 3213106 |
| Service address | |
| MEDION Electronics Ltd.120 Faraday Park, Faraday Road, DorcanSwindon SN3 5JF, WiltshireUnited Kingdom | |
You can download this and many other sets of operating instructions from our service portal at www.medion.com/gb/service/.
You will also find drivers and other software for a wide range of devices there.
You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.
20. Privacy statement
Dear customer,
We wish to inform you that we, MEDION AG, Am Zehnthof 77, D-45307 Essen, Germany process your personal data as a data controller.
For matters regarding data protection, we are supported by our company data protection officer who can be contacted at MEDION AG, Datenschutz, Am
Zehnthof 77, D-45307 Essen; datenschutz@medion.com. We process your data for the purpose of warranty processing and associated processes (e.g. repairs) and therefore rely on processing your data for the sales contract concluded with us.
Your data will be provided to repairers contracted to us for the purpose of warranty processing and associated processes. We generally store your personal data for a period of three years in order to fulfil your legal warranty rights.
You have the right to be informed of the personal data concerned as well as the right to rectification, deletion, restriction of processing, the right to object to processing, as well as the right to data portability.
In case of access and cancellation rights, restrictions apply according to S 34 and S 35 of BDSG (Federal Data Protection Act) (Art. 23 GDPR). In addition, there is a right of appeal to a competent data protection supervisory authority (Article 77 GDPR in conjunction with S 19 BDSG). The state official for data protection and freedom of information for MEDION AG is Nordrhein Westfalen, P box 200444, 40212
Düsseldorf, Germany. www.ldi.nrw.de.
The processing of your data is necessary for warranty processing: it is not possible to process the warranty without the provision of the required data.
21. Legal Notice
Copyright © 2021
Date: 16.03.2021
All rights reserved.
These operating instructions are protected by copyright.
Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.
Copyright is owned by the company:
MEDION AG
Am Zehnthof 77
45307 Essen
Germany
Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.
Sommaire
Simple line drawing of a room layout with a monitor, bookshelf, and cabinet (no text or symbols)
AVIS!
Risque de dommage !
Simple line drawing of a room layout with a monitor, bookshelf, and door (no text or symbols)
LET OP!
Rearluidsprekers: 2 x 17 W RMS
Centerluidspreker: 1x 20 W RMS
Aansluitingen: 1 x 3,5mm-jackplug audio-ingang
Netadapter (soundbar)
Fabrikant: Shenzhen Adition Audio Science &
Technology Co., Ltd
Importeur:
MEDION AG
Am Zehnthof 77
45307 Essen
Duitsland
HR-nummer: HRB 13274
Modelaanduiding: AD6502103000EU
Ingangsspanning/frequentie/stroom: 220 - 240 V\~, 50-60 Hz, 1,5 A max.
Uitgangsspanning/stroom: 21,0 V
3,0 A
Simple line drawing of a room layout with a monitor, bookshelf, and cabinet (no text or symbols)
AVVISO!
Pericolo di danni!
Tensione in entrata: 21,0 V
- - - 3,0 A
Simple line drawing of a room layout with a monitor, bookshelf, and cabinet (no text or symbols)
