U3361GSFP - Network adapter Tripp Lite - Free user manual and instructions

Product Type	USB to Fiber Optic Network Adapter
Available Models	U336-1G-SFP (USB-A), U436-1G-SFP (USB-C), U436-SMF-1G-LC (USB-C with integrated transceiver)
Input Connector	USB-A male (U336-1G-SFP) or USB-C male (U436-1G-SFP and U436-SMF-1G-LC)
Output Connector	Open SFP port (U336-1G-SFP, U436-1G-SFP) or integrated SFP LC module (U436-SMF-1G-LC)
Bandwidth	1,000 Mbps (1 Gbps)
Maximum Distance	5 km (single-mode); 500-550 m (multi-mode)
Wavelength	1310 nm
Fiber Type	Single-mode or multi-mode depending on SFP transceiver (except U436-SMF-1G-LC: integrated single-mode)
USB Version	USB 3.0 (5 Gbps) for U336-1G-SFP; USB Type-C (5 Gbps) for U436-1G-SFP and U436-SMF-1G-LC
Network Compatibility	IEEE 802.3z and ANSI Fiber Channel
Power	USB bus-powered, no external power required
Operating Temperature	0 to 55 °C (32 to 131 °F)
Storage Temperature	0 to 60 °C (32 to 140 °F)
Relative Humidity	5 to 90% RH (non-condensing)
Warranty	3-year limited (materials and workmanship defects)
Package Contents	Adapter, driver CD, quick start guide

Frequently Asked Questions - U3361GSFP Tripp Lite

How to install the U3361GSFP adapter?

Before plugging in the adapter, install the driver from the included CD or download it from the Tripp Lite website. Then plug the adapter into a free USB port (USB-A for U336-1G-SFP, USB-C for U436). A blue LED will light up to confirm Ethernet connection.

What type of SFP transceiver to use with this enclosure?

The U336-1G-SFP and U436-1G-SFP models require a SFP LC transceiver provided by the user. The U436-SMF-1G-LC has an integrated single-mode transceiver. Ensure the wavelength (1310 nm) and fiber type (single-mode or multi-mode) match your network.

What is the maximum supported distance?

In single-mode, up to 5 km; in multi-mode, up to 500-550 m. The distance depends on the fiber type and transceiver used.

Does the adapter require external power?

No, it is USB bus-powered via the computer port. No electrical outlet needed.

What is the maximum data rate?

The Ethernet bandwidth is 1,000 Mbps (1 Gbps). The USB port supports up to 5 Gbps (USB 3.0/Type-C), but the fiber connection is limited to 1 Gbps.

The indicator light does not turn on, what to do?

Verify that the driver is properly installed. Ensure the SFP transceiver (if applicable) is fully inserted and the fiber cable is connected to an active network. If the blue light does not turn on, try a different USB port.

Is it compatible with Windows and macOS?

The product is compatible with common operating systems. The driver is provided on CD or for download. Check the Tripp Lite support page for the complete list of supported OS.

Can I use a multi-mode fiber cable with the U436-SMF-1G-LC model?

No, the U436-SMF-1G-LC is designed for single-mode fiber only. The integrated transceiver is single-mode. For multi-mode, use the U336-1G-SFP or U436-1G-SFP models with a multi-mode transceiver.

How to clean the adapter?

Unplug the device and clean it with a soft, dry cloth. Avoid liquids and solvents. Clean the fiber connectors with an appropriate cleaning kit.

What if the adapter is not recognized?

Reinstall the driver. Try a different USB port or another computer. Verify that the SFP transceiver is compatible (1310 nm, 1 Gbps). Check the troubleshooting section on the Tripp Lite website.

USER MANUAL U3361GSFP Tripp Lite

USB to Fiber Optic Transceiver Ethernet Adapters

Models: U336-1G-SFP (USB-A), U436-1G-SFP, U436-SMF-1G-LC (USB-C)

Español 5 • Français 9 • Русский 13 • Deutsch 17

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

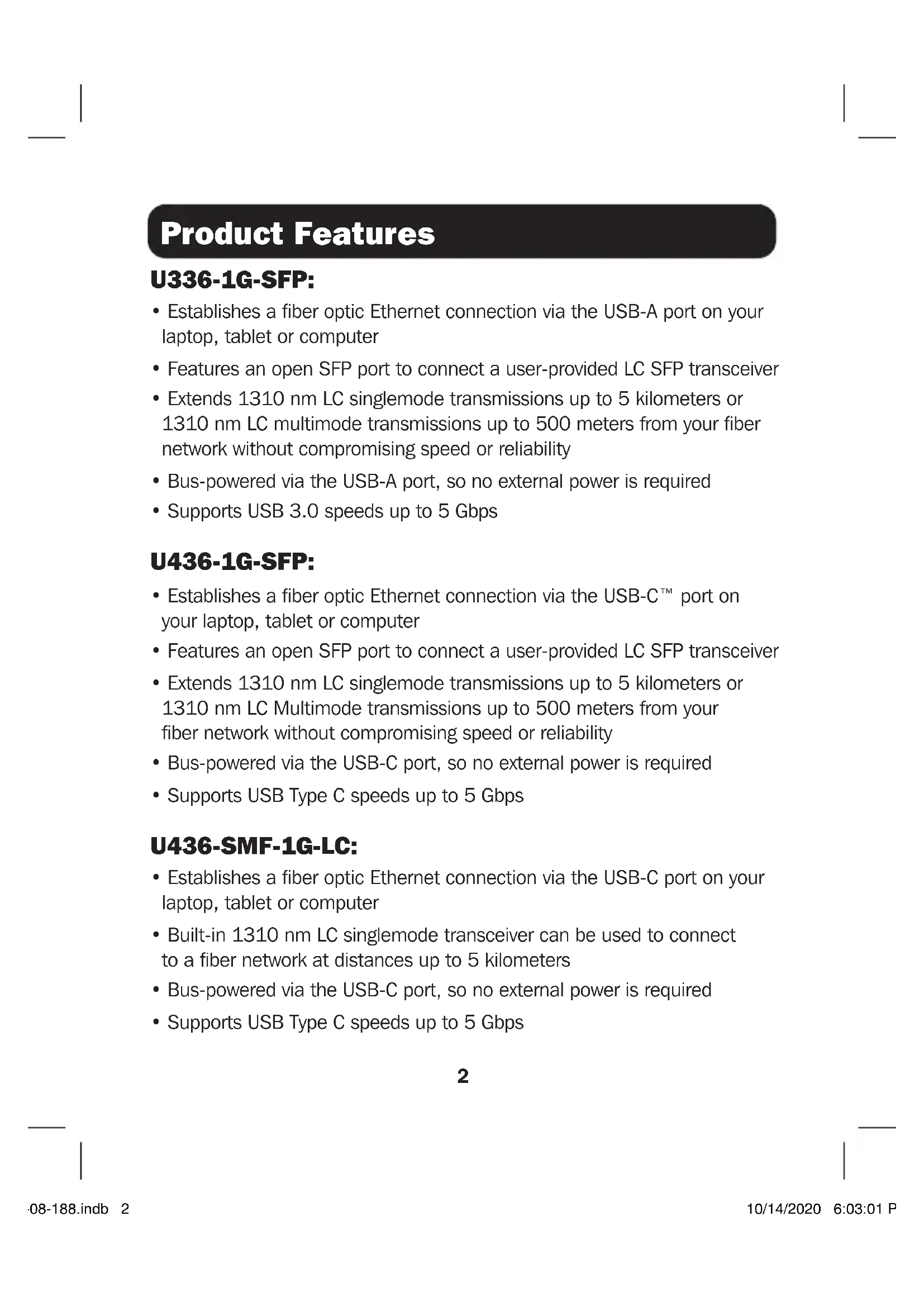

Product Features

U336-1G-SFP:

• Establishes a fiber optic Ethernet connection via the USB-A port on your laptop, tablet or computer
• Features an open SFP port to connect a user-provided LC SFP transceiver
• Extends 1310 nm LC singlemode transmissions up to 5 kilometers or 1310 nm LC multimode transmissions up to 500 meters from your fiber network without compromising speed or reliability
• Bus-powered via the USB-A port, so no external power is required
  • Supports USB 3.0 speeds up to 5 Gbps

U436-1G-SFP:

• Establishes a fiber optic Ethernet connection via the USB-C™ port on your laptop, tablet or computer
• Features an open SFP port to connect a user-provided LC SFP transceiver
• Extends 1310 nm LC singlemode transmissions up to 5 kilometers or 1310 nm LC Multimode transmissions up to 500 meters from your fiber network without compromising speed or reliability
• Bus-powered via the USB-C port, so no external power is required
  • Supports USB Type C speeds up to 5 Gbps

U436-SMF-1G-LC:

• Establishes a fiber optic Ethernet connection via the USB-C port on your laptop, tablet or computer
  • Built-in 1310 nm LC singlemode transceiver can be used to connect to a fiber network at distances up to 5 kilometers
• Bus-powered via the USB-C port, so no external power is required
  • Supports USB Type C speeds up to 5 Gbps

Package Includes

• U336-1G-LC, U436-1G-LC or U436-SMF-1G-LC USB to Fiber Optic Ethernet Adapter
• Driver CD
• Quick Start Guide

System Requirements

- USB-A port (U336-1G-SFP) or USB-C port (U436-1G-SFP and U436-SMF-1G-LC)

Installation

Note: Before installation, verify your fiber equipment's wavelength (1310 nm), mode type (single or multi) and distance (in meters) matches that of the USB Fiber Transceiver Adapter specifications.

1. Install the applicable driver on your computer or laptop before connecting the USB fiber transceiver adapter. The driver can be installed using the included CD or by visiting the model's Technical Support page on tripplite.com to download.
2. Once the appropriate driver is successfully installed, connect a user-supplied LC transceiver that is connected to a fiber network to the open SFP port on the adapter. If using the U436-SMF-1G-LC, the transceiver is already built into the unit and a separate transceiver is not needed.
3. If using the U336-1G-SFP, insert the USB-A male connector to a USB-A port on your computer.

OR

If using the U436-1G-SFP or U436-SMF-1G-LC, insert the USB-C male connector to the USB-C port on your computer.

1. A blue LED will illuminate to indicate a successful Ethernet connection. The LED will blink when data is being transferred.

Specifications

	U336-1G-SFP U436	-1G-SFP U436-SMF	-1G-LC
Input Connector USB-A (Male) USB-C (Male) USB-C (Male)
Output Connector Open SFPTransceiver Port(Female)		Open SFPTransceiver Port(Female)	LC SFP SMTransceiver Module
Bandwidth 1000 Mbps 1000 Mbps 1000 Mbps
Max. Distance 5 km (Singlemode);550 m (Multimode)		5 km (Singlemode);550 m (Multimode)	5 km (Singlemode)
Wavelength 1310 nm 1310 nm 1310 nm
Fiber Type Open Open Singlemode (SM)
USB Version USB 3.0 (5 Gbps) USB Type		C (5 Gbps) USB Type	C (5 Gbps)
NetworkCompatibility	IEEE 302.3z andANSI Fiber Channel	IEEE 302.3z andANSI Fiber Channel	IEEE 302.3z andANSI Fiber Channel
OperatingTemperatureRange	32 to 131°F(0 to 55°C)	32 to 131°F(0 to 55°C)	32 to 131°F(0 to 55°C)
StorageTemperatureRange	32 to 140°F(0 to 60°C)	32 to 140°F(0 to 60°C)	32 to 140°F(0 to 60°C)
Relative Humidity	5% - 90% RH 5% - 90% RH 5% - 90% RH

3-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20-08-188 93-3D07 RevA
