Product Type	Tilting TV Wall Mount
Brand	Tripp Lite
Model	DWTPSC4555M
VESA Compatibility	200x200, 200x300, 200x400, 300x300, 300x400, 400x400, 400x460 mm
Tilt	0°, 5°, 10°
Orientation	Portrait and Landscape
Security	Anti-theft security bar and combination lock
Material	Steel
Installation Type	Concrete, brick, or wood stud wall
Included Tools	5mm hex key
Included Fasteners	M5, M6, M8 screws, spacers, washers, concrete anchors, anchor bolts
Screen Size Compatibility	Up to 55 inches (estimate)
Mounting Type	Tilt
Color	Black (estimate)
Number of Mounting Holes	6 (for concrete/brick)
Warranty	5-year limited warranty
Maintenance	Check tightness and security every 3 months
Usage	Indoor use only

Frequently Asked Questions - DWTPSC4555M Tripp Lite

How to install the mount on a concrete wall?

Mark the location, drill pilot holes, insert concrete anchors, then secure the wall plate with anchor bolts and D6 washers. Ensure the concrete thickness is at least 35 mm and do not drill into mortar joints.

How to attach the adapter brackets to the screen?

Choose the appropriate screws, washers, and spacers based on the back of your screen. Position the adapter brackets as close to the center as possible, then screw them in firmly without overtightening.

How to adjust the TV tilt?

The mount allows tilt of 0°, 5° or 10°. To adjust, loosen the adjustment screws, tilt the screen to the desired angle, then retighten the screws.

How to use the security bar and combo lock?

After hanging the screen, slide the security bar through the mounting brackets, then attach the combination lock to hold it in place. This prevents theft of the screen.

What is the maximum weight this mount can support?

The maximum weight capacity is indicated on the product itself. Never exceed this limit to avoid injury or damage.

What types of screws should I use for my screen?

The mount comes with M5, M6, and M8 screws of various lengths, as well as spacers and washers. Use the combination that matches your screen's screw threads.

Can I install this mount on wood studs?

Yes, but the manual does not provide specific guidance. Ensure the mounting screws are anchored into the center of the studs. Use a stud finder and appropriate wood screws (not included).

Can this mount be used outdoors?

No, this product is designed for indoor use only. Outdoor use could result in failure and injury.

How to maintain the wall mount?

Check the tightness and security of the mount every 3 months. Ensure there is no looseness or corrosion.

What is the warranty period for this mount?

Tripp Lite offers a 5-year limited warranty from the date of purchase, covering defects in materials and workmanship.

USER MANUAL DWTPSC4555M Tripp Lite

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2019 Tripp Lite. All rights reserved.

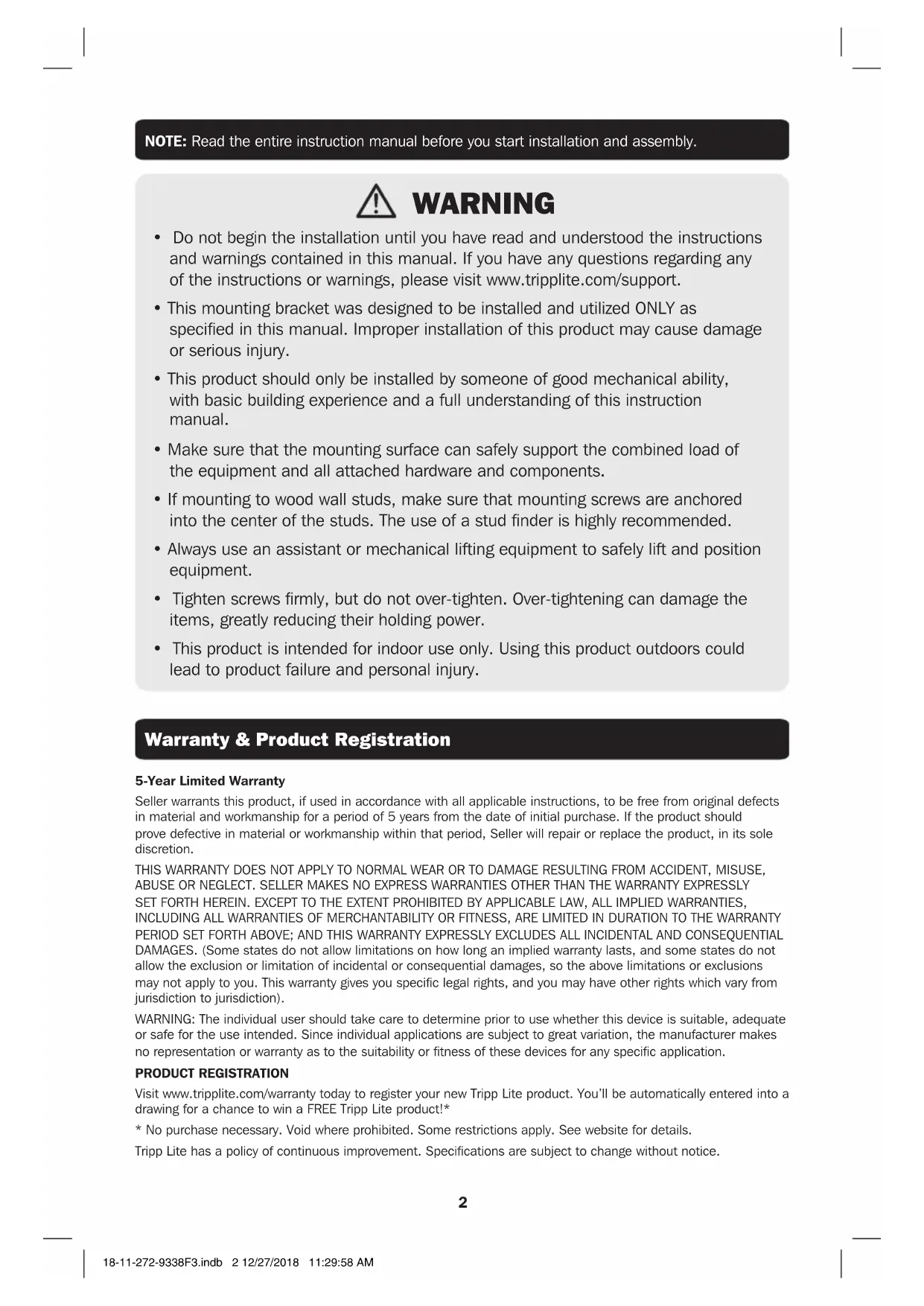

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit www.tripplite.com/support.
• This mounting bracket was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not over-tighten. Over-tightening can damage the items, greatly reducing their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty & Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Component Checklist

IMPORTANT: Ensure all parts according to the component checklist have been received prior to installation. If any parts are missing or faulty, visit www.tripplite.com/support for service.

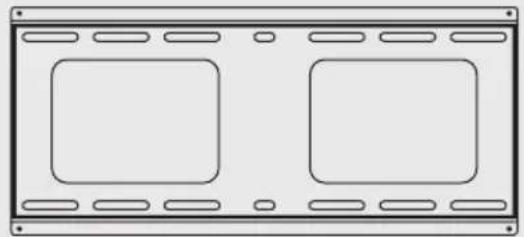

Pure technical diagram of a rectangular panel with two square cutouts and rounded corners, no text or symbols present.

Wall Plate (x1)

Adapter Bracket (x2)

Extension Bracket (x2)

Security Bar (x1)

M6 x 6 Screw (x8) Safety Pin (x1) 5 mm Hex Key (x1) D8 Washer (x2) Combo Lock (x1)

Package M

M5 x 14 Screw (x4)

M6 x 14 Screw (x4)

M6 x 30 Screw (x4)

M8 x 30 Screw (x4) M8 x 50 Screw (x4)

Washer (x4)

Small Spacer (x8)

Big Spacer (x8)

Package W

Anchor Bolt (x6)

Concrete Anchor (x6)

D6 Washer (x6)

Installation

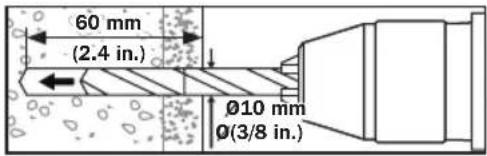

1. Mount on Solid Brick and Concrete Block

60 mm (2.4 in.) Ø10 mm Ø(3/8 in.)

Technical line drawing of a mounted electrical enclosure with a handle and mounting bracket (no text or symbols)

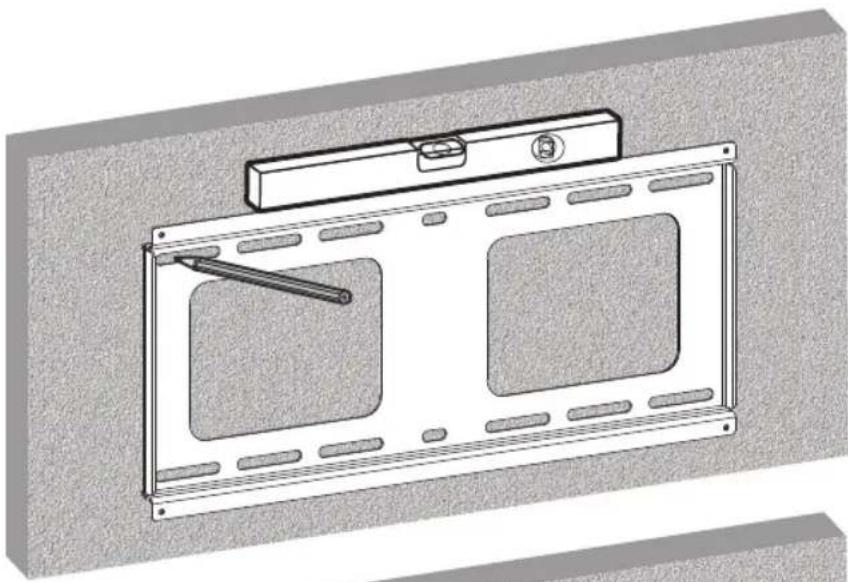

Find and mark the exact location of mounting holes

Drill pilot holes

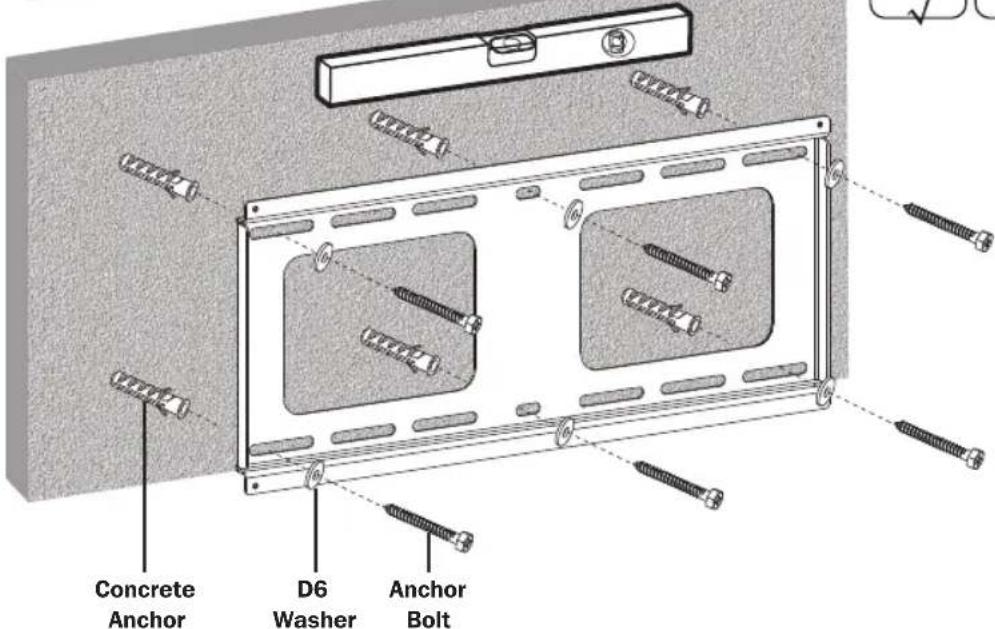

Concrete Anchor D6 Washer Anchor Bolt

Screw the assembled wall plate onto the wall

WARNING

• When installing wall mounts onto a concrete masonry unit (also known as a CMU or "cinder block"), verify that the actual concrete thickness is at least 35 mm (1-3/8") in order to hold the concrete anchors. DO NOT DRILL INTO MORTAR JOINTS! Be sure to mount the assembled wall-mount plate with the included concrete anchors, D6 washers and anchor bolts onto solid sections of the blocks. The solid sections can generally be found 25 mm (1") toward the middle of the block from either end. An electric drill on a slow setting is suggested to drill the hole rather than a hammer drill so as to avoid breaking out the back of the hole when entering a hollow section.
  • Installers must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

Installation

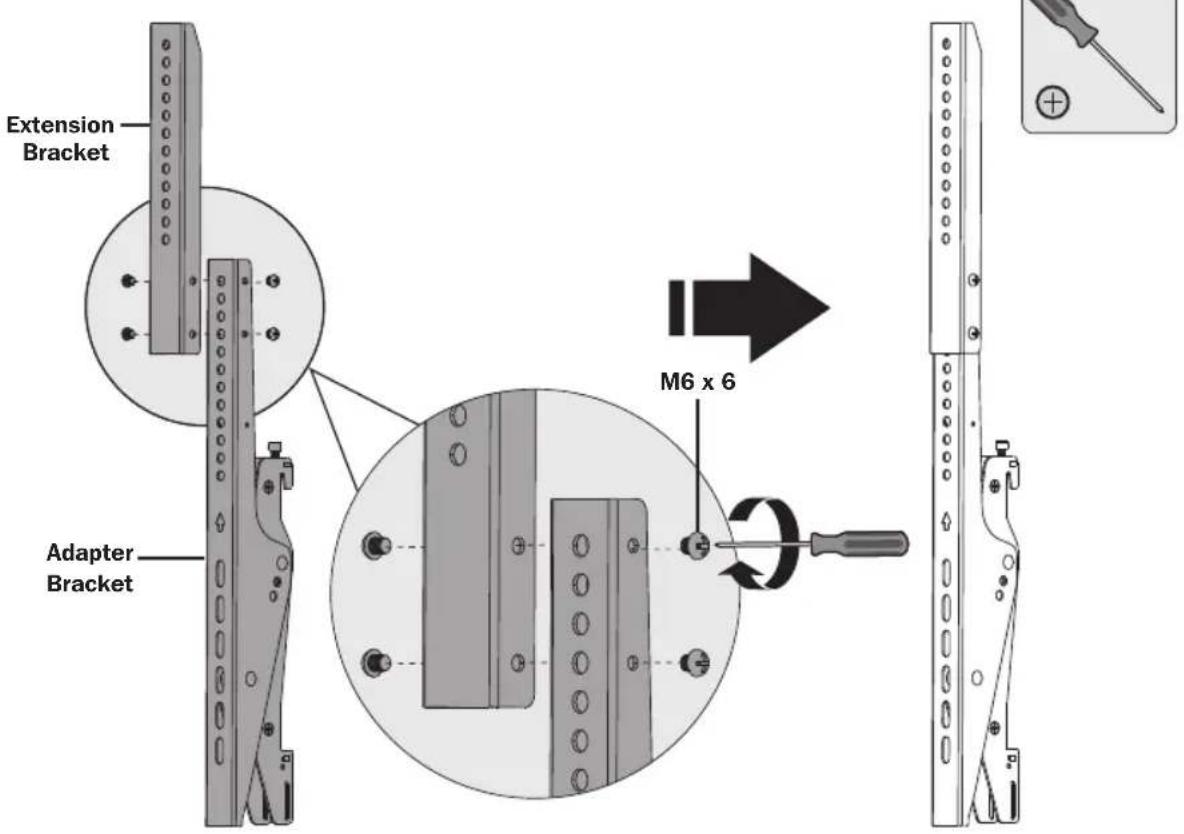

1. Attach Extension Brackets to Adapter Brackets


Extension Bracket Adapter Bracket M6 x 6

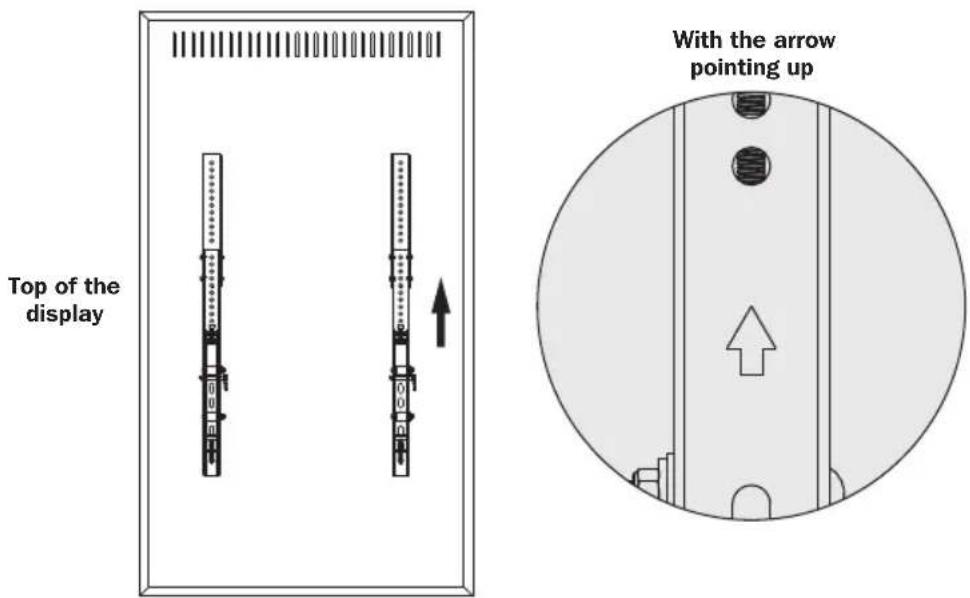

1. Install Adapter Brackets


Top of the display With the arrow pointing up

Note: Choose appropriate screws, washers and spacers (if necessary) according to the type of screen.
- Position the adapter brackets as close as possible to the center of the display.
- Screw the adapter brackets onto the display.

Firmly secure all screws. Do not over-tighten.

Installation

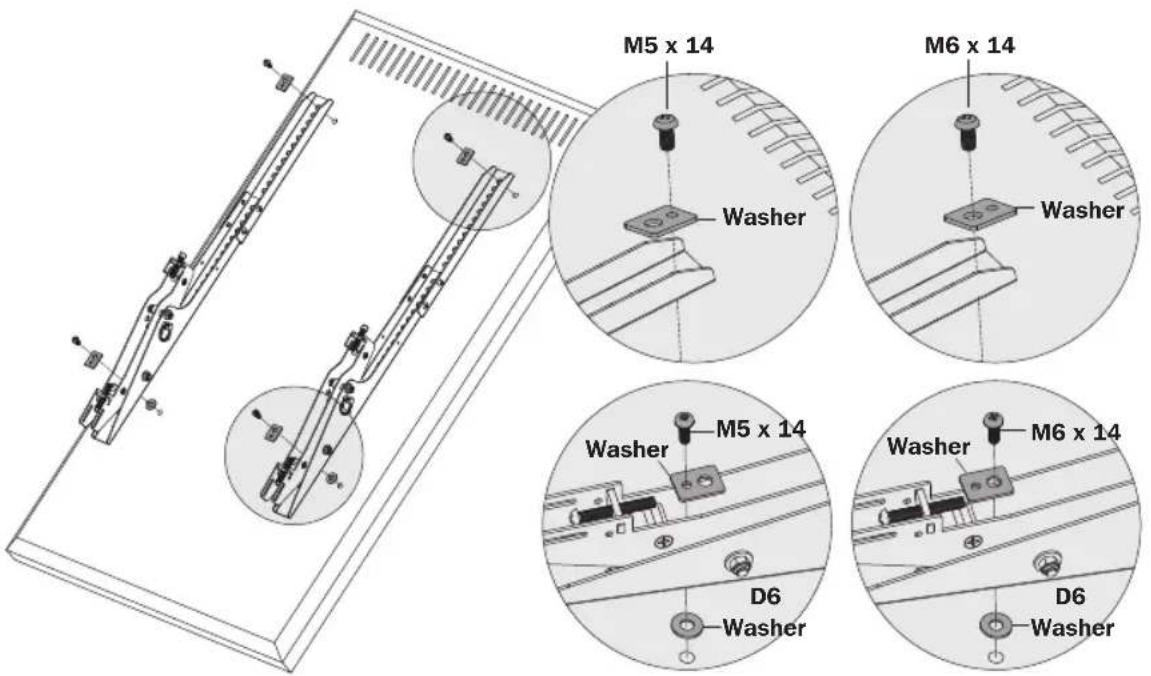

3a. For Flat Back Screen

M5 x 14 M6 x 14 Washer Washer Washer M5 x 14 Washer M6 x 14 D6 Washer D6 Washer

Note: Choose appropriate screws, washers and spacers (if necessary) according to the type of screen.

• Position the adapter brackets as close as possible to the center of the display.
• Screw the adapter brackets onto the display.

Technical diagram showing two types of screw fasteners with check and cross symbols indicating inspection or testing conditions.

firmly secure all screws. Do not over-tighten.

Installation

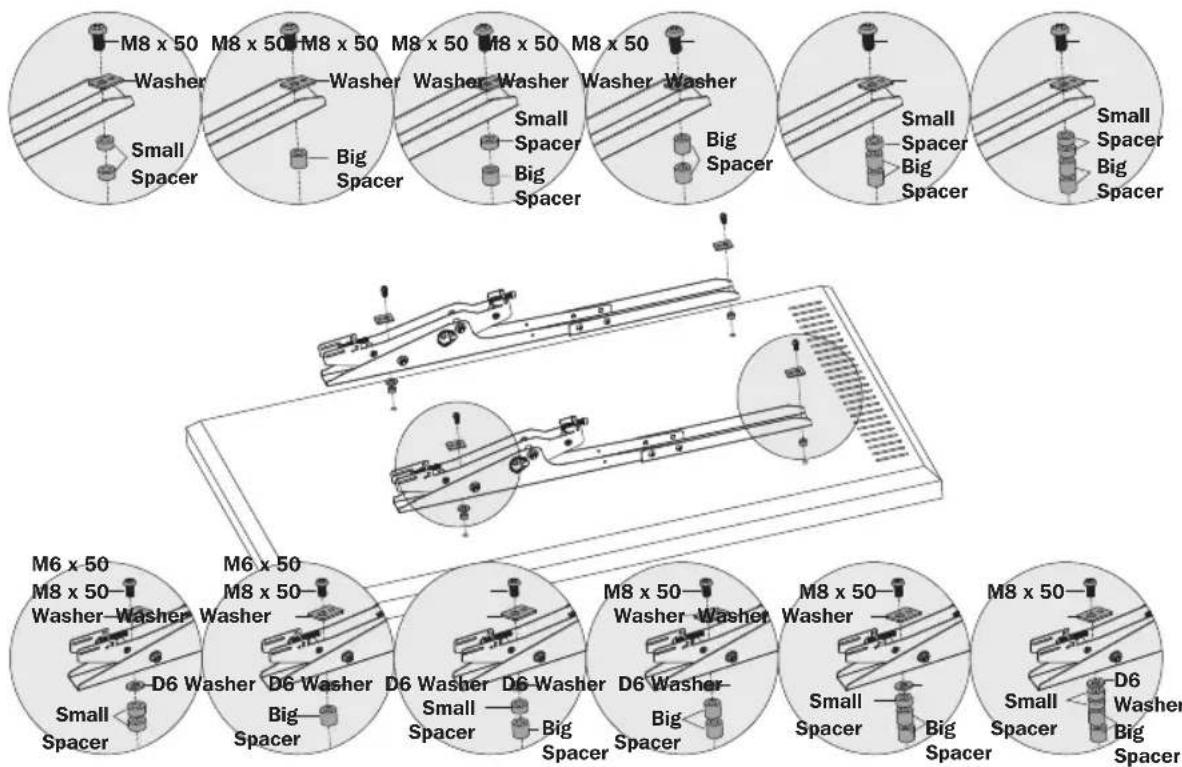

3b. For Non-Standard Back Screen

M8 x 50 Washer Small Spacer M8 x 50 Washer Big Spacer M8 x 50 Washer Small Spacer Big Spacer M8 x 50 Washer Big Spacer M8 x 50 Washer Small Spacer Big Spacer M8 x 50 Washer Big Spacer M8 x 50 Washer Small Spacer Big Spacer M8 x 50 Washer Big Spacer M8 x 50 Washer Small Spacer Big Spacer D6 Washer D6 Washer D6 Washer D6 Washer D6 Washer D6 Washer D6 Washer D6 Washer

Note: Choose appropriate screws, washers and spacers (if necessary) according to the type of screen.

• Position the adapter brackets as close as possible to the center of the display.
• Screw the adapter brackets onto the display.

firmly secure all screws. Do not over-tighten.

Technical diagram showing four different electrical or mechanical symbols with check and cross icons, likely indicating correct and incorrect statuses.

Installation

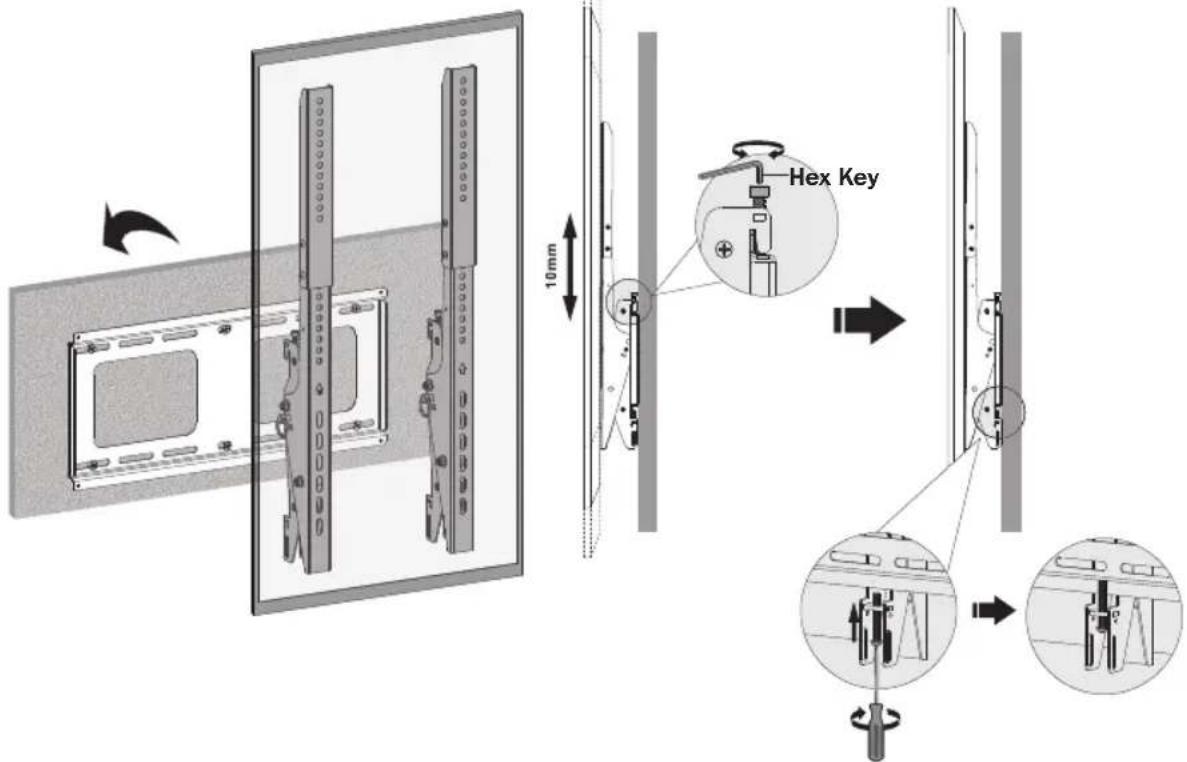

4. Hang Display onto the Wall Plate

Using an assistant or mechanical lifting equipment, hook the display with attached adapter brackets over the top of the mounted wall plate.

Screw to enable precision alignment of multiple screens.

Hex Key 10mm

Tighten the screws as shown to fix the adapter brackets onto the wall plate in place.

Installation

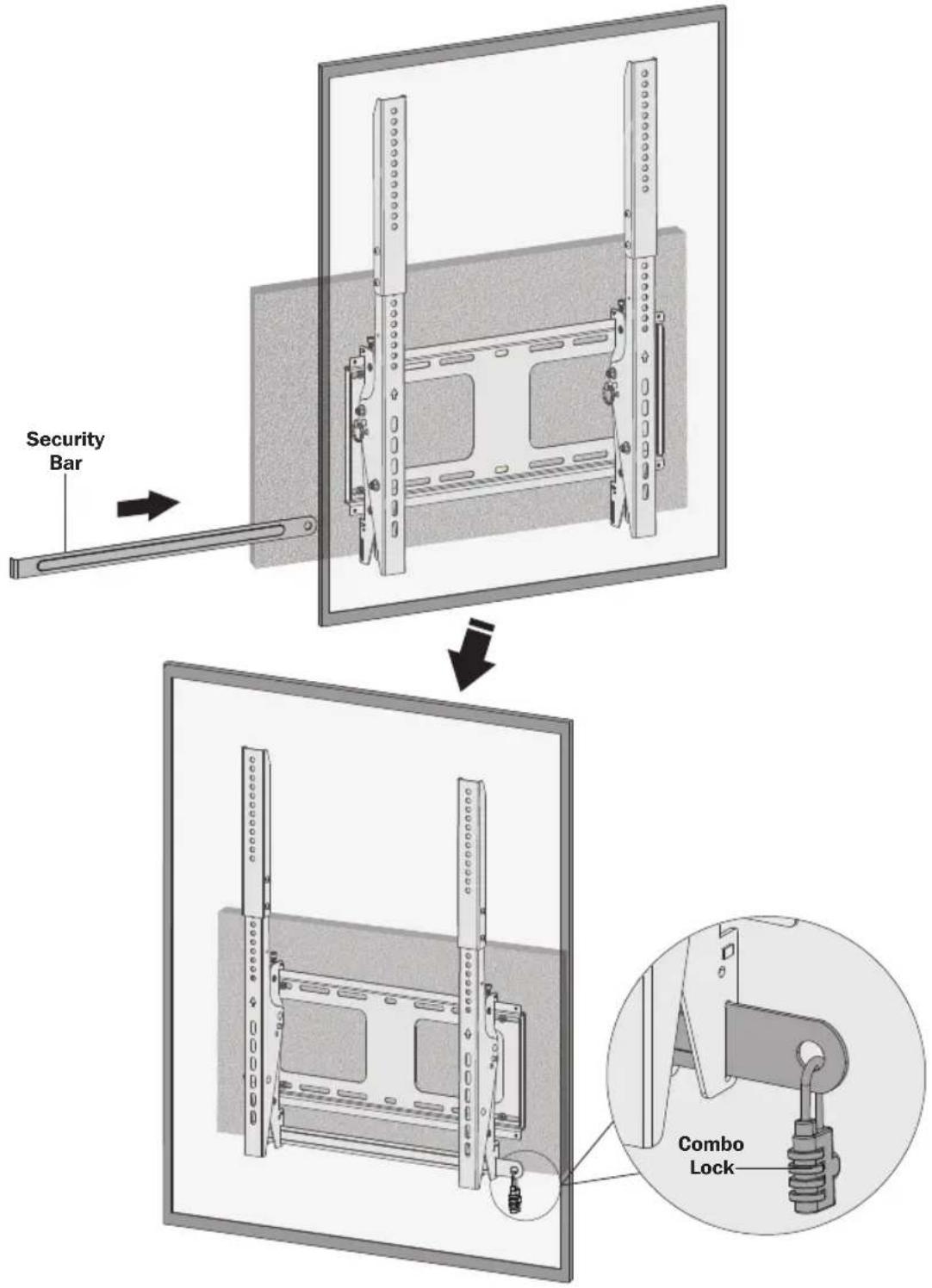

5. Slide Security Bar through the Mounting Brackets and Attach Combo Lock to Secure

Security Bar Combo Lock

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
  • For any additional questions, visit www.triplite.com/support.

Installation

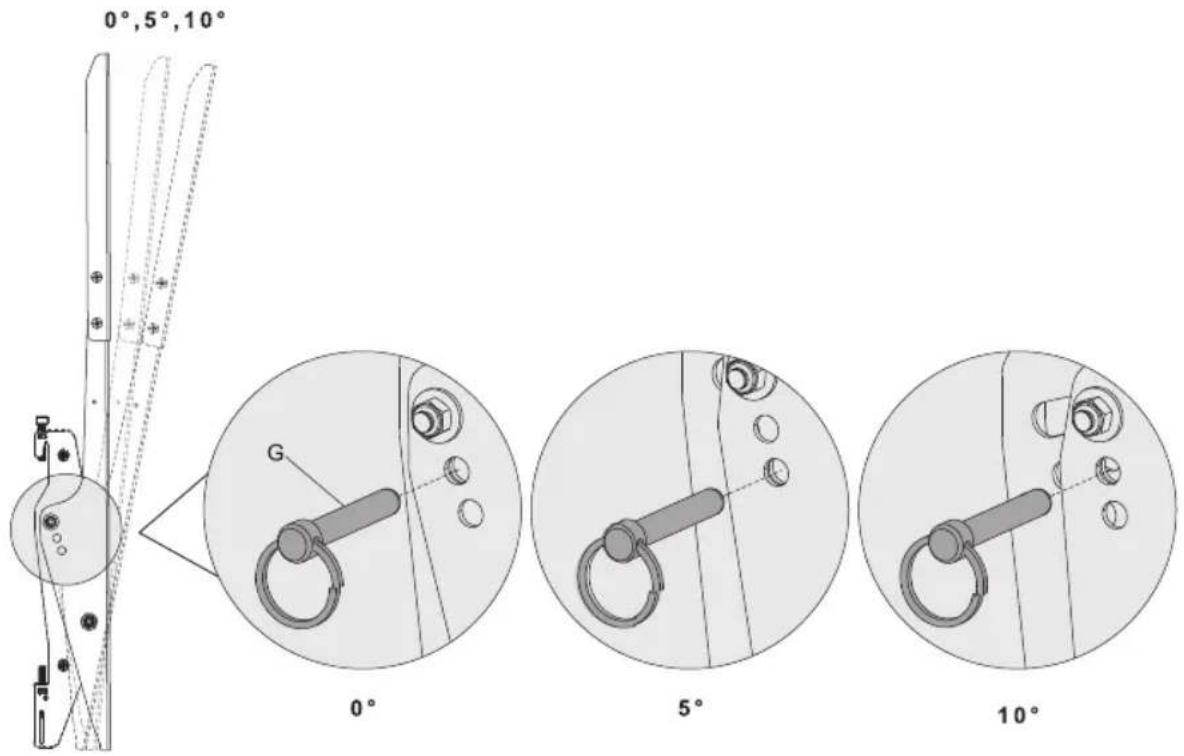

1. Adjustment


0°, 5°, 10° G 0° 5° 10°
