Product Type	Full Motion Outdoor TV Wall Mount
Brand	Tripp Lite
Model	DWM3780XOUT
Movement	Full: tilt, swivel, and extension
Tilt	+10° / -20°
Swivel	±60°
Rotation	±90°
VESA Compatibility	Up to 600 x 400 mm
Maximum Load	68 kg (150 lb)
Material	Steel and alloy
Color	Black
Usage	Outdoor (weather-resistant)
Installation	On wall studs or solid brick/concrete
Cable Management	Yes, with included cable ties
Warranty	5-year limited warranty
Maintenance	Check security every 3 months
Included Parts	Wall mount, adapter brackets, screws, anchors, spacers, hex keys

Frequently Asked Questions - DWM3780XOUT Tripp Lite

What is the maximum weight supported by the DWM3780XOUT mount?

The DWM3780XOUT mount supports a maximum load of 68 kg (150 lb). It is imperative not to exceed this limit to ensure safety.

Is this mount compatible with all TVs?

It is compatible with most TVs complying with VESA standards up to 600 x 400 mm. Check the compatibility of your mounting points before purchase.

Can I install this mount on a drywall wall?

No, this mount must be attached to wall studs or solid brick/concrete. Installation on drywall alone is not secure.

Can the mount be used outdoors?

Yes, this model is specially designed for outdoor use thanks to weather-resistant materials. However, regularly check the condition of the mount.

What tools are needed for installation?

You will need a drill, a bubble level, a stud finder, and the provided hex key. Read the manual carefully before starting.

How to adjust tilt and swivel after installation?

Once the TV is installed, you can adjust the tilt (+10°/-20°) and swivel (±60°) by slightly loosening the adjustment screws, then repositioning the screen and retightening.

What if parts are missing?

Contact Tripp Lite support at tripplite.com/support to obtain replacement parts. All parts are listed in the manual.

How to ensure long-term safety?

It is recommended to check the installation every 3 months: tighten screws if necessary and inspect for any looseness. Call a professional if needed.

Can I use this mount with a curved screen?

Yes, provided that the VESA mounting points are compatible and the total weight does not exceed 68 kg. The curved screen may require additional spacers (not included).

What is the warranty period?

Tripp Lite offers a 5-year limited warranty against defects in materials and workmanship. Keep the proof of purchase for any claims.

USER MANUAL DWM3780XOUT Tripp Lite

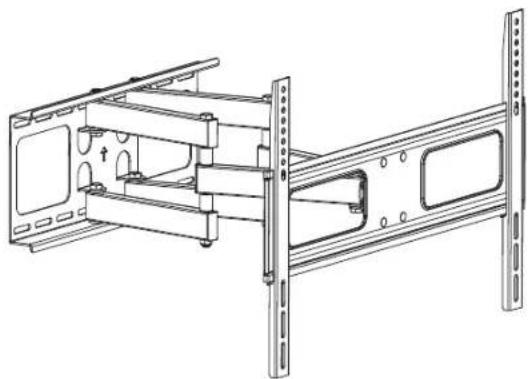

Outdoor Full-Motion TV Wall Mount

Model: DWM3780XOUT

Technical line drawing of a mechanical assembly with metal plates and mounting holes (no text or symbols)

Español 9 • Français 17 • Русский 25 • Deutsch 33

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

200 x 200, 300 x 200 300 x 300, 400 x 200 400 x 300, 400 x 400 600 x 400

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

Important Safety Instructions

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This mounting bracket was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this manual.
• Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
  • Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not over-tighten. Over-tightening can damage the items, greatly reducing their holding power.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Images may differ slightly from actual products.

Parts List

IMPORTANT: Before beginning installation, be sure you have received all the parts listed below. If any parts are missing or faulty, contact Tripp Lite for replacements.

Technical line drawing of a mechanical assembly with two rectangular components and mounting holes (no text or symbols)

A

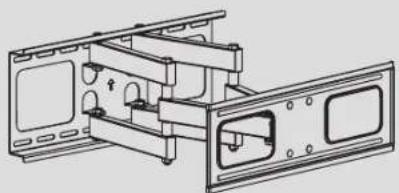

Mount Assembly (x1)

B
Adapter Bracket (x2)

C
Cable Tie (x2)

D
Hex Key (x2)

Package M

M-A
M5x14 Screw (x4)

M-B
M6x14 Screw (x4)

M-C
M6x30 Screw (x4)

M-D
M8x30 Screw (x4)

M-E
M8x50 Screw (x4)

M-F
D6 Washer (x4)

M-G
D8 Washer (x4)

M-H
Small Spacer (x8)

M-I
Large Spacer (x8)

Package W

W-A
Tapping Screw (x6)

W-B
Anchor (x6)

W-C
Washer (x6)

Assembly

1A

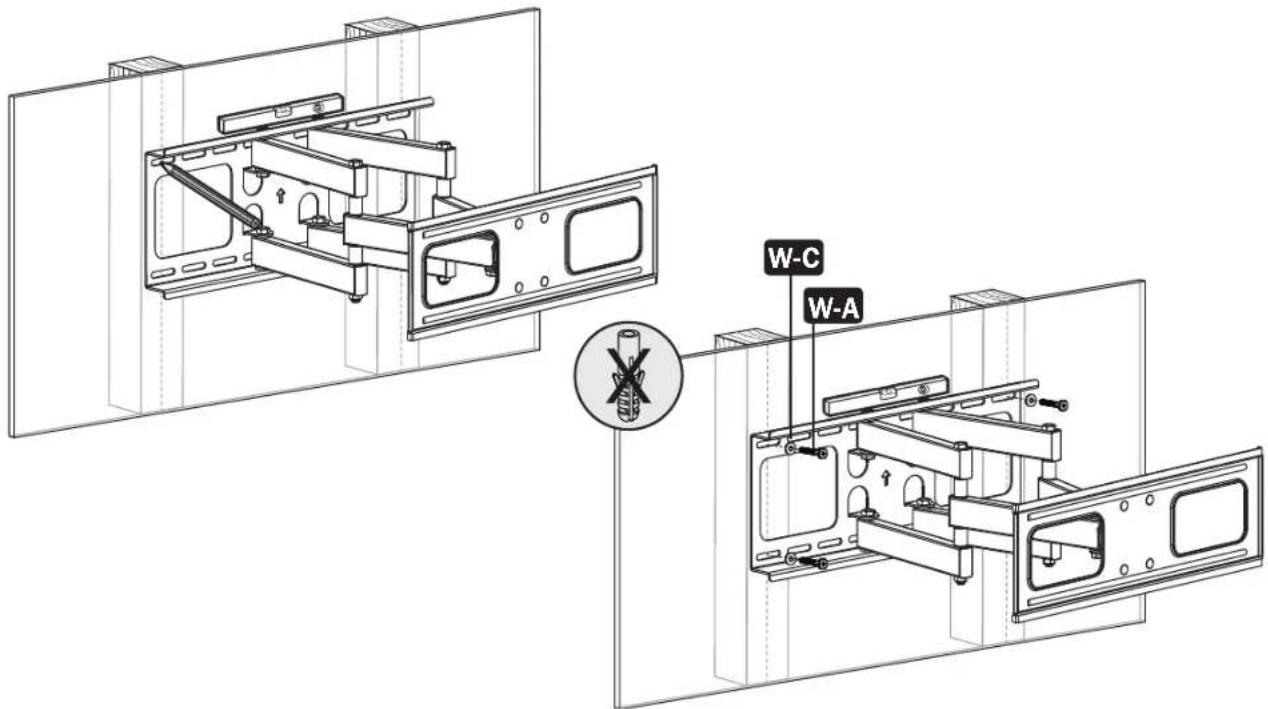

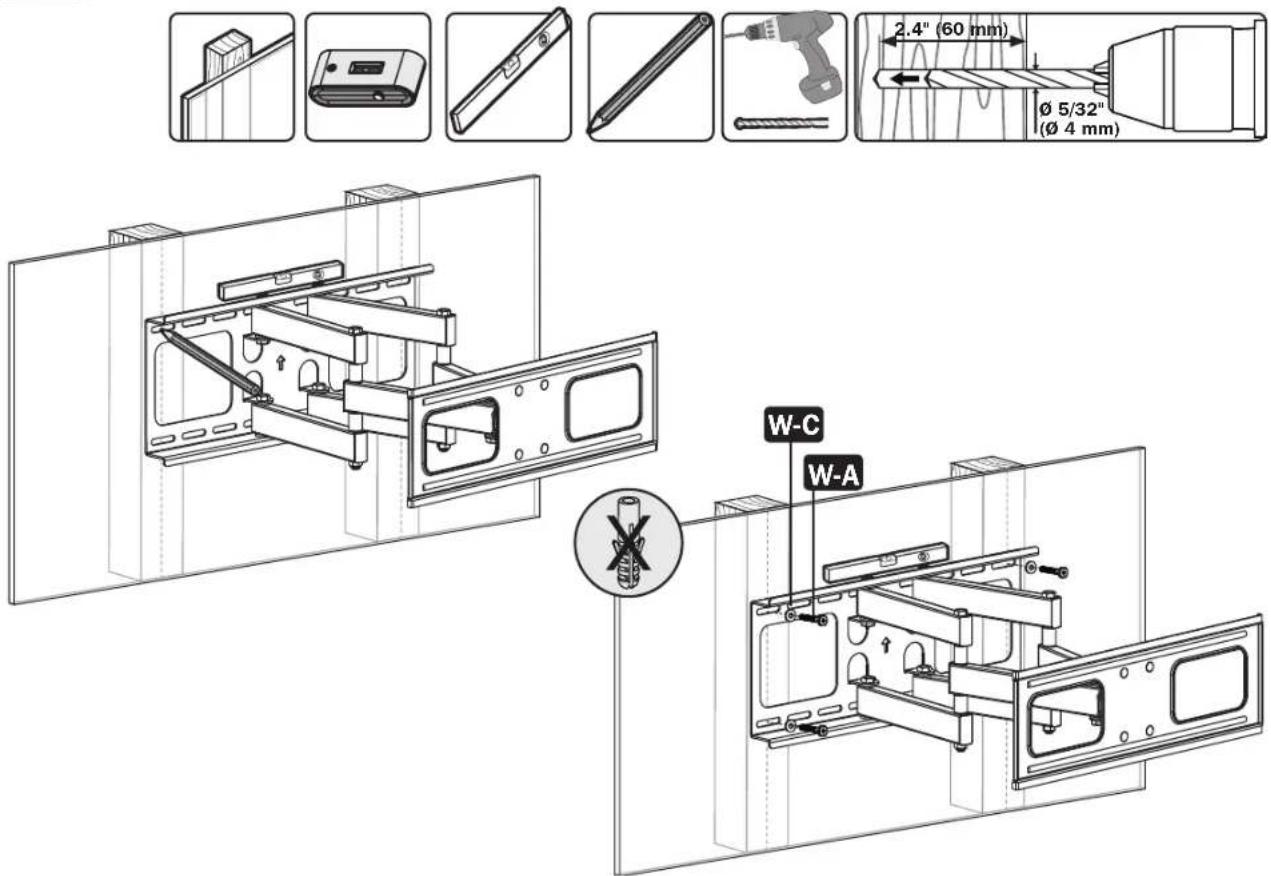

Mount on Wood Stud Wall

Find and mark the exact location of mounting holes

Drill pilot holes Screw the wall

mount onto the wall

WARNING

• Make sure that mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.
  • Installers are responsible to provide hardware for other types of mounting situations.
  • Installers must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

Assembly

1B

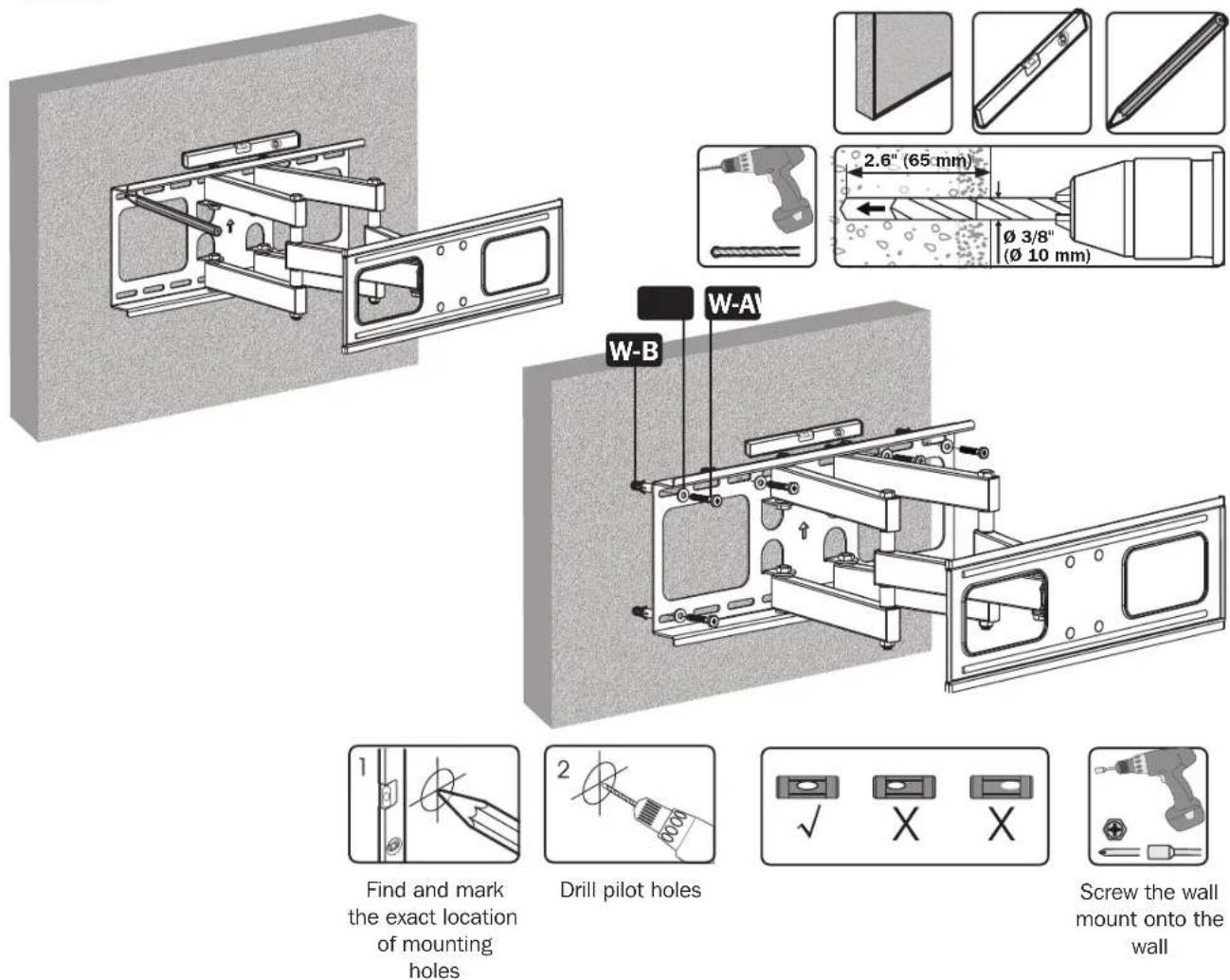

Mount on Solid Brick or Concrete Block

WARNING

• When installing wall mounts onto a concrete masonry unit (also known as a CMU or "cinder block"), verify that the actual concrete thickness is at least 1 3/8" (35 mm) in order to hold the concrete anchors. DO NOT DRILL INTO MORTAR JOINTS! Be sure to mount the assembled wall-mount plate with the included concrete anchors, washers and anchor bolts onto solid sections of the blocks. The solid sections can generally be found 1" (25 mm) toward the middle of the block from either end. An electric drill on a slow setting is suggested to drill the hole rather than a hammer drill in order to avoid breaking out the back of the hole when entering a hollow section.
  • Installers must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

Assembly

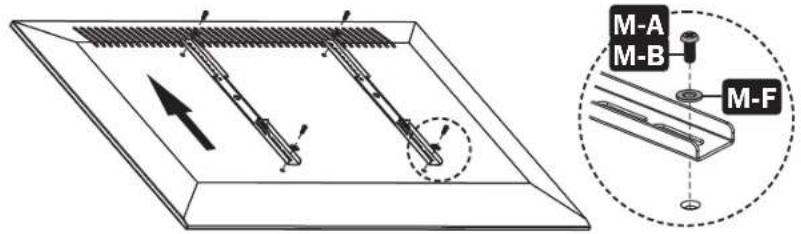

2 Install Adapter Brackets

Illustration of a screwdriver with a plus sign, no text or symbols present

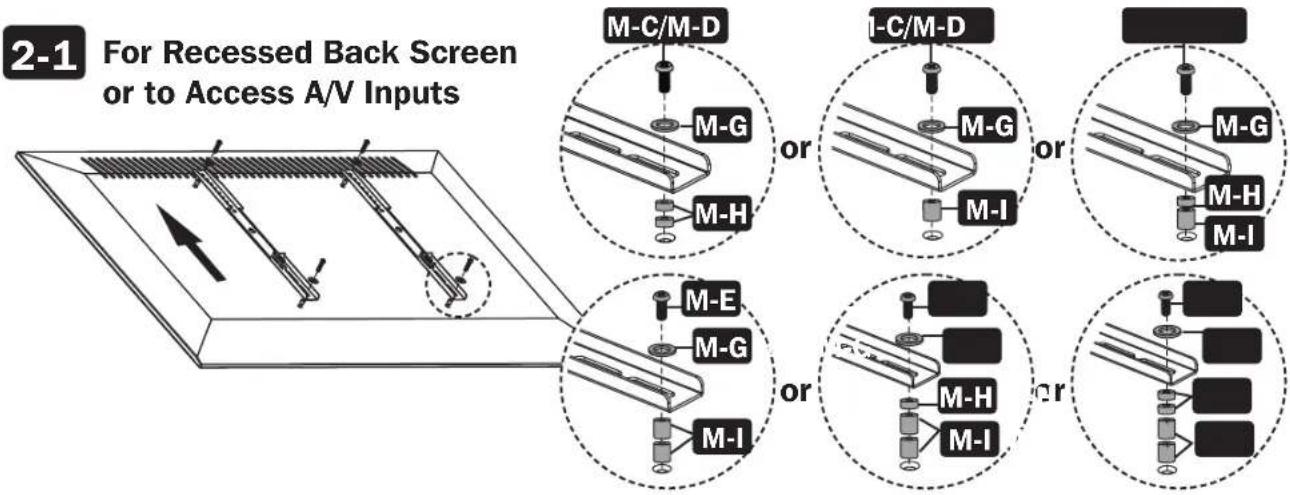

2-1 For Flat Back Screen


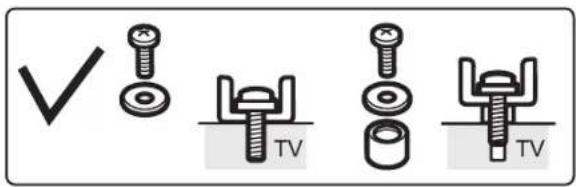

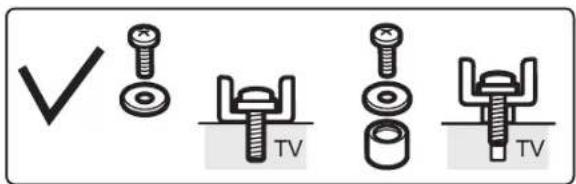

Note: Choose appropriate screws, washers and spacers (if necessary) according to the type of screen.

• Position the adapter brackets as close as possible to the center of the display.
• Firmly secure the adapter brackets onto the display using the screws and any other necessary hardware components included with the unit.

Do not over-tighten screws.

Assembly

3

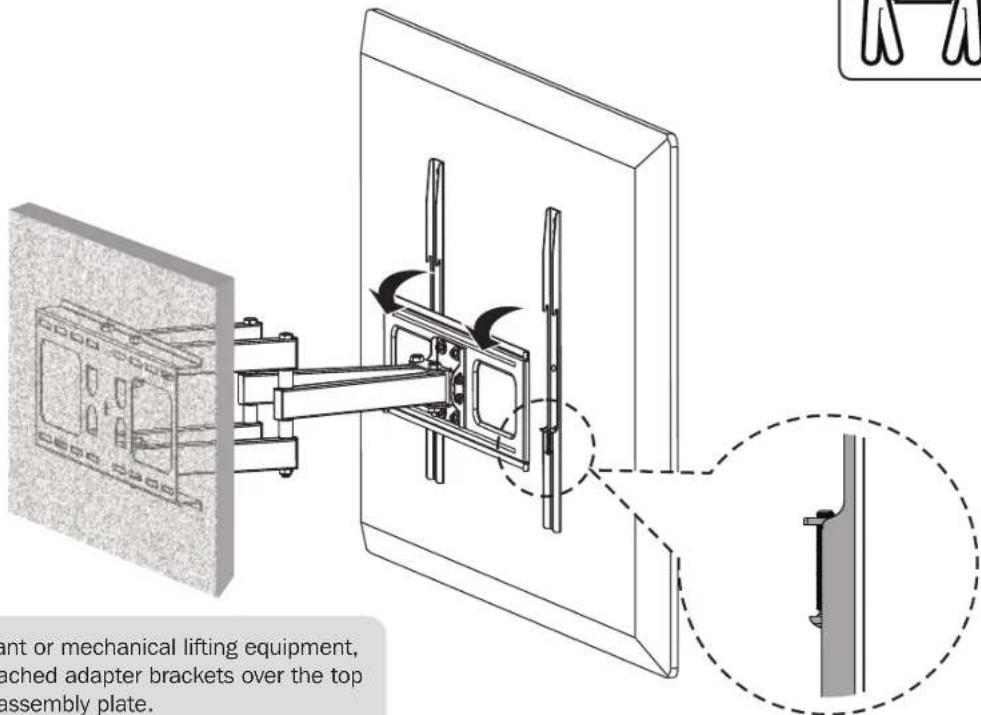

Hang Display onto the Wall Mount

With the aid of an assistant or mechanical lifting equipment, hook the display with attached adapter brackets over the top of the wall mount's arm assembly plate.

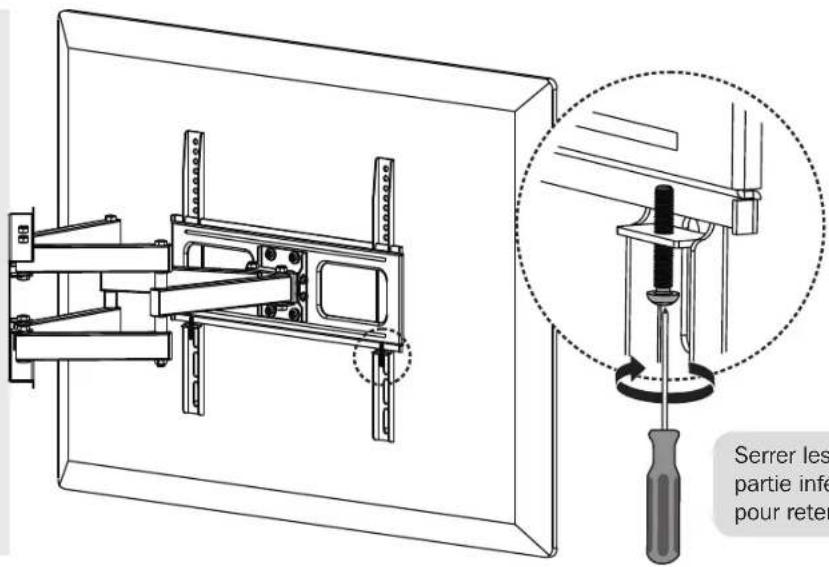

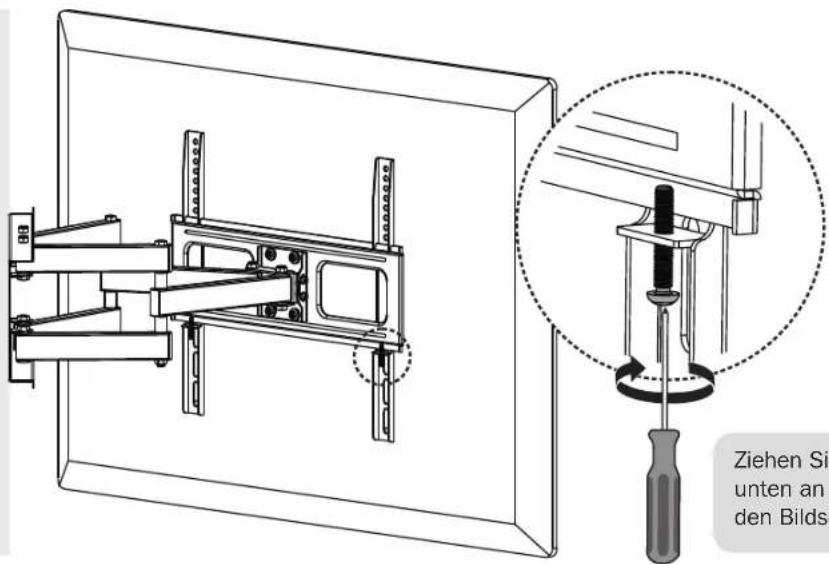

4

Hang Display onto the Wall Mount

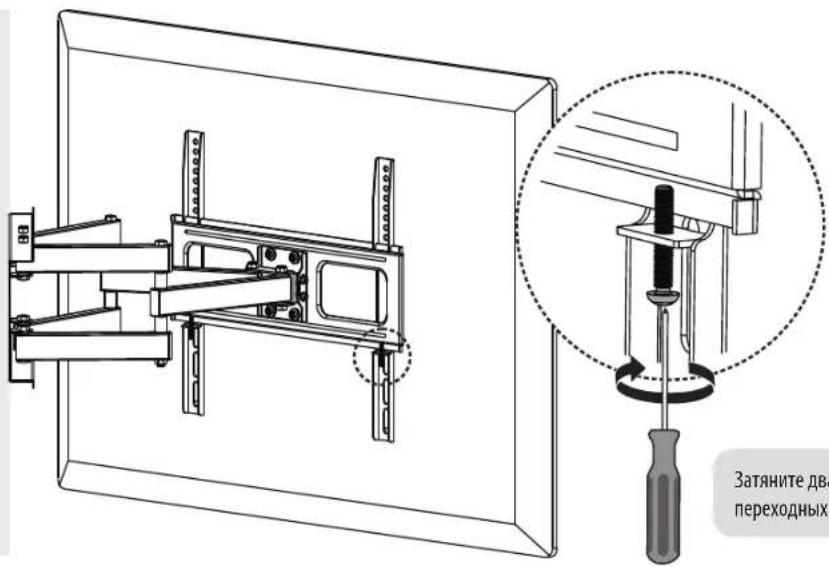

Tighten the two safety bolts on the bottom of the adapter brackets to secure the unit.

Assembly

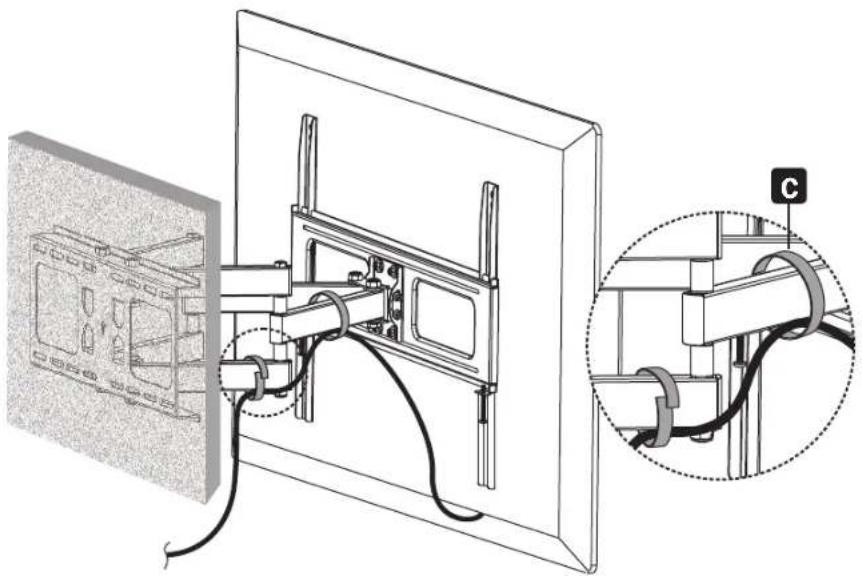

5 Cable Management

Technical diagram showing cable installation on a wall-mounted device, with an inset close-up of the cable being inserted (no text or symbols present)

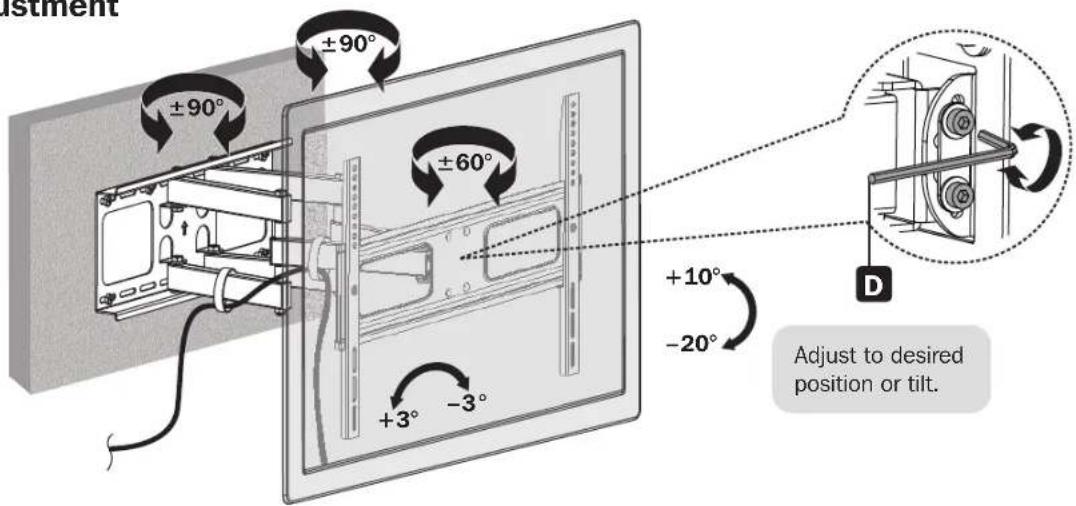

6 | Adjustment

Maintenance

• Check to ensure mount is secure and safe to use at regular intervals (at least every three months).
• Please visit tripplite.com/support if you have any questions.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20-07-197 93-3006 Fm4

Technical line drawing of a mechanical assembly with metal frames and mounting holes (no text or symbols)

English 1 • Français 17 • Русский 25 • Deutsch 33

1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support

Technical line drawing of a mechanical assembly with two rectangular components and mounting holes (no text or symbols)

A

Illustration of a screwdriver with a plus sign, no text or symbols present

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Pure mechanical diagram showing a lever mechanism inside a rectangular frame, with no text or symbols present.

Technical diagram showing cable installation on a wall-mounted device, with an inset close-up of the cable being inserted (no text or symbols present)

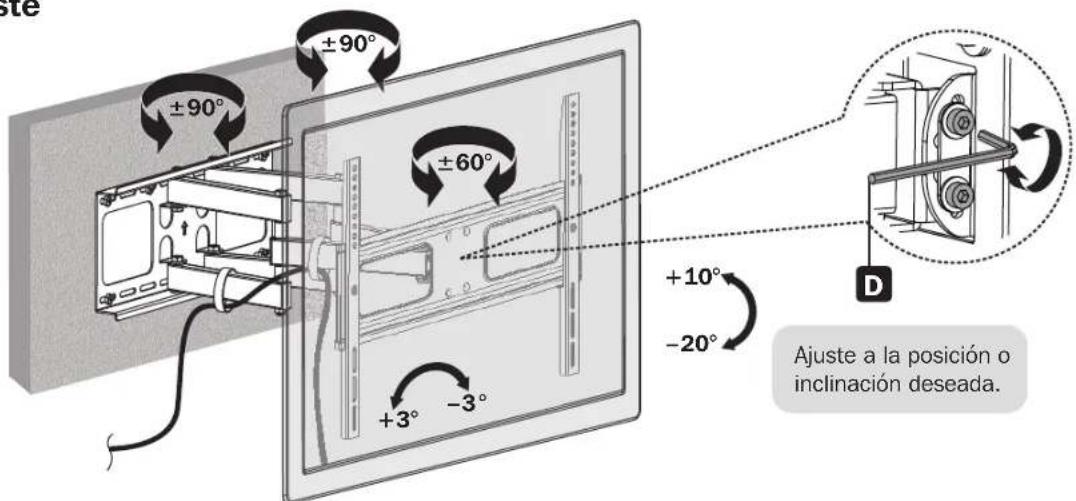

6

Ajuste

1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support

20-07-197 93-3006 Fm4

Technical line drawing of a metal shelving unit with multiple compartments and mounting holes (no text or symbols)

English 1 • Español 9 • Русский 25 • Deutsch 33

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDIQUÉE. CELA RISQUERAIT DE CAUSER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS!

200 x 200, 300 x 200 300 x 300, 400 x 200 400 x 300, 400 x 400 600 x 400

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical assembly with two rectangular components and mounting holes (no text or symbols)

A

Diagram of a mechanical assembly with two rods and a circular component, no text or symbols present

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols
        B
        C
        D
        E
    end
    subgraph Output
        F
    end

Illustration of a screwdriver with a plus sign, no text or symbols present

Technical diagram showing cable installation on a wall-mounted device, with an inset close-up of the cable being inserted (no text or symbols present)

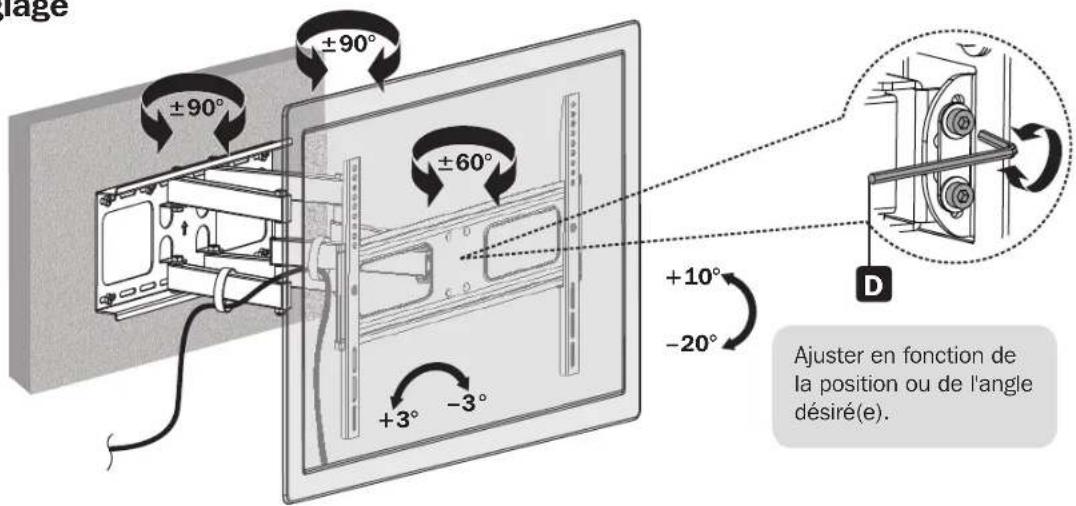

6

Réglage

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20-07-197 93-3006 Fm4

Technical line drawing of a metal shelving unit with mounting brackets and structural supports (no text or symbols)

English 1 • Español 9 • Français 17 • Deutsch 33

1111 W. 35th Street, Chicago, IL 60609 USA - tripplite.com/support

Technical line drawing of a mechanical assembly with two rectangular components and mounting holes (no text or symbols)

A

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Pure mechanical assembly diagram showing two components mounted on a base plate with an arrow indicating direction (no text or symbols)

Illustration of a screwdriver with a plus sign, no text or symbols present

Technical diagram showing cable installation on a wall-mounted device, with an inset close-up of the cable being inserted (no text or symbols present)

6

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

2010-3951-2016 Test

Benutzerhandbuch

Technical line drawing of a mechanical assembly with metal plates and mounting holes (no text or symbols)

English 1 • Español 9 • Français 17 • Русский 25

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical assembly with two rectangular components and mounting holes (no text or symbols)

A

Adapter-Halterung (x2)

B

Adapterwinkel (x2)

C

Kabelbinder (x2)

D

Inbusschlüssel (x2)

Paket M

M-A

M5x14 Schraube (x4)

M-B

M6x14 Schraube (x4)

M-C

M6x30 Schraube (x4)

M-D

M8x30 Schraube (x4)

M-E

M8x50 Schraube (x4)

M-F

D6 Beilagscheibe (x4)

M-G

D8 Beilagscheibe (x4)

M-H

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Pure technical diagram of mechanical components inside a rectangular frame, without any text, numbers, or symbols.

Illustration of a screwdriver with a plus sign, no text or symbols present

Technical diagram showing cable installation on a wall-mounted device, with an inset close-up of the cable being inserted (no text or symbols present)

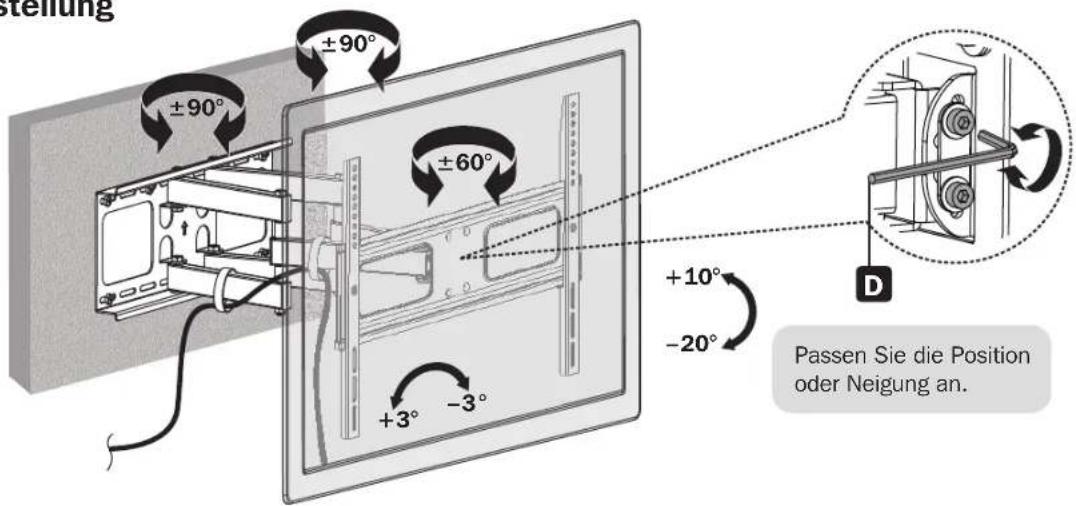

6
