USER MANUAL B005DPUA4 Tripp Lite

• DisplayPort monitor capable of supporting the highest resolution of any computer in the installation

• USB keyboard and mouse

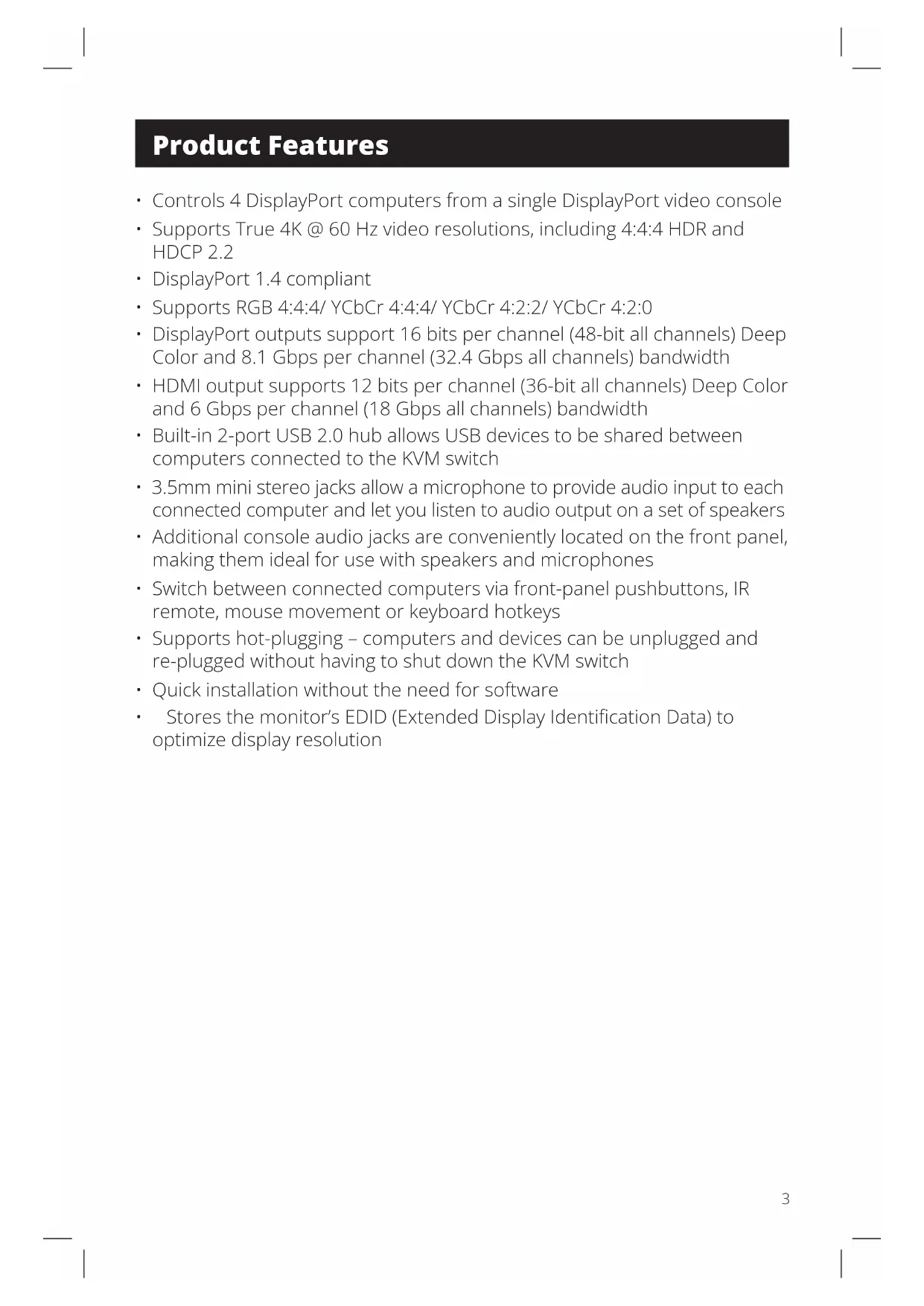

• Controls 4 DisplayPort computers from a single DisplayPort video console

• Supports True 4K @ 60 Hz video resolutions, including 4:4:4 HDR and HDCP 2.2

• DisplayPort outputs support 16 bits per channel (48-bit all channels) Deep Color and 8.1 Gbps per channel (32.4 Gbps all channels) bandwidth

• HDMI output supports 12 bits per channel (36-bit all channels) Deep Color and 6 Gbps per channel (18 Gbps all channels) bandwidth

• Built-in 2-port USB 2.0 hub allows USB devices to be shared between computers connected to the KVM switch

• 3.5mm mini stereo jacks allow a microphone to provide audio input to each connected computer and let you listen to audio output on a set of speakers

• Additional console audio jacks are conveniently located on the front panel, making them ideal for use with speakers and microphones

• Switch between connected computers via front-panel pushbuttons, IR remote, mouse movement or keyboard hotkeys

• Supports hot-plugging – computers and devices can be unplugged and re-plugged without having to shut down the KVM switch

• Quick installation without the need for software

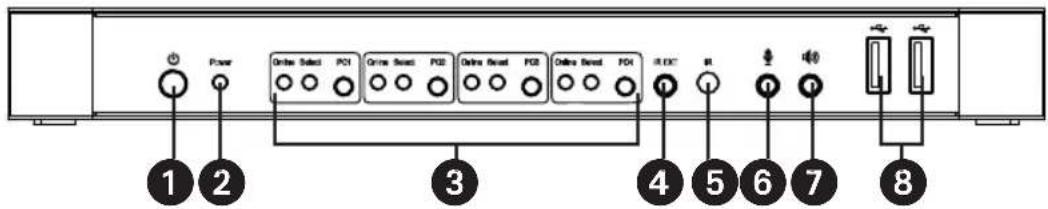

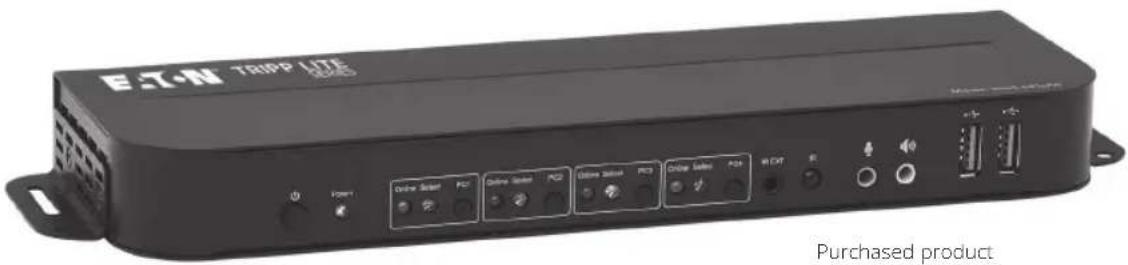

Power Indicator – Illuminates red to signal the DC power supply is connected to an outlet and the KVM switch is turned on.

Input Selector – Illuminates blue to indicate whether PC1, PC2, PC3 or PC4 has been selected. SelectLEDsashinaloopduringautomatic switching mode. Online LEDs illuminate when the corresponding USB-B port is connected.

IR EXT – Connect the included IR Extender for IR signal reception from the included IR Remote Control.

IR – Signal reception point for the IR Remote Control.

3.5 mm Microphone – Connect a microphone.

3.5 mm Stereo – Connect a stereo audio device.

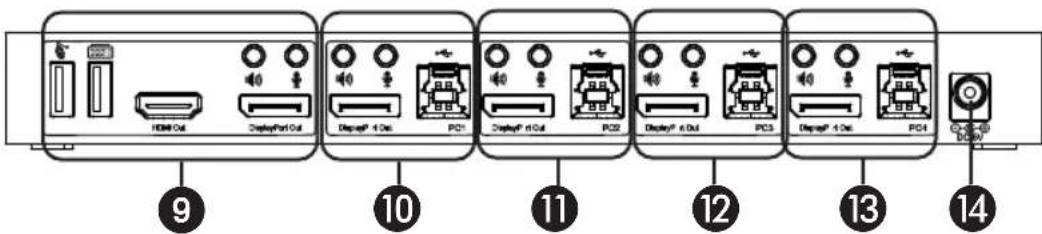

Panel Descriptions Rear Panel

PC1 Input – Connect to a computer’s DisplayPort, USB, stereo audio and microphone ports.

PC2 Input – Connect to a second computer’s DisplayPort, USB, stereo audio and microphone ports.

PC3 Input – Connect to a third computer’s DisplayPort, USB, stereo audio and microphone ports.

PC4 Input – Connect to a fourth computer’s DisplayPort, USB, stereo audio and microphone ports.

DC 5V Input – Connect the included 5V/3A DC power supply.

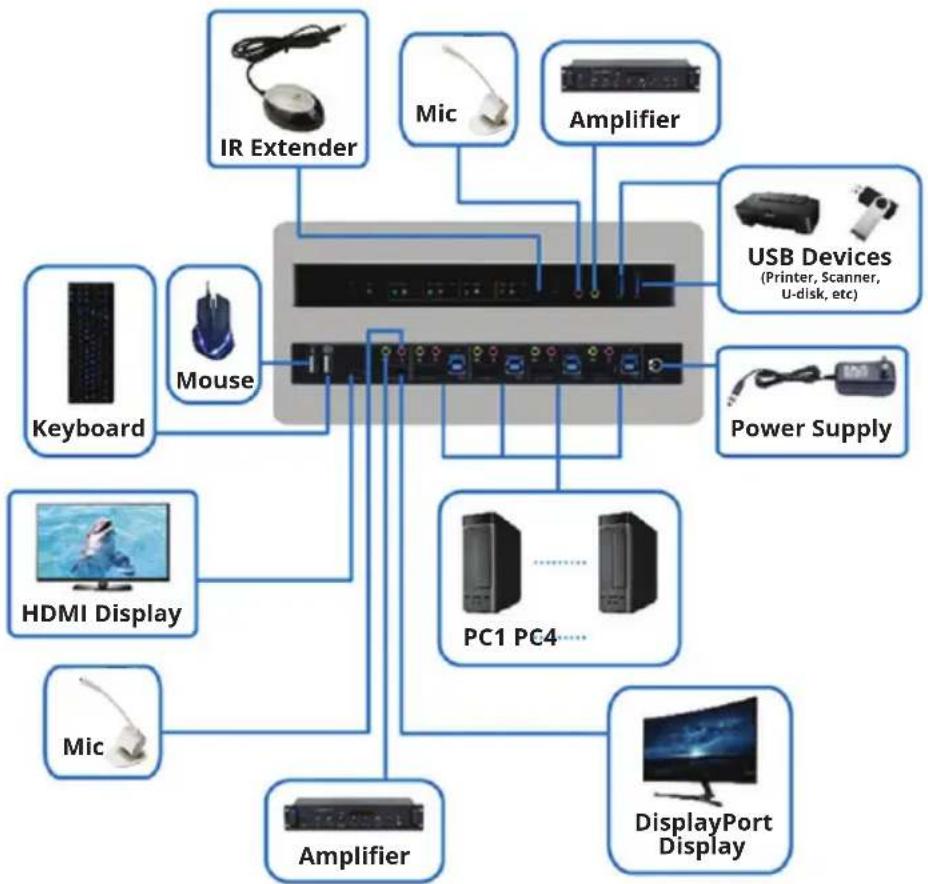

Installation and Operation Refer to the following steps and diagram to set up your KVM switch installation. Note: Before making any connections, make sure power to all devices connected to the KVM switch is turned o. Unplug the power cords of any computers that have the Keyboard Power On function.

1. Connect computers to the USB-B input ports using USB cables. Connect

the computers’ microphone and stereo audio ports using 3.5 mm audio cables. Connect computers to the “DisplayPort In” ports using DisplayPort cables.

2. Connect a keyboard and mouse to the USB-A ports on the rear

panel.Connectamicrophoneandampliertothemicrophoneand stereo audio ports using 3.5 mm audio cables. Connect a monitor to “DisplayPort Out” using a DisplayPort cable (maximum: 2 m) or to “HDMI Out” using an HDMI cable. Note: When either “DisplayPort Out” or “HDMI Out” is connected, video is transmitted by the connected port automatically. When both ports are connected, the DisplayPort takes precedence. IR Extender Mic Amplier Keyboard Mouse HDMI Display Mic Amplier DisplayPort Display PC1 PC4 Power Supply USB Devices (Printer, Scanner, U-disk, etc)7 Installation and Operation

3. Connect the included DC power supply, and press the Power button. The

Power LED will illuminate. When computers are connected to the PC1, PC2, PC3 and PC4 ports, the Online LEDs will illuminate.

4. Press the buttons on the front panel to select the desired computer.

The Select LED will illuminate to indicate which computer is currently selected. The monitor will show the corresponding image, and the selected computer can by controlled via keyboard and mouse.

5. The included IR Remote Control works the same as the pushbuttons:

a. Forinput:“1”speciesPC1,“2”speciesPC2,“3”speciesPC3and“4” speciesPC4. b. For loop switching: Order is PC1>PC2>PC3>PC4>PC1…

6. USB peripherals, such as printers, scanners and thumb drives, can be

connected to the front-panel USB-A ports.8 Special Function Operation

1. Mouse Traversal Function – Place the mouse on the far right of the

monitor, and continue to slide it to the right for 2 seconds. The KVM switch will automatically switch to the next port. Switching order is PC1>PC2>PC3>PC4>PC1…

2. USB-B Detection Switching Function:

a. When the unit detects that a computer is connected to the USB-B port, the unit immediately switches to that computer, and the corresponding Online and Select LEDs illuminate. For instance, if PC1 is already connected, then PC2 becomes connected via USB-B, and the KVM will automatically switch to PC2. b. WhenthecurrentlyselectedcomputerispoweredoortheUSB cable is dialed out, the KVM automatically switches to the next computer with the power on and the USB port connected.

• or ↓ Switch to the next port 2 [Scroll Lock]++ [Scroll Lock] + ← or ↑ Switch to the previous port 3 [Scroll Lock]++ [Scroll Lock] + [X]² Switch to PC "X" 4 [Scroll Lock]++ [Scroll Lock] + [S]³ Enable Automatic Switching (Default: 15 seconds) 5 [Scroll Lock]++ [Scroll Lock] + [I] + [N]

Special Function Operation Notes:

1) Hotkeys are not case-sensitive.

2) A noise sounds when switching between PC1 and PC2.

¹ “++” means to press [Scroll Lock] twice in rapid succession. For example: [Scroll Lock] ++ [Scroll Lock] + [1]” means to press the Scroll Lock button twice in rapid succession and then press the number 1 button. The detection period between each hotkey code is 5 seconds. If the Scroll Lock button is pressed the rst time and 5 seconds pass before the Scroll Lock button is pressed again, the hotkey code will be invalid. ² “X” indicates the PC input. For example, to switch to PC2, the hotkey combination is [Scroll Lock] ++ [Scroll Lock] + [2]. ³ Turning on this function will cause DisplayPort, microphone and speaker ports to enter automatic switching mode without USB. Press any key (except Spacebar) to exit to the port used prior to the automatic switching sequence. Press Spacebar to stay at the port currently in use. When automatic switching mode is enabled, the corresponding “Select” LED of the port currently in use will ash.

“N” indicates the number of switching interval, which can be 5 seconds to 999 seconds.

“1” means On, “0” means O.

This mode only relates to hotkey function #4 and #6.10 Specications Connectors KVM Connectors (Female) USB 3.2 Gen 1-B x4 (Rear) DisplayPort x4 (Rear)

3.5 mm Stereo x4 (Green, Rear)

3.5 mm Stereo x4 (Pink, Rear)

Console Connectors (Female) USB 2.0-A x2 (Rear) DisplayPort x1 (Rear) HDMI x1 (Rear) 3.5mm Stereo x2 (Green, 1 Front, 1 Rear) 3.5mm Stereo x2 (Pink, 1 Front, 1 Rear) USB Hub Connectors (Female) USB 3.2 Gen 1-A x2 (Front) Video Resolution Maximum Resolution 4K x 2K @ 60 Hz (4K UHD) Operating Bandwidth HDMI Bandwidth 18 Gb DisplayPort Bandwidth 32.4 Gb Environmental Operating Temperature Range 32° ~ 113°F (0° ~ 45°C) Operating Humidity Range 10% ~ 85% RH (No Condensation) Storage Temperature Range 14° ~ 176°F (-10° ~ 80°C) Storage Humidity Range 5% ~ 90% RH (No Condensation) Power Requirement External Power Supply DC 5V/3A Power Consumption (Max) 12W ESD Protection Human Body Model +/- 8kV (Air Gap Discharge) +/- 4kV (Contact Discharge)11 Warranty 3-Year Limited Warranty We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite. Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplicationorhasbeenalteredormodiedinanyway. EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser. EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT,EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.Specically,wearenot liableforanycosts,suchaslostprotsorrevenue,lossofequipment,lossofuseofequipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise. Eatonhasapolicyofcontinuousimprovement.Specicationsaresubjecttochange without notice.13 Manual del Propietario El producto comprado puede diferir de la imagen. Modelo: B005-DPUA4 KVM DisplayPort 1.4 de 4 Puertos Video 4K, Audio y Compartido de Periféricos Español 1 Français XX РусскийXX Deutsch XX Italiano XX English 1 Français 25 Deutsch 37 Italiano 4914

6. [Scroll Lock]++ [Scroll Lock] + [B]

"1" signica On, "0" signica O.
