Stone - Smartphone Konrow - Free user manual and instructions

Brand	Konrow
Model	Stone
Product type	Smartphone
Power supply	Li-ion battery 3.7 V / 2700 mAh, charging via micro USB
Standby time	Not specified (estimated: approx. 200 h)
Talk time	Not specified (estimated: approx. 6 h)
Dual SIM	Yes, two slots for standard SIM cards
Internal memory	Not specified (expandable via microSD up to 16 GB)
Display	Color, size not specified
Rear camera	Yes, resolution not specified
Video camera	Yes, video recording
FM radio	Yes, requires earphones as antenna
Bluetooth	Yes
Connectors	Micro USB port, 3.5 mm headphone jack
Water resistance	Yes, rear screwed cover with sealing gasket
Box contents	1 phone, 1 power adapter, 1 headset kit, 1 user manual
Maintenance	Clean with a soft dry or slightly damp cloth
Head SAR	0,339 W/kg
Body SAR	0,347 W/kg
Manufacturer warranty	Valid in metropolitan France, excluding abnormal use
Manufactured in	PRC (China)

Frequently Asked Questions - Stone Konrow

How to insert a SIM card into the Konrow Stone?

Turn off the phone, unscrew the two screws of the back cover using a screwdriver, remove the cover and battery carefully to not damage the sealing gasket. Insert the SIM card into the appropriate slot (SIM1 or SIM2) respecting the orientation. Replace the battery, cover, and screw back tightly.

How to charge the Stone's battery?

Use the provided micro USB cable and power adapter. Connect the cable to the phone and the adapter to a power outlet. The first charge should last 5 to 8 hours. Unplug when the battery is full. Use only the provided adapter.

Is the Konrow Stone waterproof?

Yes, it is designed to be waterproof thanks to its screwed back cover and protection gasket. Make sure both screws are tightly fastened and the USB port cover is closed before any exposure to water.

How to lock and unlock the keypad?

To unlock, press any key then hold the * key. To lock, press the menu key then *. You can also set a password in the security settings.

How to configure dual SIM?

Go to the 'Dual SIM settings' menu. You can set the default SIM for calls, SMS, and data, as well as the name of each SIM. The phone allows you to use two lines simultaneously, but not both in a call at the same time.

How to use the FM radio?

Plug in the earphones (they serve as antenna). Open the FM Radio application. Use the left/right directional keys to search for channels manually or automatically. Press OK to play/pause. Volume is adjusted with the * and # keys.

What is the SAR of this phone?

The SAR (Specific Absorption Rate) is 0,339 W/kg at the head and 0,347 W/kg at the body, in compliance with the European standard limiting to 2 W/kg.

What to do if I forget my lock password?

Forgetting the password permanently locks the phone, even a reset cannot fix it. Write down your password in a safe place. The default password is 1122 for phone and SIM lock.

What are the conditions of the Konrow warranty?

The warranty applies in metropolitan France for normal use. It does not cover damage caused by a fall, shock, improper immersion, use of non-provided accessories, disassembly, or modification. Normal wear (battery, screen) is excluded.

How to replace the Stone's battery?

The battery is removable. Turn off the phone, unscrew the back cover, remove the old battery and insert a new battery of model Stone Li-ion 3.7V / 2700 mAh. For replacement, contact your dealer's customer service.

USER MANUAL Stone Konrow

Black and red portable mobile phone with a digital display showing a scenic mountain landscape (no visible text or symbols on the device body)

Guide d'utilisation

Make New OK OK OK IKMPCO IMPLACEMENT SIM 1 IMPLACEMENT SIM 2

Red and black photo of a mobile phone case with visible app interface and control buttons

KONIOW • An open book with a white book • Open your books on the • Open your books in the open book • Open your books in the open book • Open your books in the open book

KONROW 1 2 ABC 3 DEF 4 CHI 5 NC 6 WNO 7 PCPS 8 TUN 9 WKYZ * + 0 - # 2

Warning symbol with a sine wave inside a triangle, indicating sound or audio hazard.

for purchasing Stone Mobile. You will find all the information regarding the use of this cellphone in this guide.

Giftbox content

• 1 mobile
• 1 charger
• 1 user guide
• 1 handsfree kit

NOTE: The packaging materials, such as the adhesive tape, plastic film, string and labels, are not part of this product.

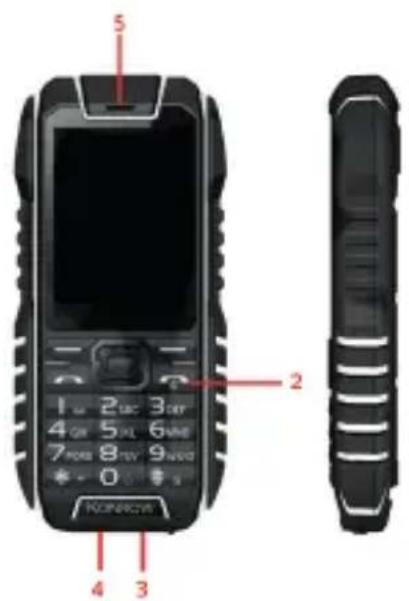

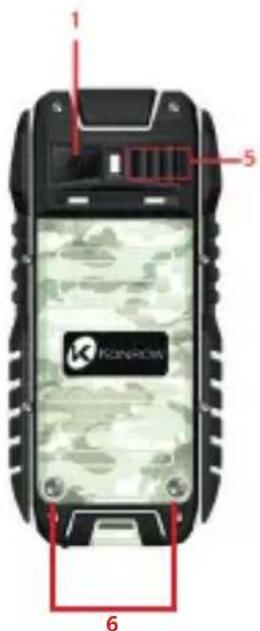

1. Description of the mobile

1 - Rear camera & flash
2 - ON/OFF button
3 - USB Handsfree
4 - Micro USB port
5 - Speakers
6 - Screw to open and close. A tightly closed to seal your device, also confirming the gasket is in place.

5 2 4 3 3 KONIKO VR

1 5 6

Set up

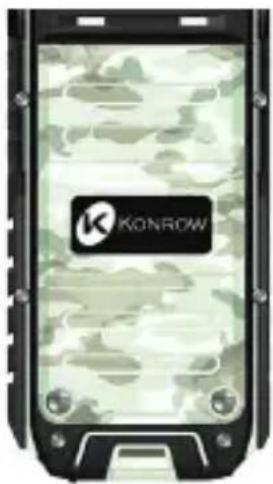

Removing or installing the battery cover

The Stone mobile phone is waterproof and therefore a screwdriver is necessary so as to open the battery compartment.

There are two screws into the battery cover. Please use the screwdriver to turn the screws at left direction for opening the cover.

To install the battery cover, aim at the opposite direction.

Caution: Please make sure the two screws are tightened up when power on or the waterproof capability of the phone will be affected.

The cover of the USB slot must be closed tightly.

KONROW

2. Set up

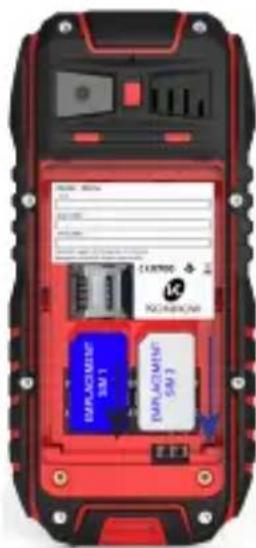

Inserting a SIM card

The Stone is a mobile phone with dual SIM card, which enables you to use two lines on the same mobile. Your Stone has two standard SIM ports. To insert the SIM card(s):

• Switch off the phone and remove the rear cover and battery by unscrewing the screws and making sure the seal of protection against water.
• Insert the SIM card correctly into the relevant card slots (see figure below).
• Then replace the battery and cover.

Red and black photo of a mobile phone casing with visible internal components including buttons, drive labels, and status information.

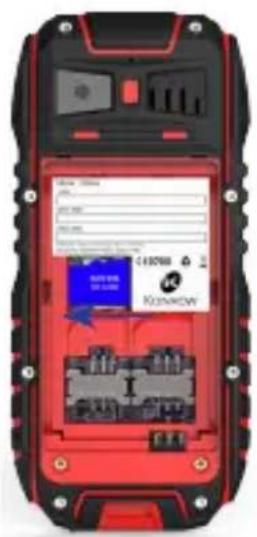

Inserting a MicroSD

It is possible to increase the internal memory of the Stone device with a MicroSD card (maximum 16GB MicroSD card).

- Switch off the phone and remove the rear cover and battery by unscrewing the screws and making sure the seal of protection against water is carefully placed.

- Insert the memory card into the relevant slot.

- Then replace the battery and cover.

CAUTION: Inserting or removing a SIM card or a MicroSD card requires the mobile to be completely switched off.

Red and black photo of a mobile phone case with visible internal components and a payment interface showing 'C$1000' and 'KONOW'

Installing and charging the battery

KONROW • The brand is a good product • The brand has a quality of the • The brand is a strong consumer • The brand is a good product (not a good brand) • The brand is a good product (not a good brand)

Installing the battery:

• Remove the rear cover of your mobile.
• Insert the battery ensuring that the image shown here is facing you.
• Replace the rear cover of the mobile.

CAUTION: There is a risk of explosion if the battery is replaced by an incorrect type. Model: Stone Li-ion Battery 3.7V / 2700 mAh.

To replace the battery, please enquire with the after-sales service of your dealer. Dispose of used batteries according to the instructions

Charging the battery:

- To charge the battery, connect the USB cable (supplied) to the USB port of your mobile then connect the mains adaptor to a power outlet.

- The battery charge icon illuminates during charging and indicates the charge status.

- When the battery is fully charged, you can disconnect the USB cable from the device then from the power outlet.

IMPORTANT:

• The mobile is only recharged via its USB port.

- Ensure your mobile is fully discharged before charging it for the first time.

- The battery must be charged for at least 5 to 8 hours when first charged.

Note: You can use the device when it is being charged. In this case, the battery may take longer to charge fully.

Safety information for charging the battery:

- To recharge the battery, only use the mains adaptor supplied with your device. Do not use any other power supply or electrical device. The power outlet to which the device is connected must be near the equipment and must always be easily accessible.

• Always wait at least 5 seconds after switching off the device before restarting it. Switching the device off and then back on again immediately may damage the electrical circuits.

- Do not disassemble the battery. Do not dispose of batteries in fire or water. Do not charge the battery if the room temperature exceeds 45°C.

- For all repairs or to replace the battery, consult a qualified technician.

- The lifetime of the battery depends largely on how you use it. Do not expose the battery to temperatures less than 0^ or greater than 60^ . Its performance may be altered.

• Significant electromagnetic interference or electrostatic discharge may cause malfunction or loss of data. If the device is not working properly, restart the mobile or unplug the mains adaptor from the power outlet then plug it in again.

3. Start-up guide

EN

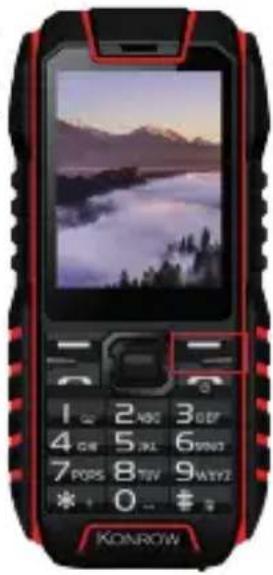

Switching the mobile on and off

To switch the mobile on, press the On/Off button located

on the side of the mobile during 3 seconds.

If the mobile is switched on, press for less than a second the button to put the device into standby mode. Press it again to leave standby mode.

To switch off the mobile, press the On/Off button during 3 seconds.

1 2 ABC 3 GEF 4 GB 5 XL 6 VINT 7 POPS 8 TAV 9 WAYZ * + 0 + + KONROW

Locking/Unlocking SIM cards

Your Stone is a dual SIM mobile. It enables you to phone using

two lines from the same device. There are two SIM card slots.

• When you start up your phone, the script invites you to enter the PIN codes of both SIM cards, successively (SIM1 then SIM 2).
• The "emergency call" function enables you to call an emergency number without entering the PIN code.

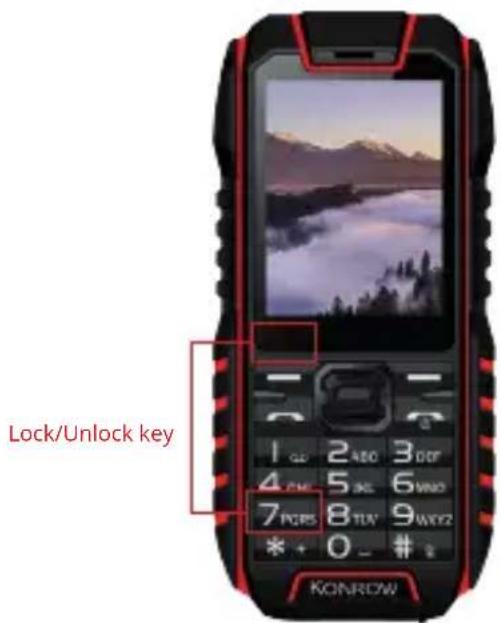

Locking/unlocking the keypad

To unlock the keypad:

Press any key to deactivate standby mode. And press Unlock and * key to unlock.

To lock the keypad:

Press On/Off key or Menu and * key.

You can configure the screen lock by adding a password to be entered when unlocking your mobile.

CAUTION: Forgetting your screen lock password or PIN code permanently blocks your mobile.

If this is forgotten or lost, the product warranty will not cover such an oversight. Even a "reset" cannot solve the problem. As a precaution, take a note of your password.

PASSWORD:

Lock/Unlock key 1 GE 2 ABC 3 DTF 4 CM 5 NC 6 WNO 7 PCPS 8 TUN 9 MWD2 * + 0 _ # KONROW

Making a call

NOTE: It is impossible to make or receive a call on both SIM cards at the same time.

For example, if you are on a call on the SIM 1 line, those trying to contact you on SIM 2 will automatically be diverted to voicemail.

• Press the dial key to initiate a call after dialing a number;
• Or select a contact from the phonebook;
• Or select the last from the last received calls.

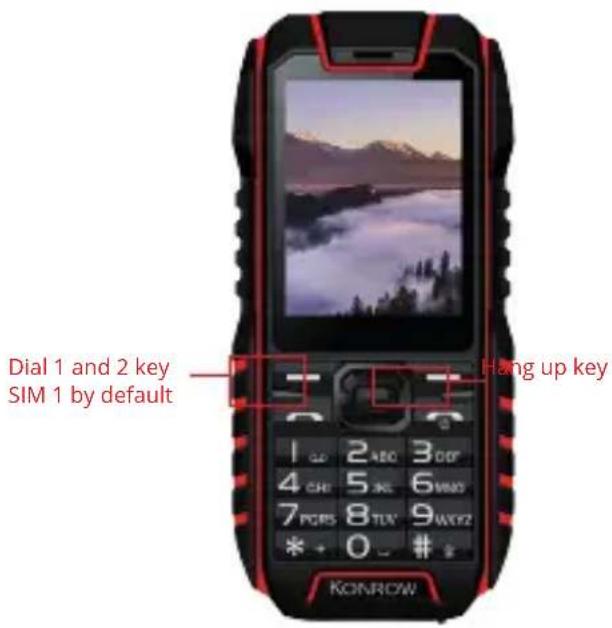

Receiving a call

When a call is received press any Dial keys to pick up the call. When you want to end a call, press the Hang up key.

Dial 1 and 2 key SIM 1 by default Hang up key KONROW

Settings

Dual SIM setting

You can select SIM 1 or SIM 2 mode.

Phone settings

Time and date: set the time, the date, the date format, the time format and update time settings.

Note: If you remove the battery from the mobile phone or if the battery energy was exhausted a long time ago, you may need to reset the date and time when re-inserting the battery or powering on the mobile phone after recharging.

Language: Select the display language for the mobile phone.

Pref. input method: Select your favorite method for the text.

Flight mode: The flight mode or Airplane mode.

UART settings: Select the UART 1 or UART 2.

Misc. settings: LCD backlight and picture quality.

Network settings

Select your preferences for the SIM 1 and 2 and for the GPRS transfer.

Security settings

This function provides you with related settings about safety use:

SIM 1 security:

Change PIN: To activate PIN lock, you need to input the correct PIN code. If you set PIN lock to On, you need to input the PIN each time you power on the mobile phone. In the case you input a wrong PIN for three consecutive times; you need to input the PIN Unblocking Key (PUK). The PUK is used to unlock and change the locked PIN. To obtain the PUK, contact the network operator.

Change PIN2: To change SIM card 2 code number.

PIN lock: This function enables you to lock/unlock the PIN. Entering password to switch on or off the phone. Password is required whe

the phone is locked. The initial password is 1122.

Phone security:

Phone lock: This function enables you to lock/unlock the phone. Entering password to switch on or off the phone. Password is required when the phone is locked. The initial password is 1122.

Change password: to change phone password.

Connectivity

Contact the network operator to obtain the following network services:

DATA account: You can manage network account through this function.

Bluetooth: You can select to turn on/off this function.

Restore settings

Restore your settings by default.

Profiles

The mobile phone provides multiple user profiles, so that you can customize some settings to adapt to the specific events and environments.

Customize the user profiles according to your preference and then activate the user profiles. The user profiles fall into five scenarios: Normal, Silent, Meeting, Indoor, Outdoor.

Call logs

Missed calls: You can view a list of the latest missed calls. Note: When the mobile phone indicates that some calls are missed, you can select Read to enter the missed calls list. Navigate to a missed call and then press the Dial key to dial the number that originated that call.

Dialed calls: You can view the latest dialed calls. Choose dialed calls and then select a dialed call to delete, save, dial or edit (or send a SMS to it).

Received calls: You can view the latest received calls. Choose received calls and then select a received call to delete, save, dial or edit (or send a SMS to it).

Rejected calls: You can view the latest rejected calls. Choose rejected calls and then select a rejected call to delete, save, dial or edit (or send a SMS to it).

Delete all: You can delete all the latest call records.

Call timers: Choose Call timers to view the last call time, the total time of all dialed calls, the total time of all received calls and the total time of call history or to reset all the time.

GPRS counter: You can view the data of last sent, last received,

all sent and all received.

Contacts

The mobile phone can store up to 300 phone numbers. The phone numbers that a SIM card can store depends on the storage capacity of the SIM card. The phone numbers stored in the mobile phone and in the SIM cards form a phonebook. The phonebook search function enables you to view contacts. You can search a contact as required from the phonebook. Select this option, in the edit interface, input the name of the contact you want to search or the first letter(s) of the name. All the contacts meeting the search condition are listed. Press the Up and Down direction keys to browse the contacts and select contact. Press right direction key to view other groups: family, friends, business, classmates and so on.

This function enables you to view the Internet. Your phone will ask you with existed way. You can start to view only by starting corresponding way.

Message

If the SMS memory is full, a blinking message icon appears on the top of the screen. To normally receive SMS, you need to delete some of the existing SMS. If the destination user has received the SMS you sent and the SMS delivery report function is activated, the phone will give off a message report alert tone. Write message: Access this menu to create a text message or a multimedia message.

Inbox: Received messages are listed in this menu.

Outbox: The messages which are sent failed are stored in the Outbox.

Drafts: Draft messages are listed in this menu.

Sentbox: Sent messages are listed in this menu.

Security inbox: You can use this function to prevent others reading your received messages. The original code is 1122.

Templates: You can create pre-defined messages in this interface.

SMS settings: Change the SMS settings.

Multimedia

Camera: The phone is provided with a camera, which supports the photographing functions. In the capture interface, position the phone and press OK key to capture photos. Pictures will be saved in the file system of the phone or the memory card.

DV: This function enables you to record dynamic pictures. In the capture interface, press OK key to capture video clips.

Recorder: The phone support WAV and AMR. The AMR takes

the compression algorithm. So in the same memory condition, it has longer recording time than WAV.

Image viewer: You can view the pictures in the phone memory by this function. Press the direction key to choose them and left soft key edit the pictures. Press Back key to return into multimedia interface.

Audio player: You can use this function to play audio files. By pressing the direction key you can control the playing process of audio player: play/pause (OK key), switch to last/next song (press left or right direction key), fast forward (press and hold right direction key) and rewind (press and hold left direction key). In audio player interface, you can press * and # keys to control volume.

Video player: Use this function to play video files. By pressing the direction key you can control the playing process of video player: play/pause (OK key), switch to last/next video (press up or down direction key). In video player interface, you can press * and # keys to control volume.

FM radio: You can use the application as a traditional FM radio with automatic tuning and saved channels. Before using it, you can insert the earphone as antenna. In FM radio interface, left

or right direction key to search channels manually, press OK key to play/pause the playing process of the current channel.

My files: The phone supports the memory card. The capacity of the memory card is selectable. You can use the file manager to conveniently manage various directories and files on the memory card.

Choose this option to enter the root directory of the memory. The root directory will list the default folders, new folders and user files. When the mobile phone is powered on for the first time or when you have not changed the directory, the root directory contains the default folders only.

Applications

Internet: You can use the function to view web pages and search for information on the web before you connecting to the Internet. When you open Internet, your home page opens. The web address (URL) of the current page is displayed at the top of the window.

Calendar: Once you enter this menu, there is a monthly-view calendar for you to keep track of important appointments, etc. Days with events entered will be marked.

Calculator: The calculator can add, subtract, multiply and divide.

Alarm: You can set three alarms through this function.

E-book: You can read the ebook in you memory card if there are some ones through this function.

Unit conversion: Convert units of measurement.

Local search: Search into your phone.

Bluetooth: You can transfer data, such as music to other device using Bluetooth. Search the device and receive/transfer data. The received data is automatically stored in the directory.

you.

• To prevent possible hearing damage, do not list volume levels for long periods.

stev 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 WXYZ * + 0 - # BONROW

OK or OPTION key

s (in SMS/MMS)

Lock/Unlock key

Change input mode (in SMS/MMS)

Switch on/off

• Listening to a portable audio player at high volumes can damage your hearing and
• lead to hearing impairment (deafness, ringing ears, tinnitus and hyperacusis).
  • In order to prevent these risks it is recommended not to use the device at full volume; use must not exceed one hour per day.
• Do not use pre-amplified or amplified models of headphones or pedestrian kit (i.e. with individual volume control and/or self-powered by batteries), as they do not ensure adherence to the maximum volume.

This product complies with the EN 60950-1:2006/A12:2011 standard "Information technology equipment - Safety - Part 1: General requirements" in accordance with the order of 25 July 2013 implementing Article L. 5232-1 of the French Public Health Code concerning portable audio players.

Electromagnetic waves safety information (SAR)

Your Stone mobile is designed to not exceed the radio wave limits recommended by the European authorities. These limits include safety margins to ensure the protection of all persons regardless of their age or health.

The SAR (specific absorption rate) of mobile phones quantifies the maximum level of exposure of the user to electromagnetic

waves for aural use. French legislation stipulates that the SAR

Warning symbol with a sine wave inside a triangle, indicating sound or sound pressure.

must not exceed 2 W/kg averaged over 10g of tissue.

The value of the SAR is determined on the basis of the highest level of radio frequencies emitted during laboratory tests. The actual value of the SAR during use of the phone is lower than this level.

The value of the SAR of the phone can vary according to the following factors: how far/close the phone is to a relay antenna, use of accessories and others.

The maximum SAR level of your Stone mobile is given in the following table:

Position Connectivity SAR value
Head EGSM900/DCS1800 0,339W/kg
Body EGSM900/DCS1800 0,347W/kg

NOTE: The SAR value may vary, depending on national reporting and testing requirements and the network band.

NOTE:

- Do not use your mobile in certain locations such as aircraft, hospitals, service stations and professional garages or while driving a vehicle. The electromagnetic waves from the mobile can disrupt the performance of electronic devices used in these locations.

• We recommend that you switch off your phone or switch it to flight mode in these locations to avoid interference.

- If you use an electronic implant (pacemakers, insulin pumps, neurostimulators, etc), please keep a distance of 15cm between the mobile and your electronic implant.

- When using a hands-free kit, pregnant women should keep the phone away from their abdomen and teenagers should keep the phone away from their lower abdomen.

Advice to reduce the level of exposure to radiation:

- Please use your mobile where reception is good to reduce the quantity of radiation received (avoid using in an underground car park or when travelling (train or car)).

- A reception icon indicates the quality of reception on your phone. A 4-bar display means that reception is good.

- Use of a hands-free kit also allows the level of exposure

to be reduced.

Safety and care information

- Read these instructions carefully.

- Keep these instructions.

• Follow all these instructions.

- Heed the warnings.

- Clean only with a soft cloth (dry or slightly damp).

- Do not attempt to disassemble the device; it would no longer be covered by the warranty.

- Do not bring sharp objects directly into contact with the surface and do not spray any cleaning product directly onto the screen.

- Do not exert excessive pressure on the screen and do not put objects on it. This could damage the screen.

- Use the spare parts specified by the manufacturer.

• After any service or repair carried out on this product, ask the technician to perform a safety check.

- Use only the spare parts/accessories specified by the manufacturer.

- Refer to a qualified person for any repairs. Repair is required if

the device is damaged in some manner or other, if the power cord or plug is damaged, if liquid has been spilled or objects have fallen on the device or if the device has been exposed to rain or moisture or has been dropped.

• Do not expose the device to direct sunlight or other source of extreme heat or cold.
• Respect the privacy of others when using your mobile.
• Keep the device away from all metal objects (coins, keys, etc).
• Do not leave near a magnetic field as this could cause data to be lost or could damage the device.
• Do not drop the device.
• Do not expose the device to shocks, friction or impact.
• In order to prevent data loss, remember to make a (computer or paper) back-up of information saved on the device.
  • To prevent interference, do not use the device near other electronic devices, a pacemaker or medical equipment.
• Operating temperature: 0^ and 40^ .

NOTE: In order to reduce any risk of fire or electric shock:

• Do not expose this device to rain or moisture.
• Do not expose the product to water droplets or to splashes and do not place any object filled with liquid, such as a vase, on the device.
• Do not use the product near flammable or explosive materials.
• The power plug is used to disconnect the device and must always be easily accessible.
  • In order to completely disconnect the device from the electricity supply, the power plug must be disconnected from the power outlet.
• Do not attempt to override the safety features of the polarised plug or the earth connection. A polarised plug has two pins, one of which is wider than the other. A plug with an earth connection has two flat pins and a third round pin for the earth connection. The widest pin and the third pin constitute the important safety features designed to protect you. If you cannot manage to fully insert the plug into the wall outlet, contact your electrician to replace the obsolete wall socket.
• Disconnect this device during electrical storms or when not in use

for an extended period.

- Switch off the device in places presenting risk of explosion and when travelling by plane.

• Do not touch the power cord with wet hands and do not pull on the charger to disconnect it.
• The power cord must be placed so that it will not be stepped on or crushed particularly at the outlet, where it is plugged in or where it is connected to the device.
• Do not overload the power outlet. Use the power supply only as indicated. Do not install this device near heat sources such as electric hobs, cookers or others (including amplifiers).

Warning on using the phone while driving

In France, in accordance with Article R412-6-1 of the French Highway Code, drivers are not permitted to use hand-held phones whilst the vehicle is moving.

The penalty for non-compliance with this article is a fine and point penalty on your driving licence.

The use of a hands-free kit is permitted. However, Article R412-6 of the French Highway Code provides for a fine without licence penalty points if the driver is not in a position to carry out required manoeuvres comfortably and without delay when using his hands-free kit whilst driving.

NOTE: this legislation applies only in France. During trips abroad, please refer to the legislation in place in the country you are/go.

Epilepsy warning

Please read before using a video game or allowing your children to use one.

Some people are susceptible to epileptic seizures or loss of consciousness when exposed to certain flashing lights or light patterns in everyday life. Such people may have a seizure while watching television images or playing certain video games. This may happen even if the person has no medical history of epilepsy or has never had any epileptic seizures. If you or anyone in your family has ever had symptoms related to epilepsy (seizures or loss of consciousness) when exposed to flashing lights, consult your doctor prior to playing. We advise that parents should monitor the use of video games by their children. If you or your child has the following symptoms while playing a video game, discontinue use IMMEDIATELY and consult your doctor: dizziness, blurred vision, eye or muscle twitches, loss of consciousness, disorientation, any involuntary movement or convulsion.

Precautions to take during use of any video game:

• Do not sit too close to the screen. Sit a good distance away from the television screen, as far away as the length of the cable allows.
• Preferably play the game on a small television screen. Avoid playing if you are tired or have not had much sleep.
  • Make sure that the room in which you are playing is well lit.
• Rest for ten to fifteen minutes per hour while playing a video game.

This software is partially based on the work of the Independent JPEG Group.

Bluetooth is a trademark of Bluetooth SIG, Inc.

The MPEG Layer-3 audio encoding technology and patents are licensed by Fraunhofer IIS and Thomson.

THIS PRODUCT IS LICENSED UNDER THE MPEG4 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO

(i) ENCODE VIDEO IN COMPLIANCE WITH THE MPEG4 STANDARD ("MPEG4 VIDEO") AND/O R

(ii) DECODE MPEG4 VIDEOS THAT WAS ENCODED BY A CONSUMER ENGAGED

IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE MPEG4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER

USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE http://mpegla.com.

All other names of systems, products and services are trademarks or registered trademarks of their respective owners. The symbols ((TM)) or (R) are not used in this guide.

Recycling

The symbol shown here and on the product means

that the product is classed as Electrical or

Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life.

The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill.

Product disposal instructions for residential users:

If you no longer use the device, remove and dispose of the battery, as well as the device, in compliance with the local recycling procedures. For more information please contact your local authority or the retailer where the product was purchased.

Product disposal instructions for business users:

Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal.

If you encounter any problems:

Please contact the after-sales service on the contact page of our website: www.konrow.com

Made in PRC

2016 Konrow.

If unresolved problem, contact your retailer.

The Konrow supplier warranty is valid for normal use of the device as defined in the instructions. This warranty excludes damage caused by external circumstances.

Specifically, the warranty does not apply if the device is damaged as a result of a bump or drop, an operating error, a connection that does not comply with these instructions, lightning, a surge, or inadequate protection against heat, humidity, or freezing temperatures.

The warranty is applicable only in metropolitan France.

- The warranty does not cover user manuals or applications, settings, content or data of any kind.

• The warranty does not cover normal usury of the product. (Screens, batteries and camera)
• The warranty does not cover damage to the product due to misuse, including in particular those caused by objects, a pressure drop.
• The warranty does not cover any use of the label with the precautions outlined in the manual.
• The warranty does not cover defects caused to the product with another product connected or used with an accessory or software not provided by Konrow.
• The warranty does not cover any damage to the battery.
• The warranty does not cover the product or its accessories if it has been disassembled or modified in any way.
• The warranty does not cover any unidentifiable product by serial number or (s) number (s) IMEI. If its elements have been removed, altered or defaced, the warranty does not apply.
  • The warranty does not cover damage done to the product caused by exposure to moisture, conditions that extreme heat or cold, corrosion, oxidation, with any liquid whatsoever.
• The warranty does not cover any damage to (s) player (s) or SIM MicroSD reader.
• The legal warranty for hidden defects applies in compliance with Articles 1641 et seq. of the French Civil Code.

Guida per l'utente

Konrow ti ringrazia

KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW KONROW

IMPORTANTE:

Warning symbol with a sine wave inside a triangle, indicating sound or audio hazard.

K KONNOW OF ENTRUSTION: No use hinders as unqualified No use hinders as unqualified Harmily as colored

Warning symbol with a sine wave inside a triangle, indicating sound or audio hazard.

Declaration of conformity

KONROW

We, Konrow - 27 boulevard d'Arras - 13004 Marseille - FRANCE,

hereby declare that the Konrow Stone Mobile complies with the essential requirements of the Directive RED applicable to the following European standards:

Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; EN 50332-1:2013 Safety (Adaptor) EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 Health EN 50360:2001+A1:2012; EN 62209-1: 2006; IEC 62209-1: 2005; IEC 62209-2:2010; EN 62209-2:2010; EN 50566:2013; EN 62479:2010 EMC EN 301 489-1 V2.2.0: 2017-03; EN 301 489-17 V3.2.0: 2017-03; EN 301 489-52 V1.1.0: 2016; EN 55032:2012/AC:2013; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010 Radio EN 301 511 V12.5.1; EN 300 328 V2.1.1

The procedure of Declaration of conformity RED was conducted under the supervision of the following organisation:

PHOENIX TESTLAB Königswinkel

10, D-32825 Blomberg, Germany.

Phone: [phone] Fax: [phone]

The full text of the device's Declaration of conformity is available on written request to the following address : HEM - 27 boulevard d'Arras - 13004 Marseille - FRANCE

20/07/2017 Maurice Haddad / CEO

Date (Name and signature of the duly authorised person)

Specific Absorption Rate:

SAR (Head) LTE = 0.306 W/Kg

SAR (Body) LTE = 0.354 W/Kg

Red KONROW mobile phone with navigation keypad and screen (no visible text or symbols on device body)

SLIDER

27:30 KONKOW OK 1 am 2 am 3 am 4 am 5 am 6 am 7 am 8 am 9 am 0 ± 4 ±

K-FLIP CHIPO3

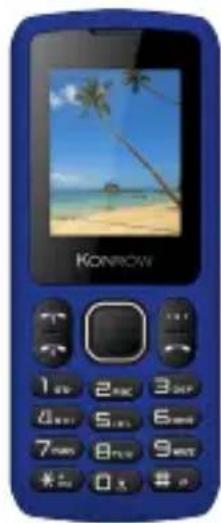

Blue Konbow mobile phone with beach scene and navigation keypad (no visible text or symbols on device body)

LA COLLECTION KONROW

SMARTPHONES

KONROV

BIGCOOL

White smartphone displaying a colorful cartoon-style collage on its screen (no visible text or symbols)

COOL55

Smartphone displaying colorful umbrellas with a digital clock showing 13:07 (no readable text or symbols on the umbrella)

Black smartphone with digital display showing '1337' and 'Digital Display' (no readable text beyond branding)

COOL-K

13:37 NEW YORK

COOLFIVE+ COOLSENSE

13:37 minutes per week

START

LA COLLECTION KONROW

SMARTPHONES

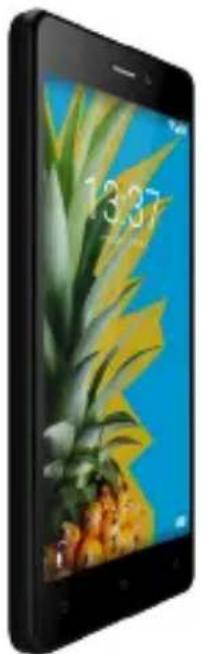

Black smartphone with a pineapple image on its screen (no visible text or symbols)

LINK 55

Exterior view of a modern smartphone with black body and screen displaying colorful artwork (no visible text or symbols)

LINK 50

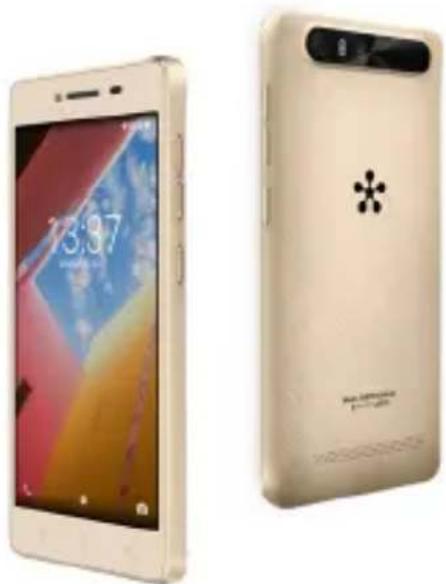

Side-by-side comparison of a gold smartphone showing its screen and front camera (no visible text or symbols)

JUST5

LA COLLECTION KONROW

TABLETTES K-TAB

Smartphone screen displaying a red abstract background with white curved lines and app icons (no readable text or symbols)

701X 702X

Exterior view of a black KONROW smartphone with open screen and logo (no visible text or symbols on device body)

WWW.KONROW.COM
