USER MANUAL Precision BW501C31 KRUPS

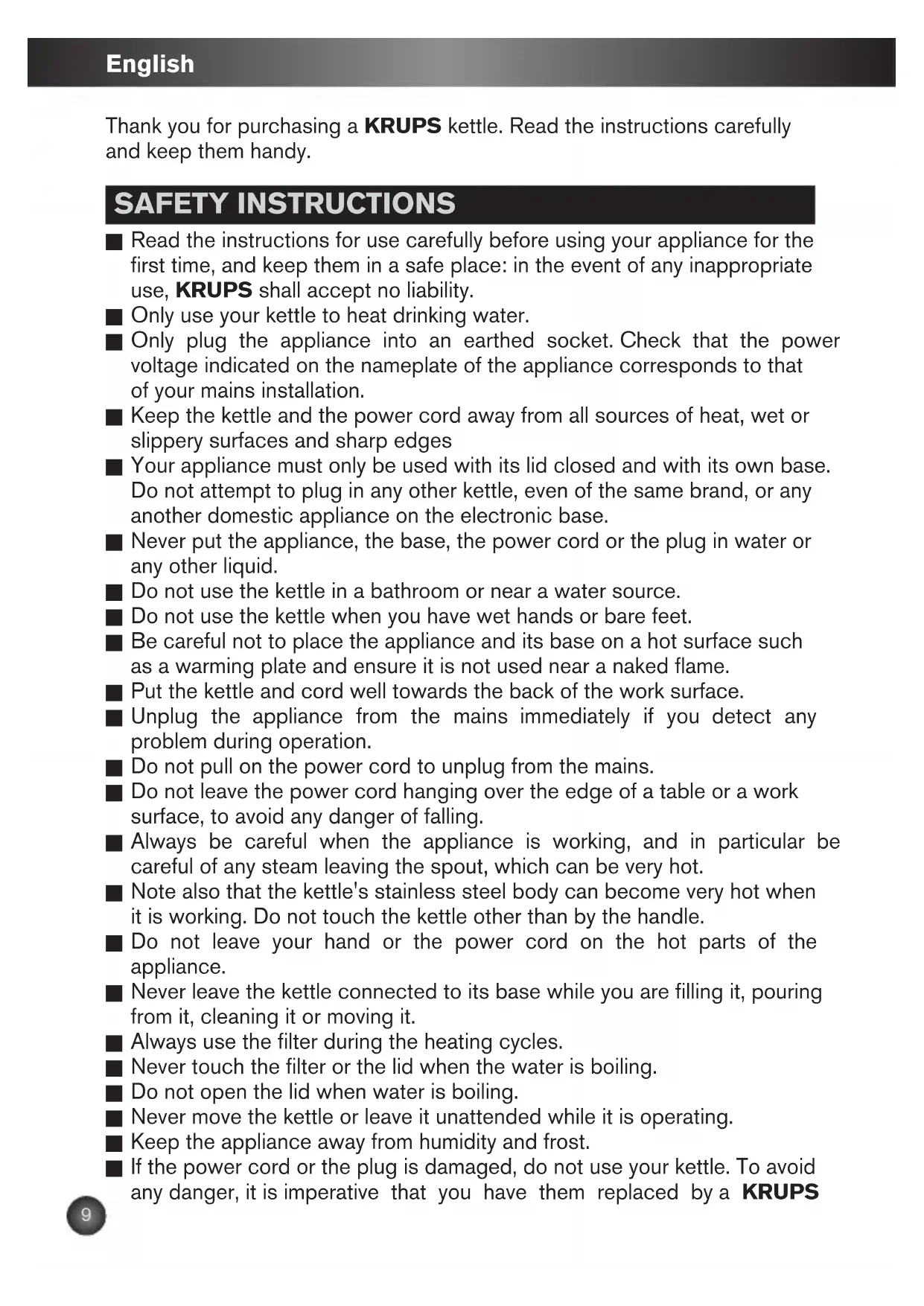

Read the instructions for use carefully before using your appliance for the first time, and keep them in a safe place: in the event of any inappropriate use, KRUPS shall accept no liability.

Only use your kettle to heat drinking water.

Only plug the appliance into an earthed socket. Check that the power voltage indicated on the nameplate of the appliance corresponds to that of your mains installation.

Keep the kettle and the power cord away from all sources of heat, wet or slippery surfaces and sharp edges

Your appliance must only be used with its lid closed and with its own base. Do not attempt to plug in any other kettle, even of the same brand, or any another domestic appliance on the electronic base.

Never put the appliance, the base, the power cord or the plug in water or any other liquid.

Do not use the kettle in a bathroom or near a water source.

Do not use the kettle when you have wet hands or bare feet.

Be careful not to place the appliance and its base on a hot surface such as a warming plate and ensure it is not used near a naked flame.

Put the kettle and cord well towards the back of the work surface.

Unplug the appliance from the mains immediately if you detect any problem during operation.

Do not pull on the power cord to unplug from the mains.

Do not leave the power cord hanging over the edge of a table or a work surface, to avoid any danger of falling.

Always be careful when the appliance is working, and in particular be careful of any steam leaving the spout, which can be very hot.

Note also that the kettle's stainless steel body can become very hot when it is working. Do not touch the kettle other than by the handle.

Do not leave your hand or the power cord on the hot parts of the appliance.

Never leave the kettle connected to its base while you are filling it, pouring from it, cleaning it or moving it.

Always use the filter during the heating cycles.

Never touch the filter or the lid when the water is boiling.

Do not open the lid when water is boiling.

Never move the kettle or leave it unattended while it is operating.

Keep the appliance away from humidity and frost.

If the power cord or the plug is damaged, do not use your kettle. To avoid any danger, it is imperative that you have them replaced by a KRUPS Thank you for purchasing a KRUPS kettle. Read the instructions carefully and keep them handy. IFU_KR_KETTLES_PRECISION_NC00017283_Mise en page 1 01/06/10 14:21 Page9English

approved service centre.

If your appliance has been damaged or if it is not working properly, do not use it and do not dismantle it under any circumstances. It is advisable to have it examined. Apart from cleaning and descaling in accordance with the procedures set out in the appliance’s instructions, all other work on the appliance must be carried out by an approved KRUPS Centre.

This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

The guarantee does not cover kettles that do not work properly or do not work at all because they have not been descaled.

Unplug the appliance if you are not going to use it for a long period and when you are cleaning it.

Do not use abrasive pads for cleaning.

To remove the lime scale filter, take the kettle off its base and let it cool down. Never remove the filter when the kettle is filled with hot water.

Do not leave unattended whilst in use.

Never use another method of descaling than the one recommended in this guide.

All appliances are subject to strict quality control. These include actual usage tests on randomly selected appliances, which would explain any traces of use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children must be supervised to ensure that they do not play with the appliance.

Do not operate the kettle without water inside.

Never fill the kettle above the maximum water level or under the minimum level. If the kettle is overfilled, water may be ejected.

This appliance is intended to be used only in the household. It is not intended to be used in the following applications, and the guarantee will not apply for: - Staff kitchen areas in shops, offices and other working environments; - Farm houses, - By clients in hotels, motels and other residential type environments, - Bed and breakfast type environments. IFU_KR_KETTLES_PRECISION_NC00017283_Mise en page 1 01/06/10 14:21 Page10English

n Remove all the packaging, stickers and various accessories both inside and outside of the kettle. n Adjust the length of the cord by coiling it under the base. Pinch the cord in the slot. (fig. 1) n Rinse the inside of your kettle and filter separately. Boil 2 or 3 kettlefuls. Discard the water from these first two/three uses as it may contain dust. USE

1) Place the base on a smooth, clean and cold surface.

Your kettle must only be used with its own base and its own anti-lime scale filter

n Remove the lid by turning to the left and lifting (fig. 2) n To lock the lid, click it on and turn right.

3) Fill the kettle with the desired amount of water. (fig. 3).

You can fill it by the spout by pressing on the trigger, which ensures better maintenance of the filter.

Never fill the kettle when it is on its base.

Do not fill it above the maximum level or below the minimum level. If the kettle is overfilled, boiling water may be ejected.

Do not use without water.

Check that the lid is properly closed before use.

4) Place the kettle on its base (fig. 4) connected to the mains.

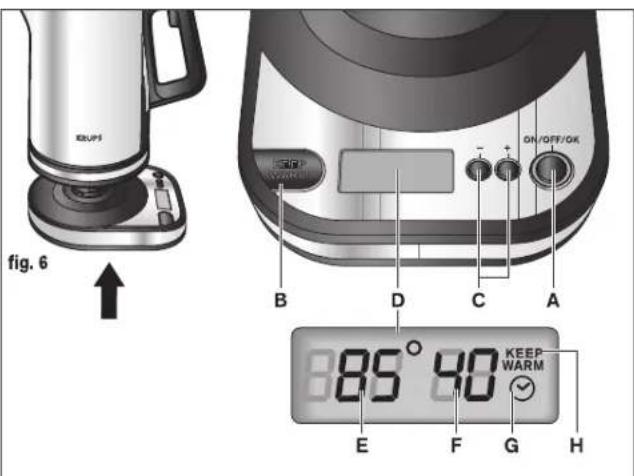

When the kettle is plugged in, a beep sounds and the screen lights up. Familiarise yourself with the display and the various functions of the kettle by referring to figures 6 and 7: Electronic base (fig. 6): A. ON/OFF button B. Keep warm button C. +/- button for the choice of temperature and duration of the keep warm cycle D. Digital display IFU_KR_KETTLES_PRECISION_NC00017283_Mise en page 1 01/06/10 14:21 Page11English

Digital display: E. Heating or keeping warm temperature in Celsius F. Time left in the keep warm cycle G. Small clock time logo H. Keep warm logo

SETTING THE TEMPERATURE

n This electronic kettle can heat water to the temperature of your choice. n Once plugged in, the digital display on the kettle shows "100°" if it's being used for the first time. Otherwise, the screen displays the last temperature programmed. n Using the "/ -" buttons, choose the temperature to which you want to heat the water. You can select a temperature between 60 and 100°C in steps of 5°C. Then press the On-Off button to confirm your temperature. n The heating cycle starts and the red light comes on. n The pre-selected heating temperature is displayed on the digital screen (fig. A) Note: You can change the initial temperature at any time by pressing the buttons +/-. However, the changes will be taken into account only if the new temperature is higher than the actual temperature of the water in the kettle. You can stop the heating process at any time by pressing the On-Off button n When the water reaches the selected temperature, 2 series of 3 beeps will be heard, a red light goes off and the kettle stops automatically. N.B.: - During the heating cycle, if you remove the kettle from its base, the heating parameters you selected remain in the memory and active. Therefore, when you put the kettle back in place, the heating cycle starts again at the temperature you selected. You can, for example, remove the kettle from its base to add more water in the middle of the heating cycle. When you put the kettle back on the base, the heating cycle will resume as normal. However, if the kettle is disconnected for more than 10 minutes from the base, it will shut off automatically. - Do not leave water in the kettle after use. - When you have finished using the kettle and you put it back on its base, ensure that the heating cycle has been completed and that the electronic base is switched off in order to prevent the kettle boiling dry. IFU_KR_KETTLES_PRECISION_NC00017283_Mise en page 1 01/06/10 14:21 Page12English

n Your electronic kettle has a "Keep Warm" function which makes it possible to keep your water at the selected temperature for the duration of your choice. a) Setting the initial heating temperature First of all, using the "/ -" buttons, choose the temperature to which you want to heat the water. b) Setting the keep warm function: temperature and time - Press the keep warm button once: the temperature will be displayed and will flash: 90°C max. (The first time you use the keep warm function, 80°C is displayed. When it is later used, the temperature programmed for the most recent Keep Warm cycle is displayed). - Select the desired temperature using the +/- buttons (between 60°C and 90°C). - Press the keep warm button once the time in minutes is displayed and flashes 60 minutes max. - Select the time for keeping warm using the +/- buttons (between 10 and 60 minutes) - Press the keep warm button again to confirm: display of the keep warm + clock ( ) logos: activation of the keep warm function (fig. B) Press the On/Off button to start the heating cycle. Note: You cannot select a keep warm temperature higher than the temperature used for the heating cycle. The keep warm cycle duration is expressed in minutes and cannot be less than 10 minutes or more than 60 minutes. The heating cycle starts n The red light comes on. n The heating temperature is displayed along with the Keep Warm logo. n You can still at any time change the temperature of the heating cycle, provided it remains higher than the preset temperature for the Keep Warm cycle. n Once the heating cycle is complete, 2 series of 3 beeps will be heard. The keep warm cycle begins n The red light flashes n The keep warm temperature, the keep warm logo, the keep warm cycle duration and the time logo ( ) are displayed. n When the keep warm cycle is completed, 2 series of 3 beeps will be heard, the red light goes off and the kettle stops automatically. IFU_KR_KETTLES_PRECISION_NC00017283_Mise en page 1 01/06/10 14:21 Page13English

Note: - The keep warm time indicated on the screen is the time left in the keep warm cycle. - You can still modify the keep warm time using the +/- buttons - You cannot change the keep warm temperature - During the keep warm cycle, if you remove the kettle from its base, the keep warm parameters you selected remain in the memory but the time continues to count down. If the kettle is disconnected for more than 10 minutes from the base, it will shut off automatically. - Do not leave water in the kettle after use. - When you have finished using the kettle and you put it back on its base, ensure that the keep warm cycle has been completed and that the electronic base is switched off in order to prevent the kettle boiling dry. - You can stop the keep warm cycle at any time by pressing the On-Off button to switch the kettle off.

CLEANING AND MAINTENANCE

DO NOT LEAVE WATER IN THE KETTLE AFTER USE, BECAUSE

THIS ACCELERATES THE DEPOSIT OF SCALE

TO CLEAN YOUR KETTLE

n Unplug it. n Let it cool down and clean it with a damp sponge.

Never immerse the kettle, its base, the power cord or the plug in water: the electrical connections and the switch must not come into contact with water.

Do not use scouring pads. TO CLEAN THE FILTER (fig. 5) n The removable filter is made of a fabric that holds the particles of scale and prevents them from falling into your cup when pouring. This filter does not treat or remove the scale from the water. It thus preserves all the qualities of the water. With very hard water, the filter saturates very quickly (10 to 15 uses). It is important to clean it regularly. If it is wet, run it under the water, and if it is dry, brush it gently. Sometimes the scale does not come off easily: you need to carry out a descaling process. DESCALING n Descale regularly, preferably at least once a month, more often if your water is very hard. IFU_KR_KETTLES_PRECISION_NC00017283_Mise en page 1 01/06/10 14:21 Page14English

TO DESCALE YOUR KETTLE: n Use white vinegar which can be bought from hard-ware stores. - fill the kettle with 1/2 L vinegar - leave for one hour, cold. n Commercial descaler specifically for kettles. Follow the instructions on the packet. n Empty your kettle and rinse it 5 or 6 times. Repeat if necessary TO DESCALE YOUR FILTER: n Soak the filter in white vinegar or diluted citric acid.

Never use another method of descaling than the one recommended in this guide.

n When you connect the kettle to the base, no beep can be heard and the digital display remains off - Make sure the kettle is properly connected to its base. - Check that the base is connected to the mains. - Disconnect and reconnect the appliance after a few seconds n If there is still no display, return the appliance to your nearest KRUPS after sales service centre. n The beep sounds continuously for 5 seconds. - The kettle has been used without water or there is an accumulation of scale, triggering the safety system that guards against boiling dry: leave the kettle to cool for a few minutes, then either: - If the kettle has been used without water, triggering the safety system that guards against boiling dry: leave the kettle to cool, fill it with water. Turn the power on using the switch: the kettle begins to operate after about 15 minutes. - If scale has accumulated: descale the kettle. Refer to the section entitled DESCALING. n The water has a plastic taste: - This usually happens when the kettle is brand new. Discard the water you boil the first few times. If the problem persists, fill the kettle up and add two teaspoons of baking soda. Boil the water and discard it. Rinse the kettle. IF YOUR KETTLE HAS FALLEN, IF IT IS LEAKING, OR IF THE POWER CORD, PLUG OR BASE ARE VISIBLY DAMAGED IFU_KR_KETTLES_PRECISION_NC00017283_Mise en page 1 01/06/10 14:21 Page15English

n Return your kettle to the nearest KRUPS After-sales Service Centre, the only organisation with authorisation to carry out repairs. n See the guarantee terms and list of centres in the booklet that came with your kettle. The type and serial number are indicated on the bottom of your kettle. The guarantee covers manufacturing defects and domestic use only. Any breakage or damage resulting from failure to follow these instructions for use shall not be covered by the guarantee.

KRUPS reserves the right to modify the characteristics or components of its kettles at any time in the interests of the consumer.

Do not use the kettle. No attempt should be made to dismantle the appliance or safety devices.

If the power cord is damaged, it must be replaced by the manufacturer, its after sales service or any person with similar qualifications, in order to avoid all danger.

PREVENTING DOMESTIC ACCIDENTS

n For a child, even a slight burn can sometimes be serious. n As they grow, teach your children to pay attention to the hot liquids that can be found in a kitchen. Put the kettle and cord well towards the back of the work surface, out of the reach of children. n If an accident happens, place cold water immediately on the burn and call a doctor if necessary.

To avoid injury: do not carry your child or your baby when you are drinking or carrying a hot beverage. If you have any further problems or queries, please call our Customer Relations Team first for expert help and advice: Helpline: 0845 330 6460 - UK 01 677 4003 - ROI Or consult our web site: www.krups.co.uk ENVIRONMENTAL PROTECTION Environmental protection first!

Your appliance contains valuable materials which can be re- covered or recycled.
