USER MANUAL Savoy BW3110 KRUPS

OFF onoffonoffonoffonoffg. 2g. 3g. 4g. 9g. 5g. 7g. 8g. 6g. 11 English IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following: Read all instructions. Do not touch hot surfaces. Use handles or knobs. To protect against re, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid. Close supervision is necessary when any appliance is used by or near children. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. The use of accessory attachments not recommended by the appliance manufacturer may result in re, electric shock or injury to persons. Your appliance is designed for domestic use only. Do not use outdoors. Do not let cord hang over edge of table or counter, or touch hot surfaces. Do not place on or near a hot gas or electric burner, or in a heated oven. Always attach plug to appliance rst, then plug cord into the wall outlet. To disconnect, turn any control to the “off” position, then remove plug from wall outlet. Do not use appliance for other than intended use. Only use the kettle to heat water. Never heat other liquids in the kettle.

SAVE THESE INSTRUCTIONS

Your kettle should only be used with its lid locked, with the base and the anti-scale lter supplied. Never touch the lter or the lid when the water is boiling. Never open the lid when the water is boiling. Scalding may occur if the lid is removed. CAUTION This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center. Visit our website at www.krupsusa.com in the USA or www.krups. ca in Canada or contact your respective country’s Consumer Service department for the service center nearest to you. To reduce the risk of re or electric shock, do not attempt to disassemble the machine. Repair should be done at an authorized KRUPS Service Center only.

SHORT CORD INSTRUCTIONS

A A short power cord or a detachable power cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord accidentally. B Longer detachable power cords or extension cords are available and may be used if care is exercised in their use. C If a long detachable power cord or an extension cord is used:

1) the marked electrical rating of the detachable power cord or extension cord

should be at least as great as the electrical rating of the appliance.2

ADDITIONAL SAFETY INSTRUCTIONS

Children should be supervised to ensure that they do not play with the appliance. Your appliance is designed for residential use only. It is not intended to be used in the following applications, and the guarantee will not apply for: staff kitchen areas in shops, ofces and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Only plug the kettle into a grounded power outlet. Check that the voltage on the rating plate of the appliance corresponds to that of your electrical installation. Keep the kettle and its power cord away from any source of heat, from any wet or slippery surface and away from sharp corners. Never use the appliance in a bathroom or close to a water source. Never use the kettle when your hands or feet are wet. Place the kettle and its power cord well to the back of the work surface. Always unplug the power cord immediately if you observe any anomaly during operation. Never pull on the power cord to remove it from the wall outlet. Always remain vigilant when the appliance is on, and in particular be careful of the steam coming out of the spout which is very hot. Also be careful as the body of the stainless steel kettle becomes very hot during operation. Only touch the handle of the kettle. Never leave your hand or the power cord on the hot parts of the appliance. Never leave the kettle connected to its base during lling, pouring, cleaning or moving. Always use the lter. Never move the kettle when it is in operation. Protect the appliance from dampness and freezing conditions. The warranty covers manufacturing defects and residential use only. Any breakage or damage resulting from a failure to comply with these instructions is not covered by the warranty. Any supply connection error will void the warranty. The warranty does not cover kettles that fail to operate or operate badly due to a failure to perform descaling operations.

2) If the appliance is of the grounded type, the extension cord should be a

grounding type 3-wire cord.

3) the longer cord should be arranged so that it will not drape over the counter

where it can be pulled on by children or tripped over accidentally. The appliance may have a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to t into a polarized outlet only one way. If the plug does not t fully into the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not attempt to modify the plug in anyway.3 English

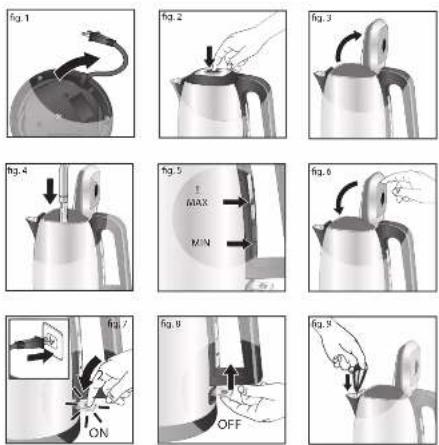

Remove all of the various packaging, stickers or accessories from both the inside and outside of the kettle. Adjust the length of the cord by winding it under the base. Wedge the cord into the notch. (fig. 1) Throw away the water from the rst two/three uses as it may contain dust. Rinse the kettle and the lter separately. USE

Press on the unlocking button. (fig. 2) When you press on the unlocking button, the lid will open automatically. (fig. 3) If the lid is lost or broken, please contact your after-sales service center.

2. PLACE THE BASE ON A FLAT, STABLE, HEAT-RESISTANT SURFACE AWAY

FROM WATER SPLASHES AND ANY SOURCES OF HEAT. Your kettle must be used with the base and anti-scale lter specic to this product.

3. FILL THE KETTLE WITH THE DESIRED AMOUNT OF WATER. (fig. 4)

Never ll the kettle when it is on its base. Do not ll it above the maximum level, or below the minimum level. If the kettle is too full, boiling water may spill out. (fig. 5) Do not use without water. Check that the lid is closed properly before use. (fig. 6)

Press the on/off button at the bottom of the handle. The on/off button will light up. (fig. 7) Never use scouring pads for cleaning purposes. To remove the anti-scale lter, remove the kettle from its base and allow it to cool down. Never remove the lter when the appliance is lled with hot water. All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance. Never heat the kettle when it is empty. Never ll the kettle past the maximum water level mark, nor below the minimum water level mark. If the kettle is too full, some water may spray out. KRUPS reserves the right to modify the characteristics or components at any time in the interests of the consumer. CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.4

CLEANING AND MAINTENANCE

CLEANING YOUR KETTLE. Disconnect the appliance. Leave it to cool and then clean it with a damp sponge. Never immerse the kettle, its base, the cord or the electric plug in water or any other liquid. The electrical connections or the switch must not come into contact with water or any other liquid. Do not use scouring pads. CLEANING THE FILTER. The lter is removable. (fig. 9) The removable lter consists of a mesh to retain the particles of scale and prevent them from falling into your cup when pouring. This lter neither treats nor removes the hardness of the water. It will not impact the quality or taste of the water. With very hard water, the lter can clog very quickly (10 to 15 uses). It is important to clean it regularly. If it is wet, put it under a running tap, if dry, then brush it gently. Sometimes the scale will not detach itself; if so, it will then need descaling. DESCALING Descale your kettle regularly, preferably once per month or more often if you live in a hard water area. To de-scale your kettle. Either use commercial white vinegar: – Fill the kettle with 0.5 L of vinegar – Leave it in the kettle for 1 hour without heating. Or citric acid: – Boil 0.5 L of water, – Add 0.88 Oz of citric acid and leave it in the kettle for 15 min. Using a descaler specically for kettles: follow the manufacturer’s instructions. Empty your kettle and rinse 5 or 6 times. Repeat if necessary. To de-scale your filter. Soak the lter in white vinegar or diluted citric acid. Never use a de-scaling method other than what is recommended above.

6. AS SOON AS THE WATER REACHES BOILING POINT, THE KETTLE WILL TURN

OFF AUTOMATICALLY. The light will turn off when the on/off switch returns to the upper position after boiling. You can stop it manually, before removing it from its base to pour the water. Adjust the on/off button (located at the bottom of the handle) upwards. (fig. 8) Make sure that the on/off button is in the off position after boiling and that the kettle has switched off before removing it from its base. Do not leave water in the kettle after use as this quickens the formation of scale.5 English

IN THE EVENT OF PROBLEMS

THERE IS NO EVIDENT DAMAGE TO YOUR KETTLE The kettle does not work or stops before coming to a boil: – Check that your kettle is properly connected. – The kettle has been switched on without water or an accumulation of scale has caused the overheat cut-out to operate: allow the kettle to cool and ll it with water. Descale rst if scale has accumulated. Switch it on: the kettle should start working again after about 15 minutes. The water tastes of plastic: – Generally, this happens when the kettle is new, discard the water from the rst few boilings. If the problem persists, ll the kettle to maximum and add two teaspoons of baking soda. Bring to a boil and discard the water. Rinse out the kettle. IF YOUR KETTLE HAS BEEN DROPPED, IF IT LEAKS OR IF THERE IS VISIBLE DAMAGE TO THE POWER CORD, THE PLUG OR THE BASE OF THE KETTLE Do not use the kettle. No attempt must be made to dismantle the kettle or its safety devices. Return your kettle to an approved KRUPS service center; the only qualied body authorized to carry out repairs. See the guarantee conditions and list of centers in the booklet supplied with your kettle. The type and serial number are shown on the bottom of your kettle. – This guarantee covers manufacturing defects and domestic use only. – This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. – Any breakage or damage resulting from failure to comply with the instructions for use is not covered by the guarantee. If the supply cord is damaged, it must be replaced by the manufacturer, its after-sales service center or a similarly qualied person, in order to avoid any danger. The manufacturer reserves the right to modify the characteristics or components of its kettles at any time in the interests of the consumer.

PREVENTION OF DOMESTIC ACCIDENTS

For a child, a burn or scald, even if slight, can sometimes be serious. As they grow up, teach your children to be aware of hot liquids found in the kitchen. Position the kettle and its supply cord well to the rear of the work surface, out of the reach of children. If an accident does occur, run cold water over the scald immediately and call a doctor if necessary. In order to avoid any accident: do not carry your child or baby at the same time as drinking or carrying a hot drink.6

KRUPS INTERNATIONAL LIMITED GUARANTEE

: www.krups.com This product is repairable by KRUPS during and after the guarantee period. Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the KRUPS internet site www.krups.com The Guarantee This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase or delivery date. The international manufacturer’s guarantee by KRUPS is an extra benet which does not affect consumer’s Statutory Rights. The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specications, through the repair or replacement of any defective part and the necessary labour. At KRUPS’s choice, an equivalent or superior replacement product may be provided instead of repairing a defective product. KRUPS’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement. Conditions & Exclusions presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country’s authorised service centres are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address. KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modication or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following: – using the wrong type of water or consumable – ingress of water, dust or insects into the product (excluding appliances with features specically designed for insects) ENVIRONMENTAL PROTECTION Let’s all help protect the environment! Your appliance contains many recoverable or recyclable materials. Take it to a local, civic waste collection point.7 English – damage as a result of lightning or power surges – mechanical damages, overloading – scaling (any de-scaling must be carried out according to the instructions for use) – accidents including re, ood, thunderbolt, etc – damages or poor results due to wrong voltage or frequency – damage to any glass or porcelain ware in the product – professional or commercial use This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre. The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country: a) The international KRUPS guarantee does not apply in case of non-conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or non-conformity with other local legal requirements or other local technical specications. b) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS country of usage. c) In cases where the product is not repairable in the new country of usage, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible. Consumer Statutory Rights This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specic legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion. *** Please keep this document for your reference should you wish to make a claim under the guarantee8
