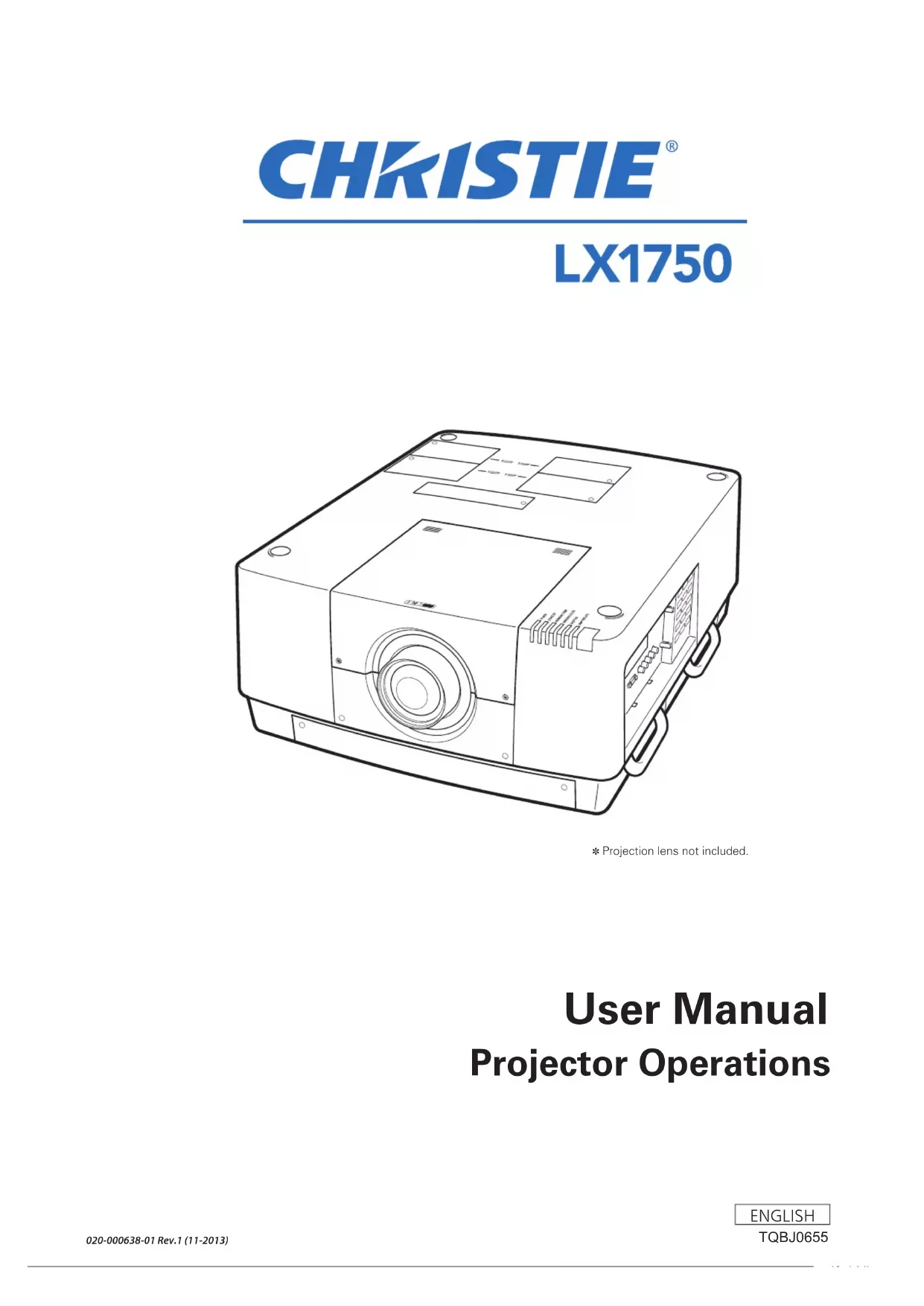

USER MANUAL LX1750 Christie

ENGLISH User Manual ✽ Projection lens not included. Projector Operations 020-000638-01 Rev.1 (11-2013)Read this rst!

WARNING: THIS APPARATUS MUST BE GROUNDED.

WARNING: To prevent damage which may result in re or shock hazard, do not expose this appliance to rain

or moisture.Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.WARNING:1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.

2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualied

3. Do not remove the grounding pin on the mains plug. This apparatus is equipped with a three prong

grounding-type mains plug. This plug will only t an grounding-type mains socket. This is a safety feature. If you are unable to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the grounding plug.WARNING:This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CAUTION: To assure continued compliance, follow the attached installation instructions, which include using the provided power cord and shielded interface cables when connecting to computer or peripheral device. If you use serial port to connect PC for external control of projector, you must use optional RS-232C serial interface cable with ferrite core. Any unauthorized changes or modications to this equipment will void the user’s authority to operate.This is a device to project images onto a screen, etc., and is not intended for use as indoor lighting in a domestic environment.Directive 2009/125/ECEEE Yönetmeliğine Uygundur.EEE Complies with Directive of Turkey.WARNING:TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER.WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.WARNING: RISK OF ELECTRIC SHOCK, DO NOT OPEN.The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION (USA and Canada) CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only t a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.Do not removeRead this rst! ENGLISH - 3 Important Information LX1750 User Manual020-000638-01 Rev.1 (11-2013) IMPORTANT: THE MOULDED PLUG (U.K. only) FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is tted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover, you must ensure that it is retted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from an Authorized Service Center. If the tted moulded plug is unsuitable for the mains socket in your home, then the fuse should be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket. If a new plug is to be tted, please observe the wiring code as shown below. If in any doubt, please consult a qualied electrician.

WARNING: THIS APPLIANCE MUST BE GROUNDED.

IMPORTANT: The wires in this mains lead are colored in accordance with the following code: Green - and - Yellow: Earth Blue: Neutral Brown: Live As the colors of the wire in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored GREEN - AND - YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol or colored GREEN or GREEN - AND - YELLOW. The wire which is colored BLUE must be connected to the terminal in the plug which is marked with the letter N or colored BLACK. The wire which is colored BROWN must be connected to the terminal in the plug which is marked with the letter L or colored RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

Important Information LX1750 User Manual020-000638-01 Rev.1 (11-2013) FCC NOTICE (USA) Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To assure continued compliance, follow the attached installation instructions and do not make any unauthorized modications. CAUTION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Model Number: LX1750 Trade Name: Christie Responsible Party: Christie Digital Systems USA, Inc. Address: 10550 Camden Drive Cypress CA 90630 Telephone number: 714-236-8610 NOTIFICATION (Canada) This class A digital apparatus complies with Canadian ICES-003. WARNING (USA and Canada)

Not for use in a computer room as dened in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring.

For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. NOTICE U.S.A. only:

This product has a High Intensity Discharge (HID) lamp that contains mercury. Disposal may be regulated in your community due to environmental considerations. For disposal or recycling information, please visit Christie website: http://www.christiedigital.com/Read this rst! ENGLISH - 5 Important Information LX1750 User Manual020-000638-01 Rev.1 (11-2013)

POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in re or electric shock.

If foreign objects or water get inside the projector, cut off the power supply.

If the projector is dropped or the cabinet is broken, cut off the power supply.

If you notice smoke, strange smells or noise coming from the projector, cut off the power supply. Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself. During a thunderstorm, do not touch the projector or the cable. Electric shocks can result. Do not do anything that might damage the power cord or the power plug. If the power cord is used while damaged, electric shocks, short-circuits or re will result.

Do not damage the power cord, make any modications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle. Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary. Completely insert the power plug into the wall outlet and the power connector into the projector terminal. If the plug is not inserted correctly, electric shocks or overheating will result.

Do not use plugs which are damaged or wall outlets which are coming loose from the wall. Do not use anything other than the provided power cord. Failure to observe this will result in re or electric shocks. Clean the power plug regularly to prevent it from becoming covered in dust. Failure to observe this will cause a re.

If dust builds up on the power plug, the resulting humidity can damage the insulation.

If not using the projector for an extended period of time, pull the power plug out from the wall outlet. Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly. Do not handle the power plug with wet hands. Failure to observe this will result in electric shocks. Do not overload the wall outlet. If the power supply is overloaded (for example, by using too many adapters), overheating may occur and re will result.

Do not place the projector on soft materials such as carpets or sponge mats. Doing so will cause the projector to overheat, which can cause burns, re or damage to the projector. Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam, for example a bathroom. Using the projector under such conditions will result in re, electric shocks or deterioration of components. Deterioration of components (such as ceiling mount brackets) may cause the projector which is mounted on the ceiling to fall down. Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable. Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage could result.Read this rst!

Do not cover the air intake/exhaust ports or place anything within 1 m (39”) of them. Doing so will cause the projector to overheat, which can cause re or damage to the projector.

Do not place the projector in narrow, badly ventilated places.

Do not place the projector on cloth or papers, as these materials could be drawn into the air intake port. Do not place your hands or other objects close to the air exhaust port. Doing so will cause burns or damage your hands or other objects.

Heated air comes out of the air exhaust port. Do not place your hands or face, or objects which cannot withstand heat close to this port. Do not look and place your skin into the lights emitted from the lens while the projector is being used. Doing so can cause burns or loss of sight.

Strong light is emitted from the projector’s lens. Do not look or place your hands directly into this light.

Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the power plug when you are away from the projector. Never attempt to remodel or disassemble the projector. High voltages can cause re or electric shocks.

For any inspection, adjustment and repair work, please contact an Authorized Service Center. Do not project an image with the lens cover attached. Doing so can cause re. Do not allow metal objects, ammable objects, or liquids to enter inside of the projector. Do not allow the projector to get wet. Doing so may cause short circuits or overheating, and result in re, electric shock, or malfunction of the projector.

Do not place containers of liquid or metal objects near the projector.

If liquid enters inside of the projector, consult your dealer.

Particular attention must be paid to children. Do not touch other than the specied portion or remove the components. Doing so may impair the performance or safety. Use the ceiling mount bracket specied by Christie. Using the ceiling mount bracket other than the specied one will result in falling accidents.

Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down. Installation work (such as ceiling mount bracket) should only be carried out by a qualied technician. If installation is not carried out and secured correctly it can cause injury or accidents, such as electric shocks.

Do not use anything other than an authorized ceiling mount bracket.

Be sure to use the provided accessory wire with an eye bolt as an extra safety measure to prevent the projector from falling down. (Install in a different location to the ceiling mount bracket.) When attaching or replacing a lens, consult the technical staff or service personnel at a specialist dealer. Replacing a lens in the wrong way might damage the product. When attaching or replacing a lens, observe related procedures in order to perform this properly.Read this rst! ENGLISH - 7 Important Information LX1750 User Manual020-000638-01 Rev.1 (11-2013)

ACCESSORIES Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch re.

Do not use unspecied batteries.

Use manganese or alkaline batteries but not rechargeable batteries.

Do not disassemble dry cell batteries.

Do not heat the batteries or place them into water or re.

Do not allow the + and

terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

Do not store batteries together with metallic objects.

Store the batteries in a plastic bag and keep them away from metallic objects.

Make sure the polarities (+ and

) are correct when inserting the batteries.

Do not use a new battery together with an old battery or mix different types of batteries.

Do not use batteries with the outer cover peeling away or removed. Do not allow children near the batteries (AAA/R03/LR03).

The battery can cause personal injury if swallowed.

If swallowed, seek medical advice immediately. If the battery uid leaks, do not touch it with bare hands, and take the following measures if necessary.

Battery uid on your skin or clothing could result in skin inammation or injury. Rinse with clean water and seek medical advice immediately.

Battery uid coming in contact with your eyes could result in loss of sight. In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately. Do not disassemble the lamp unit. If the lamp breaks, it could cause injury. Lamp replacement The lamp has high internal pressure. If improperly handled, an explosion and severe injury or accidents will result.

The lamp can easily explode if struck against hard objects or dropped.

Before replacing the lamp, be sure to disconnect the power plug from the wall outlet. Electric shocks or explosions can result if this is not done.

When replacing the lamp, turn the power off and allow it to cool for at least 60 minutes before handling it otherwise it can cause burns. Do not allow infants or pets to touch the remote control unit.

Keep the remote control unit out of the reach of infants and pets after using it. Do not use the supplied power cord with devices other than this projector.

Using the supplied power cord with devices other than this projector may cause short circuits or overheating, and result in electric shock or re. Remove the depleted batteries from the remote control promptly.

Leaving them in the unit may result in uid leakage, overheating, or explosion of the batteries.Read this rst!

POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and re, short-circuits or serious electric shocks will result. When not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control. Disconnect the power plug from the wall outlet before carrying out any cleaning and replacing the unit. Electric shocks can result if this is not done.

Do not place heavy objects on top of the projector. Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or injury. The projector will be damaged or deformed. Do not put your weight on this projector. You could fall or the projector could break, and injury will result.

Be especially careful not to let young children stand or sit on the projector. Do not place the projector in extremely hot locations. Doing so will cause the outer casing or internal components to deteriorate, or result in re.

Take particular care in locations exposed to direct sunlight or near stoves. Do not place your hands in the openings beside the optical lens, while shifting the lens. Failure to observe this could cause injury. When lifting or carrying the projector, do not hold the lens hood and lens. Doing so may damage the projector. Always disconnect all cables before moving the projector. Moving the projector with cables still attached can damage the cables, which will cause re or electric shocks to occur. Use the lens specied by Christie. Using the lens other than the specied one will result in malfunctions.

Before attaching the lens, check the projector model no. and optional lens model no. and use the lens suitable for the projector.

For details, consult your dealer.

ACCESSORIES Do not use the old lamp unit. If used it could cause lamp explosion. If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces. Failure to observe this will cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as uorescent lamps, and the broken pieces will cause injury.

If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately.

Ask your dealer about replacing the lamp unit and check the inside of the projector. Do not reuse the air lter unit. Doing so may result in malfunctions. Do not clean the air lter unit with water. Doing so may result in malfunctions.

Be careful not to wet the air lter unit. Ask your dealer about cleaning the inside the projector once a year. Continuous use while dust is accumulated inside the projector may result in re.

1. Press the guide and lift the cover.

2. Remove the batteries.

2. Remova as baterias.

HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Other names, company names or product names used in these user manual are the trademarks or registered trademarks of their respective holders. Please note that the user manual do not include the ® and TM symbols. Illustrations in these user manual

Note that illustrations of the projector and screens may differ from the ones you actually see. Page references

In these instructions, references to pages are indicated as: (

In these instructions, the “Wireless/wired remote control unit” accessories are referred to as the “Remote control”.ENGLISH - 11 LX1750 User Manual020-000638-01 Rev.1 (11-2013) Features of the projectorFeatures of the projectorFeatures of the projector High clarity and high contrast image Image quality of high clarity with 16 000 lumens and high contrast with 2 500:1. More exible setup Allows installation of vertically 360° direction. Equipped with the electric lens shift function that enables vertical and horizontal positioning adjustment as well as test patterns. Also, you can use lights for the control panel and connection terminals. In addition, you can choose one from nine types of optional lenses. High reliability and maintainability Equipped with auto-switchable four lamps that enable continuous projecting when a lamp has been worn out. The air lter and smoke resistant lter (optional) block dust and smoke and keep clear images and long life of the projector. Quick stepsQuick stepsQuick steps For details, see the corresponding pages.

1. Set up your projector.

2. Connect with external

3. Connect the power cord.

When transporting the projector, hold it securely by its carry handle and avoid excessive vibration and impacts by such handling as dragging it on the oor. Failure to do so may damage the internal parts and result in malfunctions.

Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet. Cautions when installing

Do not set up the projector outdoors. The projector is designed for indoor use only.

Do not use in the following places.

Places where vibration and impacts occur such as in a vehicle or vessel: Doing so may damage the internal parts and result in malfunctions.

Near the exhaust of an air conditioner or near lights (studio lamps, etc.) where there are large swings in temperature (“Operating environment” ( page 103)): Doing so may shorten the life of the lamp or result in deformation of the outer case, which may in turn cause malfunctions.

Near high-voltage power lines or near motors: Interference may occur.

Be sure to ask a qualied technician or your dealer before installing the product on a ceiling. If the product is to be installed hanging from the ceiling, purchase the optional ceiling mount bracket.

Do not install the projector at elevations of 2 700 m (8 858 ft) or higher above sea level. Failure to do so may shorten the life of the internal parts and result in malfunctions.

Do not use the projector while it is tilted (

page 24). Using the projector while tilted may shorten the life of the internal parts.

Cautions when setting up the projectors

Do not block the ventilation ports (intake and exhaust) of the projector.

Avoid heated and cooled air from the air conditioning system directly blow to the ventilation ports (intake and exhaust) of the projector.

Avoid setting up the projector in a humid or dusty location.(over 1 m (39") for each top and side)1 m (39")1 m (39")1 m (39") 1 m (39")

Do not install the projector in a conned space.When it is necessary to install in a conned space, install an air conditioning or ventilation system for the space. If ventilation is insufcient, exhaust heat may accumulate and trigger the protection circuit of the projector.Precautions for use ENGLISH - 15 Important Information LX1750 User Manual020-000638-01 Rev.1 (11-2013) Security When using this product, implement appropriate security measures to prevent the following:

Personal information being leaked via this product

Unauthorized operation of this product by a malicious third party

Interference or stopping of this product by a malicious third partyTake sufcient security measures. ( page 69)

Make your PIN code as difcult to guess as possible.

Change your PIN code periodically.

Christie Digital Systems and its afliate companies will never ask you directly for your PIN code. If you are asked directly, do not give your PIN code.

Be sure to use a secure network with a rewall etc.

Set a PIN code and set restrictions on the users who can log in. Disposal When disposing of the product, ask your local authority or dealer about the correct methods of disposal.The lamp contains mercury. When disposing of the used lamp unit, ask your nearest local authorities or dealer about proper disposal of the unit.Dispose of used batteries according to the instructions or your local disposal rules or guidelines. Cautions on use

To achieve a high picture quality

You achieve a high picture quality by drawing curtains or blinds over windows and turning off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

Depending on the conditions, the picture may wobble due to the heated air from the air exhaust port or heated or cooled air from the air conditioner. Take care to ensure that neither the exhaust from the projector or other equipment, nor air from any air conditioner blows on the front of the projector.

The projection lens is heated by the light from the luminous source, making the focus unstable in the period just after switching on. The focus will stabilize after 30 minutes elapsed with the image being projected.

Do not touch the surface of the projection lens with your bare hands. If the surface of the lens is contaminated by ngerprints or dirt, this will be magnied and projected onto the screen, degrading the picture.

LCD panel The LCD panel is precision-made. Note that in rare cases, pixels of high precision could be missing or always lit. This is not a malfunction.When a still image is projected for a long period, the image may burn in to the LCD panel. In this case, project the white screen from the test patterns (

page 74) for at least one hour. Note, however, that it may not always be possible to fully eradicate the burned-in image.Precautions for use

Optical components If you are using the projector at a high-temperature environment or an environment which is dusty or full of cigarette smoke etc., the replacement cycle for optical components such as the the LCD panel and polarizer may reduce to as little as a year. For more information, please consult your dealer.

Lamp The projector luminous source is a mercury lamp with high internal pressure.A high-pressure mercury lamp has the following characteristics.

The brightness of the lamp will decrease with usage time.

An impact, scratch, or deterioration with usage may cause the bulb to burst loudly or reduce the service life.

The service life of the lamp varies greatly depending on the individual lamp and usage conditions. In particular, continuous use for periods of 24 hours or longer and frequent on/off switching of the power accelerate deterioration in the lamp and affect the lamp life.

In rare cases, the lamp can burst shortly after starting the projection.

The risk of bursting increases when the lamp is used beyond its replacement cycle. Make sure to replace the lamp unit consistently. “When to replace the lamp unit” ( page 85)

If the lamp bursts, gas contained in the lamp is released in a form of smoke.

It is recommend that you store replacement lamp units for contingency.

It is recommended that you request a qualied technician to replace the lamp unit. Consult your dealer.Precautions for use ENGLISH - 17 Important Information LX1750 User Manual020-000638-01 Rev.1 (11-2013) Accessories Make sure that the following accessories are provided with your projector. Accessory (product name) Number Wireless/wired remote control unit (N2QAYA000066)

AAA/R03/LR03 battery (for remote control unit)

Power cord for (E) (T0K3K0003--1)

Power cord for (U) (T0K3K0001--1)

Power cord for (UK) (T0K3K0004--1)

Computer cable (for D-sub) (T0K3K0013--1)

Lens lock lever xing bracket

(set) Lens attachment

(set) Accessory (product name) Number PIN code label

Power cord holder, power cord cover (T0STF0037--1)

(T0CRM0014--1) is inscribed

(T0CRM0013--1) is inscribed

After unpacking the projector, dispose of the power cord cap and packaging material in an appropriate manner.

If you lose any of the accessories, consult your dealer.

The product numbers of accessories and separately sold components are subject to change without notice.

Store small parts in an appropriate manner, and keep them away from young children.Precautions for use

Contents of CD-ROM The following contents are stored on the supplied CD-ROM (User Manual / Real Color Manager Pro / PJ Network Manager). Manual/Index (PDF) Software

User Manual–Projector Operations

User Manual–Network Operations

User Manual–PJ Network Manager Operations

buttonMove the cursor on the on-screen menu and control menus.Also move the image vertically and horizontally in the digital zoom mode or the real mode.(8) <LENS SHIFT> buttonSlides the lens vertically and horizontally to move the position of the projective image vertically and horizontally. ( page 35)(9) <FOCUS> buttonAdjusts the focus. ( page 36)(10) <ZOOM> buttonAdjusts the zoom of the lens. ( page 36)(11) <FREEZE> buttonTemporally freezes the projected image. ( page 37)(12) <D.ZOOM> buttonTurns on the digital zoom mode.(13) <P-TIMER> buttonPress the <P-TIMER> button to count the time elapsed from the press of the button or perform a countdown from the set time. ( page 39)(14) <KEYSTONE> buttonCorrects the keystone effect. ( page 38)(15) <INFO.> buttonDisplays state of signals during projection and current settings. ( page 39)(16) <ON>/<OFF> switchSet to <ON> when using the remote control.Set to <OFF> when not using the remote control for a long period.(17) Wired remote control terminalWhen the remote control is used as a wired remote control, connect this terminal on the remote control to the <R/C JACK> terminal on the projector.The remote control requires batteries. ( page 23)(18) Power <STAND-BY> buttonSets the projector to the standby mode when the main power switch on the projector is set and in the projecting mode.(19) <SCREEN> buttonSelects the size of the projected image.If you press the button for at least ve seconds, the settings of the [Screen] menu return to the factory default settings. ( page 39)(20) <AUTO PC> buttonAutomatically adjusts synchronization, total number of dots, horizontal shift, and vertical shift. ( page 46)(21) <SELECT> buttonSelects item indicated by the cursor on the on-screen menu.Also used to expand and contract the image in the digital zoom mode. ( page 40)(22) <IMAGE ADJUST> buttonDisplays the [Image adjust] menu to adjust the image. ( page 34)(23) <IMAGE SEL.> buttonSelects the mode from [Image select]. ( page 38)(24) <INPUT 1> - <INPUT 4> buttonsSelects the input signal to project. ( page 37)(25) Number (<0> - <9>) buttonsUsed to enter PIN codes and remote control numbers.About your projector

Do not drop the remote control.

Avoid contact with liquids or moisture.

Do not attempt to modify or disassemble the remote control. Note

The remote control can be used from any distance within about 5 m if pointed directly at the remote control sensor. The remote control is effective from angles of up to ±30° vertically and horizontally, but its range may be reduced.

If there are any obstacles between the remote control and the remote control sensor, the remote control may not operate properly.

You can control the projector by reecting the signal off the screen, but the effective operating range will depend on the characteristics of the screen.

If the remote control sensor receives strong light such as uorescent light, the remote control may not operate properly. Place the projector as far as possible from other light sources. Projector body (2) (3) (4) (5) (6) (7) (8) (9) (7) (12) (13)(14) (10) (11) (7) (7) (15) (1) (10) (11) (15) (16) (15) (15) (1) Lens attachment cover(2) Air lter unit(3) Lens (optional)(4) Indicator ( page 77)(5) Remote control sensor (top and front)(6) Connection terminals ( page 22)(7) Carry handle(8) Security slotThis security slot is compatible with the Kensington security cables.(9) Control panel ( page 21)(10) Air exhaust port(11) Lamp coverHouses the lamp unit. ( page 86)(12) AC input terminal Connect the supplied power cord. ( page 31)(13) Main power switchTurns off/on the main power.(14) Remote control sensor (rear)(15) Adjustable feetAdjust the projection angle. ( page 25)(16) Air intake port Attention

Keep your hands and other objects away from the air exhaust port

Keep your hands and face away.

Do not insert your ngers.

Keep away heat-sensitive articles. Heated air from the air outlet port can cause burns, injuries, or deformations.About your projector ENGLISH - 21 Preparation LX1750 User Manual020-000638-01 Rev.1 (11-2013)

Control panel (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (6) (12) (1) Power <ON/STAND-BY> buttonTurns off/on the power when the main power switch on the projector is set to (2) <SHUTTER> buttonOpens and closes the shutter. Adjusts the shielding of the projection light. ( page 37)(3) <ZOOM> buttonAdjusts the zoom of the lens. ( page 36)(4) <FOCUS> buttonAdjusts focus. ( page 36)(5) <MENU> buttonDisplays the menu screen. ( page 40) (6)

buttonsMove the cursor on the on-screen menu and control menus.Also move the image vertically and horizontally in the digital zoom mode and the real mode.(7) <AUTO PC ADJ.> buttonAutomatically adjusts synchronization, total number of dots, horizontal shift, and vertical shift.(8) <LIGHT> buttonSwitches on/off the control panel and connection terminals by each press of this button.(9) <LENS SHIFT> buttonSlides the lens vertically and horizontally to move the position of the projective image vertically and horizontally.

page 35)(10) <INPUT> buttonSelects the input signal to project. ( page 37)(11) <SELECT> buttonSelects item indicated by the cursor on the on-screen menu.Also used to expand and contract the image in the digital zoom mode. ( page 40)(12) <INFORMATION> buttonDisplays state of signals during projection and current settings. ( page 39)About your projector

Connection terminals (1) (2) (3) (4) (10) (9) (8) (7) (6) (5) (1) DVI-D input terminal <DIGITAL (DVI-D) IN>This terminal is for inputting the DVI-D signal.(2) HDMI input terminal <HDMI IN>This terminal is for inputting the HDMI signal.(3) Computer input terminal <ANALOG IN>This terminal is for inputting an RGB signal.(4) RGB 5BNC input terminal <R,G,B,H/V,V IN>/<VIDEO IN>/<Y,Pb/Cb,Pr/Cr IN>This terminal is for inputting the G,B,R,H/HV,V signal, video signal, and Y,Pb/Cb,Pr/Cr signal.(5) USB terminal <USB>This terminal is for use by service personnel.(6) Serial input terminal <SERIAL PORT IN>This input terminal is compatible with RS-232C and for externally controlling the projector by connecting the projector.(7) Serial Output terminal <SERIAL PORT OUT>This terminal is for the signal connected to the serial input terminal.(8) Remote control terminal <R/C JACK>This terminal is for connecting the remote control when using it as a wired remote control.(9) LAN terminal <LAN>This terminal is for connecting the projector to the network.(10) S-VIDEO input terminal <S-VIDEO IN>This terminal is for inputting S-VIDEO signals. Attention

Make sure to connect the LAN cable to the indoor equipment.Using the remote control ENGLISH - 23 PreparationLX1750 User Manual020-000638-01 Rev.1 (11-2013) Using the remote control Inserting and removing the batteries

To remove the batteries, follow the above procedure in reverse. Setting remote control numbers When you are using multiple projectors, you can set a remote control number to each projector to allow simultaneous control with a single remote control.After setting a remote control number of a given projector, specify that projector using the remote control number.

enter the desired remote control number.

When you release the button, the remote control number will change to the new number.

The factory default setting is [All]. [All] supports all remote control numbers.

Set the remote control number of the projector using [Remote control] from the [Setting] menu ( page 67).

To reset the remote control number (to set to [All]), simultaneously hold down the <MENU> button and the <0> button for at least ve seconds. Using the remote control as a wired remote control Connect the <R/C JACK> terminal on the projector body to the wired remote control terminal on the remote control using the remote control cable (commercially available).

Make sure that the batteries are inserted in the remote control.

To use the remote control wirelessly, disconnect the remote control cable from the projector and the remote control. When the remote control cable is connected, you cannot use the remote control wirelessly.Setting up

Getting StartedLX1750 User Manual020-000638-01 Rev.1 (11-2013) Setting up Attaching the lens Before putting the projector in position, attach the lens to the projector body.First, determine the correct lens for the environment in which you are going to use the projector.For lens product numbers and lens specications suitable for the projector, consult your dealer. When attaching or replacing a lens, consult the technical staff or service personnel at a specialist dealer for safety. Do not attempt to attach or replace the lens by yourself. For details, refer to “Notes on attaching the lens” ( page 106). Caution When setting up the projector after installing a lens, always t the lens cover to the lens. When carrying or holding the projector body, never hold the lens. Doing so may damage the projector. Projection method You can project images vertically and diagonally. You can select rear ( page 58) and ceiling ( page 58) from the menu. Select the projection method appropriate to the environment.

Mounting on the ceiling and projecting forward

Setting on a desk/oor and projecting from rear (Using the translucent screen)Menu item Setting[Ceiling] [On][Rear] [Off]Menu item Setting[Ceiling] [Off][Rear] [On]

Mounting on the ceiling and projecting from rear (Using the translucent screen)

Setting on a desk/oor and projecting forward Menu item Setting[Ceiling] [On][Rear] [On]Menu item Setting[Ceiling] [Off][Rear] [Off]Attention

To get a high picture quality, set up the screen in a location that is, as far as possible, not directly affected by natural light or electric light. Draw the curtains or blinds and turn off the lights.

When setting up the projector with tilt, do not use the projector at an inclination angle that exceeds ±10° vertically to the horizontal plane. Installing the projector at an inclination angle that exceeds this value may reduce the component life and result in malfunctions.10° 10°10° 10° 10° 10°Setting up ENGLISH - 25 Getting Started LX1750 User Manual020-000638-01 Rev.1 (11-2013) Installation options (optional) You can install the projector on the ceiling using the optional ceiling mount bracket.

Use only ceiling mount brackets specied for this projector.

For details on installation of the projector with the bracket, refer to the installation manual for the ceiling mount bracket. Attention

To ensure the projector performance and security, installation of the ceiling mount bracket must be carried out by your dealer or a qualied technician. Adjustable feet The adjustable feet can be extended by turning it as shown in the gure. It is retracted by turning it in the opposite direction. This nely adjusts the height and tilt of the projected image. When the adjustable feet are extended, the projector can be tilted to a maximum of 3°. (The projection angle can be adjusted vertically.) Attention

Heated air is blowing out from the air exhaust port while the lamp is on. Do not touch the air exhaust port directly when adjusting the adjustable feet.

If the keystone effect occurs in the projected image, perform [Keystone] (

Do not extend the adjustable feet beyond the red line. Doing so may damage them.

The vertical and horizontal position of the image can be adjusted using the lens shift function.Connections

Getting Started LX1750 User Manual020-000638-01 Rev.1 (11-2013) Connections Before connecting to the projector

Read carefully the instruction manual of the device you intend to connect.

Turn off the power switch of the device before connecting the cable.

If a connection cable is not supplied with the device and the optional cable is not available, prepare a connection cable to suit the device.

Video signals containing too much jitter may cause the images on the screen to randomly wobble. In this case, a time base corrector (TBC) must be connected.

The projector accepts the following signals: video signals, S-video signals, analog RGB signals (synchronous signals are TTL level), and digital signals.

Some computer models are not compatible with the projector.

When connecting a device to the projector using a long cable, it may not be possible to achieve a normal picture without a compensator.

For details of the video signals supported by the projector, refer to “List of compatible signals” ( page 99). Connecting example: Computers To <SERIAL PORT IN> terminalTo <G,B,R,H/V,V IN> terminalTo <ANALOG IN> terminalTo <HDMI IN> terminalTo <DIGITAL (DVI-D) IN> terminalSerial cable (crossed)BNC cableD-sub cableDVI/HDMI cableDVI-D cableTo serial port outputTo monitor outputTo monitor outputTo monitor outputTo monitor output Computer Note

Use an HDMI High Speed cable that adheres to the HDMI standard. Use of a cable that does not adhere to the HDMI standard, may result in abnormal operation such as cut-out of the image, failure to project, etc.

The <HDMI IN> terminal can be connected with an external device with a DVI terminal using an HDMI/DVI conversion cable. With some devices, however, the image may not appear. ( page 65)

When the <DIGITAL (DVI-D) IN> terminal is used, normal operation may not be possible with certain devices and the image may not appear.

The <DIGITAL (DVI-D) IN> terminal (in the digital signal input mode) is compatible only with single link signals.

For details of RGB signals from computers that the projector supports, refer to “List of compatible signals”

If you operate the projector using the computer with the resume feature (last memory), it may be required to reset the resume feature to operate the projector.

The <DIGITAL (DVI-D) IN> terminal (in the digital signal input mode) may require the EDID setting depending on the connected device.

Always use one of the following when connecting a VCR.

A VCR with built-in time base corrector (TBC)

A time base corrector (TBC) between the projector and the VCR

If burst signals are connected to nonstandard signals, the image may be distorted. In such a case, connect a time base corrector (TBC) between the projector and the device. Note

Use an HDMI High Speed cable that adheres to the HDMI standard. Use of a cable that does not adhere to the HDMI standard, may result in abnormal operation such as cut-out of the image, failure to project, etc.

The <HDMI IN> terminal can be connected with an external device with a DVI terminal using an HDMI/DVI conversion cable. With some devices, however, the image may not appear. (

The <DIGITAL (DVI-D) IN> terminal can be connected to HDMI and DVI-D compatible devices, but normal operation may not be possible with certain devices and the image may not appear.

The <DIGITAL (DVI-D) IN> terminal (in the digital signal input mode) is compatible only with single link signals.Connections

Getting Started LX1750 User Manual020-000638-01 Rev.1 (11-2013) Tying up the cables using cable ties Keep the cables tidy by xing the cables connected to the terminals into the cable holders on the projector body.

The cable ties can be reused. (The tab can be loosened and released.)

Loosening the cable ties (i) (ii) Tab Cable tieCable holders

1) Pull the tab in the direction of arrow (i).

2) Pull the tab in the direction of arrow (ii).

The loop of the cable tie will widen.Attention

The following items are cautions when you use the cable tie. Noises may occur for rare occasions. Do not pull the cable forcibly. Doing so may cause disconnection. It is recommended that you allow some slack when the cables are tied. Caution When connecting the projector to a computer or an external device, use the power cord supplied with the device and commercially available shielded cables.Installing an input module (optional) ENGLISH - 29 Getting StartedLX1750 User Manual020-000638-01 Rev.1 (11-2013) Installing an input module (optional) Installing an input module

SMPTE296M standard: 720-60p (60/59.94 Hz ), 720-50p (50 Hz)*1: V-sync frequency 60/59.94 Hz, 48/47.95 Hz, 24/23.98 Hz are automatically distinguished. Note

The preceding list shows the signal formats supported by the input modules. The signal formats supported by the projector differ depending on the model. For more information, please consult your dealer.

Installation procedure Disconnect the power before installing the input module.

1) Remove the slot cover.

Firmly insert the input module into the slot, ensuring that the socket of the connection terminal engages correctly with the plug within the projector body. Guide Socket Plug

Be sure to tighten the screws. Otherwise, the input module may fall off.

Using the input module Consult your dealer before using any of the optional input modules. When consulting your dealer, be sure to inform them of [Option control No.] of the projector. [Option control No.] is displayed in the [Information] menu.

1) Insert the power cord holder in the

Push the power cord holder to the left to allow insertion of the power cord.

2) Attach the power cord cover to the

cord in the direction of (i) and press it rmly in the direction of (ii). (i) (ii)

3) Connect the power cord to the AC

4) Move the power cord holder to secure

1) Push the power cord holder to the left.

2) Remove the power cord from the AC

Basic Operation LX1750 User Manual 020-000638-01 Rev.1 (11-2013) Power indicator The power indicator informs you of the power status. Check the status of the power indicator <POWER> and the standby indicator <STAND-BY> before operating the projector. Power indicator <POWER> Standby indicator <STAND-BY> Indicator status Projector status Power indicator <POWER> (green) Standby indicator <STAND-BY> (red) Off The main power is off. Off On The power is off (standby mode). On Off The projector is in the projection mode. Off Flashing The projector is preparing to turn off the power. After a short time, the power will turn off (in standby mode). Note

When the projector is preparing to turn off the power (the power indicator <POWER> is off and the standby indicator <STAND-BY> is ashing), the internal fan switches on to cool the projector.

When the projector is preparing to turn off the power, you cannot switch on the power by pressing the power <ON/STAND-BY> button on the control panel or the power <ON> button on the remote control. If the standby indicator <STAND-BY> is on, you can switch on the power.

The projector consumes electricity even in the standby mode (the standby indicator <STAND-BY> is on).Powering on/off ENGLISH - 33 Basic OperationLX1750 User Manual020-000638-01 Rev.1 (11-2013) Powering on the projector Power <ON/STAND-BY> buttonControl panel Remote controlPower <ON> buttonBefore turning on the power, remove the lens cover.

1) Connect the power plug to the outlet.

(AC 200 V - 240 V 50 Hz/60 Hz)

side of the main power switch to turn on the power.

After a moment, the standby indicator <STAND-BY> will go on and the projector will enter the standby mode.

3) Press the <ON/STAND-BY> button on

the control panel or the <ON> button on the remote control.

After a moment, an image will be projected and the currently selected input signal and lamp status ( page 85) will be displayed for approximately four seconds. Note

When [PIN code lock] ( page 69) has been set to [On] using [Security] in the [Setting] menu, enter your PIN code.

The projector will make a noise when the lamp comes on, but this is not a malfunction.

During projection, the fan rotates, making a sound. The sound may change depending on the ambient temperature, and when the lamp is on, the sound may become loud.

If the lamp is switched off and immediately on again, the newly projected image may wobble for a few moments. This is due to the lamp characteristics and is not a malfunction.

When [Direct on] ( page 68) of the [Setting] menu is set to [On], the power will come on as soon as you insert the power plug into the outlet or set the main power switch to the side.

When [Display] ( page 59) of the [Setting] menu is set to [On] and [Logo] ( page 65) is set to [Off], the countdown will be displayed but the opening display will not be displayed.

When [Display] ( page 59) of the [Setting] menu is set to [Off] or [Countdown off], projection will start as soon as the lamp comes on, regardless of [Logo select] ( page 65) setting.

After turning on the power, notes on [Filter warning] and [Lamp replacement] may be displayed depending on the status of the projector. ( page 86) Making adjustments and selections It is recommended that the images are projected continuously for at least 30 minutes before the focus is adjusted.

4) Press the <FOCUS> button to adjust

the focus of the image roughly.

buttons on the remote control or the <INPUT> button on the control panel to select the input terminal. (

Extend the adjustable feet to adjust the projection angle.

the size of the image to t the screen.

adjust the zoom and the size of the image to t the screen.Powering on/off

button on the control panel or the power <STAND-BY> button on the remote control.

[Power off ?] is displayed on the screen.

The screen display will disappear when any button other than the power <ON/STAND-BY> button on the control panel and the power <STAND-BY> button on the remote control is pressed or when approximately four seconds elapse.

2) Press again the power <ON/STAND-

BY> button on the control panel or the power <STAND-BY> button on the remote control.

The lamp goes off and the projection stops.

The power indicator <POWER> goes off while the cooling fan continues to rotate, and the standby indicator <STAND-BY> ashes.

3) When the standby indicator <STAND-

BY> comes on, press the

side of the main power switch to turn off the power. Note

Do not turn on the power immediately after turning it off. In the cooling state of the luminous lamp after the power is turned off, the lamp may not light up even when the power is turned on. In this case, wait for the standby indicator <STAND-BY> to turn red, and then turn on the power again. Turning on the power while the lamp is still hot may shorten the lamp life.

When you turn off the power using the power <ON/ STAND-BY> button on the control panel or the power <STAND-BY> button on the remote control with the main power switch on the projector body turned on, the projector continues to consume electricity. For details on power consumption, refer to “Power consumption” (

Check that key lock is off in the [Security] menu.

If you use the projector for longer than 24 hours, turn off the power every 24 hours and wait for one hour. This will increase the lamp life. Direct power off function You can disconnect the power cord, turn off the power by the power breaker switch, etc. without pressing the power <STAND-BY> button on the remote control or the main power switch on the projector. This is useful in cases where the switch is not easily accessible, such as when the projector is ceiling mounted. This function also provides safety if a power outage occurs or if the power cord is accidentally disconnected from the outlet immediately after turning off the power. Note

When the lamp has been cooled by the direct power off function, it sometimes takes longer than usual for the lamp to light up again. Power management function The projector has a power management function. If no signal is detected for 30 seconds and no operation is performed on the projector, [No signal] the timer appear on the screen and a countdown starts. If the countdown is completed without a signal being input or an operation on the projector, this function works to save power and extend the service life of the lamp. Note

The factory default setting is [Off]. For details, refer to [Power management] (

page 68).Projecting ENGLISH - 35 Basic OperationLX1750 User Manual020-000638-01 Rev.1 (11-2013) Projecting Check the external device connections ( page 26) and power cord connections ( page 31) and then turn on the power ( page 33) to start projection. Select the input signal and adjust the image. Selecting the input signal Select an input signal. The images selected using the <INPUT> button on the control panel or the <INPUT 1> to <INPUT 4> buttons on the remote control are projected. ( page 37)Attention

Images may not be projected properly depending on the connected device, DVD, video tape, etc. to be played.

The <INPUT> button on the control panel cannot be used to select input signals. The input signal for each input terminal must be selected in advance using the [Input] menu. If you press the <INPUT> button without having correctly selected the input signal, the projector will not project the image correctly. Adjusting the image

Adjusting the position of the lens

[Lens shift] is displayed on the screen for four seconds.Lens shift

to move the image horizontally and vertically.

As you move the image, there is a certain position at which the arrows pointing up, down, left and right turn red. This position is the center for the lens.

At positions of maximum shift, the arrows disappear.

The projector stores the setting made using the lens shift function when the power is turned off.

When the position of the image is shifted, the image may become a little darker.* The gure below shows an example of when the standard lens is attached. 90° 90° 90° 90°With the lens moved completely upWith the lens moved completely downWith the lens moved completely to the rightWith the lens moved completely to the left Moves the image up approximately 50% of its height.Moves the image left approximately 10% of its width.Moves the image right approximately 10% of its width.Moves the image down approximately 50% of its height.Projecting

Adjusting the focus and zoom

[Focus] and [Zoom] are displayed on the screen for four seconds.

to adjust the focus and zoom. Note

When [Display] is set to [Off], the adjustment screen will not appear.

It is recommended that the images are projected continuously for at least 30 minutes before the focus is adjusted.

If the keystone effect occurs, refer to “Correcting the keystone effect” ( page 38) for details.Using the remote control ENGLISH - 37 Basic OperationLX1750 User Manual020-000638-01 Rev.1 (11-2013) Using the remote control Using the shutter function You can fully block the projection light. button

This blocks the projection light. The shutter indicator <SHUTTER> lights up in blue.

2) Press the <SHUTTER> button again.

This opens the shutter and restarts projection. The shutter indicator <SHUTTER> goes off. Note

The operations of the shutter differ depending on the settings. Perform the settings using [Shutter] in the [Setting] menu.

The <SHUTTER> button is also on the control panel.

If an error message appears when you press the <SHUTTER> button, the button lock is enabled. Check the [Shutter] setting from the [Setting] menu. Using the freeze function You can temporarily freeze the projected image regardless of the state of playback in an external device. button

or the control panel.

Releases the frozen image. Switching the input signal You can switch the input signal for projection. buttons

1) Press the <INPUT 1> - <INPUT 4>

buttons on the remote control.

Pressing the <INPUT> button on the control panel changes the signal in the order of [Input 1], [Input 2], [Input 3], and [Input 4]. Correcting the keystone effect You can correct the keystone effect that occurs when the projector is installed with tilt or when the screen is tilted.

The amount and range of the correction differ depending on the input signal.

With certain settings, the image may distort for a moment.

To achieve the corrected image, the signal undergoes digital compression before projection and lines and text may be altered slightly from those of the original image.

For details on the correction, refer to [Keystone] in the [Screen] menu. button

Each press of the button switches the display between the standard keystone effect correction display and the corner correction display.

Standard keystone effect correction Corrects the keystone effect vertically and horizontally.

1) While [Keystone] is displayed, press

of the direction in which you want to make the correction. Note

Pressing the <KEYSTONE> button on the remote control for at least three seconds while [Keystone] is displayed returns the image to the uncorrected state.

Corner correction Corrects distortion at the corners of the image.

1) While [Keystone] is displayed, press

the <SELECT> button and select the corner to correct.

Each press of the button moves the selected corner clockwise.

to correct the distortion. Note

Pressing the <KEYSTONE> button on the remote control for at least three seconds while [Keystone] is displayed returns the image to the uncorrected state. Selecting picture quality mode Pressing the <IMAGE SEL.> button on the remote control displays the menu for the currently selected [Image select], then each subsequent press of the button changes the mode. button <For computer input> <For video input> [Standard][Standard][Real] [Cinema][Dynamic] [Dynamic][Image 1] - [Image 10][Image 1] - [Image 10] Note

For details, refer to “[Image select] menu”

The adjustment menu is displayed.

to select the item to adjust, and then press

to change the setting. Note

For details, refer to “[Image adjust] menu”

For details, refer to “[Screen] menu” ( page 55).

If you press and hold the button for at least ve seconds, the settings of the [Screen] menu will return to the factory default settings. Displaying a timer for presentations When you press the <P-TIMER> button on the remote control, the projector displays either a count of the time elapsed from the press of the button or a countdown.Pressing the <P-TIMER> button again stops the count and displays the elapsed time up to that point.Pressing the <P-TIMER> button again restarts the count. button Note

For details, refer to [P-timer] ( page 73).

Pressing the button for at least three seconds resets the time. The count up is returned to “000:00” and the countdown is returned to the time set on the timer. Checking the settings You can check the status of signals and the lamp on the screen during projection. button Pressing the <INFO.> button on the remote control displays the rst page of the information.Pressing the <INFO.> button again displays the second page of the information.Pressing the <INFO.> button closes the information. Note

For details, refer to “[Information] menu” ( page 75).

To move from the information to another menu, press

There is also the <INFORMATION> button on the control panel.Menu navigation

Select the item to adjust from [Input], [PC adjust], [Image select], [Image adjust], [Screen], [Setting], [Information], and [Network]. The currently selected item appears with an orange cursor, and the sub menu of the selected item is displayed to the right-hand side.

The sub menu is displayed, and the items on the sub menu can be selected.

For some sub menus, a further menu (sub menu 2) containing advanced settings will be displayed.

For items where the setting can be changed or there is a bar scale, the menu screen disappears and, as illustrated below, an adjustment screen for the selected setting (individual adjustment screen) is displayed. Exit Adjust BackScroll Fine sync Note

For certain formats of signal input to the projector, it will not be possible to adjust some items or use some functions. The menu items that cannot be adjusted or used are grayed out, and cannot be selected.

Some items can be adjusted without a signal input.

If no operation is performed for approximately four seconds or ten seconds, the adjustment screen is cleared automatically. The time until the adjustment screen is cleared varies depending on the screen.

For details on the sub menu items, refer to “Sub menu” ( pages 41 to 43).

to navigate among the items. (4) Press

to adjust or select an item. (5) Press the <SELECT> button to execute an item.Menu navigation ENGLISH - 41 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) Main menu The main menu contains the following eight items.When a main menu item is selected, the screen changes to a sub menu selection screen.[Input][PC adjust][Image select][Image adjust][Screen][Setting][Information][Network] Sub menu The sub menu screen of the item selected from main menu is displayed, and you can set and adjust the various items in the sub menu.

[Gamma] 8 53 [Noise reduction]*

[On] 53 [Progressive]*

Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013)Select [Input] from the main menu on the menu screen, and select the item from the sub menu.For operation of the menu screen, refer to “Navigating through menu” ( page 40).

After selecting the item, press to make the setting. Control panelRemote control [Input 1]

The sub menu 2 is displayed.

The SCART21 pin terminal is a video output terminal provided in video players sold mainly in Europe. To view RGB output from this terminal on the projector, connect the SCART21 pin terminal of the video player to the <ANALOG IN> terminal of the projector using a dedicated cable. The RGB SCART signals to be played via the <ANALOG IN> terminal are limited to 480i and 576i RGB signals. Composite video signals cannot be played back. [Input 2]

The sub menu 2 is displayed.

While some RGB signals are automatically recognized, unrecognized RGB signals are detected as “Y,Pb/Cb,Pr/Cr” and it is necessary to select [RGB] from the menu. [Input] menu[Input] menu ENGLISH - 45 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [System] [System] is displayed below the sub menu.

The sub menu 2 is displayed.

For computer input [Auto]When there is no input signal compatible with the signal from a connected computer on the projector, the automatic PC adjustment function works and [Auto] is displayed on the system.If images are not being correctly projected, manually adjust the settings to suit your computer and register in [Store]. There is no input signal from the computer.Check the connections.[Mode 1] - [Mode 10]Select when inputting a digital signal from a computer to the <DIGITAL (DVI-D) IN> terminal.

For video and S-video input [Auto]The projector automatically selects the color system of the input signal.[PAL]/[SECAM]/[NTSC]/[NTSC4.43]/[PAL-M]/[PAL-N]This is a list of supported color systems. The Japanese color system is NTSC. When the quality of the input signal is poor (irregular color, absence of color etc.), and the color system is not selected even when [Auto] is set, select [NTSC].

For component input [Auto]The projector automatically selects the scanning method of the input signal.Component video scanning methods ([480p], [576p], [720p], [480i], [576i], [1035i], [1080i], [1080p])When video is not being played back correctly, select the correct scanning method from the menu.[PC adjust] menu

Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [PC adjust] menu Select [PC adjust] from the main menu on the menu screen, and select the item from the sub menu.For operation of the menu screen, refer to “Navigating through menu” ( page 40).

After selecting the item, press to make the setting. Control panelRemote control [Auto PC adj.] Automatically adjusts synchronization, total number of dots, horizontal shift, and vertical shift.

This executes automatic adjustment. Note

You can also use [Auto PC adj.] by pressing the <AUTO PC> button on the remote control.

Some computers will be unable to adjust any of [Fine sync], [Total dots], [Position H] or [Position V]. In this case, adjust manually and register in [Store].

After registering the automatically adjusted settings, you can select that mode using [System] in the [Input] menu.

The automatic PC adjustment function does not work when any of [480p], [576p], [720p], [480i], [576i], [1035i], [1080i], or [1080p] have been selected using [System] in the [Input] menu.

With some computers and types of signal, it may not be possible to project the images correctly. [Fine sync] Adjusts the projector when there is icker due to a tracking (synchronization) mismatch.

The advanced menu is displayed.

While the advanced menu is displayed, press to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting.

The adjustment value can be set from 0 to 31.

For some computers, it may not be possible to completely eliminate the screen icker. [Total dots] Adjusts total number of dots in the horizontal interval.

to select [Total dots].

The advanced menu is displayed.

While the advanced menu is displayed, press to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting.

to select [Position H].

The advanced menu is displayed.

While the advanced menu is displayed, press to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting.

to select [Position V].

The advanced menu is displayed.

While the advanced menu is displayed, press

to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting.

Press the <SELECT> button to return to the sub menu. [Current mode] Displays the current values of H-sync frequency and V-sync frequency for the currently connected computer.

to select [Current mode].

The advanced menu is displayed.

to return to the sub menu. [Clamp] Adjusts the clamp position. Use this when a black line is visible in the projected image.

The advanced menu is displayed.

While the advanced menu is displayed, press

to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting.

The advanced menu is displayed.

While the advanced menu is displayed, press

to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting.

You cannot adjust [Display area H] when any of [480p], [576p], [720p], [480i], [576i], [1035i], [1080i], or [1080p] have been selected using [System] in the [Input] menu. [Display area V] Adjusts vertical resolution.

The advanced menu is displayed.

While the advanced menu is displayed, press

to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting.

You cannot adjust [Display area V] when any of [480p], [576p], [720p], [480i], [576i], [1035i], [1080i], or [1080p] have been selected using [System] in the [Input] menu.[PC adjust] menu

Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [Reset] The setting returns to its value before adjustment .

The setting returns to the value before adjustment.

to select [Mode free].

The registered content of each mode is displayed in the sub menu 2.

to select the mode to delete.

The selected mode is deleted and the projector returns to the sub menu 2.

The registered content of each mode is displayed in the sub menu 2.

to select the mode to register.

The selected mode is registered and the projector returns to the sub menu 2.

Select [No] and press the <SELECT> button to return to the sub menu 2.[Image select] menu ENGLISH - 49 SettingsLX1750 User Manual020-000638-01 Rev.1 (11-2013) [Image select] menu Select [Image select] from the main menu on the menu screen, and select the item from the sub menu.For operation of the menu screen, refer to “Navigating through menu” ( page 40).

After selecting the item, press to make the setting. Control panelRemote control

You can also display sub menus using the <IMAGE SEL.> button on the remote control. Adjusting the picture quality Adjusts the picture quality of the projected image to suit the environment in which you are using the projector.

[Standard] Resets the [Image adjust] menu items to the factory default settings.

[Real] In this mode, intermediate settings are adjusted to be brighter, improving the view in bright locations.

This mode can only be selected for computer inputs.

[Cinema] Emphasizes gradation, making this mode suitable for viewing movies.

This mode can only be selected for video or component inputs.

[Dynamic] Gives picture with stronger contrast than [Standard].

Images can be registered with both computer inputs and video inputs.[Image adjust] menu

Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013)Select [Image adjust] from the main menu on the menu screen, and select the item from the sub menu.For operation of the menu screen, refer to “Navigating through menu” ( page 40).

After selecting the item, press to make the setting. Control panelRemote control

You can also display sub menus using the <IMAGE ADJUST> button on the remote control. [Contrast]

The advanced menu is displayed.

While the advanced menu is displayed, press to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting. Operation Adjustment RangePress

to select [Brightness].

The advanced menu is displayed.

While the advanced menu is displayed, press to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting. Operation Adjustment RangePress

The brightness decreases.Minimum value 0 [Color] This setting can only be adjusted for video or component inputs.

The advanced menu is displayed.

While the advanced menu is displayed, press to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting. Operation Adjustment RangePress

Makes the image lighter.Minimum value 0 [Tint] This setting can only be adjusted for video or component inputs.

The advanced menu is displayed.

While the advanced menu is displayed, press to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting. Operation Adjustment RangePress . Emphasizes green.Maximum value 63Press . Emphasizes purple.Minimum value 0 [Image adjust] menu[Image adjust] menu ENGLISH - 51 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [Color management] Adjusts the color of the projected image as desired.

to select [Color management].

The image is paused and a colorless cursor appears in the center of the screen.

to move the cursor over the color to adjust, and press the <SELECT> button.

3) The cursor becomes that color

and [COLOR SELECTION] menu is displayed.

to move the cursor over the color to adjust.

3) After adjusting to the desired color,

The screen moves to [GAMMA] adjustment.

to select the color to display after adjustment, then press the <SELECT> button.

The cursor moves to [LIST].

6) [COLOR MANAGEMENT LIST] is

You can check whether the registered color has been stored.

Re-adjusting stored colors

to select the color to re- adjust.

You can re-adjust the color.

Deleting stored colors

to select the color to delete.

The registered color will be deleted.[ALL DEL] Deletes all stored items on the list.[MENU]Ends the display of [COLOR MANAGEMENT LIST], and returns to the [Image adjust] menu.[COLOR M.]Stores the adjustment. A new colorless cursor is displayed and you can continue to make adjustments.[Image adjust] menu

The advanced menu is displayed.

While the advanced menu is displayed, press

to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting. Operation Adjustment Range Press

Makes the color temperature higher. [XLow]-[Low]- [Mid]-[High] Press

Makes the color temperature very low. Note

[XLow] (emphasize red) - [High] (emphasize blue)

Note that adjusting this item will also change the white balance setting.

[Adj.] is displayed when you adjust the white balance (any of [Red], [Green], and [Blue]). White balance ([Red]/[Green]/ [Blue])

to select [Red] (or [Green] or [Blue]).

The advanced menu is displayed.

While the advanced menu is displayed, press

to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting. Operation Adjustment Range Press

The sub menu 2 is displayed.

to select [Red] (or [Green] or [Blue]).

4) Press the <SELECT> button.

5) While looking at the screen, press

to adjust the setting. [Red] Minimum value 0 - maximum value 63 [Green] Minimum value 0 - maximum value 63 [Blue] Minimum value 0 - maximum value 63 [Auto picture control] Emphasizes the dark parts of the projected image.

to select [Auto picture control].

to switch the setting.

The setting will change as follows each time you press the button. [Off] [L 1] [L 2]

The effect is strongest with [L 2]. [Advanced color] Sets the operation of the color control device that independently controls the quantity of yellow light.

to select [Advanced color].

to switch the setting.

The setting will change as follows each time you press the button. [Off] [Auto]

to select [Sharpness].

The advanced menu is displayed.

While the advanced menu is displayed, press

to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting. Operation Adjustment Range Press

The sharpness increases. Maximum value 31 Press

The sharpness decreases. Minimum value 0 [Gamma]

The advanced menu is displayed.

While the advanced menu is displayed, press

to move backwards and forwards between menus.

3) While looking at the screen, press

to adjust the setting. Operation Adjustment Range Press

Brightens the intermediate gradations. Maximum value 15 Press

Darkens the intermediate gradations. Minimum value 0 [Noise reduction] Reduces noise when viewing old video or other images affected by noise.

to select [Noise reduction].

to switch the setting.

The setting will change as follows each time you press the button. [Off] [On] [Progressive] Can be set for video input signals of 480i, 576i, 1035i, and 1080i.

to select [Progressive].

to switch the setting.

The setting will change as follows each time you press the button. [Off] [On] [Film]

Set to [Off] when video with a lot of movement is affected by ickers or horizontal lines.

[Film] enables playback of 3-2 pull down/2-2 pull down images on the projector without loss of picture quality in the images.

When switching, the image will distort for a moment. [Reset] The setting returns to its value before adjustment.

The setting returns to its value before adjustment.

The registered content of each mode is displayed in the sub menu 2.

to select the mode to register.

The selected mode is registered and the projector returns to the sub menu 2.

The adjusted item is registered and stored in [Store].

With [Store], you can store both computer inputs and video inputs.[Screen] menu ENGLISH - 55 SettingsLX1750 User Manual020-000638-01 Rev.1 (11-2013)Select [Screen] from the main menu on the menu screen, and select the item from the sub menu.For operation of the menu screen, refer to “Navigating through menu” ( page 40).

After selecting the item, press to make the setting. Control panelRemote control

You can also display sub menus using the <SCREEN> button on the remote control. [Normal] Displays the maximum allowable size while retaining the aspect ratio of the input signal.

[Full] Displays the full screen size.

When there is no input signal, this item is grayed out and cannot be selected.

[Wide(16:9)] Displays in widescreen with aspect ratio of 16:9.

When there is no input signal this item is grayed out and cannot be selected.

to select [Wide(16:9)].

2) Press the <SELECT> button.

[Zoom] Stores the aspect ratio and projects at full panel size.

When there is no input signal, this item is grayed out and cannot be selected.

If the image is horizontally wider than the panel the right and left edges will be cropped. If vertically longer than the panel, the top and bottom edges will be cropped.

[True] Projects the image at the original size.

This mode can only be adjusted for computer inputs.

When there is no input signal, this item is grayed out and cannot be selected.

When the image size is less than the panel resolution

The image is projected in the center of the screen, and [True] is displayed at the top left of the screen.

When the image size is same as the panel resolution

[True] is displayed at the top left of the screen, but the image is subsequently projected in [Normal] mode.

When the image size is larger than the panel resolution

[True] is displayed at the top left of the screen, and ( ) are displayed at the top, bottom, left, and right of the screen.Press to move the image.

The arrow in the direction of movement is displayed in red.

At positions of maximum shift the arrows disappear.*1: The panel resolution of the projector is 1 024 x 768 dots. [Screen] menu[Screen] menu

Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [Custom] The image is projected using the values registered as [Store] in the [PC adjust] menu.

When there is no input signal, [Custom] can be selected but the image will be projected in [Normal] mode.

[Custom adj.] Adjusts the horizontal and vertical scale and position.

When there is no input signal, this item is grayed out and cannot be selected.

If the input signal is lost during adjustment, the adjustment value is stored and the [Aspect] adjustment screen is cleared.

to select [Custom adj.], and press

The adjustment screen of the sub menu 2 is displayed.

3) The advanced menu is displayed.

Press the <SELECT> button for [Common] and [Reset]. Select [Yes] and press the <SELECT> button.

While the advanced menu is displayed, press

to display menus other than [H&V], [Common] and [Reset] in order.

to adjust the setting.

Press the <SELECT> button to return to the sub menu. [Scale H] Adjusts the horizontal scale. [Scale V] Adjusts the vertical scale. [H&V] When adjusting the vertical and horizontal scale, select [On] to link the vertical and horizontal scales and preserve the aspect ratio of the image.

As you adjust the numerical value of [Scale H], the numerical value of [Scale V] changes accordingly. [Position H] Adjusts the horizontal shift. [Position V] Adjusts the vertical shift. [Common] Applies the adjusted content to all inputs. [Reset] Resets all the adjusted content. [Digital zoom +]

The menu screen is cleared and [Digital zoom +] is displayed.

The image move function only works when the image size is larger than the panel resolution

*1: The panel resolution of the projector is 1 024 x 768 dots. Note

When there is no input signal, [Digital zoom +] is grayed out and cannot be selected.

When [True] is selected, [Digital zoom +] cannot be selected.

To end the [Digital zoom +] operation, press any button other than the <D.ZOOM>, <SELECT>, and

The menu screen is cleared and [Digital zoom -] is displayed.

Press to move the image.

The image move function only works when the image size is larger than the panel resolution *1: The panel resolution of the projector is 1 024 x 768 dots. Note

When there is no input signal, [Digital zoom -] is grayed out and cannot be selected.

When [True] is selected, [Digital zoom -] cannot be selected.

When [Custom] is selected, you cannot set [Digital zoom -] to [Normal] or smaller.

When [Store] registered in the [PC adjust] menu is selected in [System] of the [Input] menu, the image move function of [Digital zoom -] may not work correctly.

When VGA, SVGA, SXGA, WXGA, or UXGA is selected in [System] of the [Input] menu and the upward [Keystone] adjustment is at the maximum value, [Digital zoom -] may not work correctly.

To end the [Digital zoom -] operation, press any button other than the <D.ZOOM>, <SELECT>, and buttons. [Keystone]

The adjustment screen of the sub menu 2 is displayed.

[Standard] Corrects the keystone effect vertically and horizontally.

1) Select [Standard], and press the

The menu screen is cleared and [Keystone] is displayed.Keystone

[Corner correction] Corrects distortion at the corners of the image.

The screen to select the corner to correct is displayed.

2) Press the <SELECT> button to select

the corner to correct. Keystone Keystone <SELECT> button Keystone Keystone

to correct the corner.[Screen] menu

[Corner pattern] Selects the corner pattern mode displayed during corner correction.

The setting screen is displayed.

to select an item. [Red] Displays the corner pattern in red.[White] Displays the corner pattern in white.[Blue] Displays the corner pattern in blue.[Off] Clears display of corner pattern.

[Store] Stores the correction state.

1) Select [Store], and press the

to select an item, and press the <SELECT> button. [Store]The adjustment state remains in memory even after removing the power cord.[Reset]The adjustment state is reset when the power cord is removed.

You can register only one of [Standard] and [Corner correction]. [Ceiling] Sets the projection method in accordance with the installation status of the projector.If the screen display is upside down, select [On].

This setting is used when the projector is installed using the ceiling mount bracket (optional accessory).

to select an item. [Off] [On] [Rear] Sets the projection method in accordance with the installation status of the projector.If the screen display has ipped, select [On].

to select an item. [Off] [On] [Reset] The setting returns to its value before adjustment .

The setting returns to its value before adjustment.

Select [No] and press the <SELECT> button to return to the sub menu.[Setting] menu ENGLISH - 59 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [Setting] menu Select [Setting] from the main menu on the menu screen, and select the item from the sub menu.For operation of the menu screen, refer to “Navigating through menu” ( page 40).

After selecting the item, press to make the setting. Control panelRemote control [Language] Switches the display language.

to select [Language].

The sub menu 2 is displayed.

Ten languages are available (English, German, French, Italian, Spanish, Portuguese, Russian, Chinese, Korean, and Japanese).

Arrows are displayed on the sub menu 2. Press to adjust the position.

to select an item. [Off]The following screen displays appear.

Display of [Power off ?] when turning off the power

Timer display when using the presentation timer

Display of [Please wait ...] in [Auto PC adj.]

Timer display when using power management

Arrows displayed when [Menu position] in [Setting] is selected

Error message displayed when a button is pressed that is not used for the current settings

arrows displayed when the image size is larger than the panel resolution (1 024 x 768 dots)

Display of [Corner pattern][Countdown off] Makes the projector project immediately after the lamp comes on without displaying the countdown for approximately 20 seconds.

Select when you want to project the image quickly and it is not important that the projected image is a little dark. [On] Shows all screen displays.

Select when you want to project the image after the projection screen has reached certain level of brightness.[Setting] menu

are displayed over the sub menu 2.

The setting will change as follows each time you press the button.[Blue] [User] [Black] [Lamp select] Selects the lamp used for projection.

to select [Lamp select].

The sub menu 2 is displayed.

[4-Lamps] Turns on four lamps.

The setting ends and the projector returns to the sub menu 2 screen.

[2-Lamps] Turns on two lamps.

The setting ends and the projector returns to the sub menu 2 screen.

Select [No] and press the <SELECT> button to return to the sub menu 2.[Auto]Automatically detects the lamp with the shortest total time, and prioritizes to turn it on.Turns on lamp 2 and lamp 3.Turns on lamp 1 and lamp 4. Note

If a lamp fails as a result of a fault or reaching the end of its service life, the lamp indicator <LAMP REPLACE> on the front of the projector body and the lamp indicator (<LAMP 1 REPLACE> - <LAMP 4 REPLACE>) on the projector body above the failed lamp will ash. An X mark will also appear as the lamp status at the top of the screen.

When [4-Lamps] is selected and one lamp fails, two diagonally opposed lamps (not including the failed lamp) perform the projection.If a further lamp fails, the projection will continue with one lamp.

When [2-Lamps] is selected and one lamp fails, two diagonally opposed lamps (not including the failed lamp) perform the projection.If a further lamp fails, the projection will continue with one lamp.

If all the lamps fail, the power will switch off. If the power is turned on without replacing the lamps after the duration exceeds 2 200 hours of usage for all lamps, the power automatically turns off after approximately ten minutes to prevent the malfunction of the projector. [Lamp power] Sets switching of lamp brightness.Using the eco mode is recommended if you want to reduce power consumption.

The setting will change as follows each time you press the button.(Auto)Sets the brightness automatically using a light-metering circuit.(Standard)Operates in certain brightness.(Eco mode 1)The air intake/exhaust decreases compared to , and the sound of the fan becomes lower.(Eco mode 2)The air intake/exhaust increases in comparison to , and the fan becomes louder.[Setting] menu ENGLISH - 61 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [Lamp interval] Sets the replacement cycle when [Lamp select] is set to [2-Lamps]. After the replacement cycle, the lamp for use is automatically changed.

The set time here is a guideline time.

When the set time is reached, the projector lights a lamp, giving priority to the lamp with the shortest total usage time. [Edge blending] Makes it less easy to see the join between screens when multiple screens are used.

When not performing [Edge blending], select [Off]. Items other than [Back] will be grayed out and cannot be selected.

The panel edge is displayed in green, changing to red when the setting value for the edge blending width is 1 or larger. Note

Even when the [Edge blending] setting screen is displayed, if you press the <ZOOM> button, the <FOCUS> button, the <LENS SHIFT> button, or the <SHUTTER> button, the setting screen is cleared and the selected function is given priority. On completion of the function, the projector returns to the setting screen.

The join between screens may stand out with certain types of images. Reducing the value of [Contrast] in the [Image adjust] menu may make the join look more natural.

To adjust the blending start position and blending width

to select the location ([Start]/[Width] of [Left]/[Right]/[Top]/ [Bottom]) to be corrected. [Start]Sets the blending start position.

The frame (green) moves as you change the numerical value.[Width]Adjusts the blending width.

The red line moves as you change the numerical value.

to change the value, and press

to move between digits.

[Top] and [Bottom] adjustable value: 0 - 384

to select an item. [All] Changes with R/G/B.[R]/[G]/[B]Adjusts each color.

Adjustment value: ±127[Setting] menu

to switch the setting.

Not to display the menus The settings screen and lines are cleared temporarily.

to select [Menu off].

Press any button to return to the setting screen.

To reset a value during adjustment The setting returns to its value before adjustment .

A screen for conrming whether to reset is displayed.

The conrmation screen is displayed.

[Color matching] Makes it less easy to see different projector coloring when multiple screens are used.

to select [Color matching].

Displays [Color matching] setting screen.

to select [Color matching].

When not performing [Color matching], select [Off]. Items other than [Advanced color matching] will be grayed out and cannot be selected.

to select the color to adjust.

to change the value, and press

to move between digits.

to switch the setting.

To reset a value during adjustment The setting returns to its value before adjustment.The value returns to the standard value stored in [Store].

A screen for conrming whether to reset is displayed.

The conrmation screen is displayed.

To register adjusted content you have changed Registers values after adjustment.

[Advanced color matching] More advanced settings than [Color matching] are possible.

to select [Color matching].

Displays [Color matching] setting screen.

to select [Advanced color matching].

to switch the setting. [Off] [On][Off]When not in [Test pattern] or [Back] mode, this item is grayed out and cannot be selected.[On] Sets advanced color matching.

to select [Measured information].

The measured information can be exited by pressing any button.

The selected item is displayed as normal. Other items are grayed out.

To check [Measured] Displays data for R/G/B.

to select the color ([Red]/ [Green]/[Blue] in [Measured]) to be measured.

to change the value, and press

to move between digits.

to select the color ([Red]/ [Green]/[Blue]/[Cyan]/[Magenta]/ [Yellow]/[White] in [Target]) to be adjusted.

to change the value, and press

to move between digits.

to switch the setting.

To temporarily clear the setting screen

to select [Menu off].

Press any button to return to the setting screen.

To perform [Factory default] setting When the currently selected [Measured] and [Target] are reset, the values are returned to the factory default settings.

A screen for conrming whether to restore the default setting is displayed.

The conrmation screen is displayed.

To reset a value during adjustment The setting returns to its value before adjustment.

To register adjusted content you have changed Registers values after adjustment.

Displays the test pattern selection screen.

The selection screen is cleared and the test pattern is displayed.

Press any button to return to the setting screen.

Press to select [Back], and press the <SELECT> button to return to the setting screen of [Advanced color matching].[Measured] [Red]/[Green]/[Blue][Target][Red]/[Green]/[Blue]/[Cyan]/[Magenta]/[Yellow]/[White]

[HDMI setup] If the image cannot be correctly displayed when an external device is connected to the projector using HDMI, change the settings.

to select [HDMI setup].

to switch the setting. [Normal] [Enhanced][Normal]Select when the output from the external device is “NORMAL

[Enhanced]Select when the output from the external device is “ENHANCED

*1: The titles of the output settings differ depending on the device. For details, refer to the user manual of the external device. [Logo] Sets logo selection and the PIN code for logo selection.

The sub menu 2 is displayed.

to switch the setting.

to switch the setting.

The setting will change as follows each time you press the button.[Off] [User] [Default][Off] Clears logo from screen.[User]Displays the image you have captured.[Default]Displays in the factory default settings.[Setting] menu

[Capture] This function enables you to capture an image being projected to use it for a starting-up display or background screen.

The conrmation screen is displayed.

The projected image is captured.

By selecting [User] in [Logo select], the captured image will be displayed the next time you turn on the projector. Note

The capture function is canceled when you select [Yes] in the [Quit?] screen.

Before capturing an image, select [Standard] in the [Image select] menu to capture a proper image

When capturing the image that has been adjusted by the keystone function, the adjusted data is automatically reset and the projector captures an image without keystone correction.

When [Logo PIN code lock] is set to [On], [Capture] cannot be selected.

When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing.

When there is no captured image or it is interrupted while capturing an image, [User] cannot be selected, you can only switch between [Default] and [Off].

[Logo PIN code lock] Sets the system to make the setting and changing of the “logo” only by the administrator.

The PIN code input screen is displayed.

If the PIN code is accepted, the projector returns to the sub menu 2.

to switch the setting. [Off] [On][Off]The logo selection can be changed without the PIN code. [On] The PIN code is required to change the logo selection. Note

The entered PIN code is displayed with * mark on the screen.

The factory default setting for the logo PIN code is “4321”.

To re-enter a number, press to select the digit to re-enter, then use the or number (<0> - <9>) buttons to re-select the number.

Move the cursor to [Cancel] and press the <SELECT> button to return to the sub menu 2.

If [Logo PIN code] and the number are displayed in red, an error has occurred. Re-enter the number.

[Logo PIN code change] Changes the logo PIN code.

1) Select [Logo PIN code change], and

press the <SELECT> button.

The PIN code input screen is displayed.

If the PIN code is accepted, the new logo PIN code is displayed on the screen.

If the PIN code is accepted, the projector returns to the sub menu 2. Note

To re-enter a number, press to select the digit to re-enter, then press or the number (<0> - <9>) buttons to re-select the number.

Move the cursor to [Cancel] and press the <SELECT> button to return to the sub menu 2.[Setting] menu ENGLISH - 67 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [Fan control] The projector controls the rotation of the fan automatically. You can make the rotation of the fan stronger depending on the ambient temperature or where the projector is installed (for example, when it is to be used at a high altitude).

to select [Fan control].

are displayed over the sub menu 2.

to switch the setting. [Normal] [Max] [Normal] Controls the fan operation automatically. [Max] Forces the fan to work at maximum capacity. Then sound of the fan rotating will be louder than with [Normal]. [Remote control] Allows simultaneous control or individual control with a single remote control when multiple projectors are used side by side.

to select [Remote control].

The factory default setting is [All]. [All] Makes the projector accept input from remote control of any ID number. [Code 01] - [Code 64] Sets ID numbers from 1 - 64.

[Remote control] will change.

When the ID number of the projector is changed, the ID number of remote control must be matched to the ID number of the projector.

If a projector is set to [All] with multiple projectors in use, the projector cannot be controlled separately from the projectors with other ID numbers. [RC sensor] Enables and disables the remote control sensor on the projector body.

The sub menu 2 is displayed.

to switch the setting. [All] Enables remote control sensors in three locations. [Front & Top] Enables only remote control sensors on front and top of the projector body. [Top & Back] Enables only remote control sensors on top and rear of the projector body. [Front & Back] Enables only remote control sensors on front and rear of the projector body. [Front] Enables only remote control sensor on front of the projector body. [Top] Enables only remote control sensor on top of the projector body. [Back] Enables only remote control sensor on rear of the projector body. Note

If the projector is installed in an upright position rather than on a ceiling bracket, uorescent lighting may adversely affect the operation of the remote control when the remote control sensor on the top of the projector body is enabled. It is recommended that you disable the top remote control sensor (select any of [Front & Back], [Front], [Back]) when the projector is installed in the upright position.[Setting] menu

to select [Power management].

The sub menu 2 is displayed.

to switch the setting. [Off] Cancels the power management function. [Ready] Turns off the lamps and starts cooling when the time set using [Timer] has elapsed. While lamp is being cooled, the standby indicator <STAND-BY>, and the power indicator <POWER> are ashing, you cannot operate the projector. When lamp cooling has nished, the power indicator <POWER> continues ashing and the standby indicator <STAND-BY> lights up instead of ashing, indicating that the projector is now in the power management mode. From this point, if a signal is input or operations are performed on the projector, the lamps will turn on and the projection will start. [Shut down] Turns off the lamps and starts cooling when the time set using [Timer] has elapsed. During lamp cooling, you cannot operate the projector. When lamp cooling has nished, the power will turn off. [Timer] Sets times from 1 - 30 minutes. Note

The factory default setting is [Off].

When the power management function is started, [P-timer] is reset. [Direct on] This is a function for automatically switching on the power of the projector when the power cord is connected, without requiring operations on the power <ON> button on the remote control or the power <ON/ STAND-BY> button on the control panel.

to select [Direct on].

are displayed over the sub menu 2.

to switch the setting. [Off] [On] [Off] Enables normal operations to turn on/off the power. [On] Allows power to be turned on directly. Note

Be sure to turn on/off the power using the correct operations.

Pressing the power <ON> button on the remote control or the power <ON/STAND-BY> button on the projector will not turn on the power until the lamp cooling has nished and the lamps are ready to be turned on again.[Setting] menu ENGLISH - 69 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [Security] Locks projector operations using button locking and the PIN code.

to select [Security].

The sub menu 2 is displayed.

[Key lock] Locks the control buttons to prevent mistaken operations of the projector.

1) Select [Key lock], and press the

are displayed over the sub menu 2.

to switch the setting.

The setting will change as follows each time you press the button.Key lock is off.Locks operations from the control panel.Locks operations from the remote control.

The factory default setting is off.

If you are unable to unlock, please consult your dealer.

[PIN code lock] Sets the PIN code to restrict projector operations to the administrator.

1) Select [PIN code lock], and press the

The PIN code input screen is displayed.

If the PIN code is accepted, the projector returns to the sub menu 2.

to switch the setting. [Off] [On 1] [On 2][Off]Allows normal operation without the PIN code.[On 1]The PIN code is required to turn on the power of the projector.[On 2]The PIN code is requested the next time you turn on the power after a disconnection of the power cord.

When the power is turned on/off using the button on the remote control or the control panel but without disconnecting the power cord, the projector operates normally without requesting the PIN code. Note

The entered PIN code is displayed with * mark on the screen.

The factory default setting for the PIN code is “1234”.

To re-enter a number, press to select the digit to re-enter, then press or the number (<0> - <9>) buttons to re-select the number.

Move the cursor to [Cancel] and press the <SELECT> button to return to the sub menu 2.

If “PIN code” and the numbers are displayed in red, an error has occurred. Re-enter the number.[Setting] menu

[PIN code change] Changes the logo PIN code.

1) Select [PIN code change], and press

the <SELECT> button.

The PIN code input screen is displayed.

If the PIN code is accepted, the new logo PIN code is displayed on the screen.

If the PIN code is accepted, the projector returns to the sub menu 2. Note

To re-enter a number, press to select the digit to re-enter, then press or the number (<0> - <9>) buttons to re-select the number.

Move the cursor to [Cancel] and press the <SELECT> button to return to the sub menu 2. [Projector ID] Sets the projector ID (1 to 64) for the RS-232C serial communication.

to select [Projector ID].

The factory default setting is [ALL].[ALL]Makes projector accept operations regardless of any ID number specied by the remote control or PC.

1 - 64Sets ID numbers from 1 - 64 to the projector.

[Shutter] Sets the shutter function.

to select [Shutter].

The sub menu 2 is displayed.

[Protection] Locks the button to prevent shutter operations.

are displayed over the sub menu 2.

The setting will change as follows each time you press the button.Protection is off.Operation can be made from both the remote control and projector.Locks operations from the remote control.Locks operations from the control panel.Locks operations from both the remote control and the control panel.[Setting] menu ENGLISH - 71 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013)

[Effect] Sets special effects when shutter is opened and closed.

are displayed over the sub menu 2.

to select an item. [Off] [L 1] [L 2][Off]Turns off special effects.

Factory default setting[L 1]Sets fade in and fade out when the shutter is opened and closed.[L 2]Sets slower fade in and fade out than L1.

[Release key] Sets the release button when shutter is closed.

1) Select [Release key], and press the

are displayed over the sub menu 2.

to select an item. [Any] [SHUTTER][Any]The shutter function is canceled by pressing any button except the <MUTE> button on the remote control, and the function of the pressed button is executed.[SHUTTER]Only the <SHUTTER> button on the remote control or the control panel can be canceled. Note

If the power is turned on again after the power is turned off during the setting or the lamp is turned off with the [Management] setting, the shutter function is canceled.

The setting of the selected item is enabled.

[Management] Sets a time between closing of the shutter and the lamps turning off.

are displayed over the sub menu 2.

You can set times from 5 - 480 minutes. Note

When the management function is active, the lamp is turned off and the projector will begin a cooling operation.

When cooling has nished, the power of the projector body is turned off and the standby indicator <STAND-BY> turns on.

The shutter indicator <SHUTTER> begins ashing in blue as the cooling operation begins.

The ashing continues after the cooling has nished and the standby indicator <STAND-BY> has turned on.

The ashing stops when the projector power is turned on again.

The power management function does not work when the image is blocked by the [Shutter].

The factory default setting is “180 minutes”.

You cannot set the time while the function is off. [Video delay control] Sets when you want to speed up digital processing of the images being projected.

The speed of digital processing increases through [Low], [Mid], and [High].

When each item is selected, the following items are grayed out and cannot be selected.[Low] [Keystone] of the [Screen] menu[Mid]

[Progressive] and [Noise reduction] of the [Image adjust] menu [High]

[Keystone] of the [Screen] menu

[Progressive] and [Noise reduction] of the [Image adjust] menu[Setting] menu

Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013) [Closed caption] Sets the color of the closed captions and selections.

to select [Closed caption].

The sub menu 2 is displayed.

Displays in original colors. Note

This function can only be used when the input signal is composite video or S-video.

The closed caption is not displayed when the menu screen is displayed. [Filter counter]

to select [Filter counter].

The sub menu 2 is displayed.

[Filter counter] Displays usage time.

This is displayed in red if a blockage is detected or if the usage time exceeds the time set in [Filter counter timer].

[Filter counter remaining] The remaining time for the lter counter is displayed in units of 10%.

This is displayed in red when the remaining time is 10%. Note

When the remaining time drops to 10% or below, is displayed, and when it reaches 0%, is displayed.

[Filter type] Selects the type of lter to be used.

1) Select [Filter type], and press the

are displayed over the sub menu 2.

to select an item. [Normal] When a normal lter is used[Special]When a smoke resistant lter (optional) is used

Always use the projector with the lter installed.

Select the lter type to be the same as the one you are using.

[Filter counter timer] Sets a time to display a notication that the lter has reached the end of its replacement cycle.

are displayed over the sub menu 2.

When [Off] is selected, blockages are detected automatically.

When the smoke resistant lter (optional) is used, the set time is selected from among [Off], [10 H], [15 H], and [20 H].

When the set time is exceeded, is displayed.[Setting] menu ENGLISH - 73 Settings LX1750 User Manual020-000638-01 Rev.1 (11-2013)

[Filter counter reset] Resets the value of [Filter counter].After replacing the lter, be sure to reset the counter.

A screen for conrming whether to reset is displayed.

The conrmation screen is displayed.

Reset only after replacing the lter.

When reset, the display of [Filter warning] disappears. [P-timer]

The sub menu 2 is displayed.

[Count up] Elapsed time is counted from 00 min 00 sec. Elapsed time from 00 min 00 sec to 180 min 00 sec is displayed.

[Count down] Elapsed time is counted down from the set time.Set the time using [Timer].

[Timer] Sets the [Count down] time.

are displayed over the sub menu 2.

The factory default setting is “10 minutes”.

When [Count up] is selected, this item is grayed out and cannot be selected.

[Start] Starts the count-up or countdown.

The menu screen is cleared and the timer is displayed.

[Stop] Pauses the count-up or countdown.

The stopped state of the timer is displayed for approximately three seconds, then the display returns to the menu screen.

[Restart] Restarts the count-up or countdown that was paused using [Stop].

The menu screen is cleared and the timer is displayed.

[Reset] Resets the counted time during operation.

The count up is returned to “000:00” and the countdown is returned to the time set on the timer.

[Exit] Exits the presentation timer during operation.

You can also use [P-timer] by pressing the <P-TIMER> button on the remote control.[Setting] menu

The sub menu 2 is displayed.

The test pattern and the test pattern name are displayed.

While the test pattern name is displayed, press

to go backwards and forwards between test patterns. [Color] [Gradation 1], [Gradation 2], [Gradation 3], [Gradation 4] [All white] [All black] [Cross] Note

Even while the test pattern is displayed, the zoom, focus, lens shift, shutter, and power off functions take priority.

When the zoom, focus, or lens shift operation has nished, the projector returns to the test pattern. [Factory default] Returns settings other than the following to the factory default settings. [Logo PIN code lock] [PIN code lock] [Filter counter] (All items) [Logo] [Network] (excluding AMX D.D.)

A screen for conrming whether to restore the default setting is displayed.

The conrmation screen is displayed.

When you initialize the settings, all settings you have made are lost, and settings are restored to the factory default settings.[Information] menu ENGLISH - 75 SettingsLX1750 User Manual020-000638-01 Rev.1 (11-2013) [Information] menu Select [Information] from the main menu on the menu screen.For operation of the menu screen, refer to “Navigating through menu” ( page 40).

Press to switch the items. Control panelRemote control

You can also display sub menus using the <INFO.> button on the remote control. Conrming the settings and usage state Displays state of signals during projection, and current settings.

[Input] Displays type of inputs and signals during projection.

[System] Displays the status of the input signal during projection.

[H-sync freq.] Displays H-sync frequency.

[V-sync freq.] Displays V-sync frequency.

[Lamp interval] Displays the setting value of the automatic replacement cycle of the lamp which is being used.

[Lamp 1] Displays the usage time and status of the lamp 1.

[Lamp 2] Displays the usage time and status of the lamp 2.

[Lamp 3] Displays the usage time and status of the lamp 3.

[Lamp 4] Displays the usage time and status of the lamp 4.

[Language] Displays the current language.

[Key lock] Displays the current [Key lock] setting status.

[PIN code lock] Displays the current [PIN code lock] setting status.

[Shutter management] Displays the current [Shutter management] setting status.

[Remote control] Displays the current [Remote control] setting status.

[Serial number] Displays the serial number of the projector.

[Option control No.] For details, refer to “Using the input module”

SettingsLX1750 User Manual020-000638-01 Rev.1 (11-2013) [Network] menu Select [Network] from the main menu on the menu screen, and select the item from the sub menu.For operation of the menu screen, refer to “Navigating through menu” ( page 40).

After selecting the item, press to make the setting. Control panelRemote control

Network Switches on/off the network setting.

Network setting Sets the network environment.

Network PIN code Sets up the password of the network.

Network Information Displays the network status of the projector.

AMX D.D. Allows the projector to be detected by AMX Device Discovery.For more details about AMX D.D., visit http://www.amx.com/.

Network factory default Returns the network settings to the factory default settings.About indicator status ENGLISH - 77 Maintenance LX1750 User Manual020-000638-01 Rev.1 (11-2013) About indicator status If an indicator turns on If a problem occurs within the projector, it will be notied with the temperature indicator <WARNING TEMP.>, the lter indicator <WARNING FILTER>, the shutter indicator <SHUTTER>, and the lamp indicator <LAMP REPLACE>.Check the status of the indicators and take the following action.Attention

Make sure to follow the procedures in “Powering off the projector” ( page 34) to control the power when implementing measures.

If multiple indicators have turned on or are ashing, check the status of each indicator and take the appropriate action. Note

When operating correctly The status of the indicator is displayed with the following symbols.

: On or Flashing Indicator Status of the projector <POWER>Green<STAND-BY> Red <WARNING TEMP.> Red <WARNING FILTER>Orange<SHUTTER> Blue <LAMP REPLACE>Orange ▲ ▲ ▲ ▲ ▲ ▲ The power plug has been removed from the outlet.

The projector is in the standby mode. Turns on when pressing the power <ON> button on the remote control or the power <ON/STAND-BY> button on the control panel.

The projector is operating normally.

The lamp is cooling down. The projector does not turn on when pressing the power <ON> button on the remote control or the power <ON/STAND-BY> button on the control panel until the standby indicator <STAND-BY> changes to on.

The projector is in the power management mode. The lamp will turn on when controlling the projector, allowing the user to start operating it.

Power management mode is ON and the lamp is cooling down.

The shutter function has been turned on. Press any button on the remote control or the control panel to cancel the function.

The projector is in the shutter management mode. The lamp will turn on when controlling the projector, allowing the user to start operating it.

Shutter management mode is on and the lamp is cooling down. *1: The indicator will change according to different conditions, regardless of the status of other indicators.*2: The indicator will ash in approximately 1-second intervals.About indicator status ENGLISH - 79 Maintenance LX1750 User Manual020-000638-01 Rev.1 (11-2013)

When there is a problem with internal temperature The status of the indicator is displayed with the following symbols.

If the temperature within the projector becomes too high, the temperature indicator <WARNING TEMP.> will start to ash slowly.

If the temperature within the projector becomes even higher, the temperature indicator <WARNING TEMP.> will ash faster, the power indicator <POWER> will turn off, and the projector will turn off automatically. The projector will not turn back on even when pressing the power <ON> button on the remote control or the power <ON/STAND-BY> button on the control panel. When the projector returns to the normal operating temperature, the standby indicator <STAND-BY> will change to on. The projector will turn back on when pressing the power <ON> button on the remote control or the power <ON/STAND-BY> button on the control panel. (The temperature indicator <WARNING TEMP.> will remain ashing.) Check the air lter.

The projector has cooled inside, and returned to operating temperature. Pressing the power <ON> button on the remote control or the power <ON/ STAND-BY> button on the control panel will make the temperature indicator <WARNING TEMP.> stop ashing and operate the projector. Check the air lter. *1: The indicator will change according to different conditions, regardless of the status of other indicators.*2: The indicator will turn on or ash under certain conditions, regardless of the status of other indicators.*3: The indicator will ash in approximately 1-second intervals.*4: The indicator will ash in approximately 0.5-second intervals.About indicator status

When there is a problem with internal power The status of the indicator is displayed with the following symbols. : Off, : On, : Flashing, : On or FlashingIndicatorStatus of the projector<POWER>Green<STAND-BY> Red <WARNING TEMP.> Red <WARNING FILTER>Orange<SHUTTER> Blue <LAMP REPLACE>Orange

A problem has been detected within the projector.The projector will not turn back on even when pressing the power <ON> button on the remote control or the power <ON/STAND-BY> button on the control panel. Remove the power plug from the outlet, and plug it back in again.If the power turns off, or the indicator turns on or ashes again, remove the power plug from the outlet and contact your dealer to request an inspection and repair. Do not leave the projector plugged in with the indicator on or ashing. Doing so may cause a re or electric shock.*1: The indicator will change according to different conditions, regardless of the status of other indicators.

When there is a problem with the air lter The status of the indicator is displayed with the following symbols. : Off, : On, : Flashing, : On or FlashingIndicatorStatus of the projector<POWER>Green<STAND-BY> Red <WARNING TEMP.> Red <WARNING FILTER>Orange<SHUTTER> Blue <LAMP REPLACE>Orange

The indicator noties you when the time set with “[Filter counter timer]” ( page 72) has been reached. Replace the air lter. ( will be shown at the top right of the screen simultaneously.)Alternatively, the indicator noties you when [Filter counter remaining] becomes 0%. Replace the air lter. ( will be shown at the top right of the screen simultaneously.

*1: The indicator will change according to different conditions, regardless of the status of other indicators.*2: When [Display] ( page 59) is set to [On], the freeze function ( page 37) or shutter function ( page 37) will not be displayed on the screen during operation.About indicator status ENGLISH - 81 Maintenance LX1750 User Manual020-000638-01 Rev.1 (11-2013)

When there is a problem with the lamp The status of the indicator is displayed with the following symbols. : Off, : On, : Flashing, : On or FlashingIndicatorStatus of the projector<POWER>Green<STAND-BY> Red <WARNING TEMP.> Red <WARNING FILTER>Orange<SHUTTER> Blue <LAMP REPLACE>Orange

Either of the lamps do not turn on. (The lamp is cooling down. After the standby indicator <STAND-BY> turns on again, press the power <ON> button on the remote control or the power<ON/STAND-BY> button on the control panel.)

Either of the lamps do not turn on. (The lamp has cooled, and returned to operating temperature. Pressing the power <ON> button on the remote control or the power <ON/STAND-BY> button on the control panel will make the indicator stop ashing and operate the projector.)

The recommended time to replace the lamp has been reached. The will be displayed at the top right of the screen to notify the user of replacement.Replace the lamp unit as soon as possible. Replacing the lamp will cause the lamp indicator <LAMP REPLACE> to turn off.*1: The indicator will change according to different conditions, regardless of the status of other indicators.*2: The indicator will ash in approximately 0.5-second intervals.*3: The indicator will ash in approximately 2-second intervals. Note

The status of each lamp can be checked as the lamp indicators (<LAMP 1 REPLACE> to <LAMP 4 REPLACE>) at the top of the projector turn on or ash. ( page 85)About indicator status

When there is a problem with the shutter The status of the indicator is displayed with the following symbols. : Off, : On, : Flashing, : On or FlashingIndicatorStatus of the projector<POWER>Green<STAND-BY> Red <WARNING TEMP.> Red <WARNING FILTER>Orange<SHUTTER> Blue <LAMP REPLACE>Orange

The shutter cannot be opened or closed. The lamp will turn off, cooling will begin and the projector will switch to the standby mode. The power will turn on and the projector will attempt to open the shutter automatically up to three times. After three failed attempts, the projector will switch to the standby mode after the lamp has cooled.

There is a problem with opening or closing the shutter, and the lamp has turned off and is cooling down.▲ ● ▲ ■

There is a problem with opening or closing the shutter, and projector will switch to the standby mode after the lamp has turned off and cooled down.*1: The indicator will change according to different conditions, regardless of the status of other indicators.*2: The indicator will ash in approximately 0.5-second intervals.*3: The indicator will ash in approximately 1-second intervals. Note

The status of each lamp can be checked as the lamp indicators (<LAMP 1 REPLACE> to <LAMP 4 REPLACE>) at the top of the projector turn on or ash. ( page 85)Maintenance/replacement ENGLISH - 83 MaintenanceLX1750 User Manual020-000638-01 Rev.1 (11-2013) Maintenance/replacement Before maintaining/replacing the unit

When maintaining or replacing the unit, always turn off the power and remove the power plug from the outlet.

When turning off the power, make sure to follow the procedures in “Powering off the projector” ( page 34). Maintenance

Outer case Wipe off dirt and dust with a soft, dry cloth.

If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry off the projector with a dry cloth.

Do not use solvents such as benzene, thinner, rubbing alcohol, household cleaners, or chemical wipes. Using them may cause deterioration of the outer case.

Front surface of the lens Wipe off dirt and dust off the front surface of the lens with a soft, dry, and clean cloth.

Do not use a cloth that is uffy, dusty, or soaked with oil/water.

Do not use excessive force when wiping the lens as it is fragile.Attention

Lenses are made of glass. Impacts or excessive force when wiping may scratch its surface. Please handle with care.

Never use ammable solvents or air sprays on or around the projector. The temperature within the projector may be extremely hot due to the projection lamp operation. An explosion or re may still occur even after turning off the projector. Other than ammable air spray, the internal parts may also become damaged due to cold air. Replacing the parts

Air lter The replacement lter (003-004738-01 / Service Parts No.: T1FTX0069--) is optional. To purchase the product, consult your dealer.

Replacement of the air lter

Use a Phillips screwdriver to turn the screws counterclockwise until they turn freely, and then remove the air lter unit.ScrewMaintenance/replacement

Loosen the three screws on the holder (A, B), slide the holder in the direction shown by the arrow in the image, and lift up to remove the holder. Holder B Holder AScrew

3) Remove the air lter.

Hook your ngers in the slot to lift up and remove the air lter.

Inserting the new air lter by slowly sliding it will make it easier to attach.

The side with the sponge must be the top. Attaching it with the wrong side up or forcing it to attach will cause the air to leak in. The air lter does not work fully and as a result, dust will get into the projector.

Place the holder (A, B) on top of the lter.

Slide the holder so that its arrows line up with the arrows on the unit, and attach the holder.

Tighten the three holder screws.

6) Attach the air lter unit to the projector.

Perform step 1) in the reverse order.

7) Reset the lter counter.

Turn on the power and perform [Filter counter reset] in the [Setting] menu. Attention

Make sure to turn off the power before replacing the air lter.

Before attaching a new air lter, be sure to remove the packing material of the air lter.

When attaching the unit, make sure that the projector is stable. Perform the replacement in a safe place where the projector will not be damaged even if you drop the air lter unit.

When turning the projector on, make sure that the air lter unit is installed before using the projector. Failure to do so may cause damage.

Air lters cannot be reused.

The air lter and unit cannot be washed in water. Make sure not to wet the air lter with water or any other liquid. Doing so may cause damage.

After replacing the air lter, reset the lter counter. Otherwise, the power of the projector may be turned off for safety.

After attaching the air lter unit, be sure to tighten the screws. If not, the air lter unit may drop off while projecting.Maintenance/replacement ENGLISH - 85 Maintenance LX1750 User Manual020-000638-01 Rev.1 (11-2013)

Lamp unit The lamp unit is a consumable component. Check the lamp usage duration with “[Information] menu”

page 75) and perform regular replacement. If the replacement message is displayed on the screen and the lamp indicators <LAMP 1 REPLACE> to <LAMP 4 REPLACE> turn on, replace the lamp units.It is recommended that you request a qualied technician to replace the lamp unit. Consult your dealer.Consult your dealer to purchase the part 002-120599-01 (serviceable part).Attention

Do not replace the lamp unit until it has cooled down sufciently. (Wait at least 60 minutes after use.)The inside of the cover is very hot and may cause burns.

Notes on the replacement of the lamp unit

As the luminous lamp is made of glass, it may burst if dropped or hit with a hard object. Please handle with care.

A Phillips screwdriver is necessary when replacing the lamp unit.

When replacing the lamp unit, be sure to hold it by the handle.

The lamp contains mercury. When disposing of the used lamp unit, ask your nearest local authorities or dealer about proper disposal of the unit.Attention

Use only specied lamp units.

The product numbers of accessories and separately sold components are subject to change without notice.

Replacement of all four lamps simultaneously is recommended to ensure a balance brightness and tint.

When to replace the lamp unit The lamp unit is a consumable component. Replace the lamp unit regularly, as its brightness gradually decreases over time. The estimated duration before replacement is 2 000 hours (when [Lamp power] is set to standard). However, this may be shortened depending on individual lamp characteristics, usage conditions, and the installation environment. Earlier replacement of lamp units is recommended for this reason. The duration exceeds 2 200 hours of usage for two lamps, the lamps will be switched to the other two lamps if they are available. After switching, if the duration exceeds 2 200 hours of usage for one of the two lamps and the lamp fails, only the other lamp will light.If the power is turned on without replacing the lamps after the duration exceeds 2 200 hours of usage for all lamps, the power automatically turns off after approximately ten minutes to prevent the malfunction of the projector.On-screen display Lamp indicator <LAMP REPLACE>Lamp indicators <LAMP 1 REPLACE> to <LAMP 4 REPLACE>The lamp replacement instructions indicate the replacement time, and the lamp status indicates which lamp to replace.Turns orange.Turns orange to indicate which lamp to replace.Maintenance/replacement

Replacing the lamp unit Attention

Turn off the UV lamp before opening the lamp cover.

When the projector is mounted on the ceiling, do not put your face near the lamp unit.

Attach the lamp unit securely.

If the lamp unit is not attached properly, remove it and then attach it again. Forcing the lamp unit in may break the connector.

The glass surface may be hot. When replacing the lamp unit, be sure to hold it by the handle.

1) Check which lamp to replace with the lamp status displayed on the screen, or the

lamp indicators <LAMP 1 REPLACE> to <LAMP 4 REPLACE>. Lamp indicators <LAMP 1 REPLACE> to <LAMP 4 REPLACE>Lamp status

2) After following the procedures described in “Powering off the projector” (

page 34) and press the side of the main power switch to turn off the power, disconnect the power plug from the power outlet, and wait at least 60 minutes, and then check if the lamp unit has cooled down.

3) Use a Phillips screwdriver to turn the lamp cover xing screw on top of the projector

body until they turn freely, and then open the lamp cover.

Open the cover until it is at 90° to the projector. Lamp cover ScrewMaintenance/replacement ENGLISH - 87 Maintenance LX1750 User Manual020-000638-01 Rev.1 (11-2013)

4) Use a Phillips screwdriver to turn the lamp unit xing screws (two screws) until

they turn freely, and then holding the handle, slowly pull out the lamp unit from the projector. Lamp unit Screw

5) Insert the new lamp unit taking note of its direction, and use a Phillips screwdriver to

rmly tighten the lamp unit xing screws (two screws).

Do not smear the glass surface by touching it with your hand.

6) Close the lamp cover, and use a Phillips screwdriver to rmly tighten the lamp cover

When replacing with the new lamp unit (Product No.: 002-120599-01), the projector resets the total usage time of the lamp unit automatically.

After replacing the lamp unit, be sure to tighten the lamp cover xing screw. If not, the lamp unit may drop off while projecting. TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER To prevent glass fragments from scattering, hold the lamp unit vertically when replacing it. When the projector is attached to the ceiling, do not work directly under the lamp cover or put your face near it. Remove the lamp cover slowly. LAMP NO. : 002-120599-01Troubleshooting

Maintenance LX1750 User Manual020-000638-01 Rev.1 (11-2013) Troubleshooting Review the following points. For details, see the corresponding pages. Problem Points to be checked page Power does not turn on.

Is the power plug rmly inserted into the outlet? —

Is the main power switch turned to ? 34

Is the power supplied from the outlet? —

Have the circuit breakers tripped? —

Is the power indicator <POWER> turned off? 32

Is the temperature indicator <WARNING TEMP.> ashing? 77 No picture appears.

Is the picture (output) device connected correctly? 26

Is the external device that is connected to the projector working properly?

Is the projector being used within the operating temperature range (5˚C (41˚F) to 40˚C (104˚F))?

Is the shutter closed? 37 The picture is fuzzy.

Is the lens focus set correctly? 36

Is the projection distance appropriate? 106

Is the lens dirty? 83

Is the projector installed perpendicular to the screen? —

Is there condensation on the lens? — The color is pale/ The tint is grayish.

Are [Color] and [Tint] adjusted correctly? 50

Is the device that is connected to the projector adjusted correctly? —

Is the RGB cable damaged? — The picture is dark.

Are [Contrast] and [Brightness] adjusted correctly? 50

Is [Lamp select] set to [2-Lamps]? 60

Is [Lamp power] set to eco-mode? 60

Is it time for the lamp to be replaced? 85 The remote control does not work.

Are the batteries at? —

Are the batteries inserted in the correct direction? 23

Is the remote control <ON>/<OFF> switch set to <ON>? 19

Are there any obstructions between the remote control and the projector's remote control sensor?

Is the remote control being used beyond its effective operating range? 19

Are other forms of light, such as uorescent lights, affecting the projection?

Is the remote control cable connected to the projector or the remote control?

Is the remote control operation locked with [Key lock] in the [Setting] menu?

Has the remote control number been changed? 23, 67Troubleshooting ENGLISH - 89 Maintenance LX1750 User Manual 020-000638-01 Rev.1 (11-2013) Problem Points to be checked page The control buttons of the projector do not work.

Is the projector operation locked with [Key lock] in the [Setting] menu? 69 The correct picture is not displayed.

Is [Screen] selected correctly? 55

Is the lens shift in its maximum position? 35

Is there a problem with the video tape or other picture sources? —

Is the projector receiving incompatible signals? 99 The picture from the computer is not displayed.

Is the cable too long? (Use a cable that is 10 m or shorter.) —

Is the external video output of the laptop computer set correctly? (Example: The external output settings may switch by pressing the Fn + F3 or Fn + F10 keys simultaneously. Refer to the user manual provided with your computer, as the method varies depending on the type of computer.)

[Auto PC adj.] does not work.

Is the projector receiving incompatible signals? 99

Is an incompatible signal selected with [System]? 45 There is no picture from HDMI compatible devices, or the picture is distorted.

Is the HDMI cable rmly connected? 26, 27

Turn off/on the power of the projector and connected devices. —

Is an incompatible signal connected? 101 The power turns off by itself.

Is [Shut down] set with [Power management] in the [Setting] menu? 68

Is the projector being used without replacing the air lter or performing [Filter counter reset] after is displayed in the top right of the screen?

The shutter function does not work.

Is [Protection] in [Shutter] set correctly in the [Setting] menu? 70 Attention

If problems persist even after checking the preceding points, consult your dealer.

Consult your dealer if you have forgotten the security PIN code or logo PIN code.Technical Information

AppendixLX1750 User Manual020-000638-01 Rev.1 (11-2013) Technical Information Adjusting screens of multiple screen images [Edge blending] and [Color matching] allow images from multiple projectors to be overlapped seamlessly.

1) Check that the settings of [Screen] and [Image adjust] of each projector are the

2) Project images from each projector that you want to overlap.

The following is an example of how to overlap images from projector A and B.ScreenImage AProjector A Projector BImage B

3) Select [Edge blending] in the [Setting] menu and display the setting screen.

4) Select [Edge blending] to turn it [On], and then press [Start] and [Width] to adjust

the overlapping position and the amount of overlap (blending width) of images from projectors A and B respectively.

The following values are an example.

Set [Width] to the same value for all projectors to be overlapped.Projector A: Set [Right] in [Width] to 100Line (red): Moves with the [Width] valueFrame (green): Projected imageOverlapping areas (shown with shadow)Frame (green): Projected imageProjector B: Set [Left] in [Width] to 100 Exit Edge blending On

5) Where required, adjust [Focus] and [Zoom] for the image position from each

projector.Technical Information ENGLISH - 91 Appendix LX1750 User Manual020-000638-01 Rev.1 (11-2013)

6) Then use [Lens shift] to overlap the shaded areas.

The red line will turn yellow if it is overlapped correctly.Line (yellow)Frame (green): Projected image Exit Edge blending On

7) Turn [Test pattern] to [On] to display a 50% white test pattern.

The overlapping areas will be displayed brighter than other areas.

8) Adjust [Black level] so that there is no difference between the overlapping areas and

To adjust the overlapping areas, setting the [Contrast] value in the [Image adjust] menu is recommended. If the left and right colors do not match, proceed to the following step.

9) Select [Color matching] in the [Setting] menu and display the setting screen.

10) Turn on color matching with [On] and adjust [Red]/[Green]/[Blue]/[White].

11) Select [Advanced color matching] if more detailed settings are required, and display

12) Turn on advanced color matching with [On] and adjust each color with [Target].

Set the [Target] value to within the [Measured] value range.Advanced color matchingMeasuredTargetAuto test patternMenu offDefaultTest patternStore Reset BackInformation Off Red Green Blue Red Green Blue Cyan MagentaYellowWhiteWhiteExit Back NextMove Example) Value for “[Red], x”“[Measured]=0.674”, so [Target] is set to a smaller value of “0.650”.

13) If the colors do not match even after adjusting [Target], use a colorimeter to

measure the chromaticity coordinates and luminance to make further adjustments.Technical Information

Adjusting colors with a colorimeter

Displays the test pattern selection screen.

3) Select [Red] (or [Green], [Blue]) from [Measured] and press the <SELECT> button.

The test pattern is displayed. MeasuredTest pattern Exit Target Red Green Blue Red Green Blue Cyan MagentaYellowWhite

Return to the advanced color matching setting screen.

6) Enter the value obtained in step 4).

7) Calculate the “L” value from the following formula and enter the value.

Example) Calculate “L” for the measured red value. Luminance (Lx) of red Luminance of red + luminance of green + luminance of blue (Lx)

8) Adjust the [Target] value again.

9) Select [Store] to register the adjusted value.

Where required, adjust other projectors in the same way.Technical Information ENGLISH - 93 Appendix LX1750 User Manual 020-000638-01 Rev.1 (11-2013) Label notifying registration of password Apply the supplied label to the projector in a visible location when the password is registered and valid.Technical Information

Appendix LX1750 User Manual020-000638-01 Rev.1 (11-2013) Serial terminal The projector <SERIAL PORT IN>/<SERIAL PORT OUT> connection terminals conform with RS-232C so that the projector can be connected to and controlled from a computer.

Pin assignments and signal names D-Sub 9-pin (male) Outside view Pin No. Signal name Details (1)(5) (6) (9) (1) — NC (2) RXD Received data (3) TXD Transmitted data (4) — NC (5) GND Ground (6)

(9) —Technical Information ENGLISH - 95 AppendixLX1750 User Manual020-000638-01 Rev.1 (11-2013) Serial Control Interface This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port.

1) Connect a RS-232C serial cross cable to <SERIAL PORT IN> on the projector and

serial port on the PC (

3) Type a functional execution command and press the Enter key.

Example) To select INPUT 2 port, type “C06” [CR]. Note

The default of the baud rate is set to 19200 bps. If an error occurs in the communication, change the serial port and the communication speed (baud rate).

Enter with ASCII 64-byte capital characters and one-byte characters.

Status Read Commands FormatThe command is sent from PC to the projector with the format below;“CR” [Command] [CR]Command: one character (refer to the command table below.)The projector decodes the command and returns the 'Character string' with the format below;Command FunctionReturn valueProjector statusCR0 Status Read00 Power On80 Stand-by mode40 Countdown20 Cooling down10 Power Malfunction28 Cooling down at the temperature anomaly24 Cooling down at Power Management mode04 Power Management mode after Cooling down Cooling down after the projector is turned off when the lamps are out.81 Stand-by mode after Cooling down when the lamps are out. Stand-by mode after Cooling down at the temperature anomaly. Cooling down when the projector is turned off by the shutter management function. Stand-by mode after Cooling down by the shutter management function.CR6 Temperature Read %1 %2%1 = Temperature at Sensor 1 (˚C)%2 = Temperature at Sensor 2 (˚C)(ex.) %1 = 12.3 (˚C), %2 = 23.4 (˚C) The projector returns “ 12.3 23.4”.(For each sensor, two digit and the tenth place numbers are displayed with a space between each temperature.)? Communication failure The tables on page 95 show the typical command lists for controlling the projector. Please consult your local dealer for further information of other commands.Technical Information ENGLISH - 97 Appendix LX1750 User Manual020-000638-01 Rev.1 (11-2013) Other terminals

<S-VIDEO IN> terminal pin assignments and signal names Outside view Pin No. Signal name (1)(2) (3)(4) (1) GND (luminance signal) (2) GND (color signal) (3) Luminance signal (4) Color signal

<ANALOG IN> terminal pin assignments and signal names Outside view Pin No. Signal name (4) is not used. (5) to (8), (10), and (11) are GND terminals. (10) (6) (11)(15) (1)(5) (1)

A signal with a different resolution will be projected after converting the resolution to match the projector display.

When interlaced signals are connected, there may be ickering in the projected image.

The projector is not compatible with signals with a dot clock frequency of 230 MHz or higher.Specications

Appendix LX1750 User Manual020-000638-01 Rev.1 (11-2013) Specications The following table describes the specications of the projector.Model No. LX1750Power supply AC 200 V - 240 V 50 Hz/60 HzPower consumption200 V - 240 V 11 A 1 850 WWhen [Lamp power] in the [Setting] menu is set to eco-mode: 1 450 WStandby: 18 WLCD panelSize 4.57 cm (1.8") (aspect ratio 4:3)Display systemThree transparent LCD panels (RGB)Drive system Polysilicon TFT active matrix systemNumber of pixels786 432 pixels (1 024 x 768 dots) x 3 panelsLuminous lamp 380 W NSHA UHM lamp x 4Light output 16 000 lm (ANSI) (when [lamp select] is set to [4-Lamps] and [Lamp power] is set to standard) Image signals that can be projected Refer to “List of compatible signals” ( page 99).Color system Six standards (NTSC/NTSC4.43/PAL/PAL-N/PAL-M/SECAM)Screen size 1.02 m (40") – 15.24 m (600")Screen aspect ratio 4:3Projection method Refer to “Projection method” ( page 24).Contrast ratio 2 500:1 (when setting [Lamp power] to auto, and [Advanced color] to [Auto])TerminalsINPUT 1DVI-D input terminal1 set, DVI-D 24 pDigital signal TMDS (Transition Minimized Differential Signaling)HDMI input terminal1 set, HDMI 19 pin (HDCP, Deep color compliant)COMPUTER input terminal1 set (D-sub 15 p (female))RGB signal 0.7 V [p-p] 75 Ω (G-SYNC: 1.0 V [p-p] 75 Ω)HD/SYNC TTL high impedance, automatic positive/negative polarity compatibleVD, TTL high impedance, automatic positive/negative polarity compatibleINPUT 2Analog RGB input terminal1 set (BNC 5 p)RGB signal 0.7 V [p-p] 75 Ω (G-SYNC: 1.0 V [p-p] 75 Ω)HD/SYNC TTL high impedance, automatic positive/negative polarity compatibleVIDEO signal 1.0 V [p-p] 75 Ω negative sync Y P

signal Y: 1.0 V [p-p] negative sync, P

Serial input terminal D-Sub 9 p 1 set, RS-232C-compatible computer control Serial output terminal D-Sub 9 p 1 setUSB terminal (used by service personnel)USB connector (1 set, series B)Wired remote control Mini jack LAN terminal 1 set, RJ-45 for network connection, 10Base-T/100Base-TXSpecications ENGLISH - 103 Appendix LX1750 User Manual020-000638-01 Rev.1 (11-2013) Model No. LX1750 Power cable length 3.0 m (118-1/8") Outer case Molded plastic Dimensions Width: 650 mm (25-5/8") Height: 349 mm (13-3/4") (feet fully retracted) Depth: 815 mm (32-1/8") (feet fully retracted, not including lens) Weight Approx. 46.5 kg (102.5 lbs.) Operating environment Operating environment temperature

: 5°C (41°F) to 40°C (104°F) Operating environment humidity: 20% to 80% (no condensation) Remote control Power supply DC 3 V (AAA/R03/LR03 battery x 2) Operating range Approx. 5 m (196-7/8") (within 30º in each direction) Weight 102 g (3.6 ozs.) (including batteries) Dimensions Width: 48 mm (1-7/8") Height: 27 mm (1-1/8") Depth: 145 mm (5-3/4") *1: The operating environment temperature may differ depending on the type of air lter used and when using the projector at high elevations.

The product numbers of accessories and separately sold components are subject to change without notice.Dimensions

Installation work of the ceiling mount bracket should only be performed by a qualied technician.

Christie takes no responsibility for any damage to the projector resulting from use of a ceiling mount bracket not manufactured by Christie or the inappropriate choice of location for installation, even if the warranty period of the projector has not expired.

An unused ceiling mount bracket must be removed promptly by a qualied technician.

Use a torque driver or a hex torque driver when tightening the screws, and tighten them to a tightening torque within specied values. Do not use tools such as electric screwdrivers or impact screwdrivers.

For details, read the installation manual that comes with the ceiling mount bracket.

The product numbers of accessories and separately sold components are subject to change without notice. Screw holes for adjustable feet Bottom view (for use with ceiling mount bracket)Screw diameter: M10Depth: 40 mmScrew holes for ceiling mount bracketScrew diameter: M8Depth: 32 mmScrew fastening torqueM10: 20 ± 1 N·mM8: 10 ± 0.5 N·mNotes on attaching the lens

Appendix LX1750 User Manual020-000638-01 Rev.1 (11-2013)The technical staff or service personnel must attach the lens according to the instruction manual supplied with the optional lens.

Use the light-shielding plates, lens attachment, spacer, and lens lock lever xing bracket supplied with the projector when attaching the lens. For details, refer to the instruction manual supplied with the optional lens. Lens specications Refer to the following tables for the lens specications.All measurements in the following tables are approximate. They may differ slightly from the actual measurements.

Light-shielding plate for each lens Three types of light-shielding plates are supplied with the projector. Use the light-shielding plate that corresponds to the appropriate lens. Refer to the following table. Accessory (product name) Lens Product No. Attention

The light-shielding plate-2 and light-shielding plate-3 should be separated to the upper and lower plates. Upper plateLower plate Light-shielding plate-1 (T0CRS0008--1) 103-135100-01

103-130105-01, 103-129103-01 *1: Use the light-shielding plate-1 and light-shielding plate-3 together.Notes on attaching the lens

Appendix LX1750 User Manual020-000638-01 Rev.1 (11-2013) Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Environment care information for users in China This symbol is only valid in China.TQBJ0655

-Signal Y: 1,0 V [p-p] negative Synchronisation, P

2) Retirez le support.

Cavo computer (per D-sub) (T0K3K0013--1)

Y: 1,0 V [p-p] sinc negativa, P

Appendice Manuale d’uso di LX1750020-000638-01 Rev.1 (11-2013) Dimensioni <Unità: mm> 815,0 (32-3/32")349,0 (13-3/4")349,0 (13-3/4")144,0 (5-21/32")143,0 (5-5/8")82,0 (3-7/32")25,0 (31/32")35,0 (1-3/8") 301,0 (11-27/32") 48,0

<Единица: мм> 815,0 (32-3/32")349,0 (13-3/4")349,0 (13-3/4")144,0 (5-21/32")143,0 (5-5/8")82,0 (3-7/32")25,0 (31/32")35,0 (1-3/8") 301,0 (11-27/32") 48,0
