USER MANUAL USNW186K3A0 LG

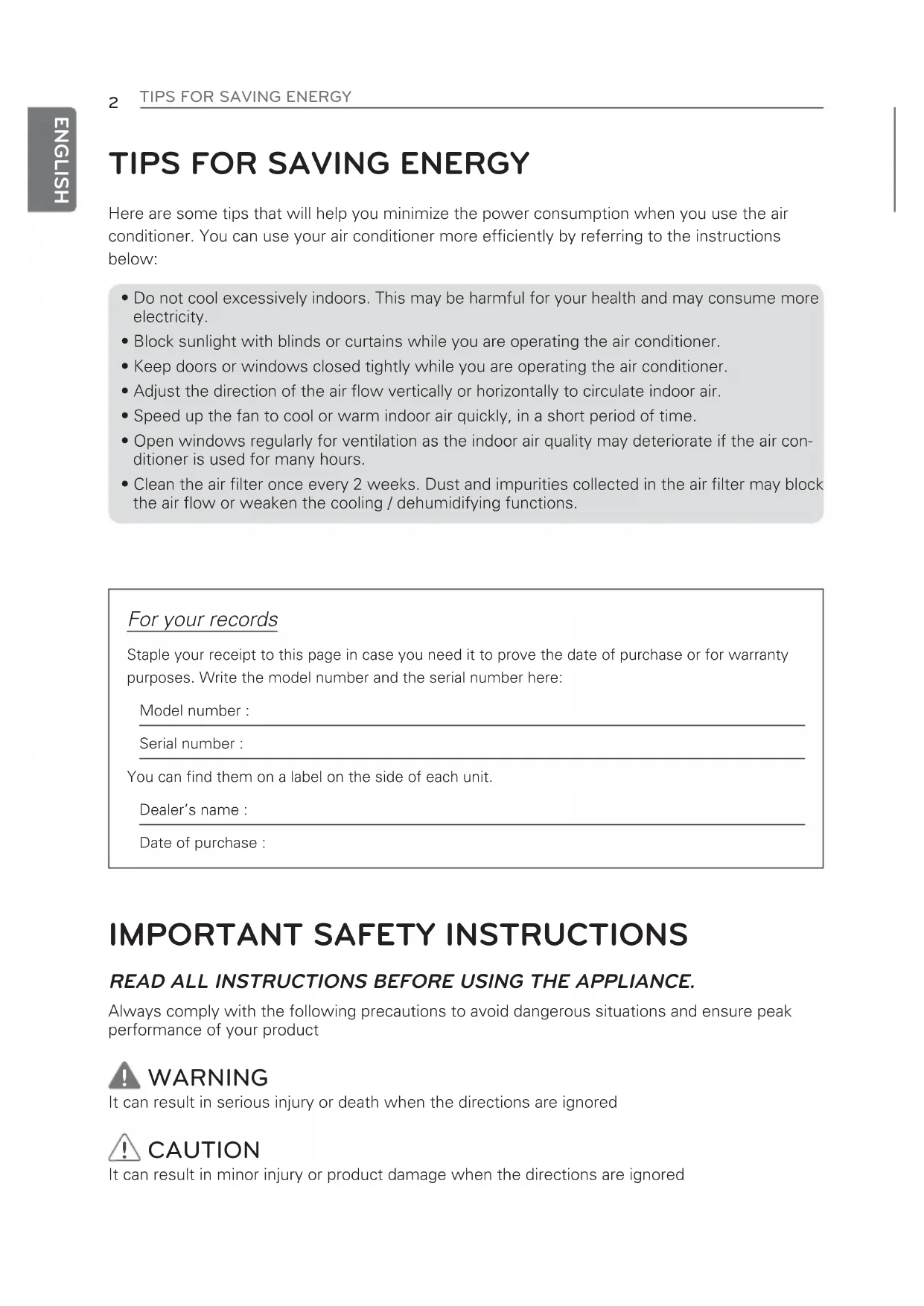

Here are some tips that will help you minimize the power consumption when you use the air conditioner. You can use your air conditioner more efficiently by referring to the instructions below:

• Do not cool excessively indoors. This may be harmful for your health and may consume more electricity.

• Block sunlight with blinds or curtains while you are operating the air conditioner.

• Keep doors or windows closed tightly while you are operating the air conditioner.

• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.

• Speed up the fan to cool or warm indoor air quickly, in a short period of time.

• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air con- ditioner is used for many hours.

• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or weaken the cooling / dehumidifying functions. For your records Staple your receipt to this page in case you need it to prove the date of purchase or for warranty purposes. Write the model number and the serial number here:Model number :Serial number :You can find them on a label on the side of each unit.Dealer’s name :Date of purchase :

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product WARNING It can result in serious injury or death when the directions are ignored CAUTION It can result in minor injury or product damage when the directions are ignored

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capa- bilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised

• Use a recognized circuit breaker between the power source and the unit. A disconnecting device to adequately disconnect all supply lines must be fitted.

• If the supply cord is damaged, it must be replaced by the manufac- turer, its service agent or similarly qualified persons in order to avoid a hazard.

• Installation or repairs made by unqualified persons can result in hazards to you and others.

• Appliance shall be installed in accordance with national wiring regulations.

• The information contained in the manual is intended for use by a qualified service technician familiar with safety procedures and equipped with the proper tools and test instruments.

• Failure to carefully read and follow all instructions in this manual can result in equipment mal- function, property damage, personal injury and/or death.

• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts. Installation

• Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Fail- ure to do so may result in electric shock or product failure.

• Contact an authorized service center when you install or relocate the air conditioner. Failure to do so may result in serious injury or product failure.

• Always use a power plug and socket with a ground terminal.Failure to do so may result in electric shock or product failure

• Install the panel and the cover of the control box safely. Failure to do so may result in explo- sion or fire.

• Install a dedicated electric outlet and circuit breaker before you use the air conditioner. Failure to do so may result in electric shock or product failure.

• Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Fail- ure to do so may result in electric shock or product failure.

• Do not modify or extend the power cable. If the power cable or cord has scratches or skin peeled off or deteriorated then it must be replaced. It may result in fire or electric shock.

• Be cautious when you unpack or install the air conditioner. Failure to do so may result in seri- ous injury or product failure.

• Do not install the air conditioner on an unstable surface or where there may be a danger of falling. It may result in death, serious injury, or product failure.

• Use inflammable gas (nitrogen) to inspect leak and to purge air, using compressed air or flam- mable gas may cause fire or explosion.

• Do not let the air conditioner run for a long time when the humidity is very high or when a door or window has been left open. Failure to do so may result in product failure.

• Make sure that the power cord is not pulled or damaged while the air conditioner is operating. Fail- ure to do so may result in fire, electric shock, or product failure.

• Do not place any objects on the power cord. It may result in electric shock or product failure.

• Do not turn on or off the air conditioner by plugging in or unplugging the power plug. It may result in fire or electric shock.

• Do not touch, operate or repair the air conditioner with wet hands. It may result in electric shock or product failure.

• Do not place a heater or other heating appliances near the power cable. It may result in fire, electric shock, or product failure.

• Do not allow water to run into the air conditioner. It may result in explosion or fire.

• Do not leave flammable substances such as gasoline, benzene and thinner near the air conditioner. It may result in explosion or fire.

• Do not use the air conditioner for an extended period of time in a small place without ventilation. Ventilate the place regularly. Failure to do so may result in explosion or fire.

• When there is a gas leak, ventilate sufficiently before using the air conditioner again. Failure to do so may result in explosion or fire.

• Unplug the power plug if there is a noise, smell or smoke coming from the air conditioner. Failure to do so may result in explosion or fire.

• Stop operating and close the window in storm or hurricane.If possible remove the product from the window before hurricane arrives

• Do not touch the electrostatic filter after opening the front grille. Failure to do so may result in elec- tric shock or product failure.

• Contact an authorized service center when the air conditioner is submerged into water due to flood- ing. Failure to do so may result in explosion or fire.

• Be cautious water could not enter the product

• Make sure to ventilate sufficiently when this air conditioner and a heating appliance such as a heater are used simultaneously. Failure to do so may result in fire, serious injury, or product failure.

• Turn the main power off and unplug the power plug when you clean or repair the air conditioner. Failure to do so may result in death, serious injury, or product failure.

• Unplug the power plug when the air conditioner is not used for an extended period of time. Failure to do so may result in product failure.

• Do not place any objects on the air conditioner. It may result in product failure.

• For inner cleaning, contact an Authorized Service Center or a dealer. Do not use harsh detergent that causes corrosion or damage on the unit. Harsh detergent may also cause failure of product, fire, or electronic shock.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.IMPORTANT SAFETY INSTRUCTIONS

• Make sure to check if there is a refrigerant leak after you install or repair the air conditioner. Failure to do so may result in product failure.

• Install the drain hose properly for smooth drainage of condensed water. Failure to do so may result in product failure.

• Keep level even when installing the product.

• Install the air conditioner where the noise from the outdoor unit or the exhaust gas will not be incon- venience the neighbors. Failure to do so may result in conflict between neighbors.

• When transporting the equipment, there should be at least 2 or more people, or a forklift. It may re- sult in serious injury.

• Do not install the air conditioner where it is exposed to sea wind (salt spray) directly. It may result in product failure. Operation

• Do not expose people, animals or plants to the cold or hot wind from the air conditioner. It may re- sult in serious injury.

Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a con- sumer air conditioner, not a precision refrigeration system. It may result in death, fire or electric shock.

• Do not block the inlet or outlet of air flow. It may result in explosion or product failure.

• Do not use strong cleaning agents or solvents when you clean the air conditioner, or spray water. Use a smooth cloth. It may result in serious injury or product failure.

• Never touch the metal parts of the air conditioner when you remove the air filter. It may result in se- rious injury or product failure.

• Do not place any objects on the air conditioner. It may result in product failure.

• Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if necessary.

• Do not insert hands or other objects through the air inlet or outlet while the air conditioner is operat- ing. It may result in electric shock.

• Do not drink the water drained from the air conditioner. It may result in serious health complications.

• Use a sturdy stool or ladder when you clean, maintain or repair the air conditioner at a height. Failure to do so may result in serious injury or product failure.

• Do not mix the batteries for the remote control with other types of batteries or mix new batteries with used batteries. Failure to do so may result in product failure.

• Do not recharge or disassemble the batteries. Failure to do so may result in explosion, fire or serious injury.

• Stop using the remote control if there is a battery fluid leak. If your cloth or skin is exposed to the battery fluid from a leak, wash it off with clean water. Failure to do so may result in serious injury.

• If you swallow the battery fluid from a leak, wash out the inside of your mouth thoroughly and then consult a doctor. Failure to do so may result in serious health complications.

BASIC FUNCTIONS 10 Cooling your room 10 Heating your room 10 Removing humidity 11 Airing your room 11 Adjusting the fan speed 11 Adjusting the air flow direction 11 Setting the timer

11 - Setting the current timer

12 - Turning on the air conditioner auto-

matically at a set time

12 - Turning off the air conditioner auto-

matically at a set time

12 - Canceling the timer setting

ADVANCED FUNCTIONS 13 Changing room temperature quickly 13 Indoor air purification 13 Auto Clean operation 13 Display the current energy usage 14 Auto operation 14 Auto Changeover operation 15 Silent mode 15 Energy Control mode 15 Display screen brightness 16 Using the 1 Touch soft air 16 Operating the air conditioner without the remote control 17 Smart Diagnosis 18 Restarting the air conditioner automati- cally

The number of operation lamps and their locations may vary, depending on the model of the air conditioner. Indoor unit

• The feature can be changed according to the type of model.

• The feature can be changed according to type of model. 9,12k 18k 24k BEFORE USE Components8 BEFORE USEENGLISHYou can operate the air conditioner more conveniently with the remote control. You will find thebuttons for the additional functions under the cover of the remote control.Wireless remote control Display screenControl panel ControlpanelDisplayscreenDescription Auto Clean button: Set the special func-tion. 1 Touch soft air button : Easily adjust theair flow to deflect direct wind away. Sleep mode auto button*: Sets thesleep mode auto operation. Temperature adjustment buttons: Ad-justs the room temperature when cool-ing and heating. - On/Off button: Turns the power on/off.

DBE Operation mode selection button*: Se-lects the operation mode. Cooling operation (A) / Auto operationor auto changeover (C) / Dehumidify-ing operation (D) / Heating operation(B) / Air circulation (E) Jet cooling/heating button*: Warms upor cools down the indoor temperaturewithin a short period of time. Air flow direction button: Adjusts the airflow direction horizontally. Timer button: Sets the start / end time.

Navigation and functions button*: Ad-justs the time and sets the specialfunctions.I Operates SILENT mode / J Oper-ates E/Control mode / Silent mode andE/Control are not available at the sametime.

Reset button: Resets the air condi-tioner settings.* Some functions may not be supported, depending on the model.Using the remote controlCAUTIONThe following cautions are rel-evant when it comes to mod-els for France.If Heating Only Mode functionis set up, Cooling / AutoChangeover / Dehumidifyingoperation is unavailable andHeating / Air Circulation opera-tion is available.If the product gets turned offwhile the wireless remotecontrol Is set at Cooling / AutoChangeover / Dehumidifyingoperation, the product will notget turned back on.Turn off the product after thewireless remote control is setat Heating / Air Circulation op-eration and then turn back on. !BEFORE USE

• The remote control may operate other electronic devices if pointed towards them. Make sure to point the remote control towards the signal receiver of the air conditioner.

• For proper operation, use a soft cloth to clean the signal transmitter and receiver. Operating method Inserting batteries Insert batteries before using the remote control. The battery type used is AAA (1.5 V). 1 Remove the battery cover. 2 Insert the new batteries and make sure that the + and - terminals of the batteries are installed correctly. 3 Reattach the battery cover. Installing the remote control holder Install the holder where there is no direct sun- light to protect the remote control. 1 Choose a safe and easily-accessible place. 2 Fix the holder by fastening the 2 screws firmly with a screwdriver. 3 Slide the remote control into the holder. Point the remote control towards the signal receiver at the bottom of the air conditioner to operate it.10 BASIC FUNCTIONS ENGLISH NOTE

• In this mode you cannot adjust the roomtemperature, as it is adjusted automati-cally. Also, the room temperature is notdisplayed on the display screen. NOTE

Cooling-only models do not support thisfunction. Cooling your room (Cooling operation) 1 Press | to turn on the power. 2 Press f repeatedly to select the cooling operation.- A is displayed on the display screen. 3 Press G or H to set the desired tempera- ture.- The temperature range is 18 °C (64 °F) ~30 °C (86 °F). Heating your room (Heating operation) 1 Press | to turn on the power. 2 Press f repeatedly to select the heating operation.- B is displayed on the display screen. 3 Press G or H to set the desired tempera- ture.- The temperature range is 16 °C (60 °F) ~30 °C (86 °F). Removing humidity (Dehumidifying operation) This mode removes excess moisture from anenvironment with high humidity or in the rainyseason, in order to prevent mold from settingin. This mode adjusts the room temperatureand the fan speed automatically to maintainthe optimal level of humidity. 1 Press | to turn on the power. 2 Press f repeatedly to select the dehu- midifying operation.

D is displayed on the display screen.

• Adjusting the air flow direction verticallymay not be supported, depending onthe model.• Adjusting the air deflector arbitrarily maycause product failure.• If you restart the air conditioner, it startsto operate with the previously set direc-tion of air flow, so the air deflector maynot match the icon displayed on the re-mote control. When this occurs, press D to adjust the direction of the air flow again. Airing your room (Air Circulation operation) This mode only circulates the indoor airwithout changing the room temperature. 1 Press | to turn on the power. 2 Press f repeatedly to select the air circu- lation operation.- E is displayed on the display screen. 3 Press g to adjust the fan speed. Adjusting the fan speed 1 Press g repeatedly to adjust the fan speed.- Select if you want natural air. The fan speed adjusts automatically. Adjusting the air flow direc- tion 1 To adjust the direction of the air flow hori- zontally, press D repeatedly and selectthe desired direction.- Select I to adjust the direction of the airflow automatically. Setting the timer You can use the timer function to save energyand to use the air conditioner more efficiently. Setting the current time 1 Press p and hold it for longer than 3 sec- onds.- The AM/PM icon flickers at the bottom ofthe display screen. NOTE

Medium-High Medium Medium-Low

Low Setting TemperatureNatural Wind12 BASIC FUNCTIONS ENGLISH 2 PressEorFto select the minutes. 3 Press p to finish. Turning on the air conditioner auto- matically at a set time 1 Press m. - The icon below flickers at the bottom of the display screen. 2 PressEorFto select the minutes. 3 Press p to finish. 4 When setting the timer, current time and ON icon are displayed on the display screen indicating that the desired time is set. Turning off the air conditioner auto- matically at a set time 1 Press n. - The icon below flickers at the bottom of the display screen. 2 PressEorFto select the minutes. 3 Press p to finish. 4 When setting the timer, current time and OFF icon are displayed on the display screen indicating that the desired time is set. Canceling the timer setting 1 Press m or n to select the timer set- ting to cancel 2 Press p. - To cancel all timer settings, press

Setting sleep mode Use the sleep mode to turn off the air condi- tioner automatically when you go to sleep. 1 Press | to turn on the power. 2 Press l 3 PressEorFto select the hour (up to 7 hours). 4 Press p to finish.

T is displayed on the display screen in sleep mode.

• In the Cooling and Dehumidifying modes, the temperature increases by 1 °C after 30 minutes and by a further 1 °C after another 30 minutes for a more comfortable sleep.

• The temperature increases with up to 2 °C from the preset temperature.

• Fan speed can't be changed in case of sleep mode. Super low fan speed is set up at cooling and low fan speed is set up at heating.

• Indoor unit display is displayed from 1H to 7H, which is displayed only 5 sec and then return to the setting temperature.NOTE

Some buttons cannot be used while theauto cleaning function is in operation.ADVANCED FUNCTIONS

• When entering a function, it is not dis-played separately on the wireless re-mote control.• The actual power may differ from its dis-played power.The air conditioner offers some additional ad-vanced functions. Changing room temperature quickly (Jet Cool/Heat operation) This mode allows you to cool indoor air quicklyin summer or warm it quickly in winter. 1 Press | to turn on the power. 2 Press M. - is displayed on the display screen.- In jet cooling mode, strong air blows outat a temperature of 18 °C (64 °F) for 30minutes.- In jet heating mode, strong air blows outat a temperature of 30 °C (86 °F) for 30minutes. Indoor air purification Auto Clean operation In the cooling and dehumidifying operations,moisture is generated inside the indoor unit.Use the auto cleaning function to removesuch moisture. 1 Press | to turn on the power. 2 Press .

J is displayed on the display screen. - If you turn off the power, the fan oper-ates for 30 minutes and cleans the insideof the indoor unit. Display the current energy usage It is a function displaying the amount of elec-tricity generated on the indoor display as theproduct operates. 1 Press | to turn on the power. 2 Press . - The instantaneous power consumption isdisplayed for a while on the indoor unitdisplay. ADVANCED FUNCTIONS14 ADVANCED FUNCTIONS ENGLISH NOTE

This function may not be supported, depending on the model. Cooling-only models Code Description 2 Cool 1 Cool slightly 0 Maintain room temperature -1 Heat slightly -2 Heat NOTE

• In this mode, you cannot adjust the fan speed, but you can set the air deflector to rotate automatically.

• This function may not be supported, de- pending on the model. Auto Changeover operation This mode changes the operation mode auto- matically to maintain the set temperature at ±2 °C. 1 Press | to turn on the power. 2 Press f repeatedly to select the auto changeover operation.

C is displayed on the display screen. 3 PressG or Hto set the desired tempera- ture. - The temperature range is 18 °C (64 °F) ~ 30 °C (86 °F). 4 Press g repeatedly to select the fan speed. Auto operation (Artificial intelligence) In this mode, the fan speed and the tempera- ture adjust automatically, based on the room temperature. 1 Press | to turn on the power. 2 Press f repeatedly to select auto opera- tion. 3 PressG or Hto select the desired opera- tion code if the temperature is higher or lower than the desired temperature.ADVANCED FUNCTIONS

Setting available only under operation-ONSilent Mode and E/Control are not avail-able at the same time. If E/Control ispressed under Silent Mode, Silent Mode isreleased and E/Control works.• Capacity may decrease when outdoorunit silent mode is selected.• In Air Circulation, Humidity mode, thisfunction cannot be used. NOTE

• In Cooling mode, this function can beused.• Every time E/Control on wireless remotecontroller is pressed, 1Step, 2Step, func-tions release are repeated and switchedWanted temperature appears for 5 sec.• Capacity may decrease when outdoorunit Energy Control mode is selected. NOTE

J is displayed on the display screen. Display screen brightness You can adjust the brightness of the indoorunit display screen. 1 Press

Turn on/off the Display screen. Energy Control mode It Brings the effect of the power saving.(Setting available in air cooling mode) 1 step : The power Input in cooling mode is decreased by 20% compared to ratedpower Input 2 step : The power Input in cooling mode is decreased by 40% compared to ratedpower Input Silent mode It is to prevent potential claims by neighbors,reducing noise from outdoor units.The outdoor unit sound pressure in coolingand heating mode is decreased by 3dB com-pared to the rated sound pressure 1 Press | to turn the power on. 2 Press

I is displayed on the display screen.16 ADVANCED FUNCTIONS ENGLISH

• The feature can be changed according totype of model.- For cooling and heating models, the oper-ation mode changes, depending on theroom temperature.- For cooling-only models, the temperatureis set to 22 °C. NOTE

The stepping motor can be broken, theHorizontal vane open rapidly.Room temp. Set temp.Operation mode Below 21 °C 24 °CHeating operationAbove 21 °Cand below 24°C 23 °CDehumidify-ing operationAbove 24 °C 22 °CCooling operation Operating the air conditioner without the remote control You can use the On/Off button of the indoorunit to operate the air conditioner when theremote control is unavailable. However, thefan speed is set to high. 1 Open the Horizontal vane. 2 Press the On/Off Button. Using the 1 Touch soft air (Comfort Vane operation) The comfort vane option conveniently setsthe vane to a preset position that deflects thesupply air away from blowing directly ontoroom occupants. 1 Press | to turn on the power. 2 Press repeatedly and select the de- sired direction.- or is displayed on the displayscreen. NOTE

• Pressing f or during comfort vaneoperation will turn off the comfort vanefeature.• Pressing D during comfort vane oper- ation will turn off the comfort vane fea-ture and set up the auto swing ofvertical direction.• When this feature is off, the horizontalvane operates automatically dependingon the set mode.• Indoor unit display is displayed only 5sec and then return to the setting tem-perature.[Display screen] [Indoor unit display][Display screen] [Indoor unit display]ADVANCED FUNCTIONS

ENGLISH Smart Diagnosis Smart Diagnosis allows users to conveniently check maintenance information of a product. - Easily checking operational status of the air conditioner. - Easily understanding the error messages. - Helping to improve device performance and expand product life. 1 Search and download “LG A/C Smart Diag- nosis” in Google play or App store. 2 Click the “Receive” button on the main screen on your phone. 3 Press the M of wireless remote control simultaneously for 5 seconds aim at the in- door unit. 4 Hold your phone close to the indoor unit. Buzzer beeps will be received by your phone. 5 Confirm the received information on your phone. NOTE

Be sure to keep ambient noise to a mini- mum or the phone may not correctly re- ceive the buzzer beeps from the indoor unit. Receive18 ADVANCED FUNCTIONS ENGLISH Restarting the air conditioner automatically When the air conditioner is turned on again after a power failure, this function restores the previous settings. This function is a factory de- fault setting. 1 Open the Horizontal vane. 2 Press the On/Off button and hold it for 6 seconds. - The unit will beep twice and the lamp will blink twice 4 times. - To re-enable the function, press the On/ Off button and hold it for 6 seconds. The unit will beep twice and the lamp will blink 4 times. Disabling auto restart NOTE

If you press and hold the On/Off button for 3 – 5 seconds instead of 6 seconds, the unit will switch to the test operation. In the test operation, the unit blows out strong air for cooling for 18 minutes and then returns to the factory default set- tings.

• The feature can be changed according a type of model.MAINTENANCE

ENGLISH If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition. 1 Dry the air conditioner in Fan mode for 3 to 4 hours and disconnect the power plug. There may be internal damage if moisture is left in components. 2 Before using the air conditioner again, dry the inner components of the air conditioner in Fan mode for 3 to 4 hours. This will help to remove odor which is generated from moisture. Clean the product regularly to maintain optimal performance and to prevent possible breakdown. Air filter

• The feature can be changed according to the type of model. Type Description Interval Air filter See “Cleaning the filter.” 2 weeks Indoor unit Clean the Indoor unit surface by using a soft, dry cloth. Regularly Clean the condensate drain pipe. Every 4 months Clean the condensate drain pan. Once a year Thoroughly clean the heat exchanger. Once a year Replace the remote control batteries. Once a year Outdoor unit Use steam to clean the heat exchanger coils and the panel vents. (consult with technician) Regularly Clean the fan. Once a year Clean the condensate drain pan. Once a year Verify that all the fan assembly is firmly tightened. Once a year Verify that electric components with air. Once a year Clean the electric components with air. Once a year MAINTENANCE20 MAINTENANCE ENGLISH CAUTION

• Turn off the power and unplug the power cord before you perform any maintenance; other- wise it may cause electric shock.

• Never use water that is hotter than 40°C when you clean the filters. It may cause deforma- tion or discoloration.

• Never use volatile substances when you clean the filters. They may damage the surface of the product.

• Do not wash the 3M filter with water, because the filter can be damaged(Optional)

• The location and shape of the filters may differ, depending on the model.

• Make sure to clean the heat exchanger coils of the outdoor unit regularly, as dirt collected in the coils may decrease the operational efficiency or increase energy costs.MAINTENANCE

ENGLISH Clean the air filter Clean the air filter once every 2 weeks or more if necessary. 1 Turn off the power and unplug the power cord. 2 Hold the knob of air filter, Lift it up slightly.

• The feature can be changed according to type of model. 3 Hold the knob of the air filter, lift it up slightly and remove it from the unit.

• The feature can be changed according to type of model. 4 Clean the filter with a vacuum cleaner or with warm water. - If dirt is difficult to remove, wash the filter in lukewarm water with detergent. 5 Dry the filter in the shade. 4 Check side of the front grille for the air fil- ter assembled correctly. 2 Insert the hooks of the air filter into the front grille. 3 Push down hooks to assemble the air fil- ter. NOTE

The air filter is not assembled correctly, Dust and other substance come into the indoor unit. If look at the indoor unit from higher than it, can assemble the top filter easily. NOTE

The air filter can be broken when it is bended. Assemble the air filter Clean the air filter once every 2 weeks or more if necessary. 1 Turn off the power and unplug the power cord.22 TROUBLESHOOTING ENGLISH Problem Possible causes Corrective action There is a burning smell and a strange sound coming from the unit.

Turn off the air conditioner, unplug the power cord and contact the service center. Water leaks from the indoor unit even when the humidity level is low. The power cord is damaged or generating excessive heat. A switch, a circuit breaker (safety, ground) or a fuse is not operated properly. The air conditioner does not work. The air conditioner is unplugged. Check whether the power cord is plugged into the outlet. A fuse is blown or the power supply is blocked. Replace the fuse or check if the circuit breaker has tripped. A power failure has occurred. Turn off the air conditioner when a power failure occurs. When the power is restored, wait for 3 minutes, and then turn on the air conditioner. The voltage is too high or low. Check if the circuit breaker has tripped. The air conditioner turned off automati- cally at a preset time. Press the power button again. Self-diagnosis function This product has a built-in self-diagnosis function. If an error occurs, the lamp of the indoor unit will blink in 2 second intervals. If this occurs, contact your local dealer or service center. Before requesting service Please check the following before you contact the service center. If the problem persists, contact your local service center. TROUBLESHOOTINGTROUBLESHOOTING

ENGLISH Problem Possible causes Corrective action The air conditioner does not generate cool air. Air is not circulating properly. Make sure that there are no curtains, blinds or furniture blocking the front of the air conditioner. The air filter is dirty. Clean the air filter once every 2 weeks. See “Cleaning Air Filter” for more infor- mation. The room tempera- ture is too high. In summer, it may take some time to cool indoor air. In this case, select the jet cool operation to cool indoor air quickly. Cold air is escaping from the room. Make sure that no cold air is escaping through ventilation points in the room. The desired tempera- ture is higher than the set temperature. Set the desired temperature to a level lower than the current temperature. There is a heating source nearby. Avoid using a heat generator such as an electric oven or a gas burner while the air conditioner is in operation. Air circulation opera- tion is selected. In the air circulation operation, air blows from the air conditioner without cooling or heating the indoor air. Switch the opera- tion mode to the cooling operation. It is not possible to adjust the fan speed. The auto operation, jet operation or dehu- midifying operation is selected. In some operation modes, such as the jet or dehumidifying operation modes, you cannot adjust the fan speed. Select an op- eration mode in which you can adjust the fan speed. It is not possible to adjust the temperature. The air circulation op- eration or jet opera- tion is selected. In some operation modes, such as the air circulation or jet operation mode, you can- not adjust the temperature. Select an op- eration mode in which you can adjust the temperature.24 ENGLISHwww.lg.com
