USER MANUAL R0501M LG

OWNER'S MANUAL CLIMATISEUR DE FENÊTURE

Room Air Conditioner Manuel D'utilisation

MODEL: R0501M

IMPORTANT

• Please read the operating instructions and safety precautions carefully and thoroughly before installing and operating your room air conditioner.
• Please retain this owner's manual for future reference after reading it thoroughly.

IMPORTANT

Safety Precautions. 3

Before Operation. 7

Introduction 8

Symbols Used in this Manual 8

Features 8

Electrical Safety. 9

Temporary Use of an Adapter 10

Temporary Use of an Extension Cord 10

Installation 11

Window Requirements 11

Size 11

Location 12

Clearance 12

Preparation of Chassis 13

Unit Installation 14

Operating Instructions 15

Location and function of Controls. 15

Remote Control Operations 16

Remote Controller 17

Additional Features. 18

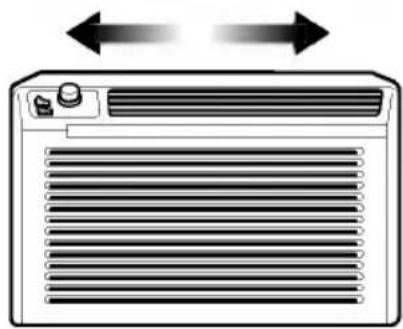

Air Direction 18

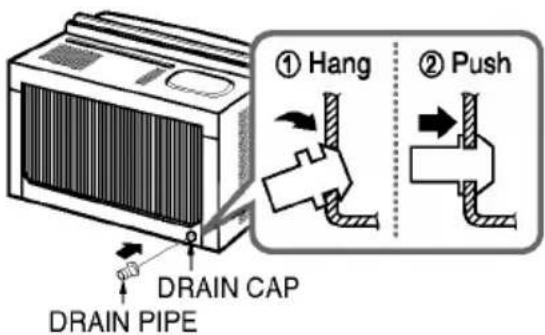

Drain Pipe. 18

Removal from Window. 18

Maintenance and Service 19

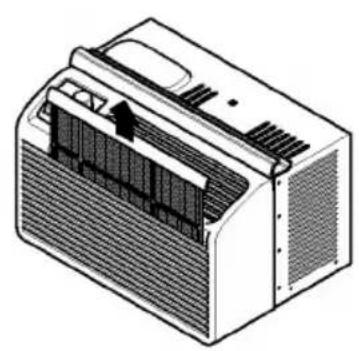

Air Filter 19

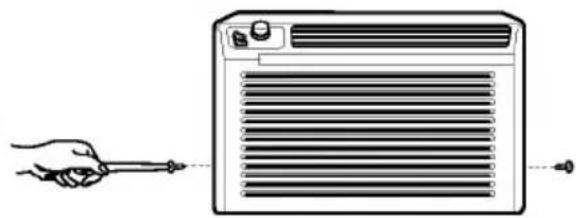

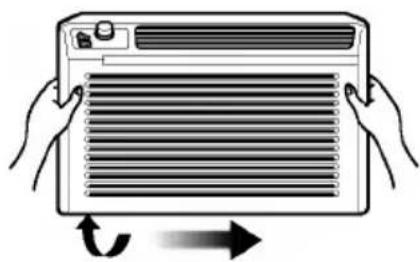

Cleaning the Air Conditioner. 19 How to Remove the

FrontGrille 19

Common Problems and Solutions. 20

Troubleshooting. 21

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #
Serial #

You can find the numbers on a label on the side of the product.

Dealer's Name Date Purchased

Staple your receipt to this page in the event you need itto prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

You'll find many answers to common problems in the chart of troubleshooting tips.If you review our chart of

Troubleshooting Tips first, you may not need to call forservice at all.

PRECAUTION

• Contact an Authorized Service Center for repair or maintenance of this unit. Call 1-800-243-0000 to locate the nearest ASC.
  The air conditioner is not intended for use by young children or invalids without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• If the power cord requires replacement, have an Authorized Servicer install an exact replacement part.
• Installation work must be performed in accordance with the National Electric Code by qualified nad authorized personnel only.

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be followed.

Incorrect operation due to ignoring instructions will cause harm or damage. The seriousnessy the following indications.
■ Because of the weight of the product, it is recommended that you have a helper to assist in the installation.

WARNING This symbol indicates the possibility of death or serious injury.

CAUTION This symbol indicates the possibility of injury or damage to properties only.

■ Meanings of symbols used in this manual are as shown below.

∅	Be sure not to do.
∅	Be sure to follow the instruction.

WARNING

■ Installation

Always install the expansion panel(s).

• Improper assembly or installation may cause incorrect operation, including injury, fire, and electric shock hazards.

Do not use the power cord near flammable gas or combustibles such as gasoline, benzene, thinner,etc.

It ma cause explosion or fire.

Do not place the power cord near a heater.

It may cause fire and electric shock.

Do not disassemble or modify products.

It may cause failure and electric shock.

Operation

Plug in the power plug properly.

• Otherwise, it will cause electric shock or fire.

Do not operate or stop the unit by inserting or pulling out the power plug.

It will cause electric shock or fire.

Do not damage or use an unspecified power cord.

• It will cause electric shock or fire.

Do not modify power cord length.

Use the air conditioner on a single outlet circuit. (See page 7.) Do not share the outlet with other appliances.

Always plug into a grounded outlet.

It will cause electric shock or fire.

It will cause electric shock or fire.

• No grounding may cause electric shock.

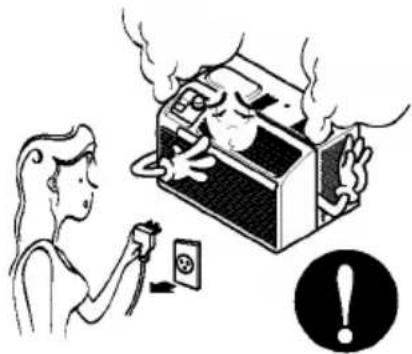

Unplug the unit if strange sounds, odors, or smoke come from it.

Do not use the socket if it is loose or damaged.

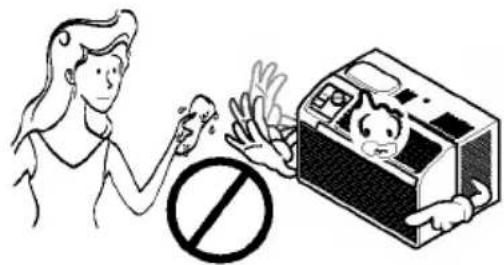

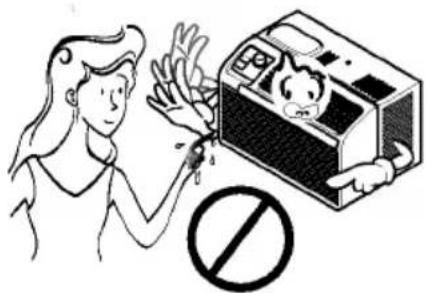

Do not operate with wet hands or in damp environment.

• Otherwise it will cause fire and electric shock accident.

It may cause fire and electric shock.

It will cause electric shock.

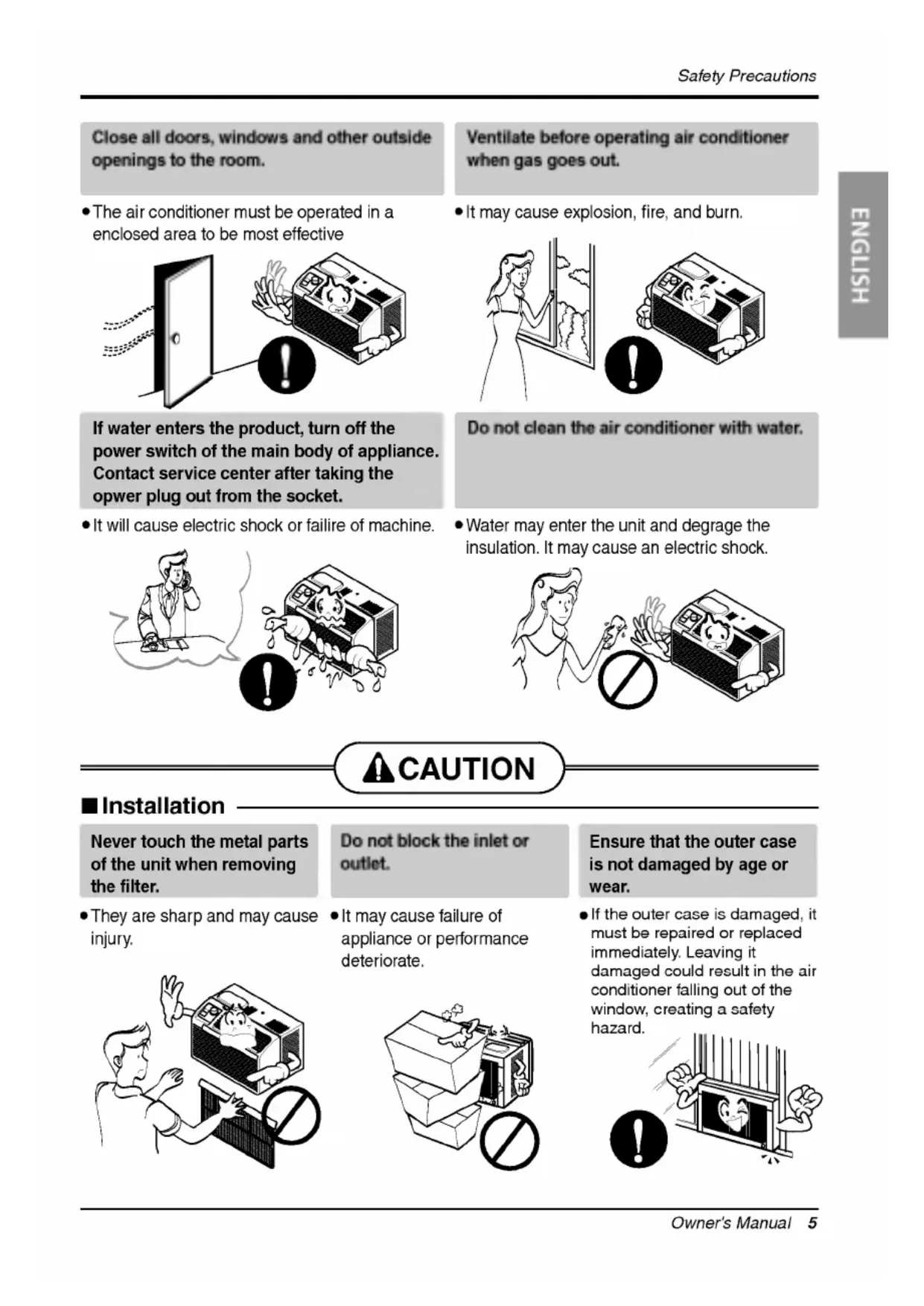

Close all doors, windows and other outside openings to the room.

The air conditioner must be operated in a enclosed area to be most effective

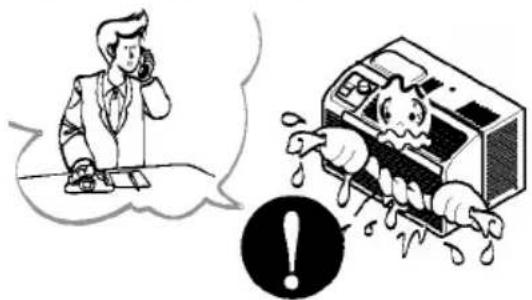

If water enters the product, turn off the power switch of the main body of appliance. Contact service center after taking the opwer plug out from the socket.

• It will cause electric shock or failure of machine.

Ventilate before operating air conditioner when gas goes out.

It may cause explosion, fire, and burn.

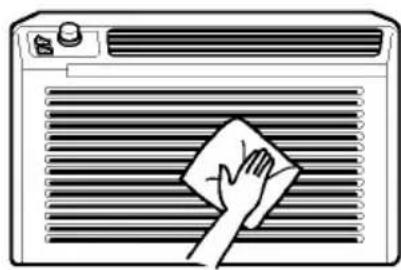

Do not clean the air conditioner with water.

Water may enter the unit and degrade the insulation. It may cause an electric shock.

CAUTION

■ Installation

Never touch the metal parts of the unit when removing the filter.

They are sharp and may cause injury.

Do not block the inlet or outlet.

It may cause failure of appliance or performance deteriorate.

Ensure that the outer case is not damaged by age or wear.

• If the outer case is damaged, it must be repaired or replaced immediately. Leaving it damaged could result in the air conditioner falling out of the window, creating a safety hazard.

■Operation
Be cautious not to touch the sharp edges when installing.	Hold the plug by the head when taking it out.	Unplug the air conditioner if it will not be used for a long period.
●It may cause injury.	●It may cause electric shock and damage.	●It will waste power consumption in vain and it may cause accident.
Sharp edges
Unplug the air conditioner before cleaning it.	Do not put a pet or house plant where it will be exposed to direct air flow.	Do not use this appliance for special purposes such as pets, foods, precision machinery, or objects of art.
●Since the fan rotates at high speed during operation, it may cause injury.	●This could injury the pet or plant.	●It is an air conditioner, not a precision refrigeration system.
Always insert the filter securely. Clean it every two weeks.	Use a soft cloth to clean. Do not use wax, thinner, or a strong detergent.	Do not drink water drained from air conditioner. Do not direct airflow at room occupants only.
●Operation without filters will cause failure.	●The appearance of the air conditioner may deteriorate, change color, or develop surface flaws.	●It is not sanitary and could cause lness or personal injury hazard.

Before Operation

Preparing for operation

1. Plug in the power plug properly.
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Do not use an extension cord.See page 10 for more details.
4. Do not start/stop operation by plugging/unplugging the power cord.
5. If the power cord is damaged and requires replacement, have an Authorized Servicer install an exact replacement part.

Usage

1. Being ew for an extended period of time could behazardous to your health.
   Do not expose occupants, pets, or plants to directw for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or other heating devices.
3. Do not use this air conditioner fposes (e.g.preserving precision devices, food, pets, plants, and art objects). Such usagecould damage the items.
4. The air conditioner is a consumer comfort appliance, not a precision climatecontrol system.

Cleaning and maintenance

1. Do not touch the metal parts of the unit when remo.Injuries canoccur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a very high speed during operation.

There is a possibility of injury if the unit's power is accidentally triggered on while cleaning inner parts of the unit.

Service

For repair and maintenance, contact an Authorized Service Center. See thewarranty page for details or call 1-888-LG-CANADA (542 2623).Have your model number andserial number available. They should be written on page 2 of this manual.

Introduction

Symbols Used in this Manual

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that could cause harm to the air conditioner.

NOTICE

This symbol indicates special notes.

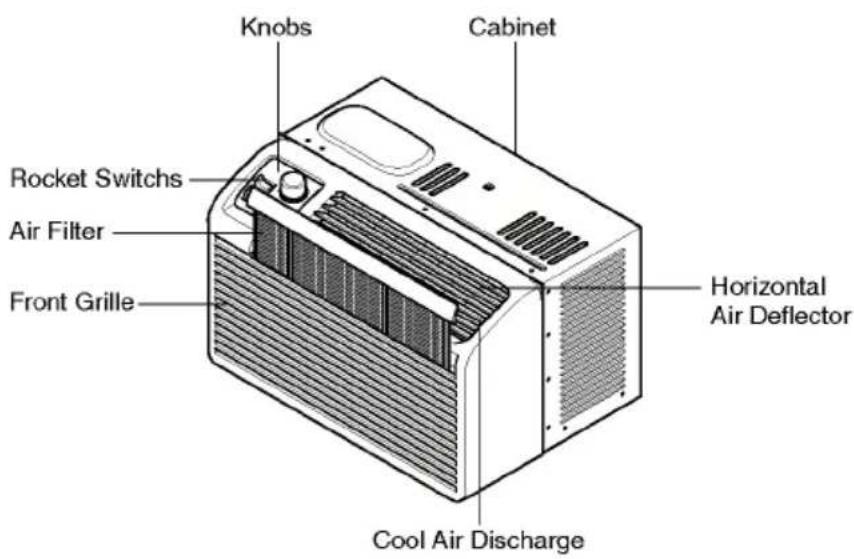

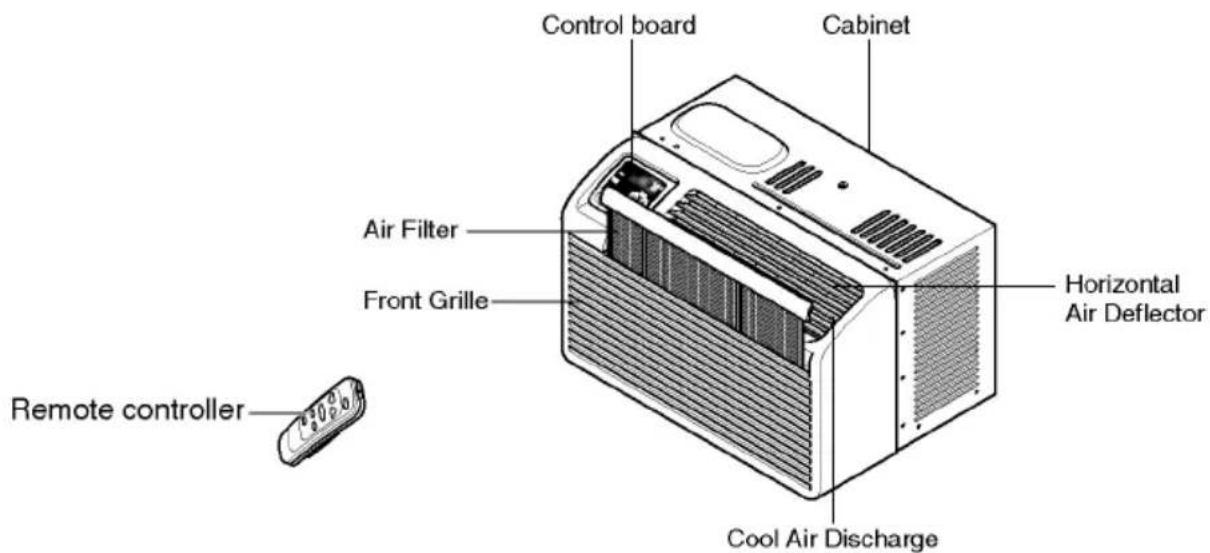

Features

WARNING: This appliance should be installed in accordance with the National Electric Code.

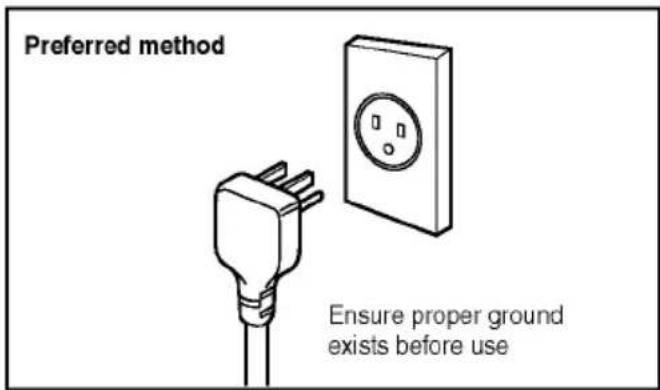

Electrical Safety

WARNING: This appliance must be properly grounded.

The power cord of this appliance is equipped with a three-prong grounding plug. To minimize the risk of electric shock, use the plug with a standard three-slot grounding wall power outlet. If the power outlet does not include a grounding slot, have a qualified electrician replace the outlet before you use the room air conditioner.

WARNING: Changing the outlet without making the appropriate wiring changes will create an unsafe condition that could result in fire or electrical shock. Refer all such work to a licensed and qualified electrician.

WARNING: Do not cut or remove the grounding prong from the power plug.

WARNING: Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring.

WARNING: If you have any doubt whether the air conditioner is properly grounded, have the wall receptacle and circuit checked by a qualified electrician.

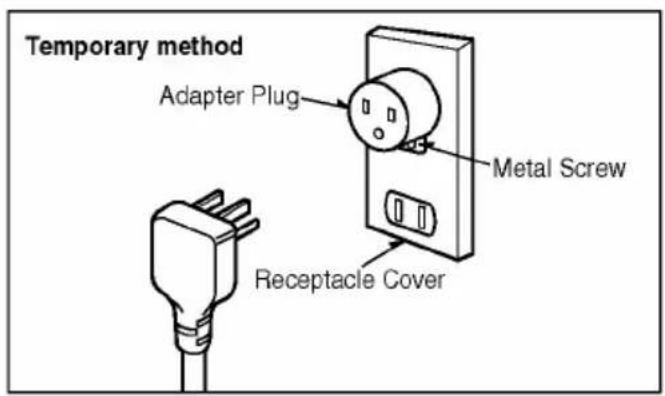

Temporary Use of an Adapter

We strongly discourage the use of an adapter due to potential safety hazards. For temporary connections, use only a UL-listed adapter, available from most local hardware stores. Ensure that the large slot in the adapter is aligned with the large slot in the receptacle for a proper polarity connection.

To disconnect the power cord from the adapter, use one hand on each to avoid damaging the ground terminal. Avoid frequently unplugging the power cord as this can lead to eventual ground terminal damage.

WARNING: Never use the appliance with a broken adapter.

Temporary Use of an Extension Cord

We strongly discourage the use of an extension cord due to potential safety hazards. For temporary situations, use only CSA certified and UL listed 3-wire grounded extension cords, rated 15A , 125V .

Installation

Type A: 14 EA (Short Screw)	Type B: 2 EA (Wood Screw)	Type C: 2 EA (Wood Screw)	Type D: 3 EA (L Bracket)
Type E: 1 EA (Seal Strip)	Type F: 1 EA (Sash Seal)	Type G: 2 EA (Guide Panel)	Type H: 1 EA (Upper Guide)
(Adhesive backed)

Have the following tools available for installation:

• Screwdriver (Slotted and Phillips)
  *Ruler
• Knife
• Hammer
• Pencil
  *Level

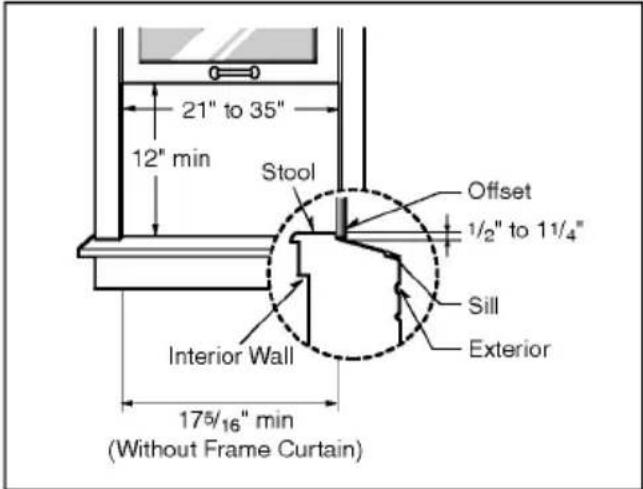

Window Requirements

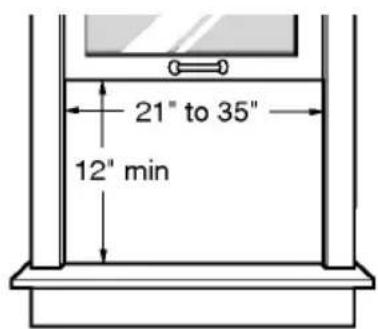

Size

This room air conditioner is designed for installation in standard double-hung windows with actualopening widths from 21" to 35".

The upper and lower window sash must open sufficiently to allow a clear vertical opening of 12^ from the bottom of the upper sash to the window stool.

WARNING: This product is a WINDOW AIR CONDITIONER.

As such, a standard single-hung or double-hung window is required for proper installation. Non-window installations, including using sleeves, holes in walls, and other installations are not recommended.

Location

Install the air conditioner where the sunlight does not shine directly on the unit.

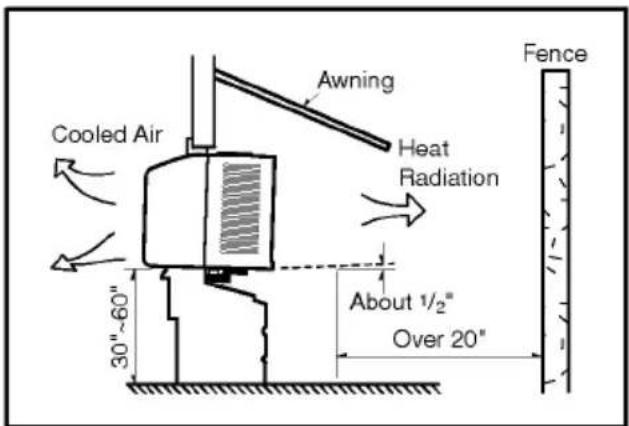

Clearance

Proper clearance enhances the cooling efficiency of the unit and prevents heat radiation of the condenser.

• The bottom of the cabinet should be 30" to 60" above the ground.
• The outside of the cabinet must extend outward for at least 12".
• There should be no obstacles such as a fence or wall within 20" from the back of the cabinet.
• All side louvers of the cabinet must remain exposed to the outside of the structure.

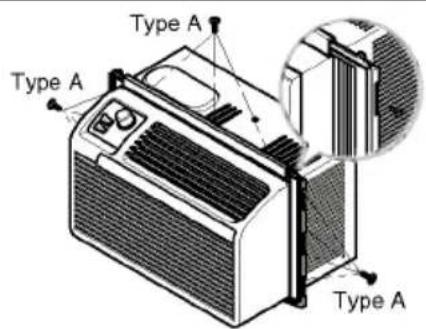

Preparation of Chassis

1. Insert the guide panels (Type G) into the guides of the air conditioner (Type H). Fasten the curtains to the unit with screws (Type A).

1. Cut the adhesive-backed seal strip (Type E) to the window width. Remove the backing from the seal strip and attach the seal strip to the underside of the bottom window.

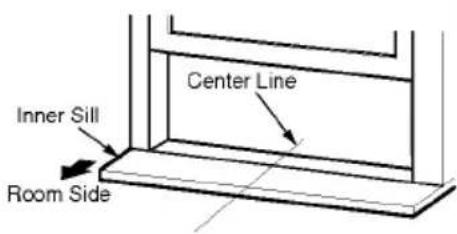

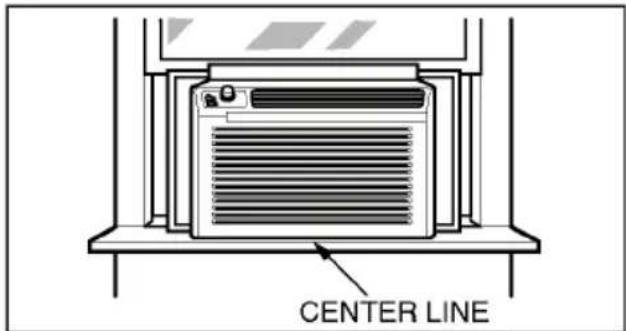

1. Locating unit in window Open the window and mark center lineon the center of the inner sill.

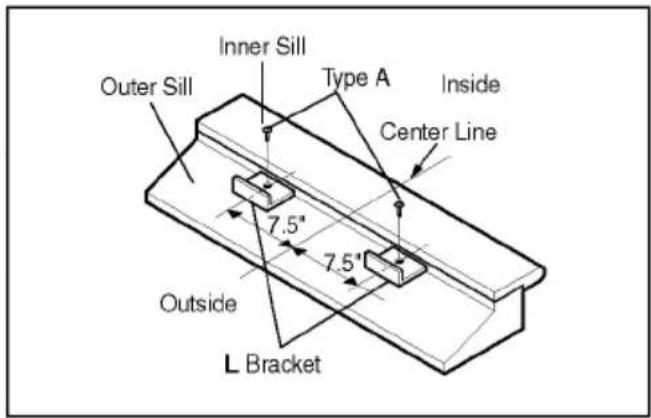

4. Attach L bracket

4-1. Install the L brackets behind the inner window sill, with short side ofbracket as shown.Use the 2 screws(Type A) provided.
4-2. The bracket helps to hold unit securely in place. Be sure to place bracket edge flush against back of inner sill.

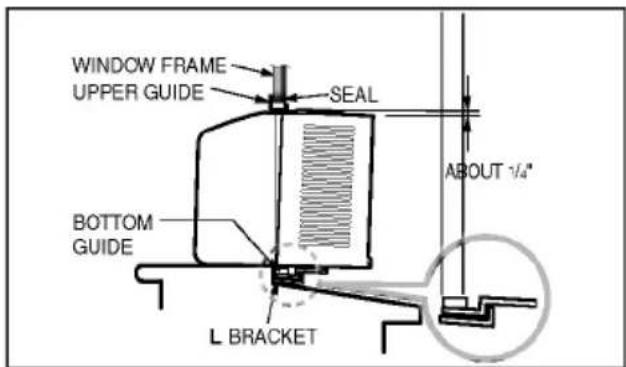

Unit Installation

Caution: During the following step, hold unit firmly until window sash is lowered to top channel behind side panel frames. Personal injury or property damage may result if unit falls from window.

1. Install the air conditioner in the window
   1-1. Carefully lift the air conditioner and slide it into the open window. Makesure the bottom guide of the air conditioner drops into the notches of the L bracket.

NOTICE: When the air conditioner drops into the L bracket, the air conditioner will be centered in window opening.

1-2. While steadying the air conditioner, carefully bring the window sash down behind the upper guide of the air conditioner.When the air conditioner is properlyinstalled, it should tilt slightly down atthe back.If it is set correctly in the window, it will hang lower in the back automatically.If it does not, there is aproblem with the installation.
2. Secure the guide panels

Extend the guide panels (Type G) to fill the window opening using 2 screws (Type B) 2, screws (Type C) to secure them.

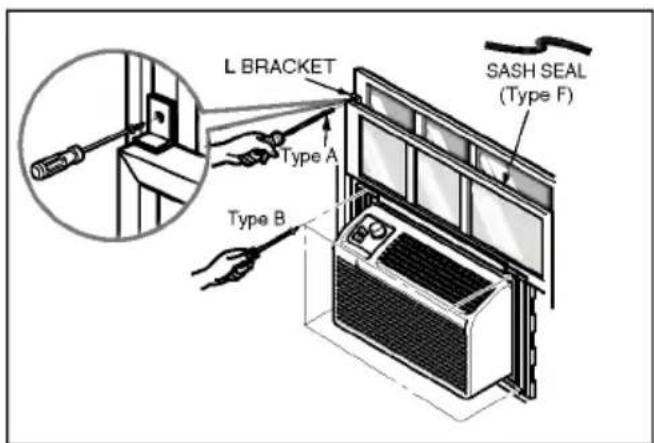

1. Install the sash seal and sash lock

3-1. Cut the sash seal (Type F) to the window width. Stuff the sash seal between the glass and the window to prevent air and insects from getting into the room.
3-2. Fasten the Lbracket using a screw(Type A).
3-3. Remove the screws that secure the cabinet and base pan in the rightside.

1. Window installation of room air conditioner is now completed. See ELECTRICAL DATE for attaching power cord to electrical outlet.

Operating Instructions

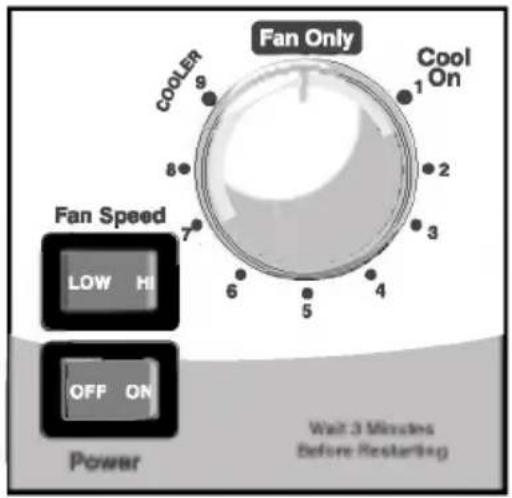

Location and Function of Controls

CAUTION: If you turn off the air conditioner or switch from cooling to the fan, wait at least 3 minutes before setting to cooling again.

POWER -Turns air conditioner off.
FAN SPEED "L" - Low speed fan operation with cooling or not.
FAN SPEED "H - High speed fan operation with cooling or not.

This automatically controls the temperature of indoor air. Turn the knob so thatarrow points to the cooler marks for more moderate cooling.

Normal Fan

1. Turn the FAN speed mode switch to the "H" or the "L" setting
2. Set the thermostat control to the temperature mark "FAN only"

Normal cooling

1. Turn the FAN speed mode switch to the "H" or the "L" setting
2. Set the thermostat control to the desire temperature (the mid-point is a good starting position).

If the room temperature is not satisfactory after a reasonable time, adjust the control to a warmer setting, as appropriate.

Maximum cooling

1. Turn the FAN speed mode switch to the "H" setting
2. Set the thermostat control to the cooler temperature mark.

Quieteter operation

1. Turn the FAN speed mode switch to the "L" setting
2. Set the thermostat control as needed.

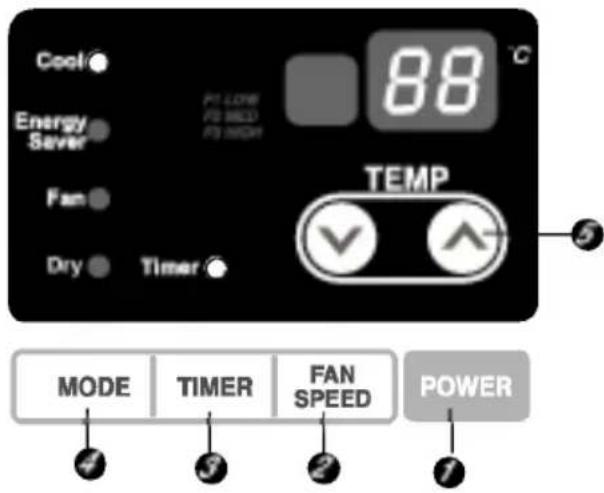

Remote Control Operations

The controls look like this:

Controls

Power

Operation starts when this button is pressed and stops when you press the button again.

Fan Speed

Pressing the Fan Speed button toggles between Low and High speeds.

On/Off Timer

The timer can be set to start and stop the unit in hourly increments (up to 12 hours).

Cool/Energy Saver/Fan/Dry

Everytime you push this button, it will toggle between COOL, ENERGY SAVER, FAN, and DRY

- Temperature Setting

The thermostat monitors room temperature to maintain the desired temperature.

The thermostat can be set between 16^ 30^ .

The unit takes an average of 30 minutes to adjust the room temperature by 1^ .

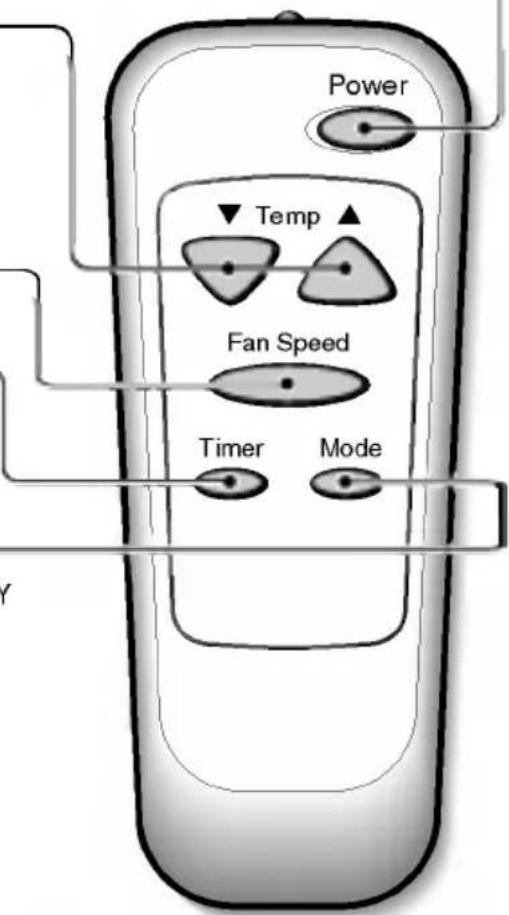

Remote Controller

CAUTION: The Remote Controller will not function properly if strong light strikes the sensor window of the air conditioner or if there are obstacles between the Remote Controller and the air conditioner.

Power

Operation starts when this button is pressed and stops when you press the button again.

Temperature Setting

The thermostat monitors room temperature to maintain the desired temperature.

The thermostat can be set between 16^ 30^ .

The unit takes an average of 30 minutes to adjust the room temperature by 1^ .

Fan Speed

Pressing the Fan Speed button toggles between Low and High speeds.

On/Off Timer

The timer can be set to start and stop the unit in hourly increments (up to 12 hours).

Cool/Energy Saver/Fan/Dry

Everytime you push this button, It will toggle between COOL, ENERGY, SAVER, FAN and DRY.

How to Insert Batteries

1. Remove the cover from the back of the remotecontroller
2. Insert two batteries. Be sure of the polarity when installing thebatteries. Be sure that both batteries are new.
3. Re-attach the cover.

Do not use recharge ablebatteries. Such batteries er from standard dry cellsin shape, dimensions, and performance.

Remove the batteries fromthe remote controller if the airconditioner is not going to beused for an extended lengthof time.

Additional Features

Air Direction

Adjusting the air direction using the horizontal.

Using the control tabs, the air flow can be directed to the left, right, straight ahead, or any combination of these directions.

Drain Pipe

In humid weather, excess water may cause the Base Pan to over flow.

Todrain the water, remove the Drain Cap and secure the Drain Pipe to the rear hole of the Base Pan.

Press the drain pipe into the hole by pushing down and a way from the fins to avoid injury.

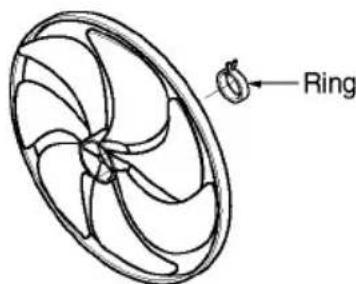

This air conditioner is equipped with aslinger fan.(See drawing, below.) The fan has an outer ring that runs in the water that collects in the base panif it gets deep. That condensate is then picked up by the fan and expelled through the condenser, making the air conditioner more efficient.

CAUTION: Be careful when inserting the drain pipe. Push away from the sharp fin area to avoid slipping injuring yourself.

Removal From Window

Turn the air conditioner off, disconnect the power cord, remove the L bracket, the screws and Support Bracket installed through the top and bottom of the guide panels, and save for reinstallation later. Close the guide panels. Keeping a firm grip on the air conditioner, raise the sash, and carefully tilt the air conditioner backward, draining any condensate. Lift the air conditioner from the window and remove thesash seal from between the windows. Be sure to drain ALL condensate from the air conditioner. If you don't, it could runout while you carry the unit making a mess and creating a slipping hazard. This simple step will save you much cleaning and make a safer work environment.

Maintenance and Service

Air Filter

Check the air filter at least twice a month to see if cleaning is necessary. Trapped particles in the filter can build up and block the air flow, reducing cooling capacity and causing an accumulation of frost on the evaporator. To clean the air filter:

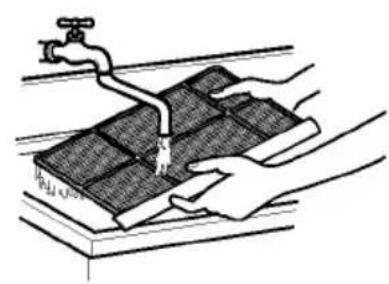

1. Remove the air filter from the front grille by lifting the air filter up.
2. Wash the filter using lukewarm water below 40^ (104°F)
3. Gently shake the excess water from the filter and replace.

Cleaning The Air Conditioner

The front grille and Inlet grille may be wiped with a cloth dampened in a mild detergent solution. The cabinet may be washed with mildsoap or detergent and lukewarmwater, then polished with Liquid Waxfor Appliances.

To ensure contin use peak efficiency, the condenser coils (outside of unit)should be checked periodically andcleaned if clogged with soot or dirtfrom the atmosphere.

HOW TO REMOVE THE FRONT GRILLE

1. Remove the screws securing the Front Grille.
2. Push the grille up from the bottom and pull the top of the grille away from the case as the top tabs lift out of their slots.

Common Problems and Solutions

Before Calling for Service

If you have problems with your air conditioner, read the following information and try to solve the problem. If you cannot find a solution, turn off the air conditioner and contact your dealer.

Air conditioner does not operate

1. Ensure that the air conditioner is plugged into a proper outlet.
2. Check the fuse or circuit breaker.3. Check whether the voltage is unusually high or low.

Air does not feel cold enough on the cooling setting

1. Ensure that the temperature settings are correct.
2. Check to see if the air filter is clogged with dust If so, clean the filter.
3. Ensure that the air flow from the outside is not obstructed and that there is a clearance of over 20^ between the back of the air conditioner and the wall or fence behind it.
4. Close all doors and windows and check for any source of heat in the room.

Before calling for service, please review the following list of common problems and solutions.

The air conditioner is operating normally when:

• You hear a pinging noise. This is caused by water being picked up by the fan on rainy days or in highly humid conditions. This feature is designed to help remove moisture in the air and improve cooling efficiency. See the section on Slinger Fan, page 18.
• You hear the thermostat click. This is caused by the compressor cycle starting and stopping.
• You see water dripping from the rear of the unit. Water may be collected in the base pan in highly humid conditions or on rainy days. This water overflows and drips from the rear of the unit.
• You hear the fan running while the compressor is silent. This is a normal operational feature.

Troubleshooting

The air conditioner may be operating abnormally when:

Problem	Possible Causes	What To Do
Air conditioner does not star	The air conditioner is unplugged.	Make sure the air conditioner plug is pushed completely into the outlet.
	The fuse is blown/circuit breaker is tripped.	Check the house fuse/circuit breaker box and replace the fuseor reset the breaker.
	Power failure.	If power failure occurs, turn themode control to Off. When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping ofthe compressor overload.
Air conditioner does not cool as it should	Airflow is restricted.	Make sure there are no curtains, blinds, or furniture blocking the front of the air conditioner.
	The thermostat may not be set high enough.	Turn the knob to a higher number. The highest setting provides maximum cooling.
	The air filter is dirty.	Clean the filter at every 2 weeks. See the care and Maintenance section.
	The room may have been hot.	When the air conditioner is first turned on, you need to allow time for the room to cool down.
	Cold air is escaping.	Check for open furnace floor registers and cold air returns.
	Cooling coils have iced up.	See Air Conditioner Freezing Up below.
Air conditioner freezing up	Ice blocks the air flow and stops the air conditioner from cooling the room.	Set the mode control at High Fan or High Cool with thermostat at 1or 2.

• You can refer to the Energy Star program in detail at www.energystar.gov.

TABLE DES MATIERES

Precautions 23

Should your product prove to be defective in materials or workmanship under normal use during the warranty period listed below, which warranty period runs from the original date of purchase, LG Electronics will, at its option, repair or replace the product at no charge to you.

The warranty is valid only to the original purchaser of the product, during the warranty period, as long as it is in Canada.

GoldStar Room Air Conditioner Warranty Period

Components	Parts	Labor
All Parts	1 Years	1 Years (In-Home Service)
Compressor	5 Years	1 Years (In-Home Service)

No other warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, APPLICABLE TO THIS PRODUCT.

Some Provinces or Territories do not allow for the exclusion or limitation of incidental or consequential damages of limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you, (the original purchaser) specific legal rights and you may also have other rights, which vary from province to province or territory to territory.

THE ABOVE WARRANTY DOES NOT APPLY TO:

1. Service trips to your home to deliver and pickup, install, instruct or replace house fuses, or connect house wiring or plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pest, fire, floods or acts of God.
3. Repairs when your GoldStar product is used in other that normal, single-family household use or contrary to the instructions outlined in the product's owners manual.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation or maintenance.
5. Products with altered or removed serial numbers.

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the replacement of a defective part, shall be borne by you (the owner).

CUSTOMER ASSISTANCE INFORMATION:

To obtain Warranty Coverage:	Retain your Bill of Sale to prove the date of purchase. A copy of your Sales Receipt must be submitted when warranty service is provided. This warranty is invalid if the factory applied serial number has been altered or removed from the product.
To obtain Product or Customer Service Assistance:	Call 1-888-LG-CANADA (542 2623) Press the appropriate menu option, and have your product model and serial numbers and your postal code ready.
To obtain the nearest Authorized Service Center:	Access our web-site at: www.LG.ca (Service Option) or Call 1-888-LG-CANADA (542 2623) Press the appropriate menu option, have your product model & serial numbers & your postal code ready.
