USER MANUAL BBM 5 ANT

Line drawing of a rectangular electronic device with a hexagonal top and circular base (no text or symbols)

ADVANCED NATIVE TECHNOLOGIES - ADVANCED

ES MANUAL DE USO | SECCION 1

IT MANUALDE DUSO | SEZIONE 1 DE BEDIENUNGSANELUTUNG | KAPITTEL 1

FR NOTICE D'EMPIOL | SECTION 1

IT MANUALÉ D'USO | SEZIONE 1

BBM SERIES

BI-AMPLIFIED MINIBOX SPEAKERS

DIFFUSORI MINIBOX BI-AMPLIFICATI

ENCEINTES MINIBOX BI-AMPLIFIÉES

BI-AMPING MINIBOX-LAUTSPRECHER

DIFUSORES MINIBOX BIAMPLIFICADOS

BBM 3 | BBM 5 | BBM 8

BBM SERIES

TABLE OF CONTENTS

1	Introduction	3
2	Installation	3
3	Description	4
3.1	Inputs & Controls 5
3.2	Power supply section 6
4	Optional accessories 7
5	Troubleshooting	8
6	Technical specifications 8
7	Notes	42

PACKAGE CONTENT

• 1x Minibox active speaker
• 1x User Manual - Section 1
• 1x User Manual - Section 2

The warnings in this manual must be observed together with the "User manual - Section 2".

2 User manual | BBM Series

1 | INTRODUCTION

Thank you for choosing a A.N.T - Advanced Native Technologies - product! In our BBM series of speakers, we have put our passion and our technological background gained over the years, to offer products that meet your needs, maintaining the quality over time.

All models ensure an extended frequency response with a clean and undistorted sound, even at high sound level pressures.

Expressly designed to be immediately used in a very user friendly way, this series is the answer to the needs of those who want a compact sound system capable of providing excellent performance, versatility of connections and controls, and the best value for its product range.

Please, dedicate some minutes to read this instruction manual in order to quickly achieve the best performances from this product.

For safety precautions, warranty and disposal, please refer to attached Section 2.

For further information about all A.N.T products catalog, please visit our website: www.ant-intomusic.com

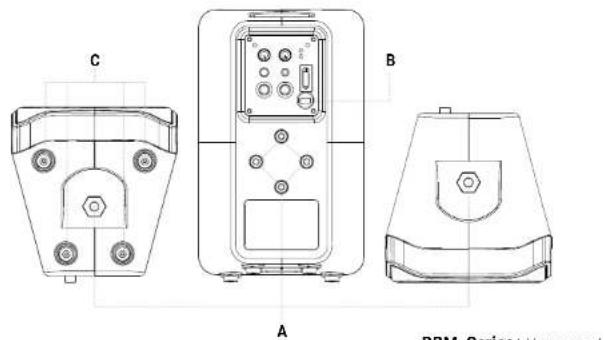

2 | INSTALLATION

BBM speakers feature:

A | Fly points for speaker installation on wall or ceiling
B | AC power cord with integrated plug.
C | Anti-slip rubber feet.

C A B RRM Series Laser manual

3 | DESCRIPTION

CH1 LEVEL CH2 LEVEL SIG CLIP ON -∞ dB +10 -∞ dB +10 AUX IN STEREO L R LINE/MIC IN MIX OUT 3 2 1 6 7 8 4

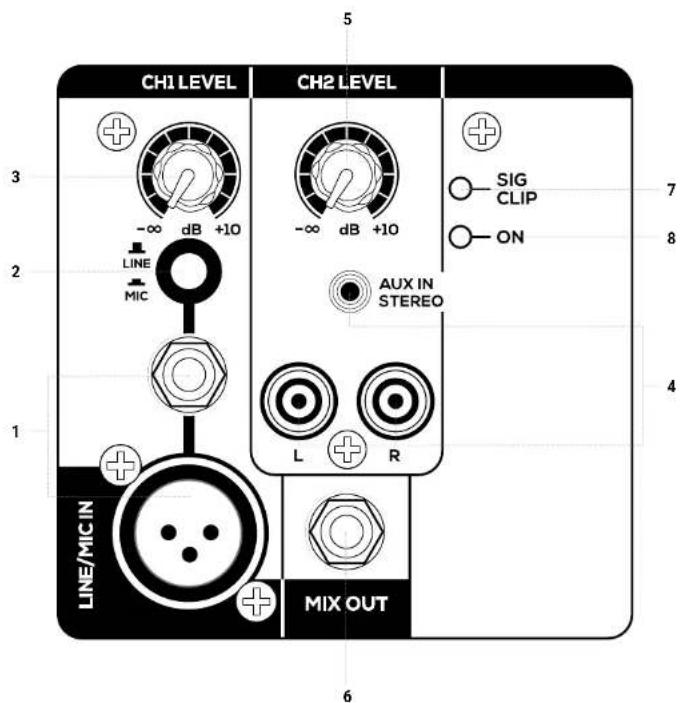

3.1 | INPUTS & CONTROLS

1 CH1 - MIC/LINE INPUT

Balanced microphone (XLR-F) and line (6.35 mm-1/4" jack) input. The BBM3 model features the 6.35 mm-1/4" jack connector only. You may also use a microphone cable with unbalanced 6.35mm jack.

2 CH1 - LINE/MIC SWITCH

Place the switch in LINE to use a line-level source or MIC for use with a microphone

3 CH1 - LEVEL

This knob adjusts channel one level, turn it to the right to raise the level, to the left to decrease it.

4 CH2 - LINE INPUT

Input with RCA sockets and 3.5mm mini-jack. The BBM3 model features the mini-jack connector only.

5 CH2 - LEVEL

This knob adjusts channel two level, turn it to the right to raise the level, to the left to decrease it.

6 MIX OUT

This 6,35 mm-1/4" jack output provides a balanced line-level signal, useful for connection to another active speaker.

7 LED SIG/CLIP

The CLIP indicator turns on when the speaker signal is distorted. In this case reduce the active channel(s) level(s).

8 LED ON

The ON indicator is lit when the unit is plugged to mains, and the power switch is ON.

3.2 | POWER SUPPLY

POWER ON OFF 1 2 AC INPUT 220-240V- 50-60Hz 70W T800mA L 250V-

1 POWER ON/OFF

Use this switch to turn On/Off the unit.

2 AC POWER CORD

Insert this cord in mains socket.

Make sure the device is switched off before connecting the cord to the mains. For your safety, never disconnect the earth lead.

Note: The protection fuse is placed in a printed circuit board inside the unit.

CAUTION: Replace the fuse only with one of the same type and with the same value. Do not open the unit to replace the fuse, but contact an authorized service center. If the fuse blows repeatedly, contact an authorized service center.

WARNING!

Never remove the product's front protection mesh. In order to prevent electric shock hazard, in the event of accidental damage or replacement of the protection mesh (which must be carried out by a service center), disconnect the power supply immediately.

CAUTION: To reduce the risk of electric shock, do not connect the appliance to the power supply while the mesh is removed.

6

User manual

BBM Series

4 | OPTIONAL ACCESSORIES

• Wall installation kit by U brackets BBM-WB3U BBM-WB5U BBM-WB8U

- Wall or ceiling swivelling mounting kit, allowing speakers independent rotation and tilting BBM-358Y

- Stand adaptor kit with L brackets BBM-SA30 BBM-SA50 BBM-SA80

Three technical line drawings of a mechanical bracket with mounting holes and mounting feet (no text or symbols)

ATTENTION: Contact our customer service for accessories to be used. It's mandatory to use only supports, brackets and accessories made by A.E.B Industriale Srl.

It is absolutely forbidden to perforate the device cabinet or to fix by any other kind of mechanical support by adhesive tape. In case of particular installations, which are not described in this manual, please contact our technical service for the list of available accessories. No liability is assumed for the inappropriate use of accessories or additional devices not suitable for the purpose.

BBM Series | User manual

5 | TROUBLESHOOTING

PROBLEM LEDS SOLUTION
No sound or very low sound level	Power LED turned off.	Make sure the device is properly connected to the mains outlet
	Power LED turned on, but low input channels LEVEL	Check the connections between the sources and the inputsRaise channels LEVEL
Distortion	CLIP2 LED on.	Cut input LEVEL controlsMake sure you haven't connected a line level signal to the MLC input

6 | TECHNICAL SPECIFICATIONS

	BBM 3	BBM 5	BBM 8
System type	Vented enclosure, 2-way	Vented enclosure, 2-way	Vented enclosure, 2-way
LF	3.5" custom speaker - 1" V.C.	5" custom speaker - 1" V.C.	9" custom speaker - 1" V.C.
HF	0.8" neodymium dome tweeter	1" neodymium dome tweeter	1" neodymium dome tweeter
Amplification type (LF+HF)	Class D + Class A/B	Class D + Class A/B	Class D + Class A/B
Peak power (LF+HF)	80W	100W	120W
Frequency response (-10dB)	140 lz-20kHz	100 lz-20kHz	55 lz-20kHz
SPL - MAX	103 dB	109 dB	112 dB
I/O Connectors	CH1 VIC/LINE: 6.35mm (1/4") jackCH2 IN: 3.5mm mini-jackLINE OUT: 6.35mm (1/4") jack	CH1 VIC IN: XLR-FCH1 LINE IN: 6.35mm (1/4") jackCH2 IN: 3.5mm mini-jack and 2 RCALINE OUT: 6.35mm (1/4") jack	CH1 VIC IN: XLR-FCH1 LINE IN: 5.35mm (1/4") jackCH2 IN: 3.5mm mini-jack and 2 RCALINE OUT: 6.35mm (1/4") jack

BBM 3 BBM 5 BBM 8
Controls CH1 LEVEL, LINE/MIC switch, CH2 LEVEL	CH1 LEVEL, LINE/MIC switch, CH2 LEVEL	CH1 LEVEL, LINE/MIC switch, CH2 LEVEL
Power supply 220-240V~ 50-60Hz 220-240V~ 50-60Hz 220-240V~ 50-60Hz
Fuse T800mA L 250V~ T800mA L 250V~ T800mA L 250V~
Power Consumption	40W 70W 70W
Suspension system	2 M6 - top/under for U bracket mount4 M5 - rear for Y and SA brackets	2 M6 - top/under for U bracket mount4 M5 - rear for Y and SA brackets	2 M6 - top/under for U bracket mount4 M5 - rear for Y and SA brackets
Materials Injection-MoldedABS cabinetPerforated SteelGrille		Injection-MoldedABS cabinetPerforated SteelGrille	Injection-MoldedABS cabinetPerforated SteelGrille
Dimensions(W x H x O)	5.29" (134.3mm) x9.68" (220.4mm) x5.37" (135.4mm)	6.71" (170.5mm) x10.7" (272mm) x6.76" (171.8mm)	9.84"(250mm) x16.76" (400mm) x9.83"(251mm)
Weight 2.1 Kg 4.63 lbs 3.7 Kg 8.16 lbs 6.3 Kg 13.89 lbs

OPTIONAL ACCESSORIES
• Brackets kit for wall mounting	BBM-WB3U BBM-WB5U BBM-WB8U
• Brackets rotation and tilting kit for wall/ceiling mounting	BBM-358Y BBM-358Y BBM-358Y
• Tripod mount kit	BBM-SA30	BBM-SA50	BBM-SA80

BBM SERIES

INDICE

Technical line drawing of a mechanical component with mounting holes and a central hexagonal feature (no text or symbols)

Front view diagram of a device casing with control panel and buttons (no text or symbols)

Technical line drawing of a mechanical component with a hexagonal nut and curved base (no text or symbols)

A

Serie BBM | Manuale d'uso

3 | DESCRIZIONE

CH1 LEVEL CH2 LEVEL SIG CLIP ON -∞ dB +10 -∞ dB +10 AUX IN STEREO LINE/MIC IN L R MIX OUT 6 4 8 7

3.1 | INGRESSI & CONTROLLI

1 CH1 - MIC/LINE INPUT

Three technical line drawings of a mechanical bracket with mounting holes and mounting feet (no text or symbols)

Three technical line drawings of a mechanical bracket with mounting holes and mounting feet (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

Front view diagram of a device casing with control panel and buttons (no text or symbols)

B

A

Three technical line drawings of a mechanical bracket with mounting holes and mounting feet (no text or symbols)

Three technical line drawings of a mechanical bracket with mounting holes and mounting feet (no text or symbols)

ENG The information contained in this manual have been carefully drawn up and checked. However no responsibility will be assumed for any incorrectness. This manual cannot cover all the possible contingencies which may arise during the product installation and use. Should further information be desired, please contact us or our local distributor. A.F.S. Industries Srl can not be considered responsible for damages which may be caused to people and things when using this product. Specifications and features are subject to change without promotion.

ENG - Download this manual in other languages on www.ant-intomusic.com
