Cordless High Pressure Washer INSTRUCTION MANUAL 10

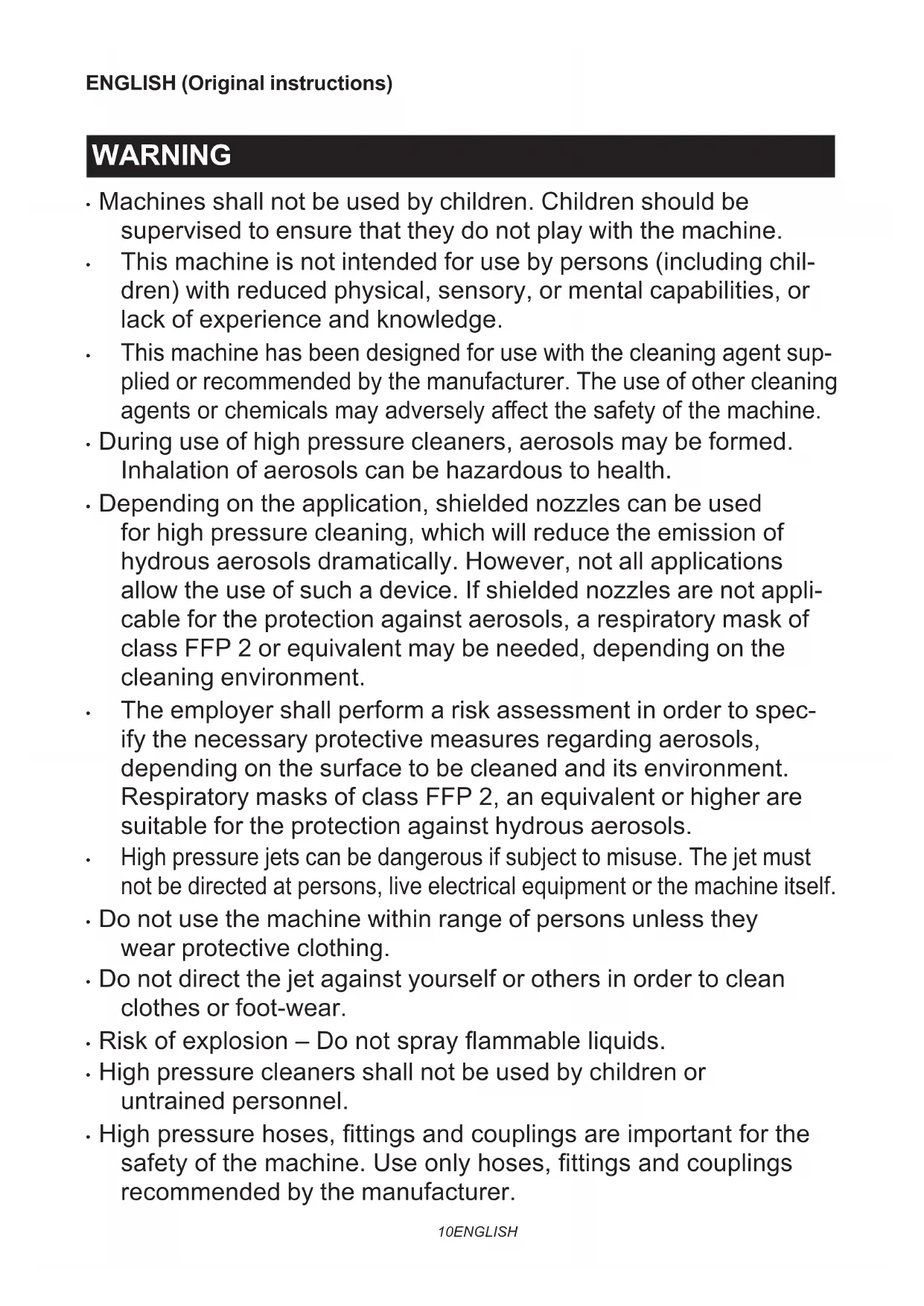

Fig.5910 ENGLISH ENGLISH (Original instructions) WARNING

• Machines shall not be used by children. Children should be supervised to ensure that they do not play with the machine.

• This machine is not intended for use by persons (including chil- dren) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge.

This machine has been designed for use with the cleaning agent sup- plied or recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely a󰀨ect the safety of the machine.

• During use of high pressure cleaners, aerosols may be formed. Inhalation of aerosols can be hazardous to health.

• Depending on the application, shielded nozzles can be used for high pressure cleaning, which will reduce the emission of hydrous aerosols dramatically. However, not all applications allow the use of such a device. If shielded nozzles are not appli- cable for the protection against aerosols, a respiratory mask of class FFP 2 or equivalent may be needed, depending on the cleaning environment.

• The employer shall perform a risk assessment in order to spec- ify the necessary protective measures regarding aerosols, depending on the surface to be cleaned and its environment. Respiratory masks of class FFP 2, an equivalent or higher are suitable for the protection against hydrous aerosols.

High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine itself.

• Do not use the machine within range of persons unless they wear protective clothing.

• Do not direct the jet against yourself or others in order to clean clothes or foot-wear.

• Risk of explosion – Do not spray ammable liquids.

• High pressure cleaners shall not be used by children or untrained personnel.

• High pressure hoses, ttings and couplings are important for the safety of the machine. Use only hoses, ttings and couplings recommended by the manufacturer.11 ENGLISH

To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.

• Always be sure that the tool is switched o󰀨 and battery cartridges are removed before carrying out any work on the tool.

• Do not use the machine if important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

Always remove the battery cartridges when leaving the machine unattended.

Comply with the requirements of the local water supply company.

• For European countries: According to EN12729 (BA), the appliance can also be con- nected to the mains drinking water supply if a backow preventer valve with drain facility is installed in the supply hose. SPECIFICATIONS Model: DHW080Max. feed volume

• Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications may di󰀨er from country to country.

• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi- est combination, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860BCharger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH / DC18WC

Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

and chargers may cause injury and/or re.

WARNING: Do not use a corded power supply such as battery adapter or portable power pack with

this machine. The cable of such power supply may hinder the operation and result in personal injury.12 ENGLISH Symbols The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. Read the instruction manual.Take particular care and attention. Ni-MH Li-ionOnly for EU countriesDue to the presence of hazardous com-ponents in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health.Do not dispose of electrical and electronic appliances or batteries with household waste!In accordance with the European Directive on waste electrical and electronic equip-ment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accor-dance with the regulations on environmen-tal protection.This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment.Do not connect to a potable water faucet.Do not direct the jet at people including yourself, animals, and live electrical equipments.Guaranteed sound power level according to EU Outdoor Noise Directive.Sound power level according to Australia NSW Noise Control Regulation. Intended use This tool is intended for cleaning stubborn dirt by using water jet. This tool is intended for household use. Noise The typical A-weighted noise level determined accord- ing to EN60335-2-79: Sound pressure level (L

) : 70.9 dB (A) Uncertainty (K) : 3.6 dB (A) The noise level under working may exceed 80 dB (A). NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) deter- mined according to EN60335-2-79: Vibration emission (a

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only The EC declaration of conformity is included as Annex A to this instruction manual. IMPORTANT SAFETY WARNINGS

WARNING: Read all safety warnings and

all instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instruc- tions for future reference. WARNING – When using this product, basic pre- cautions should always be followed, including the following:13 ENGLISH Work area safety

1. Keep operating area clear of all persons.

Do not overreach or stand on unstable supports. Keep good footing and balance at all times.

3. Always place the high pressure washer body

on a level and stable surface. Avoid areas where the ejected water will run or pool.

4. Before cleaning, check the surroundings and

objects to be cleaned. High pressure jets can scrape away paint or other surface treatments including toxic chemicals. Take the preventive measures if necessary.

5. Be careful not to trip over by the hose of the

high pressure washer. Always be aware of the conguration of the hose during operation.

During use, a small amount of water will come out from the bottom of the high pressure washer. Avoid locating the high pressure washer in the areas where you don't want to wet. Personal safety

1. To protect against the jet and objects by the

jet, operators should wear appropriate cloth- ing such as safety boots, safety gloves, safety helmets with visors, hearing protection, etc.

2. Do not use the high pressure washer within

range of persons unless they wear protective clothing.

3. To reduce the risk of injury, close supervision

is necessary when the product is used near children.

4. If connection is made to a potable water sys-

tem, the system shall be protected against backow.

5. Water that has owed through backow pre-

venter is considered to be non-potable. Electrical safety

1. Never touch battery cartridges with wet hands.

Do not use the machine if the important parts of the machine are damaged, e.g. safety devices, high pressure hoses, or the trigger gun. Power tool use and care

1. Read all the instructions before using the

2. Know how to stop the high pressure washer

and bleed pressures quickly. Be thoroughly familiar with the controls.

3. High pressure jets can be dangerous if mis-

used. The jet must not be directed at people, live electrical equipment, or the machine itself.

4. This machine is not intended for use by per-

sons (including children) with reduced physi- cal, sensory, or mental capabilities, or lack of experience and knowledge.

5. Children should be supervised to ensure that

they do not play with the appliance.

6. Do not spray ammable and/or toxic liquids.

This may cause an explosion, intoxication, or damage to the machine.

7. Do not direct the jet against yourself or others

in order to clean clothes or foot-wear.

8. High pressure hoses, ttings and couplings

are important for the safety of the machine. Use only hoses, ttings and couplings recom- mended by the manufacturer.

9. Follow the instructions when changing

10. Keep handles dry, clean, and free of oil or

11. Stay alert – watch what you are doing.

12. Do not operate the product when fatigued or

under the inuence of alcohol or drugs.

13. Do not run the high pressure washer without

water for longer than one minute. It will dam- age the motor, resulting in malfunction.

14. Always turn o󰀨 the power and shut o󰀨 the

water mains when leaving the high pressure washer unattended.

15. Be wary of the kickback. The trigger gun

recoils when the high pressure jet is ejected from the nozzle. Hold the trigger gun rmly to prevent accidental injuries.

16. Check for damaged or worn parts before use.

Also make sure that the hose is properly con- nected and there is no leakage during oper- ation. Operating the machine with functional defects may cause an accident.

17. This machine has been designed for use with

the cleaning agent supplied or recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely a󰀨ect the safety of the machine.

18. Do not pull the hose to move the high pressure

washer body. This will damage the hose and connecting parts and result in a short circuit or functional defects.

19. Do not put heavy objects on the hose or let

vehicles drive over it.

20. Always discharge the residual pressure in the

trigger gun before disconnecting the hose.

21. When connecting the hose to the water mains,

observe the instructions of your local water- works department or company.

22. If the high pressure washer is dropped or hits

against an hard object, be sure to check for damage and crack. Using the high pressure washer damaged may generate smoke, re, or cause electric shock, which result in personal injury.

23. During use of high pressure cleaners, aerosols

may be formed. Inhalation of aerosols can be hazardous to health.

24. Depending on the application, shielded noz-

zles can be used for high pressure cleaning, which will reduce the emission of hydrous aerosols dramatically. However, not all appli- cations allow the use of such a device. If shielded nozzles are not applicable for the pro- tection against aerosols, a respiratory mask of class FFP 2 or equivalent may be needed, depending on the cleaning environment.

25. The employer shall perform a risk assessment

in order to specify the necessary protective measures regarding aerosols, depending on the surface to be cleaned and its environment. Respiratory masks of class FFP 2, an equiv- alent or higher are suitable for the protection against hydrous aerosols.14 ENGLISH

26. Prevent unintentional starting. Ensure the

switch is in the o󰀨-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your nger on the switch or energizing appliance that have the switch on invites accidents.

27. Disconnect the battery pack from the appli-

ance before making any adjustments, chang- ing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

28. Do not modify or attempt to repair the appli-

ance or the battery pack except as indicated in the instructions for use and care.

29. WARNING – Risk of Injection or Injury– Do Not

Direct Discharge Stream At Persons. Battery tool use and care

1. Recharge only with the charger specied by

the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

2. Use power tools only with specically desig-

nated battery packs. Use of any other battery packs may create a risk of injury and re.

3. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi- nals together may cause burns or a re.

4. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If con- tact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

5. Do not use a battery pack or tool that is dam-

aged or modied. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury.

6. Do not expose a battery pack or tool to re or

excessive temperature. Exposure to re or tem- perature above 130 °C may cause explosion.

7. Follow all charging instructions and do not

charge the battery pack or tool outside the temperature range specied in the instruc- tions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. Service

spare parts from the manufacturer or approved by the manufacturer.

3. Have your high pressure washer serviced by

a qualied repair person using only identi- cal replacement parts. This will ensure that the safety of the high pressure washer is maintained.

4. In case of breakdown or malfunction of the

high pressure washer, immediately switch it o󰀨 and remove the battery cartridge(s). Contact your local dealer or service center. Additional safety warnings

1. Comply with the requirements of the local

water supply company.

2. Do not use the tool when there is a risk of

3. When you use the tool on muddy ground, wet

slope, or slippery place, pay attention to your footing.

4. Avoid working in poor environment where

increased user fatigue is expected.

5. Do not replace the battery in the rain.

6. Do not submerge the tool into a puddle.

7. Do not leave the tool unattended outdoors in

8. When wet leaves or dirt adhere to the suc-

tion mouth (ventilation window) due to rain, remove them.

9. Do not wash the tool with high pressure water.

10. When washing the tool, do not let water enter

the electrical mechanism such as battery, motor, and terminals.

11. When storing the tool, avoid direct sunlight

and rain, and store it in a place where it does not get hot or humid.

12. Perform inspection or maintenance in a place

where rain can be avoided.

13. After using the tool, remove the adhered dirt

and dry the tool completely before storing. Depending on the season or the area, there is a risk of malfunction due to freezing.

14. Do not wet the terminal of battery with liquid

such as water, or submerge the battery. Do not leave the battery in the rain, nor charge, use, or store the battery in a damp or wet place. If the terminal gets wet or liquid enters inside of bat- tery, the battery may be short circuited and there is a risk of overheat, re, or explosion.

15. After removing the battery from the tool or

charger, be sure to attach the battery cover to the battery and store it in a dry place.

16. Do not replace the battery with wet hands.

Additional safety warnings

1. Comply with the requirements of the local

water supply company.

2. Do not use a corded power supply such as bat-

tery adapter or portable power pack with this appliance. The cable of such power supply may hinder the operation and result in personal injury. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.15 ENGLISH Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge. It may result in a re, excessive heat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re, excessive heat, or explosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask o󰀨 open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliant products may result in a re, exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may cause heating, catching re, burst and malfunction of the tool or battery car- tridge, resulting in burns or personal injury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing res, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

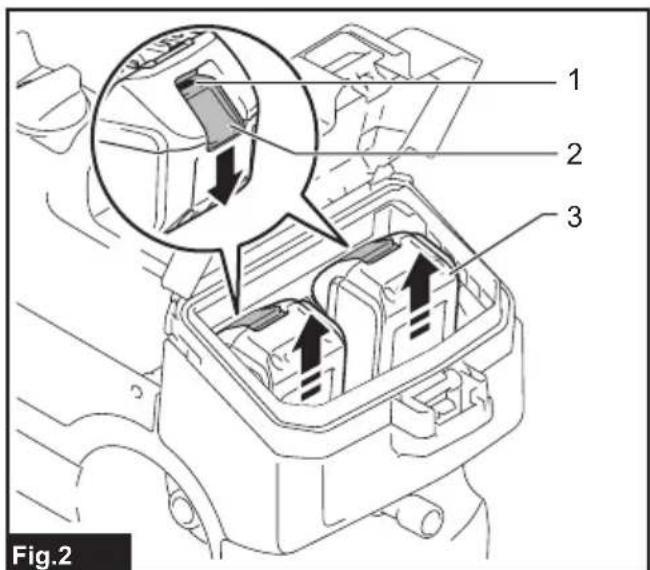

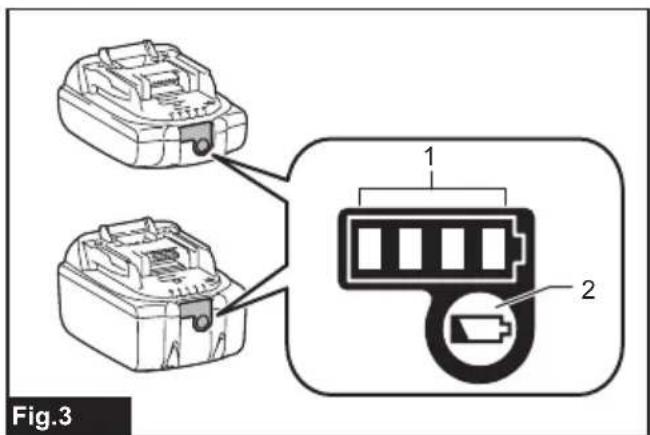

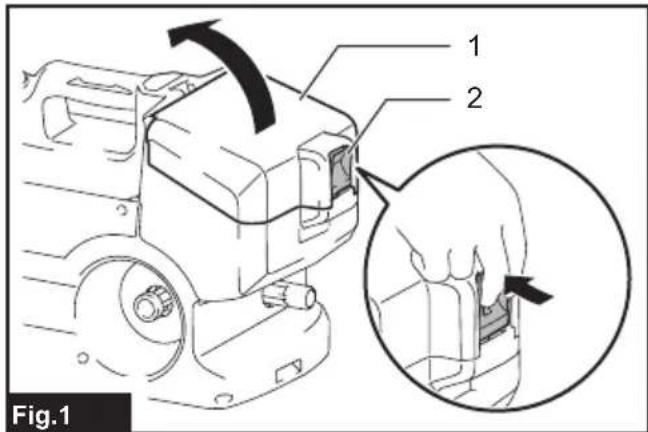

it for a long period (more than six months).16 ENGLISH FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge rmly may cause them to slip o󰀨 your hands and result in damage to the tool and battery cartridge and a personal injury. To install the battery cartridge, open the cover while pushing the lock lever. Align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. After installing or removing the battery cartridges, be sure to close the cover. ► Fig.1: 1. Cover 2. Lock lever To remove the battery cartridges, lift the battery car- tridge while pushing the button on the front of the cartridge. ► Fig.2: 1. Red indicator 2. Button 3. Battery cartridge CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. CAUTION: Be sure to lock the cover before operating. Tool / battery protection system The tool is equipped with a tool/battery protection sys- tem. This system automatically cuts o󰀨 power to the motor to extend tool and battery life. The tool will auto- matically stop during operation if the tool or battery is placed under one of the following conditions: Overload protection When the battery is operated in a manner that causes it to draw an abnormally high current, the tool automat- ically stops without any indication. In this situation, turn the tool o󰀨 and stop the application that caused the tool to become overloaded. Then turn the tool on to restart. Overheat protection When the tool is overheated, the tool stops automati- cally and the battery indicator blinks. In this situation, let the tool cool down before turning the tool on again. On Blinking Overdischarge protection When the battery capacity is not enough, the tool stops automatically. In this case, remove the battery from the tool and charge the battery. Indicating the remaining battery capacity Only for battery cartridges with the indicator ► Fig.3: 1. Indicator lamps 2. Check button Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambient temperature, the indication may di󰀨er slightly from the actual capacity. NOTE: The rst (far left) indicator lamp will blink when the battery protection system works. Indicating the remaining battery capacity NOTICE: The battery indicator does not light when the power switch is in OFF position. To check the remaining battery capacity, turn the power switch to high or low pressure mode. Press the check button to indicate the remaining battery capacities. The battery indicators correspond to each battery. ► Fig.4: 1. Battery indicator 2. Check button17 ENGLISH Battery indicator status Remaining battery capacity On O󰀨 Blinking 50% to 100% 20% to 50% 0% to 20% Charge the battery Power switch NOTICE: Do not turn the power switch forcibly. This may cause the switch to malfunction. Turn the power switch clockwise or counterclockwise depending on the pressure level. Turn the power switch clockwise for high pressure mode (2), counterclockwise for low pressure mode (1). To turn o󰀨 the machine, turn the power switch back to the OFF position (0). ► Fig.5: 1. Low pressure mode (1) 2. High pressure mode (2) 3. OFF position (0) NOTE: The battery indicators will light up for a few seconds when turning the power switch to high or low pressure mode. Nozzle functions NOTE: The standard nozzles vary depending on the country. Also refer to the OPTIONAL ACCESSORIES section for other nozzles. Spray lance Country specic ► Fig.6 Jet width can be adjusted from 0° to 25° by rotating the front end of the nozzle. CAUTION: When adjusting the jet width, do not rotate the nozzle while pulling it toward the trigger gun. The nozzle may come o󰀨 from the trig- ger gun and cause a personal injury. Dirt blaster Country specic ► Fig.7 A spiral jet is ejected. Suitable for removing stubborn dirt. NOTICE: Do not use the dirt blaster to clean frag- ile surfaces such as windows or car bodies. Trigger operations Pull the trigger to eject a water jet. The jet continues as long as the trigger is squeezed. The trigger can be locked for safe handling of the trigger gun. To lock the trigger, pull out the stopper and hook it to the groove on the grip. ► Fig.8: 1. Trigger 2. Stopper 3. Groove NOTICE: To avoid mechanical error in the pres- sure switch, always leave a two-second interval between trigger operations. Safety valve This appliance is equipped with a safety valve that prevents undue overpressure. When the trigger is released, the valve opens and the water recirculates through the pump inlet. CAUTION: Do not tamper with or adjust the safety valve setting. ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. Connecting the high-pressure hose Connect the high-pressure hose to the outlet (with the gun marking). Turn the nut on the high-pressure hose clockwise while screwing it onto the screw thread of the outlet. ► Fig.9: 1. Outlet 2. Nut CAUTION: Make sure that the high-pressure hose is securely connected. A loose connection may blow the high-pressure hose o󰀨, resulting in a personal injury. Attaching the trigger gun Connect the high-pressure hose to the inlet on the trigger gun. Turn the nut on the high-pressure hose clockwise while screwing it onto the screw thread on the inlet. ► Fig.10: 1. Inlet 2. Nut CAUTION: Make sure that the high-pressure hose is securely connected. A loose connection may blow the high-pressure hose o󰀨, resulting in a personal injury.18 ENGLISH Connecting to a faucet CAUTION: Always use a pressure-resistant water hose with ø 13 mm or larger diameter and connect to the faucet using a proper ttings. Otherwise, the water hose and/or the tting may break and cause personal injury. NOTICE: Use a pressure-resistant water hose as short as possible. The amount of intake water should be higher than the max feed volume of the pump. NOTICE: If you connect to the mains for drink- ing water, use a backow preventer valve which meets the regulations in your region. NOTE: The hose assembly ships with coupling sleeves attached to both ends. Therefore, when con- necting to a faucet without a coupling sleeve, remove the coupling sleeve at one end. ► Fig.11: 1. Nut of the coupling sleeve 2. Coupling sleeve

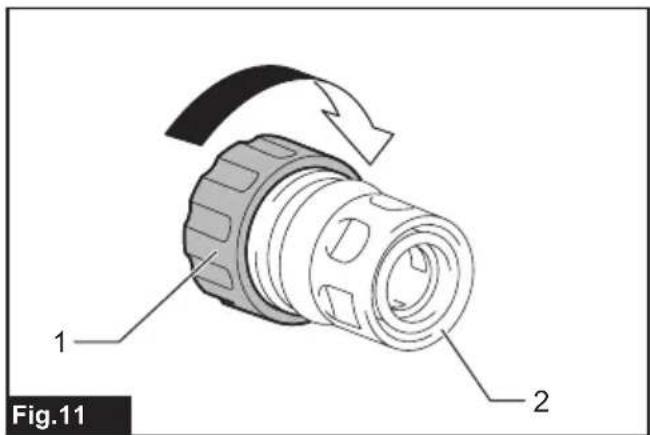

1. Connect the hose assembly to the faucet. Apply

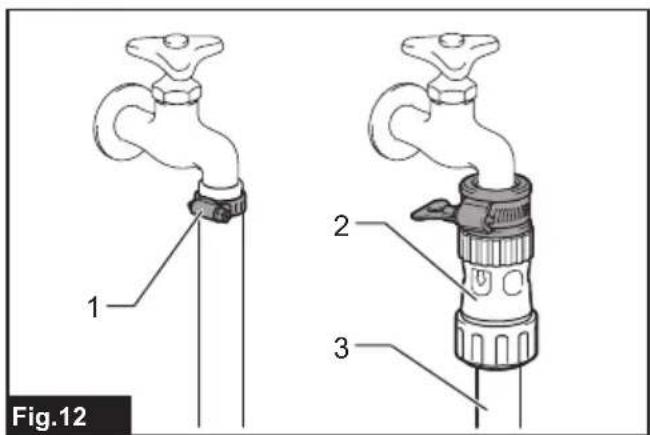

a suitable tting such as hose band or water tap joint to secure the hose end with the faucet. ► Fig.12: 1. Hose band 2. Coupling sleeve 3. Hose assembly NOTE: The tting depends on the shape of the faucet to which you connect. Prepare a suitable commercial- ly-bought tting.

2. Attach the water hose connector to the inlet (with

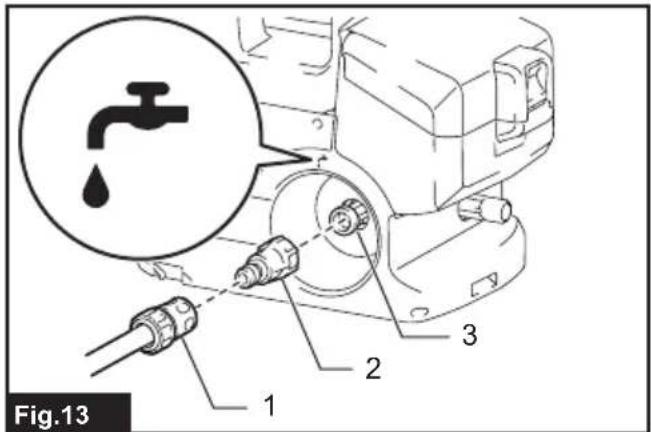

the faucet marking) and then insert the coupling sleeve. ► Fig.13: 1. Coupling sleeve 2. Water hose connector

3. Inlet on the high pressure washer

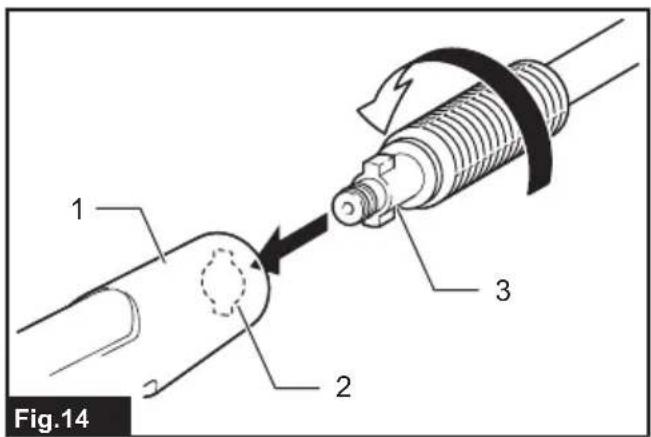

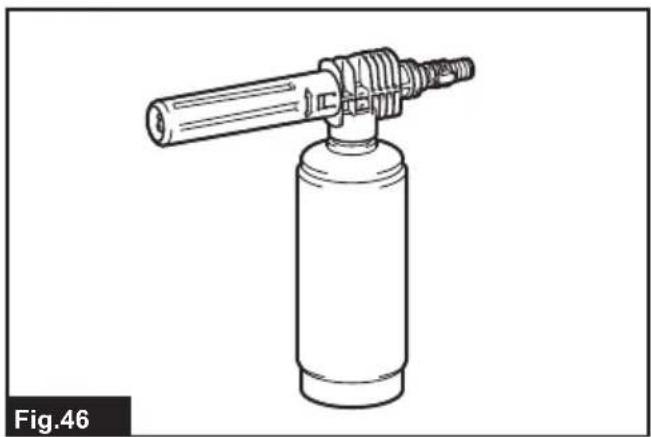

Connecting/disconnecting the nozzle CAUTION: Always lock the trigger of the trigger gun when connecting/disconnecting the nozzle. Insert the end of the nozzle into the slot on the trigger gun and turn it in the direction of the arrow as shown in the gure. To disconnect the nozzle, turn the nozzle in the reverse direction while pressing it toward the trigger gun. ► Fig.14: 1. Trigger gun 2. Slot 3. End of the nozzle Connecting the foam nozzle Optional accessory CAUTION: Always lock the trigger of the trigger gun when connecting/disconnecting the nozzle. Prepare detergent before using the foam nozzle.

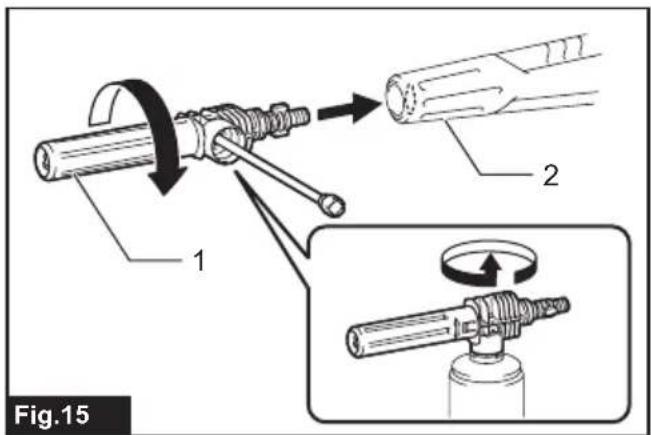

Remove the nozzle from the tank by rotating the noz- zle counterclockwise. Attach the nozzle to the trigger gun. ► Fig.15: 1. Nozzle 2. Trigger gun

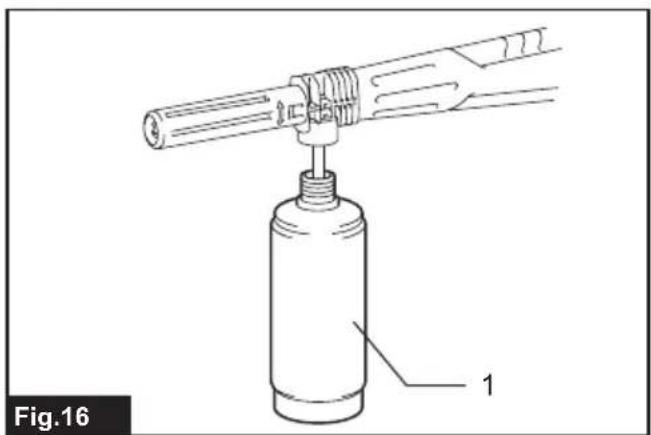

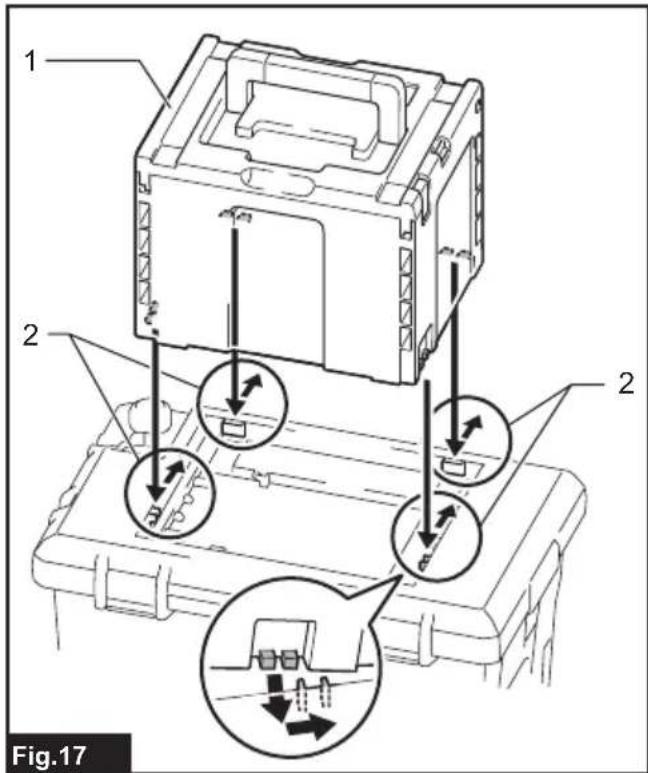

Pour the detergent into the tank and install it to the nozzle. ► Fig.16: 1. Tank NOTICE: Always use neutral detergent. Acidic or alkaline detergent may damage the tank or nozzle. Placing plastic carrying case onto the container Optional accessory You can place Makita plastic carrying case on the top of the container. Put the plastic carrying case onto the container so that it is secured with the mounts on the lid of the container. ► Fig.17: 1. Plastic carrying case 2. Mount Placing the container onto the trolley Optional accessory When carrying the container with Makita trolley, place the container in position. Be sure that the bottom of the container ts into the platform of the trolley. ► Fig.18: 1. Bottom surface of the container

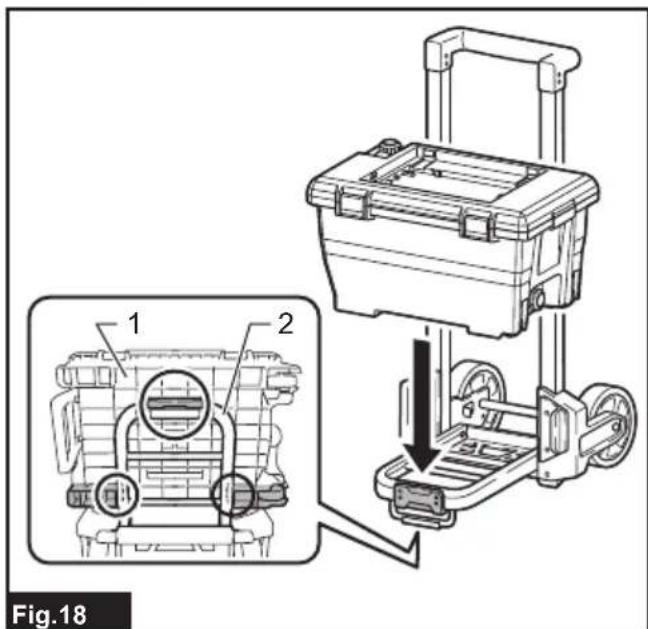

2. Platform of the trolley

CAUTION: When using the trolley, do not carry the container lled with water. Doing so may lose the balance and result in personal injury or cause deforma- tion of the container which leads to water leakage. OPERATION

WARNING: Do not touch the water jet or

direct it toward yourself or others. The water jet is dangerous and can hurt you or others.

WARNING: When shooting the water jet,

never hold the object that you are cleaning or place your hands and feet near the water jet. CAUTION: Stay alert to the rebound of the water jet and blown objects. Do not bring the nozzle to the object closer to 30 cm . CAUTION: Do not run the high pressure washer without water for longer than 1 minute. CAUTION: Do not operate the high pressure washer for a extended period of time. This may cause overheating or re. Also, long-term use may cause vibration disorder. CAUTION: Be aware of the direction of the wind. If the detergent gets into your eyes or mouth, rinse with fresh water immediately and seek medical attention if necessary. NOTICE: Avoid using the high pressure washer for longer than 1 hour. After using it for 1 hour, leave a same length of intermission. NOTICE: To protect the mechanism of the high pressure washer, do not use water hotter than 40°C.

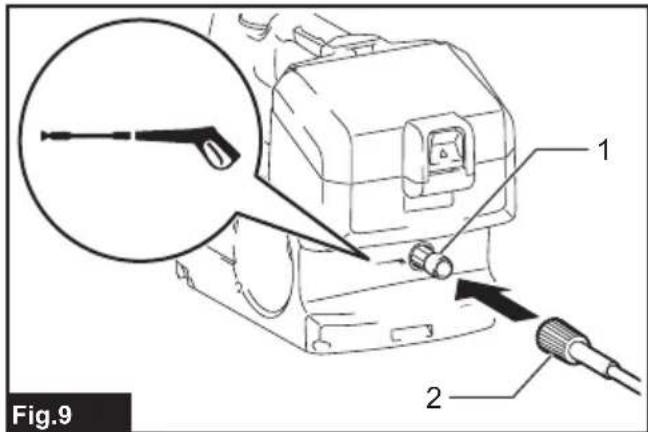

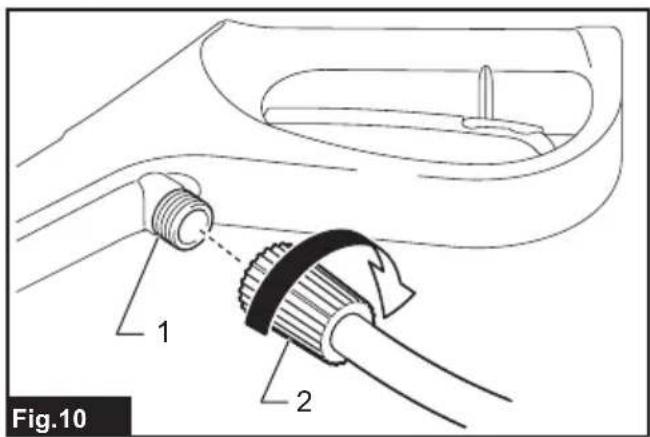

Connect one end of the high-pressure hose to the trigger gun and the other end to the high pressure washer.

2. Connect the high pressure washer and the faucet

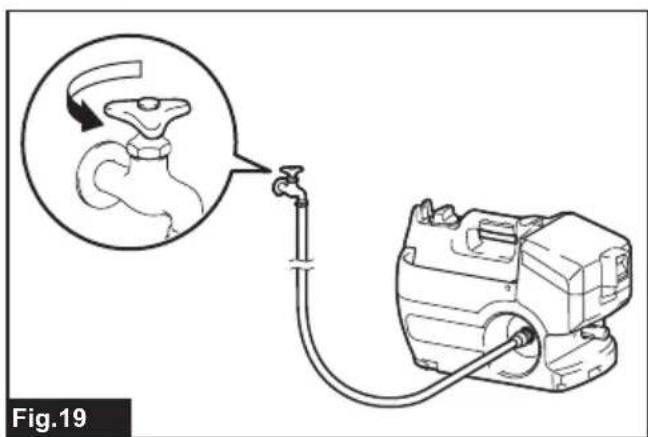

using a water hose. After that, open the faucet. ► Fig.1919 ENGLISH

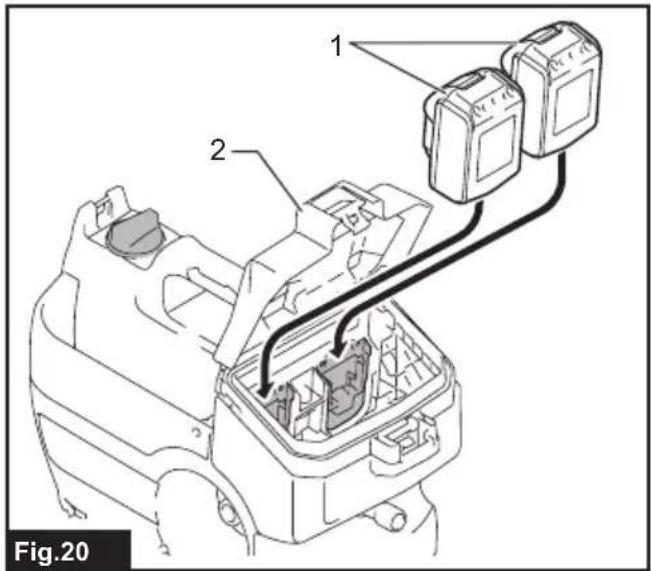

3. Open the cover and install the battery cartridges

into the high pressure washer and then lock the cover. ► Fig.20: 1. Battery cartridge 2. Cover

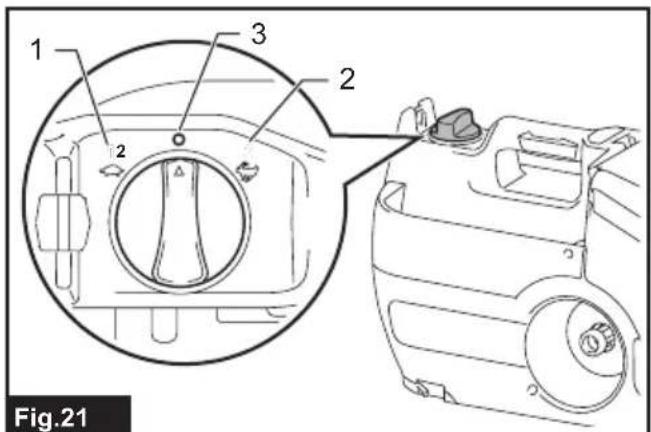

4. Turn the power switch to your desired mode.

To eject a water jet, unlock the stopper and squeeze the trigger. The jet continues as long as the trigger is squeezed. ► Fig.22: 1. Stopper CAUTION: Hold the trigger gun rmly. The trigger gun recoils when you pull the trigger. CAUTION: Always hold the trigger gun by the grip and barrel when ejecting water jet. NOTICE: Be careful not to pull the trigger gun forcibly during operation. It may cause the high pressure washer to fall over. NOTICE: When suspending the operation for a long time, switch o󰀨 the high pressure washer and squeeze the trigger to discharge the remaining water fully. If the high pressure washer is left for a long time while main- taining high pressure, it may not restart. In this situation, switch o󰀨 the high pressure washer, supply water from a faucet to the inlet and squeeze the trigger with keeping the water supply for a while. And then, switch on the high pressure washer. When you suspend the operation, you can temporarily place the trigger gun as shown in the gure. ► Fig.23 After use CAUTION: After operating the high pressure washer, always perform the procedure described in this manual. Residual pressure in the trigger gun or high pressure washer can cause personal injury or damage to the pump inside.

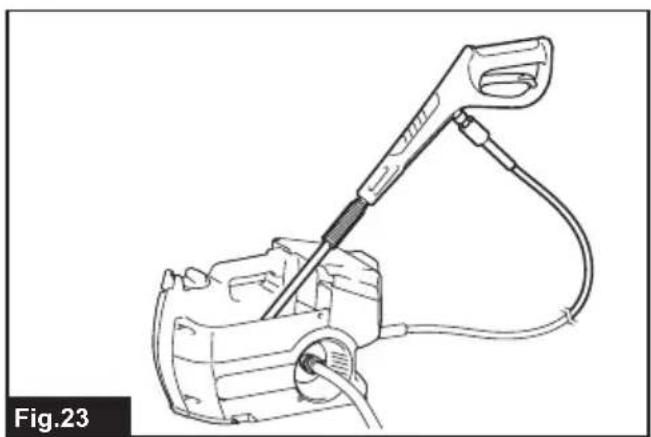

1. Switch o󰀨 the high pressure washer.

2. Close the faucet and disconnect the water hose

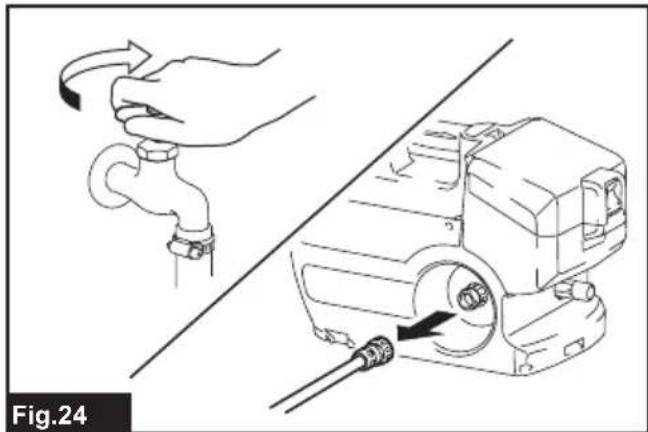

from the high pressure washer. ► Fig.24

3. Switch on the high pressure washer again.

4. Squeeze the trigger until the remaining water in

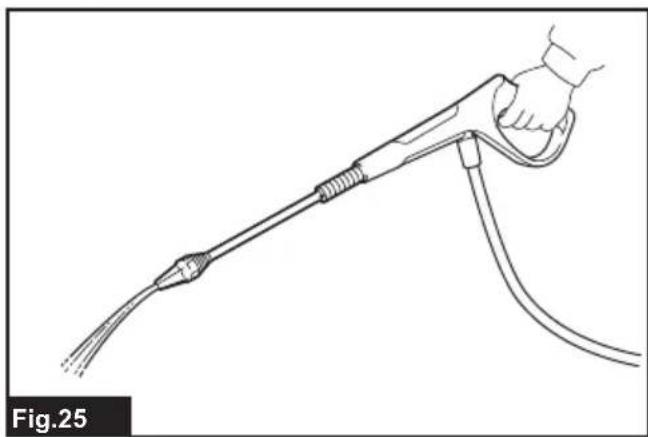

the high pressure washer is discharged. ► Fig.25 NOTICE: Do not run the motor for longer than 1 minute.

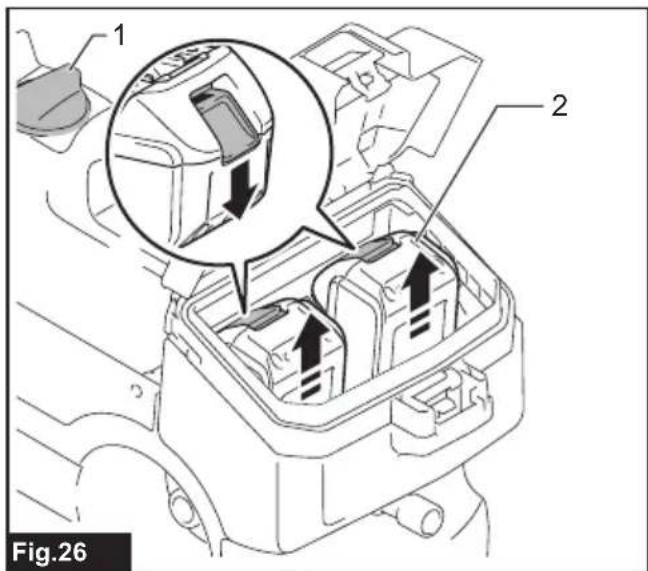

5. Switch o󰀨 the high pressure washer and remove

the battery cartridges. ► Fig.26: 1. Power switch 2. Battery cartridge

6. Disconnect the high-pressure hose from the trig-

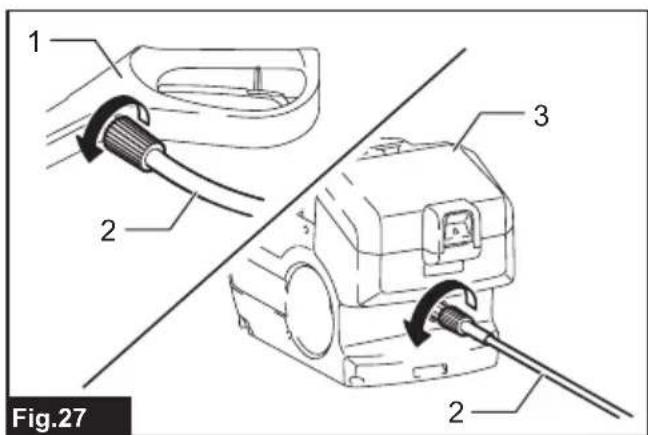

ger gun and the high pressure washer. ► Fig.27: 1. Trigger gun 2. High-pressure hose

3. High-pressure washer

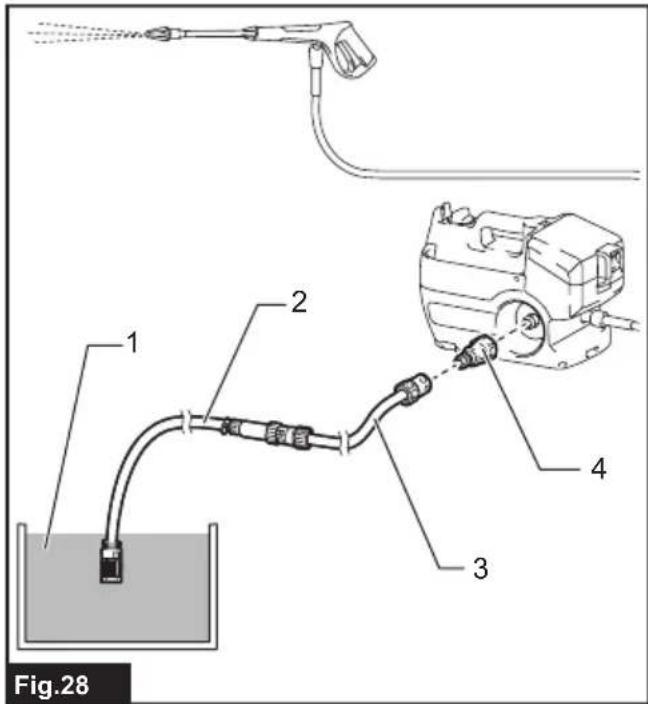

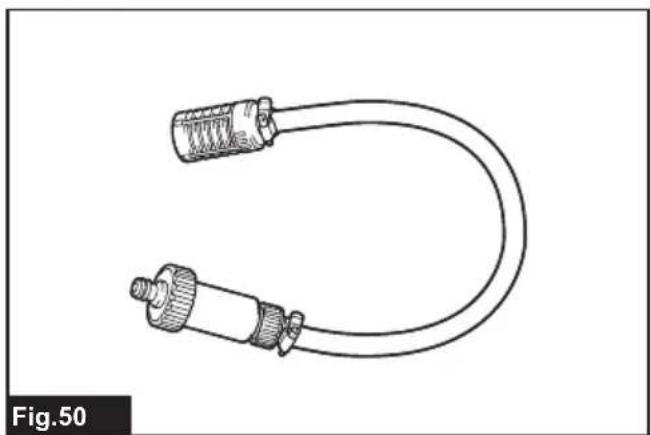

NOTICE: To prevent the high-pressure hose from being damaged, remove the remaining water in the hose before storing. Supplying water from a tank/ reservoir You can supply water from a tank or reservoir instead of a faucet. Connect the hose assembly and strainer assembly to the water hose connector. ► Fig.28: 1. Tank/reservoir 2. Strainer assembly

3. Hose assembly 4. Water hose connector

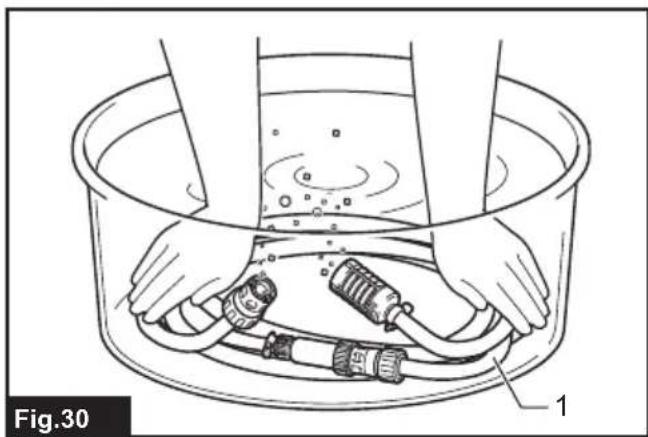

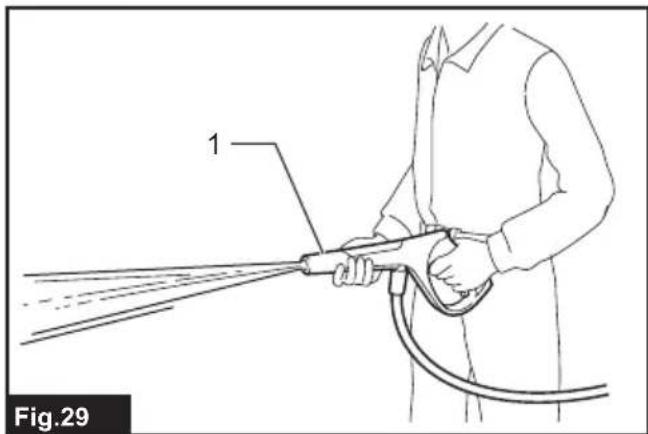

CAUTION: When attaching the sleeve to the lter case, be careful not to hurt your hand by the hose band. NOTICE: Always use Makita's hose assembly and strainer assembly. NOTICE: Always keep 1 m (3.28 ft) or less in height between the inlet of the high pressure washer and the water surface. Otherwise, the high pressure washer will be unable to take the water up into the pump. To introduce water into the hose, remove the nozzle from the trigger gun and switch on the high pressure washer while the trigger is squeezed. Once water is ejected stably from the trigger gun, release the trigger and attach the nozzle for your purpose. ► Fig.29: 1. Trigger gun NOTE: When water is not ejected, detach the hose assembly and strainer assembly and soak it in water. Then reconnect it to the high-pressure washer. ► Fig.30: 1. Hose assembly and strainer assembly When using the container as a water tank You can use the container supplied with the high pres- sure washer (country specic) as a water tank.

1. Connect the coupling sleeve of hose assembly to

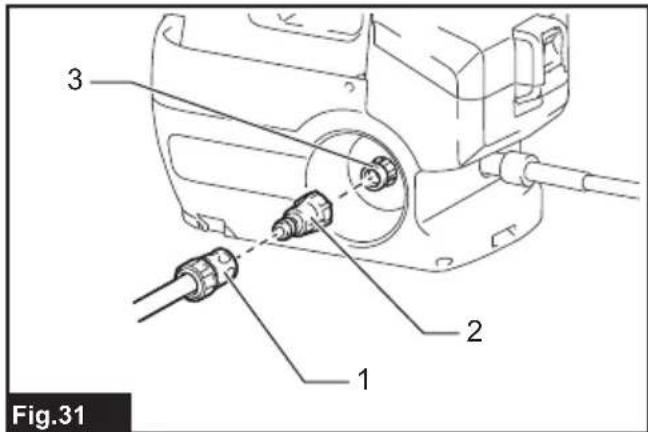

the water hose connector. ► Fig.31: 1. Coupling sleeve 2. Water hose connector

3. Inlet of the high pressure washer

2. Connect the coupling sleeve of the hose assembly

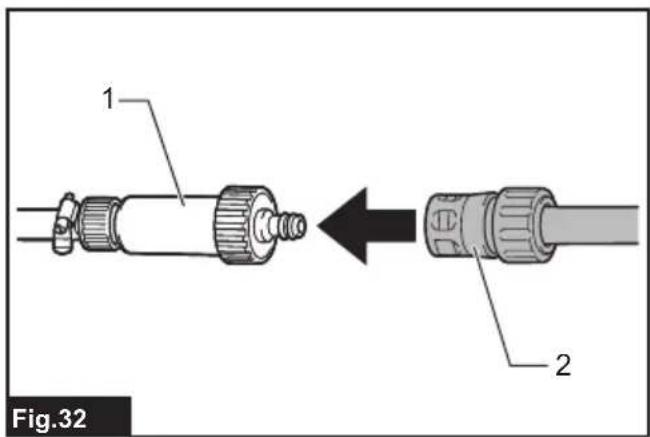

and the lter case of the strainer assembly. ► Fig.32: 1. Strainer assembly 2. Hose assembly

3. Empty the container and feed water in it.

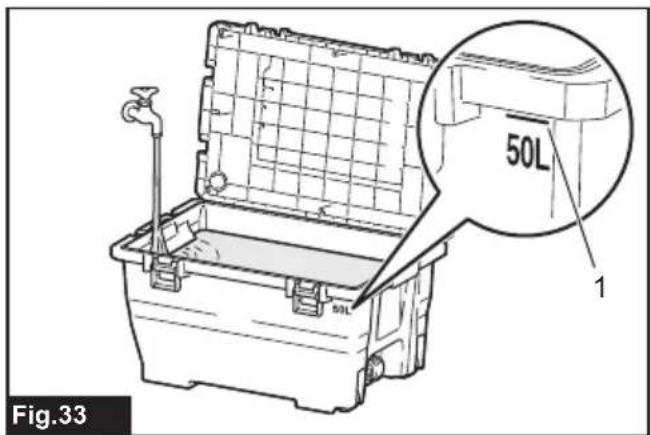

► Fig.33: 1. Full water level line NOTICE: Do not feed water above the full water level line. NOTICE: The lid of the container is not a tight seal type. Be careful not to spill the water in the container when carrying.

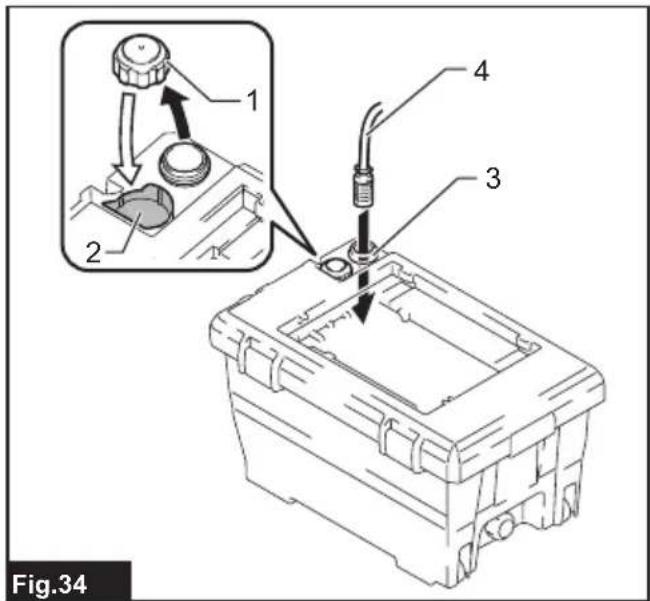

4. Remove the cap on the feed-water inlet and pass

the strainer assembly through the inlet as illustrated. ► Fig.34: 1. Cap 2. Cap holder 3. Feed-water inlet

4. Strainer assembly

NOTE: The cap on the feed-water inlet can be rest on the cap holder.20 ENGLISH

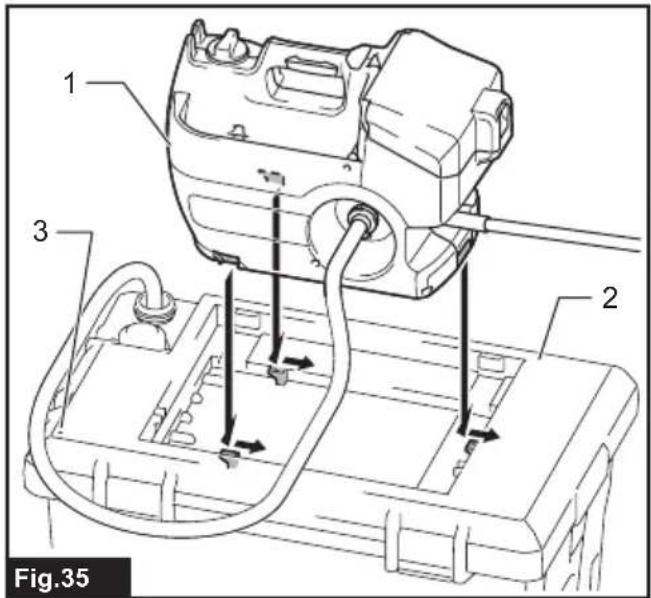

5. Put the high pressure washer onto the container

so that it is secured with the mounts on the lid of the container. ► Fig.35: 1. High pressure washer 2. Lid 3. Air bleed- ing hole NOTE: If water suction does not work, it takes a long time, or the water pressure is not enough, check the following:

• Loosening of the hose assembly, strainer assembly, and water hose connector.

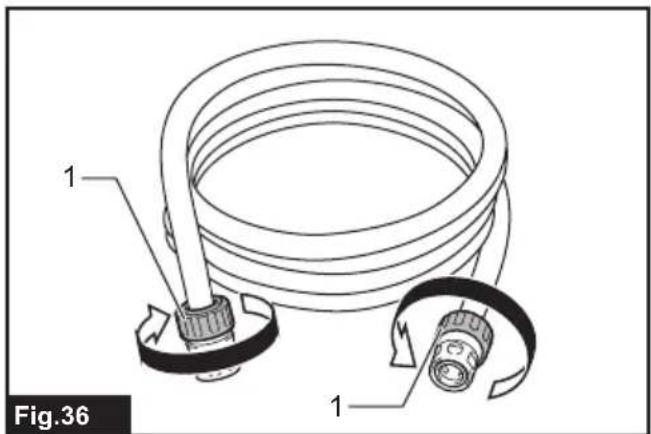

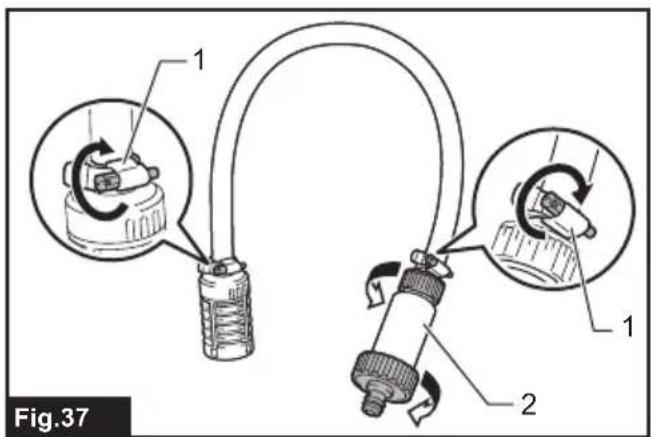

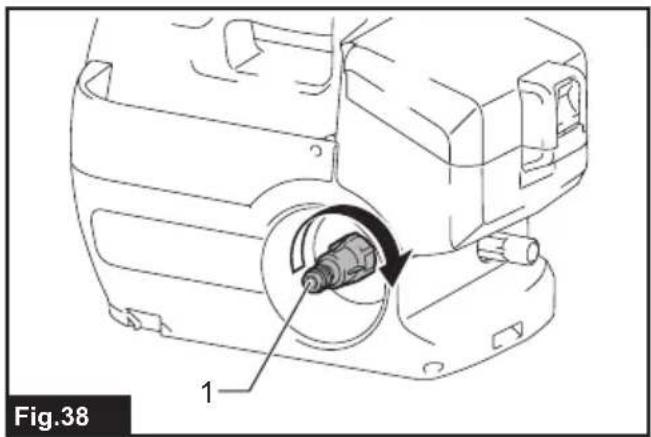

• Coupling sleeves of the hose assembly are rmly attached onto the water hose connector and lter case of the strainer assembly. Tighten if they are loose. Hose assembly ► Fig.36: 1. Coupling sleeve Strainer assembly ► Fig.37: 1. Hose band 2. Filter case Water hose connector ► Fig.38: 1. Water hose connector NOTICE: Pay attention to the handling of the container when carrying. Carrying the container with high pressure washer and accessories or water inside may cause accident or personal injury due to its own weight. NOTICE: When carrying the container, do not shake, turnover, or lean it excessively. Doing so may cause; — the water inside spilled out; — the high pressure washer on the lid dropped o󰀨 from the container or; — the rotation of the container's wheels hindered. NOTICE: When carrying the container by the handle, water may spill out if there is plenty of water inside. NOTICE: Water may come out from the air bleeding hole if the water inside reaches to the air bleeding hole by tilting the container. NOTICE: Do not step on the container. The lid may be broken. NOTICE: Do not leave the container lled with water for a long time. Doing so may cause the con- tainer damaged and result in water leakage. After use, follow the procedure below:

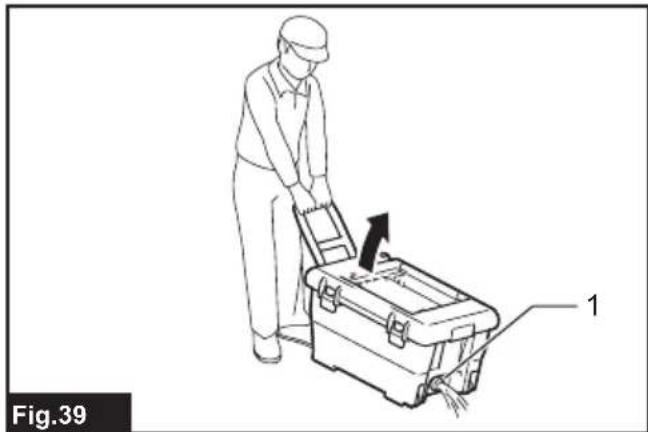

1. Remove the cap on the drain outlet and discharge

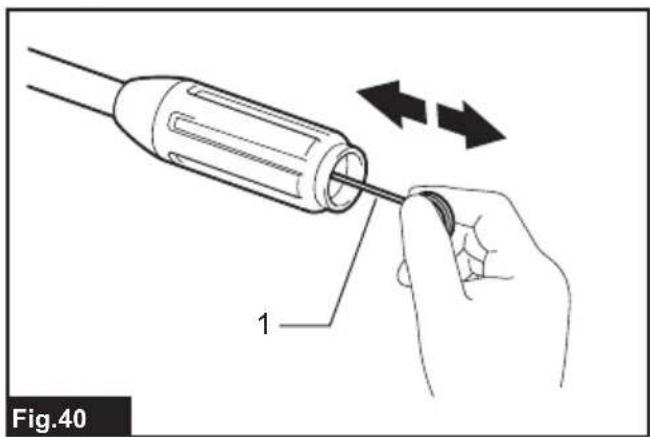

a cloth and then dry the container completely. NOTICE: Do not store the high pressure washer and the accessories while the inside of the con- tainer is wet. Remaining moisture may cause mal- function and rust. MAINTENANCE & STORAGE CAUTION: Always be sure that the tool is switched o󰀨 and battery cartridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning the nozzle Use the cleaner pin to remove dirt from or unclog the nozzle. ► Fig.40: 1. Cleaner pin NOTE: To maintain the optimal performance, clean the nozzle periodically. NOTICE: Do not remove dirt or debris forcibly. This may result in personal injury or damage to the ejection hole causing deviated jet angles or poor performance. Cleaning the lter Detach the water hose connector and remove dirt and debris from the inside of the lter. ► Fig.41:

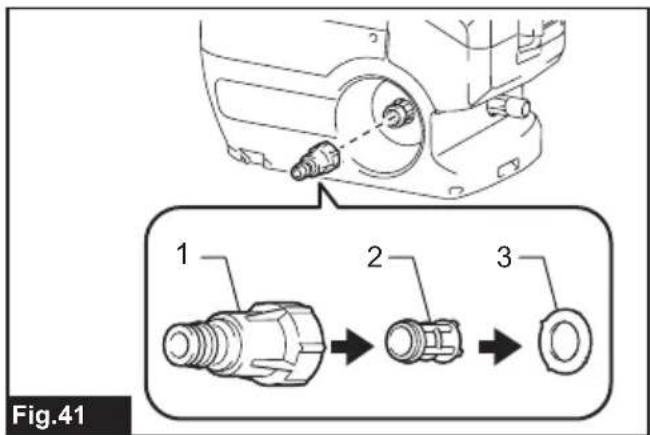

1. Water hose connector 2. Filter 3. Sealing ring

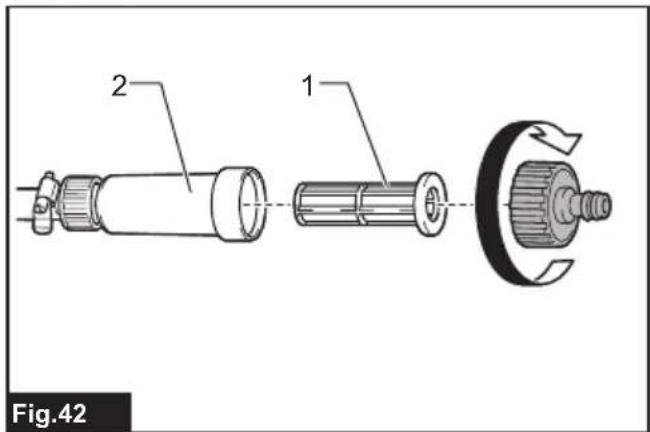

When using the strainer assembly, take the lter out of the lter case and remove dirt and debris. ► Fig.42: 1. Filter 2. Filter case NOTE: To maintain the optimal performance, clean the lter periodically. Storage CAUTION: Always store in an indoor location where the temperature does not go below freez- ing. If the high pressure washer freezes and malfunc- tions, contact your local service center for repairs. Store the accessories in the side pocket of the high pressure washer. Storage example ► Fig.43:

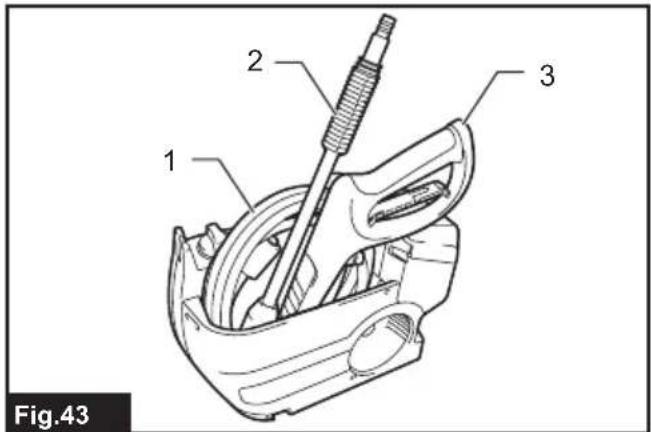

1. High-pressure hose 2. Nozzle 3. Trigger gun

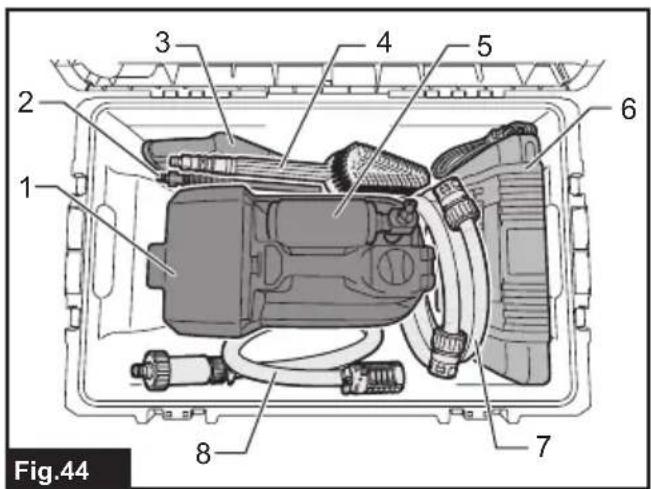

If your model is supplied with the container, store the high pressure washer and accessories in it. Storage example ► Fig.44: 1. High pressure washer 2. Nozzle

NOTE: Some accessories shown in the illustra- tion are supplied as optional accessories in some countries.21 ENGLISH TROUBLESHOOTING Before asking for repairs, conduct your own inspection rst. If you nd a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy The washer does not start. No electricity Install charged battery cartridges. The switch is not turned on. Turn on the switch. Residual pressure in the pump Pull the trigger. Damaged battery or electric circuit Contact an authorized service center for repairs. The high pressure washer has been left for long time while maintaining high pressure. Switch o󰀨 the high pressure washer, supply water from a faucet to the inlet and squeeze the trigger with keeping the water supply for a while. And then, switch on the high pressure washer. No water jet / weak water jet No water supply Make sure that the faucet is open. If using the hose assembly and strainer assembly, introduce water into the hose. Poor water supply Turn on the faucet. Poor water hose connection Check the connection between the high pressure washer and the water faucet. Clogged hose, lter, or nozzle Unclog the hose, lter, or nozzle. Air is blocking the ow of water. Turn o󰀨 the switch and then turn it on again while squeezing the trigger. Damaged or worn nozzle Replace the nozzle. Pump or valve malfunction Contact an authorized service center for repairs. Insu󰀩cient connection of hoses (when using the strainer assembly) Tighten the coupling sleeve if it is loose. Insert the coupling sleeve securely. Unstable water jet Clogged nozzle Unclog on the ejection hole of the nozzle using the cleaner pin. Poor water suction Check the water hose starting from the faucet for any leakage or clogs. Turn on the faucet. The water is too hot. Supply cooler water. Valve malfunction Contact an authorized service center for repairs. Abnormal sound The water is too hot. Supply cooler water. Air is stuck in the pump. Contact an authorized service center for repairs. Water leakage Poor connection Check the connection between the high pressure washer and trigger gun and as well as the water faucet. Worn out sealings Contact an authorized service center for repairs. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. NOTE: Some items in the list may be included in the tool package as standard accessories. They may di󰀨er from country to country. Vario-Power spray lance ► Fig.45 Jet pressure can be adjusted by rotating the nozzle. CAUTION: When adjusting the jet pressure, do not rotate the nozzle while pulling it toward the trigger gun. The nozzle may come o󰀨 from the trig- ger gun and cause a personal injury. Foam nozzle Country specic ► Fig.46 Detergent can be sprayed as foam.22 ENGLISH Washing brush (long) ► Fig.47 A nozzle equipped with a brush. Useful for washing out dirt while scrubbing with brush. Rotating wash brush ► Fig.48 Three brushes inside rotate slowly when ejecting the jet. Suitable for cleaning light dirt on a exterior wall, car body, bath tub, etc. Hose assembly ► Fig.49 A hose assembly to connect a faucet to the product, or the strainer assembly to the product. Strainer assembly ► Fig.50 A strainer assembly to supply water from a tank or reservoir. Use the hose assembly to connect to the product. Lance extension ► Fig.51 Pipes to extend the length of the trigger gun. Three di󰀨erent lengths are available by changing the number of the pipes to be used. Under body spray lance ► Fig.52 An extra long spray lance with angled nozzle. Best for cleaning hard-to-reach areas such as car under body and roof gutter. CAUTION: Do not use the under body spray lance with the lance extension. Splash guard ► Fig.53 Reduces splash back when cleaning corners with the dirt blaster. Swivel joint ► Fig.54 Prevents the high-pressure hose from being twisted. Connecting joint ► Fig.55 A joint to connect with a nozzle from other model. Some optional nozzles require the connecting joint (optional accessory) to attach to the trigger gun. Attach the connecting joint to the trigger gun in the same way as the nozzle. ► Fig.56: 1. Nozzle 2. Connecting joint 3. Trigger gun NOTE: The connecting joint is needed when using the nozzles included with another model, HW112 or HW121. Pipe cleaning hose (10 m/15 m) ► Fig.57 For cleaning and unclogging plumbing and downpipes. CAUTION: Pay particular attention to the water jet when using the pipe cleaning hose. Highly intense water jet is ejected backward. Only trigger the water jet when the nozzle has been inserted into the pipe to be cleaned at least up to the red marking. Extension high-pressure hose (5 m/8 m/10 m) ► Fig.58 Extension hose to connect the high pressure washer body with the trigger gun. Vario-Power Spray Nozzle and Extension ► Fig.59: 1. Vario-power spray nozzle 2. Extension Jet pressure can be adjusted by rotating the nozzle.

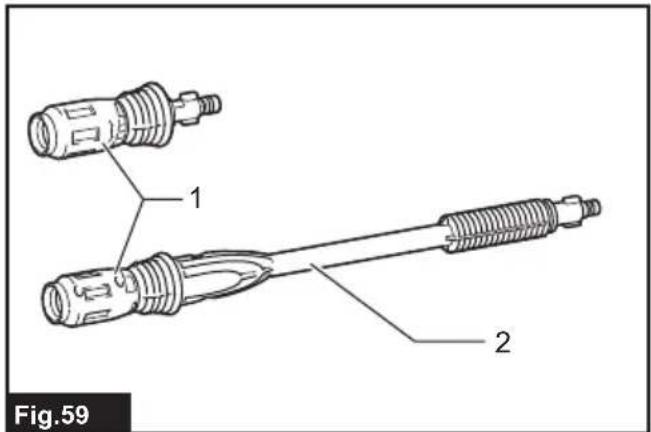

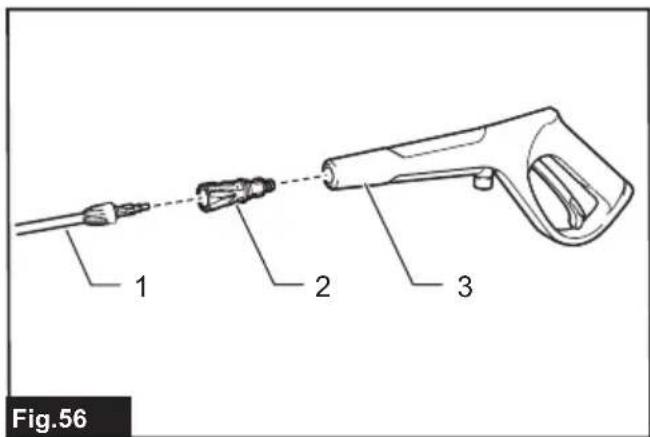

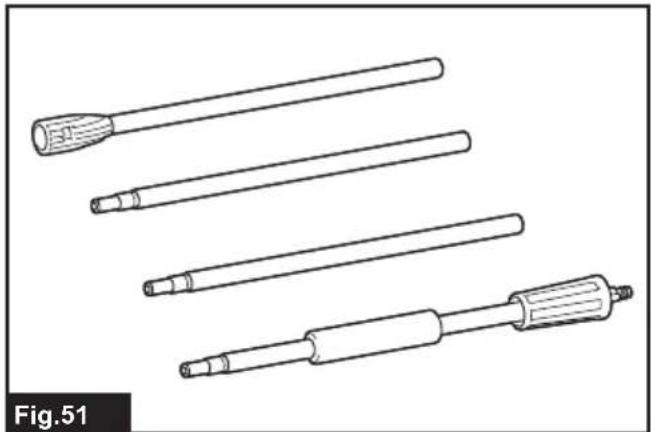

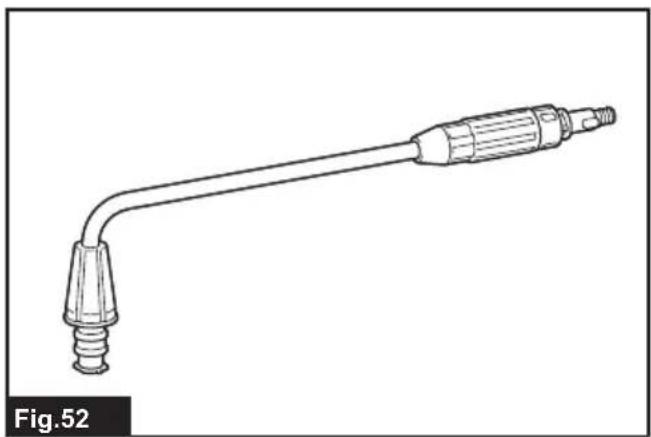

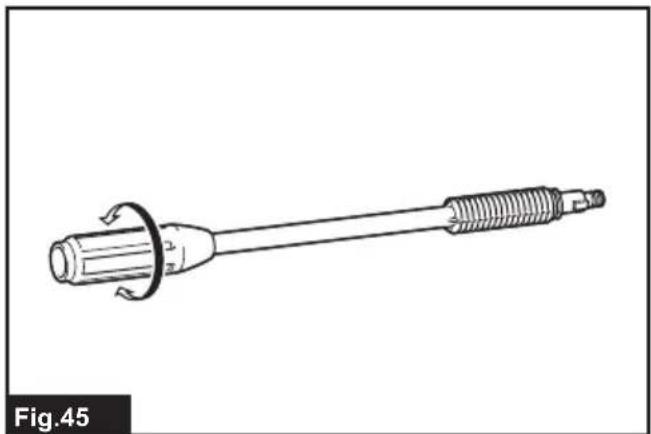

WARNING: Install only the vario-power spray

nozzle to the extension. Do not connect the other optional extensions to the original extension. Using any attachments other than those recom- mended by the manufacturer may cause a risk of damage or injury to persons. CAUTION: When adjusting the jet pressure, do not rotate the nozzle while pulling it toward the trigger gun. The nozzle may come o󰀨 from the trig- ger gun and cause a personal injury.23 FRANÇAIS FRANÇAIS (Instructions originales) AVERTISSEMENT
