IAN 324148 - Watch AURIOL - Free user manual and instructions

Brand	Auriol
Model	IAN 324148
Product type	Analog wristwatch
Intended use	Displaying time and additional functions as described in the manual
Power supply	1 SR626SW battery (included)
Water resistance	Up to 5 bar (tested according to DIN 8310)
Case material	Not specified (estimated: stainless steel or alloy)
Strap material	Not specified (estimated: leather or metal)
Strap length	Adjustable (models 1,2,4,5: sliding clasp; model 3: additional link)
Main functions	Time display, time setting via crown
Warranty	3 years from date of purchase (subject to conditions)
Care and cleaning	Lint-free dry cloth (like for eyeglass lenses)
Battery replacement	Must be done by a watchmaker to preserve water resistance
Delivery contents	Watch with battery, 1 extra link (model 3), user manual
Safety	Keep batteries away from children; observe polarity
Disposal	Do not dispose of with household waste; recycle according to local regulations
Customer service	Contact customer service via www.lidl-service.com or phone (see manual)

Frequently Asked Questions - IAN 324148 AURIOL

How to change the battery of the Auriol IAN 324148 watch?

Battery replacement (type SR626SW) must be performed by a watchmaker to avoid damaging the case or seals. Do not attempt to do it yourself.

Is the Auriol IAN 324148 watch waterproof?

Yes, it is water-resistant up to 5 bar (tested according to DIN 8310). This corresponds to a pressure equivalent to 50 meters depth in static conditions. Avoid operating the crown underwater.

How to shorten the watch strap?

For models 1, 2, 4, and 5, the strap has a sliding clasp: open the safety clasp, pull the stop loop, slide the clasp to the desired length and snap shut. For model 3, open the buckle of the extra link, remove it, and close the remaining buckle.

What to do if the watch stops?

First check if the battery is dead. If battery replacement does not solve the problem, contact Customer Service via www.lidl-service.com or by phone (article reference 324148_1901).

How to set the watch time?

Gently pull the crown outward, then turn it one way or the other to set the time. Once set, push the crown back against the case.

Can I swim with the Auriol IAN 324148 watch?

Yes, the water resistance to 5 bar allows use while swimming, but not for scuba diving or free diving. Avoid operating the crown in water.

What are the safety warnings for batteries?

Keep batteries out of reach of children. If swallowed, consult a doctor immediately. Do not recharge, short-circuit, or open batteries. In case of leakage, avoid contact and rinse thoroughly with clean water.

How to clean the watch?

Use a dry, lint-free cloth, like for cleaning eyeglass lenses. Do not use chemicals or abrasives.

What to do in case of a defect under warranty?

Keep the original receipt and the article number (324148_1901). Contact Customer Service by phone or email. After evaluation, the watch will be repaired or replaced free of charge during the 3-year warranty period.

Where to find the article number (IAN) of the watch?

The article number can be found on the identification plate, in an engraving, at the bottom left of the user manual, or on a label on the back of the article. For this model, it is 324148_1901.

USER MANUAL IAN 324148 AURIOL

Usage and safety instructions

MONTRE

Usage and safety instructions .... - 8 -

FR BE

Diagram of three mechanical components with curved arms and directional arrows indicating motion (no text or symbols)

Zeiteinstellung

Batteriewechsel (SR626SW)

5 BAR ✓ ✓ ✗ ✗

Entsorgung

GB Usage and safety instructions

Table of contents

Table of contents - 8 -

Introduction ...... - 9 -

Intended use -9-

Scope of delivery ...... - 9 -

Important safety information Important safety information

Important safety information for users .... - 9 -

Important safety information for the batteries.... - 10 -

Band shortening for the models 1 + 2 + 4 + 5 - 10

Band shortening instruction for model 3 ..... - 10 -

Replacement of battery (SR626SW) ...... - 11 -

Cleaning instructions .... - 11 -

Water resistance ....- 11 -

Disposal - 11 -

Disposal of the electronic device .... - 11 -

Disposal of the batteries ....- 11 -

Recycling ...... - 12 -

Paperboard....- 12 -

Waste disposal - 12 -

digi-tech gmbh warranty ...... - 12 -

Warranty conditions - 12 -

Warranty period and defects liability .... - 12 -

Scope of the warranty - 12 -

Warranty claim procedure ...... - 13 -

Service.... - 14 -

Supplier - 14 -

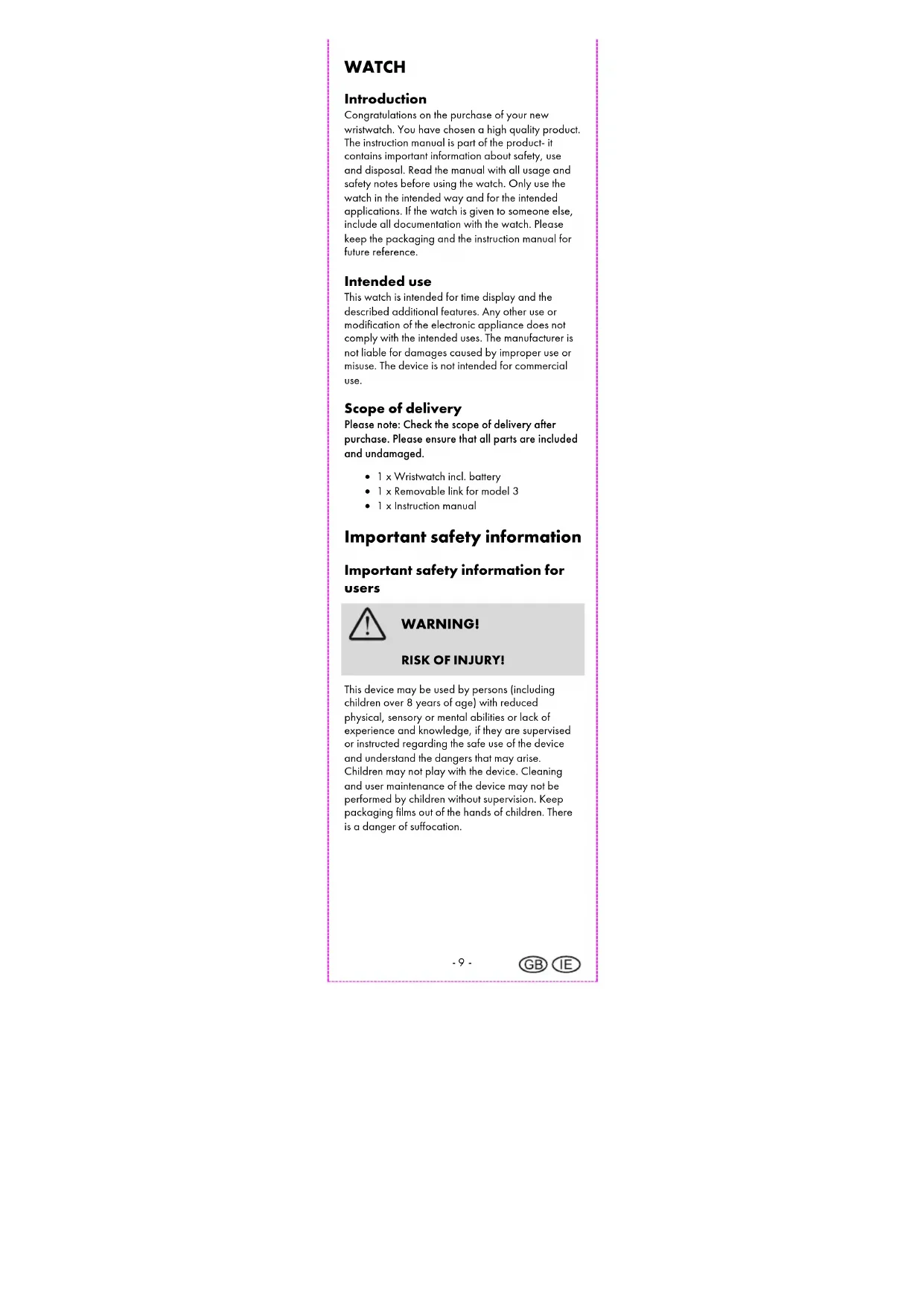

WATCH

Introduction

Congratulations on the purchase of your new wristwatch. You have chosen a high quality product. The instruction manual is part of the product- it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications. If the watch is given to someone else, include all documentation with the watch. Please keep the packaging and the instruction manual for future reference.

Intended use

This watch is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Scope of delivery

Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

• 1 x Wristwatch incl. battery
  • 1 x Removable link for model 3
• 1 x Instruction manual

Important safety information

Important safety information for users

WARNING!

RISK OF INJURY!

This device may be used by persons (including children over 8 years of age) with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or instructed regarding the safe use of the device and understand the dangers that may arise. Children may not play with the device. Cleaning and user maintenance of the device may not be performed by children without supervision. Keep packaging films out of the hands of children. There is a danger of suffocation.

-9-

Important safety information for the batteries

WARNING!

HEALTH HAZARD!

RISK OF EXPLOSION!

Keep batteries out of reach of small children. If a battery is swallowed, you must seek medical attention immediately. Batteries/rechargeable batteries must always be inserted in the correct polarity. Never attempt to recharge non-rechargeable batteries. Never short-circuit or attempt to open batteries. Never throw batteries into fire as they may explode. Improper use of the battery can lead to explosion or leakage. If the battery leaks, avoid contact with skin, eyes and mucous membranes. Use gloves. If you are exposed to battery acid, rinse the affected areas with plenty of clean water and immediately seek medical attention. Remove discharged batteries from the device as they present an increased risk of leakage.

Band shortening for the models 1 + 2 + 4 + 5

The band includes a moveable clasp for easy band shortening.

1. Open the safety clasp.
2. Push a suitable tool into the opening on the clasp and lever the clasp open.
3. Move the clasp to the required length and let it snap into place on the horizontal grooves on the back side of the strap.
4. Securely re-engage the clasp (using a tool if necessary).
5. Close the safety clasp.

1. 2. 3.

Band shortening instruction for model 3

Your watch band is equipped with an additional link with a fastener to simplify band shortening. Open the fastener of the band and of the additional link. Remove the additional link and re-close the fastener of the band.

Pure mechanical component diagrams without any text, numbers, or symbols

Time setting

Carefully pull the crown out all the way. Turn the crown clockwise or counter clockwise to set the time. To finish the setting press the crown back in all the way.

Replacement of battery (SR626SW)

Battery replacements must be performed by an expert to avoid damaging the case or gaskets.

Cleaning instructions

Clean the wristwatch with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

Water resistance

Water resistant up to 5 bar. The bar value specifies the atmospheric overpressure which is applied during testing (DIN 8310).

5 BAR ✓ ✓ ✗ ✗

Disposal

This device and all the packaging materials are recyclable. Please dispose of them separately for better waste handling.

Disposal of the electronic device

This wristwatch must not be disposed of in the normal household waste. In the interest of the environment, when your device has reached the end of its usefulness, do no throw it in

the normal household trash. Dispose of it in the proper and correct way. You can find out about collection sites and their business hours from your public administration. Please adhere to applicable requirements.

Disposal of the batteries

Defective or spent batteries/rechargeable batteries

must be recycled in accordance with directive 2006/66/EC and its revisions. Return batteries, rechargeable batteries or the device at the available collection sites.

Improper disposal of

batteries / rechargeable batteries causes environmental damage!

Batteries / rechargeable batteries may not be disposed of in normal household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical

symbols of the heavy metals are as follows: Cd = Cadmium, Hg = Mercury, Pb = lead. Therefore, please dispose of spent batteries / rechargeable batteries at a communal collection site.

Recycling

The product packaging consists of recyclable materials. Please dispose of them properly at the available collection sites.

Paperboard

The packaging consists of non-corrugated fibreboard (paperboard).

Waste disposal

Dispose of the packaging in an environmentally responsible fashion. Please note the marking of the different packaging materials and separate them if applicable.

digi-tech gmbh warranty

This wristwatch includes a 3 year warranty starting on the day of purchase. In case of defects of this wristwatch you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs.

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the wristwatch within 3 years, the wristwatch will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the wristwatch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired wristwatch or a new watch. Repair or replacement does not cause the warranty period to restart.

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The wristwatch was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are

damaged. Examples include Switches, Batteries or parts made of glass.

This warranty becomes void if the wristwatch is damaged, is not used in the recommended way or is improperly repaired.

For proper use of the wristwatch all instructions in this manual must be adhered to exactly. Use of the wristwatch in a way that is discouraged in the manual must be avoided.

The wristwatch is not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (324148_1901) handy.
• The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
• In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

PDF ONLINE www.idt-service.com

With this QR-Code you can reach the Lidl-Service-Site (www.lidl-service.com) directly and you can open your manual by entering the article number (324148_1901).

Service

Please note that the following address is not a service address.

Please first contact the service address (see above).

Name: digi-tech gmbh

Street: Valterweg 27A

Town: DE-65817 Eppstein

Country: GERMANY

-14-

Line drawing of three mechanical components with curved ends and arrows indicating motion (no text or symbols)

Mise a l'heure

5 BAR ✓ ✓ ✗ ✗

Évacuation

Line drawing of three mechanical components with curved ends and adjustment arrows (no text or symbols)

Tijdinstelling

5 BAR ✓ ✓ ✗ ✗

Verwijdering

Pure mechanical component diagrams without any text, numbers, or symbols

Nastawienie godziny

5 BAR ✓ ✓ ✗ ✗

Utylizacja

Pure mechanical component diagrams without any text, numbers, or symbols

-38-

Seřízení času

5 BAR ✓ ✓ ✗ ✗

Odstraňování odpadu

5 BAR ✓ ✓ ✗ ✗

Likvidácia odpadu
