USER MANUAL DW610 DEWALT

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING:Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/ or seriousinjury.

WARNING: Never modify the product or

any part of it. Damage or personal injury couldresult.

WARNING:To reduce the risk of injury,

Battery release button

WARNING: To reduce risk of injury:

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.

• Save these instructions and reviewfrequently.

gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including thefollowing. 1 . Avoid Dangerous Environment – Don’t use appliances in damp or wet locations. 2 . Don’t Use In Rain. 3 . Keep Children Away – All visitors should be kept at a distance from work area. 4 . Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain longhair. 5 . Use Safety Glasses – Always use face or dust mask if operation is dusty. 6 . Use Right Appliance – Do not use appliance for any job except that for which it is intended. 7 . Don’t grasp the exposed cutting blades or cutting edges when picking up or holding the appliance. 8 . Don’t Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed. 9 . Don’t Overreach – Keep proper footing and balance at all times. 10 . Stay Alert – Watch what you are doing. Use common sense. Do not operate appliance when you are tired. 11 . Disconnect Appliance – Remove the battery when not in use, before servicing, when changing accessories such as blades, and the like. 12 . Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children. 13 . Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect appliance power source periodically, and if damaged, have it repaired by an authorized service facility. Keep handles dry, clean, and free from oil andgrease. 14 . Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

SAVE THESE INSTRUCTIONS

Additional Safety Warnings

WARNING: To reduce the risk of

rebound (ricochet) injury, work going away from any nearby solid object such as wall, steps, large stone, tree, etc.

• GUARD – Do not use this appliance without guardattached.

• DRESS PROPERLY – Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Don’t operate the appliance when barefoot or wearing open sandals. Wear heavy long pants to protect your legs. Wear protective hair covering to contain long hair.

• KEEP FACE, HANDS AND FEET CLEAR OF ROTATING NYLON LINE AT ALL TIMES. The rotating line performs a cutting function use care when trimming around screens and desirable plantings.

• KEEP ALL BYSTANDERS AWAY – at a safe distance from work area, especially children. MAKE SURE that other persons and pets are at least 100' (30 m) away.

• WHEN BEING USED AS AN EDGER – stones, pieces of metal and other objects can be thrown out at high speed by the line. The appliance and guard are designed to reduce the danger. To reduce the risk of rebound (ricochet) injury, work going away from any nearby solid object such as wall, steps, large stone, tree, etc.

• USE GREAT CARE when working close to solid objects and where necessary, do trimming by hand.

• AVOID ACCIDENTALLY STARTING – Don’t carry with finger on trigger when battery is installed.

• DAMAGE TO UNIT – If you strike or become entangled with a foreign object, stop appliance immediately, remove battery, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken hub or spool.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings,

instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can

• STAY ALERT – Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, ormedication.

• DO NOT immerse appliance in water or squirt it with ahose.

• DO NOT allow any liquid to get inside it. If appliance does get wet, allow to dry for a minimum of 48 hours.

• DO NOT clean with a pressure washer.

• DO NOT store the appliance on or adjacent to fertilizers or chemicals.

• DO NOT charge appliance in rain, or in wet locations. Additional Safety Information

WARNING: ALWAYS use safety glasses.

Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: Some dust contains

chemicals known to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,

• compounds in insecticides, herbicides andpesticides,

• arsenic and chromium from chemically treatedlumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopicparticles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate

and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face andbody.

WARNING: Always wear proper

personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with a large battery pack will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.English

make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in CRAFTSMAN chargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid

may be flammable if exposed to spark orflame.

WARNING: Fire hazard. Never attempt

to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations

1. The best storage place is one that is cool and dry, away

from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully

charged battery pack in a cool dry place out of the charger for optimal results. nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. The RBRC® Seal The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by CRAFTSMAN. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call2Recycle® program provides an environmentally consciousalternative. Call 2 Recycle, Inc., in cooperation with CRAFTSMAN and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized CRAFTSMAN service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle,Inc. Transportation

WARNING: Fire hazard. Do not store

or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: LI-ion batteries should not be put in checkedbaggage.5 ENGLISH Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings,

instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) 240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug–have them replaced immediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

WARNING: Shock hazard. Do not allow

any liquid to get inside the charger. Electric shock mayresult.

WARNING: Burn hazard. Do not

submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only CRAFTSMAN rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and propertydamage.

CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean. Charging a Battery NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before firstuse.ENGLISH 1. Plug the charger into an appropriate outlet before inserting batterypack.2. Connect the charger and battery pack, making sure the battery is fully seated. The (charging) light will blink continuously indicating that the charging process hasstarted.3. The completion of charge will be indicated by the light remaining ON continuously. The battery pack is fully charged and may be removed and used at this time or left in the charger. NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed.IndicatorsChargingFully ChargedHot/Cold Pack DelayA charger will not charge a faulty battery pack. The charger refusing to light could indicate a problem with the charger.NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an authorized servicecenter.Hot/Cold Pack DelayWhen the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife.A cold battery pack may charge at a slower rate than a warm batterypack. Important Charging Notes 1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.3. If the battery pack does not charge properly:a. Check operation of receptacle by plugging in a lamp or other appliance;b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65°F – 75°F (18°C – 24°C);d. If charging problems persist, take the tool, battery pack and charger to your local servicecenter. SAVE THESE INSTRUCTIONS

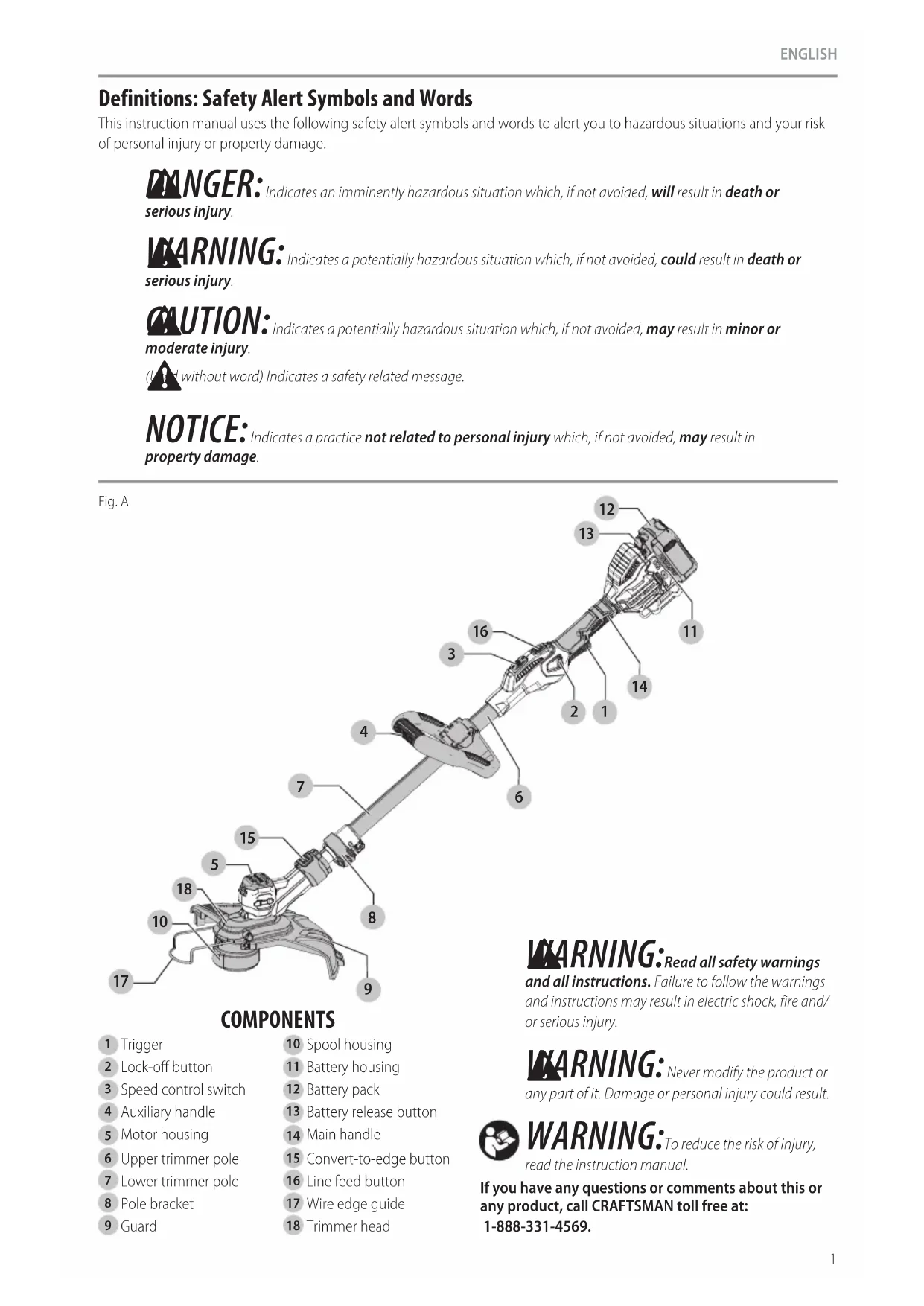

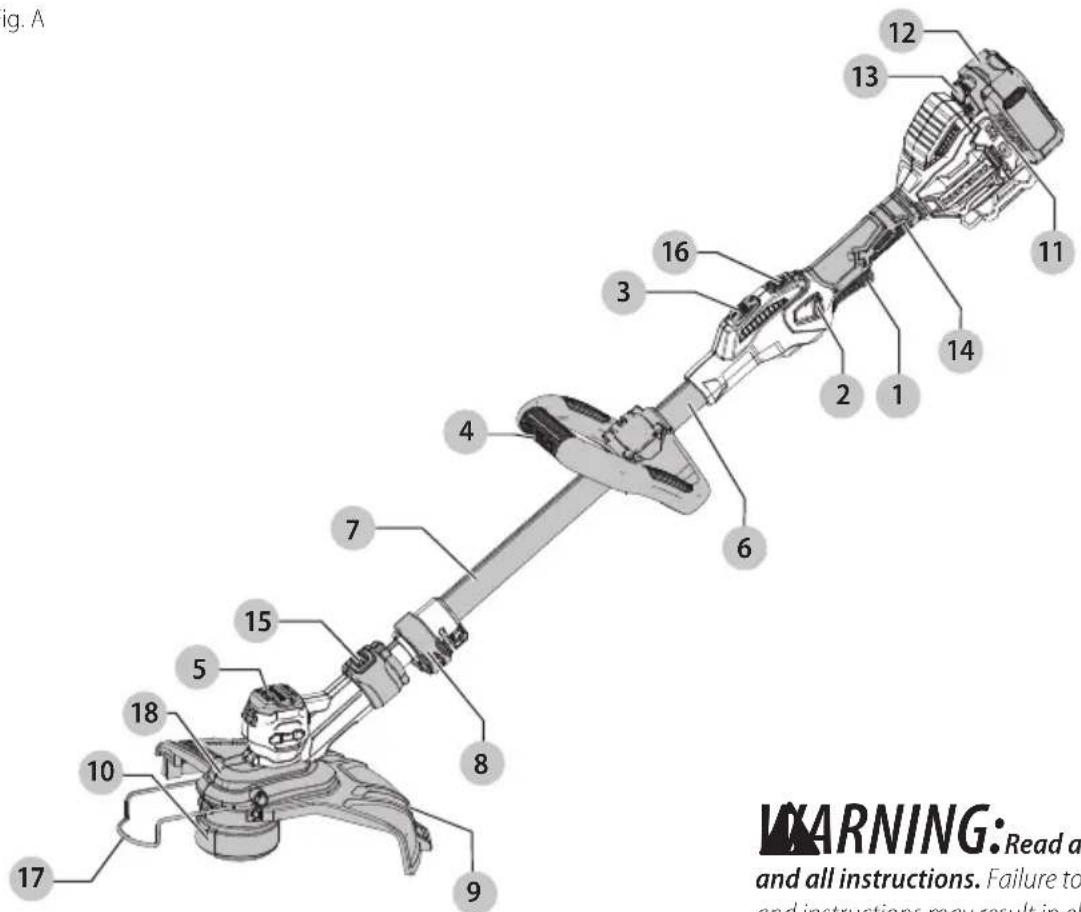

COMPONENTS (FIG. A) Intended Use This string trimmer is designed for household trimming and edging applications.DO NOT use under wet conditions or in presence of flammable liquids orgases.4. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the batterypack.5. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean.6. Do not freeze or immerse the charger in water or any otherliquid. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect

the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Versatrack™ CRAFTSMAN chargers can be mounted to the wall using CRAFTSMAN Versatrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the Versatrack™ Trackwall accessory sheet for furtherinformation.7 English Installing the Guard (Fig. B, C)

Damage or personal injury couldresult.

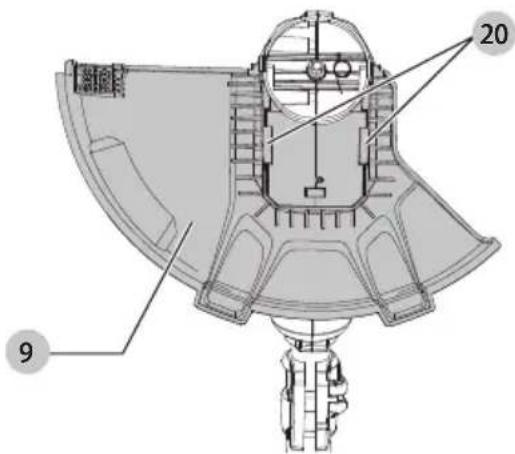

APPLIANCE WITHOUT GUARD FIRMLY IN PLACE. The guard must always be properly attached on the appliance to protect theuser.

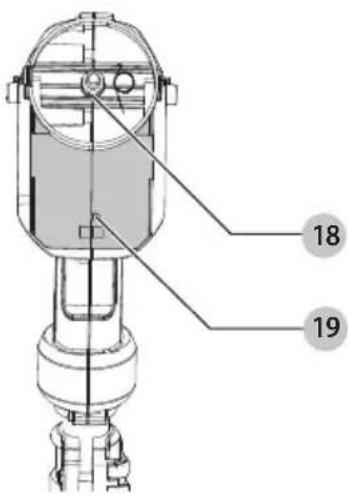

1. Remove the guard screw

fully onto the trimmer head

on the guard engage the ribs on the trimmer head.

3. Continue to slide the guard on until it “snaps”into place.

The locking tab should snap into the housing slot.

4. Using a crosshead screwdriver, insert the guard screw

and tighten securely.

5. Once the guard is installed, remove the covering from

the line cut-off blade, located on the edge of the guard. Fig.B

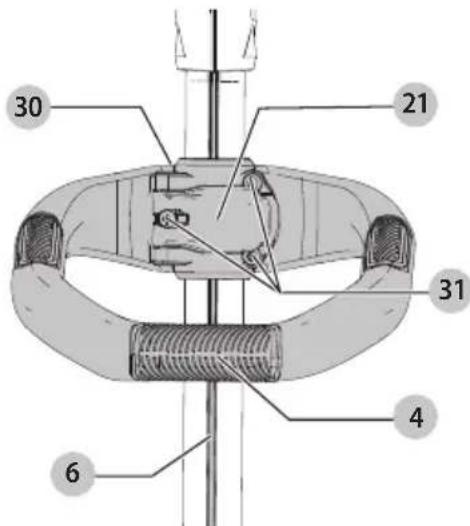

Attaching the Auxiliary Handle (Fig. D)

1. Place the auxiliary handle

as shown in Figure D.

of the auxiliary handle onto the bottom of the handle.

through the handle and into the bracket from above.

4. Tighten the handle bolts. Ensure the handle is securely

attached by closing the handle clamp

5. To adjust the position of the auxiliary handle, open the

handle clamp and slide the handle up and down the pole until it is in the desired location. Close the clamp to lock the handle in place. Fig.D

Releasing the Cutting Line (Fig. A) In transit, the cutting line is taped to the spool housing

• Remove the tape holding the cutting line to the spoolhousing. OPERATION

WARNING: To reduce the risk of

serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of

serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start-up can causeinjury. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.English

or accessories, when replacing line, or prior to cleaning. An accidental start-up can causeinjury.

protection that conforms to ANSI Z87.1 (CAN/CSA Z94.3) while operating this appliance.

WARNING: Remove the battery before

making any assembly, adjustments, or changing accessories. Such preventive safety measures reduce the risk of starting the trimmer accidentally.

CAUTION: Before you begin trimming, only use the appropriate type of cutting line.

CAUTION: Inspect area to be trimmed and remove any wire, cord, or string-like objects which could become entangled in the rotating line or spool. Be particularly careful to avoid any wire which might be bent outwardly into the path of the appliance, such as barbs at the base of a chain link fence. Installing and Removing the Battery Pack (Fig. E) nOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

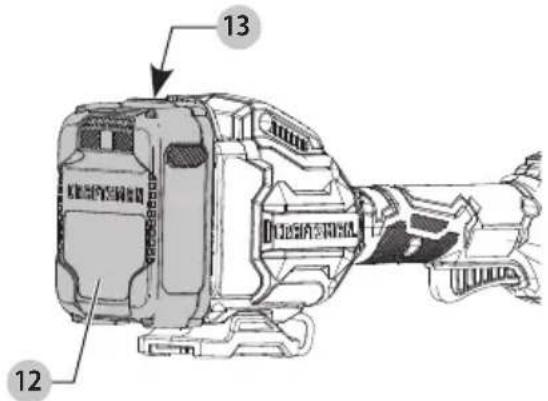

into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage. To remove the battery pack from the tool, press the release button

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual. Fig.E

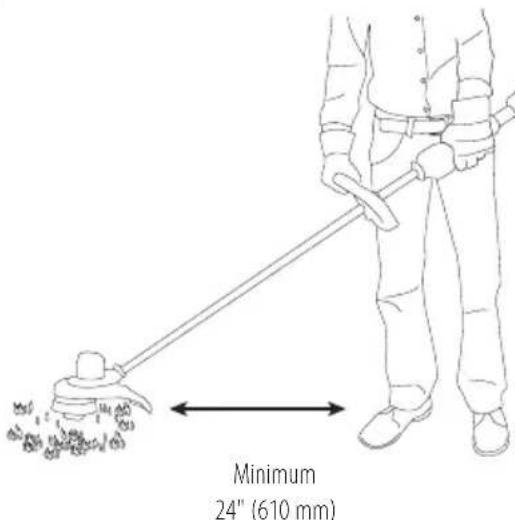

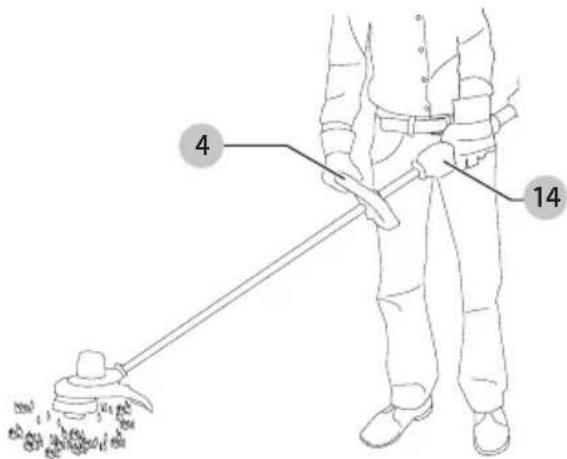

WARNING: To reduce the risk of serious

personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious

personal injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the main handle

and one hand on the auxiliary handle

WARNING: Never attempt to lock the

trigger in the onposition. To turn the appliance on, squeeze the lock-off button

and then the trigger

. Once the unit is running, you may release the lock-off button. To turn the appliance off, release the trigger. Trimming (Fig. G, H) With the trimmer on, angle it and swing side to side as shown in FigureG. Maintain a cutting angle of 5° to 10°. Do not exceed 10°. Cut with the tip of the line. Maintain a minimum distance of 24" (610 mm) between the guard and your feet as shown in FigureH. Fig.G9 ENGLISH Fig.H Minimum 24" (610 mm) Convert to Edging Mode (Fig. A)

CAUTION: The wire edge guide should only be used when in the edging mode. The trimmer can be used in trimming mode or edging mode to trim overhanging grass along lawn edges and flower beds. To convert the trimmer to edging mode:

1. Remove the battery from the trimmer.

and rotate the trimmer head

counterclockwise, until the spool head snaps into position. NOTE: You will experience faster than normal cutting line wear if the trimmer line is positioned directly over the sidewalk or abrasive surface. Edging Mode Operation (Fig. A, G)

WARNING: When being used as an

edger, stones, pieces of metal and other objects can be thrown out at high speed by the line. The trimmer and guard are designed to reduce the danger. However, MAKE SURE that other persons and pets are at least 100' (30 m) away. Optimum cutting results are achieved on edges deeper than 2" (50 mm).

• Position the edging guide on the edge of the sidewalk or abrasive surface so the cutting line is over the grass or dirt area to be edged.

• To make a closer cut, slightly tilt the trimmer. Speed Control Switch (Fig. A) This string trimmer gives you the choice to operate at a more efficient speed to extend the runtime for larger jobs, or accelerate the trimmer speed for high-performancecutting. To accelerate the trimmer, push the speed control switch

forward toward the auxillary handle

into the "HI" position. This mode is best to cut through heavier growth and for applications that need higherRPM. To extend runtime, pull the speed control switch back toward the battery housing

into the "LO" position. This mode is best for larger projects that require more time tocomplete. NOTE: When in "HI" mode, runtime will be decreased as compared to when trimmer is in "LO"mode. Line Feed Button (Fig. A) The line feed feature allows you to advance the length of cutting line available while trimming.

• To extend the cutting line, fully depress the line feed button

while trimming and then release. NOTE: The trimmer will stop cutting when the line feed button is pressed and will resume cutting when released. NOTE: For maximum line length, press the button multiple times until you hear the cutting line hitting the guard. Do not continue to press the line feed button once the maximum length is reached. This will result in overfeeding and will consume string quickly. Helpful Cutting Tips (Fig. I)

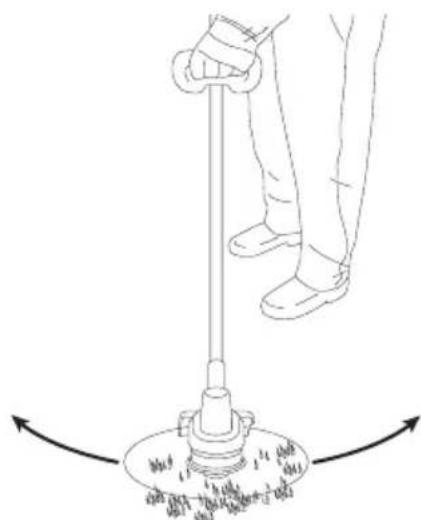

• Use the tip of the string to do the cutting; do not force string head into uncutgrass. Use edge guide along such things as fences, houses and flower beds for bestpractices.

• Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, curbs, and wood may wear stringrapidly.

to drag on ground or othersurfaces.

• In long growth, cut from the top down and do not exceed 13" (330 mm)high.

• Keep trimmer tilted toward the area being cut; this is the best cuttingarea.

• The trimmer cuts when passing the unit from the left to right. This will avoid throwing debris at theoperator.

• Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by thestring. Cutting Line / Line Feeding Your trimmer uses .080" (2 mm) diameter, TWIST nylon line. During use, the tips of the nylon lines will become frayed and worn. Cutting line will wear faster and require more feeding if the cutting or edging is done along sidewalks or other abrasive surfaces or heavier weeds are being cut. Clearing Jams and Tangled Line (Fig. I)

WARNING: Remove the battery

from the trimmer before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the applianceaccidentally. From time to time, especially when cutting thick or stalky weeds, the line feeding hub may become clogged withEnglish sap or other material and the line will become jammed as a result. To clear the jam, follow the steps listed below.

CAUTION: To avoid appliance damage, if the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.1. Remove the battery from the trimmer.2. Press the release tabs on the spool cap , and remove the spool cap from the spool housing

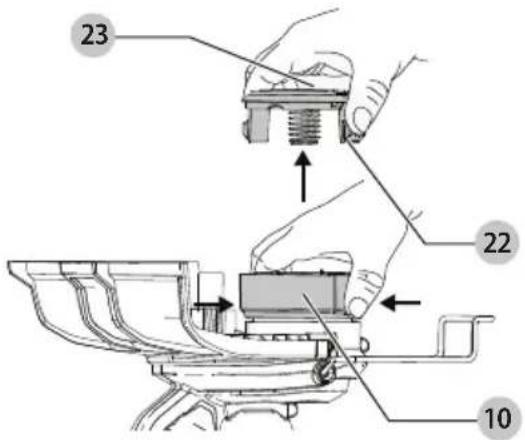

3. Pull the nylon line spool out and clear any broken line or cutting debris from the spool area. 4. Place spool and line into spool cap with line “parked” in slots provided.5. Insert the line end through the appropriate hole in the spool housing. Pull slack line through until it pulls out of the holding slots.6. Press the spool down GENTLY and rotate it until you feel it drop into place and then push to snap into place. (When in place, the spool will turn a few degrees left and right freely).7. Take care to keep the line from becoming trapped under the spool.8. Fit the spool onto the appliance as described in Replacing Spool Assembly.Fig.I

WARNING: The use of any accessory

not recommended by CRAFTSMAN for use with this appliance could behazardous.

or any accessory or attachment other than those recommended by CRAFTSMAN on this trimmer/edger. Serious injury or product damage mayresult.Reload nylon line (either bulk or prewound replacement spool) as shown in this manual.USE ONLY .080" (2 mm) DIAMETER TWISTED NYLON MONOFILAMENT LINE. Do not use serrated or heavier gauge line, as they will overload the motor and cause overheating. This line is available at your local dealer or authorized servicecenter.1. Remove battery from appliance.2. Press the release tabs on the spool cap , and remove the spool cap from the spool housing

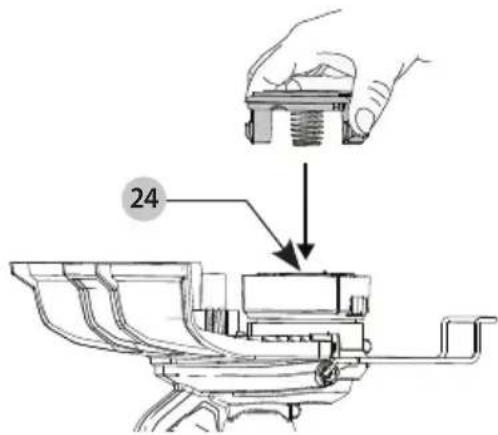

3. For best results, replace spool with CRAFTSMAN Model # CMZST080.4. If lever in base of housing becomes dislodged, replace in correct position before inserting new spool intohousing.5. Remove any dirt and grass from the spool cap and spool housing.6. Unfasten the end of the cutting line and guide the line into the eyelet. 7. Take the new spool and push it onto the boss in the housing. Rotate the spool slightly until it is seated.8. The line should protrude approximately 5-3/8" (136mm) from the housing.9. Align the release tabs on the spool cap with the slots in the spool housing.10. Snap the spool cap back on by depressing release tabs and pressing into spoolhousing.11. Push the cap onto the housing until it snaps securely intoplace.Fig.J nOTE: Make sure that cover is fully positioned, listen for two audible clicks to ensure both release tabs are correctly located. Power the appliance on. In a few seconds or less you’ll hear the nylon line being cut automatically to the proper length.nOTE: Other replacement parts (guards, spool caps, etc.) are available through authorized service centers. To find your local service location call: 1-888-331-4569 or visit www.craftsman.com. Rewinding Spool from Bulk Line (Fig. A, K, L) Use Only .080" (2 mm) TWISTED Diameter Line Bulk line is also available for purchase from your localretailer.11 English Versatrack™ (Fig. M)

WARNING: To reduce the risk of

serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury.

WARNING: To reduce the risk of serious

personal injury, do not use a damaged Versatrack™ integral hang hook or Versatrack™ Trackwall. A damaged Versatrack™ integral hang hook or Versatrack™ Trackwall will not support the weight of the tool.

WARNING: To reduce the risk of serious

personal injury, DO NOT suspend tool overhead or suspend objects from the integral hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the integral hang hook.

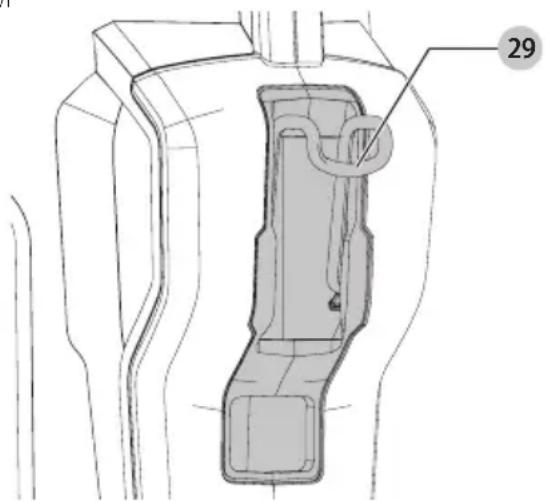

WARNING: The Versatrack™ integral

hang hook is intended to mount the tool onto a Versatrack™ Trackwall rail. Do not use the integral hang hook to mount the tool to any other surface.

WARNING: The Versatrack™ integral

hang hook is not a belt hook.

WARNING: When hanging objects on a

Versatrack™ Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.

WARNING: Before using the tool make

sure that the Versatrack™ integral hang hook is returned to its original positioniMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwallsystem.1. Turn tool off, remove the battery pack and removeaccessories.

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on theVersatrack™ Trackwall.2. Flip or pull open the integral hang hook . It clicks when locked into position.could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct.Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569. MAINTENANCE

WARNING: To reduce the risk of

serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories, when replacing line, or prior to cleaning. An accidental start-up can causeinjury. nOTE: Hand wound spools from bulk line are likely to become tangled more frequently than CRAFTSMAN factory wound spools. For best results, factory wound spools are recommended.1. Remove battery from appliance.2. Remove the empty spool from the appliance as described in Replacing Spool Assembly.3. Remove any remaining cutting line from the spool.4. Make a fold at the end of the cutting line at about 3/4" (19 mm) . Feed the cutting line into one of the line anchoring slots

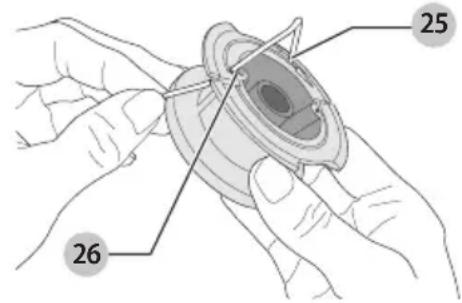

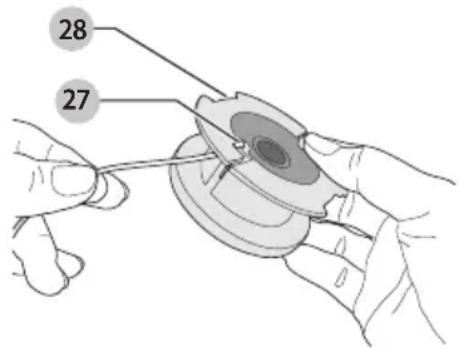

5. Insert the 3/4" (19 mm) end of the bulk line into the hole

in the spool adjacent to the slot. Make sure the line is pulled tight against the spool.6. Wind the cutting line onto the spool in the direction of the arrow on the spool. Make sure to wind the line on neatly and in layers. Do not crisscross.7. When the wound cutting line reaches the recesses cut the line.8. Fit the spool onto the appliance as described in Replacing Spool Assembly.Fig.K

WARNING: Since accessories, other than

those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this toolENGLISH

Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces. 2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS CMCB201, CMCB2011

3 YEARS FREE SERVICE ON CRAFTSMAN BATTERY

PACKS CMCB202, CMCB204 NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questionsasked. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a freereplacement. registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct. Register online at www.craftsman.com/registration Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your Repairs The charger and battery pack are notserviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product

SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts. Cleaning

WARNING: Blow dirt and dust out

of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthisprocedure.

WARNING: Never use solvents or other

harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.

3. Mount the integral hang hook to the

Versatrack™Trackwall. NOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569. Fig.M 29FRAnçAis

• Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
