USER MANUAL Kixx Joie

Line drawing of a mechanical device with a hand interacting with it, no text or symbols present

2 CLICK

Illustration of a two-wheeled toy car with wheels and a close-up inset showing the side view (no text or symbols)

8 1 2

3 CLICK

4 1 2

Line drawing of a person wearing a seatbelt with straps, no text or symbols present

Line drawing of a car seatbelt device with no text or symbols

5 CLICK

6 CLICK

11

12 1 2 2 1

Line drawing of a stroller with wheels and a numbered label (13) in the top-left corner.

14 2 1

Illustration of a person using a backpack to adjust the seat (no text or symbols present)

Illustration of a hand placing a red object into a seatbelt (no text or symbols)

Illustration of a hand placing a lock on a mechanical bracket (no text or symbols)

16 1 2 3 CLICK

20 1 3 2

21 2 1

17 A B 1 2 3

3 CLICK

22

Illustration of a hand using a tool to adjust a stroller (no text or symbols present)

Illustration of a hand using a tool to lift a motor stroller (no text or symbols visible)

Technical line drawing of a mechanical device with an arrow indicating rotation (no text or symbols)

Line drawing of a four-wheeled baby stroller with wheels, no text or symbols present

29 NOISE

26 ↑ 1 ↓ 2

27 1 2

Accessories (May not be included in purchase)

Accessories may be sold separately or may not be available depending on region. 30 31

Line drawing of a baby stroller with wheels and seat, no text or symbols present

Line drawing of a baby stroller with wheels and a numbered label (33) in the corner, no text or symbols on the device itself.

Line drawing of a stroller with wheels and red arrows indicating motion or force (no text or symbols)

Line drawing of a stroller with wheels and seat, no text or symbols present

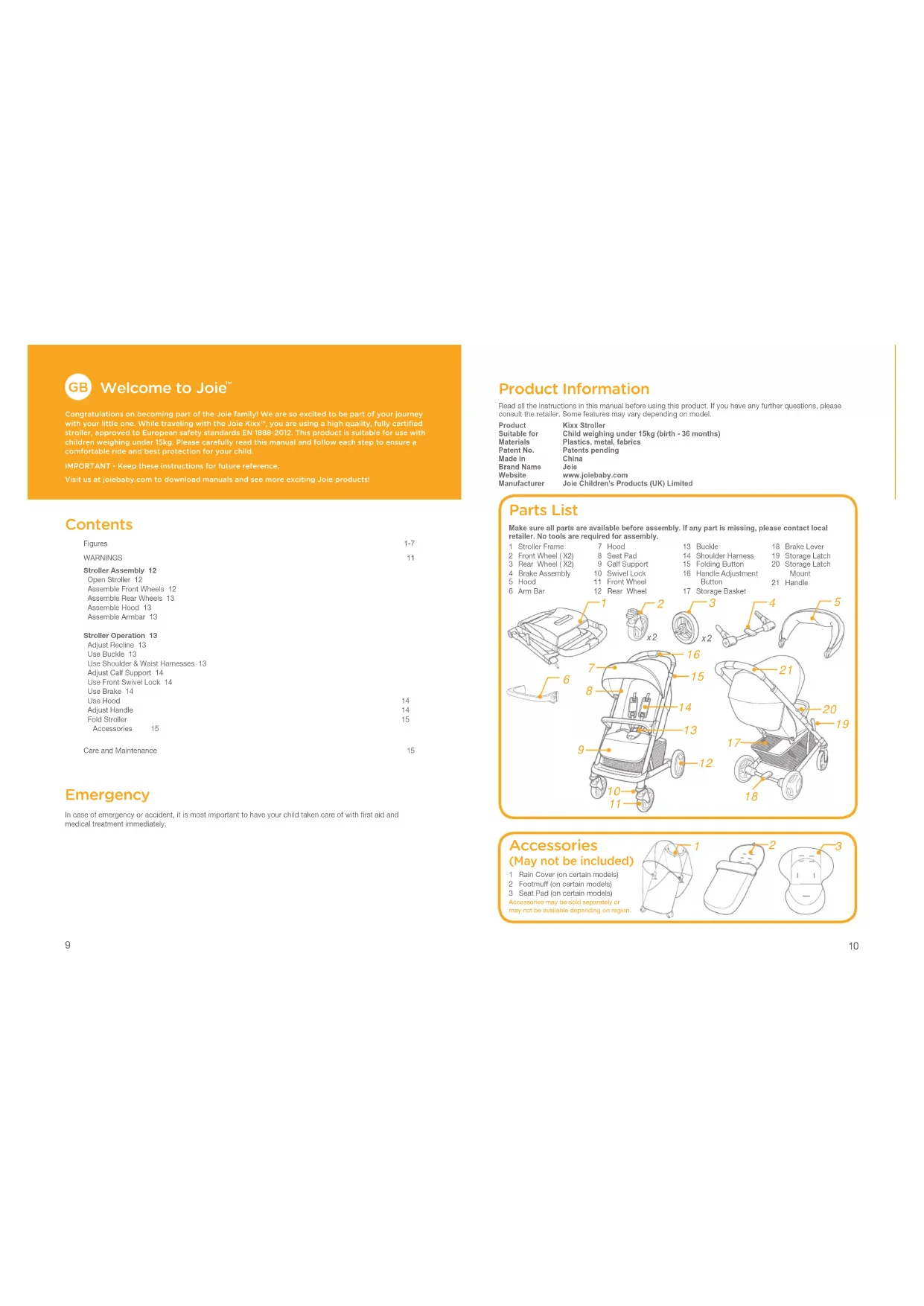

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie Kixx™, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2012. This product is suitable for use with children weighing under 15kg. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - Keep these instructions for future reference.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

Contents

Figures	1-7
WARNINGS	11
Stroller Assembly 12
Open Stroller 12
Assemble Front Wheels 12
Assemble Rear Wheels 13
Assemble Hood 13
Assemble Armbar 13

Stroller Operation 13

Adjust Recline 13

Use Buckle 13

Use Shoulder & Waist Hamesses 13

Adjust Calf Support 14

Use Front Swivel Lock 14

Use Brake 14

Use Hood

Adjust Handle

Fold Stroller

Accessories 15

Care and Maintenance 15

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product Kixx Stroller

Suitable for Child weighing under 15kg (birth - 36 months)

Materials Plastics, metal, fabrics

Patent No. Patents pending

Made in China Brand Name: Inis

Brand Name Jolie Website www.iojiebaby.com

Manufacturer Joie Children's Products (UK) Limited

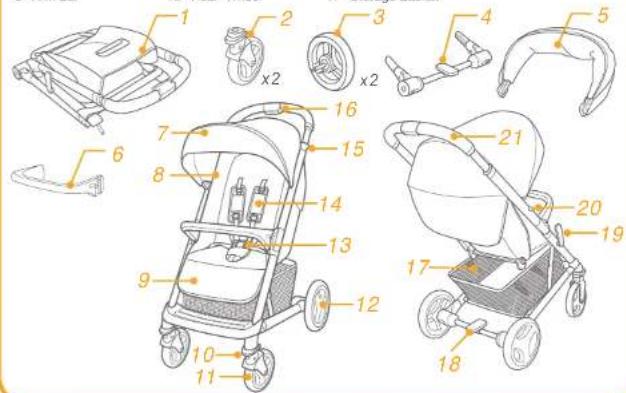

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame

2 Front Wheel (X2)

3 Rear Wheel (X2)

4 Brake Assembly

5 Hood

6 Arm Bar

7 Hood

8 Seat Pad

9 Calf Support

10 Swivel Lock

11 Front Wheel

12 Rear Wheel

13 Buckle

14 Shoulder Harness

15 Folding Button 20 Storage Latch

16 Handle Adjustment Mount

Button 21 Handle

17 Storage Basket

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Accessories

(May not be included)

1 Rain Cover (on certain models)

2 Footmuff (on certain models)

3 Seat Pad (on certain models)

Accessories may be sold separately or

may not be available depending on region.

Technical diagram showing three views of a bag with numbered labels 1, 2, and 3 indicating different components or features.

WARNING

! WARNING Always use the crotch combination with the waist belt. It is suggested that the shoulder harnesses be used as well.
! WARNING Ensure that all the locking devices are engaged before use.
! WARNING Do not let your child play with this product.
! WARNING Check that the pram body or seat unit attachment devices are correctly engaged before use.
! Adult assembly required.
! Use the stroller with a child weighing less than 15kg. It will cause damage to the stroller with an unfitted child.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave child unattended. Always keep child in view while in stroller.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or hood.
! Overloading, folding incorrectly, or using component parents from other manufacturers may cause the stroller to be damaged, broken or unsafe. Please read the instruction manual carefully.
! Never use it along with component parts from other manufacturers.
! Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
! Safety belts and restraint systems must be used correctly.
! To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child's body is clear from the moving parts when adjusting the stroller.
! Child may slip into leg openings and be strangled if the harness is not used.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
! Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.
! Never place the stroller on roads, slopes or dangerous areas.
! Do make sure all mechanisms are fixed before using the stroller.
! To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
! To prevent tipping DO NOT put anything on the handle.
! DO NOT lift stroller while child is in stroller.
! DO NOT use storage basket as a child carrier.
! To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.

! To avoid finger entrapment, use care when folding and unfolding the stroller.
! To avoid injury ensure that your child is kept away when folding and unfolding this product.
! To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
! To avoid strangulation, do make sure your child is clear from the hood.
! Always engage the brakes when parking the stroller.
! Discontinue using stroller if it is damaged or broken.
! Stroller to be used only at walking speed. This product is not intended for use while jogging.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing children.
! For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

Stroller Assembly

Please read all the instructions in this manual before assembling and using this product.

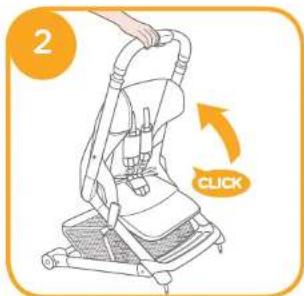

Open Stroller

Separate storage latch from storage mount ① , and then lift the handle upwards ② , a click sound means the stroller is open completely.
! Check that the stroller is completely open before continuing.

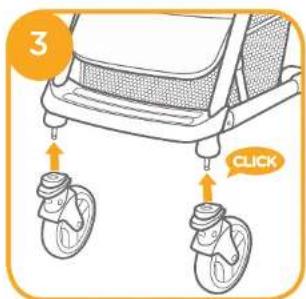

Assemble Front Wheels

Assemble front wheels to front legs. Check that wheels are securely attached by pulling on wheel assemblies.

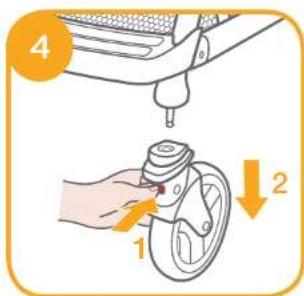

To disassemble front wheel, detach front wheel from front leg 4 -2 while pressing the release button. 4 -1

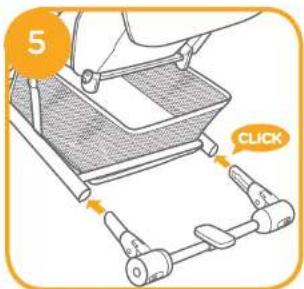

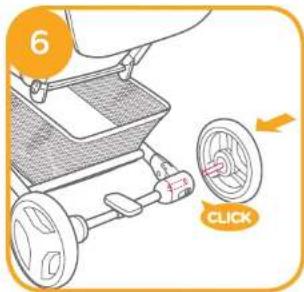

Assemble Rear Wheels

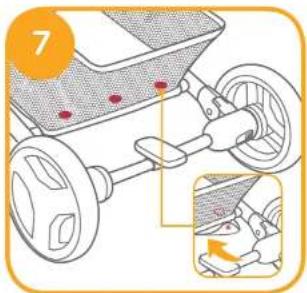

Assemble brake assembly to rear legs ①, assemble rear wheels to brake assembly ②. Wrap the connecting tube of rear legs with the flap of the storage basket, and then snap the three snap buttons ③.

Check that wheels are securely attached by pulling on wheel assemblies.

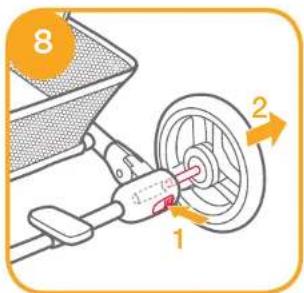

To disassemble rear wheel, detach rear wheel from rear wheel mount -2 while pressing the release button. -1

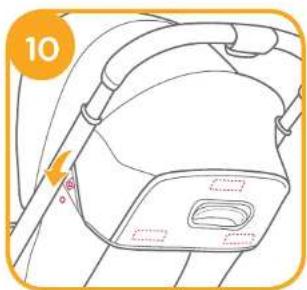

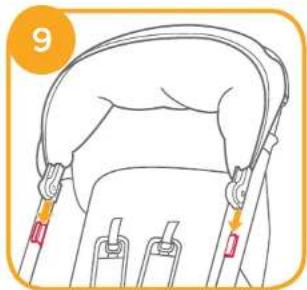

Assemble Hood

Align the Clips of the hood with the mounts on the tubes, and then slide to assemble the hood.

Please snap the 3 hook and loop fasteners on canopy rear retention and the snaps both sides.

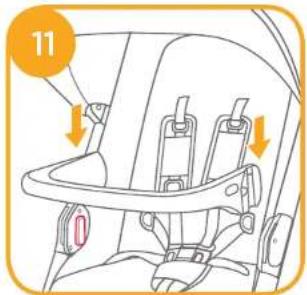

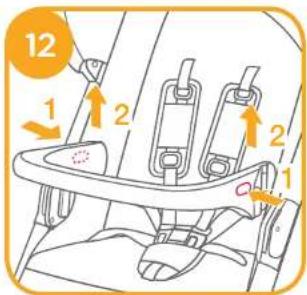

Assemble Armbar

Align the armbar slots with the armbar mounts, and then insert to lock. 11

To disassemble armbar, press armbar release button - 1, and then pull up the armbar. - 2

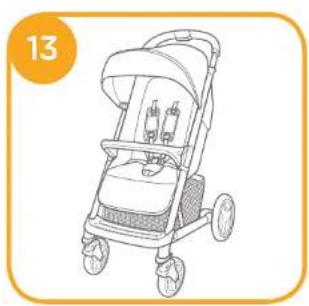

The completely assembled stroller is shown as

Stroller Operation

Adjust Recline

There are 4 angles for the backrest.

To recline the backrest, squeeze the recline handle on the back of the seat 14 - 1, pull down on the backrest. 16 - 2

To raise the backrest, push up.

| Make sure the recline is set properly for use,

Use Buckle

Release Buckle

Press the center button to release the buckle.

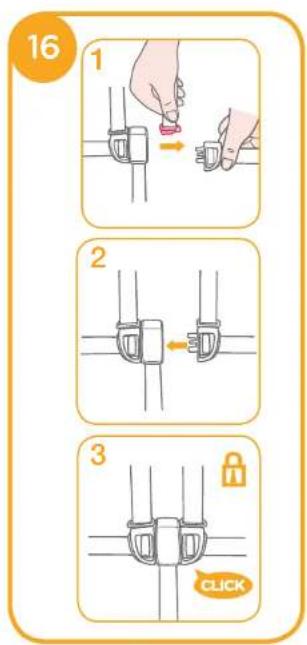

Lock Buckle

Match the waist belt buckle with the shoulder buckle 15 - 1, and click into the center buckle. 16 - 2 A "click" sound means the buckle is looked completely. 17 - 3

! To avoid serious injury from falling or sliding out, always secure your child with harness.

Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.

Do not cross the shoulder belts. This will cause pressure on child's neck.

Use Shoulder & Waist Harnesses

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

⑰ - 1 Shoulder harness anchor A

⑰ -2 Shoulder harness anchor B

7 - 3 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

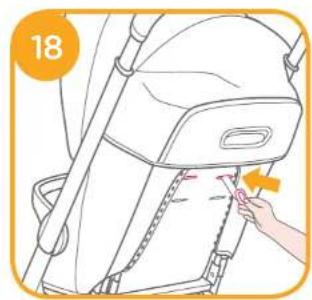

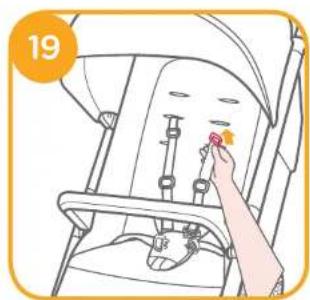

To adjust the position of the shoulder harness anchor, open the zipper of seat back, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. ① Retread it through the slot that is closest to child's shoulder height.

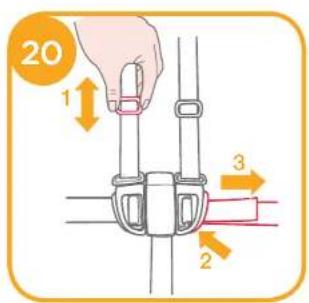

Use slide adjuster to change the harness length. 20 - 1

Press the button ☑ - 2, while pulling the waist harness to proper length. ☐ - 3

Adjust Calf Support

The calf support has 2 positions.

Raise Calf Support

To raise the calf support, just push it upwards.

Lower Calf Support

Press the adjustment buttons on both sides of the calf support Ⓐ - 1, and rotate the calf support downwards. Ⓡ - 2

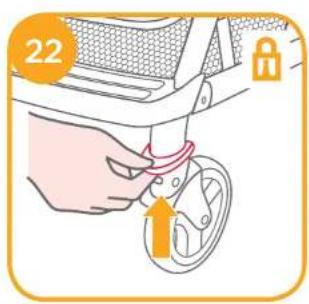

Use Front Swivel Lock

Push up the front swivel locks to maintain the moving direction. 22

Tip It is recommended to use swivel locks on uneven surfaces.

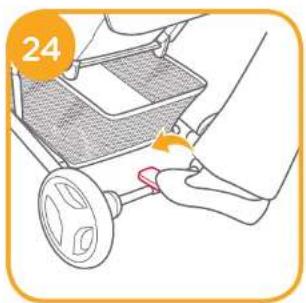

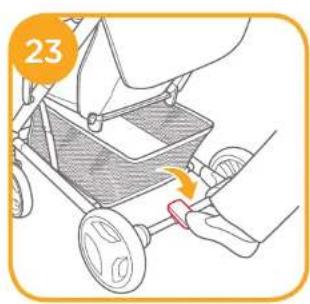

Use Brake

To lock wheels, step the brake lever downwards.

To release wheels, step the brake lever forwards.

Tip Always apply brake when stroller is in stopped position.

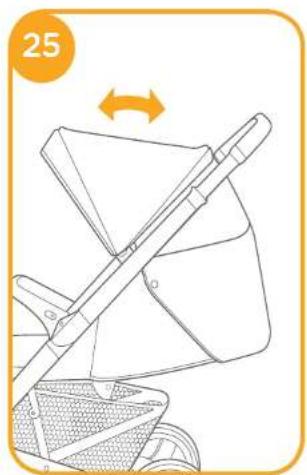

Use Hood

To open the canopy, pull canopy toward front.

To fold the canopy, pull canopy toward back.

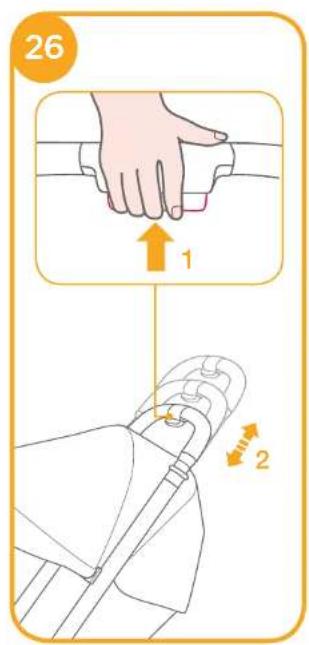

Adjust Handle

The handle has 3 positions.

To adjust the height of the handle, pull the handle upward or downward 25 - 2 while pressing the handle adjustment button. 28 - 1

Fold Stroller

Please fold the hood before folding the stroller.

Push the stroller forward to fold 27 - 2 while lifting both of the folding buttons. 27 - 1

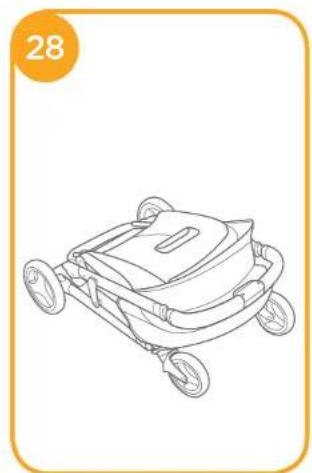

The completely fold stroller is shown as 20.

Accessories

Accessories may be sold separately or may not be available depending on region.

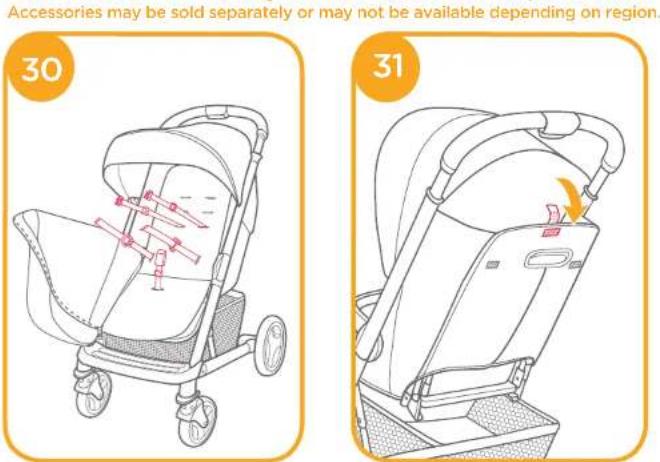

Use Footmuff

The soft footmuff can provide your child with a warm and comfortable environment.

Assemble the footmuff by following these steps.

1. Place the footmuff over the seat after unziping it, thread the shoulder harnesses, waist harnesses and crotch harness through respective slots.

2. Thread loop fastener on the top of the footmuff through the backrest, and then stick it to the hook fastener.

3. Place baby into the footmuff, lock the safety buckle, and then rezip the footmuff.

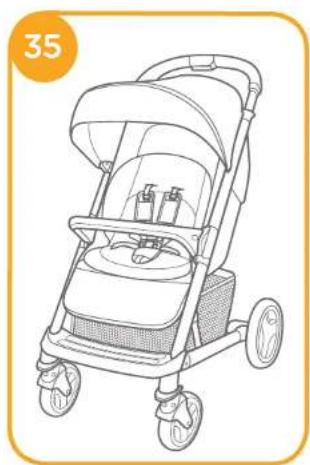

The assembled footmuff is shown as

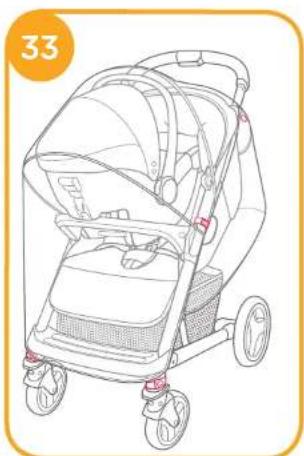

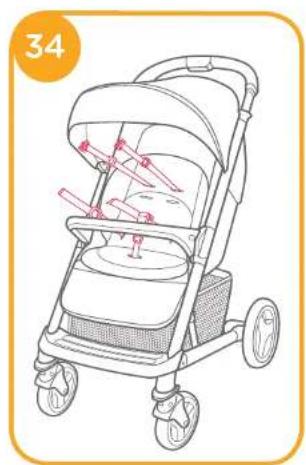

Use Rain Cover

To assemble the rain cover, place it over the stroller, and then attach the 7 pairs of hook and loop fasteners

onto the stroller frame shown in the above pictures.

Before using the rain cover, please make sure the backrest has been adjusted to the lowest position and the infant car seat has been fastened.

Please always check the ventilation, when the rain cover is on the stroller.

When not in use, please check that the rain cover has been cleaned and dried before it is folded.

Do not fold the stroller before the rain cover is removed.

! Do not place your child into the stroller assembled with rain cover during hot weather.

Use Seat Pad

see images 📄 - 📄

Care and Maintenance

! Removable seat pad may be washed in cold water and drip-dried. No bleach.
! To clean stroller frame, use only household soap and warm water. No bleach or detergent.
From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.
Excessive exposure to sun or heat could cause fading or warping of parts.
If stroller becomes wet, open hood and allow to dry thoroughly before storing.

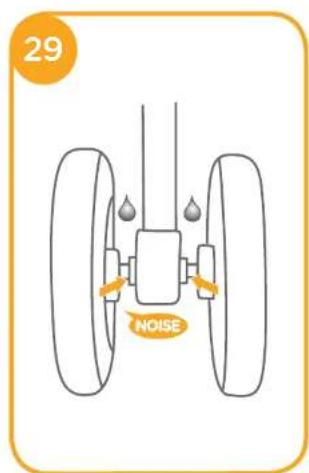

If wheels squeak, use a light oil (e.g., Silicon Spray, antitrust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.
When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Bem-vindo a Joie™

JolieChildren's Product (UK) Limited

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Diagram showing three views of a bag with numbered labels indicating different anatomical or structural features.

AVISOS

Productor JoieChildren's Product (UK) Limited

Lista de piezas

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Fabricant JolieChildren's Product (UK) Limited

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Diagram showing three labeled views of a bag with numbered annotations indicating different views.

MISES EN GARDE

Hersteller Joie Children's Product (UK) Limited

Teileliste

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Technical diagram showing three views of a mechanical component with numbered labels 1, 2, and 3.

WARNUNGSHINWEISE

Fabrikant JolieChildren's Product (UK) Limited

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Diagram showing three stages of a bag with labeled parts, likely illustrating a clothing or sewing process.

AANWIJZINGEN

Technical diagram of a stroller with numbered parts and labeled cross-sectional views

Technical diagram showing three labeled views of a mechanical component with numbered annotations

AVVERTENZE

JoleChildren's Product (UK) Limited

Parca listesi

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Diagram showing three stages of a baby bottle with labeled parts 1, 2, and 3

UYARILAR

Jolie www.jiebabv.com

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

1 2 3 (رِبْمَا تَكُونَ قَير مَرَفَة) 1 (نَطَاء الْرَاقِيُ منِ المُّطَ (مَصْحَسِمِ مِجْ طُرَارِاتِ مَعِيَةِ) 2 (حَيَّةٍ لِكَتَفَةِ الْأَمْلَّقِ) (مُحْسَّةٍ مُجْ رَلَاتِ مَعِيَةِ) 3 (رِمَادَةِ المُقْدٌ (مُحْسَّةٍ مُجْ طُرَارِاتِ مَعِيَةِ)

تحذير
