USER MANUAL Steadi Joie

0+/1 (0–18kg) child seat steadi GB Instruction Manual ES Manual de Instrucciones DE Anleitung IT Manuale di Istruzioni PT Manual de Instruções FR Manuel d'instructions NL Instructiehandleiding3 Congratulations You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of children weighing UNDER 18 kg (approximately 4 years old or under). Carefully read this Instruction Manual and follow the installing steps because this is the ONLY way to protect your child from serious injury or death in case of an accident, and to provide comfort to your child while using this product. Keep this instruction manual for future reference. For warranty information, please visit our website at joiebaby.com Please Confirm Make sure that your vehicle is equipped with 3-point retractor safety-belt. Seat belts may be different in design and length according to maker, manufacturing date, and type of the vehicle. This child restraint is only suitable for use in the listed vehicles fitted with 3-point retractor safety-belts, approved to UN ECE No. 16 or other equivalent stan- dards. ! Please keep the instruction manual in the storage com- partment of the rear cover for future reference.

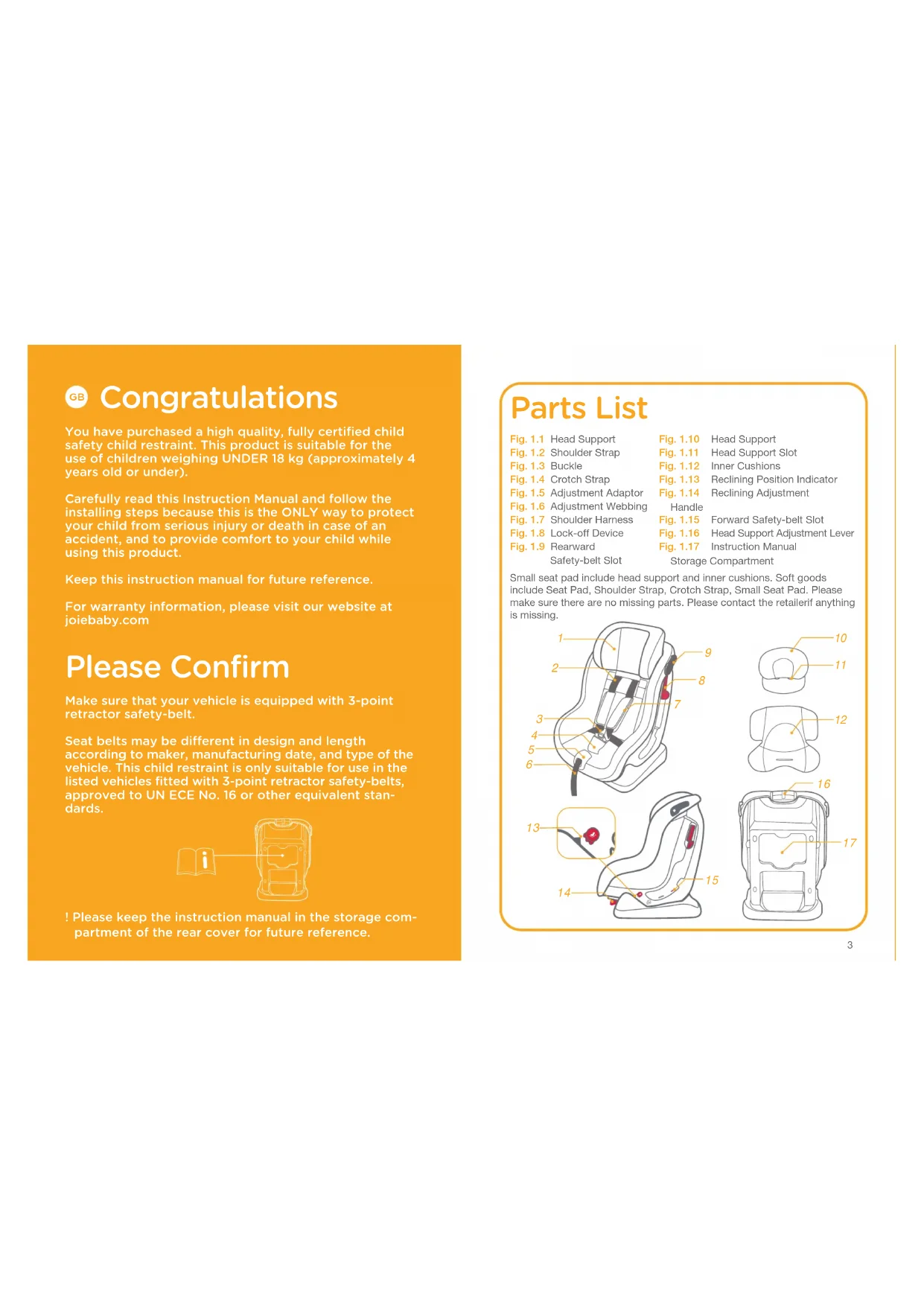

Parts List Small seat pad include head support and inner cushions. Soft goods include Seat Pad, Shoulder Strap, Crotch Strap, Small Seat Pad. Please make sure there are no missing parts. Please contact the retailerif anything is missing. Fig. 1.1 Head Support Fig. 1.2 Shoulder Strap Fig. 1.3 Buckle Fig. 1.4 Crotch Strap Fig. 1.5 Adjustment Adaptor Fig. 1.6 Adjustment Webbing Fig. 1.7 Shoulder Harness Fig. 1.8 Lock-off Device Fig. 1.9 Rearward Safety-belt Slot Fig. 1.10 Head Support Fig. 1.11 Head Support Slot Fig. 1.12 Inner Cushions Fig. 1.13 Reclining Position Indicator Fig. 1.14 Reclining Adjustment Handle Fig. 1.15 Forward Safety-belt Slot Fig. 1.16 Head Support Adjustment Lever Fig. 1.17 Instruction Manual Storage Compartment

NO child restraint can guarantee full protection from injury in an accident. However, proper use of this child restraint will reduce the risk of serious injury or death to your child.

This child restraint is designed ONLY for child weighing under 18kg (approximately 4 years old or under).

DO NOT use forward facing mode before the child's weight exceeds 9kg.

DO NOT use or install this child restraint until you read and under- stand the instructions in this manual and in your vehicle owner's manual.

DO NOT install or use this child restraint without following the instruc- tions and warnings in this manual or you may put your child in serious risk of injury or death.

DO NOT make any modification to this child restraint or use it along with component parts from other manufacturers.

DO NOT use this child restraint if it has damaged or missing parts.

After your child is placed in this child restraint, the safety belt must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged.

DO NOT leave this child restraint unbelted or unsecured in your vehicle because unsecured child restraint can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision. Remove it if not in regular use.

NEVER leave your child unattended with this child restraint at all times.

DO NOT place this child restraint in seating positions where an active frontal airbag is installed if your child is still in rear facing mode.

NEVER use a second-hand child restraint or a child restraint whose history you do not know because they may have structural damage that endangers your child's safety.

NEVER use ropes or any other substitutes in place of seat belts in case of injuries from restraint.

DO NOT use this child restraint as a regular chair as it tends to fall down and injure the child.

DO NOT have your child in unfitted clothes because this may prevent your child from being properly and securely fastened by the shoulder harnesses and the harnesses between thighs.

Please keep this child restraint away from sunlight, otherwise it may be too hot for the child's skin.

The child restraint shall not be used without the soft goods.

The soft goods should not be replaced with any besides the ones recommended by the manufacturer, because the soft goods constitute an integral part of the child restraint performance.

DO NOT put anything other than the recommended inner cushions in this child restraint.

DO NOT put unsecured items in the vehicle because they can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision.

Make sure that no part of the child restraint become trapped by a movable seat or in a door of the vehicle.

DO NOT continue to use this child restraint after it has suffered any violent crash. Replace immediately as there may be invisible structural damage from the crash.

Remove this child restraint from the vehical seat when it is not in use.

Consult the retailer for issues concerning maintenance, repair and part replacement.

DO NOT use any load bearing contact points other than those described in the instructions and marked in the child restraint.

DO NOT install this child restraint under the following conditions:

1. Vehicle seats with 2-point safety belts.

2. Vehicle seats facing sideward or rearward with respect to the

running direction of the vehicle.

3. Vehicle seats unstable during installation.

Any straps holding the restraint to the vehicle should be tight, that any straps restraining the child should be adjusted to the child’s body, and that straps should not be twisted.

Please do not use this child restraint if the car seat has dropped from a significant height, hit the ground at a considerable speed, or has visible signs of damage. We are not responsible to replace if the child restraint has been damaged under these abnormal conditions. A new child restraint will need to be purchased when any of the aforementioned conditions occurs. WARNING WARNING3 4 Emergency In case of emergency or accidents, it is most important to have your child taken care of with first aids and medical treatment immediately. Product Information 1. This is a ‘Universal’ child restraint. It is approved to UN ECE regulation 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats.2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a ‘Universal’ child restraint for this age group.3. This child restraint has been classified as ‘Universal’ under more stringent conditions than those which applied to earlier designs which do not carry this notice.4. If in doubt, consult either the child restraint manufacturer or the retailer.Product Child restraintSuitable for Child weighing under 18kg Mass Group Group 0+/1Materials Plastics, metal, fabricsPatent No. Patents pending Choose the Installation Mode Important 1. DO NOT use forward facing mode before the child's weight exceeds 9kg. Child restraint in forward facing mode is dangerous for a child under 9kg.2. When the child is suitable for both forward and rearward facing modes, it is recommended to install this child restraint in the rearward facing mode as it is relatively safer. Concerns on Installation see images

Installation for Rearward Facing Mode (for Child under 18kg / New born - 4 years old) see images

Reference age New born - 4 years old Seat position Last position (with top blue artwork align with bottom reclining position indicator, as

Please install the child restraint on the vehicle seat, and then put the child in the child restraint.

i. Proper Position of the

Shoulder Harnesses Please adjust the head support and shoulder harnesses to proper height according to the child's height.

The shoulder harness slots should be slightly below the infant's shoulder. Shoulder harnesses too high or too low are not safe.

If the shoulder harnesses are not at proper height, the infant may be thrown from the child restraint when there is an accident.

ii. Use of Small Seat Pad

adjuster, pull out the shoulder harness straps to proper length.

2. Press the red button to disengage the

-1, and then place the infant body support in the child restraint.

3. Engage the buckle until it clicks.

4. Pull the adjustment webbing tight.

1. Small seat pad include head support and inner cushions.

2. Head support is suitable for child in all installation modes.

3. Small seat pad is for child's protection. Child weighing under 9kg must

4. After removing the foam from the small seat pad, please store it in a

place where the child cannot access it.

5. Before using the small seat pad, please assemble the foam.

While pulling up the webbing adjuster, pull out the shoulder harnesses to proper length.

iii. Rearward Reclining

Angle Adjustment see images

While pushing the reclining adjust-ment handle

-1, pull the child restraint from the first position to the last position.

Angle indication: with top blue artwork align with bottom reclining position indicator, as

Installation see images

The child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the child restraint securely.

1. Make sure the shoulder harness is adjusted to proper height before installing this child restraint. 2. First adjust the angle of the child restraint to the last position. Angle indication: with top blue artwork align with bottom reclining position indicator, as 3. When installing and adjusting the safety belts, make sure that both the shoulder belt and the waist belt are not twisted and will not stop the safety belts from functioning properly. Note

1. Fasten the belts in the a rearward blue safety-belt slots at the back of the body.

Shoulder belt must pass through the rearward safety-belt slot.2. Open the lock-off device and insert the safety belt through it.

3. While pressing the child restraint, pull the belts to fasten the child restraint tightly and securely.

Please check by moving the child restraint back and forth. Shoulder belt passes through the rearward safety-belt slots, as

Shoulder belt passes through Lock-off Device, confirm the Lock-off Device is pushed down, as

1. Small seat pad is for child's protection. Child weighing under 9kg must

2. Please install the child restraint on the vehicle seat, and then put the

child in the child restraint.

3. After the child is placed into the seat, check whether the shoulder

harnesses are at proper height. Note

1. Pull up the webbing adjuster,

while pulling out the shoulder harnesses to the proper length.

2. Place the child in the child

restraint and pass both arms through the harnesses.

3. Pull down the adjustment webbing

and adjust it to the proper length to make sure your child is snugly secured.

Make sure the space between the child and the shoulder harness is about the thickness of one hand.

v. Securing your Child in the child restraint

Installation for Forward Forward Facing Mode (for Child between 9-18kg / 1 - 4 years old) see images

Reference age 1 - 4 years old Seat position Position 1 - 3 (with top red artwork align with bottom reclining position indicator, as

Please install the child restraint on the vehicle seat, and then put the child in the child restraint.

i. Forward Reclining

Angle Adjustment see images

ii. Proper Position of the

Shoulder Harnesses Please adjust the head support and shoulder harnesses to proper height according to the child's height.

Installation see images

The child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the child restraint securely.

1. Please adjust the shoulder harnesses to proper height (slightly above the child's shoulder) before installing the child restraint.2. Please adjust the child restraint to proper angle (3 positions for forward facing mode). Angle indication: with top red artwork align with bottom reclining position indicator, as 3. When installing and adjusting the safety belts, make sure that both the shoulder belt and the waist belt are not twisted and will not keep the safety belts from being properly positioned. Note

While pressing the child restraint, pull the belts to fasten the child restraint tightly and securely.

Please check by moving the child restraint back and forth. Shoulder belt passes through Lock-off Device, confirm the Lock-off Device is pushed down, as

The vehicle buckle tongue is engaged with the buckle correctly, as

iv. Securing your Child in

the child restraint see images

1. When installing the child restraint in the forward facing mode, DO NOT use the small seat pad.2. Please install the child restraint on the vehicle seat, and then put the child in the child restraint.3. After the child is placed into the child restraint, check whether the shoulder harnesses are at proper height. Note15 16

1. Loosen the shoulder belts by

activating the belt adjuster on the center and simultaneously pulling both shoulder belts upwards.

Open the belt buckle by pressing firmly on the red button.

-1. place the child in the seat and put the shoulder belts over the child's shoulder.

3. Bring both belt tongues together

and lock them into place in the belt buckle with an audible "CLICK".

4. Pull down the adjustment

webbing and adjust it to the proper length so that your child is snugly secured.

Make sure the space between the child and the shoulder harness is about the thickness of one hand. for Head Support and Shoulder Harnesses see images

1. Please adjust the head support

and shoulder harnesses to proper height according to the child's height.

2. Squeeze the head support

-1, meanwhile pull up or push down the head support until it snaps into one of the 6 positions. The head support positions are shown as

After removing the foam of small seat pad, please store it somewhere that the child can not access it.

Please wash the soft goods with cold water under 30°C.

Do not iron the soft goods.

Do not bleach or dry clean the soft goods.

Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the child restraint. It may cause damage to the child restraint.

Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.

Please hang dry the soft goods in the shade.

Please remove the child restraint from the vehicle seat if not in use for a long period of time. Put the child restraint in the shade and somewhere your child can not access it. Cautions Soft Goods Assembly see images

1. Place the seat pad on the body and

thread the buckle through the seat pad slot.

2. Wrap the buckle with the elastic on

the inside of the crotch strap.

3. Thread the adjustment webbing and

harnesses on both sides through the seat pad respectively.

4. Place the fastening pieces in top of seat pad into the two slots on the head

5. Place the fastening pieces on sides of the seat pad into the four slots on

both sides of the body.

6. Assemble 2 pairs of elastic straps on both sides of head support.

7. Put the small seat pad into the child restraint and engage the buckle.

The assembled soft goods are shown as

Frente consulte as imagens

7. Put the small seat pad into the child restraint and engage the buckle.

0+ (0–13kg) Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ
