USER MANUAL Traver Shield Joie

Line drawing of a car seat with adjustable seat, no text or symbols present

GB

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with Joie travel™ shield series high back booster you are using a high quality, fully certified safety Group 1/2/3 booster. This product is suitable for use with children weighing 9-36kg (approximately 9 months-12 years). Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

Please confirm

This booster is approved to UN ECE regulation 44, 04 series of amendments. This booster can be installed using a 3 point retractable adult seat belt approved to UN ECE regulation 16 or other equivalent standards.

Booster

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment at the bottom of the booster as right figure.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of a device with an open book and pointer, no text or symbols present

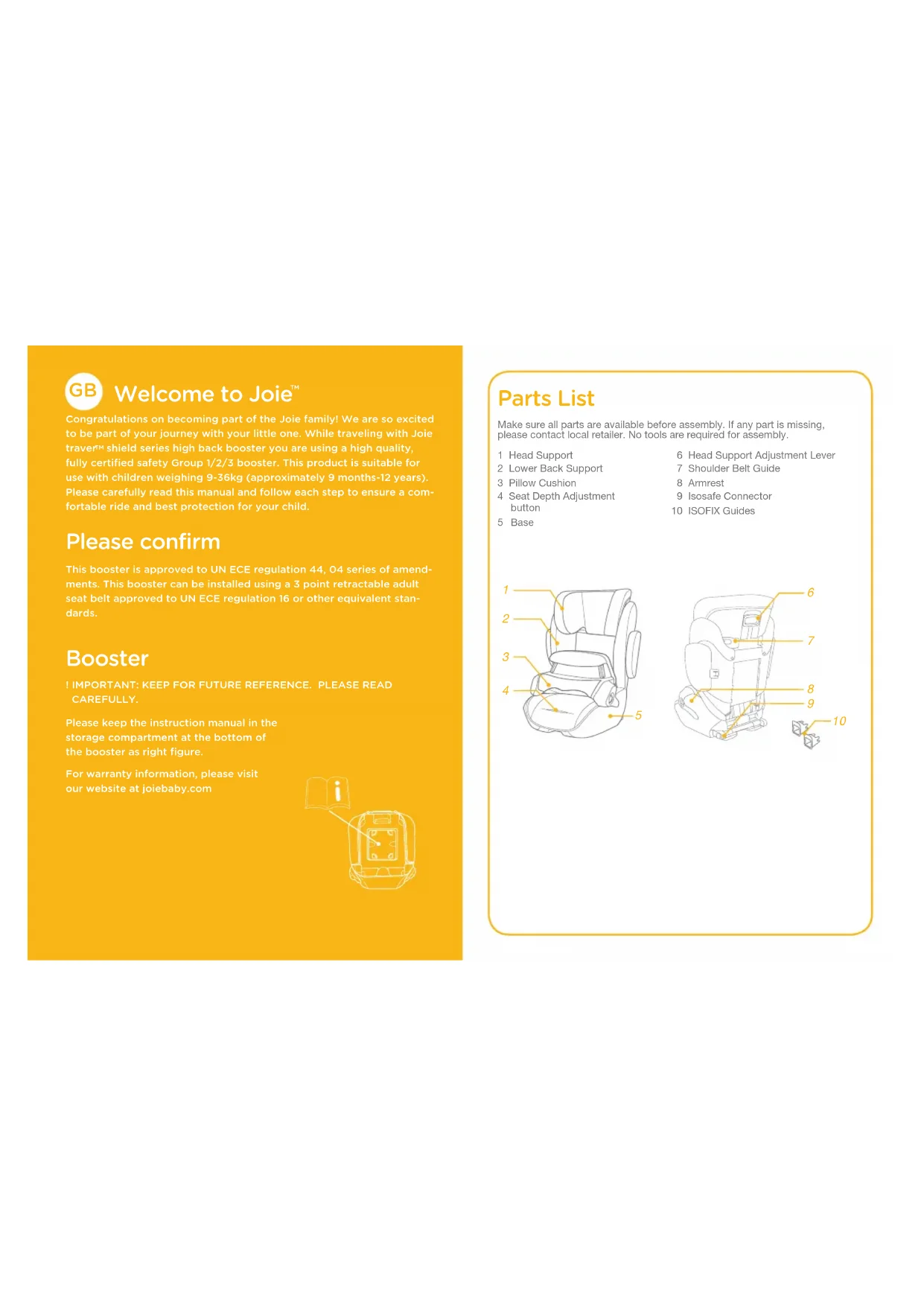

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Head Support

6 Head Support Adjustment Lever

2 Lower Back Support

7 Shoulder Belt Guide

3 Pillow Cushion

8 Armrest

4 Seat Depth Adjustment button

9 Isosafe Connector

5 Base

10 ISOFIX Guides

Diagram of a car seat with numbered labels pointing to different seat compartments

Technical diagram of a car seat assembly with numbered components labeled 6, 7, 8, 9, and 10.

WARNING

! Do take care to locate and install the booster so that it is not liable to become trapped by a move-able seat or in a door of the vehicle.
This booster is designed ONLY for child weighing 9-36kg (approximately 9 months-12 years or under).
! Any straps of vehicle seat should be tightened and not twisted.
Failure to properly use this booster increases the risk of serious injury or death in a sharp turn, sudden stop or crash.
DO NOT use another manufacturers soft goods with this booster. See your retailer for Joie replacement parts only.
! DO NOT use in any configuration not shown in the instructions.
! NEVER leave your child unattended.
! NEVER give this booster to someone else without also giving them this manual.
! DO NOT modify your booster or use any accessories or parts supplied by other manufacturers.
After your child is placed in this booster, the safety belt must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged.
Replace the booster after an accident of any kind. An accident can cause damage to the booster that you cannot see.

WARNING

! NEVER leave a booster unsecured in your vehicle. An unsecured booster can be thrown around and may injure occupants in a sharp turn, sudden stop or crash. Remove it or make sure that it is securely belted in the vehicle.
! NEVER leave luggage or other objects unsecured in a vehicle, they are liable to cause injuries in the event of a collision.
! NEVER use a booster if it has damaged or missing parts. DO NOT use a cut, frayed or damaged vehicle seat belt.
! The booster can become very hot if left in the sun. Contact with these parts can burn your child's skin. Always touch the surface of any metal or plastic parts before putting your child in the booster.
! NEVER use a second-hand booster or a booster whose history you do not know.
! DO NOT use this booster without the soft goods.
The soft goods should not be replaced with any besides the ones recommended by the manufacturer, because the soft goods constitute an integral part of the booster performance.
! DO NOT use any load bearing contact points other than those described in the instructions and marked on the booster.
! DO NOT face your booster toward the rear of the vehicle.

WARNING

! Please do not use this booster if the child restraint has dropped from a significant height, hit the ground at a considerable speed, or has visible signs of damage. We are not responsible to replace if the child restraint has been damaged under these abnormal conditions. A new child restraint will need to be purchased when any of the aforementioned conditions occurs.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. This booster can be installed in a semi-universal way by using the Isosafe system and a 3-point retractable adult seat belt approved to UN ECE regulation 16 or equivalent standards or in a universal way by using the before mentioned 3-point belt only. If in doubt, consult either the booster manufacturer or the retailer.

For Installation with 3-point-belt

1. This booster is a ‘Universal’ child restraint. It is approved to UN ECE regulation 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a ‘Universal’ child restraint for this age group.
3. This booster has been classified as 'Universal' under more stringent conditions than those which applied to earlier designs which do not carry this notice.

For Installation with Isosafe System and 3-point-belt

1. This booster is a ‘Semi-Universal’ child restraint. It is approved to UN ECE regulation 44, 04 series of amendments for general use in vehicles fitted with ISOFIX anchorages systems.
2. It will fit vehicles with positions approved as ISOFIX positions (as detailed in the vehicle handbook), depending on the category of the booster and of the fixture.
3. If in doubt, consult either the booster manufacturer or vehicle manufacturer.

Product Booster

Suitable for Child weighing 9-36kg (approximately 9 months – 12 years)

Mass Group Group 1/2/3

Booster Assembly

see images 1 - 2

Align the side impact shield with the slot of lower back support plastics mounts, and then insert to lock. 1 2

Diagram showing a person adjusting a seatbelt with labeled parts and an inset highlighting the measurement.

2 CLICK

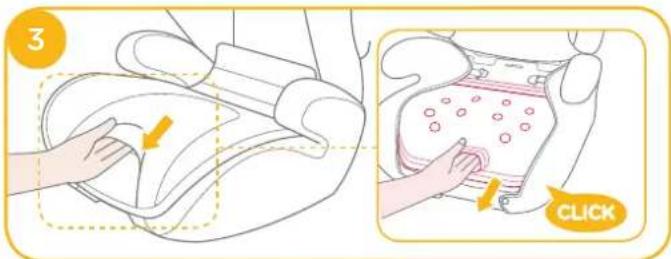

Adjust the seat

see images 3

3 CLICK

Adjust the Pillow Cushion

see images

4 1 C 1

Height Adjustment - for Head Support

see images 5

Illustration of a hand placing a small object into a chair seat (no text or symbols)

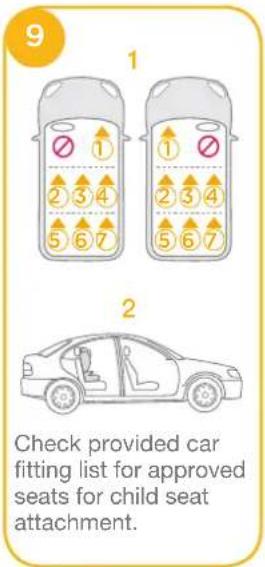

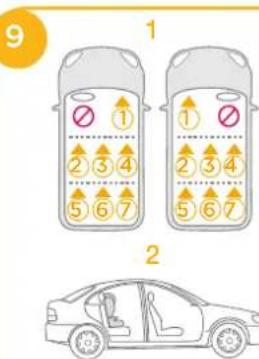

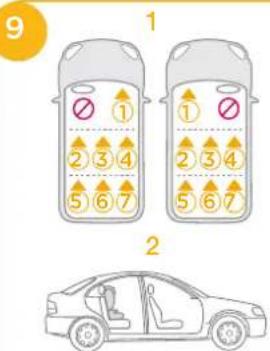

Concerns on Installation

see images 6 - 9

Interior view of a vehicle seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black strap and checkmark indicator (no text or symbols on the belt)

Interior view of a car seat with a checkmark indicating selection (no text or symbols on the seat itself)

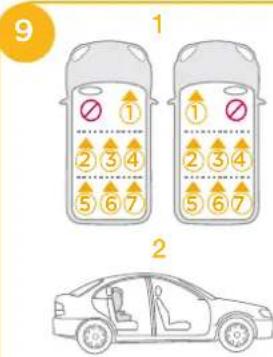

9 1 2 3 4 5 6 7 2 Check provided car fitting list for approved seats for child seat attachment.

Installation using ISOSAFE System and 3-point belt or using 3-point belt only

see images 10 - 23

If vehicle is equipped with ISOFIX, the vehicle lower anchor points may be visible at the vehicle seat crease. See your vehicle owner's manual for exact locations, anchor identification, and requirements for use.

1. Fit the ISOFIX guides with the ISOFIX anchor points. The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the Isosafe connectors.

10

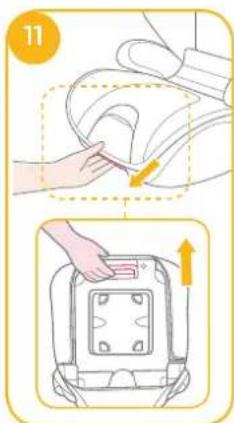

1. Press the Isosafe adjusting button to pull out the Isosafe connectors. 11

Rotate the Isosafe connectors 180 degrees until they are pointing in the direction of the ISOFIX guides.

11

12 1 2 1 2 1

1. Line up the Isosafe connectors with the ISOFIX anchor points, and then click both Isosafe connectors into the ISOFIX anchor points.

! Make sure that both Isosafe connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on the both Isosafe connectors should be completely green. 13-1

! Check to make sure the booster is securely installed by pulling on the both Isosafe connectors.

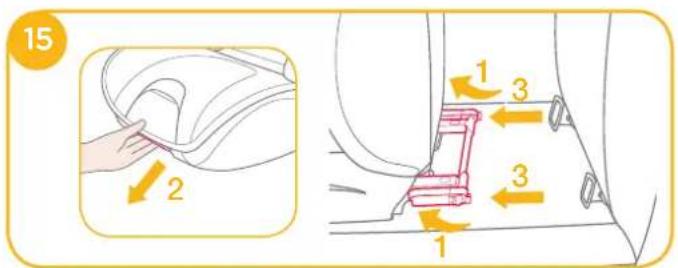

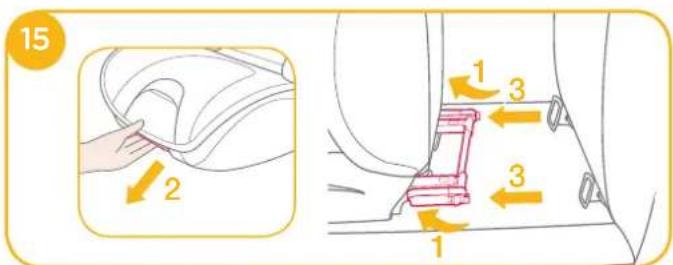

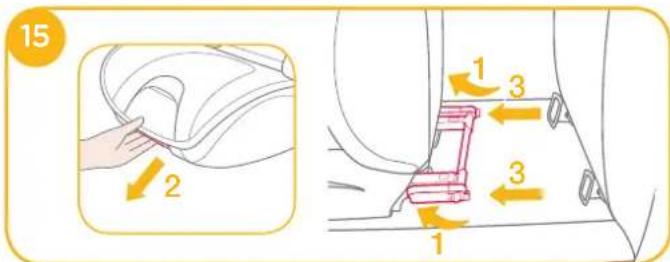

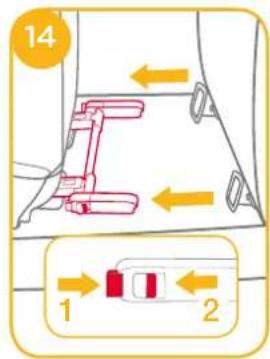

1. To remove the booster:

a. Press the secondary lock button 14 -1 first and then the button 14 -2 on the Isosafe connectors before removing the booster from the vehicle seat.

b. Rotate the Isosafe connectors by 180 degrees, then press the Isosafe adjusting button to fold the Isosafe connectors.

13 1 ✓ X CLICK

14 1 2

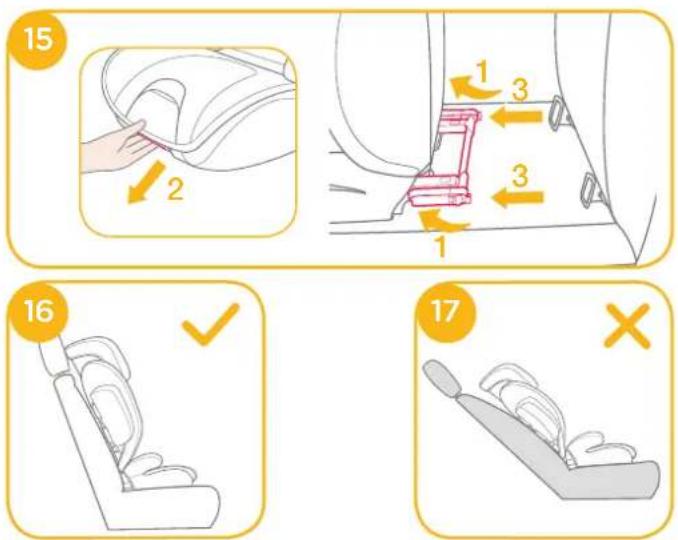

15 2 1 3 3 1

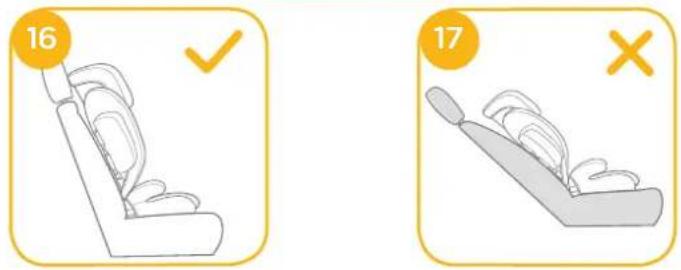

16 17

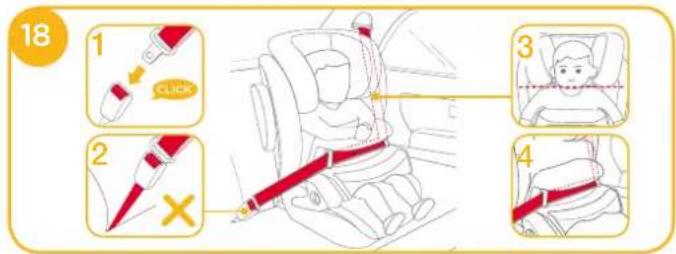

Use Pillow Cushion

(Forward Facing Mode/ for Child between 9-18kg / 9 months - 4 years old)

see images 18

! Pull the vehicle safety belt and pass through the belt path 18, and then buckle it up. 18 - 1
! The booster can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the booster securely. ^18 -2

! To ensure the correct head support height is obtained, the bottom of the headrest MUST be even with the top of child's shoulders as shown in 18-3
! Make sure that both lap belt and shoulder belt are always tightly fastened.
! When the pillow cushion is not used, please remove and store it properly.
! Belt must not be twisted.

18 1 CLICK 2 X 3 4

For Use Without Pillow Cushion

(Forward Facing Mode/ for Child between 15-36kg / 3-12 years old)

see images 19 - 23

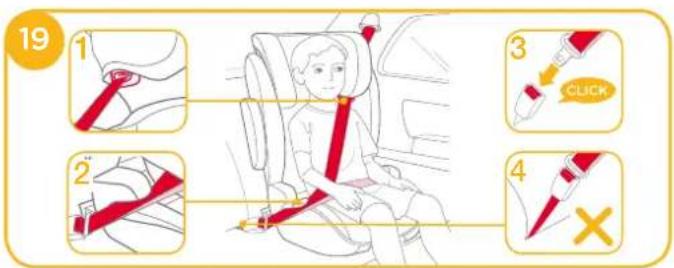

! Pull the vehicle safety belt and pass through the belt path 19, and then buckle it up. 19 -3

19 1 3 CLICK 2 4 ×

! Could also be installed by using 3-point belt only. (see images 19 - 23)
! Position shoulder belt through the shoulder belt guide shown in ⚙ -1
! DO NOT position vehicle belt over top of the armrests. It must pass underneath the armrests. 19-2
! The booster can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the booster securely. 19 -4
! After your child is placed in this booster, the safety belt must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged. 19

! To ensure the correct head support height is obtained, the bottom of the headrest MUST be even with the top of child's shoulders as shown in 20 and the shoulder belt must be positioned in the red zone as shown in 21
! Place a booster firmly against the back of a forward-facing vehicle seat equipped with a lap/shoulder belt.
! Have your child sit in a booster with their back flat against back of a booster.
! Fasten buckle and pull up on the shoulder belt to tighten. 22 (Wrong installation. 23)
! If the belt lays across child neck, head or face, readjust head support height.
! Belt must not be twisted.

20

Illustration of a child wearing a seatbelt being lifted by a hand, with a numbered label '21' in the top-left corner (no text or symbols on the diagram itself)

22

23 ×

Detach Soft Goods

see images 24 - 28

Illustration of a person using a device with a yellow arrow pointing to the device (no text or symbols)

Diagram of a car head with arrows indicating motion or movement, no text or symbols present

Diagram of a car front panel with no text or symbols, showing internal compartments and mounting points (no readable text or labels)

Illustration of a car seat with highlighted orange zones and yellow arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a car with a cloth, no text or symbols present

! After removing the wedge of insert, please store it somewhere that the child can not access it.

To refit the seat pad simply reverse the steps above.

Care and Maintenance

! Please wash the soft goods and inner padding with cold water under 30°C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
! Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the booster. It may cause damage to the booster.
! Do not twist the soft goods and inner padding to dry with great force. It may leave the soft goods and inner padding with wrinkles.
! Please hang dry the soft goods and inner padding in the shade.
! Please remove the booster from the vehicle seat if not in use for a long period of time. Put the booster in a cool, dry place and somewhere your child cannot access it.

Simple line drawing of a device with an open book and a grid, no text or symbols present

Lista de peças

Diagram of a car seat with numbered labels pointing to different sections

Technical diagram of a car seat assembly with numbered parts labeled 6, 7, 8, 9, and 10

ALERTA

Diagram showing a car seatbelt mechanism with labeled parts and a magnified inset of the handle technique.

2 CLICK

Ajuste o assento

ver imagens 3

3 CLICK

Illustration of a hand placing a small object into a chair seat, with an arrow indicating upward motion (no text or symbols)

Interior view of a vehicle seatbelt with no visible text or symbols

Interior view of a car seatbelt with a black strap and checkmark indicator (no text or symbols on the belt)

Interior view of a car seat with red location markers and a yellow checkmark (no text or symbols)

9 1 2 3 4 5 6 7 1 2 3 4 5 6 7 2

13 1 ✓ × CLICK

14 1 2

1 CLICK 2 X 3 4

Illustration of a child wearing a seatbelt being lifted by a hand, with no visible text or symbols

22

23 ×

Separar as partes macias

ver imagens 24 - 26

Illustration of a person using a device to press or install a seat, with no visible text or symbols.

Diagram of a car's seat with arrows indicating motion or movement, no text or symbols present

Diagram of a car interior frame with numbered label '26' (no text or symbols on diagram itself)

Line drawing of a car seat with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a car with a yellow arrow indicating motion (no text or symbols)

Simple line drawing of a device with a label and pointer, no text or symbols present

Lista de piezas

Diagram of a car seat with numbered labels pointing to different compartments

Technical diagram of a car seat assembly with numbered parts labeled 6 through 10

ADVERTENCIA

Illustration of a hand placing a pink object into a seat frame, with an arrow indicating upward motion (no text or symbols)

Interior view of a vehicle seatbelt with no visible text or symbols

Illustration of a car seatbelt buckle with a yellow checkmark indicating selection (no text or symbols)

Interior view of a car seat with a red location pin and a yellow checkmark (no text or symbols)

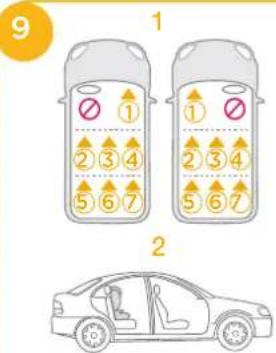

9 1 2 3 4 5 6 7 2 1 2 3 4 5 6 7 2

13 1 ✓ × 0 1 CLICK

14 1 2

15 2 1 3 3 1

Line drawing of a car seat with a circular badge showing number 16 and a checkmark (no text or symbols on the diagram itself)

Illustration of a banana tray with a handle and a cross mark, no text or symbols present

Illustration of a child wearing a seatbelt being lifted by a hand, with no text or symbols present.

22

23 ×

Illustration of a car seat with an arrow indicating upward motion (no text or symbols)

Top-down diagram of a car's front panel with no text or symbols

Illustration of a hand cleaning a car with a numbered label '28' (no text or symbols on the car itself)

Diagram of a car interior with directional arrows indicating movement or force (no text or symbols)

Diagram of a car seat assembly with highlighted internal components (no text or labels)

Line drawing of a vintage-style office lamp with a small object attached (no text or symbols)

Liste des pièces

Diagram of a car seat with numbered labels pointing to different seat compartments

Technical diagram of a car seat assembly with numbered components labeled 6, 7, 8, 9, and 10.

AVERTISSEMENT

Illustration of a hand placing a small red object into a chair frame (no text or symbols)

Interior view of a car seatbelt with no visible text or symbols

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Illustration of a car seatbelt buckle with a yellow checkmark indicating selection (no text or symbols on the belt)

9

1 2 3 4 5 6 7 2 3 4 5 6 7 2

13 1 ✓ × 0 1 CLICK

14 1 2

15 2 1 3 3 1

Line drawing of a car seat with a circular badge showing number 16 and a checkmark (no text or symbols on the diagram itself)

Illustration of a banana tray with a handle and a cross mark, no text or symbols present

Illustration of a child wearing a seatbelt being lifted by a hand, with no text or symbols present.

22

23 ×

Illustration of a car seat with a highlighted seat area and an arrow indicating upward motion (no text or symbols)

Diagram of a car interior with numbered components and directional arrows (no text or symbols)

Illustration of a hand pressing down on a car (no text or symbols)

Illustration of a car's front view with arrows indicating motion or movement (no text or symbols)

Diagram of a car seat assembly with highlighted internal components (no text or labels)

Simple line drawing of a vintage-style office or computer with a clock and monitor (no text or symbols)

Teileliste

Diagram of a car seat with numbered parts labeled 1 to 5

Technical diagram of a car seat assembly with numbered components labeled 6, 7, 8, 9, and 10.

WARNHINWEISE

Illustration of a hand placing a small object into a chair frame, with an arrow indicating upward motion (no text or symbols)

Interior view of a vehicle seat with a yellow 'X' symbol indicating cancellation or disconnection (no text or symbols on the seat itself)

Illustration of a car seatbelt buckle with a checkmark indicating selection (no text or symbols on the belt)

Interior view of a car seat with a checkmark indicating selection (no text or symbols on the seat itself)

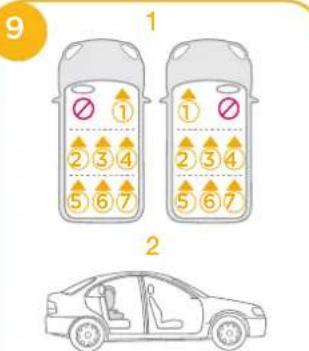

9 1 2 3 4 5 6 7 2 3 4 5 6 7 2

13 1 ✓ × CLICK

14 1 2

15 2 1 3 3 1

Line drawing of a car seat with a numbered label (16) and a checkmark (no text or symbols on the diagram itself)

Illustration of a toilet with plastic wrap and a yellow X symbol (no text or labels)

Illustration of a child wearing a seatbelt being lifted by a hand, with no visible text or symbols

22

23 X

Simple line drawing of a device with a highlighted component and label '24' (no text or symbols on the diagram itself)

Diagram of a car interior frame with no text or symbols

Illustration of a hand holding a car with a numbered label '28' (no text or symbols on the car itself)

Illustration of a baby's abdomen with arrows indicating movement or pressure points (no text or symbols)

Line drawing of a car seat with directional arrows indicating movement or force (no text or symbols)

Line drawing of a vintage camera with an open lid and pointer, set against a solid yellow background (no text or symbols)

Onderdelenlijst

Diagram of a car seat with numbered labels pointing to different seat compartments

Technical diagram of a car seat assembly with numbered components labeled 6, 7, 8, 9, and 10.

WAARSCHUWING

Illustration of a hand placing a red object into a chair frame (no text or symbols)

Installatiekwesties

Interior view of a car seat with a visible seatbelt and door, marked with an orange circle and an 'X' symbol (no text or symbols on the seat itself)

Interior view of a vehicle seat with red markers and a yellow checkmark (no text or symbols)

Illustration of a car seatbelt buckle with a checkmark indicating selection (no text or symbols on the suit itself)

9 1 2 3 4 5 6 7 1 2 3 4 5 6 7 2 2

13 1 ✓ × CLICK

14 1 2

15 2 1 3 3 1

Line drawing of a car seat with a circular badge showing number 16 and a checkmark (no text or symbols on the diagram itself)

Illustration of a slide with bandages and a 'X' symbol, no text or labels present

19 1 2" 3 CLICK 4 X

Illustration of a child wearing a seatbelt being lifted by a hand, with no text or symbols present.

22

23 ×

Illustration of a person pressing down on a device with a yellow arrow indicating pressure (no text or symbols)

Diagram of a vehicle rear panel with mounting holes and control buttons (no text or symbols)

Illustration of a hand holding a car with a numbered label '28' (no text or symbols on the car itself)

Diagram of a car interior with directional arrows indicating movement or flow (no text or symbols)

Diagram of a car seat assembly with highlighted components (no text or labels)

Line drawing of a vintage camera with an open lid and pointer (no text or symbols)

Liste over dele

Diagram of a car seat with numbered labels pointing to different seat compartments

Technical diagram of a car seat assembly with numbered components labeled 6, 7, 8, 9, and 10.

ADVARSEL

Illustration of a hand placing a button into a seatbelt device (no text or symbols)

Interior view of a car seatbelt with no visible text or symbols

Interior view of a car seat with red buttons and a yellow checkmark (no text or symbols)

Illustration of a car seatbelt buckle with a yellow checkmark indicating selection (no text or symbols on the suit itself)

9 1 2 3 4 5 6 7 2 1 2 3 4 5 6 7 2

13 1 ✓ × 0 1 CLICK

14 1 2

15 2 1 3 3 1

Line drawing of a car seat with a circular badge showing number 16 and a checkmark (no text or symbols on the diagram itself)

Illustration of a banana tray with a handle and a cross mark, no text or symbols present

Sådan bruges puden

19 1 2" 3 CLICK 4 X

Illustration of a device with a yellow arrow pointing to a component, no text or symbols present

Top-down diagram of a car's front panel with no text or symbols

Illustration of a hand holding a car with arrows indicating motion (no text or symbols)

Diagram of a car interior with directional arrows indicating movement or flow (no text or symbols)

Diagram of a car seat assembly with highlighted internal components (no text or labels)

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ
