Product Type	Ceiling mount bracket for projector
Brand	BenQ
Model	W11000
Material	Steel / Aluminum alloy
Bracket weight	3.39 kg (7.47 lbs)
Adjustable length	98 mm to 547.8 mm (in 25 mm increments)
Rotation angle	360°
Tilt angle	+/-20°
Maximum supported load	30 kg (66 lbs)
Provided screws	M4, M6
Included accessories	Ceiling mount, projector mount, studs, bolts, hex key, screws, nuts, extension studs, tapping screws, inner and outer tubes
Required tools	Power drill, drill bit, hammer, 8mm/10mm wrenches, Phillips screwdriver, pencil
Warranty	5 years (mounting bracket)
Installation	By qualified professionals, at least 2 people
Precautions	Do not install in hot, humid places, near air conditioners, dusty, or subject to vibrations

Frequently Asked Questions - W11000 BENQ

What is the maximum weight supported by the mounting bracket?

The bracket can support up to 30 kg (66 lbs), suitable for most projectors.

What is the length adjustment range of the bracket?

The length is adjustable from 98 mm to 547.8 mm in 25 mm increments.

What adjustment angles are possible?

Rotation is 360° and tilt is ±20°.

What tools are required for installation?

You will need a power drill, drill bit, hammer, 8mm and 10mm wrenches, a Phillips screwdriver, and a pencil.

Can the installation be done by one person?

No, it is recommended that at least two people perform the installation to avoid fall risks.

What type of ceiling is required?

The bracket must be installed on a horizontal ceiling, solid and stable, capable of supporting at least four times the total weight of the projector and bracket.

What are the materials of the bracket?

The bracket is made of steel and aluminum alloy.

How to adjust the tilt angle?

Loosen the hinge module knob, adjust to the desired angle within ±20°, then tighten the knob.

What to do if the screws are too tight?

Tighten the screws properly without forcing them to avoid stripping the threads or damaging the parts.

Is the bracket guaranteed?

Yes, the mounting bracket is guaranteed for 5 years, but the quality of installation and ceiling surface is not covered.

USER MANUAL W11000 BENQ

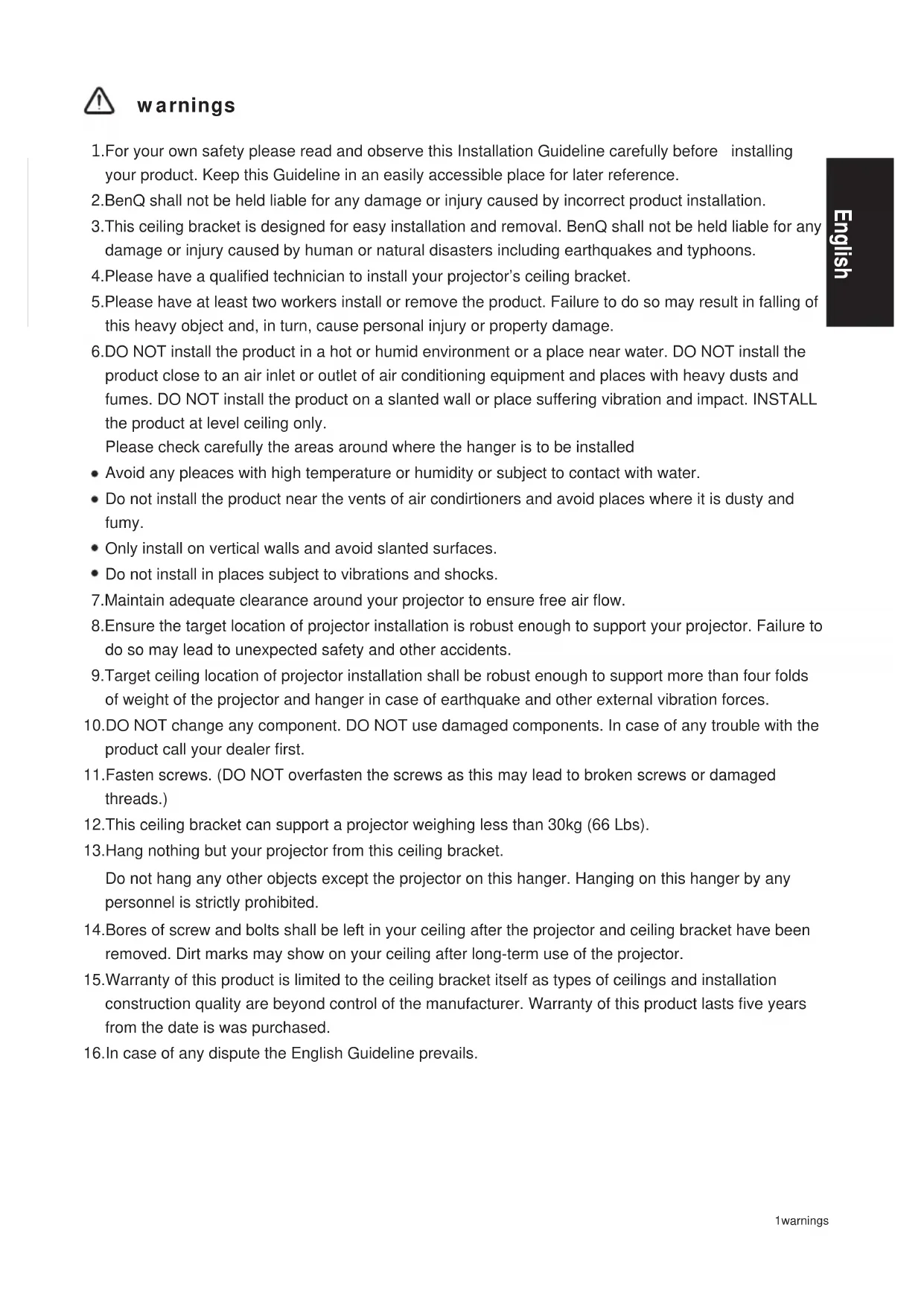

1. For your own safety please read and observe this Installation Guideline carefully before installing your product. Keep this Guideline in an easily accessible place for later reference.
2. BenQ shall not be held liable for any damage or injury caused by incorrect product installation.
3. This ceiling bracket is designed for easy installation and removal. BenQ shall not be held liable for any damage or injury caused by human or natural disasters including earthquakes and typhoons.
4. Please have a qualified technician to install your projector's ceiling bracket.
5. Please have at least two workers install or remove the product. Failure to do so may result in falling of this heavy object and, in turn, cause personal injury or property damage.
6. DO NOT install the product in a hot or humid environment or a place near water. DO NOT install the product close to an air inlet or outlet of air conditioning equipment and places with heavy dusts and fumes. DO NOT install the product on a slanted wall or place suffering vibration and impact. INSTALL the product at level ceiling only.

Please check carefully the areas around where the hanger is to be installed

• Avoid any pleaces with high temperature or humidity or subject to contact with water.
• Do not install the product near the vents of air conditioners and avoid places where it is dusty and fumy.
• Only install on vertical walls and avoid slanted surfaces.

• Do not install in places subject to vibrations and shocks.

• Maintain adequate clearance around your projector to ensure free air flow.

• Ensure the target location of projector installation is robust enough to support your projector. Failure to do so may lead to unexpected safety and other accidents.

• Target ceiling location of projector installation shall be robust enough to support more than four folds of weight of the projector and hanger in case of earthquake and other external vibration forces.

• DO NOT change any component. DO NOT use damaged components. In case of any trouble with the product call your dealer first.

• Fasten screws. (DO NOT overfasten the screws as this may lead to broken screws or damaged threads.)

• This ceiling bracket can support a projector weighing less than 30kg (66 Lbs).

13.Hang nothing but your projector from this ceiling bracket.

Do not hang any other objects except the projector on this hanger. Hanging on this hanger by any personnel is strictly prohibited.

1. Bores of screw and bolts shall be left in your ceiling after the projector and ceiling bracket have been removed. Dirt marks may show on your ceiling after long-term use of the projector.

2. Warranty of this product is limited to the ceiling bracket itself as types of ceilings and installation construction quality are beyond control of the manufacturer. Warranty of this product lasts five years from the date is was purchased.

3. In case of any dispute the English Guideline prevails.

Specifications

Substance	Steel/aluminum alloy
Weight	3.39 kg (7.47 lbs)
Length	98mm, 372.8mm~547.8mm(in unit of 25mm)
Rotation angle	360°
Tilt angle	+/-20°
Load	30kg (66 lbs)
Screws	M4,M6

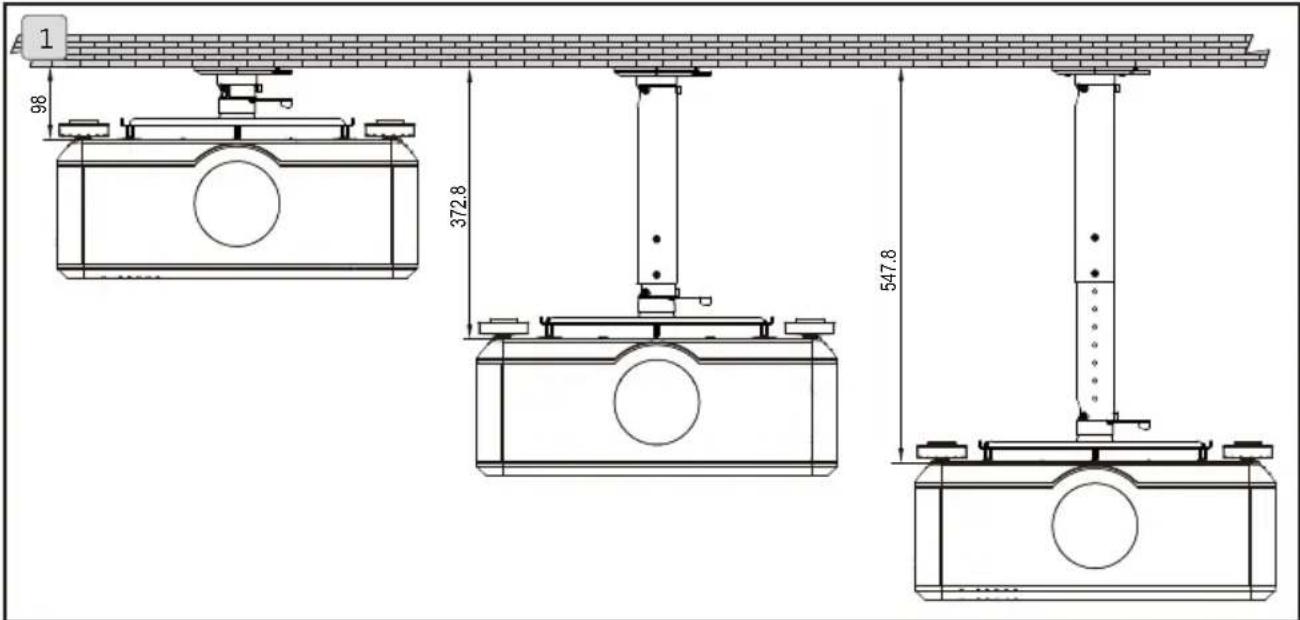

Length

1. Variable length in range of 98mm\~547.8mm (in unit of 25mm).

Adjustment angle

1. Tilt angle in range of -20^ +20^ .

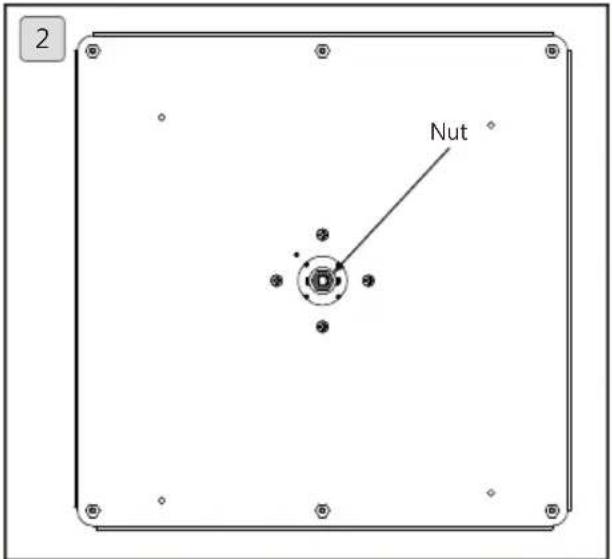

2. The nut is designed to adjust slackness of projector angle.

Have qualified technician to adjust the nuts.

Accessory pack

A B C D Ceiling bracket x 1 Projector holder x 1		-2		Hexagon stud (M4xL12) x 4		Bolt x 2
E (M6xL12) x 7		F G H Hexagon wrench (5mm) x 1Hexagon screw with washer (M6xL10) x 4		Screw with washer (M6xL10) x 4		Nut x 2
I Expansion stud x 4	J Tapping screw x 4	K Outer tube x 1 Inner tube x 1		L Outer tube x 1 Inner tube x 1

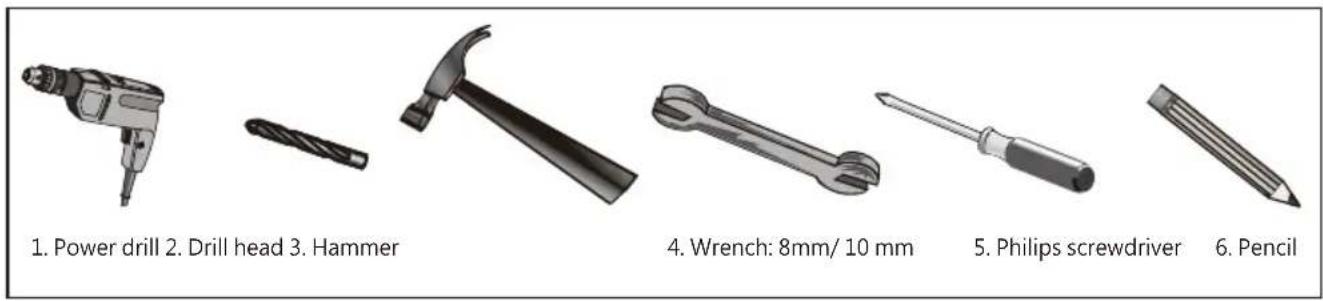

Tools needed for installation

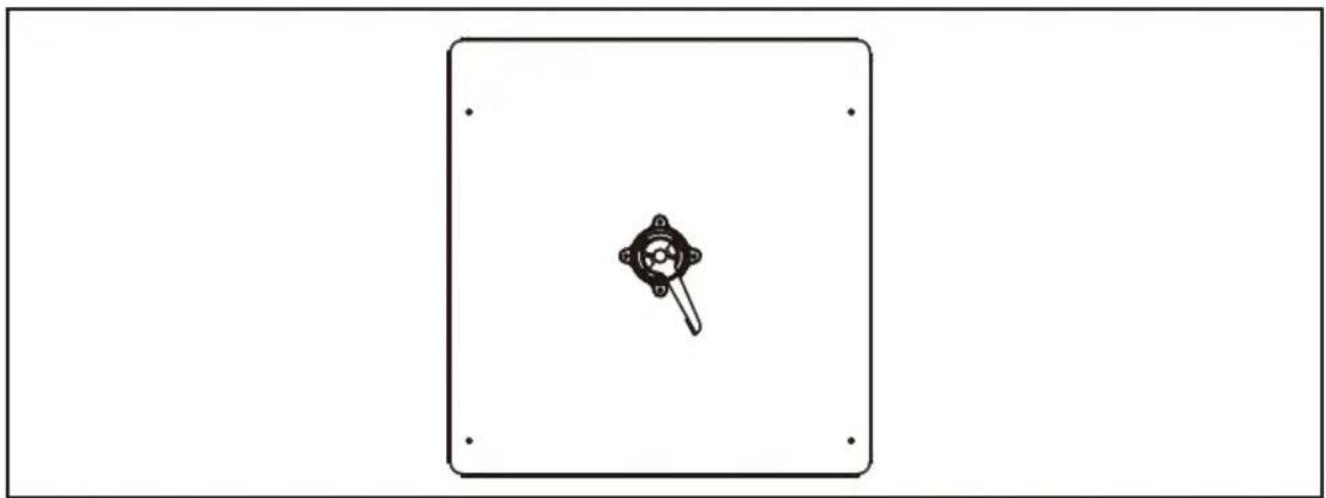

Bore location

Please visit site www.benq.com

Simple line drawing of a device with a central knob and mounting holes, enclosed in a rectangular frame (no text or symbols)

Installation steps

1. Install the hanger to your ceiling

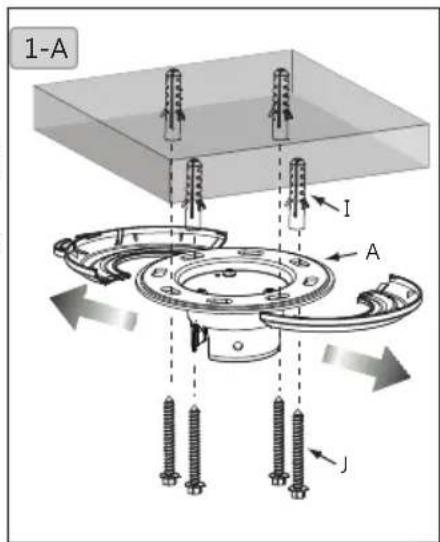

1-A. Pull open the plastic cover to the right and left. Place the ceiling bracket (A) close to target location to your ceiling. Mark the bracket hole with pencil. Drill holes at marked location of diameter x depth of 10mm (0.39") x 55mm (2.17") for concrete and 4.5mm (0.17") x 55mm (2.17") for wood ceilings. Hammer the plastic expansion stud (I) in the hole and tapping screw (J) in the stud then cover the hole with plastic cap.

2. Install projector holder to the projector

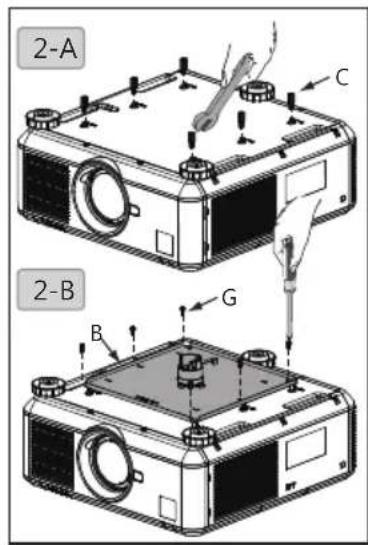

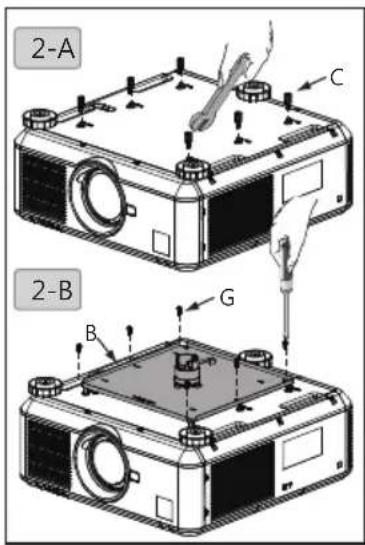

2-A. Fasten hexagon stud (M4xL12) (C) to your projector with 8mm wrench.
2-B. Fasten projector holder (B) to your projector by locking the screws with washer (G) with Philip screwdriver.

3. Select length of projector holder

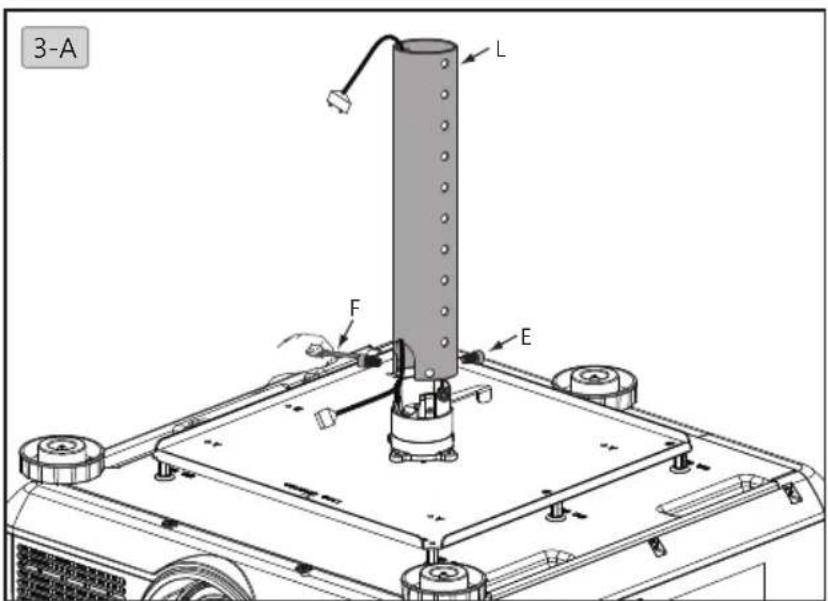

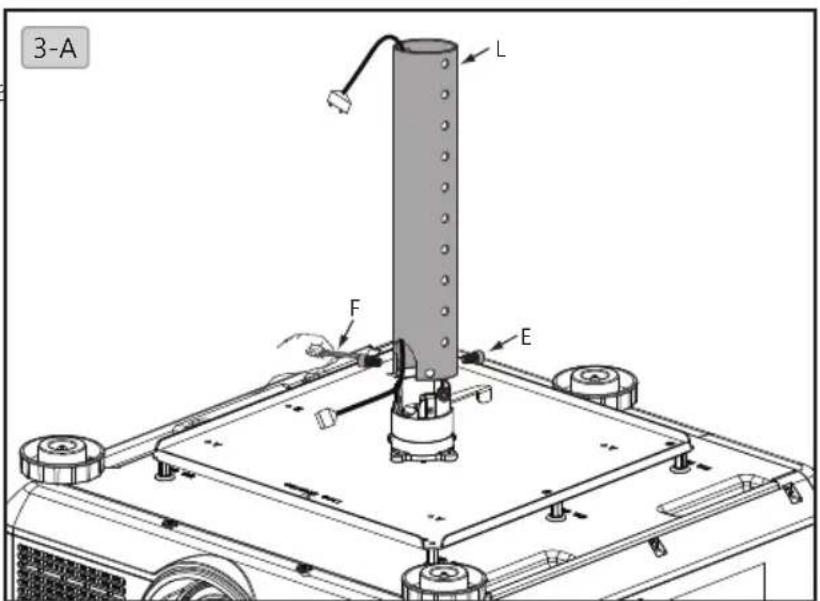

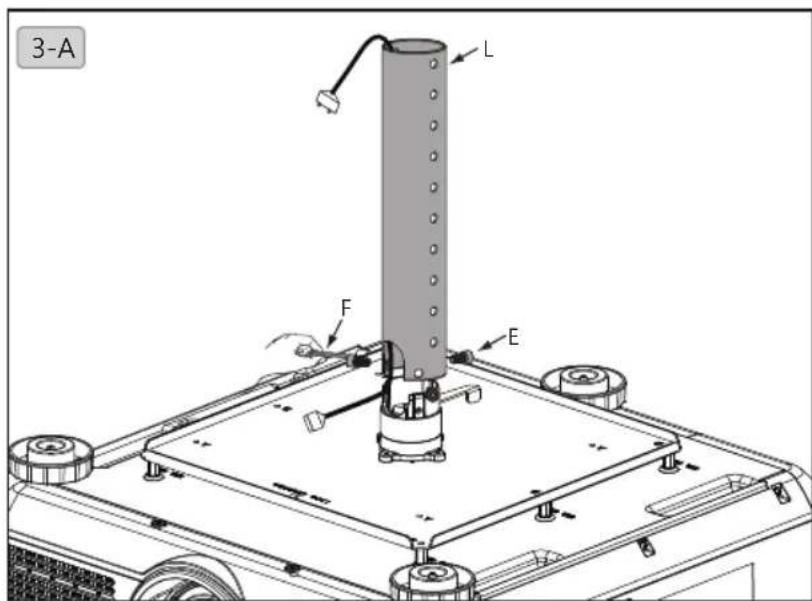

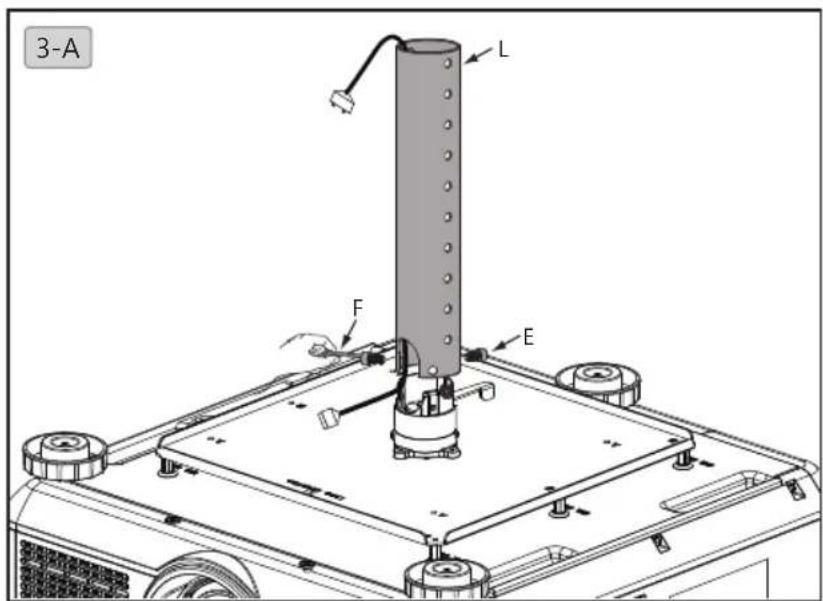

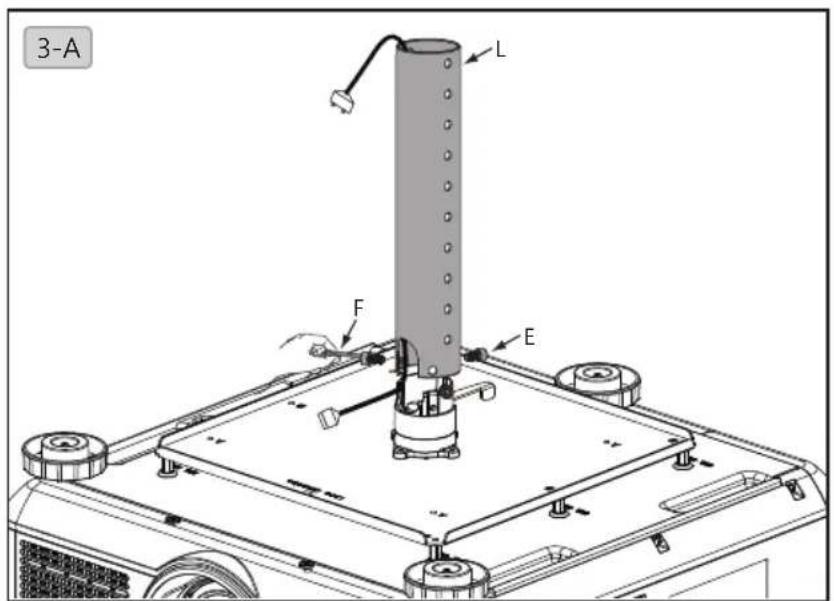

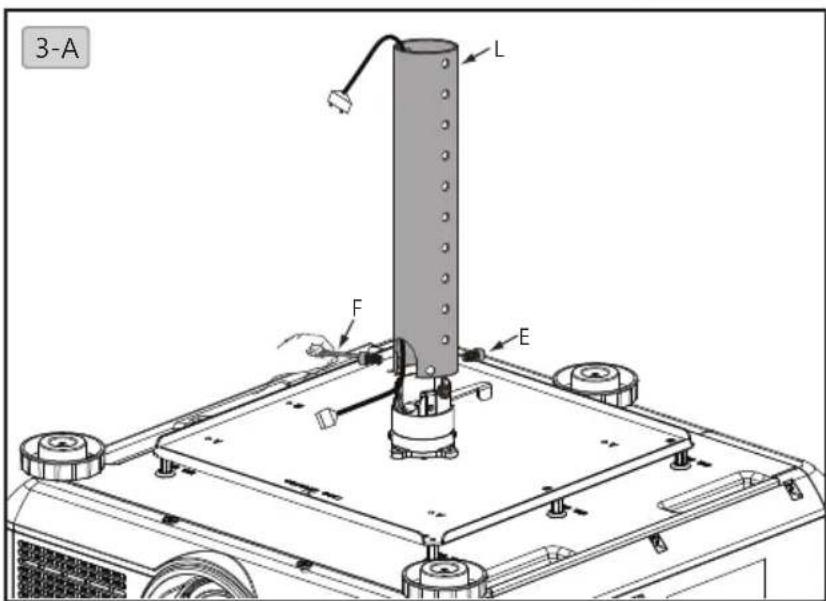

3-A. Length of projector holder can be adjusted in range of 372.8mm\~547.8mm. Place power cable in the inner tube (L), fix it to the projector holder with hexagon screw (M6xL12) (E) and 5mm hexagon wrench (F).

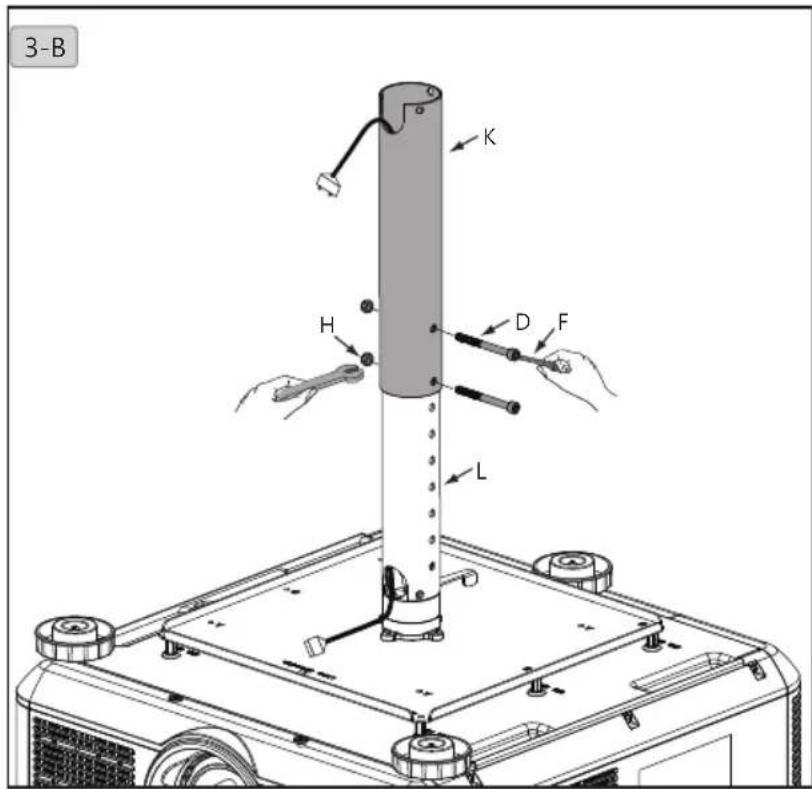

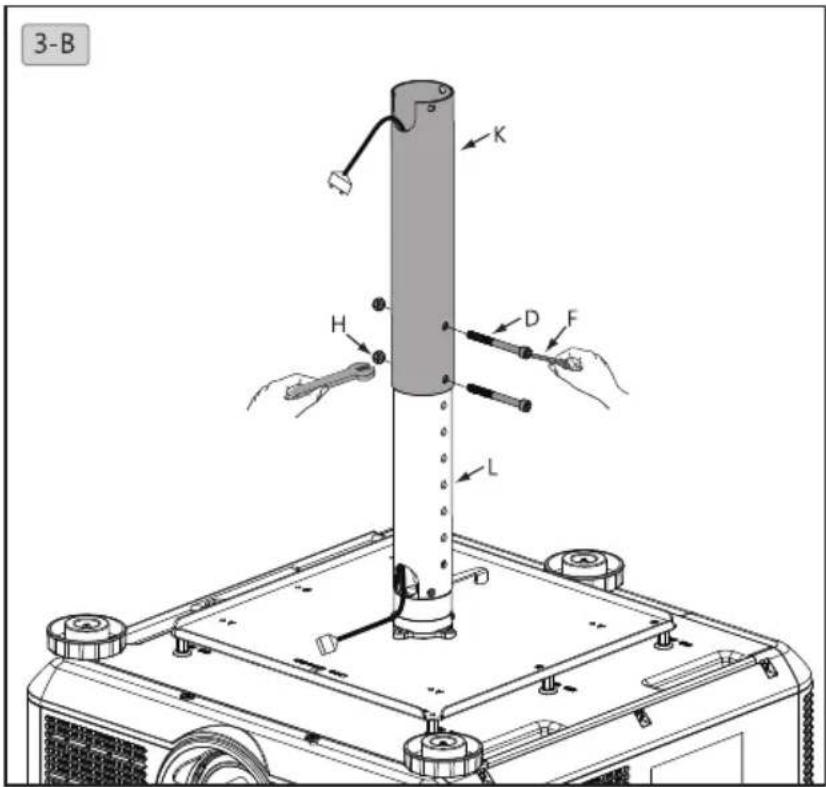

3-B. Pull power cable out of outer tube (K) and connect it to your projector. Assemble the inner tube unit (L and projector) and external tube (K) with 10mm and 5mm wrenches (F) and bolt (D) and nut (H).

Installation steps

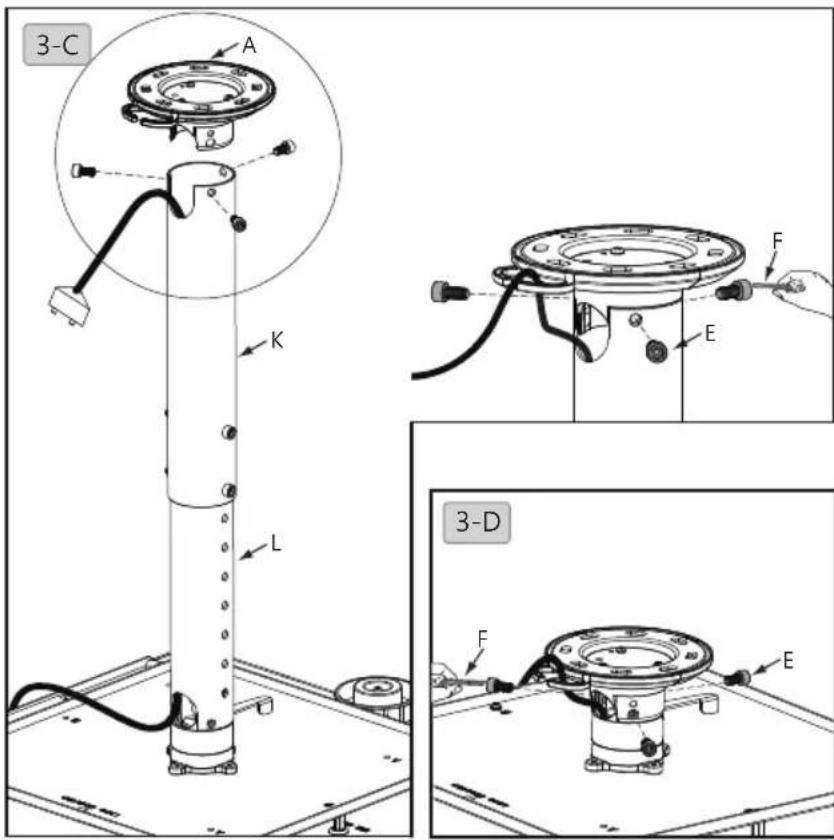

3-C. Fasten inner and outer tube (K+L) and ceiling bracket (A) with hexagon screw (M6xL12) (E) and 5mm wrench (F).
3-D. Set projector length to 98mm. Fasten ceiling bracket (A) and projector holder with hexagon screw (M6xL12) (E) and 5mm wrench (F).

English

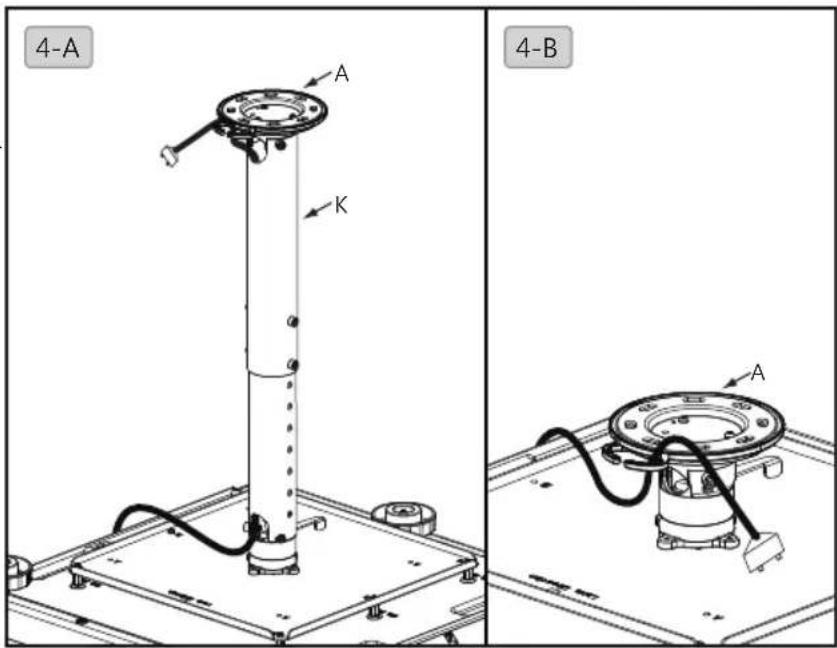

4. Cable management

4-A. Pull power cable from top of external tube (K) to fix it to the ceiling bracket (A).
4-B. Pull power cable through ceiling bracket (A).

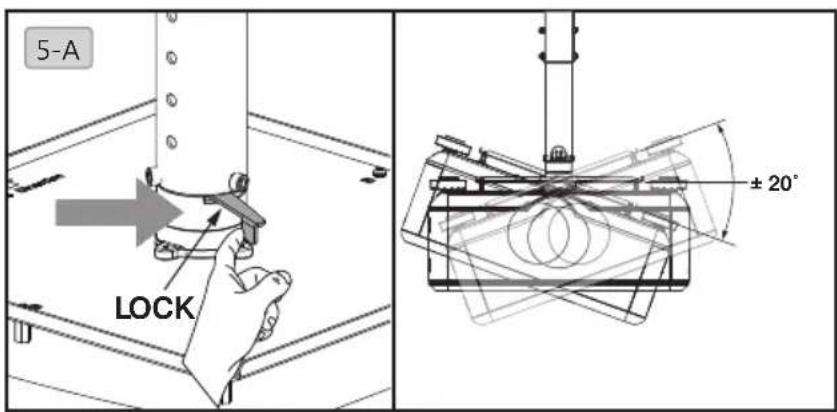

5. Adjust projector angle

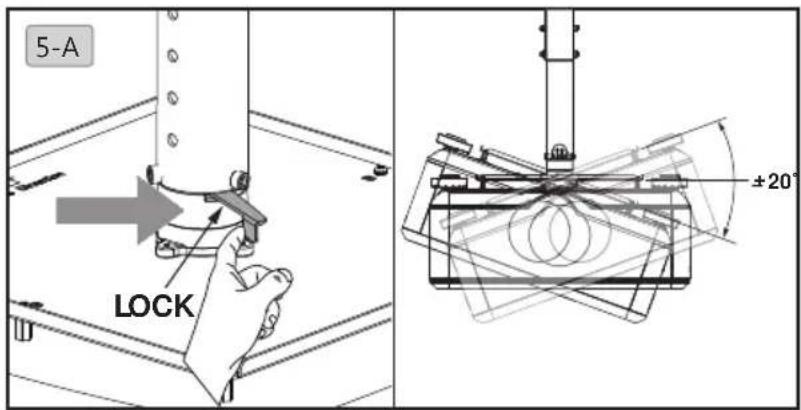

5-A. Release the handle, move projector holder to desired angle, push the handle backward to lock it up afterwards.

安全警告

Simple line drawing of a mechanical component with a central hub and four mounting holes (no text or symbols)

Simple line drawing of a mechanical component inside a rectangular frame (no text or symbols)

安裝步驟

1. 安装吊架在天花板上

安裝步驟

4.電纜管理

注意

Simple line drawing of a mechanical component inside a rectangular frame (no text or symbols)

設置手順

1. 天井にハンガーを設置します

設置手順

日本語

4. ケーブル管理

5. 必須角度を調整する

Simple line drawing of a mechanical component with a central hub and four mounting holes (no text or symbols)

Warnung

Simple line drawing of a mechanical component inside a rectangular frame (no text or symbols)

Montageschritte

Montageschritte

4.Kabelführung

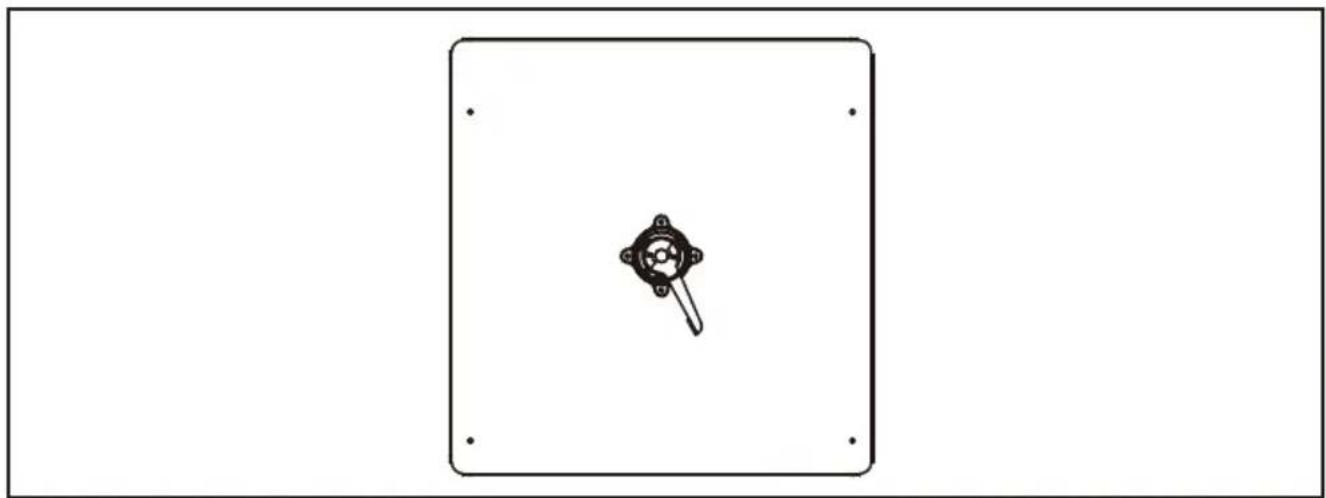

Black metal hammer with a curved handle, isolated on white background (no text or symbols)

Simple line drawing of a mechanical component with a central hub and four mounting holes (no text or symbols)

Simple line drawing of a mechanical component inside a rectangular frame (no text or symbols)

Advertrencias

Simple line drawing of a mechanical component with a central hub and four mounting holes (no text or symbols)

Español

Внимание

Two types of screwdrivers shown side by side: a standard screwdriver and a sharpened pencil (no text or symbols visible)

Simple line drawing of a mechanical component with a central hub and four mounting holes (no text or symbols)

Пошаговая установка

Пошаговая установка

4. Прокладка кабеля

Simple line drawing of a mechanical component inside a rectangular frame (no text or symbols)

安装步骤

1. 安装吊架在天花板上

安装步骤

簡体中文

4.理线

5.调整投影机角度

Avisos de segurança

Black metal hammer with curved handle and flat blade (no text or symbols)

1. Berbequim eléctrico
2. Broca
3. Martelo
4. Chave: 8 mm/10 mm
5. Chave de fendas Philips
6. Lápis

Simple line drawing of a mechanical component with a central hub and four mounting holes (no text or symbols)

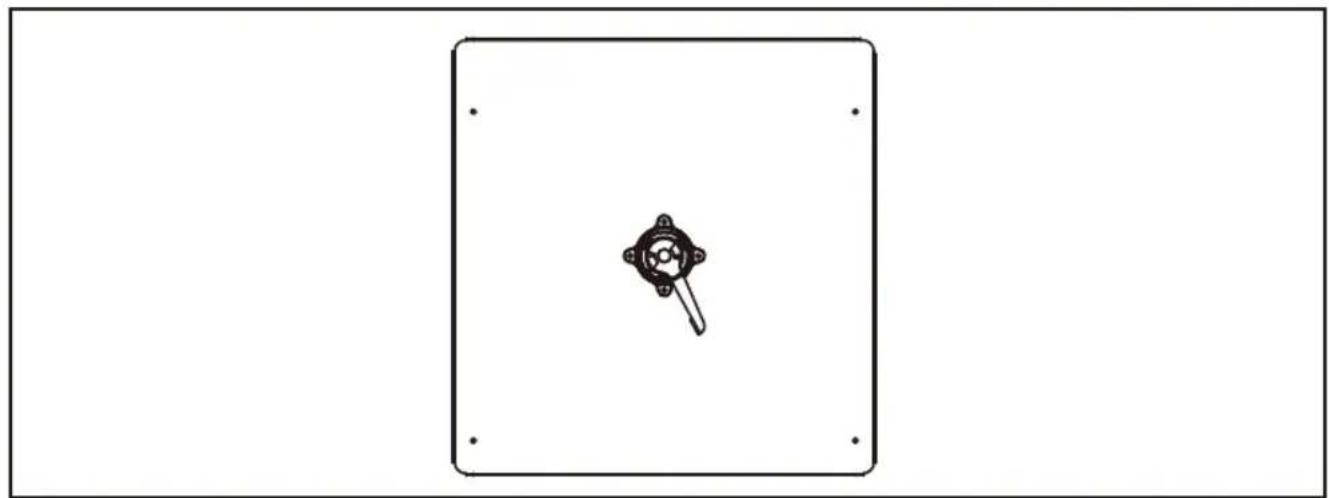

Simple line drawing of a device with a central knob and mounting holes, enclosed in a rectangular frame (no text or symbols)

4. Gestão do cabos

5. Ajustar o ângulo do projector

안전 경고

Illustration of five different hand tools: drill, hammer, wrench, screwdriver, and pencil (no text or labels present)

Simple line drawing of a mechanical component with a central hub and four mounting holes (no text or symbols)

설치 단계

1. 행거를 천장에 설치

설치 단계

단요

4.케이블 관리

5. 프로젝터 각도 조절

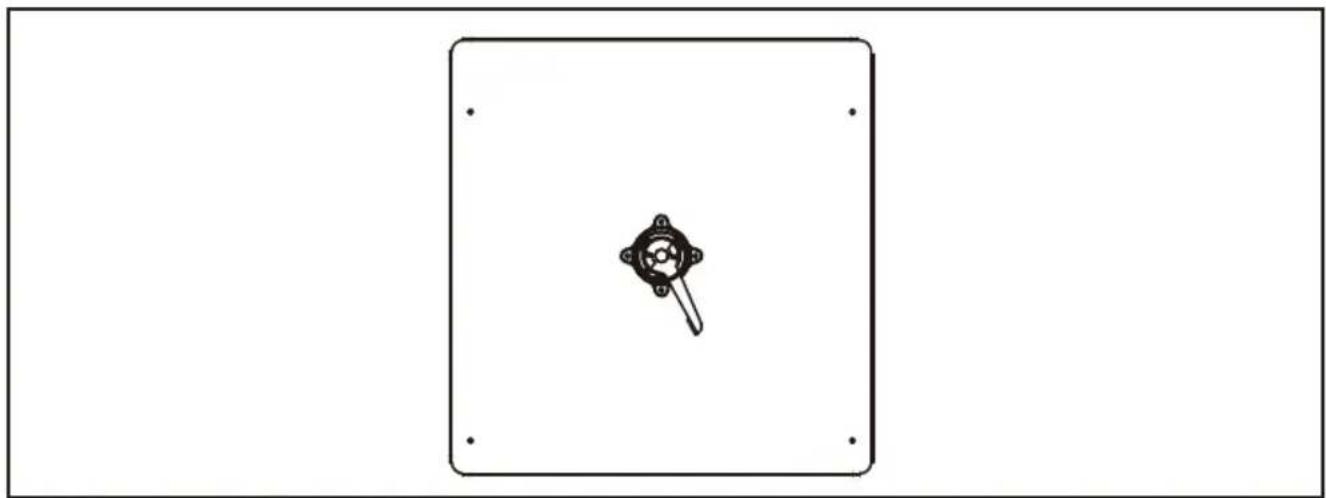

Black metal hammer with curved handle and flat blade (no text or symbols)

Simple line drawing of a mechanical component with a central hub and four mounting holes (no text or symbols)

Simple line drawing of a mechanical component inside a rectangular frame (no text or symbols)

Installationssteg

Installationssteg

4.Sladden
