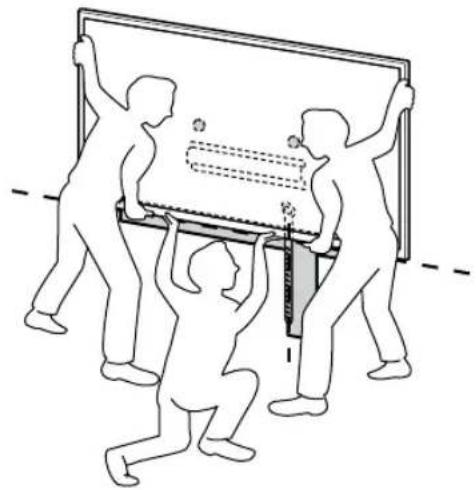

Never install alone: at least two people (three for 75 inches and above).
Which cables should I connect before mounting the TV on the wall?
Connect all necessary cables (HDMI, antenna, power) before installing the TV on the wall, as access to rear ports is limited once mounted.
How to clean the TV screen?
Use a soft, dry cloth (microfiber). Never use chemicals, alcohol, or water directly. Turn off the TV before cleaning.
What to do if the remote control stops working?
Check the batteries (replace if necessary). Make sure no obstacles block the IR sensor. Restart the TV by unplugging it for 1 minute.
How to reduce energy consumption?
Enable energy saving mode in picture settings. Adjust automatic brightness. Turn off the TV with the switch, not just standby.
Can I use a non-Sony wall mount?
Sony recommends using the SU-WL450 wall mount specifically designed for this model. Using a non-approved mount may cause injury or damage and void the warranty.
How to solve a sound problem?
Check that the audio mode is not muted. Access audio settings and test internal speakers. If the sound is low, disable Dolby Dynamic Range or adjust the equalizer.
Does the TV heat up normally?
Yes, some heat is normal, especially at the top and back. Ensure adequate ventilation: do not block ventilation slots and leave at least 10 cm of space around the TV.
How to update the TV software?
Go to Settings > Support > Software Update. Make sure the TV is connected to the Internet. Updates can also be downloaded from the Sony website via USB key.
What to do if the image appears distorted or pixelated?
Check the signal source (HDMI, antenna). Try changing the HDMI cable. In settings, reset the image settings to default. Restart the TV.

User questions about Bravia KD55XG8196BU SONY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Television in PDF format for free! Find your manual Bravia KD55XG8196BU - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Bravia KD55XG8196BU by SONY.

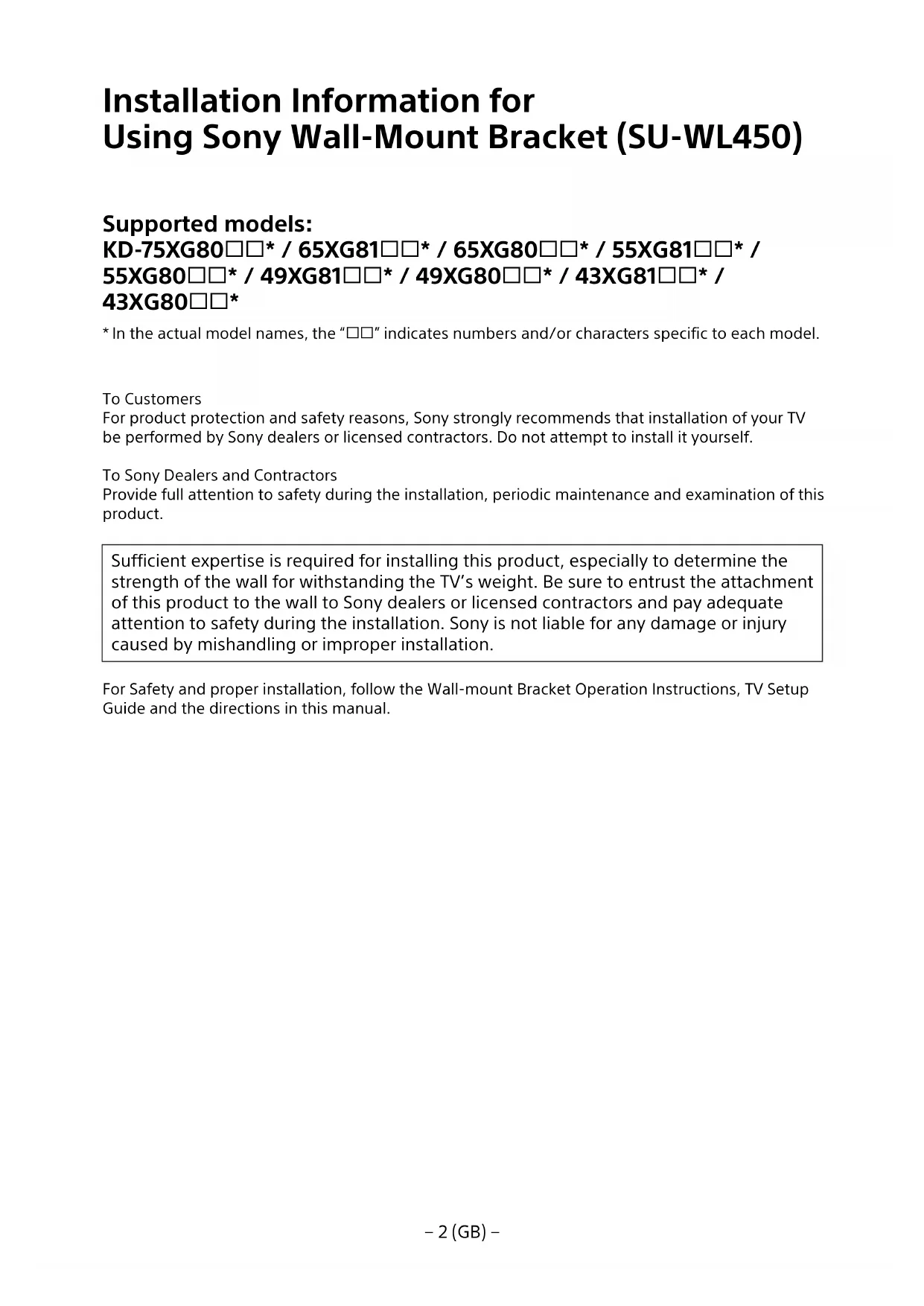

USER MANUAL Bravia KD55XG8196BU SONY

* In the actual model names, the “☐☐” indicates numbers and/or characters specific to each model.

To Customers

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

For safety and proper installation, follow the Wall-mount Bracket Operation Instructions, TV Setup Guide and the directions in this manual.

On Safety

Thank you for purchasing this product.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.

To Sony dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation.

This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference.

Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents.

CAUTION

Specified products

This Wall-Mount Bracket is designed for use with the specified products TVs. For TVs, refer to their Reference Guide to verify that the Wall-Mount Bracket can be used.

To Customers

WARNING

If the following precautions are not observed, serious injury or death through fire, electric shock, or the product dropping can result.

Be sure to subcontract the installation to licensed contractors and keep small children away during the installation.

If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

  • The TV may fall and cause a serious injury such as a bruise or a fracture.
  • If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least four times the TV weight. (Refer to your TV's Reference Guide for its weight.)
  • If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage.

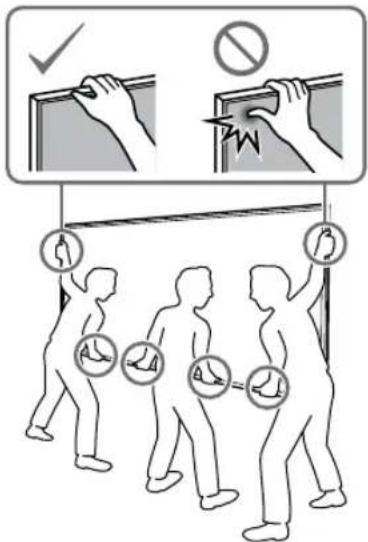

Be sure to subcontract moving or dismounting of the TV to licensed contractors.

If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Be sure that two or more persons (three or more persons for 75 inches and above TV set) carry or dismount the TV.

Do not remove screws, etc., after mounting the TV.

If you do so, the TV may fall and cause injury or property damage.

Do not make alterations to the parts of the Wall-Mount Bracket.

If you do so, the Wall-Mount Bracket may fall and cause injury or property damage.

Do not mount any equipment other than the specified product.

This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage.

Do not apply any load other than the TV on the Wall-Mount Bracket. Do not shake the TV left/right, up/down.

If you do so, the TV may fall and cause injury or property damage.

Do not lean on or hang from the TV.

Do not lean on or hang from the TV as it may fall on you and cause serious injury.

CAUTION

If the following precautions are not observed, injury or property damage may occur.

Do not handle the product with excessive force during cleaning or maintenance.

Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage.

Precautions

  • If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall.
  • If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.
  • Do not use the Wall-Mount Bracket in a place where it is subjected to mechanical vibrations.

Installing the Wall-Mount Bracket

To Sony Dealers

WARNING

The following instructions are for Sony dealers only. Be sure to read the safety precautions described above and pay special attention to safety during the installation, maintenance, and checking of this product.

Do not install the Wall-Mount Bracket on wall surfaces where the corners or sides of the TV protrude away from the wall surface.

Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage.

SONY Bravia KD55XG8196BU - Do not install the Wall-Mount Bracket on wall surfaces where the corners or sides of the TV protrude away from the wall surface. - 1

Do not install the TV over or under an air conditioner.

If the TV is exposed to water leaks or air current from an air conditioner for a long time, it may cause a fire, an electric shock, or a malfunction of the TV.

Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual.

If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using four or more screws of 8 mm diameter (or equivalent).

SONY Bravia KD55XG8196BU - Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual. - 1

Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual.

If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to tighten the screws securely in the designated position.

If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV.

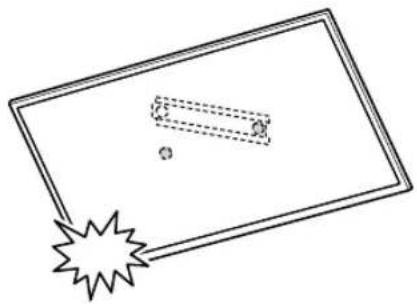

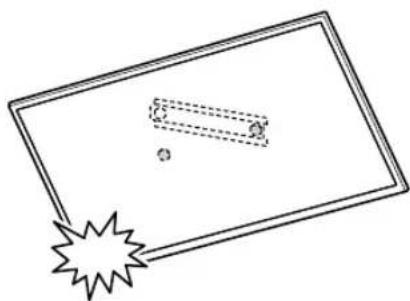

Be careful not to subject the TV to shock during installation.

If the TV is exposed to shock, it may fall or break apart. This may cause injury.

Be sure to install the TV on a wall that is both perpendicular and flat.

If you fail to do so, the TV may fall and cause injury.

After proper installation of the TV, secure the cables properly.

If people or objects get tangled with cables, this may result in injury or damage to the TV.

Do not allow the mains lead or the connecting cable to be pinched.

If the mains lead or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock.

SONY Bravia KD55XG8196BU - Do not allow the mains lead or the connecting cable to be pinched. - 1

The screws needed to secure the Wall-Mount Bracket to the wall are not supplied.

Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.

Table of Contents

Preparing for installation....5

Checking the parts....5

Deciding on the installation location 6

Installing the Base on the wall 8

Preparing for the installation of the TV......9

KD-75XG80□□ 9

KD-65XG81□□ / 65XG80□□.... 10

KD-55XG81□□ / 55XG80□□....11

KD-49XG81□□ / 49XG80□□ / 43XG81□□ / 43XG80□□....12

Installing the TV on the wall....14

KD-75XG80□□ 14

KD-65XG81□□ / 65XG80□□ / 55XG81□□ / 55XG80□□ / 49XG81□□ / 49XG80□□ / 43XG81□□ / 43XG80□□....16

Confirming the completion of the

installation....19

Other information....19

Specifications....19

Installing the TV onto the wall

Installation procedure differs, depending on your TV.

Use the Wall-Mount Bracket SU-WL450 to install the TV to the wall.

Note

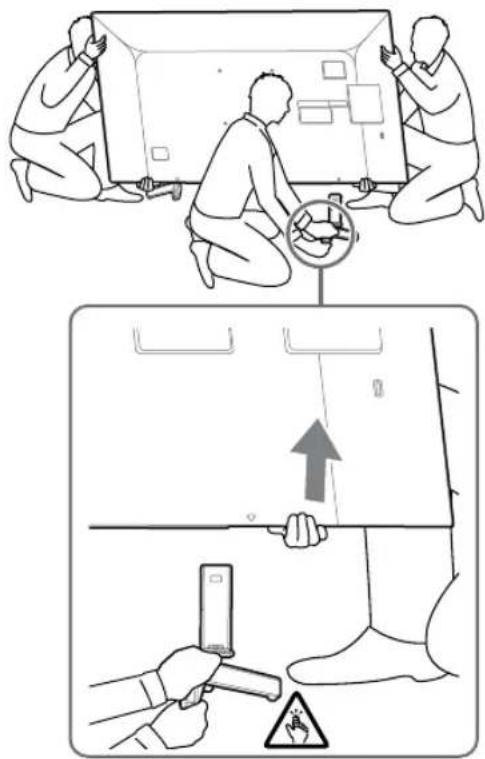

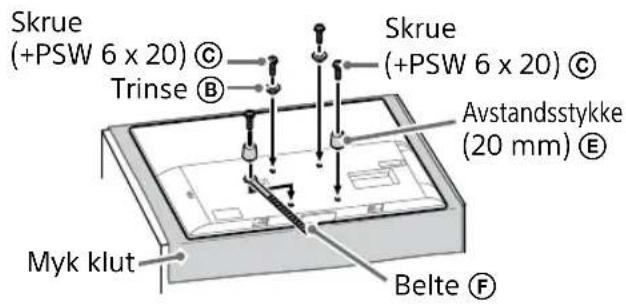

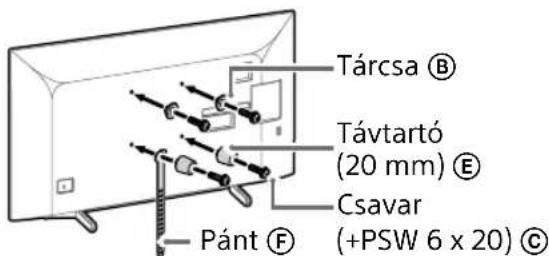

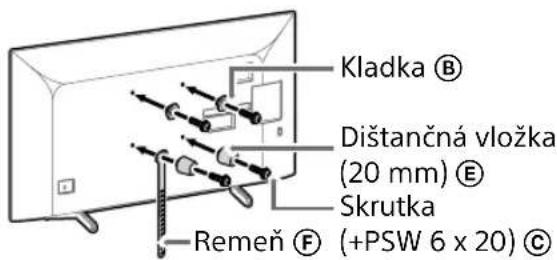

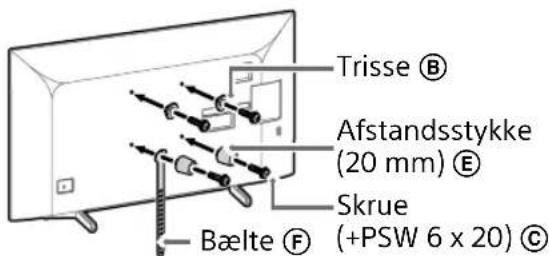

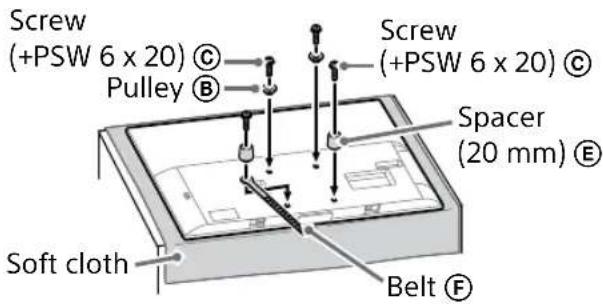

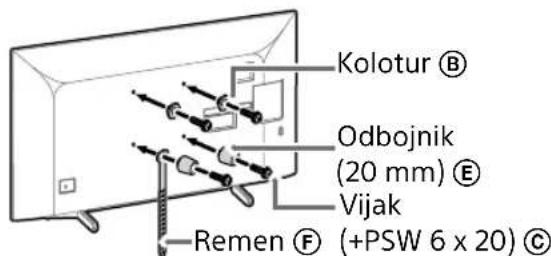

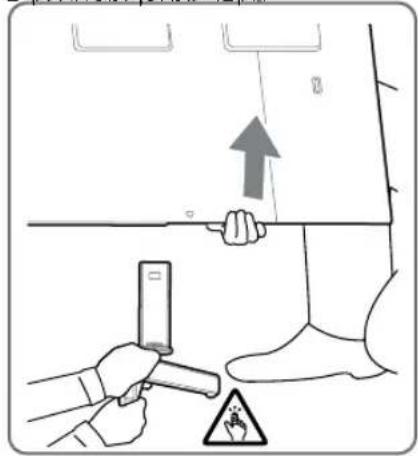

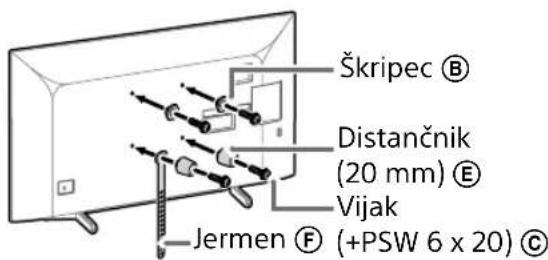

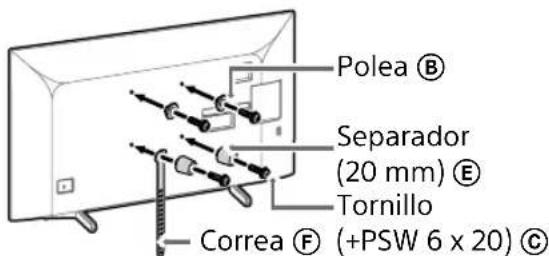

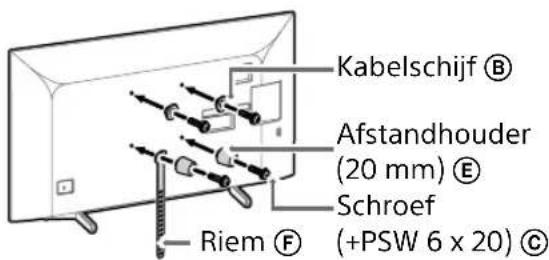

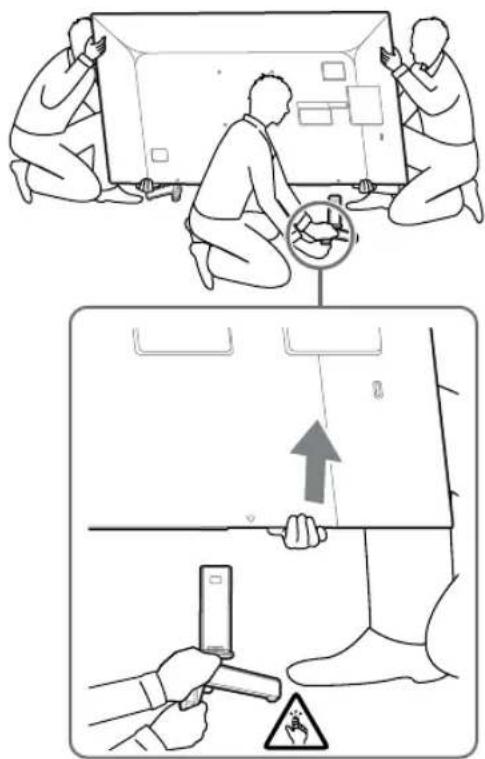

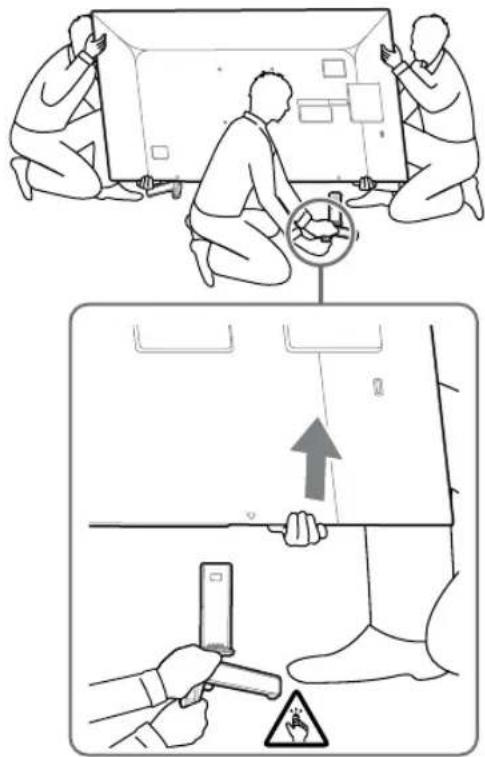

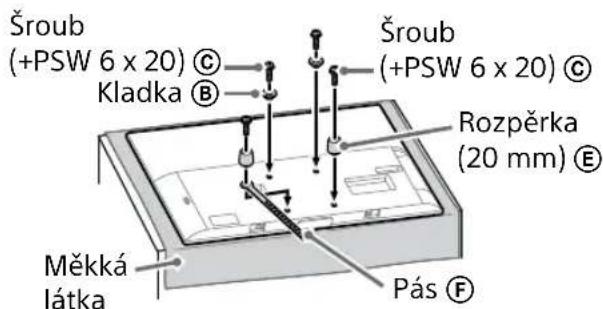

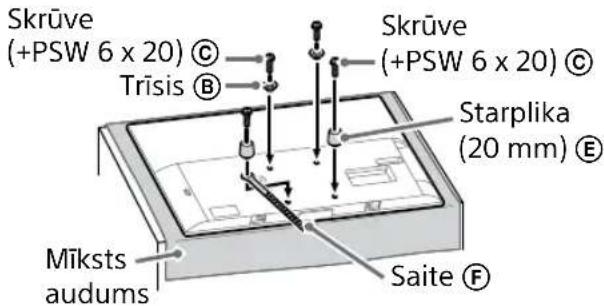

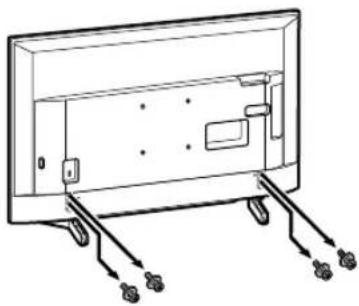

  • If the Table-Top Stand is attached to the TV, detach the Table-Top Stand beforehand. See the Setup Guide and follow in reverse order the steps to detach the Table-Top Stand.

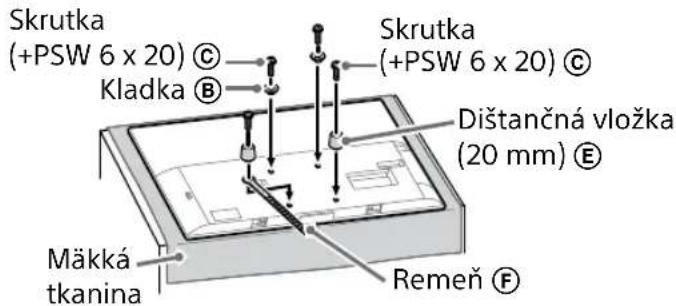

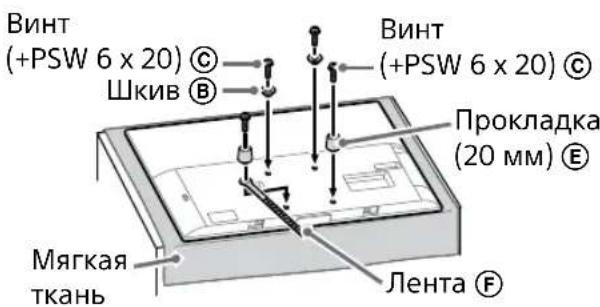

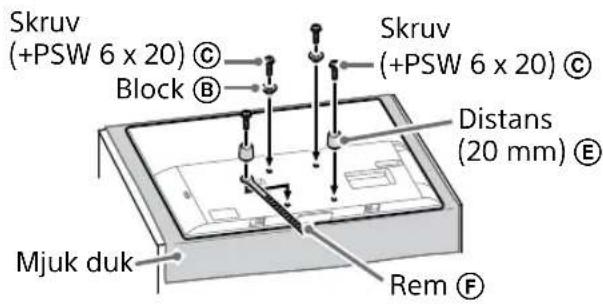

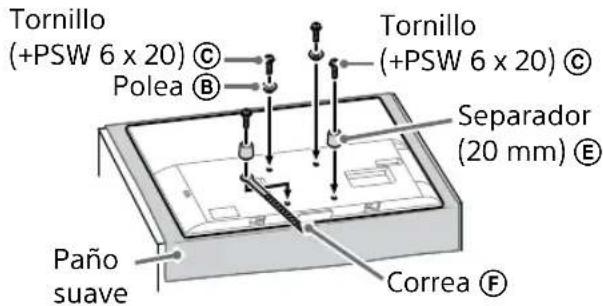

  • Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth, when securing the Attachment parts for Wall-Mount Bracket or when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display.
  • Be sure to store the removed screws in a safe place, keeping them away from children.

Preparing for installation

  • Have the TV's Reference Guide and Setup Guide at hand before installation.
  • Be sure to have a Phillips screwdriver that fits the screws prior to the assembly.
  • Confirm the installing position of your TV.

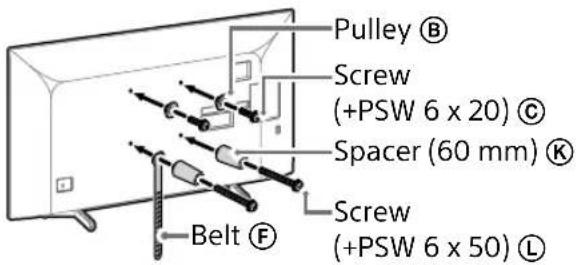

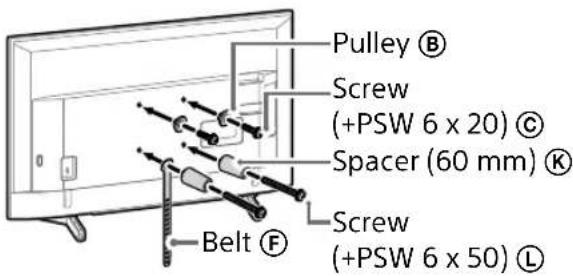

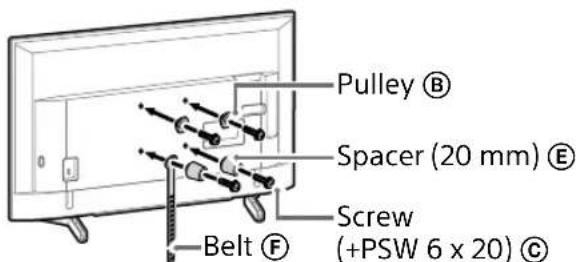

  • Prepare four or more screws of 8 mm diameter and one screw of 5 mm or equivalent (not supplied). Select screws suitable for the material of the wall.

Checking the parts

Supplied with SU-WL450

- Verify that all the parts are included.

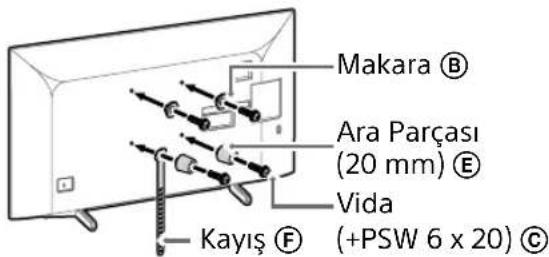

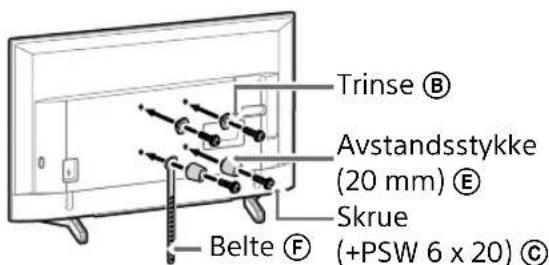

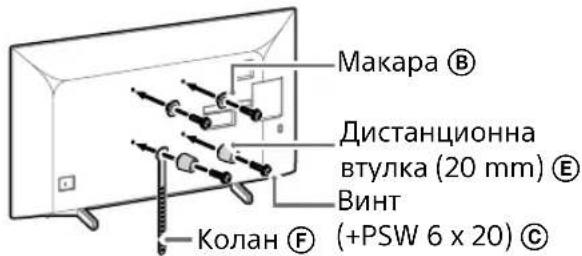

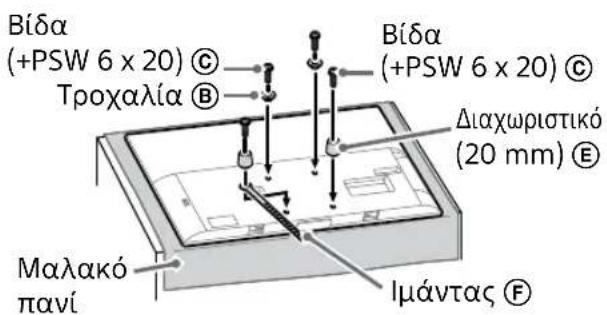

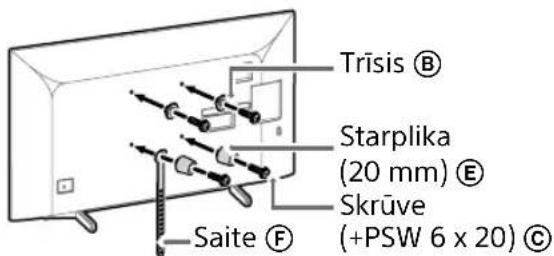

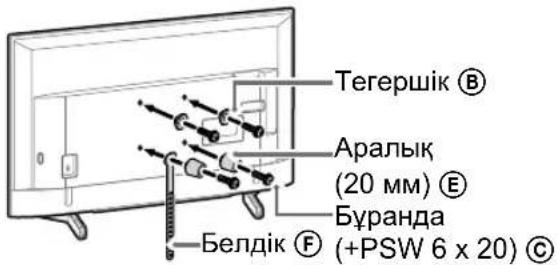

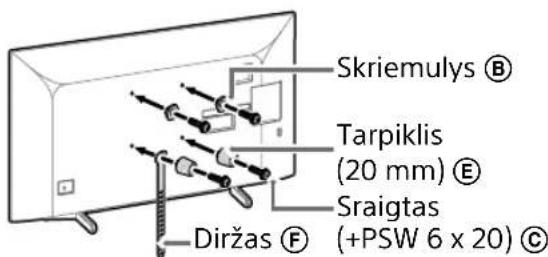

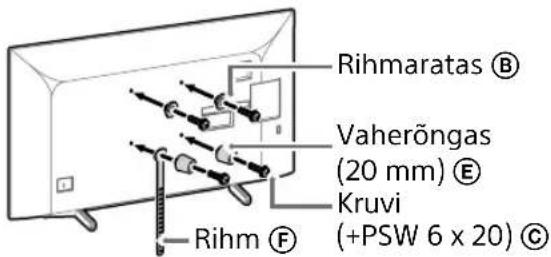

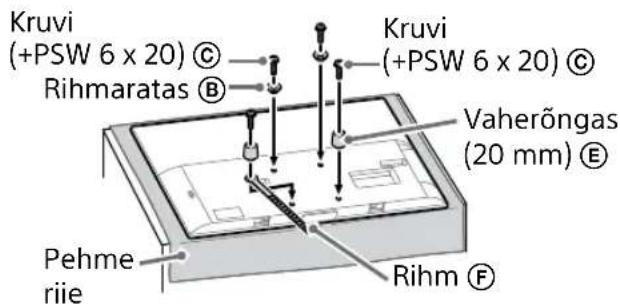

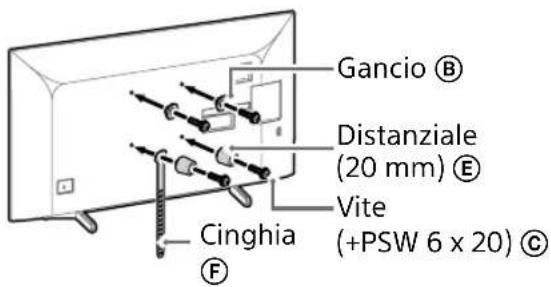

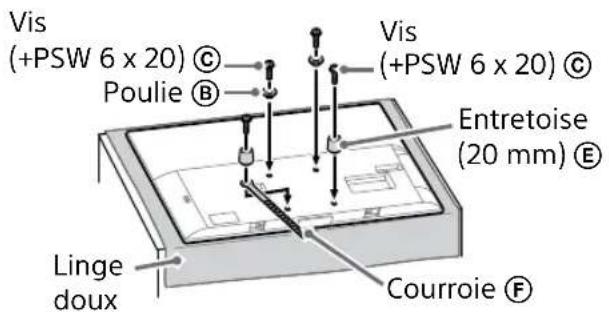

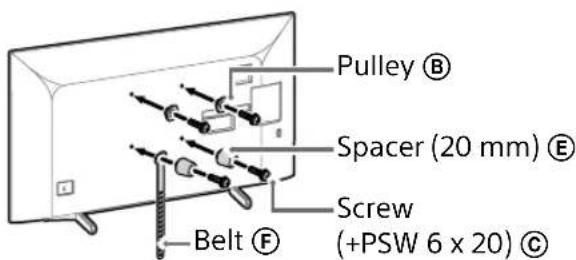

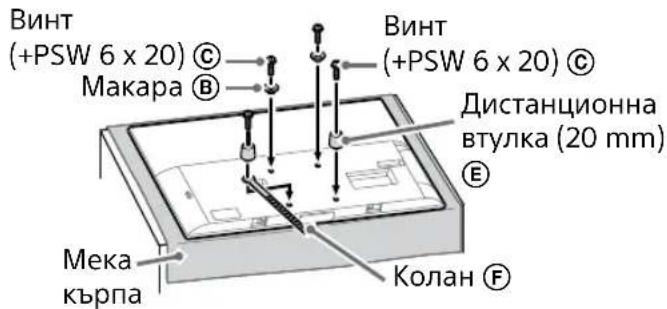

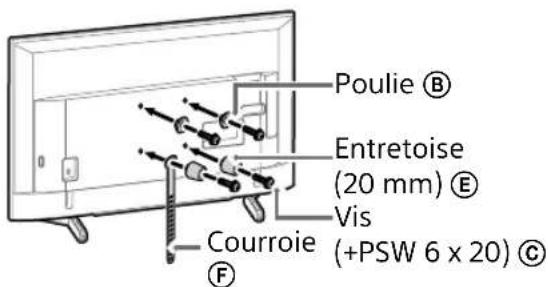

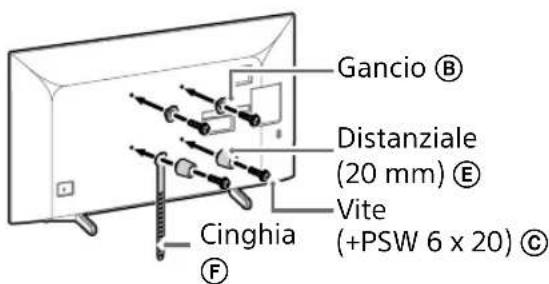

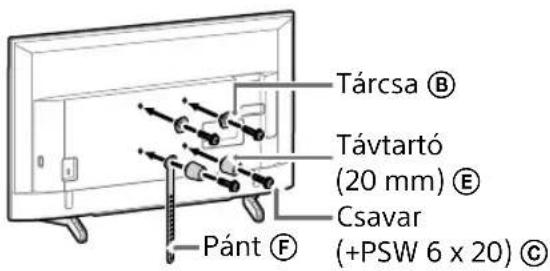

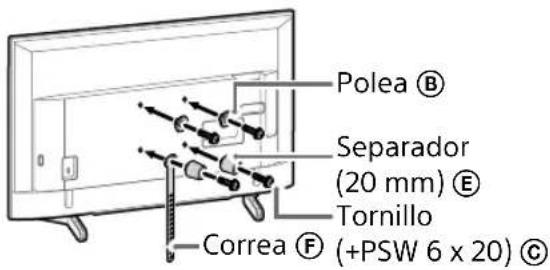

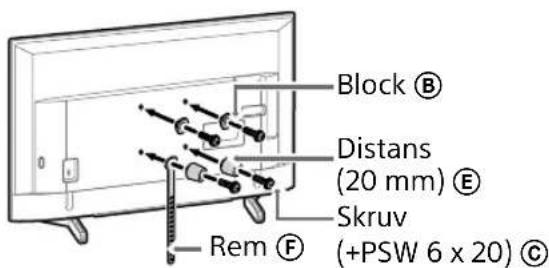

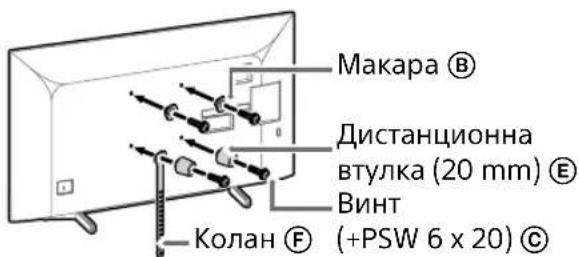

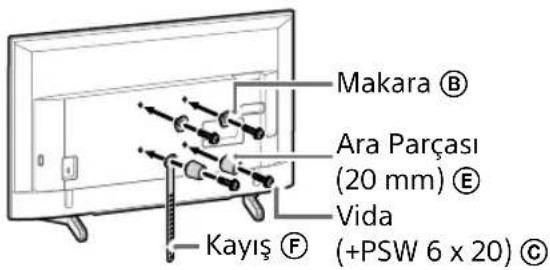

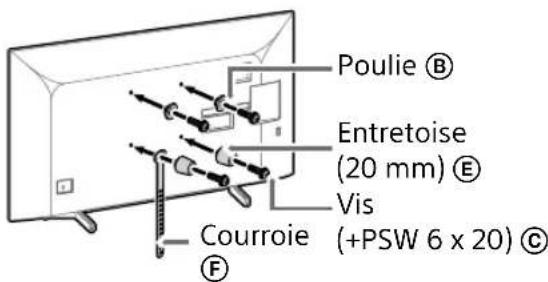

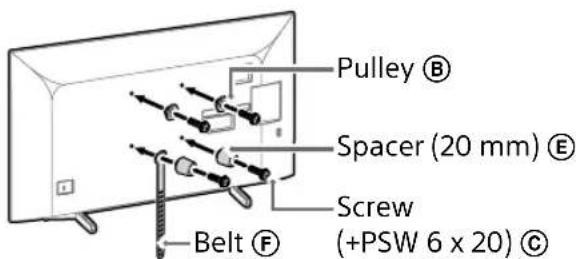

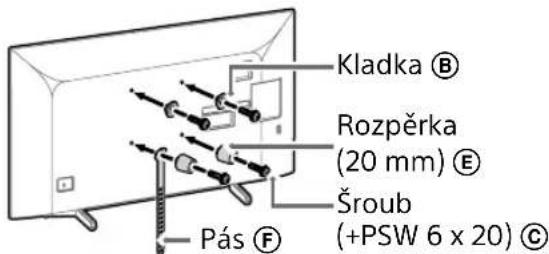

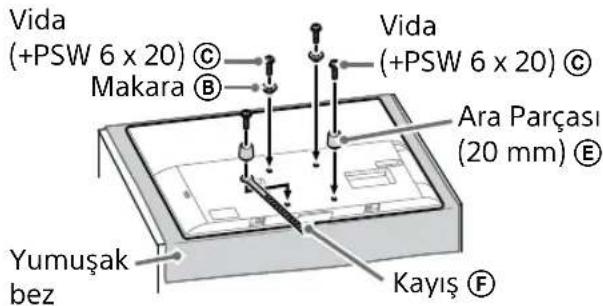

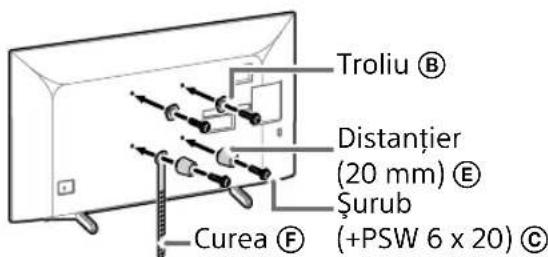

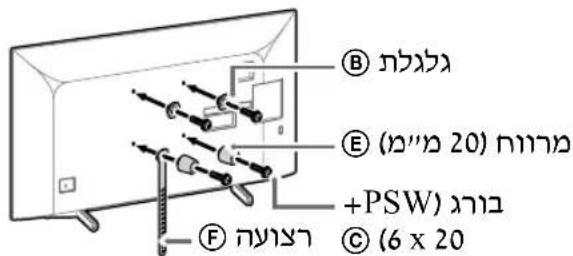

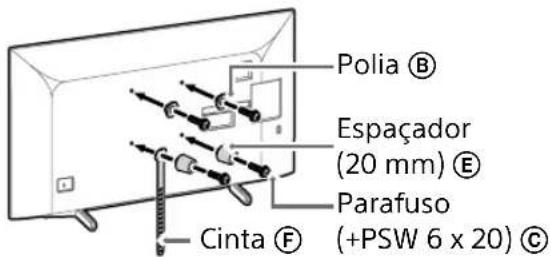

A Base (20) (1) B Pulley (2)SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 1SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 2

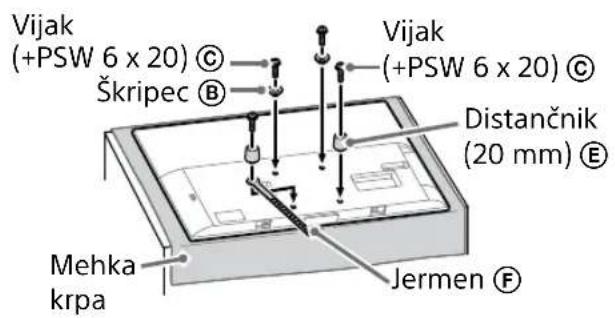

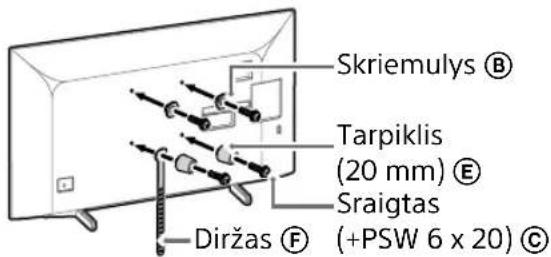

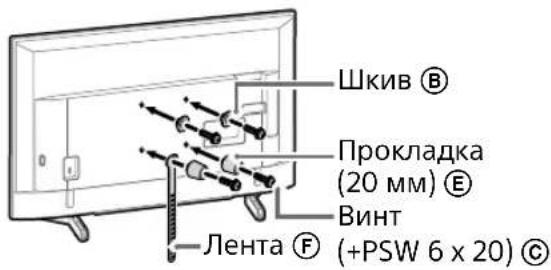

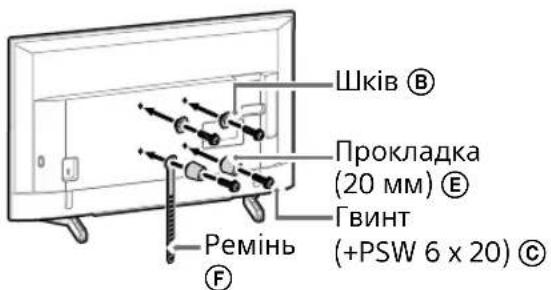

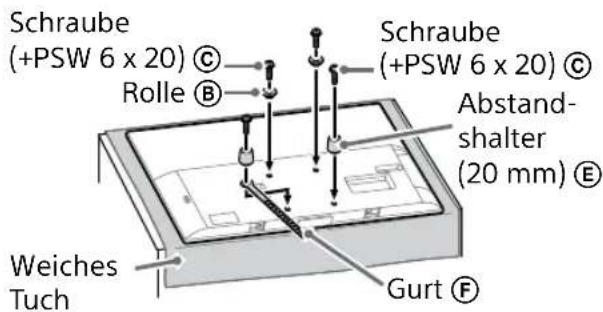

C PSW 6x20 (4) D PSW 4x20 with Bush (2)SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 3SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 4
E Spacer (20) (2) F Belt (1)SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 5SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 6
G Bush (20) (M4) (2) H PSW 4x20 (2)SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 7SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 8
I Base Adaptor (2) J PSW 4x10 (8)SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 9SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 10
K Spacer (60) (2) L PSW 6x50 (2)SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 11SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 12
M Bush (M4) (2) N PSW 4x50 (2)SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 13SONY Bravia KD55XG8196BU - Supplied with SU-WL450 - 14

Deciding on the installation location

1 Decide on the installation location.

Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least four times that of the TV.

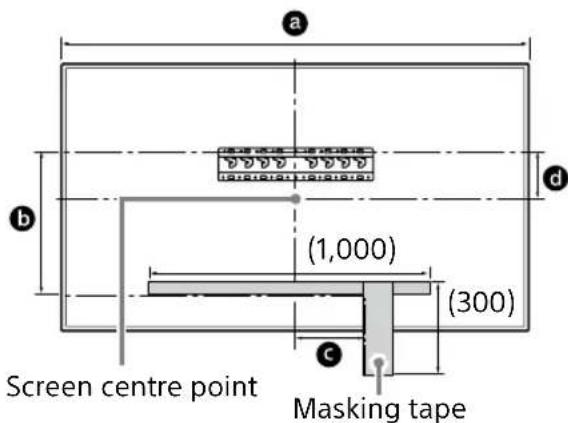

Refer to the following table on installing the TV to the wall. Refer to your TV's Reference Guide for the TV's weight.

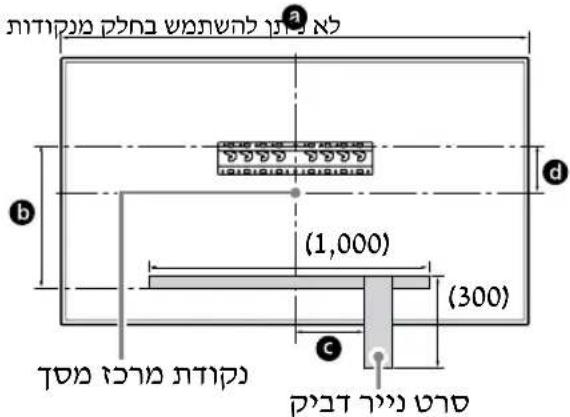

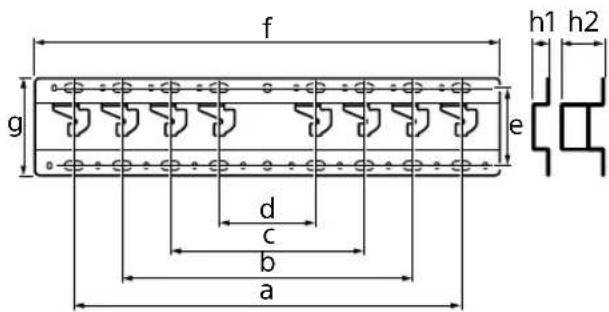

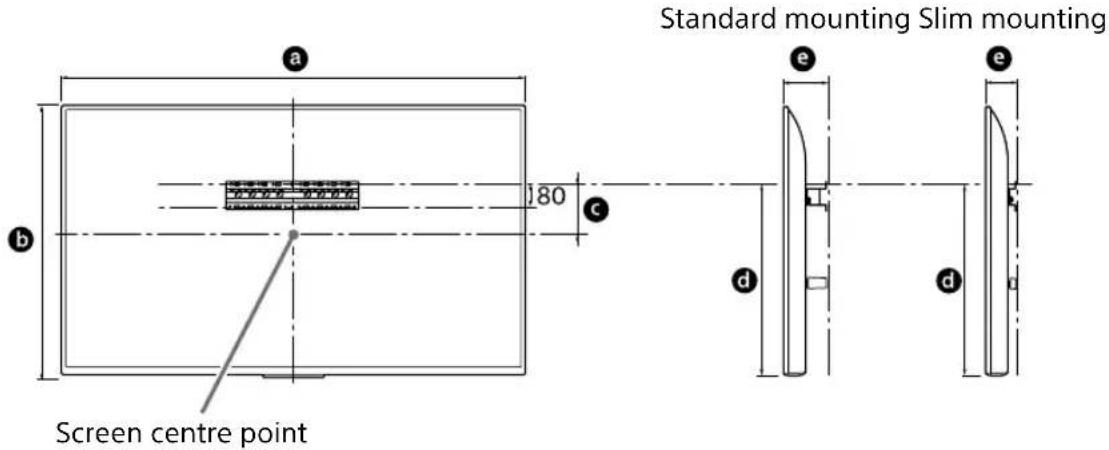

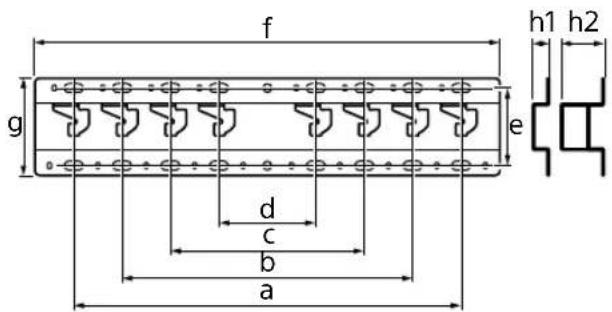

Standard mounting, slim mounting. Screen centre point. 180. a, b, c, d, e, d, e.

Unit: mm

Model NameDisplay dimensionsScreen centre dimensionLength for mounting
abcde
Standard mounting Slim mounting
KD-75XG80□□1,686970 202690 142 100
KD-65XG81□□1,463845173 597 142 100
KD-65XG80□□1,463845173 597 142 100
KD-55XG81□□1,24172195 460 141 100
KD-55XG80□□1,24172195 460 141 100
KD-49XG81□□1,101645-15* 31411978
KD-49XG80□□1,101645-15* 31411978
KD-43XG81□□97057023 315 11977
KD-43XG80□□97057023 315 11977

* Bracket positioning is below the screen centre point.

Note

  • Figures in the table may differ slightly depending on the installation.

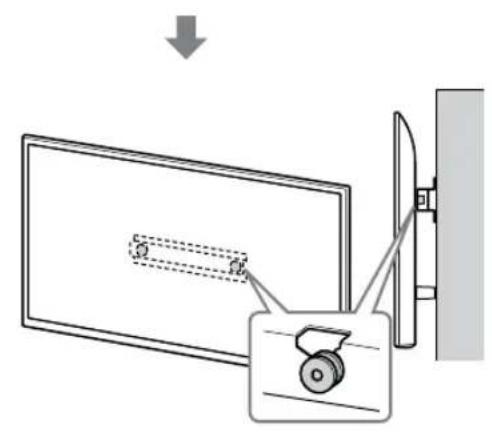

  • When your TV is installed on the wall, the upper side of the TV slightly leans forward.

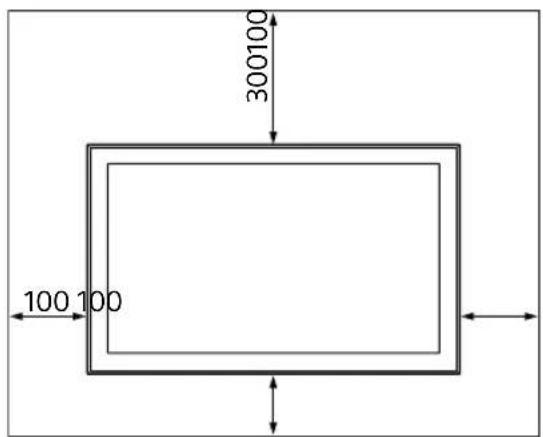

Allow for suitable clearance between the TV and the ceiling and protruding parts of the wall as shown below.

Unit: mm

300, 100, 100, 100.

• To ensure proper ventilation and prevent the collection of dirt or dust:

— Do not lay the TV set flat, install upside down, backwards, or sideways. — Do not place the TV set on a shelf, rug, bed or in a closet. — Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc. — Do not install the TV set as shown below.

Air circulation is blocked.

Wall.

Note

- If you intend to route the cables in the wall, make a hole in the wall to insert the cables before beginning the installation.

To prevent pinching the cables, prepare a hole in the wall somewhere outside the perimeter of the Base (20) Ⓐ, Base Adaptor Ⓞ and Spacer (20) Ⓔ, Spacer (60) Ⓗ.

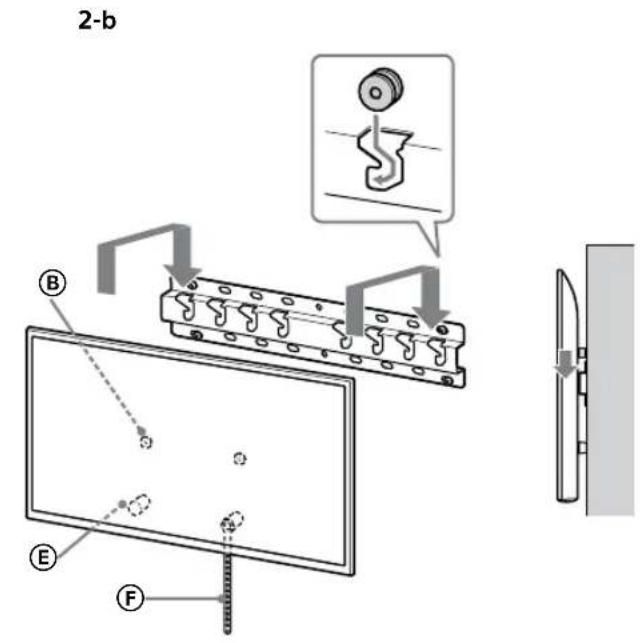

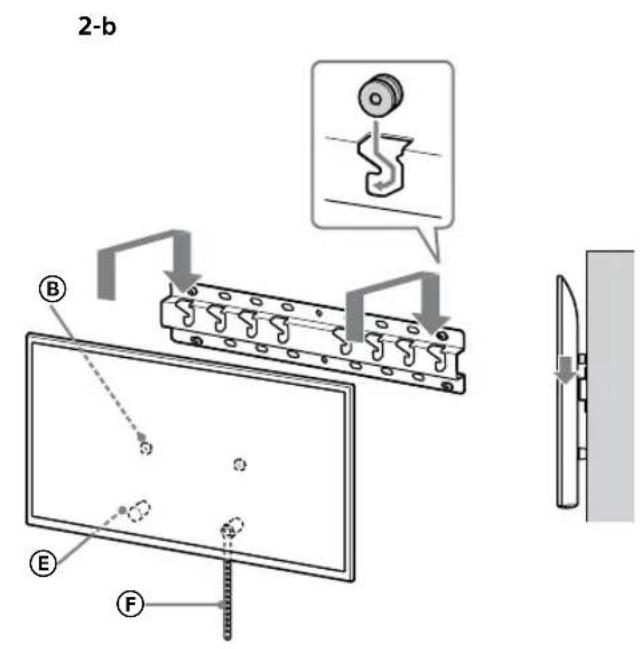

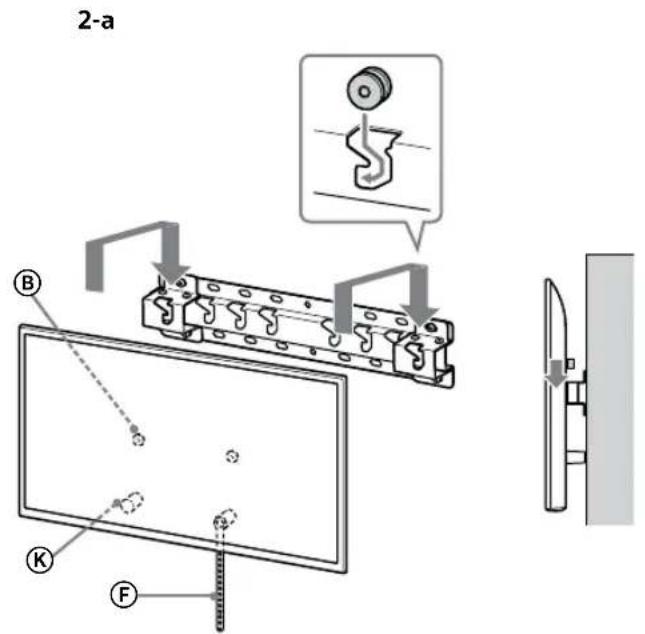

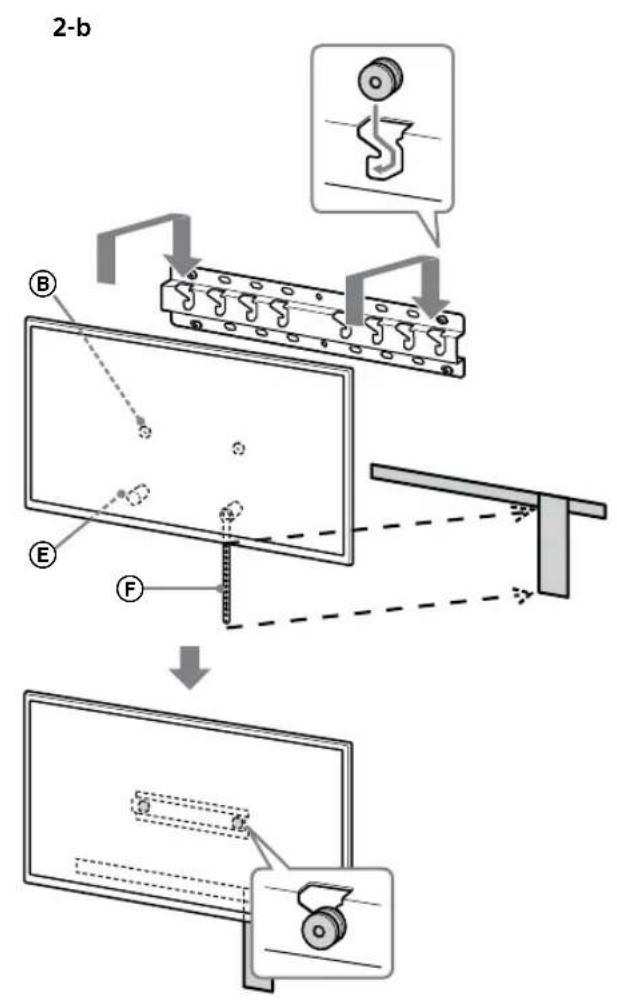

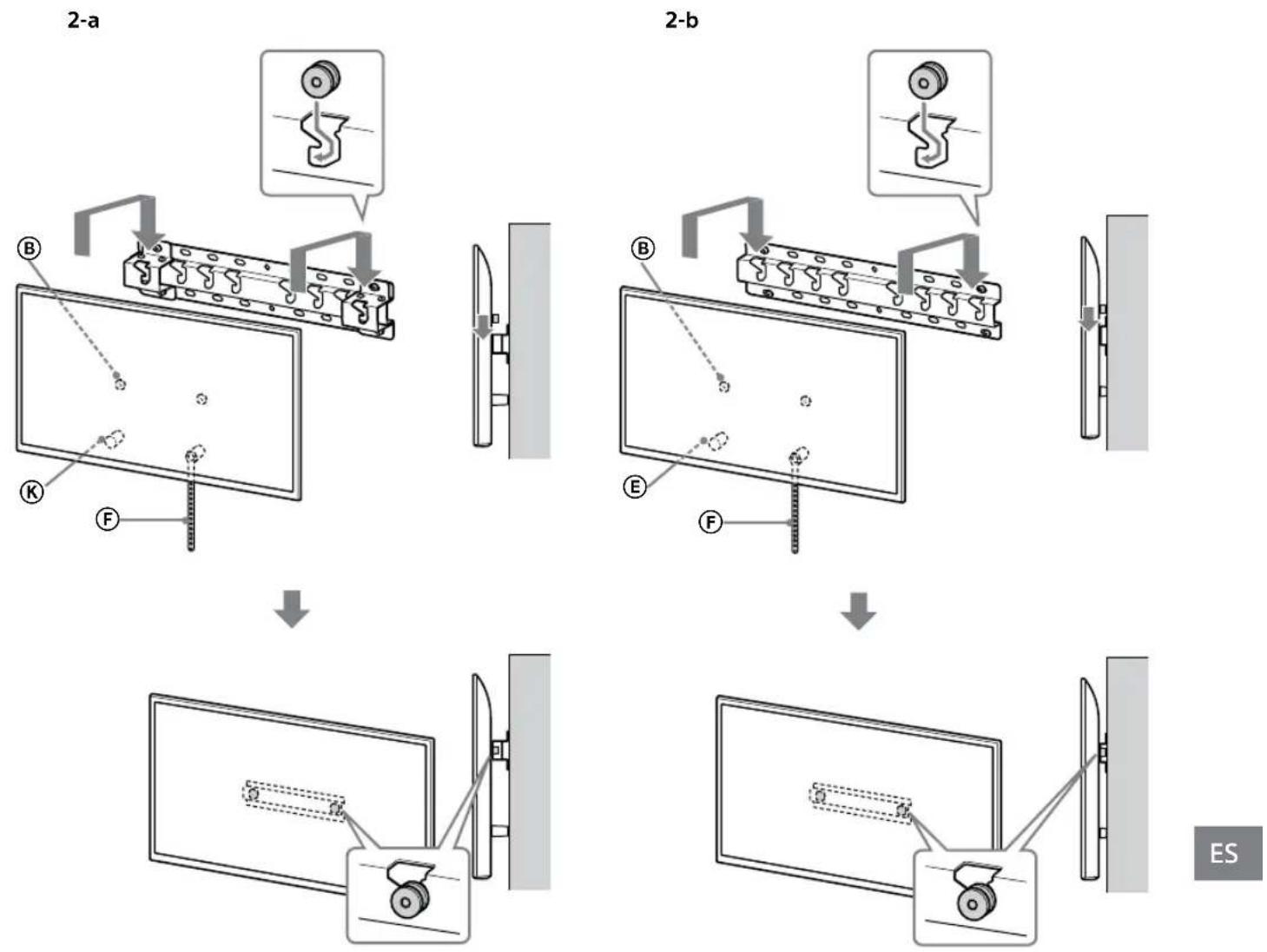

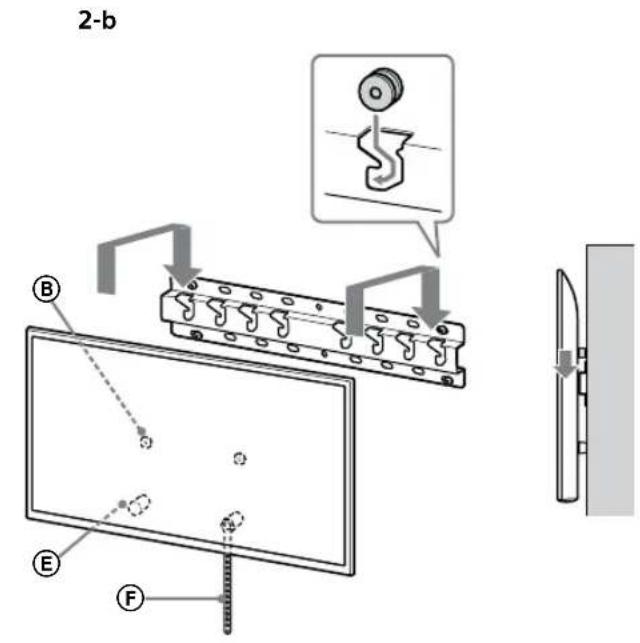

2 Select Wall mounting style. It is selectable as shown below.

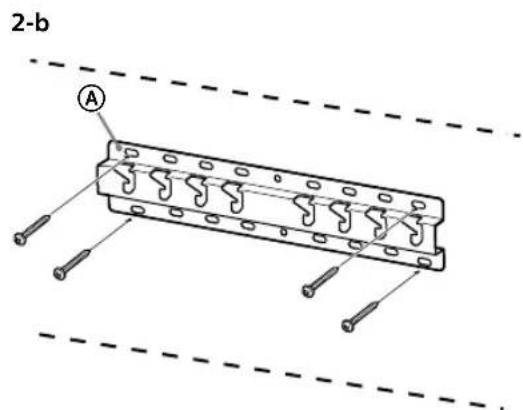

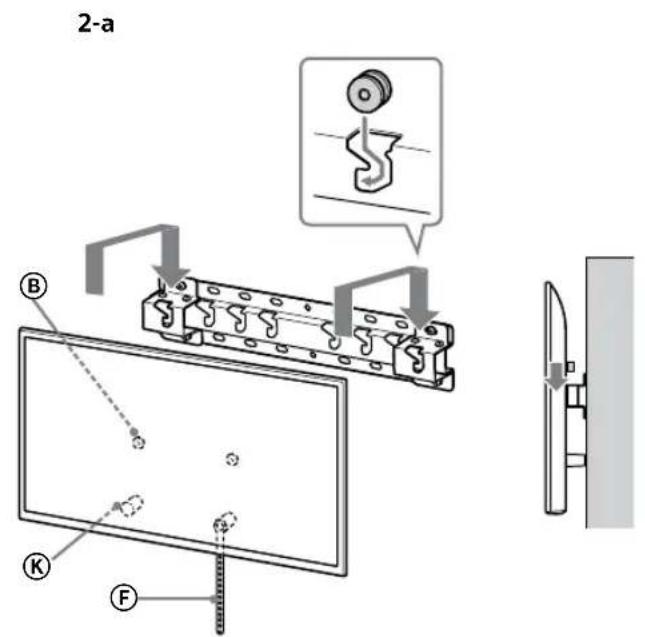

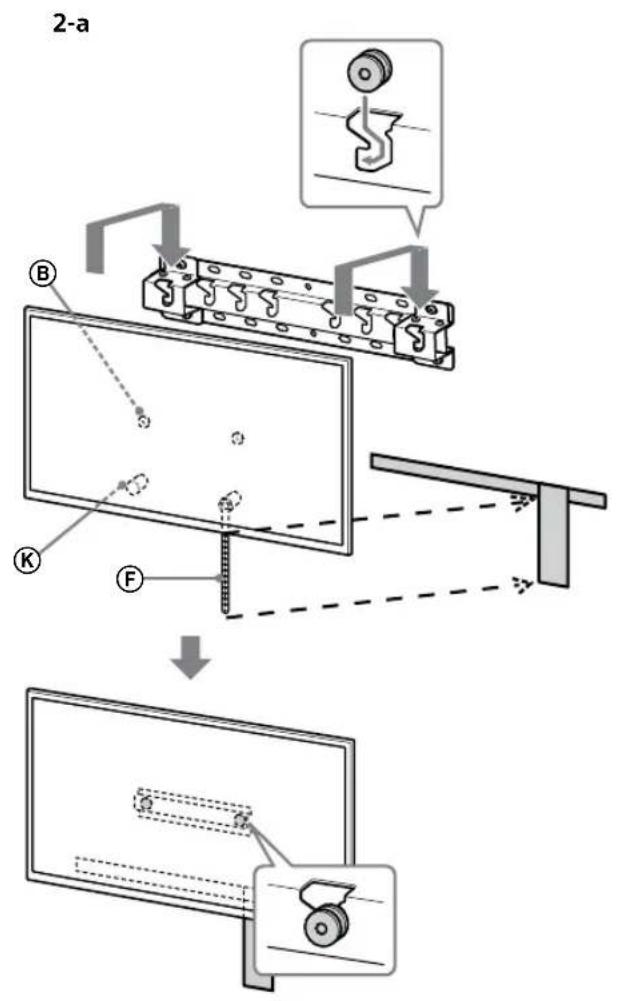

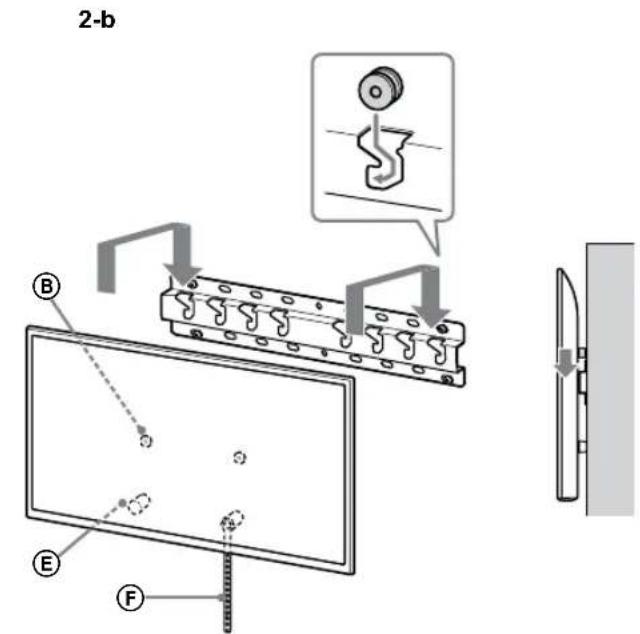

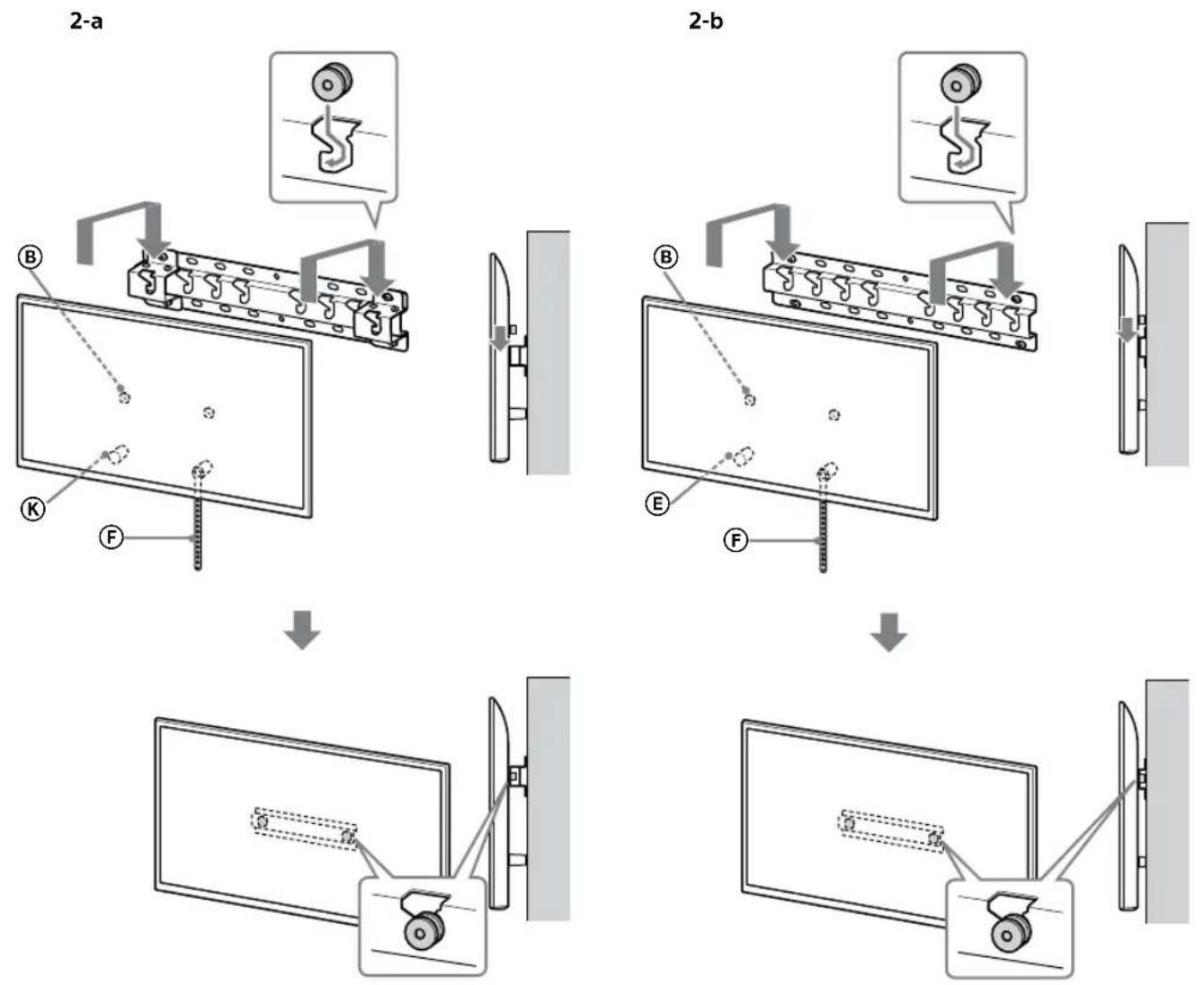

2-a Standard mount 2-b Slim mount

Refer to the table of step 1.

WARNING

- When 2-b is selected, rear terminal access is limited.

2-a, 2-b.

SONY Bravia KD55XG8196BU - WARNING - 2

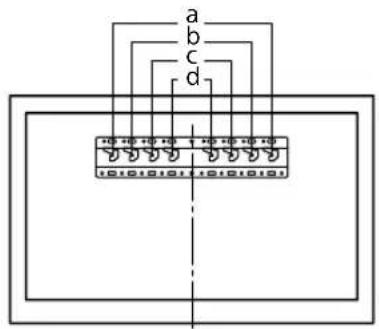

3 Refer to the below table about the Base Adaptor fitting location. In case of selecting 2-b, then skip this step.

Model Name Hook location
KD-75XG80□□
KD-65XG81□□b
KD-65XG80□□
KD-55XG81□□
KD-55XG80□□c
KD-49XG81□□
KD-49XG80□□
KD-43XG81□□d
KD-43XG80□□

a, b, c, d. 140, 40, 40, 40, 1, 40, 40, 40, 40. 161616161, 161616161.

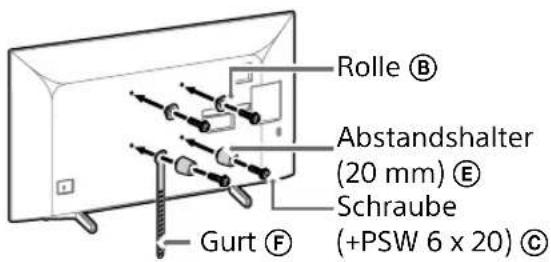

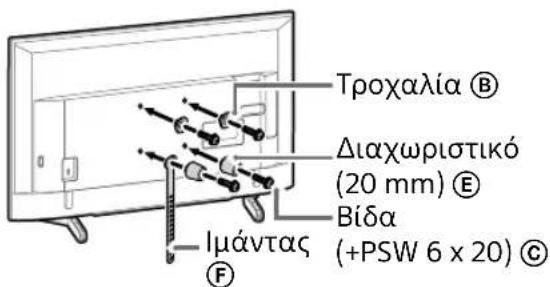

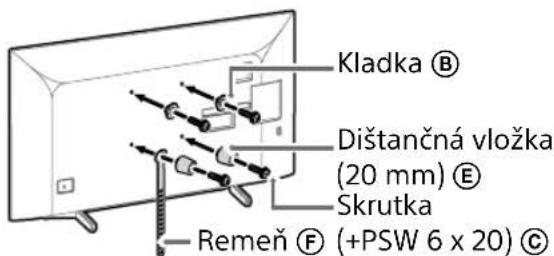

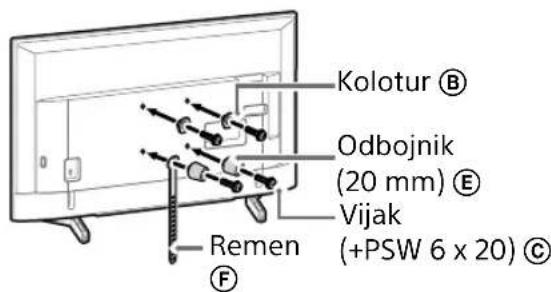

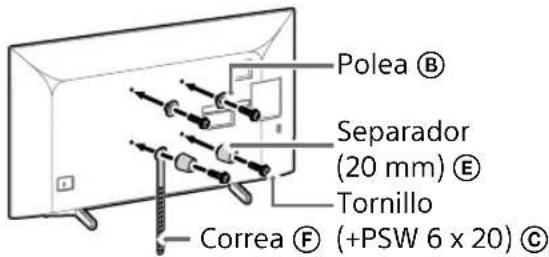

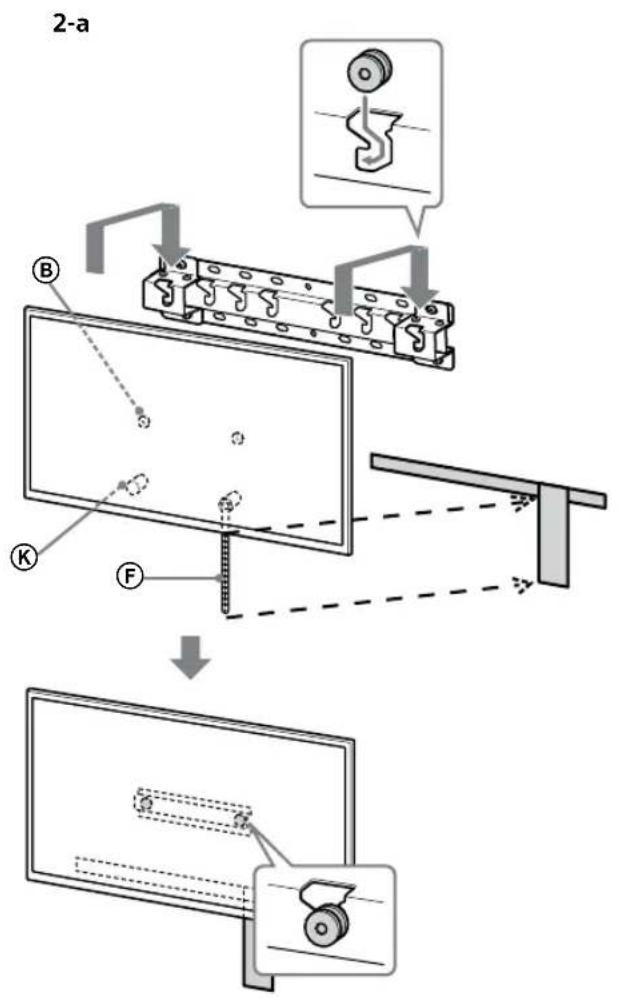

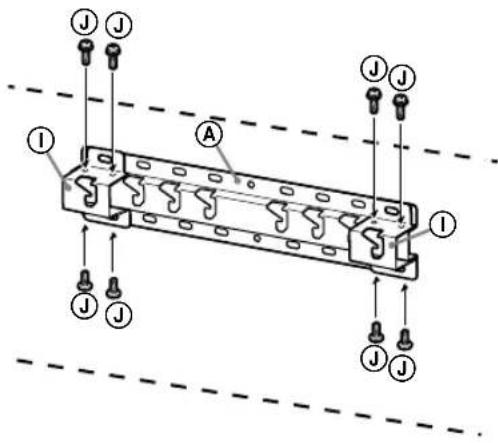

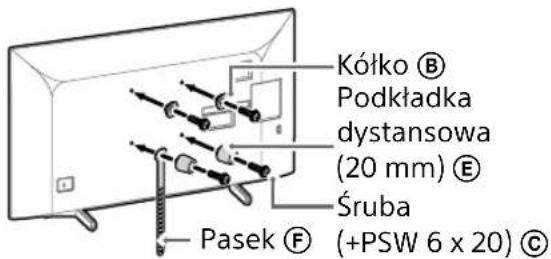

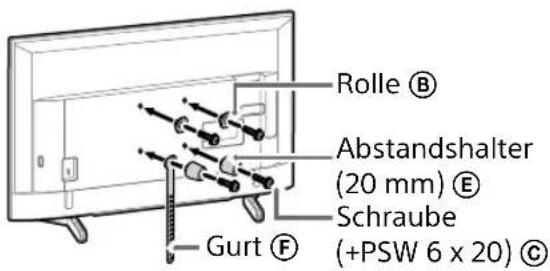

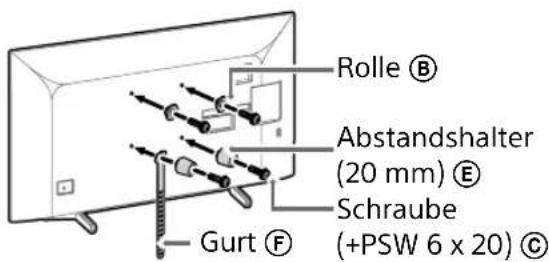

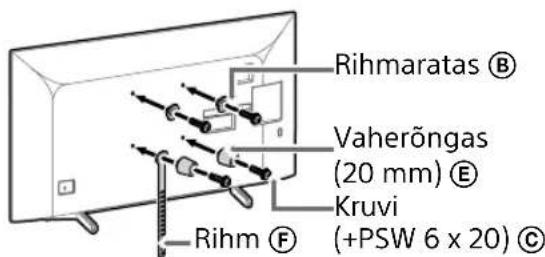

Fit Base Adaptor ① by using Screw (PSW 4x10) ② to Base (20) ③ when selecting 2-a.

Technical diagram of a mechanical or electrical component with labeled parts and connectors.

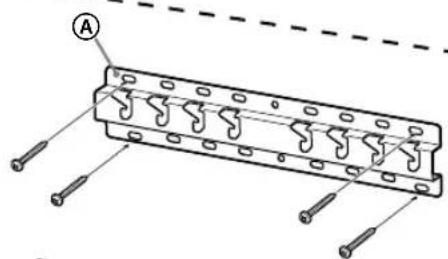

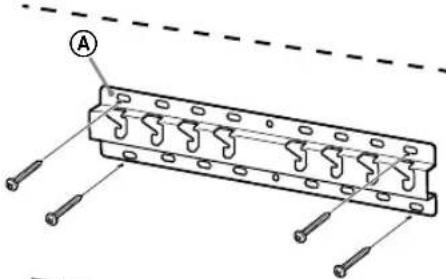

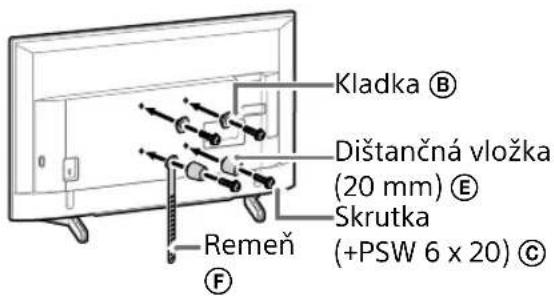

4 Decide the positions of the screws for installing the Base (20) Ⓐ.

Refer to the specifications on page 19. When selecting 2-a, please use the hole positions of Base Adaptor ①.

WARNING

- The wall that the TV will be mounted on should be able to support a weight of at least four times that of the TV (Refer to your TV's Reference Guide for its weight.).

- Determine the strength of the wall the TV will be mounted on. Reinforce the wall sufficiently, if necessary.

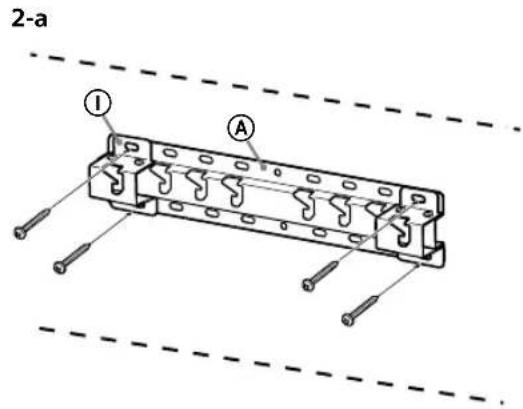

Installing the Base on the wall

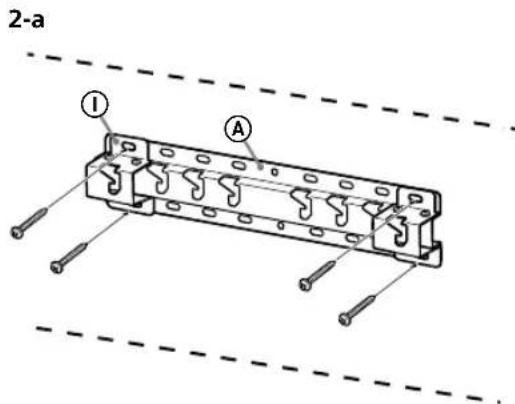

  • Use four or more screws of 8 mm diameter or equivalent (not supplied).
  • Fit four screws to the holes of Base Adaptor ① with Base (20) Ⓐ (2-a only). • Install the Base (20) Ⓐ on the wall horizontally.

2-a, ①, A.

2-b, A.

Preparing for the installation of the TV

Refer to the Setup Guide for stand installation.

KD-75XG80□□

1 Mark the installation location on the wall.

- Use masking tape, etc. (not supplied) to mark the location of the TV near the Base or Base Adaptor. Refer to the following table.

Screen centre point, masking tape, (1,000), (300), a, b, d, c.

Unit: mm

Model NameLength for markingScreen centre dimension
abcd

KD-75XG80□□ 1,686 564 150 202

2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

  • Firmly secure the Attachment parts using screws.
  • When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.
  • Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

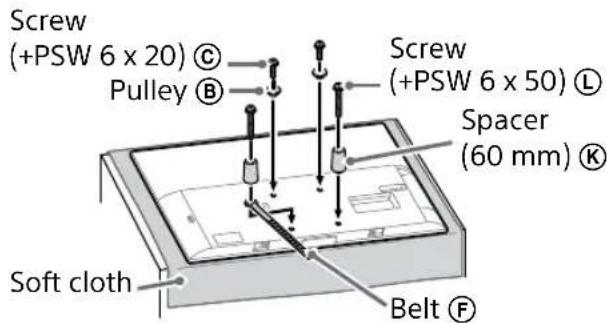

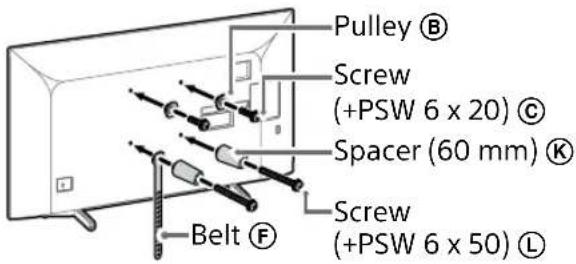

Standard mounting (2-a)Pulley Ⓑ, Screw (+PSW 6 x 20) ⓒ, Spacer (60 mm) Ⓙ, Screw (+PSW 6 x 50) Ⓘ, Belt Ⓕ.

Slim mounting (2-b)

Note

- You cannot use some of the terminals on the rear of the TV when using this mounting style.

Simple line drawing of a door with a rectangular opening and a prohibition symbol (no text or labels).

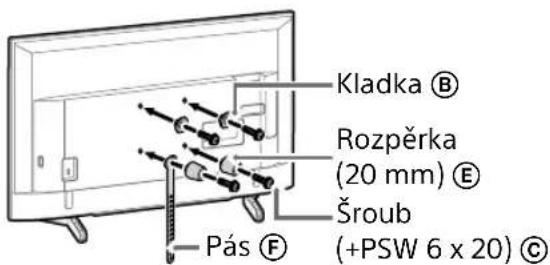

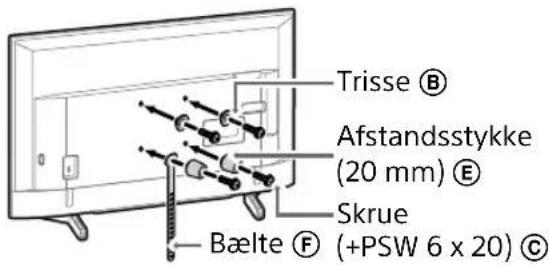

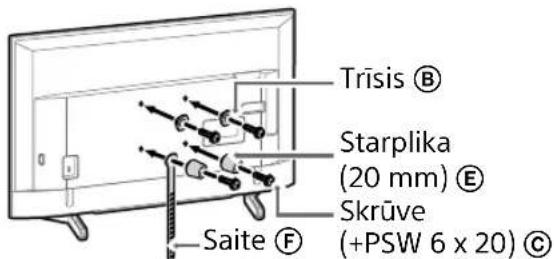

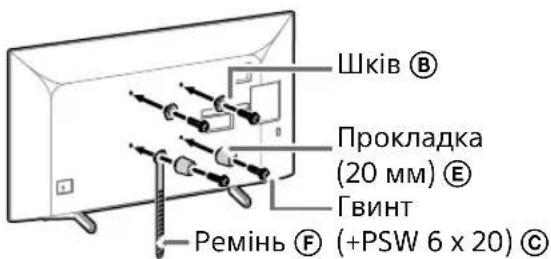

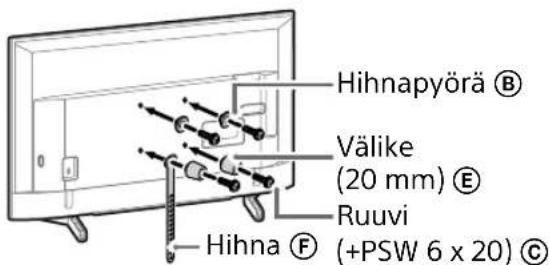

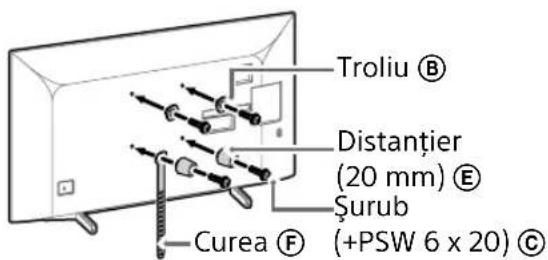

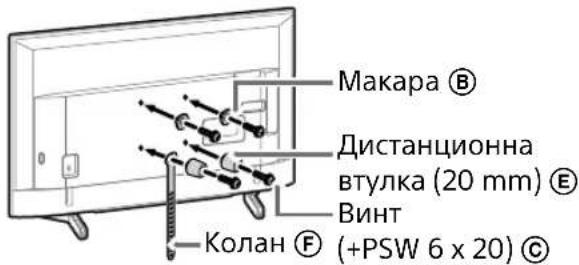

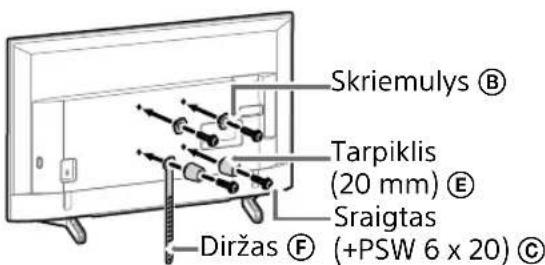

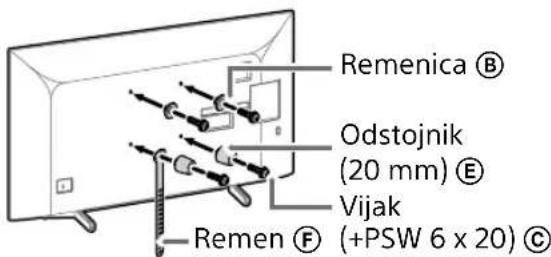

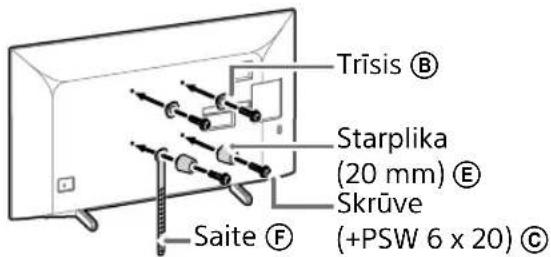

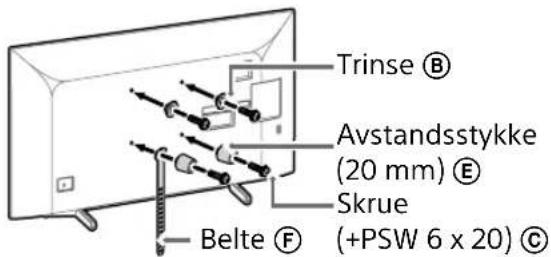

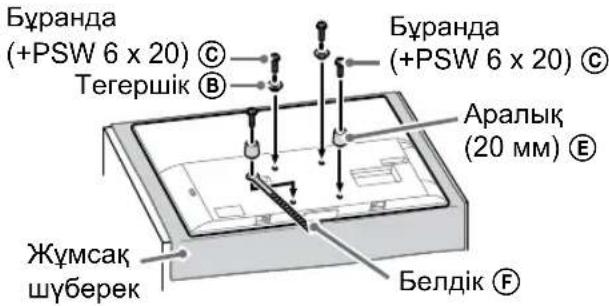

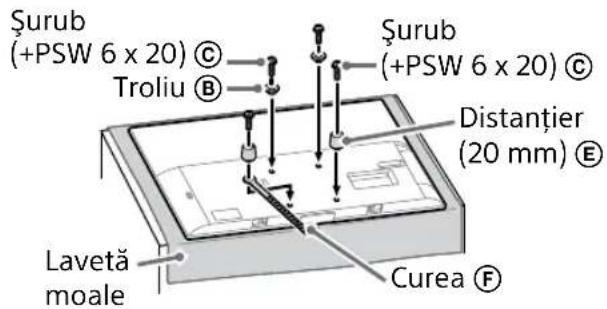

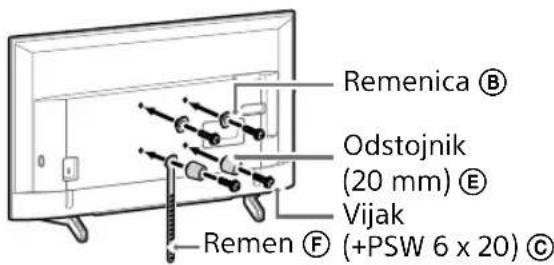

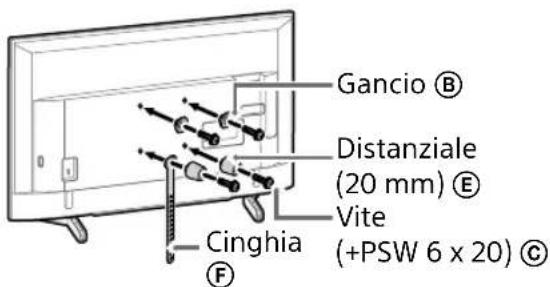

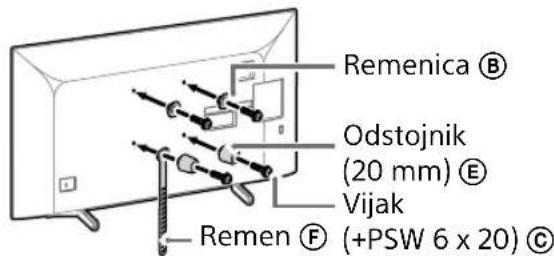

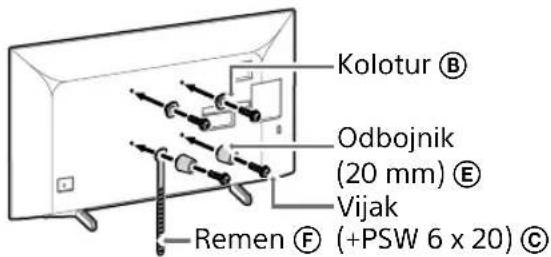

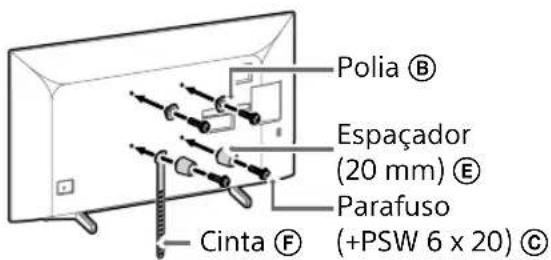

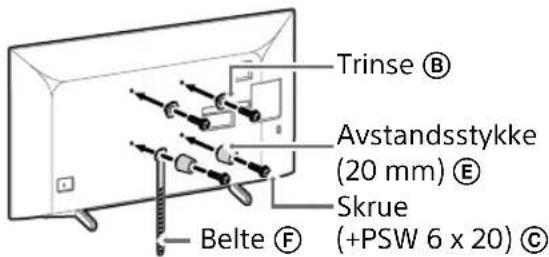

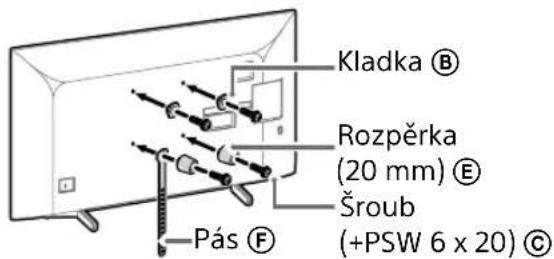

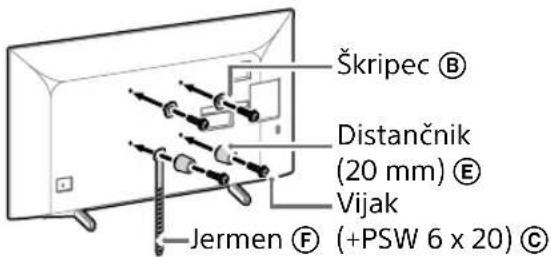

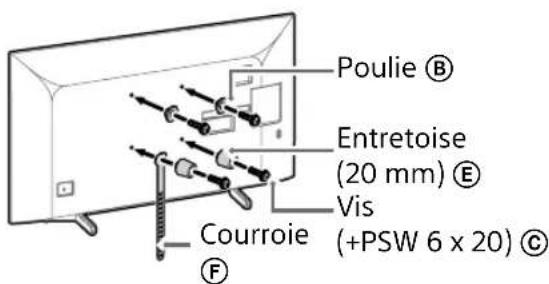

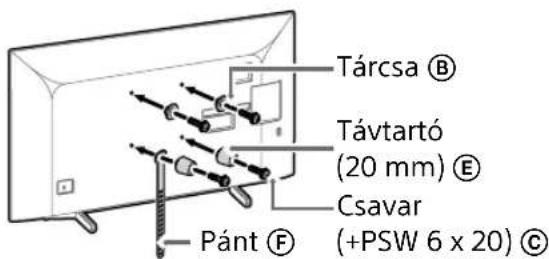

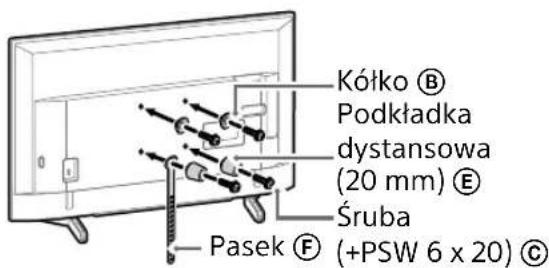

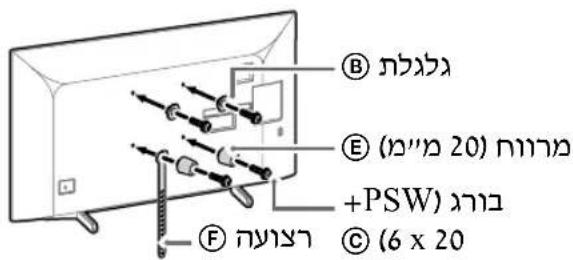

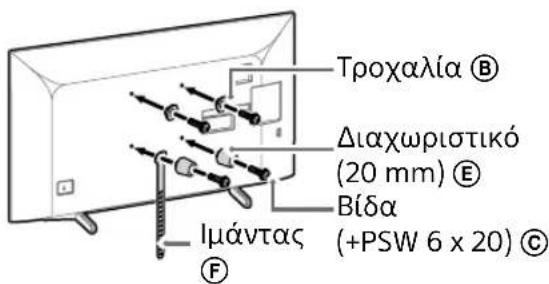

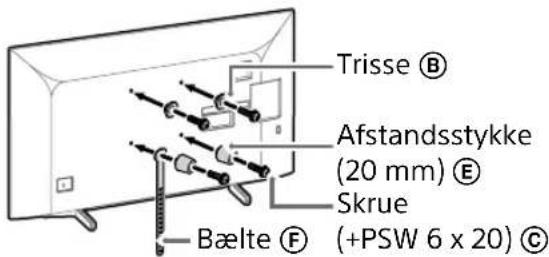

Pulley Ⓑ, Spacer (20 mm) Ⓔ, Screw (+PSW 6 x 20) Ⓒ, Belt Ⓕ.

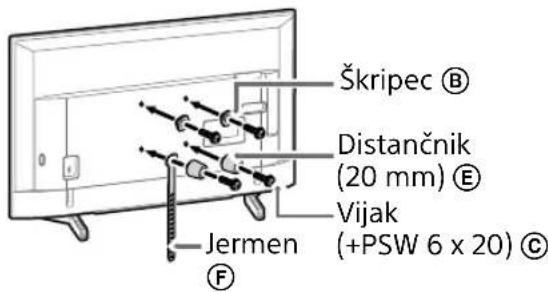

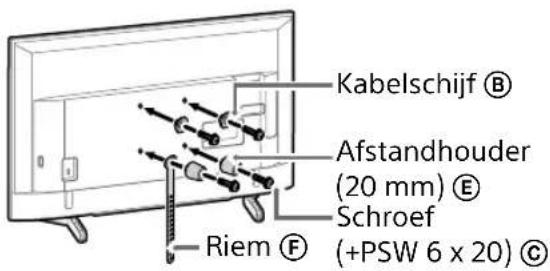

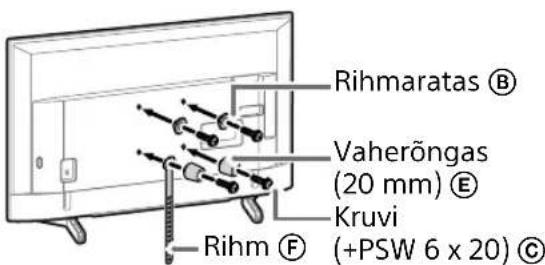

3 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the Reference Guide supplied with your TV.

Note

  • Subcontract the cable routing in the wall to a licensed contractor.
  • Bundle the connecting cables to prevent stepping on them before wall mounting.

4 Detach the Table-Top Stand from the TV.

- Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

Diagram illustrating two steps of installing a device, showing hand positioning and safety warning symbol.

- Repeat the previous step and remove the other side of the Table-Top Stand.

Note

  • Three or more people are required to detach the Table-Top Stand.
  • Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV. • Take care when handling the Table-Top Stand to prevent damage to the TV.
  • Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury. • Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

KD-65XG81□□ / 65XG80□□

1 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

  • Firmly secure the Attachment parts using screws.
  • When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.
  • Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting (2-a)Pulley Ⓑ, Screw (+PSW 6 x 20) ⓒ, Spacer (60 mm) Ⓙ, Screw (+PSW 6 x 50) Ⓘ, Belt Ⓕ.

Slim mounting (2-b)

Note

- You cannot use some of the terminals on the rear of the TV when using this mounting style.

Simple line drawing of a door with a switch and a prohibition symbol (no text or labels).

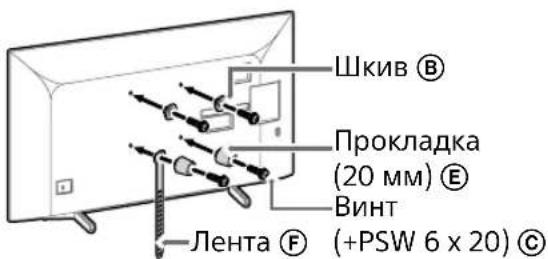

Pulley Ⓑ, Spacer (20 mm) Ⓔ, Screw (+PSW 6 x 20) Ⓒ, Belt Ⓕ

2 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the Reference Guide supplied with your TV.

Note

  • Subcontract the cable routing in the wall to a licensed contractor.
  • Bundle the connecting cables to prevent stepping on them before wall mounting.

3 Detach the Table-Top Stand from the TV.

- Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

Diagram illustrating two steps of installing a device, showing hand positioning and a safety warning symbol.

- Repeat the previous step and remove the other side of the Table-Top Stand.

Note

  • Three or more people are required to detach the Table-Top Stand.
  • Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV. • Take care when handling the Table-Top Stand to prevent damage to the TV.
  • Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury. • Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

KD-55XG81□□/

55XG80□□

1 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

  • Firmly secure the Attachment parts using screws.
  • When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.
  • Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting (2-a)Pulley Ⓑ, Screw (+PSW 6 x 20) Ⓒ, Spacer (60 mm) Ⓔ, Screw (+PSW 6 x 50) Ⓕ, Belt Ⓕ

Slim mounting (2-b)

Note

- You cannot use some of the terminals on the rear of the TV when using this mounting style.

Simple line drawing of a door with a stop symbol (no text or labels).

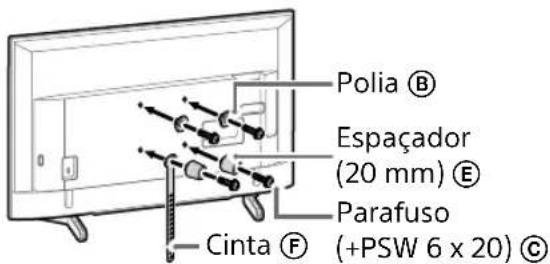

Pulley Ⓑ, Spacer (20 mm) Ⓔ, Screw (+PSW 6 x 20) Ⓒ, Belt Ⓕ

2 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the Reference Guide supplied with your TV.

Note

  • Subcontract the cable routing in the wall to a licensed contractor.
  • Bundle the connecting cables to prevent stepping on them before wall mounting.

3 Detach the Table-Top Stand from the TV.

Line drawing of a rectangular TV with attached cables and connectors, showing no text or symbols.

Note

  • Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury. • Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

KD-49XG81□□/

49XG80□□ / 43XG81□□ /

43XG80□□

1 Detach the Table-Top Stand from the TV.

Diagram of a device casing with connectors and internal components, no text or symbols present.

Note

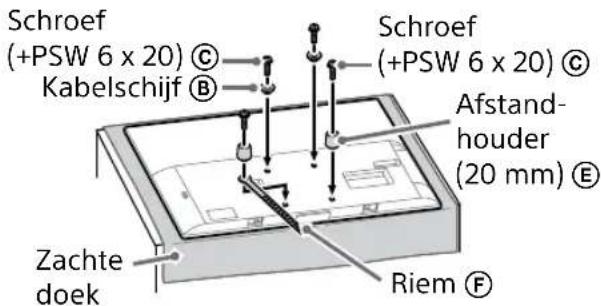

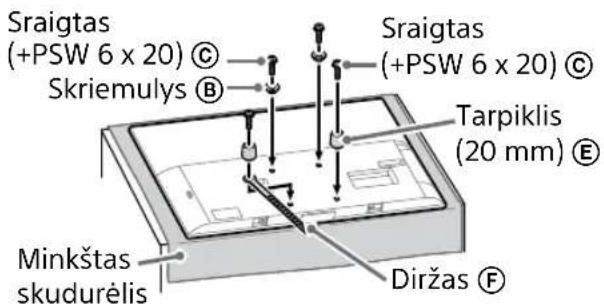

  • Make sure to place the TV on a soft cloth to prevent damaging the display's surface.
  • When installing the Wall-Mount Bracket, do not use the screws removed from the Table-Top Stand.

- Be sure to store the removed Table-Top Stand and its screws in a safe place, keeping them away from children. You will need them if you want to use the TV on a table in the future. The Table-Top Stand cannot be purchased separately.

WARNING

  • Be sure the TV is in the vertical position before switching it on. The TV set must not be powered on with the LCD panel face down to avoid uneven picture uniformity.
  • If pressure or shock is applied to the surface of the TV, the TV may break or become damaged.
  • Lay the TV face down on a stable and level surface with the Table-Top Stand hanging over the edge of the surface. Having the TV face and the base of the Table-Top Stand on the same level surface will create an unstable working condition and can damage the TV.
  • When detaching the Table-Top Stand from the TV, hold the Table-Top Stand securely with both hands.

2 Attach the Attachment parts for the Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

  • Firmly secure the Attachment parts using screws.
  • When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.
  • Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

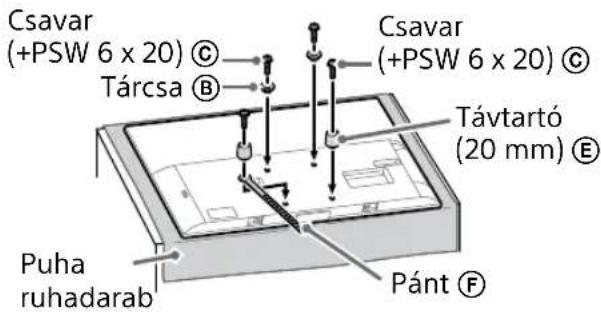

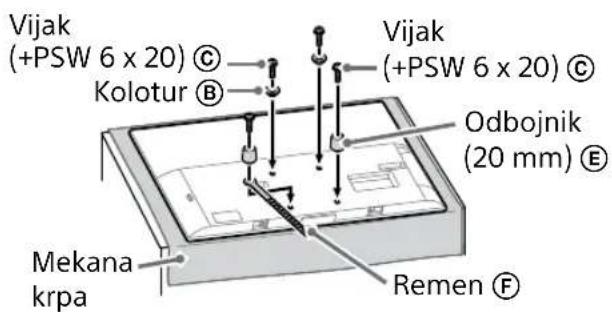

Standard mounting (2-a)Screw (+PSW 6 x 20) Ⓒ, Pulley Ⓑ, Screw (+PSW 6 x 50) Ⓕ, Spacer (60 mm) Ⓔ, Soft cloth, Belt Ⓕ

Slim mounting (2-b)

Note

- You cannot use some of the terminals on the rear of the TV when using this mounting style.

Simple line drawing of a door with a handle and no text or symbols present.

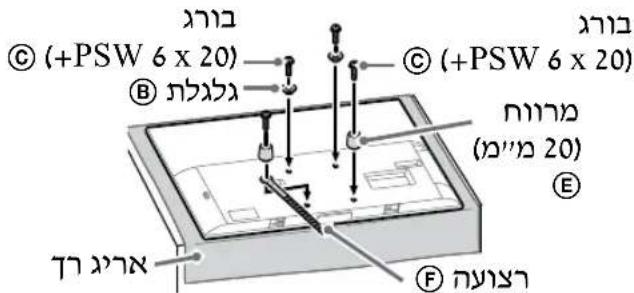

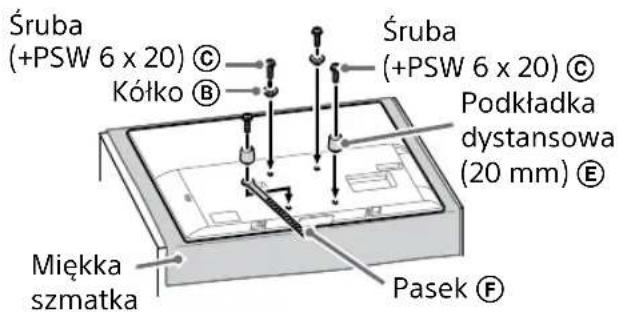

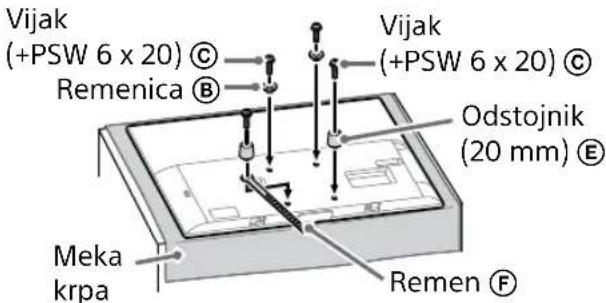

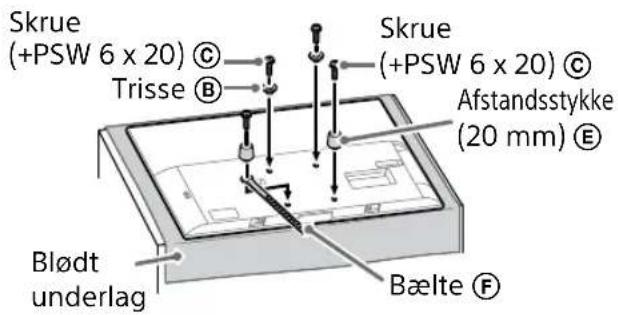

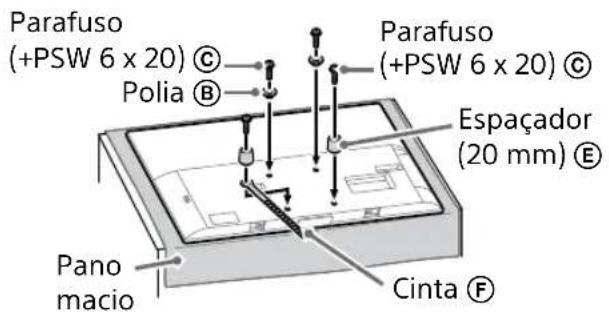

Screw (+PSW 6 x 20) Ⓒ, Pulley Ⓑ, Screw (+PSW 6 x 20) Ⓒ, Spacer (20 mm) Ⓔ, Soft cloth, Belt Ⓕ

3 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the Reference Guide supplied with your TV.

Note

  • Subcontract the cable routing in the wall to a licensed contractor.
  • Bundle the connecting cables to prevent stepping on them before wall mounting.

Installing the TV on the wall

KD-75XG80□□

1 Lift the TV.

  • For the location of the Pulleys Ⓑ to hang on the Base or Base Adaptor, refer to the table in step 3 of "Deciding on the installation location" on page 7. • Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

Note

  • Hold the TV securely with both hands and make sure the Belt Ⓔ and the bottom of the TV align with the masking tape.
  • Carry the TV with three people, and the person who is in front of the TV leads the others to adjust the position.

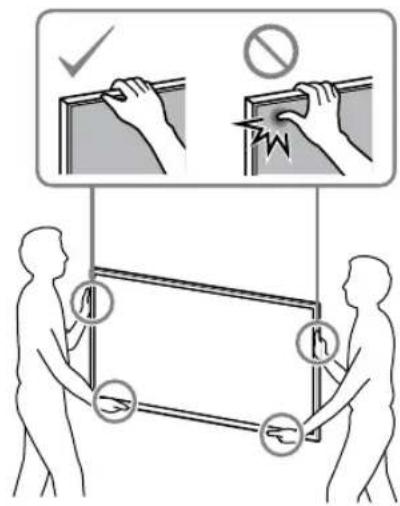

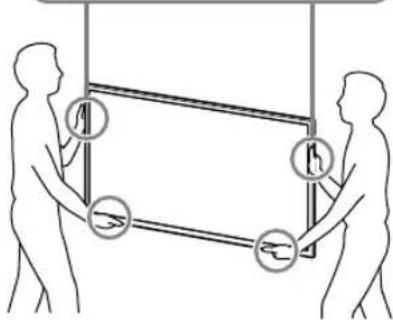

Illustration of three people lifting a large object with dashed lines indicating motion or alignment (no text or symbols).

• Take great care when installing the TV to the wall, especially for the person who is supporting the TV from below; the television set may fall, causing serious bodily injury or even death.

Technical diagram showing a monitor with labeled components (A, B, C, D, E) and an inset view of a door mechanism.

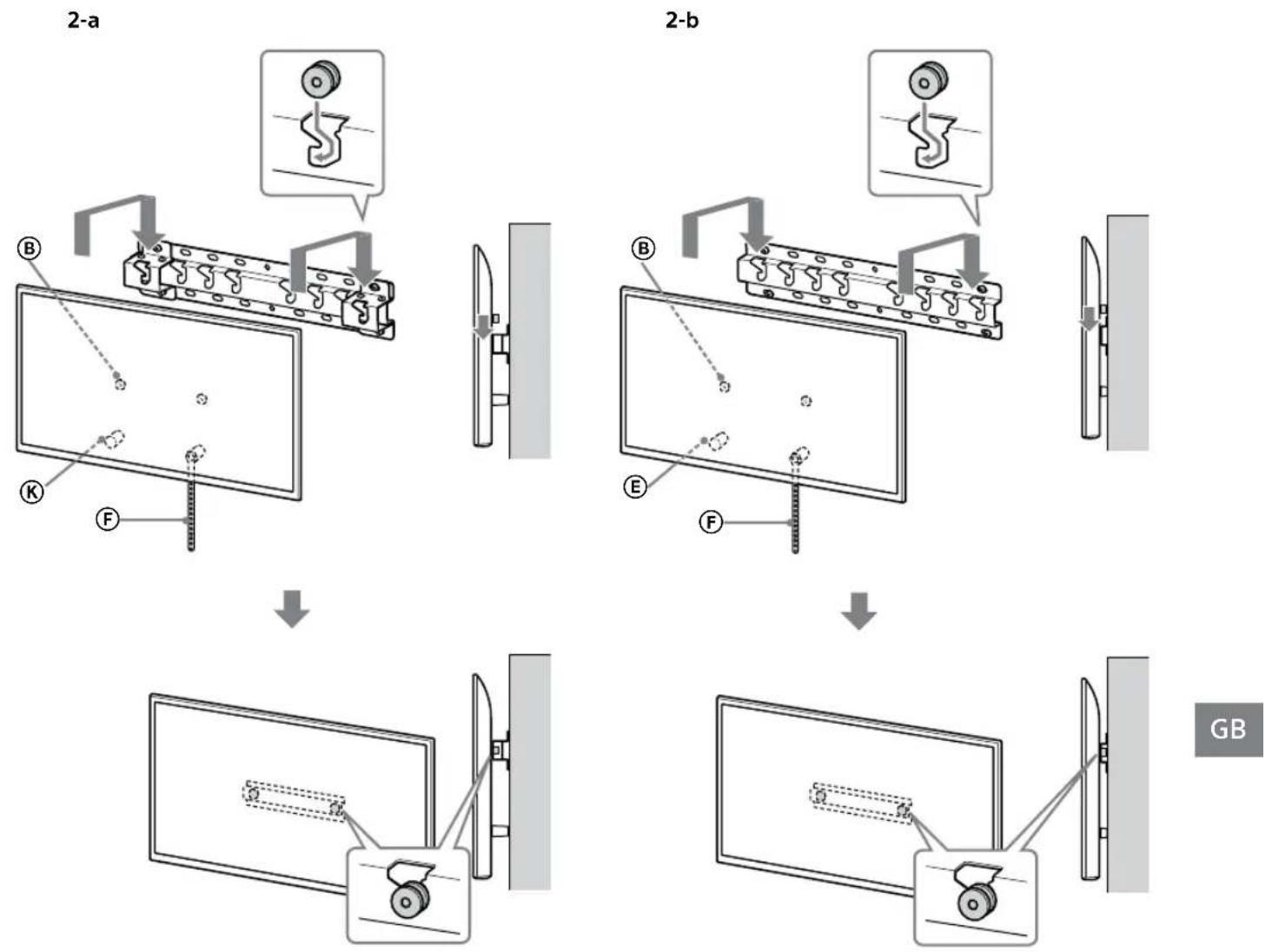

2 Install the TV onto the Base or Base Adaptor.

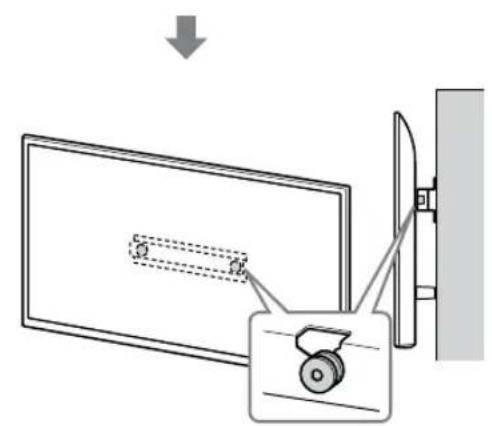

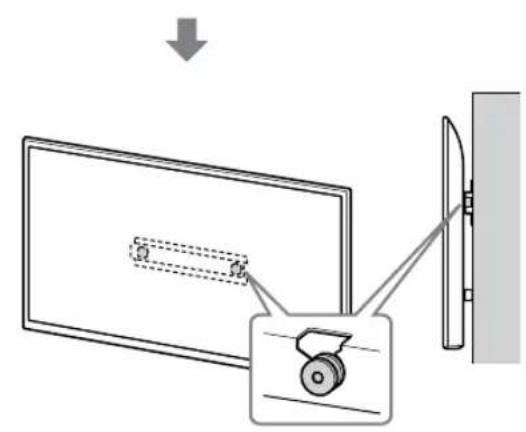

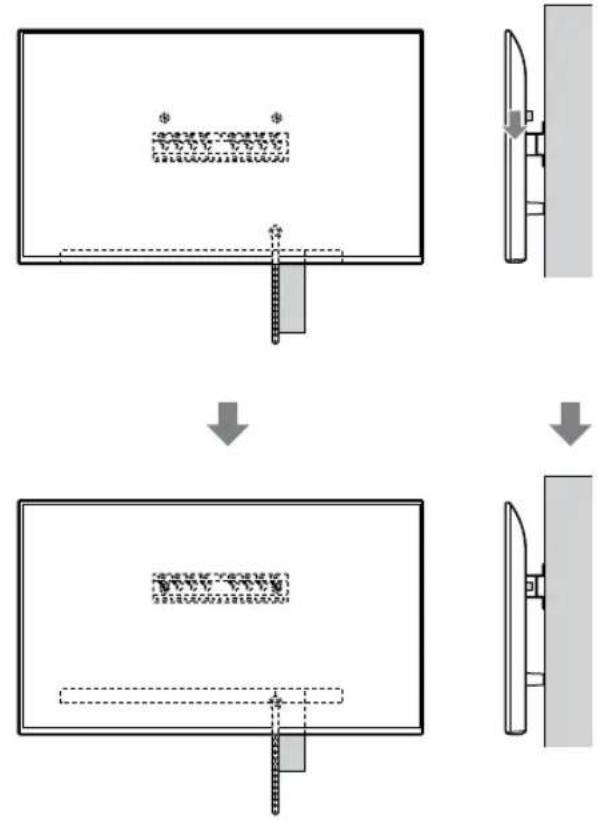

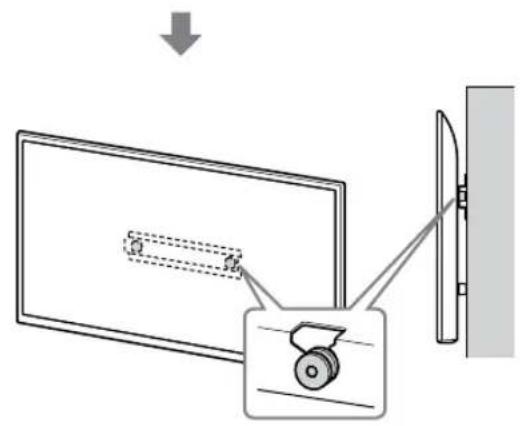

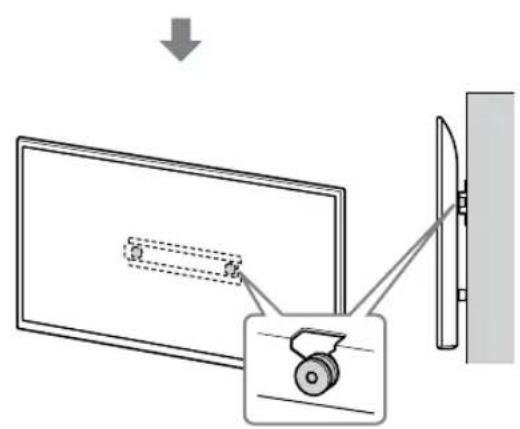

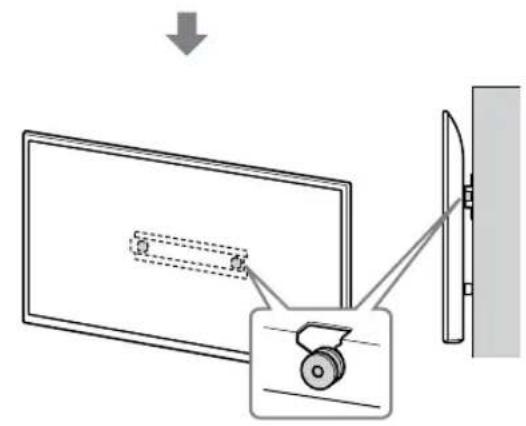

  • Gently slide down the TV and hang the Pulleys Ⓑ attached to the rear of the TV onto the Base or Base Adaptor, making sure to confirm the shape of the holes.
  • After installing the TV on the wall, confirm the Pulleys Ⓑ are firmly latched into the Base or Base Adaptor.
  • Release both hands slowly to ensure that the TV does not fall.

Simple line drawing of a rectangular frame with a dashed rectangle inside and a starburst shape at the bottom (no text or symbols).

• After installing the TV on the wall, remove the masking tape, etc. from the wall.

2-a, B, K, F

2-b, B, E, F

WARNING

- Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it.

Safety instruction diagram showing hand protection and safety symbols for a person holding a device.

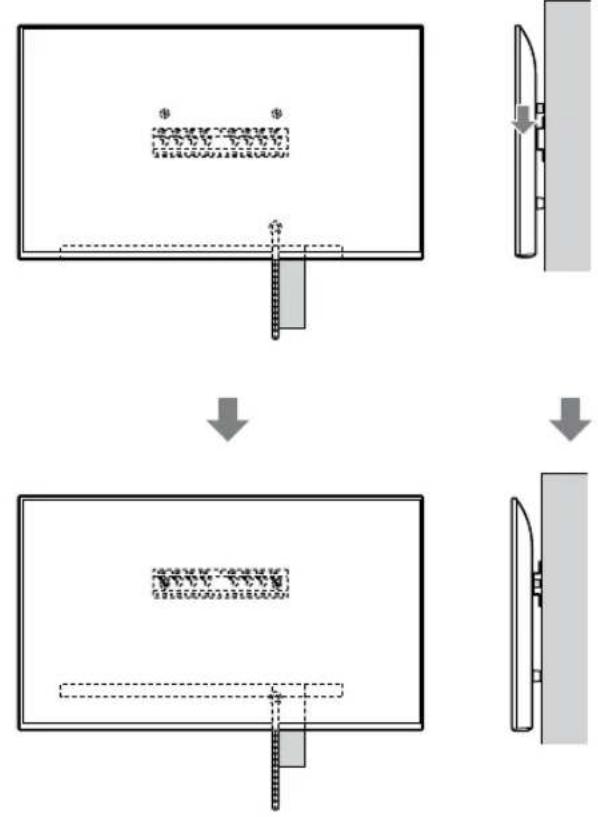

3 Preventing the bottom of the TV from shifting.

- Take up the slack of Belt Ⓔ and attach it to the wall tightly.

2-a 2-b F F

- Use a 5 mm diameter screw or equivalent (not supplied).

Note

- Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt ⑤ should be secured firmly again.

KD-65XG81□□ / 65XG80□□ / 55XG81□□ / 55XG80□□ / 49XG81□□ / 49XG80□□ / 43XG81□□ / 43XG80□□

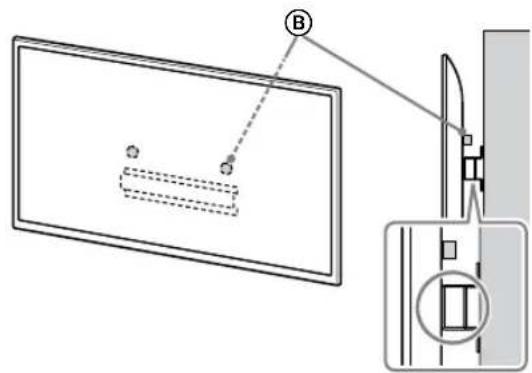

1 Lift the TV.

- For the location of the Pulleys Ⓑ to hang on the Base or Base Adaptor, refer to the table of step 3 in "Deciding on the installation location" on page 7. - Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

Technical diagram showing a device with labeled components and a magnified view of the internal structure.

Note

- Hold the TV securely with both hands.

2 Install the TV onto the Base or Base Adaptor.

- Gently slide down the TV and hang the Pulleys ⑧ attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes. - After installing the TV on the wall, confirm the Pulleys ⑧ are firmly latched into the Base or Base Adaptor. - Release both hands slowly to ensure that the TV does not fall.

Simple line drawing of a rectangular frame with a small rectangular cutout and a starburst shape at the bottom (no text or symbols).

SONY Bravia KD55XG8196BU - Install the TV onto the Base or Base Adaptor. - 2

WARNING

- Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it.

Safety instruction diagram showing hand protection and warning symbols for installing a panel, with two silhouettes representing different positions.

3 Preventing the bottom of the TV from shifting.

- Take up the slack of Belt Ⓔ and attach it to the wall tightly.

2-a 2-b F F

- Use a 5 mm diameter screw or equivalent (not supplied).

Note

- Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt ⑤ should be secured firmly again.

Confirming the completion of the installation

Check the following points.

  • The Pulleys Ⓑ are firmly hung onto the Base or Base Adaptor.
  • The cord and the cable are not twisted or pinched.
  • The Belt Ⓕ is tight with no slack.

WARNING

- Improper placement of the mains lead, etc. may cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety.

Other information

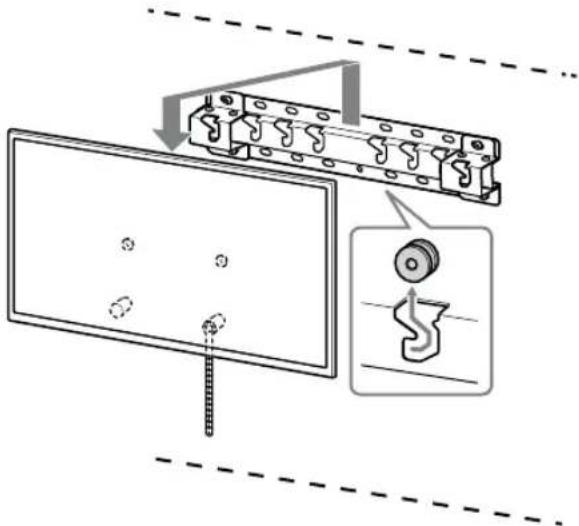

When removing the TV, reverse the previous installation procedure.

Technical diagram showing a mechanical assembly with labeled components and a magnified inset showing a gear mechanism.

WARNING

- Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when removing it.

Specificationsf h1 h2 g e d c b a

Dimensions: (Approx.) [mm]

a : 400

b: 300

c: 200

d: 100

e: 80

f: 480

g: 100

h1: 20 (case 2-b)

h2: 60 (case 2-a)

Weight (base only): (Approx.) [kg]

0.8

Design and specifications are subject to change without notice.

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt (+PSW 6 x 20) Ⓔ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt (+PSW 6 x 20) Ⓔ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt (+PSW 6 x 20) Ⓔ

Screw (+PSW 6 x 20) © Pulley Ⓑ Screw (+PSW 6 x 20) © Spacer (20 mm) Ⓔ Soft cloth Belt ⒨

2-b B E F

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a hanging device, indicating a process or assembly step.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

FR

WARNING

WARNING

Dimensions: (approx.) [mm]

a: 400

b: 300

c: 200

d: 100

e: 80

f: 480

g: 100

h1: 20 (case 2-b)

h2: 60 (case 2-a)

Weight (base only): (approx.) [kg]

0.8

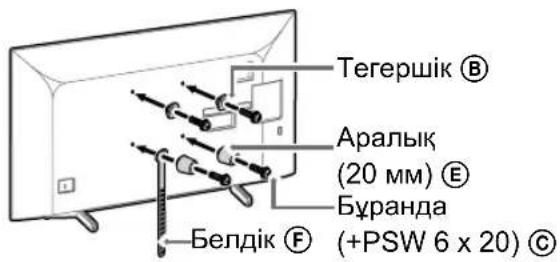

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓔ

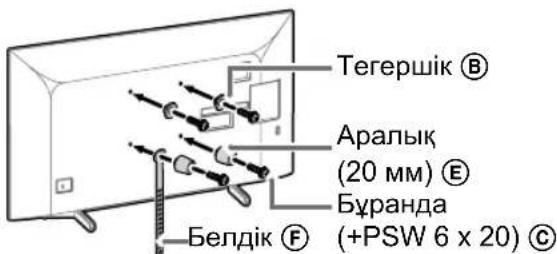

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓒ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓔ

Note

Note

Screw (+PSW 6 x 20) © Pulley Ⓑ Screw (+PSW 6 x 20) © Spacer (20 mm) Ⓔ Soft cloth Belt ⒨

2-b B E F

WARNING

Note

SONY Bravia KD55XG8196BU - Note - 1

EN

WARNING

WARNING

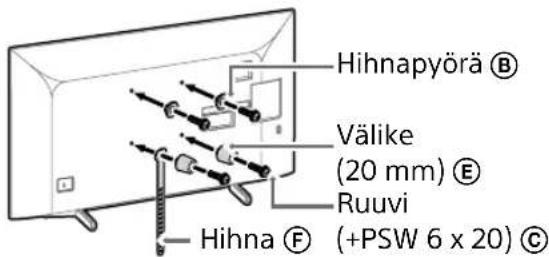

Roller Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓔ Belt Ⓕ

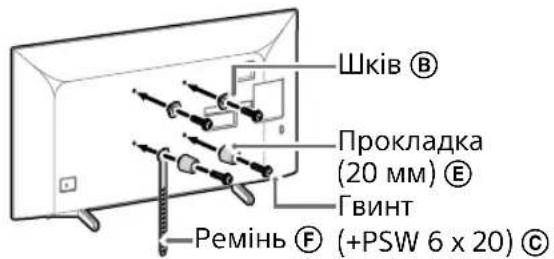

Roller Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Belt Ⓕ

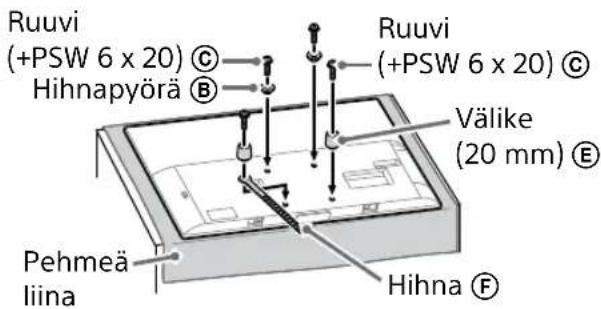

Roller Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓔ Belt Ⓕ

Note

Note

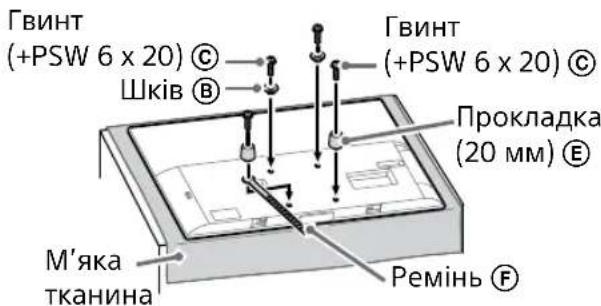

Screw (+PSW 6 x 20) © Roller ® Soft cloth Screw (+PSW 6 x 20) © Spacer (20 mm) ® Belt ®

2-b B E F

EN

WARNING

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a device, illustrating a folding or disassembly process.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

EN

WARNING

WARNING

Diagram illustrating two steps of installing a device, showing hand positioning and safety warning symbol.

Diagram illustrating a procedure for installing or adjusting a vehicle's door panel, with instructions and safety symbols.

Line drawing of a rectangular TV with cable connectors, no text or symbols present.

Note

Note

Illustration of three people lifting a large object with dashed lines indicating motion or alignment, no text or symbols.

2-b B E F

WARNING

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a device, illustrating a folding or disassembly process.

Diagram showing a monitor with a slide and a scroll wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

NL

WARNING

WARNING

Hook Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓓ Belt F

3 Connect the necessary cable(s) to the television.

Hook Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓓ Belt F

2 Connect the necessary cable(s) to the television.

Hook Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Belt F

2 Connect the necessary cable(s) to the television.

Note

Note

(+PSW 6 x 20) © Hook Ⓑ

Screw

(+PSW 6 x 50) Ⓛ

Spacer

(60 mm) Ⓚ

Soft cloth

Soft cloth

Strap Ⓕ

(+PSW 6 x 20) © Hook Ⓑ

Screw

(+PSW 6 x 20) ©

Spacer

(20 mm) Ⓔ

Soft cloth

Soft cloth

Strap Ⓕ

3 Connect the necessary cable(s) to the television.

2-b B E F

WARNING

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a device, illustrating a folding or disassembly process.

Diagram showing a monitor with a scroll wheel and a wall-mounted device, illustrating the process of viewing or projection.

WARNING

WARNING

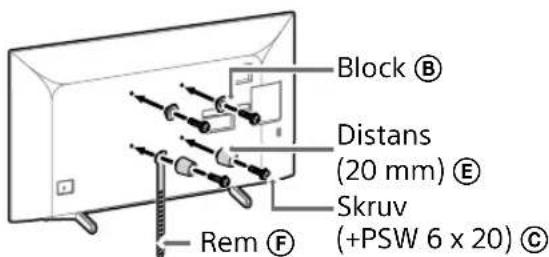

Block Ⓑ, Distans (20 mm) Ⓔ, Skruv, Rem Ⓕ (+PSW 6 x 20) Ⓒ

Block Ⓑ, Distans (20 mm) Ⓔ, Skruv (+PSW 6 x 20) Ⓒ, Rem Ⓕ

Block Ⓑ, Distans (20 mm) Ⓔ, Skruv, Rem Ⓕ (+PSW 6 x 20) Ⓒ

Note

Note

Skruv (+PSW 6 x 20) ©, Block Ⓑ, Skruv (+PSW 6 x 20) ©, Distans (20 mm) Ⓔ, Mjuk duk, Rem ⒨

2 Mount the TV on the base or adapter.

2-b B E F

WARNING

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a device, illustrating a folding or disassembly process.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

Diagram illustrating two steps of installing a car door panel, showing installation and inspection with a warning sign.

Line drawing of a rectangular TV with attached cables and connectors, no text or symbols present.

Warning

Warning

Illustration of three people assembling a large board with a measuring tape, no text or symbols present.

2-b, B, E, F

WARNING

Warning

2-a, B, K, F

2-b, B, E, F

Diagram showing a device with a slide and a scroll, connected to a wall-mounted device with a magnified view.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓓ Strap Ⓕ

Repeat the previous step and remove the other side of the TV Table Support.

Note

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓔ Strap Ⓕ

Repeat the previous step and remove the other side of the TV Table Support.

Note

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓓ Strap Ⓕ

Note

Note

Screw (+PSW 6 x 20) © Pulley Ⓑ Screw (+PSW 6 x 20) © Spacer (20 mm) Ⓔ Soft cloth Strap ⒨

2 Install the TV on the Base or Base Adapter.

- After installing the TV on the wall, remove the painter's tape, etc. from the wall.

2-a B K F

2-b B E F

CAUTION

Note

2-a B K F

2-b B E F

Diagram showing a device with a slide and a scroll, connected to a wall-mounted device with a magnified view.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

CAUTION

CAUTION

Weight (base only): (Approx.) [kg]

0.8

Preparation for installation....5

Checking the parts 5

Finding a location 6

Preparation for installation

1 Find the TV's location.

Pulley Ⓑ, Spacer (20 mm) Ⓔ, Screw, Belt Ⓕ (+PSW 6 x 20) Ⓔ

Pulley Ⓑ, Spacer (20 mm) Ⓔ, Screw (+PSW 6 x 20) Ⓒ, Belt Ⓕ

Pulley Ⓑ, Spacer (20 mm) Ⓔ, Screw — Belt Ⓕ (+PSW 6 x 20) Ⓔ

Note

Note

Screw (+PSW 6 x 20) ©, Pulley Ⓑ, Screw (+PSW 6 x 20) ©, Spacer (20 mm) Ⓔ, Soft pad, Belt Ⓕ

3 How to prevent the TV from moving.

Note

2-a B K F

2-b B E F

Diagram showing a device with a lock and a magnified view of its internal structure, likely illustrating a mechanical or electrical assembly.

Diagram showing a monitor with a scroll wheel and a wall-mounted device, illustrating the process of viewing or dissection.

WARNING

3 How to prevent the TV from moving.

WARNING

Diagram illustrating two steps of installing a car door panel, showing hand positioning and safety warning.

Diagram illustrating a procedure for installing or adjusting a vehicle's door panel, with instructions and safety symbols.

Line drawing of a rectangular TV with cable connectors, no text or symbols present.

Note

Note

Illustration of three people assembling a large board with a measuring tape, no text or symbols.

WARNING

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a hanging device, indicating a process or assembly step.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

2-bTechnical diagram of a mechanical component with labeled parts and mounting holes, marked with section A.

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Belt Ⓕ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓔ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt ⒨ (+PSW 6 x 20) Ⓒ

Note

Note

Screw (+PSW 6 x 20) © Pulley Ⓑ Screw (+PSW 6 x 20) © Spacer (20 mm) Ⓔ Soft cloth Belt Ⓕ

2 Install the TV on the stand or stand adapter.

Note

2-a B K F

2-b B E F

Diagram showing a device with a lock and a magnified view of its internal structure, likely illustrating a mechanical or electrical assembly.

Diagram showing a monitor with a scroll wheel and a wall-mounted device, illustrating the process of viewing or dissection.

WARNING

- Make sure that two or more people (three or more people for TVs 75 inches or larger) hold the TV when carrying it.

Safety instruction diagram showing hand protection and warning symbols for installing a panel, with two silhouettes representing different positions.

WARNING

- Make sure that two or more people (three or more people for TVs 75 inches or larger) hold the TV when removing it.

Specificationsf h1 h2 g e d c b a

Dimensions: (Approx.) [mm]

a : 400

b: 300

c: 200

d: 100

e: 80

f: 480

g: 100

h1: 20 (case 2-b)

h2: 60 (case 2-a)

Weight (base only): (approx.) [kg]

0.8

Diagram illustrating a procedure for installing or adjusting a device, with labeled steps and a warning symbol.

Diagram illustrating a procedure for installing a shipping container, showing steps from handling to testing and safety.

Line drawing of a rectangular TV with cable connectors, no text or symbols present.

Note

Note

Illustration of three people lifting a large object with dashed lines indicating motion or alignment (no text or symbols).

2-b B E F

WARNING

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a hanging device, illustrating a folding or disassembly process.

Diagram showing a monitor with a scroll wheel and a wall-mounted device, illustrating the process of viewing or projection.

WARNING

WARNING

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓓ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓓ

Pulley ® Spacer (20 mm) ® Screw Belt ® (+PSW 6 x 20) ©

Not

Not

Vida (+PSW 6 x 20) ©, Makara Ⓑ, Vida (+PSW 6 x 20) ©, Ara Parçası (20 mm) Ⓔ, Yumuşak bez, Kayış Ⓕ

Not

2-a, B, K, F

2-b, B, E, F

Diagram showing a device with a lock and a magnified view of its internal structure, likely illustrating a mechanical or electrical assembly.

Diagram showing a monitor with a scroll wheel and a wall-mounted device, illustrating the process of viewing or projection.

WARNING

WARNING

Note

Diagram illustrating a procedure for installing or adjusting a device, with labeled steps and a warning symbol.

Diagram illustrating two steps of installing a device, showing hand positioning and safety warning with a smartphone.

Line drawing of a rectangular TV with attached cables and connectors, no text or symbols present.

Note

Note

Illustration of three people lifting a large object with a ruler, no text or symbols present.

2-b B E F

WARNING

Note

2-a B K F

2-b B E F

Diagram showing a device with a slide and a magnified view of its internal components, likely illustrating a mechanical or electrical assembly.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓓ Belt Ⓕ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Belt Ⓕ

Bracket Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓓ Belt Ⓕ

Note

Note

Illustration of three people lifting a large object with dashed lines indicating motion or force, no text or symbols.

2-b B E F

WARNING

Note

SONY Bravia KD55XG8196BU - Note - 1

WARNING

WARNING

4 Determine the position of the screws for mounting the stand (20) Ⓐ.

Diagram illustrating a procedure for installing or adjusting a device, with labeled steps and directional arrows indicating movement.

Diagram illustrating two steps of installing a device, showing hand positioning and safety warning symbol.

Line drawing of a rectangular TV with cable connectors and connectors, no text or symbols present.

Note

Note

Screw (+PSW 6 x 20) © Pulley Ⓑ Screw (+PSW 6 x 20) © Spacer (20 mm) Ⓔ Soft cloth Belt ⒨

3 Connect the necessary cables to the TV receiver.

2-b B E F

CAUTION

Note

2-a B C F

2-b B E F

Diagram showing a monitor with a slide and a scroll wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

SK

CAUTION

CAUTION

Dimensions: (approx.) [mm]

a: 400

b: 300

c: 200

d: 100

e: 80

f: 480

g: 100

Diagram illustrating two steps of installing a device, showing hand positioning and safety warning symbol.

Troliu ® Distanțier (20 mm) ® Şurub Curea ® (+PSW 6 x 20) ©

Line drawing of a rectangular TV with cable connectors, no text or symbols present.

Note

Note

Screw (+PSW 6 x 20) ©, Winch Ⓑ, Screw (+PSW 6 x 20) ©, Spacer (20 mm) Ⓔ, Soft cloth, Belt Ⓕ

2-b, B, E, F

WARNING

Note

2-a, B, C, F

2-b, B, E, F

Diagram showing a monitor with a slide and a scroll wheel, connected to a wall-mounted device with an arrow indicating direction.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

RO

WARNING

WARNING

Diagram illustrating two steps of installing a cardboard box, showing hand positioning and safety warning symbol.

Diagram illustrating a procedure for installing or adjusting a device, with labeled steps and warning symbols.

Line drawing of a rectangular TV with attached cables and connectors, no text or symbols present.

Note

Note

Illustration of three people lifting a large object with dashed lines indicating motion or alignment (no text or symbols).

2-b B E F

WARNING

Note

2-a B C F

2-b B E F

Diagram showing a monitor with a slide and a device, illustrating the concept of viewing or dissection.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

3 Prevention

WARNING

Diagram illustrating a procedure for installing or adjusting a device, with labeled steps and directional arrows indicating movement.

Technical diagram illustrating a mechanical assembly process with workers installing components and a warning sign indicating hazard.

Line drawing of a rectangular TV with attached cables and connectors, no text or symbols present.

Note

Note

Illustration of three people lifting a large whiteboard with dashed lines indicating motion or alignment, no text or symbols.

2-b B E F

WARNING

Note

2-a B C F

2-b B E F

Diagram showing a device with a lock and a magnified view of its internal structure, likely illustrating a mechanical or electrical assembly.

Diagram showing a monitor with a slide and a scroll wheel, connected to a wall-mounted device, with an arrow indicating direction.

WARNING

WARNING

Diagram illustrating two steps of installing a device, showing hand positioning and a safety warning with a warning sign.

Diagram illustrating two steps of installing a shipping container, showing hand positioning and a safety warning.

Line drawing of a rectangular TV with cable connectors, no text or symbols present.

Note

Note

Illustration of three people lifting a large object with a ruler, no text or symbols present.

2-b, B, E, F

WARNING

Note

2-a B C F

2-b B E F

Diagram showing a monitor with labeled parts and a magnified view of the front panel, likely illustrating a mechanical or optical setup.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

Pulley Ⓑ Belt ring (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Belt Ⓕ

Pulley Ⓑ Belt ring (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Belt Ⓕ

Drive belt ® Belt pulley (20 mm) ® Screw (+PSW 6 x 20) © Belt ®

Note.

Note.

Screw (+PSW 6 x 20) © Drive belt ® Screw (+PSW 6 x 20) © Belt pulley (20 mm) ® Soft cloth Belt ®

- After installing the TV on the wall, remove any tape or similar from the wall.

2-a B K F

2-b B E F

WARNING

Note.

- Hold the TV firmly with both hands.

2-a B K F

2-b B E F

Diagram showing a device with a lock and a magnified view of its internal structure, likely illustrating a mechanical or electrical assembly.

Diagram showing a monitor with a scroll wheel and a wall-mounted device, illustrating the process of viewing or projection.

WARNING

WARNING

Mass (stand only): (approx.) [kg]

0.8

Tee Ⓑ, Spacer (20 mm) Ⓔ, Screw (+PSW 6 x 20) Ⓓ, Tie Ⓕ

Tee Ⓑ, Spacer (20 mm) Ⓔ, Screw (+PSW 6 x 20) Ⓒ, Tie Ⓕ

2 Insert the required cable(s) into the TV.

Tee Ⓑ, Spacer (20 mm) Ⓔ, Screw (+PSW 6 x 20) Ⓓ, Tie Ⓕ

2 Insert the required cable(s) into the TV.

Note

Note

Screw (+PSW 6 x 20) ©, Pulley Ⓑ, Screw (+PSW 6 x 20) ©, Washer (20 mm) Ⓔ, Soft fabric, Tie ⒨

2 Install the TV on the stand or stand adapter.

2-b, B, E, F

WARNING!

3 Do not tilt the bottom of the TV.

- Grasp the end of the strap Ⓔ and firmly attach it to the wall.

2-a, 2-b, F, F

Note

- Hold the TV firmly with both hands.

2 Install the TV on the stand or stand adapter.

2-a, B, K, F

2-b, B, E, F

Diagram showing a monitor with a slide and a device, illustrating the concept of viewing or dissection.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING!

3 Do not tilt the bottom of the TV.

- Grasp the end of the strap Ⓖ and firmly attach it to the wall.

2-a 2-b F F

WARNING!

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt ⒨ (+PSW 6 x 20) Ⓒ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Belt Ⓕ

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓒ

Note

Note

Illustration of three people lifting a large object with a ruler, no text or symbols present.

2-b B E F

WARNING

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a device, illustrating a folding or disassembly process.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

4 Determine the positions of the screws for mounting the stand (20) Ⓐ.

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓔ

3 Connect the necessary cables to the television.

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓒ

2 Connect the necessary cables to the television.

Before mounting the television on the wall, be sure to connect the cables. Once the television is mounted, you will not be able to connect the cables.

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Belt F

2 Connect the necessary cables to the television.

Before mounting the television on the wall, be sure to connect the cables. Once the television is mounted, you will not be able to connect the cables.

Note

Note

Screw (+PSW 6 x 20) © Pulley B Screw (+PSW 6 x 20) © Spacer (20 mm) E Soft cloth Belt F

3 Connect the necessary cables to the television.

Install the TV on the stand or stand adapter.

- After installing the TV on the wall, remove the masking tape, etc., from the wall.

2-a B K F

2-b B E F

WARNING

Note

- Hold the TV firmly with both hands.

Install the TV on the stand or stand adapter.

- Carefully lower the TV and hang the brackets Ⓑ attached to the back of the TV onto the stand or stand adapter, making sure to check the shape of the holes. - After installing the TV on the wall, confirm that the brackets Ⓑ are securely hooked onto the stand or stand adapter. - Slowly release both hands to ensure the TV does not fall.

Simple line drawing of a rectangular frame with a dashed rectangle inside and a starburst shape at the bottom (no text or symbols)

2-a B C F

2-b B E F

Diagram showing a monitor with a slide and a scroll wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

4 Decide the position of the screw for setting up the base (20) Ⓐ.

See the specification on page 19. When you select option 2-a, use the base adapter hole positions ①.

WARNING

  • The wall on which you install the TV must support at least four times the weight of the TV (See the TV's Reference Guide for its weight).
  • Check the strength of the wall on which you will install the TV. If necessary, reinforce the wall.

Setting up the base on the wall

  • Prepare four or more screws with a diameter of 8 mm or similar screws (not supplied).
  • Attach the four screws into the holes for the adapter base ① In the case of the base (20) ④ (only for 2-a). • Position the base (20) Ⓐ on the wall horizontally.

2-a I A

2-b A

Preparation for mounting the TV on the wall

For installing the stand, refer to the Setup Guide.

KD-75XG80□□

Kolotur Ⓑ Odbojnik (20 mm) Ⓔ Vijak Remen Ⓕ (+PSW 6 x 20) Ⓔ

3 Connect the necessary cables to the TV.

Be sure to connect the cables before mounting the TV on the wall. You will not be able to connect the cables once the TV is mounted. Refer to the Reference Guide supplied with your TV.

Note

- Repeat the previous step and remove the other side of the table-top stand.

Note

Pulley Ⓑ Bumper (20 mm) Ⓔ Screw Strap Ⓕ (+PSW 6 x 20) Ⓔ

2 Connect the necessary cables to the TV.

Be sure to connect the cables before mounting the TV on the wall. You will not be able to connect the cables once the TV is mounted. Refer to the Reference Guide supplied with your TV.

Note

  • Have a licensed contractor run the cables through the wall.
  • Connect the connecting cables so that you do not step on them before mounting the unit on the wall.

3 Remove the Table-Top Stand from the TV.

- Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand with both hands while another person lifts the TV.

Diagram illustrating two steps of installing a device, showing installation and inspection with a warning sign.

- Repeat the previous step and remove the other side of the Table-Top Stand.

Note

Pulley Ⓑ Bumper (20 mm) Ⓔ Screw (+PSW 6 x 20) Ⓒ Strap Ⓕ

2 Connect the necessary cables to the TV.

Be sure to connect the cables before mounting the TV on the wall. You will not be able to connect the cables once the TV is mounted. Refer to the Reference Guide supplied with your TV.

Note

  • Have a licensed contractor run the cables through the wall.
  • Connect the cables so that you do not step on them before mounting the device on the wall.

3 Remove the Table-Top Stand from the TV.

Line drawing of a rectangular TV with attached cables and connectors, no text or symbols present.

Note

Note

  • Be careful to place the TV on a soft cloth to prevent damage to the screen surface.
  • When installing the Wall-Mount Bracket, do not use the screws that you removed from the Table-Top Stand.
  • Be sure to store the removed Table-Top Stand and its screws in a safe place, keeping them away from children. You will need them if you want to place the TV on a table in the future. The Table-Top Stand cannot be purchased separately.

WARNING

Screw (+PSW 6 x 20) © Pulley Ⓑ Screw (+PSW 6 x 20) © Bumper (20 mm) Ⓔ Soft cloth Strap ⒨

3 Connect the necessary cables to the television.

Be sure to connect the cables before mounting the television on the wall. You will not be able to connect the cables once the television is mounted. Refer to the Reference Guide supplied with your TV.

Note

2 Place the TV on the base or base adapter.

- After installing the TV on the wall, remove the adhesive tape from the wall.

2-a B K F

2-b B E F

WARNING

3 Preventing the television from tipping over.

- Take a piece of strap Ⓔ and loosely attach it to the wall.

2-a 2-b F F

Note

- Hold the TV firmly with both hands.

2 Place the TV on the base or base adapter.

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll wheel, connected to a wall-mounted device with an arrow indicating direction.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

3 Preventing the television from tipping over.

- Take a piece of strap Ⓔ and loosely attach it to the wall.

2-a 2-b F F

WARNING

- Make sure that two or more people (three or more people for a TV 75 inches or larger) hold the TV when removing it.

Specificationsf g e h1 h2 d c b a

Dimensions: (approximately) [mm]

a : 400

b : 300

c : 200

d : 100

e : 80

f : 480

g : 100

Diagram illustrating a procedure for installing or adjusting a device, with labeled steps and a warning symbol.

Diagram illustrating a procedure for installing or adjusting a device, with labeled steps and warning symbols.

Line drawing of a rectangular TV with cable connectors and connectors, no text or symbols present

Instruction

Instruction

Illustration of three people assembling a large board with a ruler, no text or symbols present

2-b B E F

Diagram illustrating a mechanical assembly or assembly process with labeled components and directional arrows indicating steps.

2-a B C F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device with a magnified view.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

4 Decide the positions of the screws for mounting the base (20) Ⓐ.

See specifications on page 19. When selecting 2-a, select the positions of the adapter connector holes ①.

WARNING

  • The wall on which the TV is to be mounted should be able to support a weight of at least four times the weight of the TV (See the Reference Guide of your TV for its weight.).
  • Determine the strength of the wall on which the TV will be mounted. Reinforce the wall sufficiently, if necessary.

Mounting the base on the wall

  • Use four or more screws with a diameter of 8 mm or equivalent (not supplied).
  • Place four screws into the holes of the base connector ① with the base (20) Ⓐ (only 2-a).
  • Place the base (20) Ⓐ horizontally on the wall.

2-a I A

2-b A

Preparation for mounting the TV

See the Setup Guide for installing the stand.

KD-75XG80□□

1 Mark the installation location on the wall.

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓒ

- Repeat the previous step and remove the other side of the table-top stand.

Note

  • Three or more people are required to detach the table-top stand.
  • Be careful not to use excessive force when detaching the table-top stand from the TV, as this may cause the TV to fall and result in personal injury or physical damage to the TV.
  • Handle the table-top stand carefully to avoid damaging the TV.
  • Carefully lift the TV while detaching the table-top stand to prevent it from tipping over and causing injury.
  • Carefully detach the table-top stand from the TV to prevent it from falling and damaging the surface on which the TV is placed.

KD-65XG81□□ / 65XG80□□

1 Attach the attachment parts to the wall-mount bracket. Check the attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

Pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓒ

- Repeat the previous step and remove the other side of the table-top stand.

Note

  • Three or more people are required to detach the table-top stand.
  • Be careful not to use excessive force when detaching the table-top stand from the TV, as this may cause the TV to fall and result in personal injury or physical damage to the TV.
  • Handle the table-top stand carefully to avoid damaging the TV.
  • Carefully lift the TV while detaching the table-top stand to prevent it from tipping over and causing injury.
  • Carefully detach the table-top stand from the TV to prevent it from falling and damaging the surface on which the TV is placed.

KD-55XG81□□ / 55XG80□□

1 Attach the attachment parts to the wall-mount bracket. Check the attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

Belt pulley Ⓑ Spacer (20 mm) Ⓔ Screw Belt Ⓕ (+PSW 6 x 20) Ⓔ

Note

  • Carefully lift the TV while detaching the table-top stand to prevent it from tipping over and causing injury.
  • Carefully detach the table-top stand from the TV to prevent it from falling and damaging the surface on which the TV is placed.

KD-49XG81□□ / 49XG80□□ / 43XG81□□ / 43XG80□□

1 Detach the table-top stand from the TV.

Diagram of a device with labeled connectors and internal components (no text or symbols)

Note

  • Make sure to place the TV on a soft cloth to prevent damage to the screen surface.
  • When installing the wall-mount bracket, do not use the screws removed from the table-top stand.
  • Be sure to store the removed table-top stand and its screws in a safe place, keeping them away from children. They will be needed if you wish to use the TV on a table in the future. The table-top stand cannot be purchased separately.

WARNING

  • Make sure to check that the TV is in the vertical position before turning it on. The TV must not be turned on with the LCD panel facing down to avoid uneven picture uniformity.
  • If pressure or impact is applied to the TV surface, the TV may break or be damaged.
  • Place the TV face down on a stable and flat surface with the table-top stand hanging over the edge of the surface. Holding the TV face and the base of the table-top stand on the same flat surface will create unstable working conditions and may damage the TV.
  • When detaching the table-top stand from the TV, hold the table-top stand firmly with both hands.

2 Attach the attachment parts to the wall-mount bracket. Check the attachment parts by referring to “Supplied with SU-WL450” in “Checking the parts” on page 5.

Note

Screw (+PSW 6 x 20) © Pulley ® Screw (+PSW 6 x 20) © Spacer (20 mm) Ⓔ Soft cloth Belt ®

2 Place the TV on the base or base connector.

  • Carefully move the TV and hang the pulleys ⑧ on the rear of the TV onto the base or base connector, making sure they match the shape of the openings.
  • After mounting the TV on the wall, check that the pulleys Ⓑ are firmly attached to the base or base connector.
  • Slowly release both hands so that the TV does not fall.

Simple line drawing of a rectangular frame with a dashed rectangle and a starburst shape at the bottom (no text or symbols)

- When installing the TV on the wall, remove the crepe tape from the wall.

2-a B K F

2-b B E F

WARNING

3 Preventing the bottom of the TV from moving.

- Lift the loose part of the belt Ⓔ and attach it firmly to the wall.

2-a 2-b F F

Use a 5 mm diameter screw or equivalent (not supplied).

Note

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll wheel, connected to a wall-mounted device, with an arrow indicating direction of movement.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

3 Preventing the TV from tipping over.

- Lift the loose part of the strap Ⓔ and attach it firmly to the wall.

2-a 2-b F F

- Use a 5 mm diameter screw or equivalent (not supplied).

Note

WARNING

Diagram showing two human figures interacting with a hanging structure, labeled with icons for object placement or movement.

2-a F

2-b F

(+PSW 6 x 20) (### 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6 x 20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW 6x20) (+PSW…

Diagram illustrating safety inspection steps with labeled components and warning symbols.

SONY Bravia KD55XG8196BU - WARNING - 6

B E (20) B +PSW) B C (6 x 20)

Diagram illustrating a safety or hazard warning with a hand holding a tool and a warning sign, indicating workplace hazard.

a b (1,000) (300) c d כל (בְרָב) (בְרָב)

B E (20) B +PSW) B © (6 x 20)

Technical diagram of a mechanical component with labeled parts I and A, showing bolted connections and mounting holes.

Technical diagram of a mechanical component with labeled parts and mounting holes.

(20) (1) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SONY

Model : Bravia KD55XG8196BU

Category : Television
