Product type	Microwave oven (model NN-SD450W) or microwave with grill (NN-GD560M/NN-GD550W)
Brand	Panasonic
Model	SD 450 (NN-SD450W, NN-GD560M, NN-GD550W)
Capacity (interior)	Approx. 27 liters (359 x 352 x 217 mm)
External dimensions (W x D x H)	510 x 380 x 304 mm
Weight (net)	11.5 kg (NN-SD450W) / 12.5 kg (with grill)
Power supply	230 V, 50 Hz
Maximum input power	2300 W
Microwave output power	1000 W (IEC-60705)
Grill power	1300 W (models with grill)
Noise level	50 dB
Control type	Electronic with rotary selectors and buttons
Display	Digital (LED)
Main functions	Microwave, grill (depending on model), combi, automatic weight defrost, auto programs (reheat, cook), timer, clock
Safety	Child safety lock, auto stop when door opened, overheat protection
Supplied accessories	Glass turntable, roller ring, metal tripod (models with grill), Panacrunch (models with grill), removable handle
Care and cleaning	Clean with damp cloth; do not use abrasive products; clean roller ring and oven floor regularly; do not use steam cleaner
Repairability	Have repairs done by an authorized technician; power cord replaceable only by manufacturer
Standards	Complies with EN 55011 (group 2, class B)
Warranty	2 years (standard)

Frequently Asked Questions - SD 450 PANASONIC

Why is my oven not working?

First check that the appliance is properly plugged in and that the circuit breaker or fuse has not tripped. If everything is normal, test the wall outlet with another appliance. If the problem persists, contact an authorized service center.

Is it normal that my oven interferes with my TV?

Yes, radio or TV interference can occur when a microwave is operating nearby. This is comparable to interference caused by other small electrical appliances (blender, vacuum cleaner, etc.). It does not mean the oven is defective.

Why does the oven reject my programming instructions?

The oven is designed to reject any incorrect instruction. For example, it rejects automatic weight programming after a delayed start. Make sure to follow the correct order of steps.

Why does hot air come out of the ventilation openings?

This is normal: the heat released from cooking food warms the air in the cavity, which is then exhausted through ventilation. Never block these openings during operation.

What does the display 'dette' mean and how to fix it?

The display 'dette' indicates the oven is in demo mode. To disable this mode, press the Microwave button once, then the Stop/Cancel button four times.

The codes 'H97' and 'H98' are displayed, what to do?

These codes indicate a problem with the microwave generation system. Please contact an authorized service center for repair.

The scrolling instruction display has disappeared, what should I do?

A power failure may have disabled the scrolling mode. Unplug the oven for a few seconds then plug it back in. When '88:88' is displayed, press the Start button until your language appears, then set the clock.

Whirring and clicking sounds occur in combination mode, is this normal?

Yes, these sounds occur when switching from microwave to grill mode and are completely normal. They are due to the operation of the resistors.

Why does my oven emit odor and smoke in COMBINATION and GRILL modes?

After several uses, it is recommended to clean the oven and run it empty for 5 minutes in GRILL mode (after removing the turntable and ring). This will burn off food or grease residues.

How to properly maintain my microwave oven?

Unplug the appliance before cleaning. Clean the interior and door seals with a damp cloth and a non-abrasive detergent. Do not use commercial oven cleaning products. Clean the roller ring and oven floor regularly to reduce noise. Never use a steam cleaner.

USER MANUAL SD 450 PANASONIC

Operating Instructions

Bedienungsanleitung

Gebruiksaanwijzing

Mode d'emploi

Microwave/Grill Oven

Magnetron/Grill Oven

IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instructions carefully and keep for future reference.

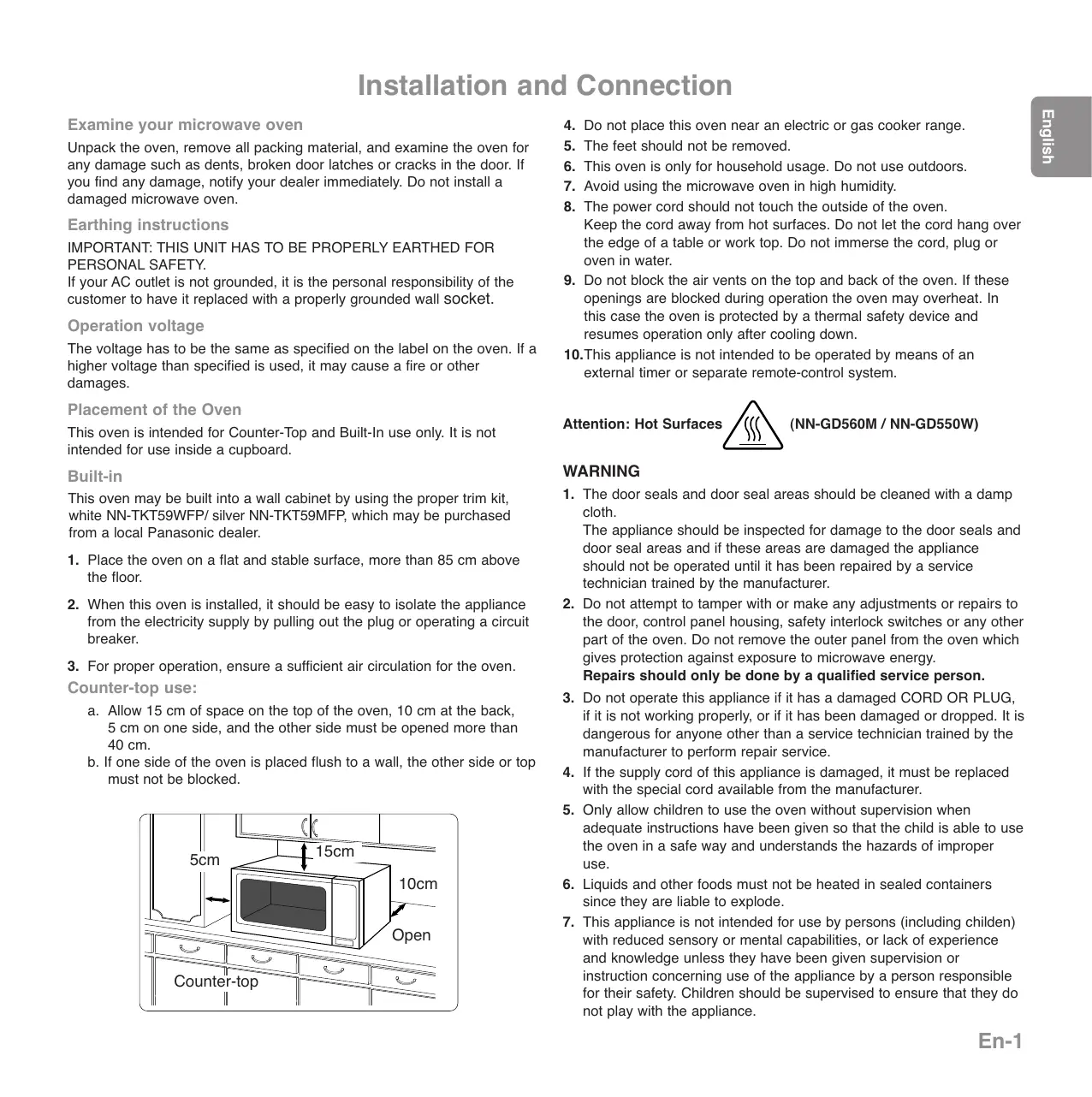

Installation and Connection

Examine your microwave oven

Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven.

Earthing instructions

IMPORTANT: THIS UNIT HAS TO BE PROPERLY EARTHED FOR PERSONAL SAFETY.

If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket.

Operation voltage

The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages.

Placement of the Oven

This oven is intended for Counter-Top and Built-In use only. It is not intended for use inside a cupboard.

Built-in

This oven may be built into a wall cabinet by using the proper trim kit, white NN-TKT59WFP/ silver NN-TKT59MFP, which may be purchased from a local Panasonic dealer.

1. Place the oven on a flat and stable surface, more than 85~cm above the floor.
2. When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.
3. For proper operation, ensure a sufficient air circulation for the oven.

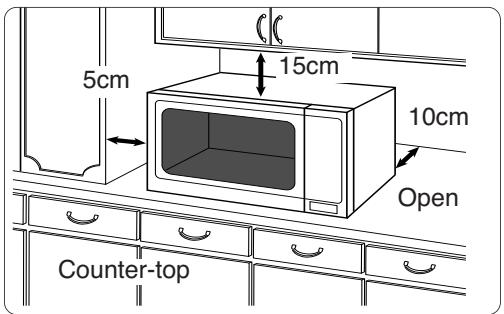

Counter-top use:

a. Allow 15cm of space on the top of the oven, 10cm at the back, 5cm on one side, and the other side must be opened more than 40cm .
b. If one side of the oven is placed flush to a wall, the other side or top must not be blocked.

1. Do not place this oven near an electric or gas cooker range.
2. The feet should not be removed.
3. This oven is only for household usage. Do not use outdoors.
4. Avoid using the microwave oven in high humidity.
5. The power cord should not touch the outside of the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.
6. Do not block the air vents on the top and back of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Attention: Hot Surfaces

1. The door seals and door seal areas should be cleaned with a damp cloth.
   The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.
2. Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy.
   Repairs should only be done by a qualified service person.
3. Do not operate this appliance if it has a damaged CORD OR PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.
4. If the supply cord of this appliance is damaged, it must be replaced with the special cord available from the manufacturer.
5. Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
6. Liquids and other foods must not be heated in sealed containers since they are liable to explode.
7. This appliance is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Safety Instructions

Use of your oven

1. Do not use the oven for any reason other than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products.
2. Before use, check that utensils/containers are suitable for use in microwave ovens.
3. Do not attempt to use this microwave oven to dry newspaper, clothing or any other materials. They may catch on fire.
4. When the oven is not being used, do not store any objects other than oven accessories inside the oven in case it is accidentally turned on.
5. The appliance shall not be operated by MICROWAVE or COMBINATION (NN-GD560M / NN-GD550W) WITHOUT FOOD IN THE OVEN. Operation in this manner may damage the appliance. Exception to this is point 1 under heater operation and pre-heating the pizza pan.
6. If smoke or a fire occurs in the oven, press Stop/Cancel Pad and leave the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at the fuse or the circuit breaker panel.

Heater operation (NN-GD560M / NN-GD550W)

1. Before using COMBINATION or GRILL function for the first time, wipe excessive oil off in the oven cavity and operate the oven without food and accessories on Grill, for 10 minutes. This will allow the oil that is used for rust protection to be burned off. This is the only time the oven is used empty.
2. Exterior oven surfaces, including air vents on the cabinet and the oven door will get hot during COMBINATION and GRILLING, take care when opening or closing the door and when inserting or removing food and accessories.
3. The oven has two heaters situated in the top of the oven. After using the COMBINATION and GRILL function, these surfaces will be very hot.

N.B. After cooking by these modes, the oven accessories will be very hot.

1. The accessible parts may become hot when the grill and combination are in use. Children should be kept away.
2. When the appliance is operated in the combination mode, children should only use the oven under supervision due to the temperatures generated.

Fan motor operation

If the oven gets hot after use, the fan may rotate for a few minutes to cool the electric components. This is perfectly normal, and you can take out the food from the oven while the fan is still in operation.

Oven light

When it becomes necessary to replace the oven light, please consult your dealer.

Accessories

The oven comes equipped with a variety of accessories. Always follow the directions given for use of the accessories.

Glass tray

1. Do not operate the oven without the roller ring and the glass tray in place.
2. Never use another type of glass tray than the one specially designed for this oven.
3. If the glass tray is hot, let it cool before cleaning or placing in water.
4. The glass tray can turn in either direction.
5. If the food or cooking vessel on the glass tray touches the oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction. This is normal.
6. Do not cook foods directly on the glass tray.

Roller ring

1. The roller ring and the oven floor should be cleaned frequently to prevent noise and build-up of remaining food.
2. The roller ring must always be used for cooking together with the glass tray.

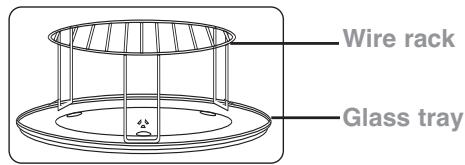

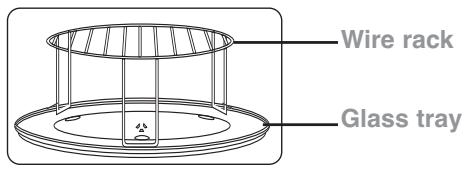

Wire rack (NN-GD560M / NN-GD550W)

1. The Wire Rack is used to facilitate browning of small dishes and help with the good circulation of the heat.
2. Do not use any metal container directly on the Wire Rack in COMBINATION with MICROWAVE.
3. Do not use the Wire Rack in MICROWAVE mode only.

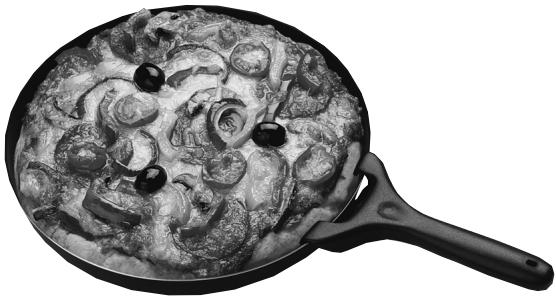

Pizza pan (NN-GD560M / NN-GD550W) - See page En-14

Important Information

1. Cooking times

• Cooking times given in the cookbook are approximate. The cooking time depends on the condition, temperature, amount of food and on the type of cookware.
• Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer.

N.B.: If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

2. Small quantities of foods

• Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

3. Eggs

• Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs will explode, even after microwave heating has ended.

4. Piercing skin

• Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

5. Meat thermometer

• Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer when using MICROWAVE or COMBINATION because it may cause sparking.

6. Liquids

• When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

a) Avoid using straight-sided containers with narrow necks.
b) Do not overheat.
c) Stir the liquid before placing the container in the oven and again halfway through the cooking time.
d) After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container.

7. Paper/Plastic

• When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.
• Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use.
• Remove wire twist-ties from roasting bags before placing the bags in the oven.

8. Utensils/foil

• Do not heat any closed cans or bottles because they might explode.
• Metal containers or dishes with metallic trim should not be used during Microwave cooking. Sparking will occur.
• If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2cm to prevent sparking.

9. Feeding bottles/baby food jars

• The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven.
• The contents of feeding bottles and baby food jars are to be stirred or shaken.
• The temperature has to be checked before consumption to avoid burns.

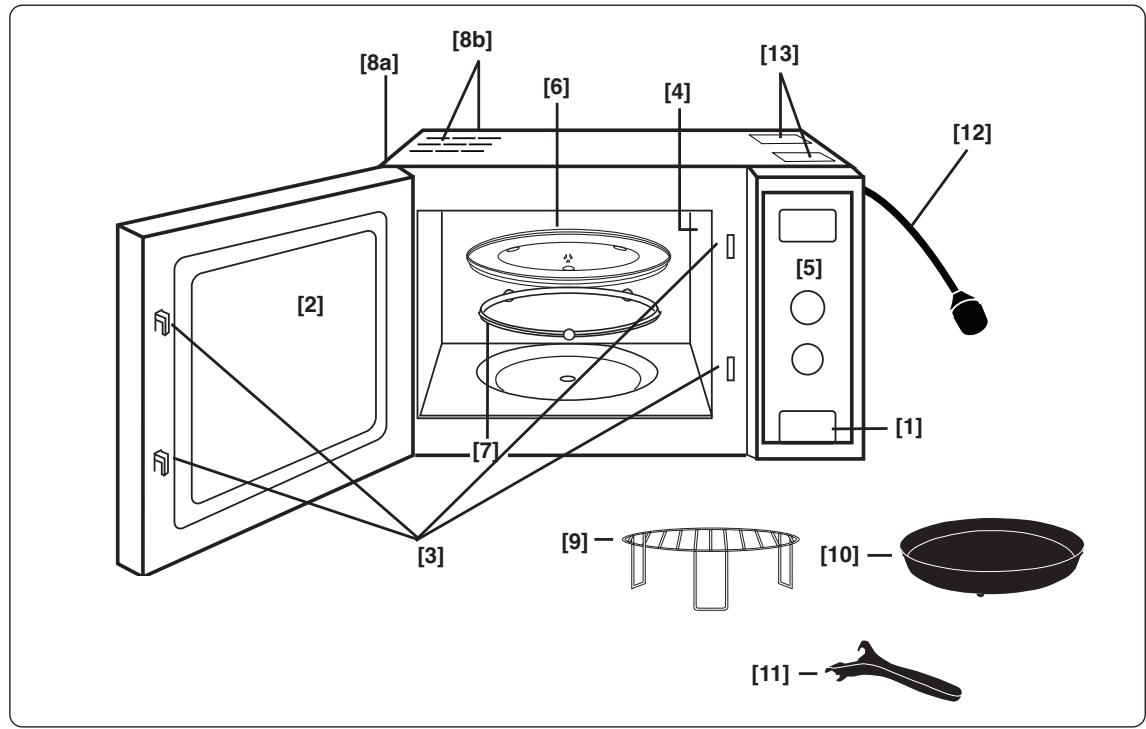

Outline Diagram

Press to open the door. When you open the oven door during cooking, the cooking is stopped temporarily without clearing earlier made settings. The cooking is resumed as soon as the door is closed and Start Pad pressed. The oven lamp lights as soon as the oven door is opened.

1. Door release button
2. Oven window
3. Door safety lock system
4. Oven air vent
5. Control panel
6. Glass tray
7. Roller ring
   8a. External oven air vents
   8b. External oven air vents (NN-GD560M / NN-GD550W)
8. Wire rack (NN-GD560M / NN-GD550W)
9. Pizza pan (NN-GD560M / NN-GD550W)
10. Pizza Pan Handle (NN-GD560M / NN-GD550W)
11. Power Cord
12. Caution Label (Hot surfaces) (NN-GD560M / NN-GD550W)

Control Panel

A beep sounds when a pad is pressed. If this beep does not sound, the setting is incorrect. When the oven changes from one function to another, two beeps sound. After completion of cooking, five beeps sound.

1. Display Window
2. Microwave Power Pad
3. Grill Power Pad
4. Combination Power

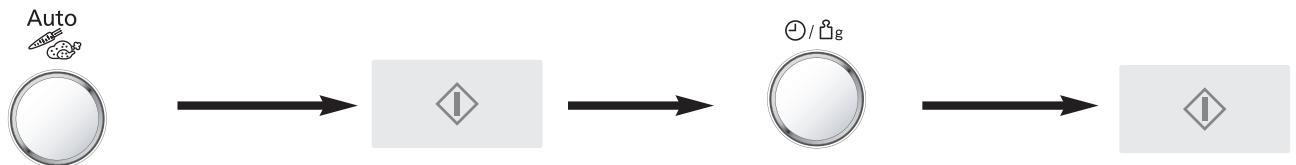

5. Auto Weight Turbo Defrost Pad
6. Delay/Stand Pad
7. Clock Pad
8. Auto Program Selector Dial
9. Time/Weight Dial
10. Stop/Cancel Pad: Before cooking: one press clears your instructions.

During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display.

1. Start Pad:

Press to start operating the oven. If during cooking the door is opened or Stop/ Cancel Pad is pressed once, Start Button has to be pressed again to continue cooking.

• N.B. The design of your control panel may vary from the panel displayed (depending on colour), but the functionality will remain the same.

NOTE: If an operation is set and Start Pad is not pressed, after 6 minutes, the oven will automatically cancel the operation. The display will revert back to clock mode.

This oven is equipped with an energy saving function.

Please Note:

1. When in stand-by mode the brightness of the display will be reduced.
2. The oven will enter stand-by mode, when first plugged in and immediately after the last operation has completed.

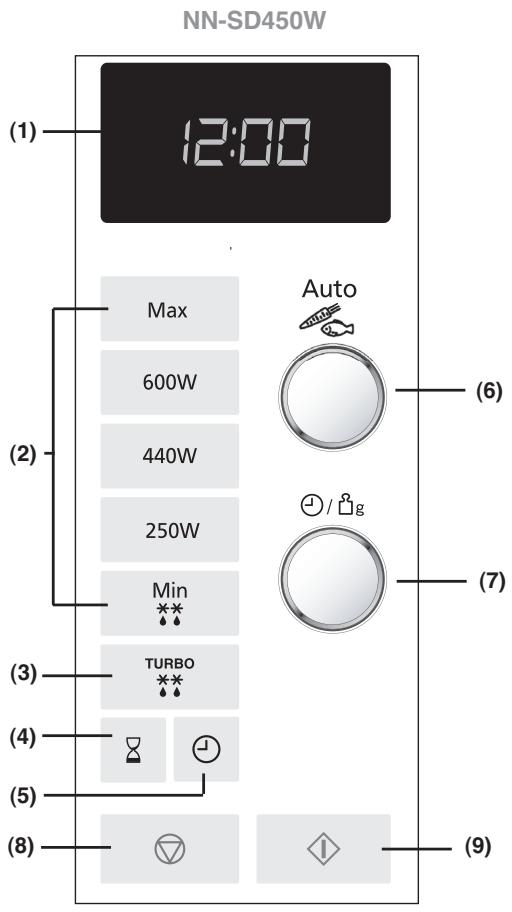

Control panel

Beep Sound:

A beep sounds when a pad is pressed. If this beep does not sound, the setting is incorrect. When the oven changes from one function to another, two beeps sound. After completion of cooking, five beeps sound.

(1) Display window
(2) Microwave Power Pads
(3) Auto Weight Turbo Defrost Pad
(4) Delay/stand Pad
(5)Clock Pad
(6) Auto program selector Dial
(7) Time/Weight Dial
(8) Stop/Cancel Pad:

Before cooking: one press clears your instructions.

During cooking: one press temporarily stops the cooking program.

Another press cancels all your instructions and the time of day will appear in the display.

(9) Start Pad:

Press to start operating the oven. If during cooking the door is opened or Stop/ Cancel Pad is pressed once, Start Pad has to be pressed again to continue cooking.

NOTE: If an operation is set and Start Pad is not pressed, after 6 minutes, the oven will automatically cancel the operation. The display will revert back to clock mode.

This oven is equipped with an energy saving function.

Please Note:

1. When in stand-by mode the brightness of the display will be reduced.
2. The oven will enter stand-by mode, when first plugged in and immediately after the last operation has completed.

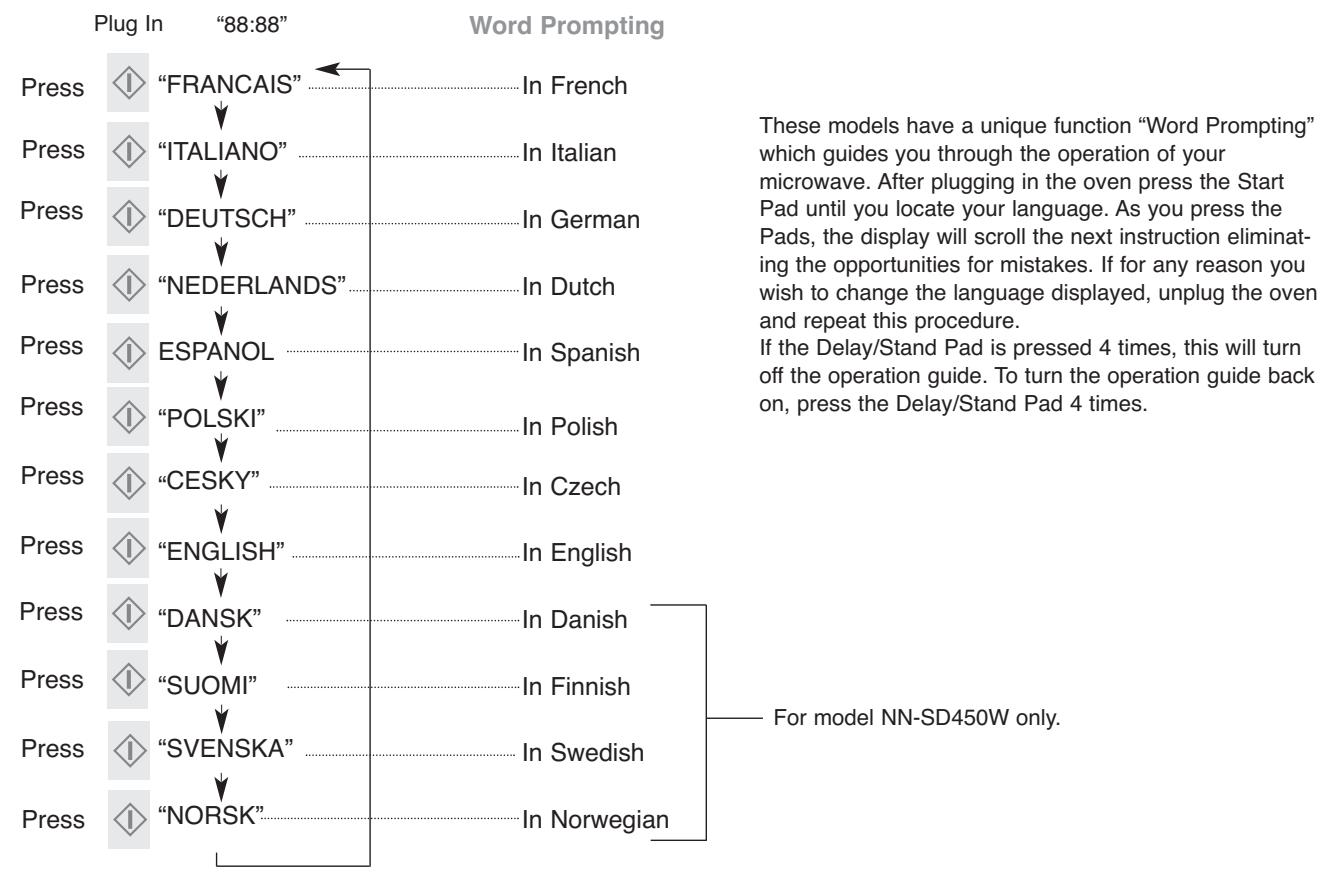

Controls and operation procedure

Clock setting: Example: To set 12:00
- Press Clock Pad once. The colon starts to blink.
- Enter the time by turning the Time/Weight Dial. The time appears in the display and the colon blinks.
- Press Clock Pad. The colon stops blinking and the time of day is entered.

NOTE:

1. To reset the time of day repeat all the above steps.
2. The time of day is displayed, unless the power supply is interrupted.
3. This clock has a 24 hour display.

Controls and operation procedure

Child safety lock:

Using this system will make the oven controls inoperable; however, the door can be opened. Child Lock can be set when the display shows a colon or the time.

To set:

To cancel:

• Press Start Pad three times.

The time of day will disappear. Actual time will not be lost.

A is indicated in the display.

• Press Stop/Cancel Pad three times.

The time of day will reappear in the display.

NOTE: To activate child lock, start pad must be pressed 3 times within a 10 second period.

Microwave cooking and defrost

There are 5 different microwave power levels available. The chart below shows the approximate wattage for each power level.

Use of accessory:

• Press this pad until the power you require appears in the display window.

• Select the desired microwave power level.

• Set the cooking time using the Time/Weight Dial (HIGH power: up to 30 minutes Other powers: up to 1 hour and 30 minutes).

• Press Start Pad.

NOTE:

1. For 2 or 3 stage cooking, before pressing Start Pad, repeat setting the Microwave power level and cooking time.

e.g. Casserole — High 10 minutes to bring the casserole to boil. Simmer 60 minutes to cook.

Simmer 10 minutes to allow flavours to develop.

1. Stand time can be programmed after the Microwave power and time setting.
2. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to increase or decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking.
3. The oven will automatically work on High microwave power if a cooking time is entered without the power level previously being selected.

Grilling (NN-GD560M / NN-GD550W)

Use of accessory:

The Grill provides 3 Grill settings.

1 Press	GRILL 1	1300 W
2 Presses	GRILL 2	950 W
3 Presses	GRILL 3	700 W

1-2-3

/8g

• Select Grill Power. Press once for Grill 1 (High), twice for Grill 2 (Medium) or 3 times for Grill 3 (Low).

• Set the cooking time using the Time/Weight Dial (up to 1 hour and 30 minutes).

• Press Start Pad.

NOTE:

1. The Grill will only operate with the oven door closed.
2. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to increase/decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking.

Combination cooking (NN-GD560M / NN-GD550W)

Use of accessory:

• Select combination level (see table).

There are 3 combination settings. The following chart shows the approximate wattage for each power level.

Combination Setting	Presses	Grill	Microwave	Word Prompt
1	1 press	1300 W	600 W	G1-600 W
2	2 presses	1300 W	440 W	G1-440 W
3	3 presses	1300 W	250 W	G1-250 W

/

• Set the cooking time using the Time/Weight Dial (up to 1 hour and 30 minutes).

• Press Start Pad.

NOTE:

1. The Combination mode will only operate with the oven door closed.
2. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to increase/decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking.

Auto Defrost

With this feature you can defrost frozen foods according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category.

• Select the desired Auto Defrost Program.

1 press for small pieces
2 presses for big pieces

• Set the weight of the frozen food by using the Time/Weight Dial.

Turning the dial slowly will count up in 10g steps. Turning the dial quickly will count up in 100g steps.

• Press Start Pad.

Program	Word Prompt	Recommended Weight	Suitable Foods
1 Small pieces	SMALL PIECES	150 - 1600g	Small pieces of meat, scallop, sausages, fish fillets, steaks, chops (each 100g to 400g). Turn at beeps.
2 Big pieces	BIG PIECE	400 - 2400g	Big pieces of meat, roast, whole chicken. Turn at beeps.

NOTE:

1. When defrosting time is over 60 minutes the time will appear as Hours and Minutes.
2. The shape and size of the food will determine the maximum weight the oven can accommodate.
3. For further information see defrosting guidelines in cook book.

Auto weight programs

This feature allows you to cook most of your favourite foods by setting the weight only. The oven determines Microwave power level, Grill power (GD569M /GD559W) and cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category.

NN-GD560M/

NN-GD550W

NN-SD450W

e.g.

or

• Select the desired Auto weight program by turning the Auto Program Selector Dial. The display will scroll through the Auto Weight Cook programs.

• Set the weight of the food by using the Time/Weight Dial.

Turning the dial slowly will count up in 10g steps. Turning the dial quickly will count up in 100g steps.

• Press Start Pad.

NOTE:

1. When cooking time is over 60 minutes, the time will appear as Hours and Minutes.
2. Follow the charts overleaf for the recommended weight and accessories to be used.

En-10

Auto weight programs

Program	Word Prompt	Recommended Weight	Accessories	Instructions
1 Reheat Cup	1 CUP	150g	2	For reheating a cup of hot drink (e.g. tea, coffee, milk and soup). Select reheat cup, enter weight (150ml), press Start Pad.
2 Reheat Bowl	1 BOWL	300g	2	For reheating a bowl of hot drink. Select reheat bowl, enter weight (300ml), press Start Pad.
3 Reheat Fresh Meal	FRESH MEAL	200 - 1500g	2	For reheating plated meal, or casserole. All foods should be at room or refrigerated temperatures. Stir at beep. Allow a few minutes standing time.
4 Reheat Frozen Meal	FROZEN MEAL	200 - 1200g	2	For reheating frozen plated meal, or casserole. All food must be pre-cooked and frozen. Stir at beep. At the completion of cooking, stir the foods and allow 2 to 3 minutes standing time.
5 Cook Fresh Vegetables	FRESH VEGETABLES	250 - 1500g	2	For cooking fresh vegetables. Place the prepared vegetables in a suitable sized container. Sprinkle with 6 tbsp (90ml) of water. Cover them lightly with pierced cling film or a lid. Large quantities will require stirring at beep.
6 Cook Frozen Vegetables	FROZEN VEGETABLES	300 - 1000g	2	For cooking frozen vegetables. Place them in a suitable sized container, add 2 tbsp (30ml) water. Cover them lightly with pierced cling film or a lid. Large quantities will require stirring at beep.
7 Cook Fresh Fish	FRESH FISH	150 - 1000g	2	For cooking fresh fish (whole, fillets, steaks). Shield the thinner portions, place it in a suitable sized container. Add 2 tbsp (30ml) liquid. Cover it with pierced cling film or a lid.
8 Cook Frozen Fish	FROZEN FISH	200 - 900g	2	For cooking frozen fish steaks and fillets. Place it in a suitable sized container, add 2 tbsp (30ml) water, cover it lightly with pierced cling film or a lid.

Hints for reheating cup and bowl.
1. Stir the liquid before heating (Heated liquids can erupt if not mixed with air).
2. Do not cover hot drinks such as tea or coffee. Cover soup with a saucer to avoid any risk of eruption.
3. After heating, stir again and allow to stand for a short time.

Auto weight programs

Program	Word Prompt	Recommended Weight	Accessories	Instructions
9 Frozen Bread	FROZEN BREAD	50 - 500g		For reheating frozen bread, rolls and croissants. Remove all packaging and place on Wire Rack on Glass Tray. Turn at beep.
10 Fresh Chicken Pieces	CHICKEN PIECES	200 - 1200g		For cooking chicken pieces eg. chicken legs, thighs or drumsticks. Place the chicken in a heatproof dish on Wire Rack on Glass Tray. For even cooking spread out the chicken and turn it at beep.
11 Whole Chicken	WHOLE CHICKEN	1000 - 2200g		For cooking whole fresh unstuffed chicken. Cook the stuffing separately. Place the chicken in a heatproof dish on Glass Tray. Start cooking the breast side down and turn it at beep.
12 Frozen Gratin/Lasagne	FROZEN GRATIN	300 - 1000g		For reheating and browning frozen gratin/lasagne. Remove all packaging and place the gratin/lasagne in a heatproof dish on Glass Tray.

Auto weight panacrunch programs

Panacrunch programs (NN-GD560M / NN-GD550W)

1. Select the desired program and place the pizza pan in the oven directly on the glass tray.

2. Press the start Pad to pre-heat the pizza pan.

3. After pre-heating beeps sound. Place the food in the pan, set weight.

4. Press Start Pad.

Program	Word Prompt	Recommended Weight	Accessories	Instructions
13 Fresh Pizza	CHILLED PIZZA	150 - 600g		For reheating, crisping the base and browning the top of fresh purchased pizza. Remove all packaging and place the pizza in the preheated pizza pan.
14 Frozen Pizza	FROZEN PIZZA	150 - 600g		For reheating, crisping the base and browning the top of frozen purchased pizza. Remove all packaging and place the pizza in the preheated pizza pan.
15 Fresh Quiche	CHILLED QUICHE	150 - 700g		For reheating, crisping the pastry base and browning the top of fresh purchased quiche. Remove all packaging and place the quiche in the preheated pizza pan.
16 Frozen Quiche	FROZEN QUICHE	150 - 500g		For reheating, crisping the pastry base and browning the top of frozen purchased quiche. Remove all packaging and place the quiche in the preheated pizza pan.
17 Frozen Potato Products	CHIPS	200 - 500g		For reheating, crisping and browning frozen potato products. After pre-heating the pan, spread out potato products in the pan. For best results cook in a single layer and turn at beep.

Pizza pan (NN-GD560M / NN-GD550W)

The 'concept'

Some foods cooked by microwave can have soft and soggy crusts. Your pizza pan accessory will brown and crisp pizzas, quiches, pies, breaded products just as a conventional oven. Your Panasonic pizza pan works in three ways: heating the pan by absorbing microwaves, heating the food directly by microwaves and heating the food by the grill. The base of the pan absorbs the microwaves and transfers them into heat. Then the heat is conducted through the pan to the food. The heating effect is maximised by the non-stick surface.

Using the pizza pan (Manual operation)

• For best results, pre-heat the pan before using. Place directly on the glass turntable and pre-heat on Combination 1 (Grill 1 + 600 Watt) for 3 minutes. To assist browning, brush the pan with oil before preheating for items such as sausages and beef burgers.
• Remove the pan from the oven and place the food in the pan. Use the pizza pan handle or oven gloves as the pan will be very hot. For best results, it is important that the food is placed on the pan immediately after pre-heating. Performance cannot be guaranteed with a time delay.
• Place the pan on the glass turntable and cook according to the guidelines shown in the cooking chart in the cookbook.

NOTES:

1. Do not pre-heat the pan more than 8 minutes.
2. Always place the pan in the centre of the glass tray and ensure it does not touch the wall of the oven cavity. Failure to do so, may cause sparking which would damage the cavity.
3. Always use the pan on the glass turntable. Do not use with the wire rack.
4. Always use the pizza pan handle or oven gloves when handling the hot pan.
5. Ensure all food packaging is removed before cooking.
6. Do not place any heat-sensitive materials on the hot pan as this may cause burning.
7. The pan can be used in a conventional oven.
8. For best results, use the pan in COMBINATION GRILL and MICROWAVE.

Care of the pan

• Never use any sharp utensils on the pan as this will damage the non-stick surface.
• After use, wash the pan in hot soapy water and rinse in hot water. Do not use any abrasive cleaning substances or scouring pads as this will damage the surface of the pan.
• The pan is dishwasher safe.

Auto Weight Programs

NN-SD450W

Program	Word Prompt	Recommended Weight	Accessories	Instructions
1 Reheat Meal	FRESH MEAL	200 - 1500g		For reheating plated meal, or casserole. All foods should be at room or refrigerated temperatures. Stir at beep. Allow a few minutes standing time.
2 Reheat Frozen Meal	FROZEN MEAL	200 - 1200g		For reheating frozen plated meal, or casserole. All food must be pre-cooked and frozen. Stir at beep. At the completion of cooking, stir the foods and allow 2 to 3 minutes standing time.
	* *
3 Cook Fresh Vegetables	FRESH VEGETABLES	250 - 1500g		For cooking fresh vegetables. Place the prepared vegetables in a suitable sized container. Sprinkle with 6 tsp (90ml) of water. Cover them lightly with pierced cling film or a lid. Large quantities will require stirring at beep.
4 Cook Frozen Vegetables	FROZEN VEGETABLES	300 - 1000g		For cooking frozen vegetables. Place them in a suitable sized container, add 2 tbsp (30ml) water. Cover them lightly with pierced cling film or a lid. Stir the vegetables at beep.
5 Cook Fresh Fish	FRESH FISH	150 - 1000g		For cooking fresh fish (whole, fillets, steaks). Shield the thinner portions, place it in a suitable sized container. Add 2 tbsp (30ml) liquid. Cover it with pierced cling film or a lid.
6 Cook Frozen Fish	FROZEN FISH	200 - 900g		For cooking frozen fish steaks and fillets. Place it in a suitable sized container, add 2 tbsp (30ml) water, cover it lightly with pierced cling film or a lid.
7 Reheat Cup	1 CUP	150g		For reheating a cup of hot drink (e.g. tea, coffee, milk and soup). Select reheat cup, enter weight (150ml), press Start Pad.
8 Reheat 1 Bowl	1 BOWL	300g		For reheating one bowl of hot drink. Select reheat bowl, enter weight (300ml), press Start Pad.
9 Reheat 2 Bowls	2 BOWL	600g		For reheating two bowls of hot drink. Select reheat 2 bowls, enter weight (600ml), press Start Pad.

Hints for reheating cup and bowl.
1. Stir the liquid before heating (Heated liquids can erupt if not mixed with air).
2. Do not cover hot drinks such as tea or coffee.

Cover soup with a saucer to avoid any risk of eruption.

1. After heating, stir again and allow to stand for a short time.

Delay start cooking

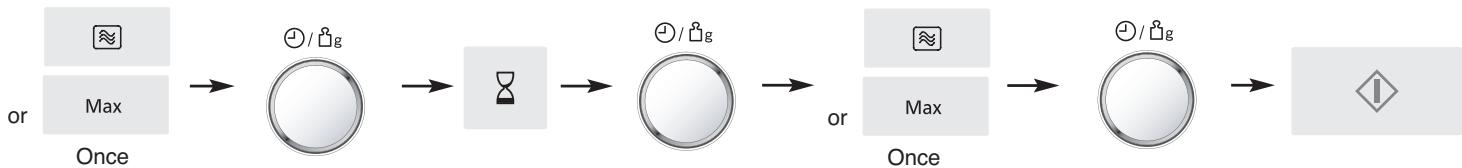

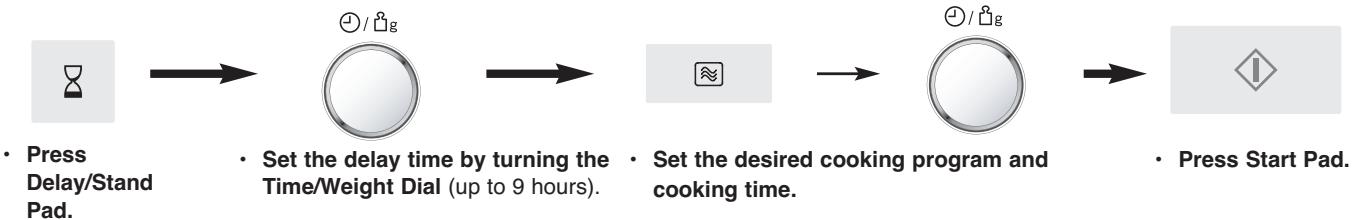

By using Delay/Stand Pad, you are able to program Delay Start cooking.

e.g.

NOTE:

1. Three stage cooking can be programmed including Delay Start cooking.

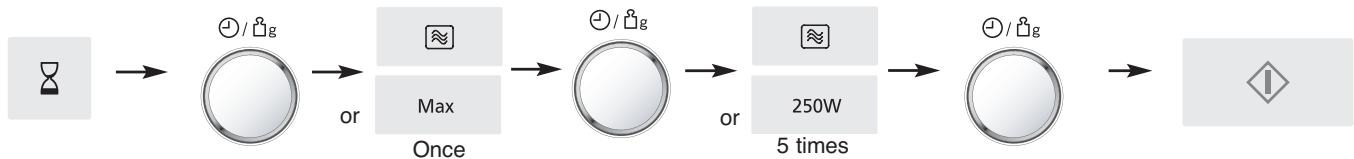

e.g.
Delay Start: 1 hour
High Power: 10 min.

1. If the programmed delay time exceeds one hour, the time will count down in units of minutes. If less than one hour, the time will count down in units of seconds.
2. Delay Start cannot be programmed before any Auto Programs.
3. If the Delay/Stand Pad is pressed 4 times, this will turn off the operation guide. To turn the operation guide back on, press the Delay/Stand Pad 4 times.

Stand time

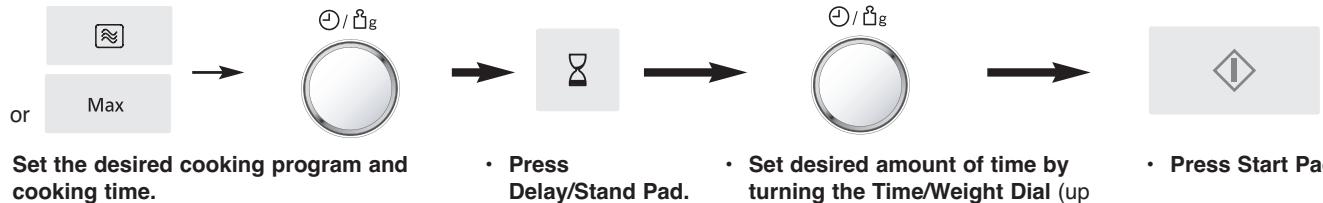

By using Delay/Stand pad, you can program Stand Time after cooking is completed or use to program the oven as a minute timer.

e.g.

NOTE:

1. Three stage cooking can be programmed including Stand Time.

e.g.
High Power: 4 min.

1. If the oven door is opened during the Stand Time or Minute Timer, the time in the display window will continue to count down.
2. This feature may also be used as a timer. In this case press Delay/Stand Pad, set time and press Start Pad.

En-16

Questions and answers

Q: Why won't my oven turn on?

A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely? Remove the plug from the outlet, wait 10 seconds and reinsert.
2. Check the circuit breaker and the fuse. Reset the circuit breaker or replace the fuse if it is tripped or blown.
3. If the circuit breaker or fuse is all right, plug another appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet.

If it seems that there is a problem with the oven, contact an authorized Service Centre.

Q: My microwave oven causes interference with my TV. Is this normal?

A: Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven.

Q: The oven won't accept my program. Why?

A: The oven is designed not to accept an incorrect program. For example, the oven will not accept a fourth stage, and will not accept an Auto Weight Program after Delay Start.

Q: Sometimes warm air comes from the oven vents. Why?

A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking.

Q: "D" appears in the display and the oven does not cook. Why?

A: The oven has programmed DEMO MODE. This mode is designed for retail store display. Deactivate this mode by pressing Microwave Power once and Stop/Cancel Pad 4 times (NN-GD560M / NN-GD550W) or Max Microwave Power Pad once and Stop/Cancel Pad 4 times (NN-SD450W).

Q: Can I use a conventional oven thermometer in the oven?

A: Only when you are using GRILL cooking mode (NN-GD560M / NN-GD550W). The metal in some thermometers may cause arcing in your oven and should not be used on MICROWAVE and COMBINATION cooking modes.

Q: My oven stops cooking by microwave and "H97" and "H98" appears in the display window.

A: The display indicates a problem with the microwave generation system. Please contact an authorised Service Center.

Q: The wordprompt has disappeared on my display, I can only see numbers?

A: There may have been a power failure, and the wordprompt is disabled. Unplug the oven for a few seconds, then plug it again. When "88:88" is displayed, press the start pad until your language is displayed. Then set the clock. Refer to page En-7.

Q: There are humming and clicking noises from my oven when I cook by COMBINATION. What is causing these noises?

A: The noises occur as the oven automatically switches from MICROWAVE power to GRILL to create the combination setting. This is normal.

Q: My oven has an odour and generates smoke when using the COMBINATION and GRILL function. Why?

A: After repeated use, it is recommended to clean the oven and then run the oven without food, glass tray, and roller ring on Grill for 5 minutes. This will burn off any food, residue or oil which may cause an odour and/or smoking.

Care of your oven

1. Turn the oven off before cleaning.
2. Keep the inside of the oven, door seals and door seal areas clean. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended.

DO NOT USE COMMERCIAL OVEN CLEANERS. Do not use harsh, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering the glass.

1. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
2. If the Control Panel becomes dirty, clean it with a soft, dry cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch STOP/CANCEL Pad to clear the display window.
3. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

4. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

5. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affects the bottom surface or roller ring wheels. After removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.

6. When using the GRILL or COMBINATION mode, (NN-GD560M / NN-GD550W) some foods may inevitably splatter grease on to the oven walls. If the oven is not cleaned occasionally, it may start to "smoke" during use.
7. A steam cleaner is not to be used for cleaning.
8. This oven should only be serviced by qualified personnel. For maintenance and repair of the oven contact the nearest authorized dealer.
9. Keep air vents clear at all times. Check that no dust or other material is blocking any of the air vents on the top, bottom or rear of the oven. If air vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation.
10. Failure to maintain the oven in a clean condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation.

Technical specifications

	NN-GD560M / NN-GD550W		NN-SD450W
Power Source:	230 V, 50 Hz		230 V, 50 HZ
Power Consumption:	Maximum;	2300 W
	Microwave;	1100 W	Microwave;	1100 W
	Grill;	1350 W
Output:	Microwave;	1000 W (IEC-60705)	Microwave;	1000 W (IEC-60705)
	Grill Heater;	1300 W
Outside Dimensions:	510 (W) x 380 (D) x 304 (H) mm		510 (W) x 380 (D) x 304 (H) mm
Oven Cavity Dimensions:	359 (W) x 352 (D) x 217 (H) mm		359 (W) x 352 (D) x 217 (H) mm
Uncrated Weight:	12.5 kg		11.5 Kg
Noise:	50 dB		50 dB

Specifications subject to change without notice.

This product is an equipment that fulfills the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio-frequency energy is intentionally generated in the form of electromagnetic radiation for warming up of foods. Class B means that this product may be used in normal household areas.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Pursuant to the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsberging 15,22525 Hamburg, F.R.Germany

Manufactured by Panasonic Home Appliances Microwave Oven (Shanghai) Co.,Ltd, 898

Longdong Road, Pudong, Shanghai, 201203, China.

Panasonic Testing Centre

Installation et raccordement

Panasonic Testing Centre

Panasonic Service Europe, une division de Panasonic Marketing Europe GmbH,

Panasonic Testing Centre

Panasonic Service Europe, una divisione di Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Amburgo, Germania

Prodotto da Panasonic Home Appliances Microwave Oven (Shanghai) Co.,Ltd, 898 Longdong Road, Pudong, Shanghai, 201203, Cina.

Regulatory oraz procedura obstugi

Regulatory oraz procedura obstugi

Produce: Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd, 898 Longdong Road, Pudong, Shanghai, 201203, Chiny.

Instalace a pripojeni

Panasonic Testing Centre

Panasonic Service Europe, spolecnosti Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Hamburg, SRN

Vyrobce: Panasonic Home Appliances Microwave Oven (Shanghai) Co.,Ltd, 898 Longdong Road, Pudong, Shanghai, 201203, Cina.

Panasonic Testing Centre

Panasonic Service Europe, a Panasonic Marketing Europe GmbH divisióna

Winsbergring 15, 22525 Hamburg, F. R. Germany

Gyartotta a Panasonic Home Appliances Microwave Oven (Shanghai) Co. Ltd., Longdong Road, Pudong, Sanghaj, 201203, Kina.

Instalare Şi conectare

Panasonic Testing Centre

Panasonic Service Europe, o divizie a Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Hamburg, F.R.Germany

Proclus de Panasonic Home Appliances Microwave Oven (Shanghai) Co.,Ltd, 898

Longdong Road, Pudong, Shanghai, 201203, China.

Panasonic Manufacturing U.K Ltd (PMUK)

Dyncliffe Road

Pentwyn Industrial Estate

Cardiff

CF23 7XB

UK
