USER MANUAL LE39F32800 HAIER

Line drawing of a flat-screen computer monitor with a blank screen and stand (no text or symbols)

LED Television

SMARTER LIFE BETTER PLANET

Contents

Safety and warnings....2-3

Introduction....4

Base.stand.assembly.... 5

Installation....6-9

Remote Control....10

Operation....11-13

Troubleshooting.... 14

Warranty....15

IMPORTANT SAFETY INSTRUCTION

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this Television near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in accordance with the instructions.

8) Do not install near any heat sources such as radiations, heat registers, stoves, or other Television (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the Television.

11) Only use attachments/accessories specified by the manufacturer.

12) Unplug this Television during lighting storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the Television has been damaged in any way, such as; power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the Television, the Television has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles, should be placed on the Television.

17) Attention should be drawn to the environmental aspects of battery disposal.

18) The use of Television in moderate climate.

19) The Television shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the Television.

20) To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN! CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this Television to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING:

The excessive sound pressure from earphones and headphones can cause hearing loss.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Haier is committed to safely recycling electronic products and product materials. Please check for a local recycling location in the United States at: 1800RECYCLING.COM or call 1,800.RECYCLING.

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environmetal through energy efficient practices. This product default mode (standard mode) already pass the Energy star test. If TV set in other mode, may increase energy consumption beyond the limits required for ENERGY STAR qualification.

High voltages are used in the operation of this television receiver. Do not operate cabinet. Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Do not block the ventilation holes on the back cover of the TV Adequate ventilation is essential to prevent failure of electrical components.

Do not trap the power supply cord under the television receiver s .' stand

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual and/or damage to the television may result if it falls.

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television. or near

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the life of your television, and can also be dangerous.

Main features

■ Integrated ATSC TV tuner for HDTV broadcast reception
■ High brightness provides a vivid and brilliant picture
■ Deeper blacks and brighter whites with high contrast
■ Wide Screen aspect ratio (16:9) for a complete home theater experience
■ HDMI input for true digital connection
■ VGA port for connection to PC
■ Built-in stereo speaker system
■ Full-function Remote Control

Accessories

Power cable.... 1
Infrared Remote Control.... 1
User's Manual 1
Battery(AAA).... 2

Main Specifications

Viewing Picture Size (diagonal)	39 inches
Resolution:	1920 x 1080
Power supply	AC 100-240V 50/60Hz
Power consumption	70W
Audio Output Power (THD ≤%):	2x8W
Aspect Ratio:	16:9
TV System:	ATSC Digital system and NTSC Analog system
Video Signal System:	NTSC
Receiving Channel:	Cable :1-135/ Air: 2-69 (ATV&DTV)
High-Definition Multimedia Interface (HDMI) Input	x 3 (1 HDMI input is MHL. enabled)
Component (YPbPr) Input	x 1
Composite Video Input	x 1
Analog RGB (VGA) Input	x 1
Audio Input	x 2
Headphone Output	x 1
Coaxial Output	x 1
USB Input	x 1
Horizontal definition (TV line) Composite Video Input	>=350Video Input >=400Component (YPbPr) >=400

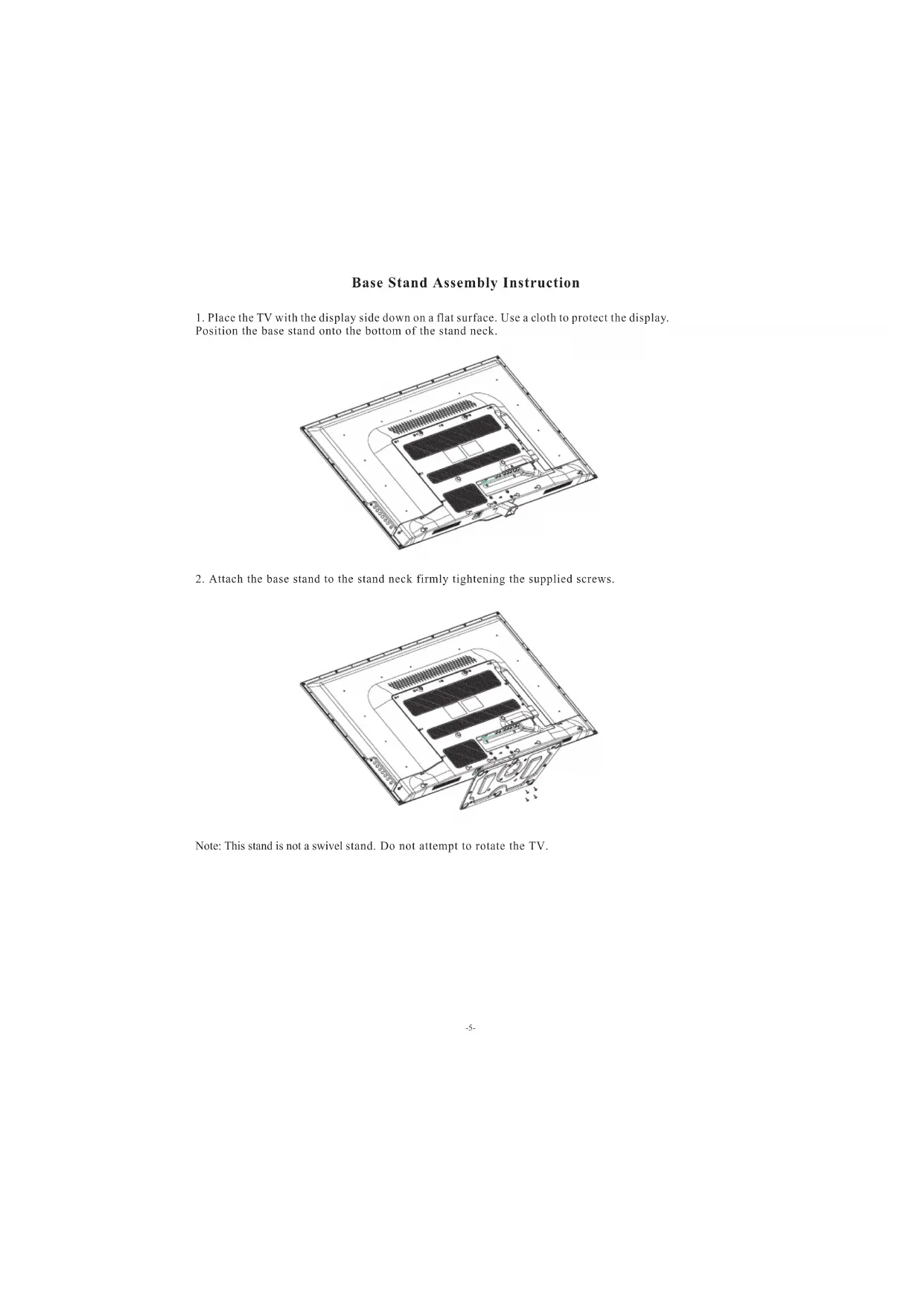

Base Stand Assembly Instruction

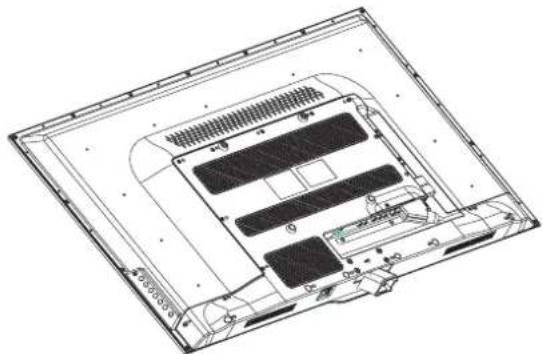

1. Place the TV with the display side down on a flat surface. Use a cloth to protect the display. Position the base stand onto the bottom of the stand neck.

Technical line drawing of a computer chassis with internal components (no text or symbols)

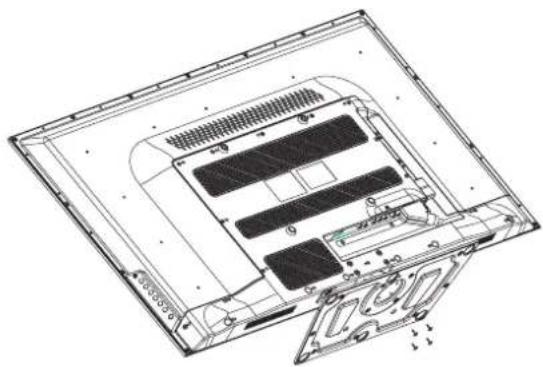

1. Attach the base stand to the stand neck firmly tightening the supplied screws.

Technical line drawing of an open computer chassis showing internal components and mounting holes (no text or labels)

Note: This stand is not a swivel stand. Do not attempt to rotate the TV.

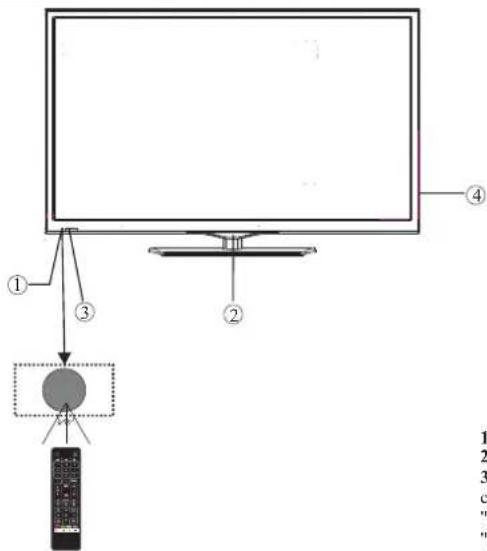

Front panel

Diagram showing a monitor setup with labeled components and a remote control device, accompanied by a numbered list on the right.

1: Remote control sensor.
2: Indicator LED: WHIPower ON.
3: Indicator LED: RED ● STANDBY.
4: Panel keys

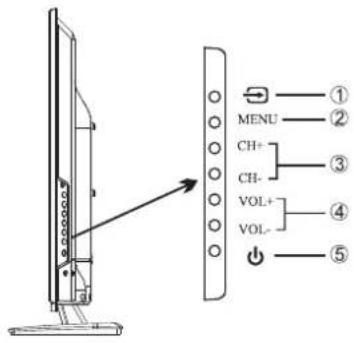

Side panel

MENU CH+ CH- VOL+ VOL- ① ② ③ ④ ⑤

1. ☑: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH-" or "CH-" to change the channel up and down. In MENU mode, press "CII+" or "CII-" to select items in standby mode, press "CII+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode, press "VOL+" or "VOL-" to adjust the item that you selected.
5. ⏻: Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.

REAR Connections

AC INPUT 100-240V~50/60Hz COM/DC 1F OFF VIDEO L R HDMI

All the terminals are (from left to right):

POWER SOCKET, RF, VIDEO, AUDIO INPUT, HDMI1.

Note: AV and component (YPbPr) share the R and L audio inputs.

SIDE Connections

HDMI2 COAXIAL VGA FOMUDIO HDMI3 HEADPHONE COMPONENT Y Ps Pr USB

All the terminals are (from left to right):

COAXIAL (audio output), MIIL/IHDMI2, VGA, PC AUDIO, HDMI3, HEADPHONE, (COMPONENT)INPUT, USB.

Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be connected to the PC audio input.

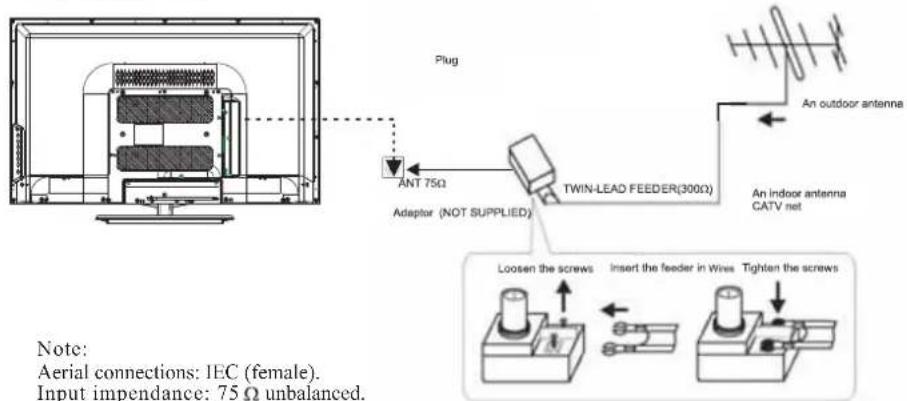

ANTENNA

Plug ANT 75Ω Adaptor (NOT SUPPLIED) TWIN-LEAD FEEDER(300Ω) An outdoor antenna An indoor antenna CATV net Loosen the screws Insert the feeder in Wire Tighten the screws Note: Aerial connections: IEC (female). Input impendance: 75 Ω unbalanced.

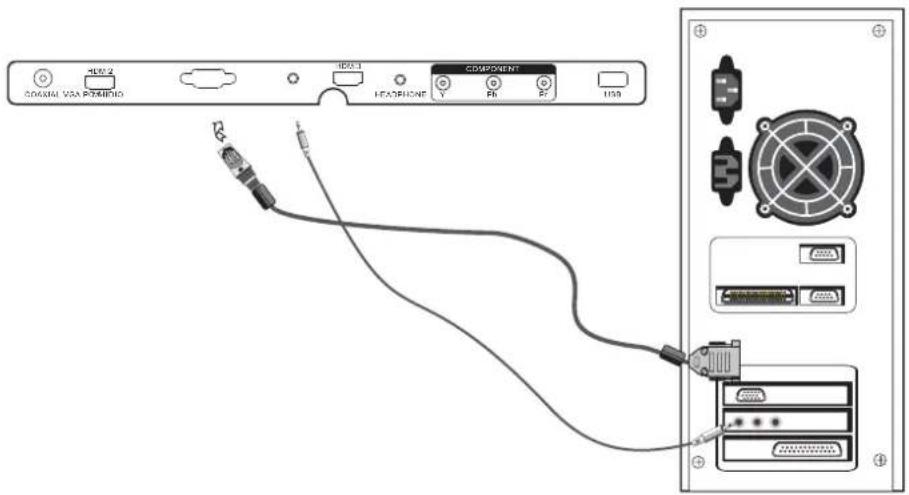

PC

STEPS:

Be sure both the TV and computer are powered off.

1. Connect a VGA and audio cable.

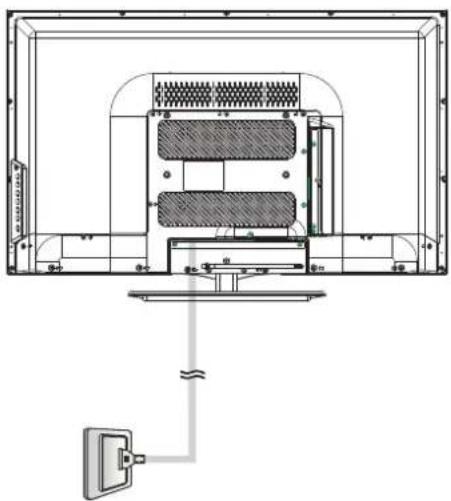

2. Connect the power cord.
3. Turn on the TV, switch to PC mode.
4. Turn on the PC.

USB 2 COALAVI VIA P744PIO 100.3 COMPONENT HEADPHONE Y Rx P7 USB

Technical line drawing of a mechanical or electrical enclosure with internal components and a connected outlet (no text or symbols)

PC

PRESET MODE

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	720*400	70	31.47
2	640*480	60	31.47
3	640*480	75	37.50
4	800*600	60	37.88
5	800*600	75	46.88
6	1024*768	60	48.36
7	1024*768	70	56.48
8	1024*768	75	60.02
9	1280*1024	60	63.98
10	1280*1024	75	80.00
11	1366*768	60	67.50
12	1920*1080	60	67.50

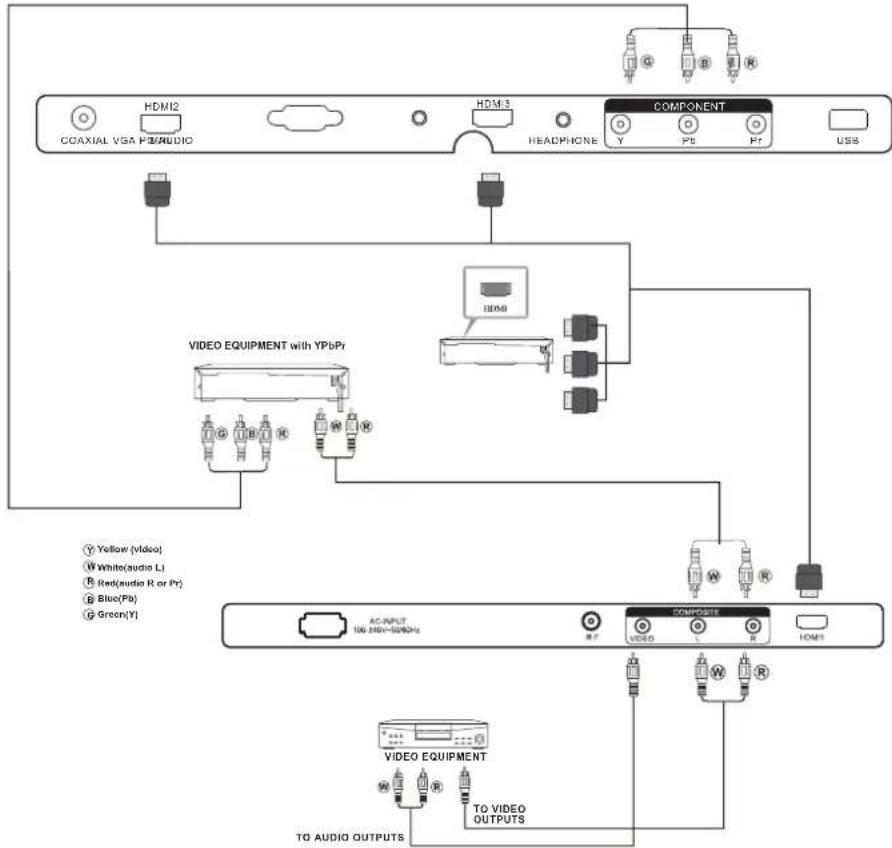

AV EQUIPMENT

There are three HDMI ports located on the back of your TV. You can connect a Blu-ray player, DVD player, or other video equipment through these ports.

The HDMI2 port is MHL enabled. You can connect MHL devices, such as the Roku Streaming Stick and compatible mobile phones and tablets.

There is one component (Y, Pb, Pr) and one composite (AV) video input located on the back of your TV. You can connect a VCR, cable box, or other video equipment to these jacks. Please see the diagram below. You may also need to refer to the owner's manual of the device that you are trying to connect.

The television's inputs can be connected to the following types of equipment: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc.... YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i, 1080p.

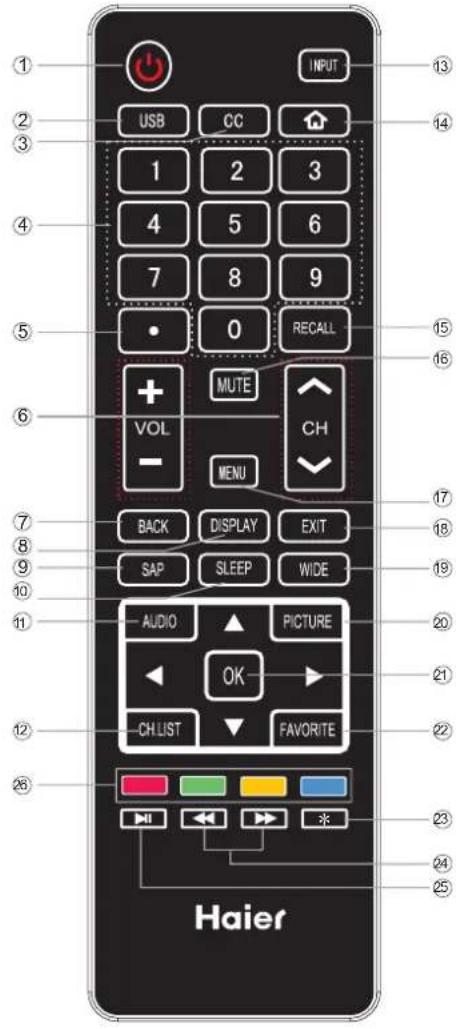

INPUT USB CC 1 2 3 4 5 6 7 8 9 0 RECALL MUTE VOL CH MENU BACK DISPLAY EXIT SAP SLEEP WIDE AUDIO PICTURE OK CH LIST FAVORITE Haier

1. Press to turn on and off the TV.
2. USB: Press to launch the USB multimedia mode.
3. Select a closed caption option.
4. Press to input a channel.
5. Press to select the digital sub-channels. For example, to enter "54-3", press "54", "●", and then "3".
6. Press CH ▲ or CH ▼ to go to the next or previous channel in the channel list. Press VOL+ or VOL- to increase or decrease the volume.
7. Return to the previous If the Roku Streaming Stick is connected, press this button to go back to the previous screen.
8. Press to display the TV status information.
9. Select MONO, STEREO, SAP in NTSC (analog TV) system.
10. Press to the sleepdring options.
11. Press to cycle through the different sound settings.
    12.Open the channel list in TV mode.
    13.Show the input source menu.
12. Switch to the HDMI2/MHL input, If the Roku Streaming Stick is connected, press this button to return to the Roku home screen.
13. Press to go to the last viewed channel.
14. Switches the TV sound on or off.
15. Press to open the on-screen displayu(OSD)
16. Exit the on-screen display.
17. Press to change the aspect ratio.
18. Press to cycle through the available picture modes.
19. Press to confirm selections in an on-screen menu or to open a submenu.
    22.Open the favorite channel list in TV mode.
20. If the Roku Streaming Stick is connected, press this button to view more options.
21. Reverse/Fast forward: Use these buttons to control music/photo playback. These buttons can also be used with the Roku Streaming Stick.
22. PLAY/PAUSE: Press to play/pause music or photo slideshow in USB mode. This button can also be used with the Roku Streaming Stick.
23. COLOR BUTTONS: Short cuts-follow the colored links in the text.

1. PICTURE MENU

In this menu, you can adjust the picture options.

such as contrast, brightness, etc.

Press ▼▲to select, press OK to adjust.

TV Picture Mode Energy Saving Contrast 50 Brightness 50 Sharpness 50 Tint 50 Color 50 Color Temperature Advanced Videos Audio Sales Lock

Note:

1) If you want to adjust contrast, brightness, color, and sharpness, the picture mode be set to ,will user

2) Calculated theoretical prediction to

a blue tint. Normal to give the white colors a neutral tint, Warm to give the white colors a red tint.

Energy Saving picture is the default setting, if you select some other options, the power consumption may change.

Note:

1) Audio language is available in ATSC/TVmode only.
2) Auto volume is available only when the input signal volume is too large or there is distortion.

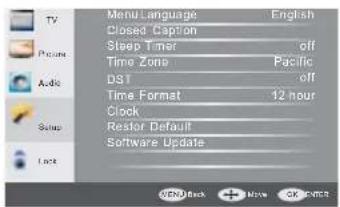

3. SETUP menu

In this menu, you can adjust the Menu language,

Closed Caption, adjust the sleep timer, time zone,

Restore Default, etc.

Press ▼▲to select, press OK adjust.

Menu Language Closed Caption Sleep Timer off Time Zone Pacific DST off Time Format 12 hour Clock Restor Default Software Update OK/OK Back More OK/OK

3.1 Closed Caption

CC Mode CC On Basic Selection CC1 Advanced Selection Servicel Option OK

1) CC Mode: Switch the closed caption mode.
2) Advanced selection: only available in ATSC.
3) Option: Used to edit the CC font.

Note:

1) Restore Default: Restore Default will clear all the saved channels and reset all the settings to factory default values.

1.1 VGA Setting

When a PC is connected, you can adjust the VGA settings.

1) H-Pos: Adjust the horizontal position of the screen.
2) V-Pos: Adjust the vertical position of the screen.
3) Clock: Fine tune the screen width.
4) Phase: Fine tune the phase of the screen. Usually you don't adjust this item.
5) Auto: Auto adjust to fit the screen.

VGA Setting H-Pos 50 V-Pos 38 Clock 50 Phase 17 Auto OK Cancel

2. AUDIO menu

In this menu, you can ajust the sound options.

Press ▼▲to select, press to adjust.OK

TV Sound Mode Standard Bass 50 Treble 50 Balance 50 MTS Stereo Digital Output RAW Surround Sound Off Audio Only Off Auto Volume Off Lock

4. LOCK MENU

In this menu, you can change the password and adjust the vchip settings.

Enter the password, to enter the lock menu. The factory default password is 0000.

Enter Password System Lock US Canada RRT Setting ResetRRT ChangePassword

4.1 Change Password

1) Old password: Input the old password.
2) New password: Input the new password.
3) Confirm password: Input the new password again.

4.2 System Lock

When the System Lock switch is ON, the options listed below can be adjusted.

4.3 US

Press to display the following screen.OK

US TV MPAA OK

1) TV: Press display the following screen.OK

TV RATING ALL FV V S L D OK

And use the Qty Parockalnlock Controls.

2) MPAA: Switching the movie-rating control level: N/A, G, PG, PG-13, R, NC-17, X.

Rating		Description
Age	G	General audiences, All Ages admitted
	PG	Parental Guidance suggested. Some material may not be Suitable for children.
	PG-13	Parents strongly cautioned. Some material may be Inappropriate for children under 13.
	R	Restrict. Under 17 requires accompanying parent or adult guardian(age varies in some jurisdictions)
	NC-17	No one 17 and under admitted.
	X	X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

4.4 Canada

Press, to display the following screen.OK

Canada Canada Eng Canada Fre OK

1) Canada English: Switching the English rating control level: EXEMPT, C, C8+, G, PG, 14+, 18+.

Rating		Description
Age	I	Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming.
	C	Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being.
	CS	Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen
	G	General: Considered acceptable for all age groups, Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional.
	PG	Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues.
	14+	Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline But it must be integral to the development of plot or character. Language usage could be profane and audity , present within the context of theme.
	18+	Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of secretary and audity.

2) Canada French: Switching the French-rating control level: E, G, 8ANS+, 13 ANS+, 16ANS+, 18ANS+.

Rating		Description
Age	1	Exempt programming
	G	General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner.
	8ans+	General but inadvisable for young children :May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with paren.
	13ans-	Over 13 years: Could contain scenes of frequent violent scenes and in tense violence.
	16ans-	Over 16 years: Could contain frequent violent scenes and violence.
	18ans-	Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

4.5 RRT setting

InATSC digital TV mode, it can be adjusted

4.6 Reset RRT:

Press OK to reset the RRT settings to the factory default values.

5. TMENU

In this menu, you can adjust digital and analog TV

Channels.

Press ▼▲to select, press OK adjust.

Air/Cable Cable Auto Scan Favorite Show/Hide DTV Signal e-Manual Setup Lock

5.1 Air/Cable:

Select Air TV signabr cable TV signal.

5.2 (Scannell

If it's the first time you use the TV, you should scan all the TV channels first.

Press to confirm and display the following screen.

AirCable Cable Channel Scan Enter Favorite Show/Hide DTV Signal e-Manual

Status Scanning Analog Channels: 0 Digital Channels: 0 5%.. MI-NU

5.3 Favorite:

Press OK choose/delete favorite channels.

5.4 Show/Hide

Press OK display/ hide the current channel.

5.5 DTV signal

Display the signal. It can't be selected or adjusted.

5.6 e-Manual

The use of user guide

Trouble phenomenon Symptom				Inspection/ Check
Picture		Audio
	Snow		Noise	antenna position, direction or connection
	Ghost		Normal audio	antenna position, direction or connection
	Interference		Noise	microwave, electronic equipment, car/motorcycle, fluorescent light
	Normal Picture		Mute	Volume (check if mute is activated or if the audio system connections are not correct)
	No picture		Mute	Power cord is not inserted Contrast and brightness/volume setup Press standby key on the remote control
	No color		Normal audio	Color control Component (Y Pb Pr) connections
	Picture breaking up		Normal audio or weak	Retune channel
	No color		Noise	TV system

The LCD TV panel is built with very high precision technology giving you fine picture details in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, black or white. Please note this does not affect the performance of the product.

Warranty

This Haier brand product, when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective product with a new or re-manufactured equivalent, for parts or labor for the periods set forth below:

This warranty does not apply to the appearance of the product or the exterior of the product, which has been damaged or defaced, altered or modified in design or construction. It does not apply to the additional excluded items set forth below:

The warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service center before warranty repairs are rendered.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(s) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Haier.

The warranties described herein shall be the sole and exclusive warranties granted by Haier and shall be the sole and exclusive remedy available to the purchaser. Correction of defects in the manner and for the period of time described herein, shall constitute complete fulfillment of all abilities and

Responsibility of Haier to the purchaser with respect to the product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict duality or otherwise. In no event shall Haier be liable, or in any way responsible for any damages or defects in the product which were caused by repairs or attempted repairs performed by anyone other than an authorized service center or dealer; nor shall Haier be liable, or in any way responsible for incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so that above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Warranty period for this product is one year parts and labor. Additional items excluded from warranty coverage: non-rechargeable batteries. What to do to obtain service or to obtain product literature, accessories, supplies or customer assistance: Simply call 1-877-337-3639. Be sure to have proof of purchase.

Sommaire

Installation.... 6-9

Télécommande.... 10

Base Stand Assembly Instruction

Technical line drawing of a computer chassis with ventilation slots and drive bays (no text or symbols)

Technical line drawing of a computer chassis showing internal components and mounting points (no text or labels)

Diagram showing a monitor setup with labeled components and a remote control device, accompanied by a numbered list on the right.

Technical line drawing of a computer monitor with internal components and a wall-mounted power outlet (no text or symbols)

Ordinateur

RESOLUTIONS DISPONIBLES

	Résolution :	Fréq. V. (Hz)	Fréq. H. (KHz)
1	720*400	70	31.47
2	640*480	60	31.47
3	640*480	75	37.50
4	800*600	60	37.88
5	800*600	75	46.88
6	1024*768	60	48.36
7	1024*768	70	56.48
8	1024*768	75	60.02
9	1280*1024	60	63.98
10	1280*1024	75	80.00
11	1366*768	60	67.50
12	1920*1080	60	67.50

EQUIPEMENTS AUDIO/VIDÉO

Picture Mode Energy Saving Contrast 50 Brightness 60 Sharpness 50 Tint 50 Color 60 Color Temperature Sules: Advances Video Loci

Remarque:

VGA Setting H-Pos 50 V-Pos 38 Clock 50 Phase 17 Auto OK Cancel

2. MENU AUDIO

Enter Password System Lock VS Canada RRT Setting Reset RRT Change Password

4.1 Change Password

US TV MPAA OK

TV RATING ALL FV V S L D OK

Canada Canada Eng Canada Fre OK

Air/Cable Cable Auto Scan Favorite Show/Hide DTV Signal e-Manual TV Picture Auto Setup Lock

5.1 Air/Cable:

AirCable Cable Channel Scan Enter Favorite Show/Hide DTV Signal e-Menu

Status Scanning Analog Channels: 0 Digital Channels: 0 5%.. MI-NU

5.3 Favorite:

Display the DTV signal. It can't be selected or adjusted.

5.6 e-Manual

The use of user guide

Technical line drawing of a computer chassis with internal components and mounting brackets (no text or symbols)

Technical line drawing of a computer chassis showing internal components and mounting holes (no text or labels)

Diagram showing a monitor setup with labeled components and a remote control, including numbered parts.

Technical line drawing of a computer monitor with internal components and a wall-mounted power outlet (no text or symbols)

PC

MODO PROGRAMADO

	RESOLUCIÓN	Frecuencia Vertical (Hz)	Frecuencia Horizontal (KHz)
1	720*400	70	31.47
2	640*480	60	31.47
3	640*480	75	37.50
4	800*600	60	37.88
5	800*600	75	46.88
6	1024*768	60	48.36
7	1024*768	70	56.48
8	1024*768	75	60.02
9	1280*1024	60	63.98
10	1280*1024	75	80.00
11	1366*768	60	67.50
12	1920*1080	60	67.50

AV DEL EQUIPO

TV Picture Mode Energy Saving Contrast 50 Brightness 50 Sharpness 50 Tint 50 Color 50 Color Temperature Advanced Video Lock

Nota:

VGA Setting H-Pos 50 V-Pos 38 Clock 50 Phase 17 Auto OK Cancel

2. MENÚ AUDIO

CC Mode CC On Basic Selection CC1 Advanced Selection Service Option OK

Enter Password System Lock: US Canada RRT Selling ResetRRT ChangePassword

4.1 Change Password

US TV MPAA OK

TV RATING ALL FV V S L D OK

Canada Canada Eng Canada Fre OK

Air/Cable Cable Auto Scan Favorite Show/Hide DTV Signal e-Manual

5.1 Air/Cable:

AirCable Channel Scan Cable Enter Favorite Show/Hide DTV Signal e-Manus

Status Scanning Analog Channels: 0 Digital Channels: 0 5%.. MI-NU

5.3 Favorite:

©2013 Haier America Trading, LLC.
