Product Type	4K LED TV
Brand	Haier
Model	H100M96FUX
Screen Size (Diagonal)	100 inches (254 cm)
Resolution	3840 x 2160 (4K Ultra HD)
Maximum Refresh Rate	144 Hz (4K) / 240 Hz (Full HD)
Aspect Ratio	16:9
TV System	ATV (PAL, SECAM) / DTV (DVB-T/C/T2/S2)
Power Supply	100-240 V ~ 50/60 Hz
Power Consumption (Typ.)	500 W
Standby Power Consumption	≤ 0.5 W
Audio Output	90 W (M96 series)
Connectivity	HDMI 4K@144Hz (cARC/ARC), USB, LAN, OPTICAL, SATELLITE, ANT/CABLE, CI, AV IN, Type-C 5V 1A
Smart Functions	Google TV, Google Assistant, hands-free voice control, E-Manual
Accessibility Features	TalkBack, text-to-speech, color correction, subtitles, high-contrast text
Eye Protection	Low Blue Light Mode (TUV certified)
Included Accessories	Remote control, manual, stand guide, stand support, screws, warranty card
Wall Mounting	Compatible with VESA mount (not included, M6x20 screws provided for some models)
Maintenance and Cleaning	Use a soft, dry cloth. Do not use liquids or abrasive products.
Spare Parts and Repairability	Contact Haier customer service or an authorized technician. No spare parts specified in the manual.

Frequently Asked Questions - H100M96FUX HAIER

How to turn the TV on and off?

Press the POWER button on the remote control or the button on the bottom/side of the TV. To completely cut off the power, unplug the power cord.

How to connect an antenna or cable?

Connect the antenna or cable to the ANT/CABLE connector on the back of the TV. For satellite, use the SATELLITE connector.

How to use hands-free voice control?

Enable the hands-free voice control switch on the TV. Then say 'Hey Google' followed by your command. Make sure the TV is connected to the internet and Google Assistant is set up.

How to reduce blue light to protect my eyes?

Go to Settings → Display&Sound → Picture → Advanced Settings → Low Blue Light. You can choose from: Off, Low, Middle, High.

What is the maximum screen resolution?

The resolution is 3840 x 2160 (4K Ultra HD). The maximum refresh rate is 144 Hz at 4K and 240 Hz at 1920x1080.

How to access the electronic manual (E-Manual)?

Press the HOME button on the remote, then navigate to 'Apps' and select 'E-Manual'. The built-in manual guides you through the TV's functions.

Can I mount the TV on the wall?

Yes, the TV is compatible with a VESA wall mount. M6x20 screws are provided for M96/M92 models. The wall mounting component is included for these models. Follow the stand installation guide for instructions.

What is the audio power of the TV?

For the M96 series, the audio output is 90 W. For M92/S90 series, it is 47 W.

How to use accessibility features like TalkBack?

Go to Settings → Accessibility. You can enable TalkBack (screen reader), text-to-speech, color correction, subtitles, and other options. A shortcut is available by pressing BACK and DOWN simultaneously for 3 seconds.

What devices can I connect to the HDMI ports?

You can connect audiovisual devices with HDMI outputs, such as Blu-ray players, game consoles, set-top boxes, etc. The HDMI ports support 4K at 144 Hz and ARC/eARC. Use the HDMI port labeled 'cARC/ARC' for audio output to an amplifier.

USER MANUAL H100M96FUX HAIER

Illustration in this guide are provided for reference only and may differ from actual product appearance. Product design and specification may be changed without notice.

LED Television

TURNNING ON THE TV

1. Install the stand and place the TV on a solid surface.
2. Connect the antenna or cable to the ANT aerial socket on the back of the TV set.

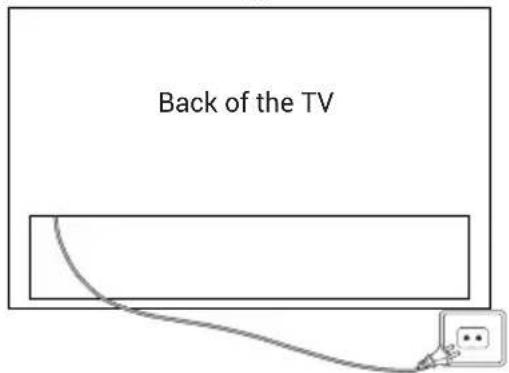

3. Power:

Plug the cord into a working power outlet.

1. Turn the TV on:

Press on the remote control or POWER button at the bottom/side of the TV.

BUTTON CONTROL

ACCESSORIES

Remote Control - 1 pc User's Manual - 1 pc Base Installation Guide - 1 pc Base Stand - 2 pcs *Wall Mount Component - 1pc Warranty Card - 1 pc *Screws(M6x20) - 4 pcs

NOTE

1. Wall mount component is for M96/M92 models.
2. H100S90FUX: The specification of the base fixing screw is M5x19 -8pcs.

GENERAL SPECIFICATIONS

Size (Diagonal)	100" 85" 75" 65"
Resolution 3840x2160
Max Refresh rate	144Hz @ 3840x2160240Hz @ 1920x1080
Aspect Ratio 16:9
TV System ATV	(PAL, SECAM)/DTV (DVB-T/C/T2/S2)
Video Signal System	PAL, SECAM
Input Power Voltage	100-240V~50/60Hz
Rated Power	100" 85" 75" 65"
	500W 400W 350W 280W
Audio Output	M96 Series: 90W
	M92/S90 Series: 47W
Standby Power consumption	≤ 0.5W
Environmental Condition	Operating ambient temperature:+5°C to +40°COperating environment humidity:25%~80%Storage Temperature: -15°C~+45°CStorage Humidity: <80%Atmospheric Pressure: 86~106Kpa

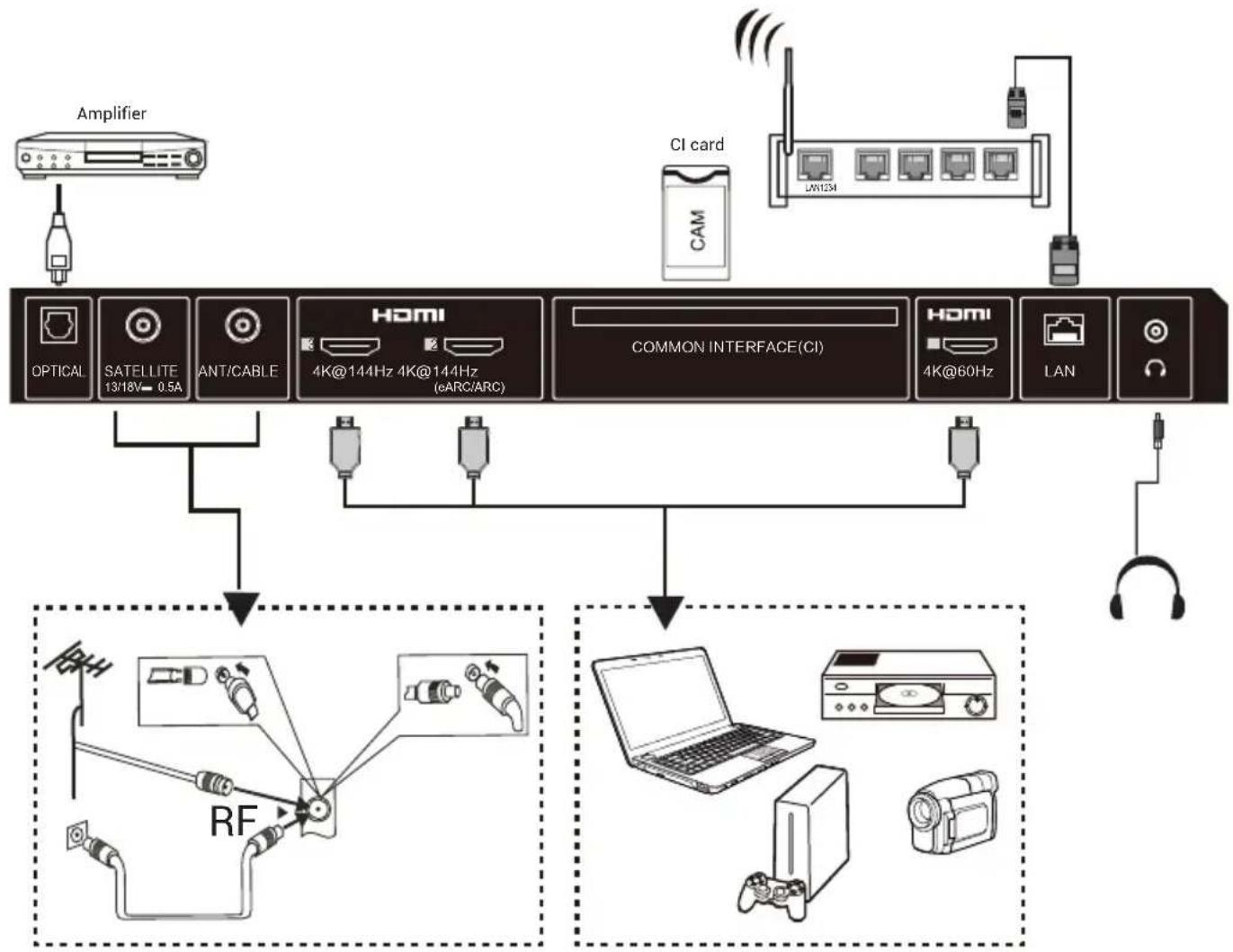

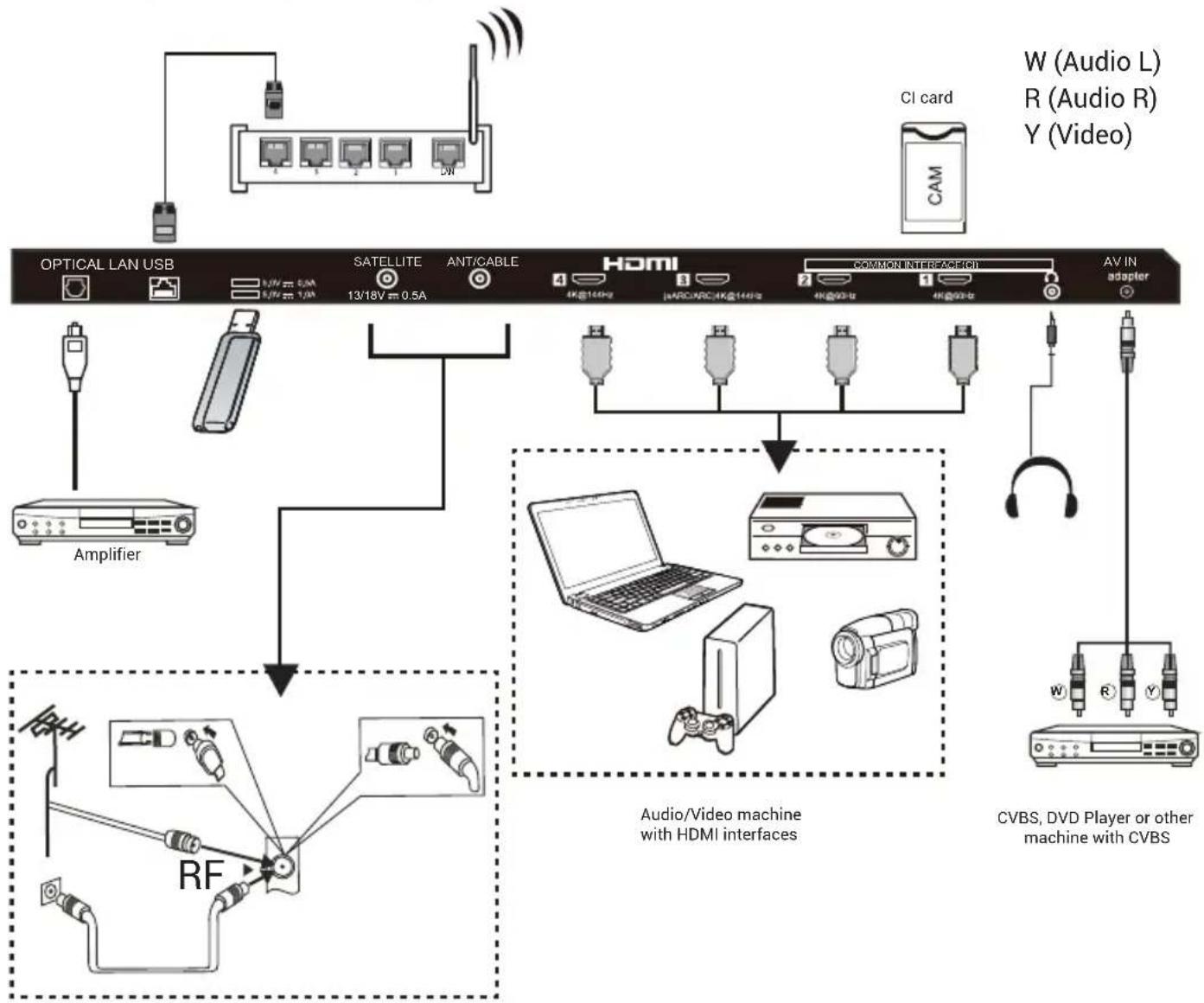

Please refer to the user's manual of the equipment to be connected as well.

You can use the input terminals on TV set rear as follows.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc

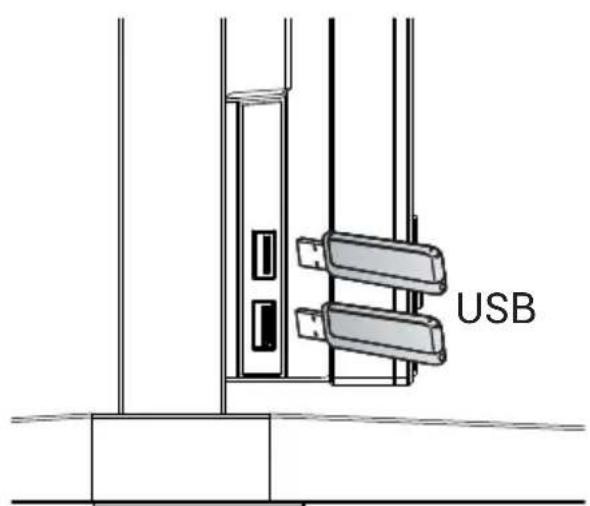

Note:

1. Sometimes it will not support in different device because the device supplies nonstandard signal.
2. The equipment and connecting cables shown in the picture are not included and need to be purchased separately.

H100S90FUX/H85M92FUX/H75M92FUX/H65M92FUX

H100M96FUX

Audio/Video machine with HDMI interfaces

at the left side of TV

Subject to the actual product functions.

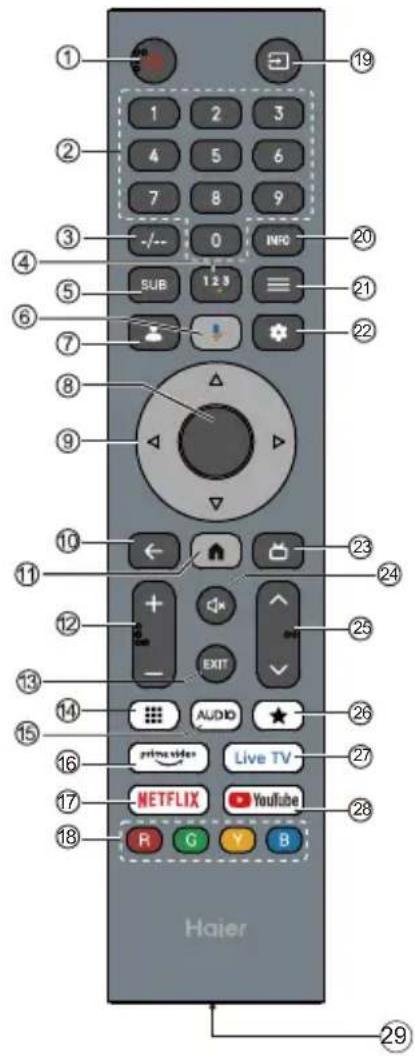

# Item Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2	0~9 number Press to enter a TV channel number.
3	-- Press to set the TV channel number input.
4	Press to open Soft Keyboard.
5	SUB Press to set subtitle function.
6	Press to open the Google Assistant.
7	Press to open user account page.
8	OK Enter the selected option or perform the selected operation.
9	Press to navigate the on-screen menu.
10	BACK Return to the previous menu.
11	Press to open the Home Page.
12	VOL+/VOL- PressVOL+ or VOL- to adjust volume level.
13	EXIT Exit the current operation.
14	Press to show virtual keypad.
15	AUDIO Press to set NICAM in ATV. Select the Sound Tracks in DTV.
16	Press to open the prime video.
17	NETFLIX Press to open the NETFLIX.
18	Coloured buttons Implement the relevant operations according to the prompt at the botton of the menu in the text.
19	Press to open the input source list.
20	INFO Press to display the channel information
21	MENU ≡ Press to open or close the on-screen menu.
22	Press to open the settings menu.
23	Press to display electronic programme guide in TV mode.
24	Press to open the mute.
25	CH∨/CH∧ Press CH∨ or CH∧ to change TV channels.
26	Create a shortcut for your favorite app.
27	Live TV Press to enter the last input source in LiveTV.
28	YouTube Press to open the YouTube.
29	Type-C port Type-C port for quick charging. (DC 5V 1A)

Eye-protection Function: (In color temperature standard mode meets TUV low blue light requirements)

Low Blue Light - Low Blue Light mode on your TV is designed to reduce the level of blue light to protect your eyes. Press Remote control Settings → Display&Sound → Picture → Advanced Settings → Low Blue Light (Optional: Off, Low, Middle, High).

To reduce eyes strain and protect eyes when you watch TV for a period of time, you are recommended to:

• Take regular and frequent breaks, avoid watching TV for periods of more than one hour.

Watching TV for long periods of time may cause eye fatigue.

• Look away from the TV screen and focus on distant objects for at least 10 minutes during watch break time.
• Relax yourself during watch break time by doing eye exercises or outdoor activities.
  • The best recommended viewing distance is 3 times the vertical height of the TV screen.
• Regular breaks and exercises are extremely helpful in relieving eye strain and fatigue.

INITIAL SETUP

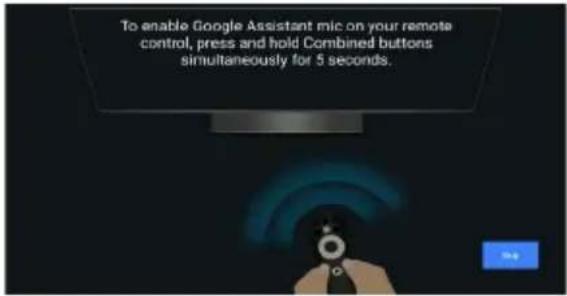

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please according to the Text Tip to First Time Setup.

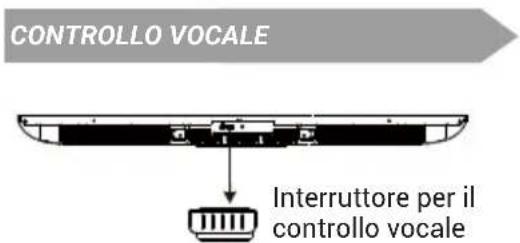

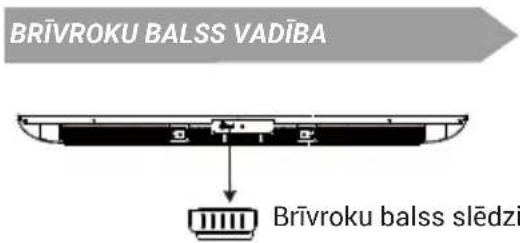

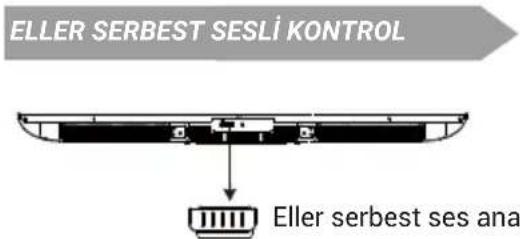

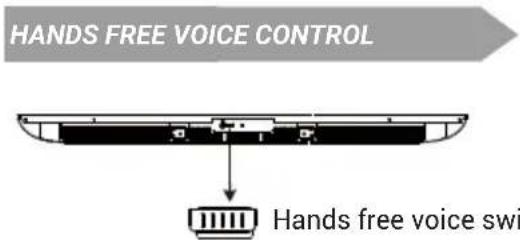

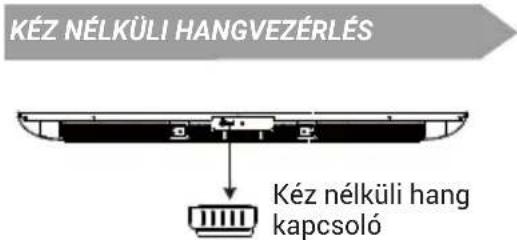

Switch to open or close the Hands Free Voice Control.

Note : This feature requires network connection.

Far-Field voice commands are available in these languages.

en-US/es-US, fr-FR, es-ES, ja-JP, ko-KR, de-DE, it-IT, en-GB, en-AU, en-IN/hi-IN, en-CA/fr-CA, es-MX, pt-BR, id-ID, sv-SE, vi-VN

HOW TO USE HANDS FREE VOICE CONTROL

1. Activate the hands free voice control with the toggle switch.

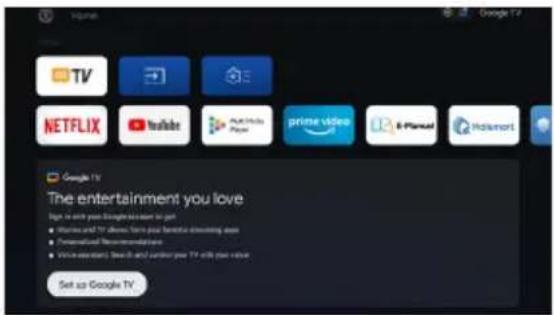

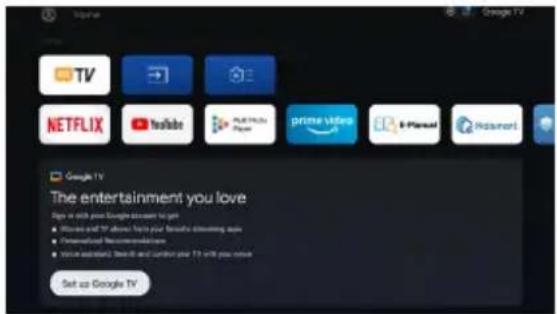

2. Select "Set up Google TV" on home screen to open the Google assistant settings, and select sign in.

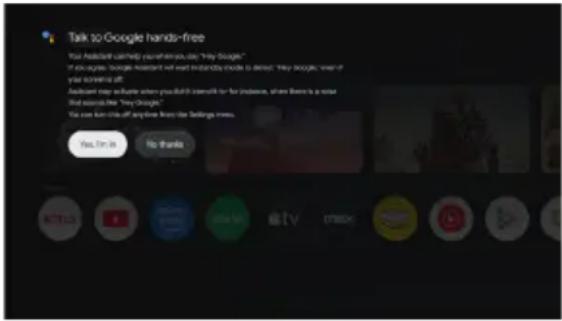

1. When the prompt "Control your TV with 'Hey Google'!" is prompted, select "Yes I'm in", it can be used.

For example, when we say "H ey Google, What's the weather", hands free voice indicator will light up and feed back the weather conditions.

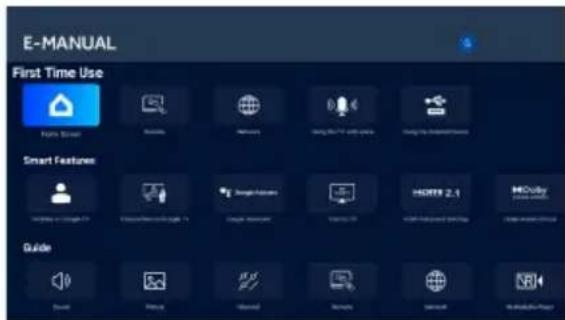

E-Manual

E-Manual is built into your TV and can be displayed on the screen. To learn more about your TV features, access your E-Manual by referring to the following. E-Manual may be available depending on the region or model.

1. Press HOME button to access the home page.
2. Press UP/DONW/LEFT/RIGHT and OK button to select and enter "E-Manual" in "Apps".

Note: The picture is only for reference.

Accessibility function description

Talkback (Screen reader)

Talkback is a screen reader accessibility feature that assists visually impaired users by reading aloud on-screen text, menu items and other elements. It can also be set up to use with Accessibility Shortcut.

Text to speech

A Text To Speech Engine is a software component that converts text into natural-sounding speech.

The Text To Speech Engine works in the background, supplying the core speech synthesis functionality.

Applications such as screen readers, virtual assistants, or language learning tools often call upon the Text To Speech Engine to generate audio output, but the engine itself does not interact with users directly.

This page provides settings to pick the active Text To Speech Engine if there are multiple engines installed in the system, to set basic configurations for Text To Speech engines, like language, reading speed, etc.

Text Scaling

This configuration could scale the text in system-wide applications up or down based on end user's need.

Bold Text

This configuration allows the text in system-wide applications to be bolded for better readability.

Color correction

The "Color correction" setting is designed to help people with color vision differences see on-screen colors more clearly. By enabling this option, you can adjust the way colors are displayed, making it easier to enjoy your favorite shows and apps.

Accessibility shortcut

When the Accessibility shortcut is on, the end user can press both the BACK and DOWN buttons for 3 seconds to start an accessibility feature.

This setting could help the end user to choose the targeted accessibility feature of the shortcut, or to switch the shortcut function on and off.

Keyboard accessibility

Time to take action (accessibility timeout)

This setting allows users to adjust how long the messages and notifications stay on the screen.

The longer stay would enlarge the chance that end user notice the message and take necessary action.

Key repeat delay

This setting allows users to adjust the key repeat delay, which could help the end user get abetter experience when pressing buttons on the remote control.

Switch Access

Switch Access lets users interact with TV using one or more switches. Switch Access can be helpful if the end user's interaction with remote control is limited.

Audio Description

The end user would hear a description of what's happening on screen in supported movies and shows by enabling this setting.

Captions

The "Captions" settings let users turn on/off captions, decide the visual appearance of the captions in supported apps.

High contrast text

The "High Contrast Text" setting makes on-screen text easier to read by using brighter colors and clearer outlines. This feature is especially helpful for people who find regular text hard to read.

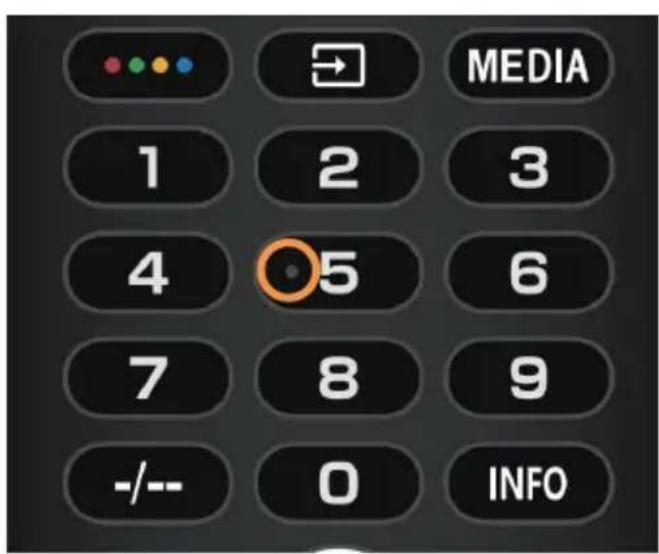

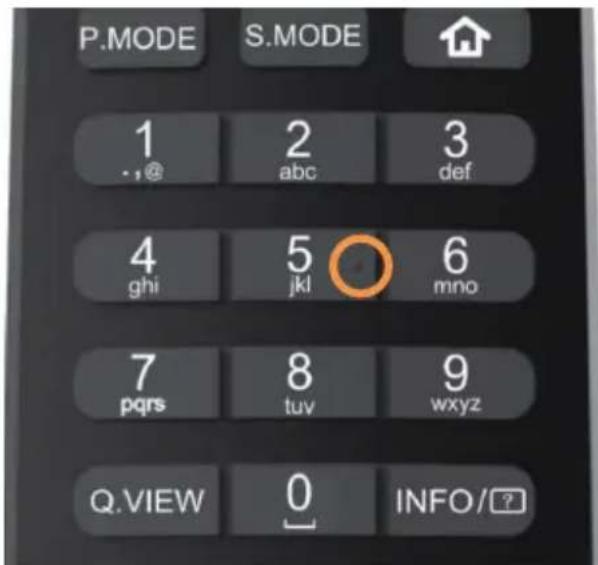

Tactile dots on the remote control buttons

The TV remote control has tactile dots on the number 5 button to help you find the buttons easily.

For example, among the numeric buttons, only the number 5 has a tactile dot to help you find all the numeric buttons.

ACCENSIONE DELLA TV

ACCESSORI

ACCESORIOS

CONTROL DE VOZ MANOS LIBRES

ACCESSOIRES

COMMANDE VOCALE MAINS LIBRES

ZUBEHÖR

AKCESORIA

АКСЕСУАРИ

АКСЕСОАРИ

ACESSÓRIOS

Telecomando - 1 un. Manual do utilizador

- 1 un.

AKSESUARLAR

1. Tænd TV'et:

Tryk på åpå fjernbetjeningen eller på POWER-knappen på undersiden/siden af TV'et.

BETJENINGSKNAPPER

1. Når prompten "Control your TV with 'Hey Google'!" vises, skal du vælge "Yes, I'm in", for at aktivere det.

VARUSTEET

YLEISET TEKNISET TIEDOT

TILBEH∅R

ACCESORII

CONTROL VOCAL MÂINI LIBERE

ACCESSOIRES

HANDSFREE SPRAAKBESTURING

E3APTHMATA

DODATNI PRIBOR

GLASOVNO UPRAVLJANJE BEZ UPOTREBE RUKU

1. Kada se pojavi poruka „Control your TV with 'Hey Google'!“, izaberite „Yes I'm in“ da biste mogli da koristite ovu funkciju.

ДОДАТОЦИ

ГЛАСОВНА КОНТРОЛА БЕЗ РАЦЕ

AKSESORËT

DODACI

Daljinski upravljač – 1 kom. Korisnički priručnik

- 1 kom.

Uputstvo za instalaciju postolja

Postolje za bazu

- 1 kom.

- 2 kom.

*Komponenta za zidnu montažu

Kartica garancije

- 1 kom.

- 1 kom.

*Vijci (M6 × 20) - 4 kom.

NAPOMENA

1. Komponenta za zidnu montažu je za modele M96/M92.
2. H100S90FUX: Specifikacija vijka za pričvršćivanje postolja je M5 × 19 – 8 kom.

OPĆE SPECIFIKACIJE

Veličina(Dijagonalno)	100" 85" 75" 65"
Rezolucija 3840	× 2160
Maksimalna stopa osvježavanja	144 Hz @ 3840 × 2160240 Hz @ 1920 × 1080
Omjer stranica	6:9
TV sistem ATV (PAL, SECAM)/DTV (DVB-T/C/T2/S2)
Video signalni sistem	PAL, SECAM
Ulazni napon napajanja	100-240 V ~ 50/60 Hz
Nazivna snaga	100" 85" 75" 65"
	500 W 400W 350W 280W
Audio izlaz	Serija M96: 90W
	Serija M92/S90: 47W
Potrošnja energije u stanju pripravnosti	≤ 0,5 W
Okolinski uvjeti	Radna temperatura okoline:+5°C do +40°CVlažnost radnog okruženja:25% ~ 80%Temperatura skladištenja: -15°C ~ +45°CVlažnost skladištenja: < 80%Atmosferski pritisak: 86 ~ 106 kPa

KONTROLA GLASA BEZ UPOTREBE RUKU

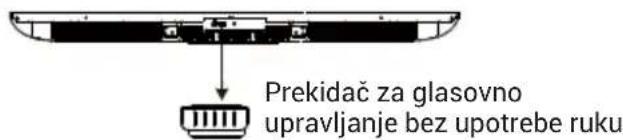

Prekidač za uključivanje ili isključivanje Glasovne Kontrole bez upotrebe ruku.

Napomena: Ova funkcija zahtijeva mrežnu vezu. Glasovne naredbe na daljinu preko daljinskog upravljača dostupne su na ovim jezicima. en-US/es-US, fr-FR, es-ES, ja-JP, ko-KR, de-DE, it-IT, en-GB, en-AU, en-IN/hi-IN, en-CA/fr-CA, es-MX, pt-BR, id-ID, sv-SE, vi-VN

KAKO KORISTITI GLASOVNU KONTROLU BEZ UPOTREBE RUKU

1. Aktivirajte glasovnu kontrolu bez upotrebe ruku pomoću prekidača.
2. Odaberite „Set up Google TV“ na početnom ekranu da otvorite postavke Google asistenta, zatim odaberite prijavu.

1. Kada se pojavi upit „Control your TV pomoću 'Hey Google'!“, odaberite „Yes I'm in“ da biste mogli koristiti ovu funkciju.

Na primjer, kada kažemo „Hey Google, What's the weather“, indikator za glas bez upotrebe ruku će se upaliti i prikazati vremenske uslove.

E-priručnik

DODATKI

PROSTOROČNO UPRAVLJANJE Z GLASOM

DODATNA OPREMA

GLASOVNO UPRAVLJANJE BEZ RUKU

АКСЕССУАРЫ

PŘÍSLUŠENSTVÍ

HLASOVÉ OVLÁDÁNÍ HANDS-FREE

PRIEDAI

Nuotolinio valdymo pultelis- 1 vnt.	Naudotojo vadovas- 1 vnt.
Pagrindo montavimo vadovas- 1 vnt.	Pagrindo stovas- 2 vnt.
*Sieninio tvirtinimo elementas- 1 vnt.	Garantijos kortelė- 1 vnt.
*Varžtai (M6x20) - 4 vnt.

PASTABA

BALSO VALDYMAS BE RANKU

1. Kai pasirodo pranešimas „Control your TV with 'Hey Google!'", pasirinkite „Yes, I'm in", kad galètumète naudotis šia funkcija.

TARVIKUD

KÄED VABAD HÄÄLJUHTIMINE

PIEDERUMI

PRÍSLUŠENSTVO

HLASOVÉ OVLÁDANIE HANDS-FREE

AUKABÚNAĐUR

Fjarstýring – 1 stk Notendahandbók

- 1 stk

Grunnuppsetningarleiðbeiningar Grunnfætur - 2 stk. - 1 stk.

*Veggfesta ihlutur - 1 stk Ábyrgðarkort - 1 stk
*Skruvar (M6 × 20) - 4 stk

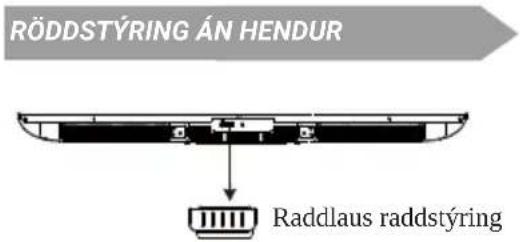

ATHUGID

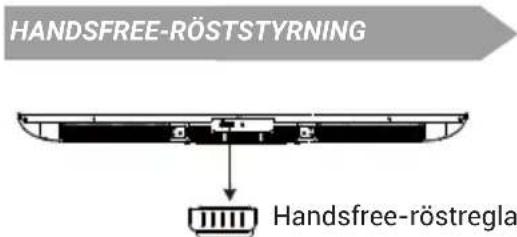

TILLBEHÖR

KIEGÉSZÍTÓK
