USER MANUAL FR9418 TRISTAR

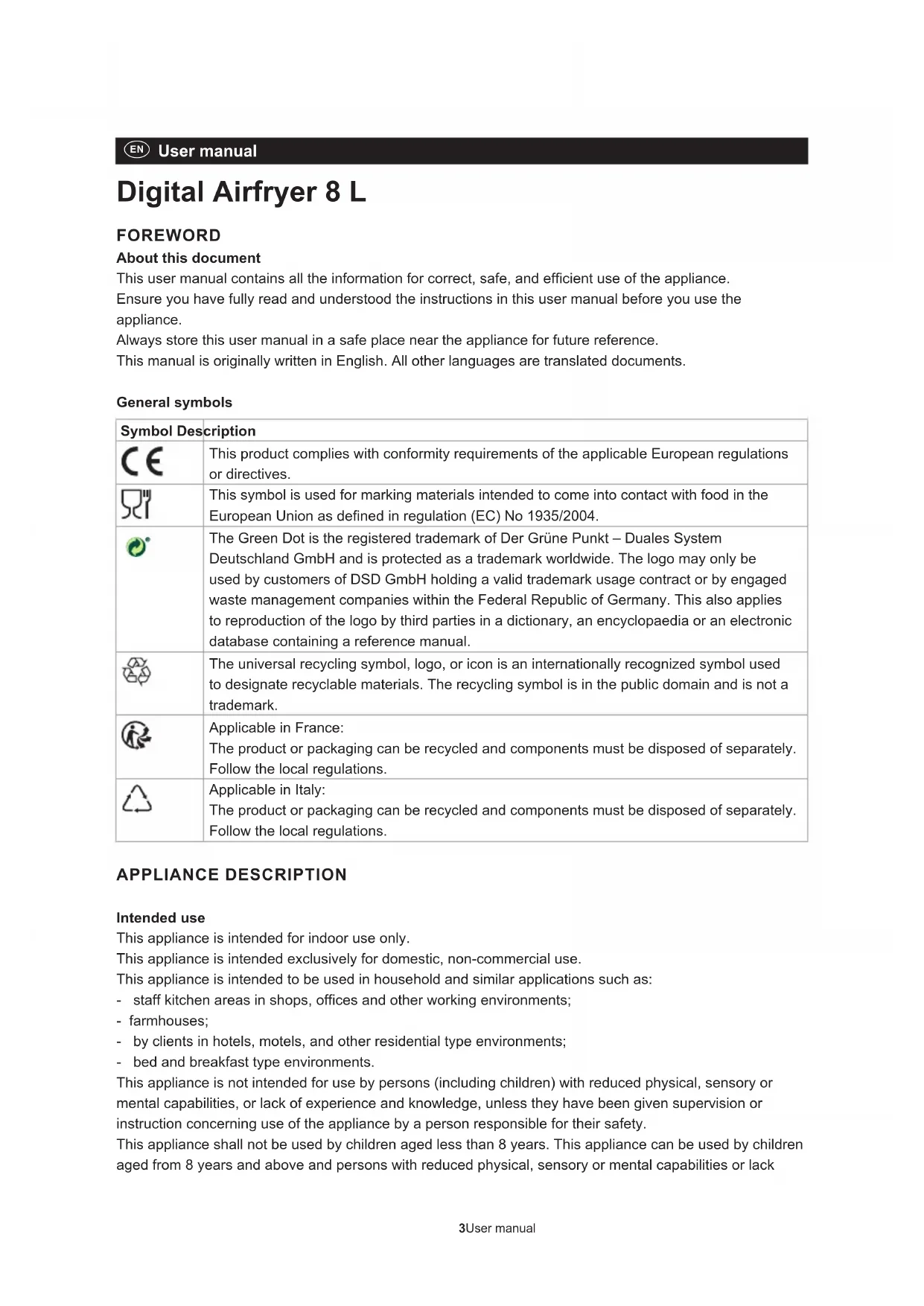

User manual Digital Airfryer 8 L FOREWORD About this document This user manual contains all the information for correct, safe, and efficient use of the appliance. Ensure you have fully read and understood the instructions in this user manual before you use the appliance. Always store this user manual in a safe place near the appliance for future reference. This manual is originally written in English. All other languages are translated documents. General symbols Symbol Description This product complies with conformity requirements of the applicable European regulations or directives. This symbol is used for marking materials intended to come into contact with food in the European Union as dened in regulation (EC) No 1935/2004. The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual. The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark. Applicable in France: The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations. Applicable in Italy: The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations. APPLIANCE DESCRIPTION Intended use This appliance is intended for indoor use only. This appliance is intended exclusively for domestic, non-commercial use. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels, and other residential type environments; - bed and breakfast type environments. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack4Tristar Europe B.V. | Digital Airfryer 8 L | FR-9418 of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised. The appliance is not intended to be operated by means of an external timer or a separate remote-control system. Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty. Technical specications Appliance name Digital Airfryer 8 L Article number FR-9418 Power supply 220-240V ~ 50-60Hz Power consumption in use 2000 W Main parts (see image A)

Control panel Control panel (see image B)

Reheat button SAFETY Safety symbols Symbol Descri ion Indication for a hot surface. Contact may cause burns. Do not touch. Safety precautions

• This appliance is only to be used for household purposes and only for the purpose it is made for. In worst case the food can catch fire.

• This appliance shall not be used by children aged less than 85User manual years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.

• Always place the appliance on a stable, flat, heat, and moisture resistant surface.

• The user must not leave the appliance unattended while it is connected to the supply.

• This appliance is only to be used for household purposes and only for the purpose it is made for.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

• Never insert your fingers or any other objects into the air outlet. Make sure to warn children and other persons with reduced physical, sensory or mental capabilities of this danger.

• The appliance is to be connected to a socketoutlet having an earthed contact (for class I appliances).

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.

• The temperature of accessible surfaces may be high when the appliance is operating

• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

• In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 35 centimeter of free space around the appliance.

• After the baking process the appliance needs to cool down,6Tristar Europe B.V. | Digital Airfryer 8 L | FR-9418 this cooling process will activate automatically when the timer is done. Avoid to unplug the appliance from the socket before the cooling process is finished because the remaining hot air can damage the appliance. NOTICE

• The airfryer will not operate unless the basket is fully closed.

• The fat-free fryer uses the technology of hot air heating, Never pour oil or fat into the fryer.

• Do not put anything on top of the appliance. This disrupts the airflow and affects the air-frying result. ASSEMBLY OF THE BASKET HANDLE (SEE IMAGE C)

• Take out the basket A

from the main unit A

into the designated space on the top of the basket until you hear a “click”.

DISASSEMBLY OF THE BASKET HANDLE

• Remove the small silicone piece from the top of the handle on the air fryer basket. Do not throw it away, as you will need it for reassembly.

• Insert a suitable screwdriver through the hole, ensuring it fits securely. Gently pry at the inner stainless steel section while lifting the handle upwards at the same time. Remove the handle once it loosens from the basket.

• Remove all packaging material.

• Remove any stickers or labels from the appliance.

• Wipe the inside and outside of the appliance with a moist cloth.

• Place the appliance on a stable, horizontal and level surface, do not place the appliance on non-heat- resistant surfaces.

• When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.

• Place the device in a well ventilated space. USE

• Put the main plug in an earthed wall socket.

• Place the food inside the basket A

to cycle through the pre-set cooking programs until the icon of the desired program flashes.

to switch between time or temperature selection.

to increase the value.

to start the cooking process.

• Certain menu options include a preheat function. During this period, the display A

will show 'PRE' until preheating is complete and cooking begins.

• When the program finishes, the screen will display 'End.'

• Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the basket back into the appliance and set the timer to a few extra minutes.7User manual

• To remove small ingredients, like French fries, carefully pour them from the pot into a bowl or onto a plate. For larger or more delicate ingredients, use a pair of tongs to lift them out of the pot and place them into a bowl or onto a plate.

• During the cooking process, you can adjust the time and temperature settings. To save these adjustments as a new program, press and hold the button for over 3 seconds until you hear 3 beeps. The new settings will then be saved, replacing the previous program.

• Do not turn the outer pot upside down while the aifryer rack is still in the basket, as any excess oil collected at the bottom of the basket may spill onto the ingredients. Shaking

• Some ingredients require shaking halfway through the preparation time. To shake the ingredients, pull the basket A

out of the appliance by the handle A

and shake it. Then slide the basket back into the air fryer. Program selection See for presetting information the table below: Program Recommended amount Default temperature/time Shake reminder Preheat Fries 500 g 200°C / 15 minutes First shake reminder at 7 min; fol- lowing shake reminder each 5 min Yes Chicken 700 g 180°C / 20 minutes First shake reminder halfway through the program. No following shake reminders. Yes Steak 300 g 180°C / 8 minutes First shake reminder halfway through the program. No following shake reminders. Yes Fish 500 g 190°C / 18 minutes First shake reminder halfway through the program. No following shake reminders. Yes Cake 500 g 150°C / 35 minutes N/A N/A Pizza 200 g 200°C / 8 minutes N/A Yes Vegetables 300 g 180°C / 10 minutes First shake reminder halfway through the program. No following shake reminders. Yes Manual mode N/A 180°C / 15 minutes Yes Yes Reheat N/A 80°C / 20 minutes N/A N/A Defrost N/A 60°C / 15 minutes N/A N/A When selecting the Defrost function B

, you can adjust the time based on the food’s needs. The temperature is fixed, but the time can be set between 1 and 60 minutes.

CLEANING AND MAINTENANCE

• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.

• Never immerse the device in water or any other liquid. The device is not dishwasher proof.

• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.

• If dirt is stuck to the basket or the bottom of the basket, put the frying rack in the basket and let it soak for about 10minutes.

• Allow all parts to dry completely or dry them with a towel.8Tristar Europe B.V. | Digitale Airfryer 8 L | FR-9418 STORAGE Store the appliance in a dry and enclosed space. ENVIRONMENT This appliance should not be put into the domestic garbage at the end of its durability, but must be o󰀨ered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection. Support You can find all available information and spare parts at www.tristar.eu
