USER MANUAL FR-9403SU TRISTAR

Dualzone Flex Airfryer FR-9403SU

EN User manual 3
NL Gebruikshandleiding 11
FR Mode d'emploi 20
DE Benutzerhandbuch 29
ES Manual del usuario 38
PT Manual do utilizador 47

Product diagram of a Kevada air fryer with labeled parts including control panel, temperature display, and meshing device.

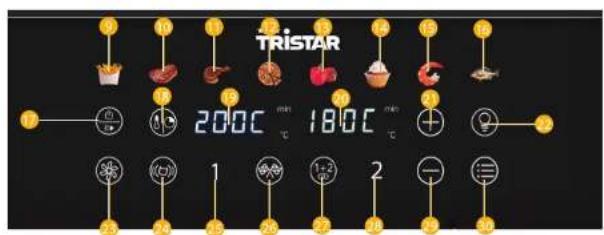

TRISTAR 200°C min 180°C min 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

EN User manual

Dualzone Flex Airfryer

Main parts (see image A)

1 Top cap
Display
Handle
Pedestal
5 Air outlet
Divide
Viewing Window basket
Airfryer rack
9 Fries program
10 Steak program

11 Chicken program
Pizza program
Vegetables program
Cake program
15 Shrimp program
Fish program
17 Start/pause button
Temperature/Time function
LCD Display basket 1
LCD Display basket 2

Temperature/Time controls
Light button
Fan indicator
24 Shake reminder function
Basket 1 selection key
Sync Finish Function
Match cook button
Basket 2 selection key
Temperature/Time controls
Menu button

SAFETY

Safety symbols

Symbol	Description
	Indication for a hot surface. Contact may cause burns. Do not touch.

Safety precautions

▲ WARNING

Safety hazard due to unintended use:

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never lift the appliance by the power cable. Lifting the appliance by the power cable may damage the power cable. Only lift the appliance by holding the base.
  • The appliance must be placed on a stable, level surface.
• This appliance is only to be used for household purposes and only for the purpose it is made for. In worst case the food can catch fire. (i.e. do not use more than one tea spoon of oil, no meat that will release to much grease or water intended for boiling foods.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

3User manual

Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• The appliance is to be connected to a socket outlet having an earthed contact (for class I appliances).

Electric shock hazard due to short-circuiting:

• Never use the appliance if there are visible signs of damage or defects to the appliance or power cable. Always replace a damaged or defective appliance or power cable immediately or contact customer service.
  • Always avoid spillage on the power cable.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised technician.
• Never replace the power cable yourself. Always let the manufacturer, its service agent or a similarly qualified person replace the power cable.
• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.
• Always check if the voltage stated on the type plate of your appliance matches your mains voltage before use.
• Never insert any objects into the air vent openings.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.

Fire hazard due to overheating:

• Never leave the appliance unattended when in use. Only use the appliance under supervision. Switch off the appliance and remove the power cable from the power outlet when you leave the room.
• Never use the appliance with a programmer, timer, separate remote control system or any other device that switches the appliance on automatically.
• Never place the appliance directly underneath a power outlet. The appliance may become hot during use. Always keep the back of the appliance clear of any objects.
• Never place the appliance near a heat source.
• Never fill the pan with oil.

Fire hazard due to short-circuiting:

- Never drop the appliance and avoid bumping. Excessive vibrations can lead to loosened connections and can influence proper functioning of the appliance. Stop using the

appliance if the appliance has been dropped.

• Never use the appliance with an extension cable.
• Please place the produce 30cm away the wall or furniture to avoid damage to wall or furniture.
• Never connect any other appliance with high power consumption to the same group.

Fire hazard due to burnt food:

• Always clean all parts that come into contact with food after use.
• Never exceed the maximum level indicated on the inside of the pan to avoid contact with the heating element.

Burning hazard due to hot liquids:

• Never use the appliance on recreational vehicles or boats. Hot liquid may spill out of the appliance.
• Always ensure the basket is fully closed. Hot liquid may splatter out of the appliance.
• Never move the appliance during use. Hot liquid may spill out of the appliance.

Choking hazard due to plastic packaging:

- Never let children play with the packaging material. Always keep the packaging material out of the reach of children.

Snagging hazard due to moving parts:
- Always switch off and disconnect the appliance from the power source before changing accessories or approaching parts that move in use.

CAUTION

Burning hazard due to heat:

• Children should be supervised to ensure that they do not play with the appliance.
• Never touch the hot surfaces during or shortly after use. The hot surfaces may be subject to residual heat. Let the appliance cool down completely before handling the appliance.

Tripping hazard due to loose cables:

- Never leave the power cable hanging out in a way that someone might trip over it or accidentally pull it.

NOTICE

Risk of damaging the appliance:
- The appliance must be placed on a stable, level surface.
- Never use aggressive chemical cleaning agents that can

damage the appliance when cleaning the appliance.

• Never fill the pan above the maximum capacity marking to prevent overflowing.
• Never place the appliance in a dishwasher.
• Never place the appliance near the edge of a countertop during use. Vibrations may occur during use which may cause the appliance to move. Always place the appliance on a stable, flat, heat, and moisture resistant surface.
• Never use metal utensils to remove food from the pan. Metal utensils may damage the non-stick coating.

FOREWORD

About this document

This user manual contains all the information for correct, safe, and efficient use of the appliance.

Ensure you have fully read and understood the instructions in this user manual before you use the appliance.

Always store this user manual in a safe place near the appliance for future reference.

This manual is originally written in English. All other languages are translated documents.

General symbols

Symbol Description
CE	This product complies with conformity requirements of the applicable European regulations or directives.
	This symbol is used for marking materials intended to come into contact with food in the European Union as defined in regulation (EC) No 1935/2004.
	The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.
	The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.
	Applicable in France:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.
	Applicable in Italy:The product or packaging can be recycled and components must be disposed of separately.Follow the local regulations.

APPLIANCE DESCRIPTION

About this appliance

The Tristar FR-9403SU is a double basket airfryer that you can use for grilling, baking and roasting food using hot air without the use of oil.

Intended use

This appliance is intended for indoor use only.
This appliance is intended exclusively for domestic, non-commercial use.
This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels, and other residential type environments:

- bed and breakfast type environments.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than B and supervised.

The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty.

Technical specifications

Appliance name Dualzone Flex Airfryer
Article number FR-9403SU
Power supply 220-240V~ 50-60Hz
Power consumption In use 2800 W

BEFORE FIRST USE

• Remove all packaging material.
• Remove any stickers or labels from the appliance.
• Wipe the inside and outside of the appliance with a moist cloth.
• Place the appliance on a stable, horizontal and level surface, do not place the appliance on non-heat-resistant surfaces.
• Insert power cable into the earthed power socket
• When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.

USE

• Turn on the power supply: all icons and the display will light up for 1 second. The buzzer will sound briefly, then the power icon will turn red, and the machine will enter shutdown mode. If the frying basket is not inserted, the corresponding digital display will show "OPEN".
• Activate Standby Mode: Click the power/pause button to turn it green. In this mode, you can select the left and right baskets.
  • Automatic Power Off: If no action is taken for 5 minutes, the power icon will turn red automatically.
• Select a Menu: Directly press the menu icons to choose the desired menu. The selected menu will blink, and the other 7 menus will light up continuously.
• Adjust Temperature: Use the Temperature + and - buttons to adjust the temperature freely within the range of 60°C to 200°C. Adjustments are made in 5°C steps. Hold the + or - button to adjust temperature faster.
• Adjust Time: Use the Time + and - buttons to adjust the time freely within the range of 1–60 minutes. Adjustments are made in 1-minute steps. Hold the + or - button to adjust time faster.
• Display Temperature and Time: For each selected mode, the temperature and time will switch to display the corresponding values.

• Start the Machine: After selecting the desired menu, click the key to start the machine. The selected menu will remain lit, and the time/temperature display will show the current values.

• Adjust Settings During Operation: you can continue to adjust the temperature and time during operation, including adjusting baskets 1 and 2.

• Pause the Machine: Press the start/pause button to pause the machine. The power light will turn green. To pause only one side, press "1" or "2" followed by "Start/Pause".
• Shutdown: To turn off the machine, click the power icon. The display will show "End," the motor will stop after 20 seconds, and the power icon will turn red. The buzzer will also shut off.
• Automatic Standby: If the product is not heating or there is no user interaction for 5 minutes, it will automatically enter standby mode with the power button turning red.
• After Heating Ends: Once the heating process is complete, the machine will beep 2 times and show "End" on the display, then the power button will turn red.

Turning off the buzzer sound

- When pressing any key, the buzzer will sound for 0.2 seconds. Hold both the Shake indicator button and Sync finish button for 3 seconds to turn off the buzzer sound (during shutdown or "End" mode). To turn the buzzer sound back on, press the same keys again.

Mode Selection

• Enter Mode Selection: Press the red power button, followed by either the "1", "2" or "MATCH" button to turn on the machine.
• Select Mode: In mode selection: Click "1" or "2" to choose the left or right basket to work independently. Click the "MATCH" button to select the double-basket synchronous operation. In this case, both baskets will work together. The divider can be removed from the basket.
• Return to Standby: Press the green power button to return to standby mode (only the red power button will light up).

Menu selection

• Select Menu: Under the mode selection menu, click the corresponding "1" or "2" icon to choose a menu. By default, all 8 menu buttons are lit. Select any function menu, and the selected menu will blink while the time, temperature, "Start/Pause", and "Sync" buttons light up. If the selected menu supports the "SHAKE" function, the "SHAKE" button will blink. The digital display will alternate between the default time and temperature.
• Adjust Baskets Independently: Press *1* or *2* to select the left or right basket while the machine is running, and adjust the temperature and time using the "+" or "-" buttons.
• Start Working: After setting the desired parameters, press the "Start" button. The selected basket will light up, and the digital display will alternate between the remaining time and temperature.

Synchronization Functions

• Activate Sync End: The synchronization end function must be set before starting. After starting, it cannot be changed. When selected, the corresponding icon will flash, indicating that synchronization is enabled.
• Operation of Sync End: If both baskets reach the same time, both will work together. The "HOLD" icon will show when one basket is waiting for the other to catch up.
• Error Handling: If the "HOLD" basket has a shorter time than the active basket, it will wait until both baskets are synchronized.
• Deactivation: If the frying time of one basket is longer than the other, both will start working together immediately.
• Adjust Both Baskets Simultaneously: During operation, adjusting the time and temperature will affect both baskets at the same time.
• Adjust One Basket Independently: To adjust one basket during operation, press "1" or "2" and use the temperature and time buttons to adjust that specific basket.
• Match Mode Active: When "MATCH" mode is active, the corresponding indicator will remain on.

SHAKE Function

• Enable SHAKE: Before starting, the SHAKE button will flash. Press it to enable the SHAKE function. During operation, the display will show "food and turn" as a reminder to shake the food.
• Reminder: SHAKE reminders will be enabled by default based on the selected menu. The buzzer will beep once when it's time to flip the food. You can turn off the SHAKE function before starting by pressing the SHAKE button again.
• After Starting: Once the cooking starts, SHAKE reminders will flash when it's time to flip, and the buzzer will prompt. You can disable the SHAKE function after the start. The SHAKE function cannot be adjusted during operation.

Removing the Frying Basket

• Return Basket: If the basket is returned within 5 minutes, both baskets will resume operation based on the previously set time.
• Exit Standby Mode: If the basket is not returned within 5 minutes, the airfryer will stop and enter standby mode.
• Error Message: If the frying basket is not properly set, the display will show "Pt" to indicate an error.

Furnace Lamp Function

• Lamp During Cooking: The furnace lamp will turn off automatically 2 minutes after starting cooking.
• Lamp in Shutdown State: The furnace lamp is off during shutdown or when the frying basket is removed.
• Manual Lamp Control: During any state, press the light button to turn on the furnace light. It will turn off automatically after 2 minutes.

Program selection

- Menu

Program Icon Default temperature/time First shake reminder at:
Fries 200°C / 15 minutes First shake reminder at 7 min; following shake reminder each 5 min
Steak		180°C / 20 minutes First shake reminder halfway through the program. No following shake reminders.
Chicken		180°C / 20 minutes First shake reminder halfway through the program. No following shake reminders.
Pizza		200°C / 8 minutes	No shake reminders
Vegetables		180°C / 10 minutes First shake reminder halfway through the program. No following shake reminders.
Cake program		150°C / 35 minutes No shake reminders
Shrimp program		180°C / 12 minutes First shake reminder halfway through the program. No following shake reminders.
Fish		190°C / 18 minutes First shake reminder halfway through the program. No following shake reminders.

• When the selected menu indicator goes off, carefully pull the fry basket out from the appliance, place the food material inside the fry basket (Attention: do not exceed the maximum line); Put the fry basket back into the airfryer.
• When the program finishes, the screen will display 'End and the device will beep 2 times.
• Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the basket back into the appliance and set the timer to a few extra minutes.
• To remove small ingredients, like French fries, carefully pour them from the pot into a bowl or onto a plate. For larger or more delicate ingredients, use a pair of tongs to lift them out of the pot and place them into a bowl or onto a plate.

- Do not turn the basket upside down while the air fryer rack is still in the basket, as any excess oil collected at the bottom of the basket may spill onto the ingredients.

CLEANING AND MAINTENANCE

• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.
- Never immerse the device in water or any other liquid. The device is not dishwasher proof.
- Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.
- Allow all parts to dry completely or dry them with a towel.

STORAGE

Store the appliance in a dry and enclosed space.

TROUBLESHOOTING

Problem Possible cause Possible solution
The appliance does not work / is not working properly.	The appliance is not plugged in. Plug power cord into wall socket.
	Didn't set the cooking modeDidn't click the start button after selecting the desired cooking mode.	Set the timer to the required preparation time to switch on the appliance.Click the ON/OFF button
The food is not crispy. The food is not evenly spread out. Cook the food according to the instructions on the packaging of the food.
			The temperature is set too low.
The ingredients fried with the fryer are not done.	Too much food in the basket Fry food in turns
	The set temperature is too low.	Set the temperature to the required setting.
	The preparation time is too short.	Set the timer to the required setting.
The ingredients are fried unevenly.	Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time.
Cannot slide the basket A into the appliance properly.	There is too much food in the basket A which makes it too heavy.	Do not fill the basket A beyond the MAX indication.
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the aero fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result.
	The pan still contains grease residues from previous use.	White smoke is caused by grease heading up in the pan. Make sure you clean the pan properly after each use.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.tristar.eu!

Gebruikshandleiding

Dualzone Flex Airfryer

BESCHRIJVING APPARAAT

Over dit apparaat

Tristar Europe B.V. | Dualzone Flex Airfryer

16

| FR-94035U

Tristar Europe B.V. | Dualzone Flex Airfryer

18

| FR-94035U

OPSLAG

Dualzone Flex Airfryer

Tristar Europe B.V. | Dualzone Flex Airfryer

24

| FR-94035U

Tristar Europe B.V. | Dualzone Flex Airfryer

26

| FR-94035U

retiré.

Dualzone Flex Airfryer

Tristar Europe B.V. | Dualzone Flex Airfryer

32

| FR-9403SU

Tristar Europe B.V. | Dualzone Flex Airfryer

34

| FR-94035U

Dualzone Flex Airfryer

Tristar Europe B.V. | Dualzone Flex Airfryer

42

| FR-94035U

Dualzone Flex Airfryer

Tristar Europe B.V. | Dualzone Flex Airfryer

52

| FR-94035U

Dualzone Flex Airfryer

Tristar Europe B.V. | Dualzone Flex Airfryer

64

|FR-94035U

Dualzone Flex Airfryer

Tristar Europe B.V. | Dualzone Flex Airfryer

70

| FR-94035U

Dualzone Flex Airfryer

Tristar Europe B.V. | Dualzone Flex Airfryer

74

| FR-94035U

Tristar Europe B.V. | Dualzone Flex Airfryer

78

| FR-94035U

PRZED PIERWSZYM UŻYCIEM

Dualzone Flex Airfryer

Dualzone Flex Airfryer
