USER MANUAL CCD32X SCHEPPACH

Line drawing of a handheld electric drill (no text or symbols)

https://www.scheppach.com/de/service scheppach

C-CD32-X

GB Cordless impact drill | Translation of the original operating instructions.... 17

Technical diagram of a handheld device with numbered parts and exploded view, including cable, connector, and battery casing.

2

Technical diagram of a handheld electric drill with labeled parts and directional arrows indicating motion or assembly.

3 2 1

4 4 6

5 3 5

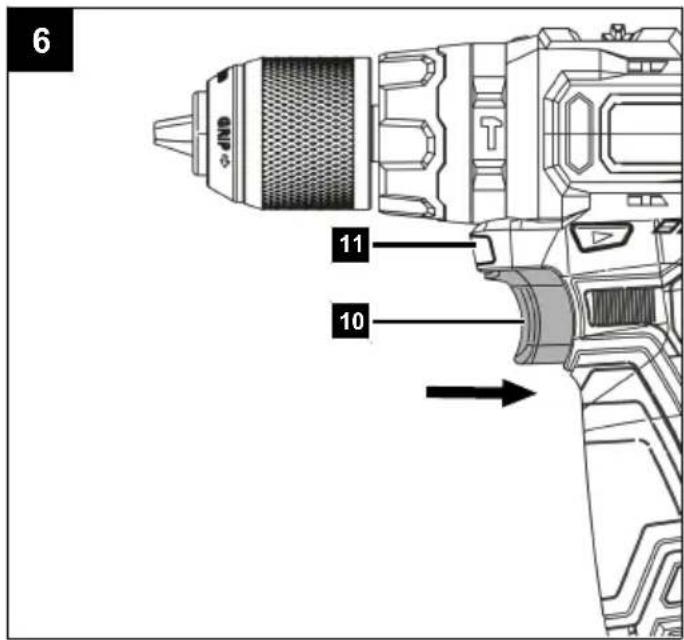

6 11 10

7 7

12 8a 8

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

i. V. Gaudon Paul

Andreas Pecher

Head of Project Management

Garantiebedingungen

Revisionsdatum 26.11.2021

https://www.scheppach.com/de/service scheppach

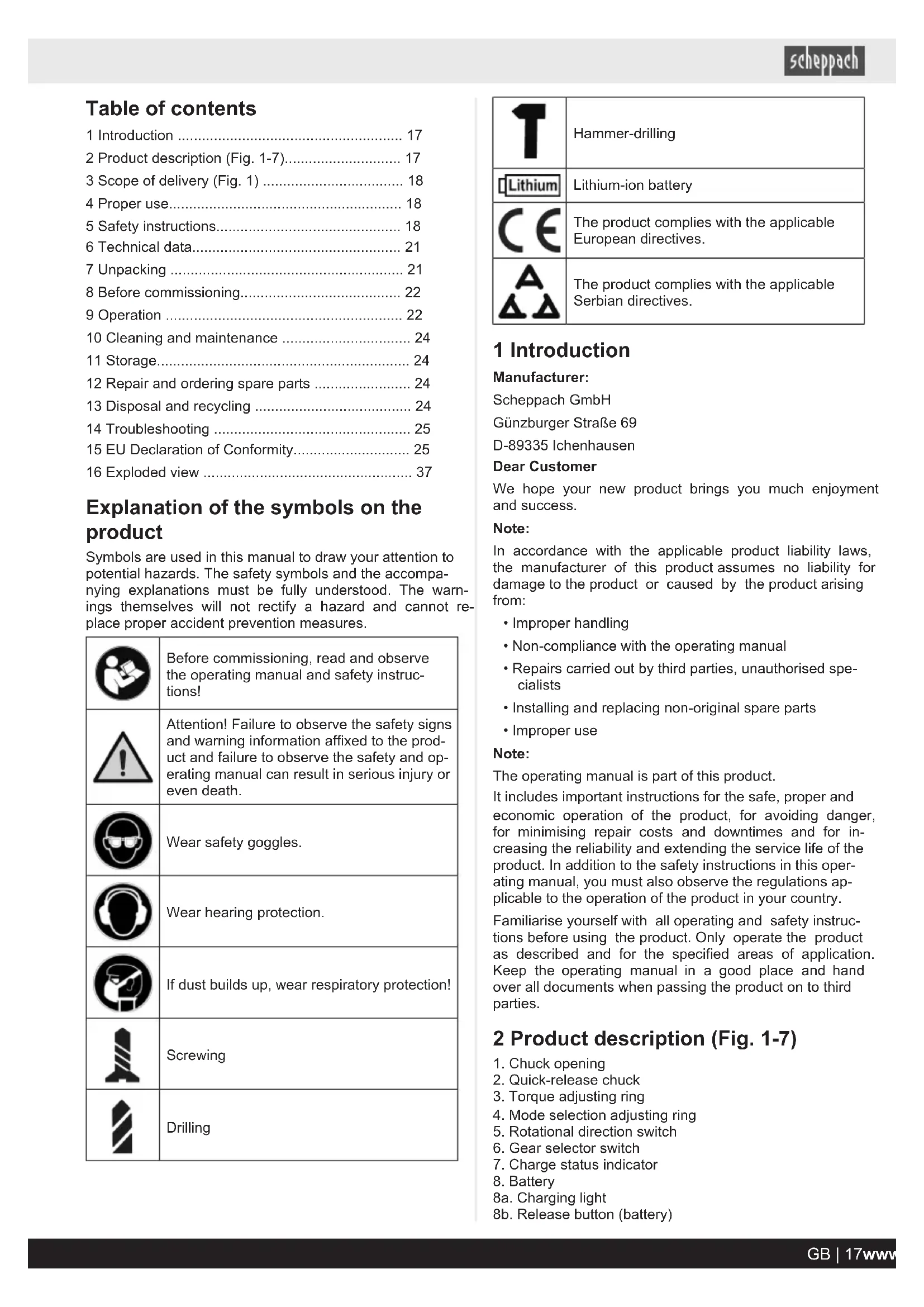

1 Introduction ...... 17
2 Product description (Fig. 1-7).... 17
3 Scope of delivery (Fig. 1) 18
4 Proper use.... 18
5 Safety instructions.... 18
6 Technical data.... 21
7 Unpacking 21
8 Before commissioning.... 22
9 Operation 22
10 Cleaning and maintenance 24
11 Storage.... 24
12 Repair and ordering spare parts 24
13 Disposal and recycling 24
14 Troubleshooting 25
15 EU Declaration of Conformity.... 25

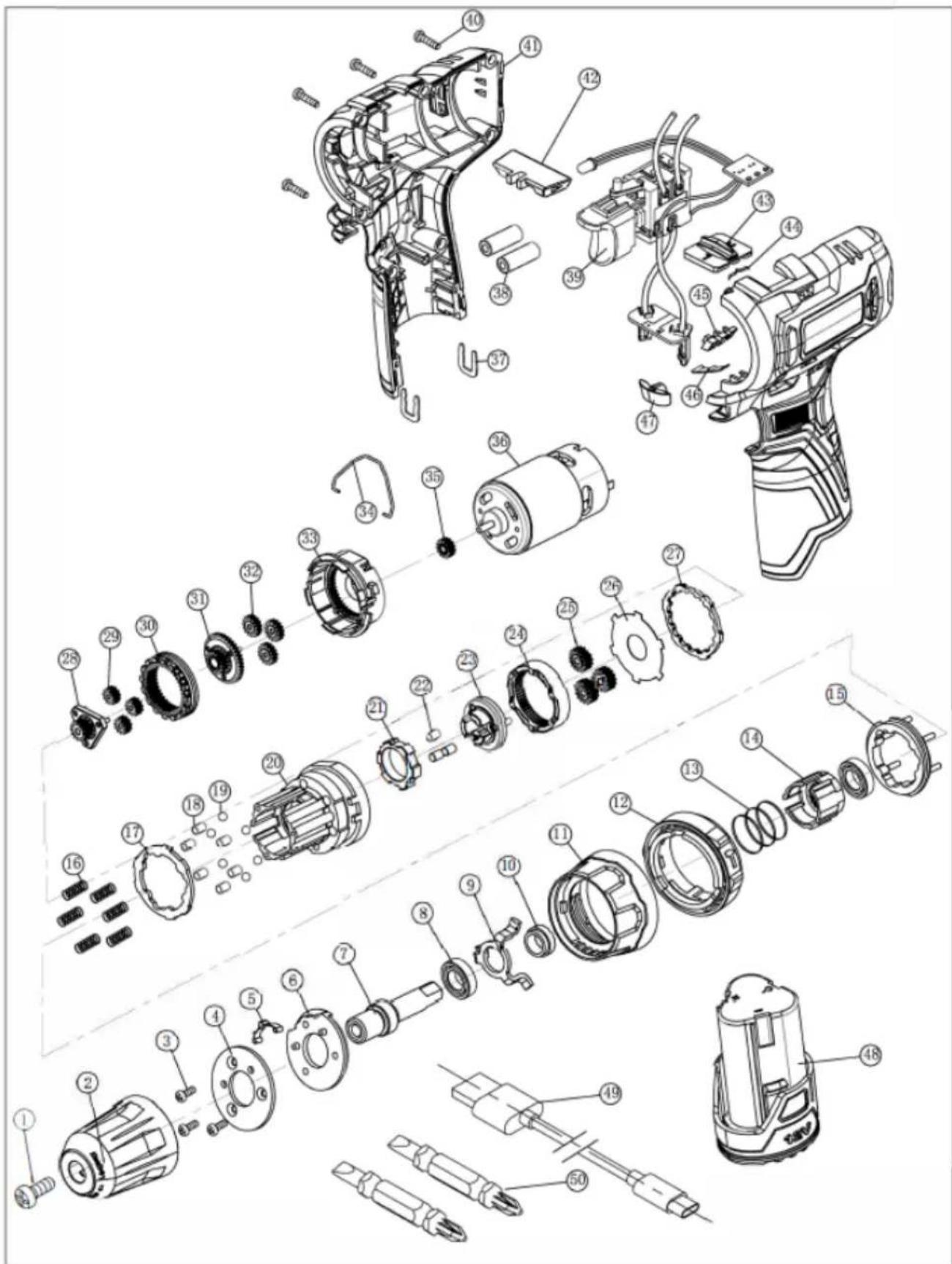

16 Exploded view 37

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Before commissioning, read and observe the operating manual and safety instructions!
	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.
	Wear safety goggles.
	Wear hearing protection.
	If dust builds up, wear respiratory protection!
	Screwing
	Drilling

T	Hammer-drilling
Lithium	Lithium-ion battery
CE	The product complies with the applicable European directives.
A	The product complies with the applicable Serbian directives.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

2 Product description (Fig. 1-7)

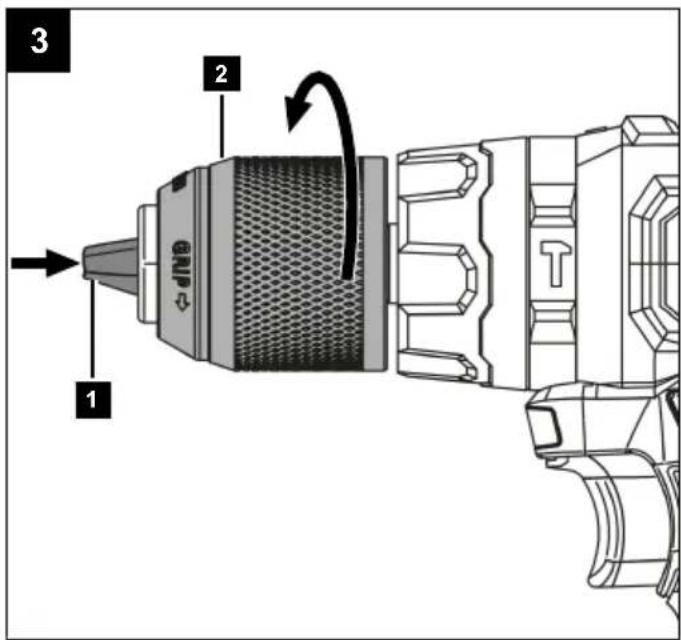

1. Chuck opening
2. Quick-release chuck

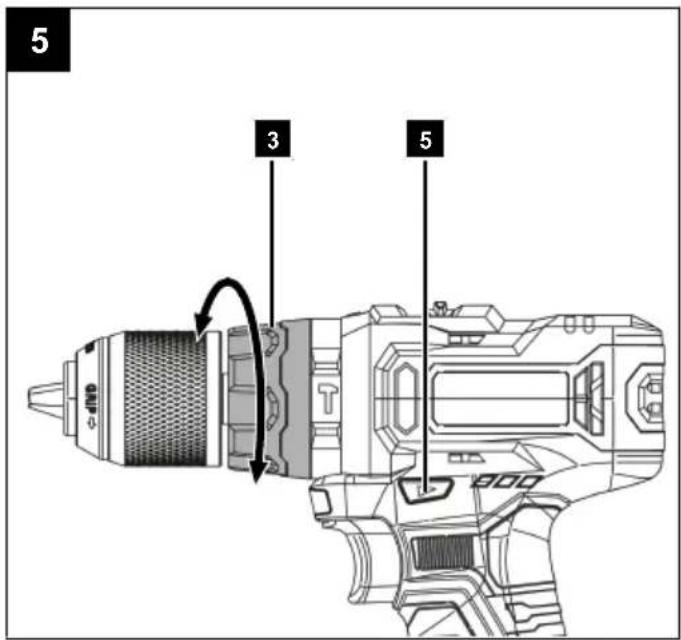

3. Torque adjusting ring

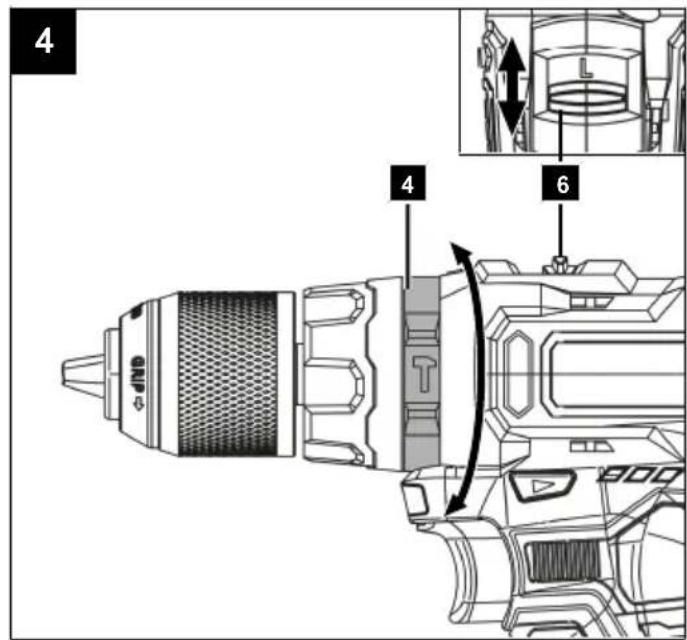

4. Mode selection adjusting ring
5. Rotational direction switch
6. Gear selector switch

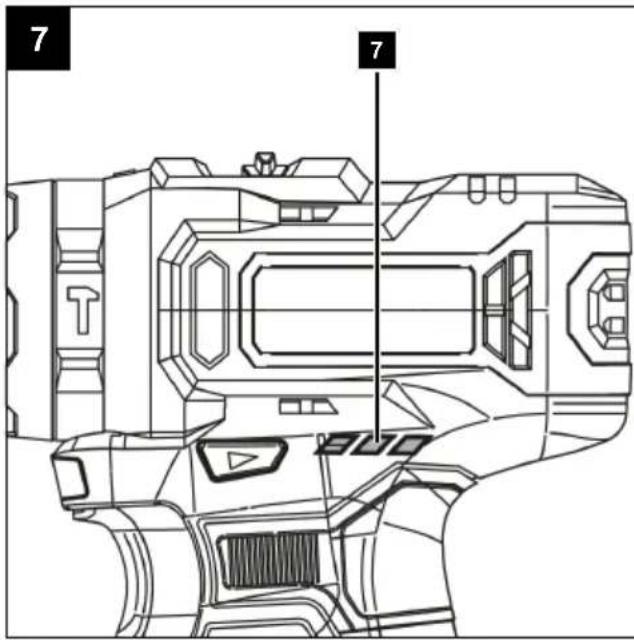

7. Charge status indicator

8. Battery

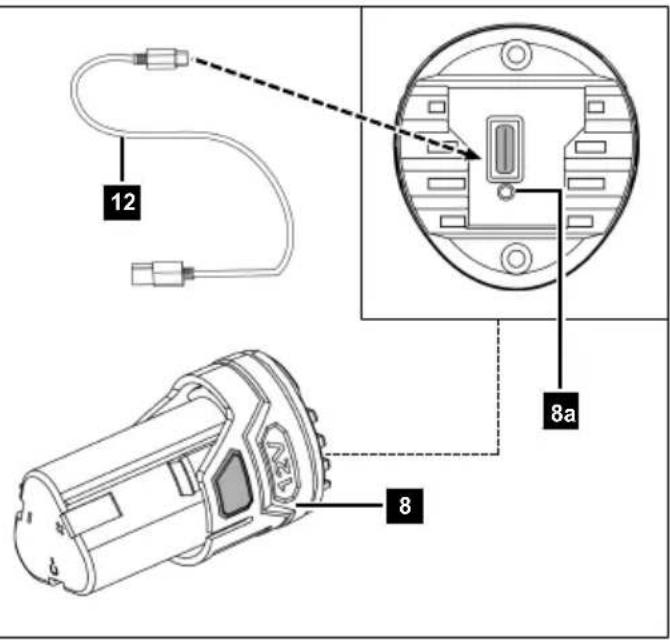

   8a. Charging light
   8b. Release button (battery)

9. Battery mount

10. On/off switch

11. LED work lamp
12. USB charging cable
13. Bits

3 Scope of delivery (Fig. 1)

Item Quantity Designation

1. 1 x Battery
2. 1 x USB charging cable
3. 2 x Bits

1 x Cordless impact drill

1 x Operating manual

4 Proper use

The product is intended for screwing in and unscrewing screws, as well as for drilling into wood, metal and plastic and for hammer-drilling into masonry.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5 Safety instructions

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Special safety instructions for battery-powered devices

ATTENTION

Observe the safety instructions and notes in the operating instructions of all compatible products you use.

• Make sure the device is switched off before inserting the battery. Inserting a battery into an electric tool that is switched on can cause accidents.
• Only charge your batteries indoors because the battery charger is only intended for this purpose. Danger due to electric shock.
• To reduce the risk of electric shock, unplug the battery charger from the wall socket before cleaning.
• Do not expose the battery to strong sunlight for a long time and do not place it on radiators. Heat damages the battery and there is a risk of explosion.
• Allow a heated battery to cool down before charging.
• Do not open the battery and avoid mechanical damage to the rechargeable battery. There is a risk of short-circuiting and vapours may escape that irritate the respiratory tract. Make sure you get fresh air and seek additional medical help.
• Do not use accessories that are not recommended by the manufacturer. This can lead to electric shock or fire.

Safety instructions for drills

1) Safety instructions for all work

a) Wear ear protection when impact drilling. Excessive noise can result in a loss of hearing.
b) Hold the power tool by the insulated gripping surfaces when performing work in which the tool or screws may contact hidden electrical wiring. Contact with a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.

2) Safety instructions when using a long drill

a) Never work at a speed that is higher than the maximum permissible speed for the drill. At higher speeds, the drill can easily twist if it is able to turn freely without contact with the workpiece, and cause injuries.
b) Always start drilling at a lower speed and once contact has been established between the drill and the workpiece. At higher speeds, the drill can easily twist if it is able to turn freely without contact with the workpiece, and cause injuries
c) Never apply excessive pressure and only in the longitudinal direction to the drill. Drills can twist and this can cause the drill to break, or lead to a loss of control and to injuries.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Keep your hands away from the working area when the product is in operation.
• Damage to hearing if the stipulated hearing protection is not worn.
• Damage to the lungs if the stipulated respiratory protection is not worn.
• Risk of injury from tools thrown away due to improper holding or guiding.
  • Health hazard due to electrical power, with the use of improper electrical connection cables.
• Avoid accidental start-up of the product: when inserting the plug into the socket, do not press the on/off switch.
• Before performing setting or maintenance work, release the on/off switch and pull out the mains plug.

WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

6 Technical data

Rated voltage 12V
Idle speed n_0
Gear L	0 - 400 rpm
Gear H	0 - 1300 rpm
Stroke rates
Gear L	0 – 6000 rpm
Gear H	0 – 19500 rpm
Max. torque 35 Nm
Chuck span ∅ 0.8 - 10 mm
Weight (without battery)	0.8 kg
Drilling diameter for wood max. 20 mm
Drilling diameter for steel max. 8 mm
Battery (Li-Ion)
Number of battery cells 3
Rated voltage max. 12 V
Capacity 2 Ah
Power 24 Wh
Temperature
Charging 4 - 40 °C
Operation -20 – 50°C
Storage 0 – 45°C
Battery charger
Input voltage 100 - 240 V~	50/60 Hz
Output voltage 5.0V
Output current 1.5 A
Output power	8.5 W
Protection class	II /☐(Double insulation)
Connection type	USB C Type

Subject to technical changes!

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

The noise and vibration values have been determined in accordance with IEC 6284-2-1.

Noise data

Sound pressure level L_pA	74 dB
Measurement uncertainty K_pA	5 dB
Sound power level L_wA	82 dB
Measurement uncertainty K_wA	5 dB

Vibration parameters (hand/arm vibration)

Vibration a_h	1.987 m/s ^2
Measurement uncertainty K	1.5 m/s ^2

The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.

WARNING

The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

7 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

8 Before commissioning

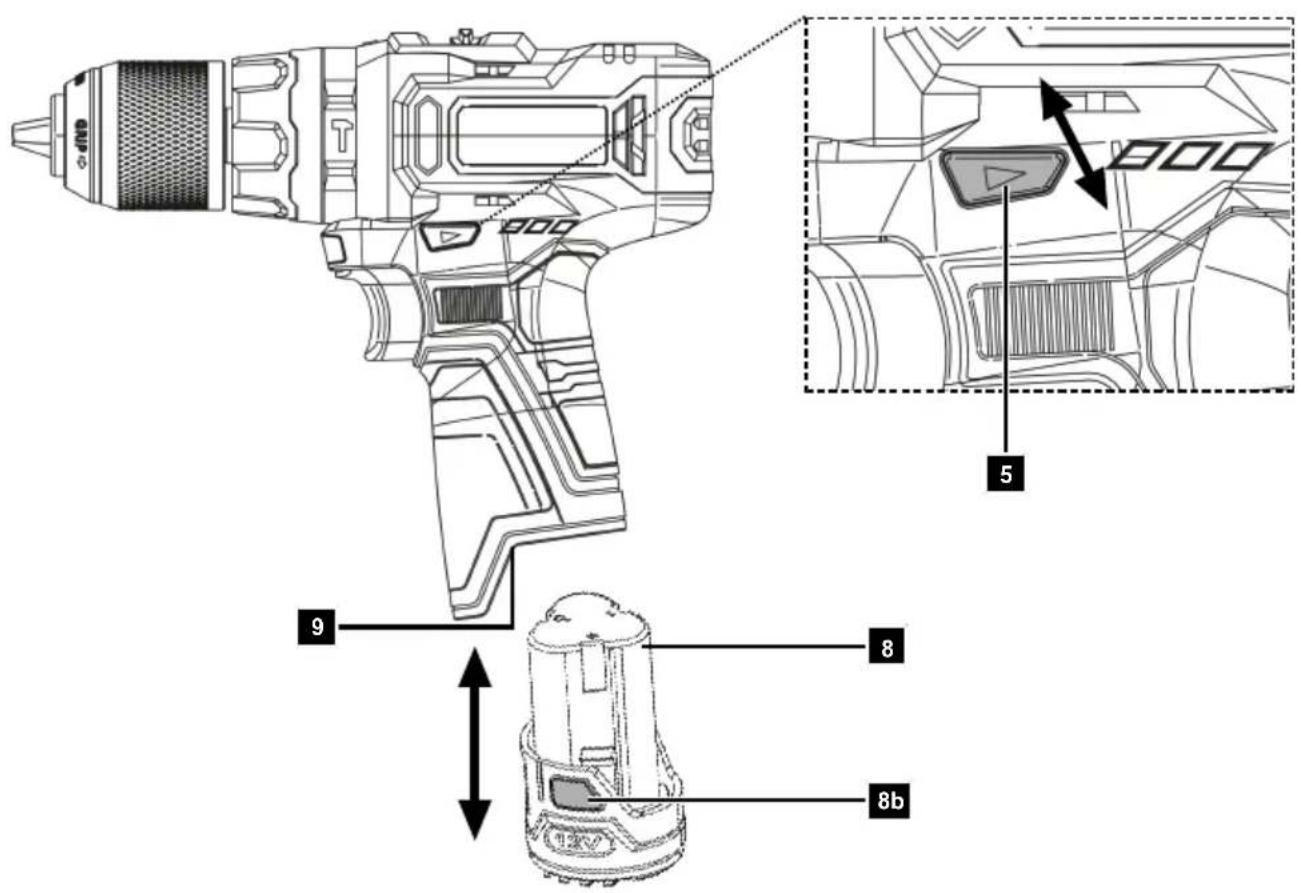

8.1 Inserting/removing the battery (8) in the battery mount (9) (Fig. 2)

Inserting the battery

1. Put the rotational direction switch (5) in the middle position (lock).
2. Push the battery (8) into the battery mount (9). The battery (8) clicks into place audibly.

Removing the battery

1. Press the unlock button (8b) of the battery (8) and remove it from the battery mount (9).

9 Operation

The cordless impact drill with 2-gear transmission has a 21 level torque adjustment +1 screw setting +1 drill setting +1 hammer-drill setting, clockwise/anticlockwise rotation, quick-release chuck and an LED work lamp. Please refer to the following descriptions for the function of the controls.

WARNING

Danger of injury!

Remove the battery from the power tool before carrying out any work on the power tool (e.g. maintenance, tool change, etc.) and when transporting and storing it. There is a risk of injury if the on/off switch is operated unintentionally.

ATTENTION

Make sure that the ambient temperature does not exceed 50°C and does not fall below -20°C during work.

ATTENTION

The product may only be operated with the original batteries. Batteries may only be charged with the origina battery chargers. Observe the manufacturer's instructions.

9.1 Inserting/removing the tool attachment (Fig. 3)

WARNING

Tool attachments may be sharp and become hot during use. Always wear protective gloves when handling the tool attachments.

CAUTION

Keep your hands away from the tool attachment when the product is in operation.

1. Turn the quick-release chuck (2) anti-clockwise until the chuck opening (1) is large enough to insert the tool attachment*.
2. Insert the tool attachment* into the quick-release chuck (2) as far as possible.

3. Turn the quick-release chuck (2) clockwise to clamp the tool attachment* tight.

4. To remove the tool attachment* again, untwist the quick-release chuck (2) and remove the tool attachment*.

* = may not be included in the scope of delivery!

9.2 Gear selection (Fig. 4)

1. Push the gear selector switch (6) to L or H corresponding to a low or high speed selection.

Gear L	0 - 400 rpm
Suitable for: Screwing work
Rotational speed: Low
Torque: High
Gear H	0 – 1300 rpm
Suitable for: Drilling work
Rotational speed:	High
Torque:	Low

9.3 Adjusting the direction of rotation (Fig. 5)

ATTENTION

The direction of rotation switch may only be actuated when idle.

With the direction of rotation switch, you can select the direction of rotation of the product (clockwise or anti-clockwise) and secure the product from being switched on unintentionally. The arrow on the direction of rotation switch indicates the working direction.

1. Wait until the product has come to a standstill.
2. Push the direction of rotation switch (5) to the desired position:
3. Clockwise rotation: For drilling and screwing in screws. Press the direction of rotation switch to the right.

4. Anti-clockwise rotation: To undo screws. Press the direction of rotation switch to the left.

5. Switch lock: Put the direction of rotation switch in the centre position.

9.4 Adjusting the torque / Selecting the operating mode (Fig. 4, 5)

ATTENTION

The torque adjusting ring may only be actuated when idle.

Notes:

A clear ratcheting sound is heard when reaching the pre-set torque limit. This noise is caused by the slip clutch.

You can preset the maximum torque by turning the torque adjusting ring (3) and, by turning the mode selection adjusting ring (4), select the screw setting drill setting and hammer-drill setting. There are 21 torque levels + 1 screw setting + 1 drill setting + 1 hammer-drill setting.

• Select a low level for small screws or soft materials.

• Select a high level for large screws, hard materials or when unscrewing screws.

• For drilling work, select the drill setting by adjusting the mode selection adjusting ring (4) into position 2.

• For hammer-drilling work, select the hammer-drill setting by adjusting the mode selection adjusting ring (4) into position 1.

Requirement: Torque Operating mode:
Screws: Level 1 - 21		Screw setting 1
Drilling: -		Drill setting 2
Hammer-drilling: - Hammer-drill set-ting 3

9.5 Switching the product on/off (Fig. 5, 6)

The speed can be steplessly controlled by the on/off switch. The further you press the on/off switch, the higher the speed.

Switching on

1. To switch on the product, push the on/off switch (10).

Switching off

1. To switch off, release the on/off switch (10). If you put the direction of rotation switch (5) in the centre position, the product is secured from being switched on.

9.5.1 LED work lamp (11) (Fig. 6)

This product is equipped with an LED work lamp to illuminate the immediate work area and improve visibility in poorly lit environments.

CAUTION

Do not look directly into the LED work lamp or the light source.

1. The LED work lamp (11) lights up automatically as soon as the product is switched on.

9.6 Test run (Fig. 1)

Note:

Before the first work and after each tool attachment change, carry out a test run without load. Switch off the product immediately if the tool attachment runs out of round, there is considerable vibration or abnormal noises are heard.

1. Before operation, check whether the tool attachment is properly attached, i.e. centred in the quick-release chuck (2).
2. Screw bits are marked with their dimensions and shape. If you are unsure, always try out first whether the bit sits in the screw head without play.

9.7 Charging the battery (8) (Fig. 7)

WARNING

Observe the following information to reduce hazards:

• Never leave batteries to charge unsupervised!
• Remove rechargeable batteries from the USB charging cable after charging.
• Do not over-charge batteries! Observe the maximum charging times. These charging times only apply to discharged batteries. Inserting a charged or partially charged battery multiple times leads to overloading and cell damage. Do not leave batteries charging for longer than required.

Charge the battery (8) at an ambient temperature of 4 °C to 45°C.

1. Connect the USB charging cable (12) to the battery (8).
2. Connect the USB charging cable (12) to a mains plug* and plug the mains plug* into a socket.
3. The battery (8) is equipped with an overload switch (8a).

- The red light illuminates when the battery is charging.

- The red light goes out when the battery is fully charged.

1. After charging, remove the mains plug* from the socket and disconnect the USB charging cable (12) from the battery (8).
2. Wait at least 15 min until a new charging process. To do this, pull the mains plug* out of the socket.

Charge level indicator (7):

- The product has a charge level indicator (7), which displays the current charge level of the battery (8) during operation.

• Red, yellow and green light up - The battery (8) is fully charged.
• Red and yellow light up - The battery charge level (8) is sufficient.
• Lights up red - The battery (8) should be charged as soon as possible.

* = may not be included in the scope of delivery!

9.8 Depleted batteries

• A significantly shortened operating time despite charging indicates that the battery has been used up and needs to be replaced. Only use original replacement batteries.
• In any case, observe the applicable safety instructions as well as regulations and instructions on environmental protection (see "Disposal and recycling").

10 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
• Remove the battery.
• Allow the product to cool.

10.1 Cleaning

1. Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth* or blow it off with compressed air* at low pressure. We recommend that you clean the product directly after every use.
2. Ventilation openings must always be free.
3. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.

10.2 Maintenance

The product is maintenance-free.

11 Storage

Preparation for storage

1. Remove the battery.
2. Clean and check the product for damage.
3. Store the battery in a partially charged state.
4. When stored, check the battery charge level every three months.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5°C and 30°C.

Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.

12 Repair and ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

12.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Lithium-ion battery 12 V (2.0 Ah) item no.: 5909324002

Battery charger 2.4 A item no.: 5909324003

13 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

– Public disposal or collection points (e.g. municipal works yards)
- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

Notes on lithium-ion batteries

Remove the battery before disposing of the device!

- Do not dispose of the battery in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.

- Defective or used batteries must be recycled in accordance with Directive 2023/1542/EC.

- Hand in the device and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.

- Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.

- Dispose of batteries according to local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.

14 Troubleshooting

Fault Possible cause Remedy

The product cannot be started. The battery power is too weak. Charge the battery.
The insert tool does not rotate or moves uncleanly.	The insert tool is not correctly inserted in the drill chuck.	Re-clamp the insert tool and ensure that the insert tool is centred in the drill chuck.
	• The drill chuck is defective.• The drill chuck is dirty.	• Have the drill chuck replaced.• Clean the drill chuck.
Odour or smoke development. The product is overheated. • Take regular breaks.• Clean the ventilation slots.

15 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand:

SCHEPPACH

Art. designation:

Cordless impact drill - C-CD32-X

Item No.

5909270952

EU directives:

2014/30/EU, 2006/42/EC, 2011/65/EU*,

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN 62841-1:2015/A11:2022

EN 62841-2-1:2018/A12:2022

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN 62841-1:2015/A11:2022 Annex K

IEC 62133-2:2017

IEC 62133-2:2017/AMD1:2021

Documentation authorised representative:

Georg Kohler

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pécher

Sommaire

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

2014/30/UE, 2006/42/UE, 2011/65/EU*,

Division Manager Product Center

i. V. Agdron Pde

Andreas Pecher

Head of Project Management

Exploded view diagram of a mechanical assembly with numbered parts for identification

Garantie DE

Obvious defects must be reported within 8 days after receipt of the goods, otherwise the purchaser loses all claims due to such defects. We guarantee our machines, if handled correctly, for the duration of the statutory warranty period from handover in such a way that we will replace free of charge any machine part that demonstrably becomes unusable within this period as a result of material or manufacturing defects. For parts that we do not manufacture ourselves, we only provide a warranty to the extent that we are entitled to warranty claims against the upstream suppliers. The purchaser shall bear the costs of fitting the new parts. Claims for conversion and reduction and other claims for damages are excluded.

Garantie FR
