USER MANUAL MC 402Z Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:MC 402Z
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
For your safety, read, understand, and follow the information provided with an this folding creeper. The owner and operator shall have an understanding of product and safe operating procedures before attempting to use. The owner a operator shall be aware that use of this product may require special skills and knowledge. Instructions and safety information shall be conveyed in the operat native language before use of this product is authorized. Make certain that the operator thoroughly understands the inherent dangers associated with the use misuse of the product.If any doubt exists as to the safe and proper use of product, remove from service immediately.
Inspect before each use. Do not use if there are broken, bent, cracked or damaged parts (including labels). Any folding creeper that appears damaged in anyway, or operates abnormally shall be removed from service immediately. If folding creeper has been subjected to a shock load (a load dropped suddenly unexpectedly upon it), immediately discontinue use until it has been inspected a Pro-Lift authorized service center. It is recommended that an annual inspection be done by qualified personnel. Labels and Operator's Manuals are available manufacturer.

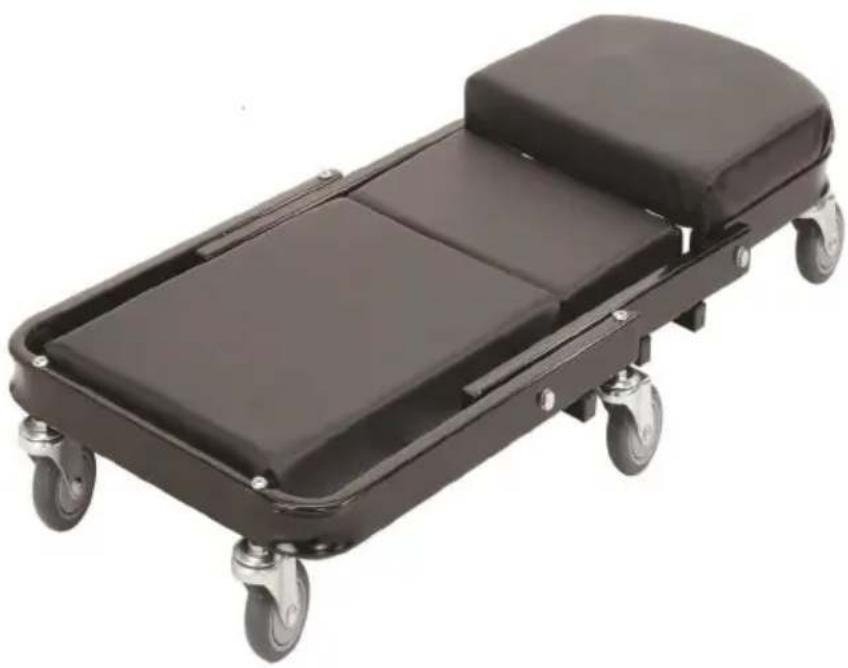

Product Description
This device is designed to be folded in a 'Z' shape for use as a mechanics-unfolded for use as a mechanics creeper. It is intended to be used to supp move, along a smooth and level surface, rated capacity loads consisting of a single person weighing no more than 450 lbs for the purpose of performing automotive maintenance or service. This device is not intended, designed or engineered to be used for any other purpose.
Rated Capacity: One person (includes any tools, equipment, personal items) weighing 450 lbs or less.
Folding components can present pinch and crush hazards during use of this product. Exercise caution when performing adjustments and always be alert ar sober while assembling and using this equipment.
WARNING
Do not use this device for any purpose other than that for which it is expre intended
- Read, understand, and follow all instructions before operating this device.
- Do not exceed rated capacity. Rated capacity is 450 lbs. (includes user, to equipment and personal items)
- Sit down gently. Avoid shock loads caused by jumping or falling onto seat.
- Do not stand on seat.
- Beware of pinch and crush hazards when folding and unfolding.
- Keep out of the each of children! This device is not appropriate for children use.
- Use only on hard, level surface capable of supporting the load.
PARAMETER LIST
| Model | MC 402Z |
| Maximum load bearing | 450lbs |
| Length: | 40inch |
PARAMETER LIST
| Name | Quantity | Quantity |
| Reclining Board Bracket 1 | 1 | |
| Reclining Board Bracket 2 | 1 | |
| Seat Cushion 1 | 1 | |
| Seat Cushion 2 | 1 | |
| Universal Wheel | 6 | |
| Hex Key | 1 | |
| M8*60 Hex Bolt | 5 | |
| M8 Lock Nut | 5 | |
| M6*35 Round Head Cross Bolt | 5 | |
| M8 Gasket | 5 | |
| .M8*22 hexagonal socket nut | 7 |
Preparation
Before assembling your Folding Creeper, make sure all parts are present. If part is missing or damaged, do not attempt to assemble or use the product. Contact Pro-Lift customer service for replacement parts.
Package Contents'1 Head Frame Section, 1 Middle Frame Section, 1 Rear Fr Section, 4 Hex Bolts, 8 Washers, 4 Hex Nuts, 6 Casters, 4 Caster Fastener
Assembly Instructions

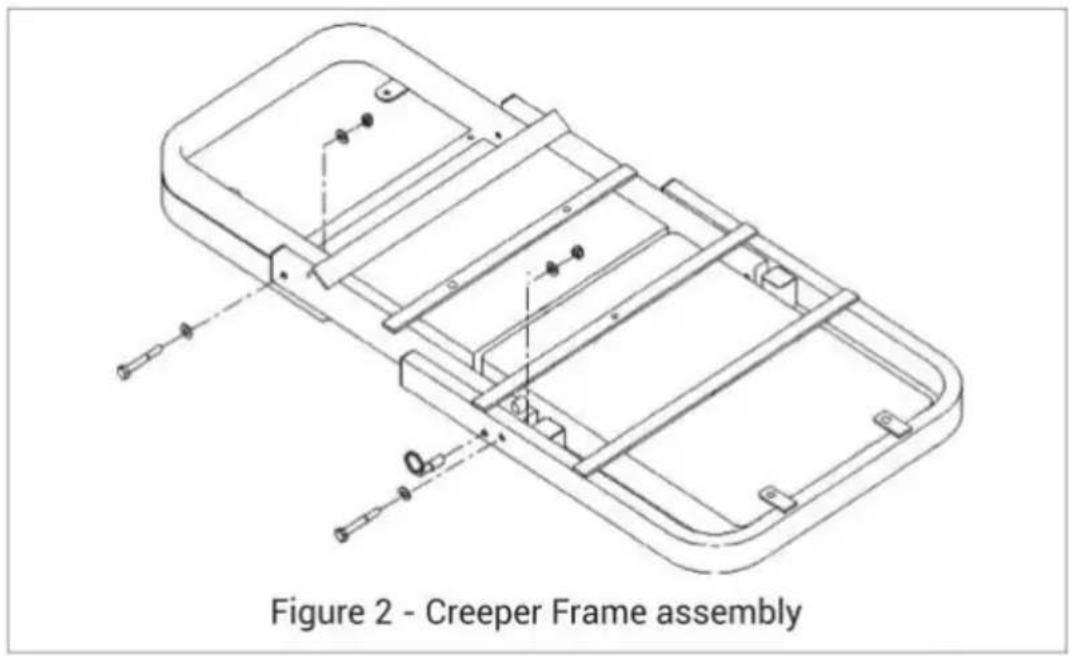

- Place Creeper Sections face down, arranged as shown in Fig.2 (note Midd Section orientation).
- Connect Creeper Sections using Hex Bolts, Washers and Nuts. Tighten Nu firmly, but not enough to bind Creeper adjustment.
- Insert Lock Pin into hole in frame side. Check for proper operation.

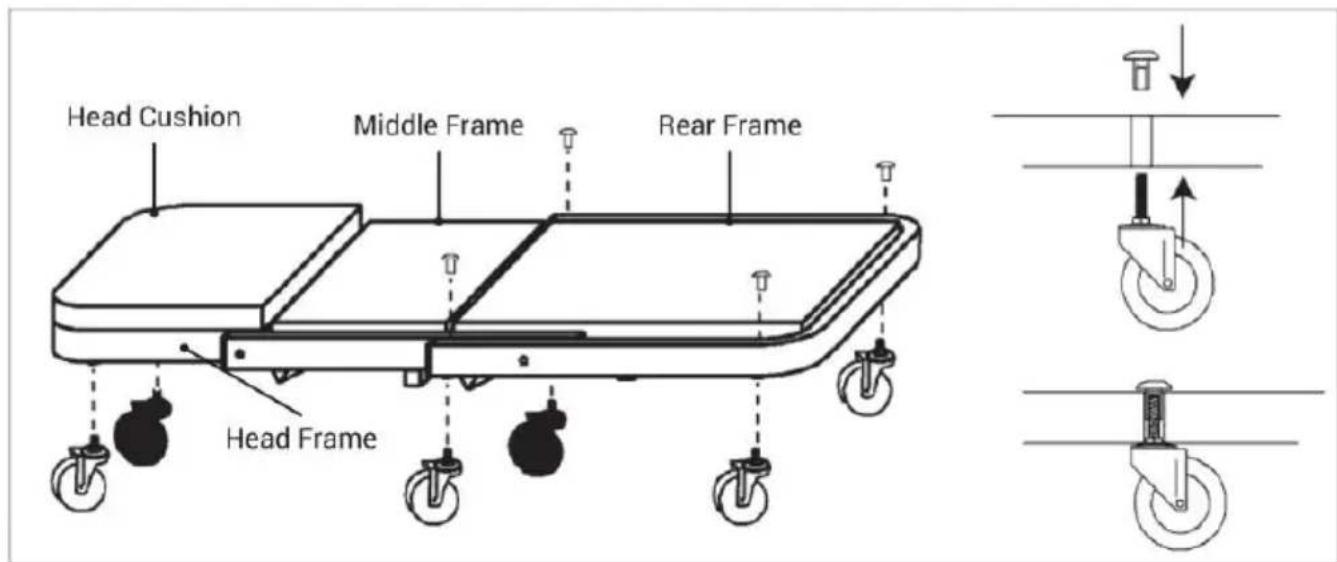

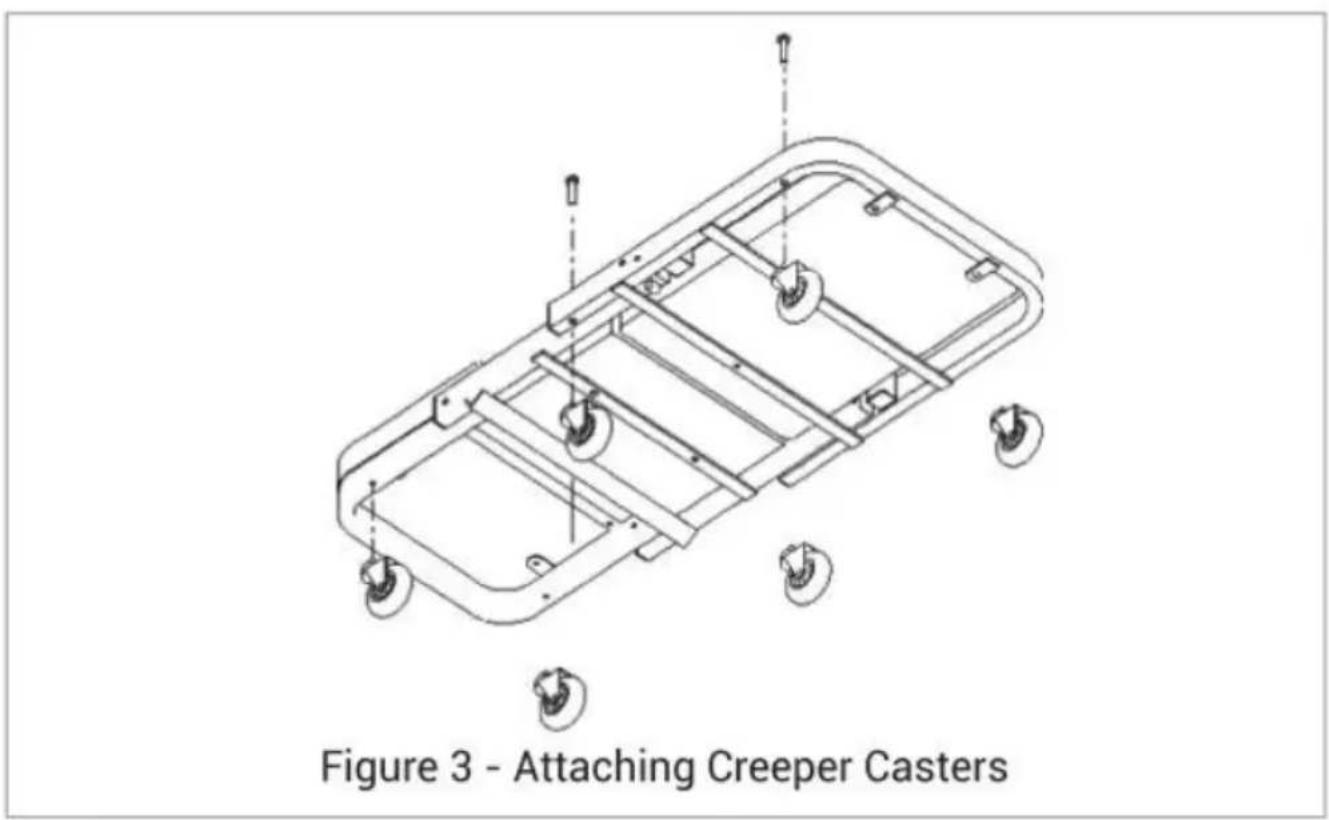

- Using the included open-end wrench, attach two Casters to the threaded hole in the Head Frame section. Use a 5mm hex key to fasten the remaining four Casters to the Creeper Frame. Insert the threaded Fasteners from the top and casters from the bottom, then tighten with hex key.
Operating Instruction

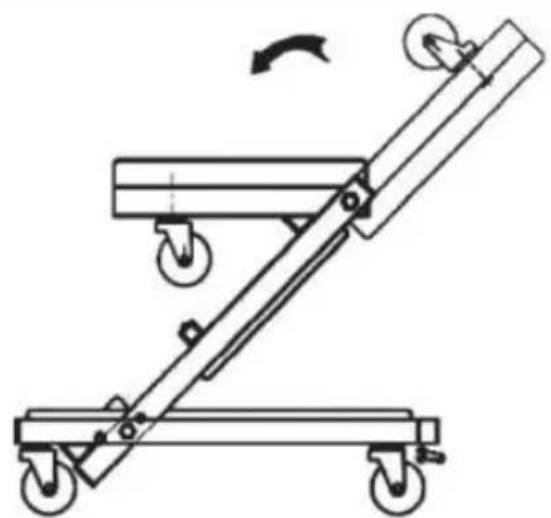

- Unlock the spring loaded Lock Pin by pulling out until disengaged, at the time rotate the Head Frame and Middle Frame upward and back towards the Frame section until the Lock Pin can engage the Creeper Seat Locking Slee (Fig.4). Ensure Lock Pin is fully engaged.

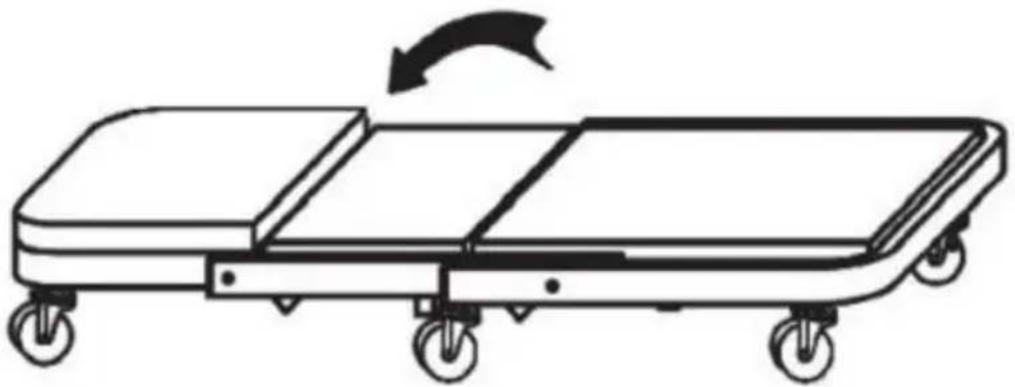

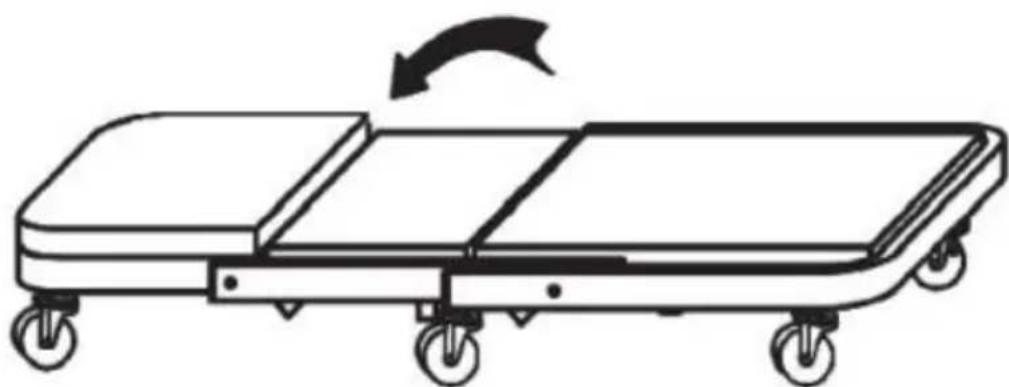

Figure 4 - Adjusting Creeper to seat configuration
- Flip Head Frame forward until horizontal.
- Unlock the spring loaded Lock Pin by pulling out until disengaged, then resteps 1, 2 to convert Creeper Seat into Creeper.
Figure 5 - Adjusting Seat to Creeper configuration
Manufacturer: Shanghaiuxinmuyeyouxianggsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD.
1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd.
Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A
| EC | REP |
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Assistance technique et certificat de garantie electronique www.vevor.com/support
CREEPER DE GARAGE PLIABLE
MODELE:MC402Z

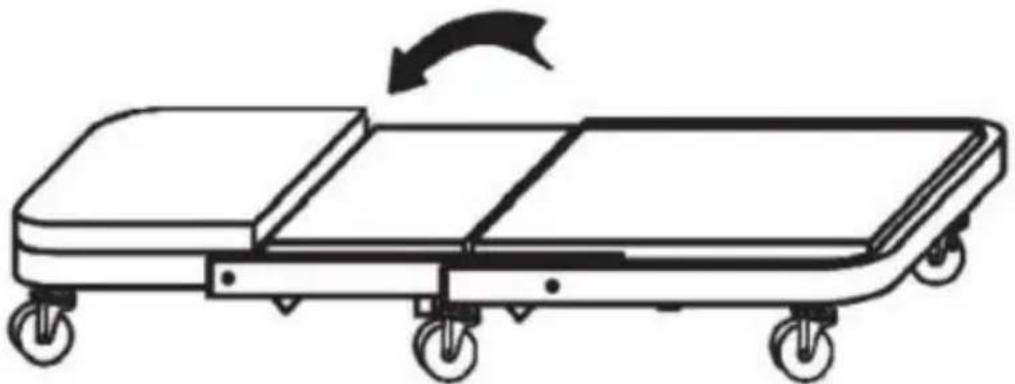

Figure 4 - Adjusting Creeper to seat configuration
Figure 5 - Adjusting Seat to Creeper configuration
Fabricant:Shanghaimuxinmuyeyouxiangongsi
Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.
Importé en AUS: SIHAO PTY LTD.
1 ROKEVA STREET EASTWOOD NSW 2122 Australie
Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED. C/O YH Consulting Limited
Bureau 147, Centurion House, London Road,
Staines-upon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Francfort-sur-le/Main.
VEVOR
TOUGH TOOLS, HALF PRICE
Figure 4 - Adjusting Creeper to seat configuration
Figure 5 - Adjusting Seat to Creeper configuration
Hersteller: Shanghaiuxinmuyeyouxiangongsi
Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.
Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
www.vevor.com/support
VEVOR
TOUGH TOOLS, HALF PRICE
Figure 4 - Adjusting Creeper to seat configuration
Figure 5 - Adjusting Seat to Creeper configuration
Produtlore:Shanghaimuxmuyeyouxiangongsi
Indirizzo: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Importato in AUS: SIHAO PTY LTD.
1 ROKEVA STREET EASTWOOD NSW 2122 Australia
Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Francoforte sul Meno.
VEVOR
TOUGH TOOLS, HALF PRICE
elettronica www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Soporte专业技术 y certificate de garantia electrònica www.vevor.com/support
CARREtera DE GARAJE PLEGABLE
MODELO:MC402Z

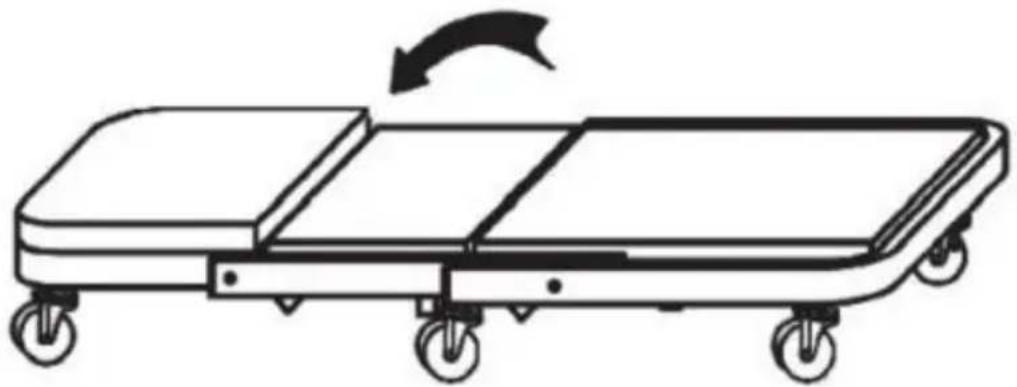

Figure 4 - Adjusting Creeper to seat configuration
