USER MANUAL UP610 H.KOENIG

2 in 1 vacuum cleaner 2 in 1 Aspirateur 2 in 1 Staubsauger 2 in 1 Stofzuiger Aspiradora 2 en 1 Aspirapolvere 2 in 1 Aspirador 2 em 1 Odkurzacz 2 w 1 up600 up610 Manual de instruções Instrukcja obsługiENGLISH Important safety instructions IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Do not use in the rain or leave outdoors when it is raining. WARNING: Basic precautions should always be observed when using any electrical appliance, including the following, to reduce the risk of fire, electric shock or injury. Personal safety :

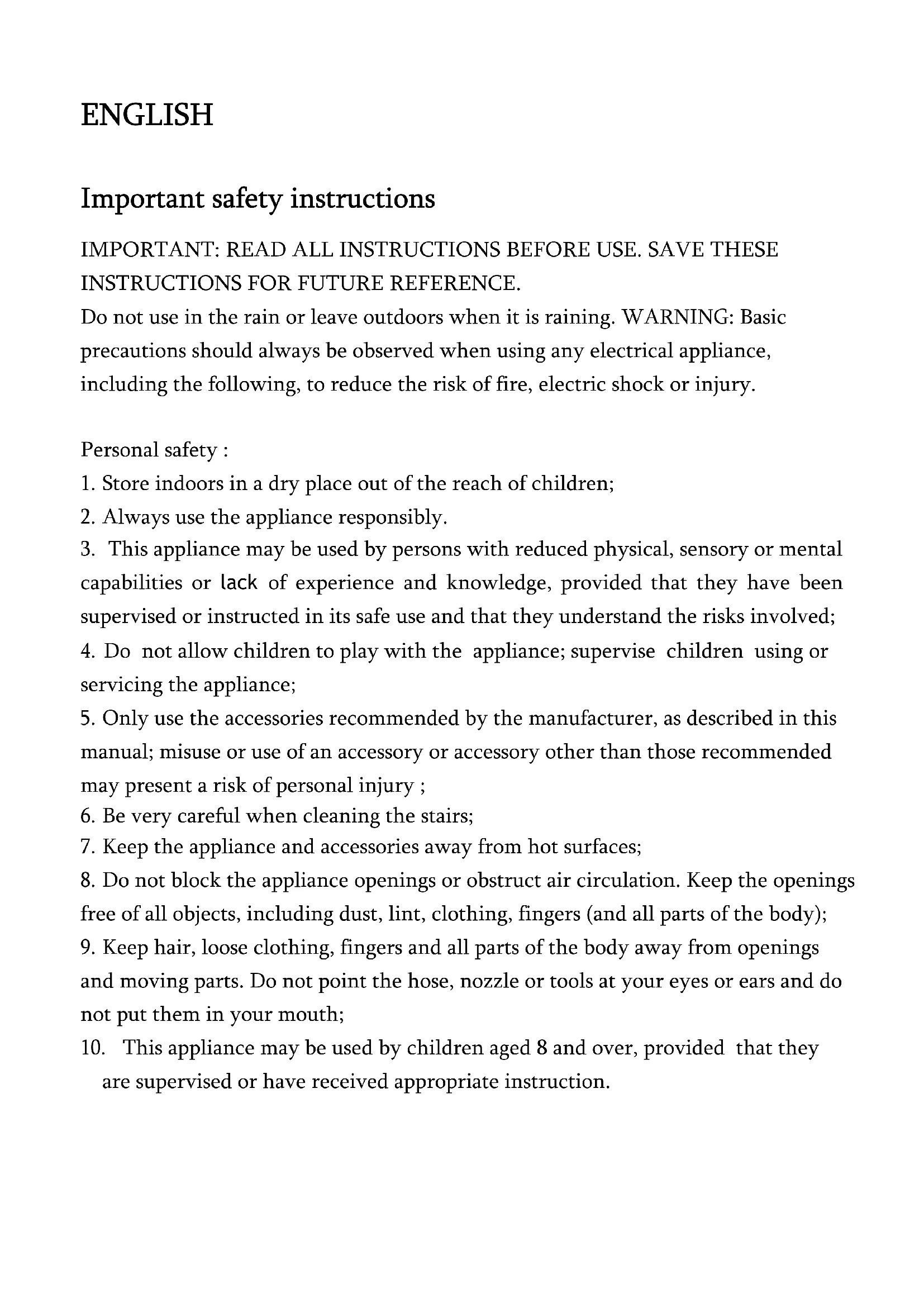

Store indoors in a dry place out of the reach of children;

Always use the appliance responsibly.

This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they have been supervised or instructed in its safe use and that they understand the risks involved;

Do not allow children to play with the appliance; supervise children using or servicing the appliance;

Only use the accessories recommended by the manufacturer, as described in this manual; misuse or use of an accessory or accessory other than those recommended may present a risk of personal injury ;

Be very careful when cleaning the stairs;

Keep the appliance and accessories away from hot surfaces;

Do not block the appliance openings or obstruct air circulation. Keep the openings free of all objects, including dust, lint, clothing, fingers (and all parts of the body);

Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts. Do not point the hose, nozzle or tools at your eyes or ears and do not put them in your mouth;

This appliance may be used by children aged 8 and over, provided that they are supervised or have received appropriate instruction.instructions on how to use the appliance safely and that they fully understand the dangers involved.

Cleaning and maintenance by the user must not be carried out by children unless they are over 8 years of age and under adult supervision.

Keep the device and its cable out of the reach of children under the age of 8.

When using electrical appliances, safety precautions must always be taken to prevent any risk of fire, electric shock and/or injury in the event of misuse.

Check that the voltage indicated on the appliance nameplate corresponds to that of your electrical installation. If this is not the case, contact your retailer and do not connect the appliance.

Never leave the appliance unattended when it is in operation.

Please keep this document available and give it to the future owner if you sell your appliance.

Do not use with a damaged cord or plug. If the power cord is damaged, it must be replaced by a service agent or similarly qualified person to avoid any danger.

Suitable for dry areas ONLY. Do not use outdoors or on damp surfaces.

If the appliance does not operate normally, has received a sharp blow, has been dropped, damaged, left outdoors or dropped into water, do not use it and contact the seller.

Do not dismantle the appliance, as incorrect reassembly may result in electric shock or fire.

Do not stretch the cord or subject it to stress. Keep the cord away from heated surfaces. Do not close a door on the cord or pull the cord around sharp edges or corners. Keep the cord away from traffic.

The power cord must be placed in a safe place where it cannot be walked on or tripped over. Do not run on the cord.

Do not unplug the appliance by pulling on the cord. To unplug the appliance, grasp the plug, not the cord. The use of an extension cord is not recommended.

Do not use to collect water25. Do not use to collect flammable or combustible liquids, such as petrol, or in areas where such liquids or their vapours may be present.

Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

Unplug from the mains when not in use for long periods and before any maintenance or servicing operation. Electrical safety :

Only use the batteries and chargers supplied by the manufacturer;

Never modify the charger in any way;

The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that indicated on the rating plate.

A charger adapted to one type of battery may present a fire hazard when used with another type of battery;

Before use, check the charger cord for signs of damage or ageing. A damaged or tangled charging cord increases the risk of fire and electric shock;

Do not abuse the charger cord;

Never carry the charger by the cord;

Do not pull on the cord to disconnect it from the socket; grasp the plug and pull to disconnect it;

Do not wrap the cord around the charger when storing it;

Keep the charger cord away from hot surfaces and sharp edges;

The power cord cannot be replaced. If the cord is damaged, the charger must be disposed of and replaced.

Do not handle the charger or the device with wet hands;

Do not store or load the appliance outdoors;

The charger must be removed from the socket before removing the battery or cleaning or servicing the appliance. Battery safety:

This appliance contains Li-ion batteries. Do not incinerate the batteries or expose them to high temperatures as they may explode;

Liquid ejected from the battery may cause irritation or burns;3. In an emergency, contact a professional immediately;

Battery cells may leak under extreme conditions. Do not touch any liquid leaking from the battery. If the liquid comes into contact with your skin, wash it immediately with soap and water. If the liquid gets into your eyes, rinse them immediately with clean water for at least 10 minutes and seek medical advice. Wear gloves when handling the battery and dispose of it immediately in accordance with local regulations;

Short-circuiting the battery terminals can cause burns or fire;

When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could connect one terminal to the other.

When you dispose of the appliance, remove the battery and dispose of it safely in accordance with local regulations.

FIRE WARNING - Do not place this product on or near a cooker or other hot surface and do not incinerate this appliance, even i f it is badly damaged. The battery could catch fire or explode. Service :

Before using the appliance and after any impact, check for signs of wear or damage and repair if necessary;

Do not use the appliance if any of its parts are damaged or faulty;

Repairs must be carried out by a service agent or a suitably qualified person, in accordance with current safety regulations. Repairs carried out by unqualified persons may be dangerous;

Never modify the appliance in any way, as this could increase the risk of injury;

Only use spare parts or accessories supplied or recommended by the manufacturer. Intended use :

This appliance has been designed for domestic dry vacuuming only;

Do not pick up liquids or use on wet surfaces;

Do not pick up anything that is flammable, hot or smoky;4. Only use the equipment described in this manual;

Do not use on concrete, tarmac or other rough surfaces.

Do not use water, solvents or polishing products to clean the outside of the appliance; wipe it with a dry cloth ;

Never immerse the appliance in water and do not clean it in a dishwasher. Product instructions

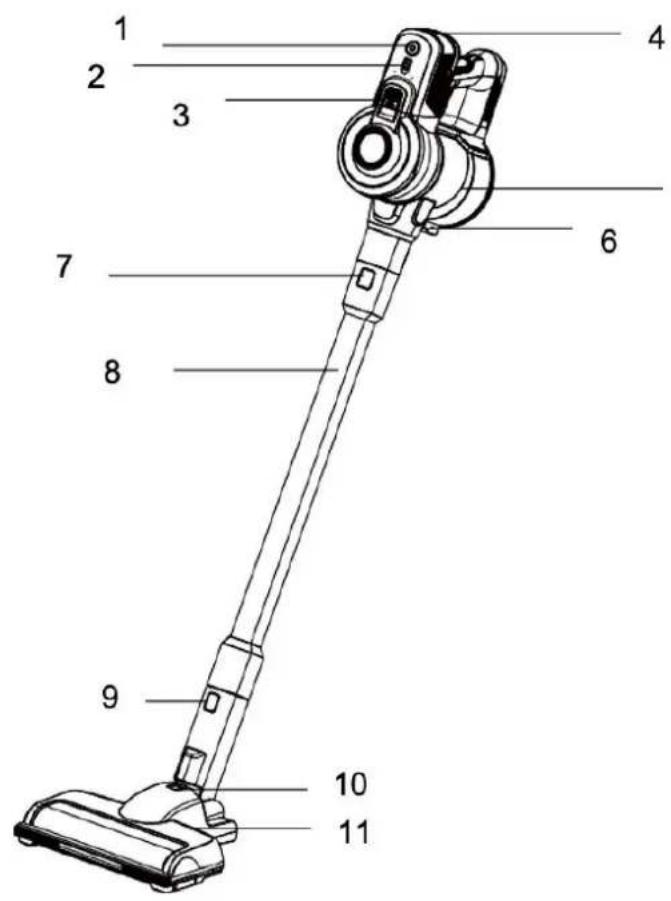

3. Battery release button

9. Motorised brush release

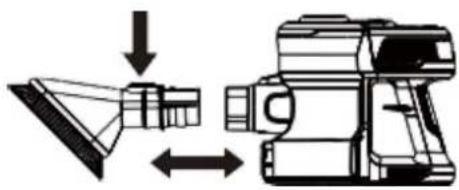

Suction nozzle Brush head. Wall mounting Electrical adaptatorProduct installation :

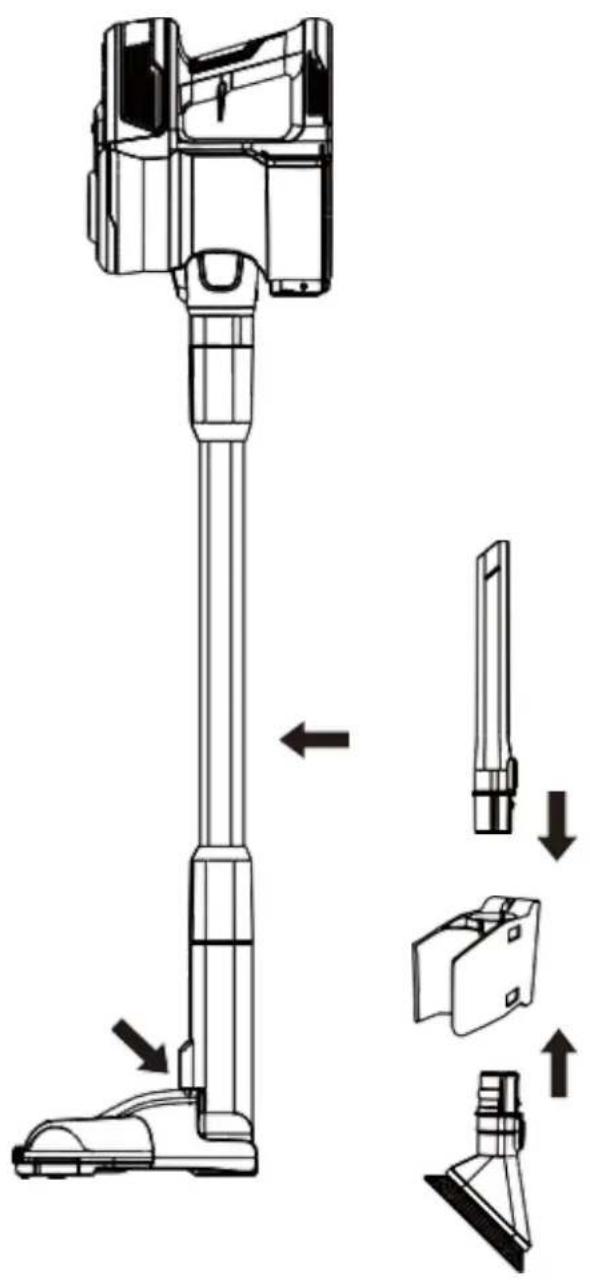

Use as a stick hoover

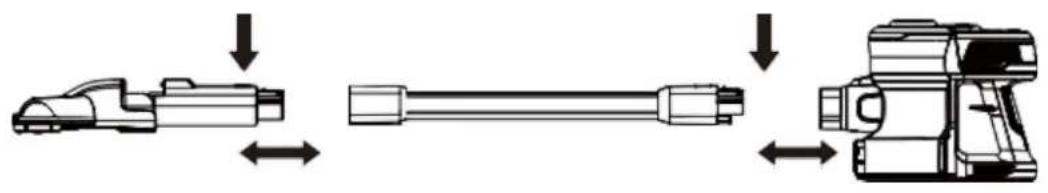

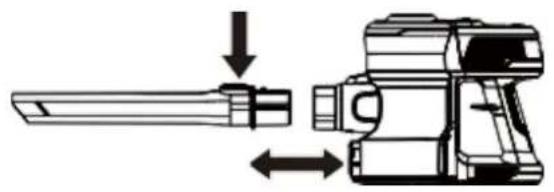

Insert the metal tube into the body until you hear a "click". Insert the motorized brush into the head of the metal tube until you hear a "click".

Flip the switch on and the hoover starts working.

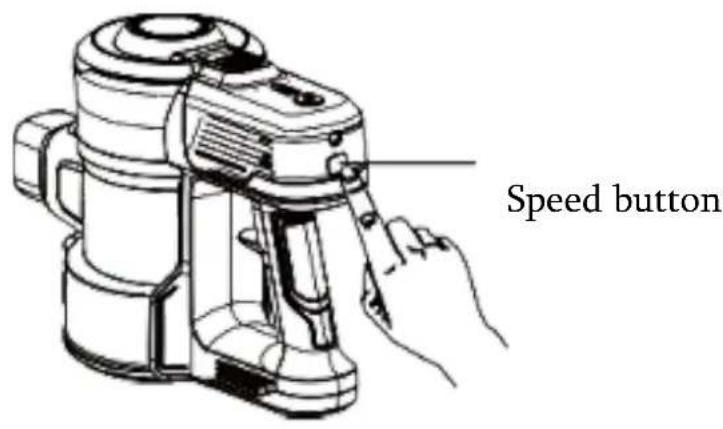

Press the switch, the machine will run at medium speed, switch to high and low speed by pressing the "SPEED" button.

When the machine is running at any speed, press the switch button and the machine will stop. II. Use as a practical hoover Insert the accessory into the body until you hear a click.III. Charging the battery :

When the power indicator flashes for a few seconds and then goes out

Please plug the charger adapter into a domestic socket to recharge it.

When the green light on the device starts flashing, this indicates that the device is charging.

When the power indicator is always lit and no longer flashing, this means that the device is fully charged. Charging mode①: insert directly into the battery pack's charging socket to charge.

Loading mode②： Slide the battery release button backwards with your fingers.

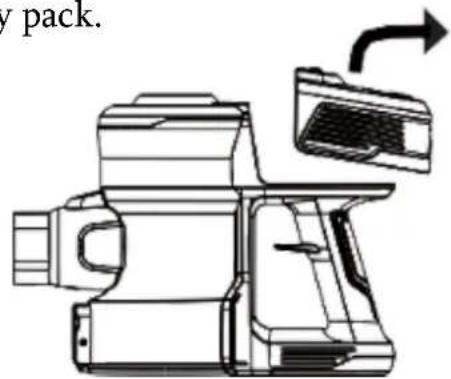

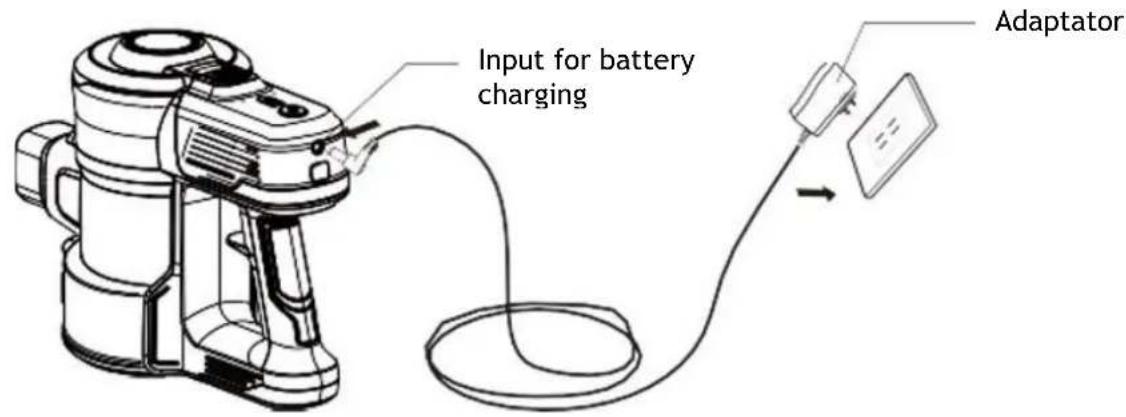

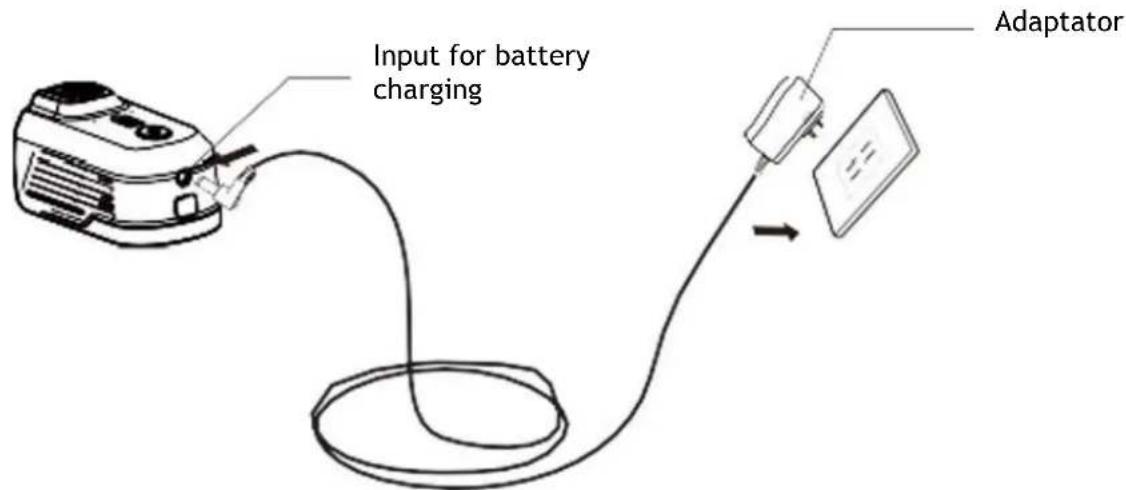

Input for battery charging AdaptatorLift up and remove the battery pack.

Plug in the battery charging plug to charge the battery.

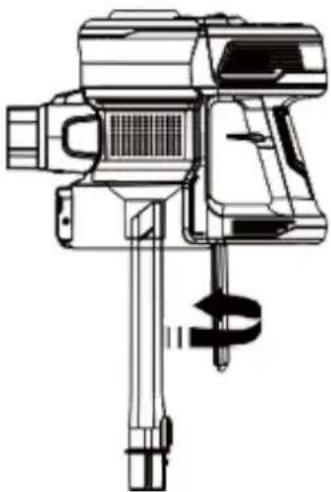

Product storage Secure the wall bracket to the wall using nails; Lock the floor brush and attach the appliance to the wall bracket; attach the cleaning accessories to the wall bracket. Input for battery charging AdaptatorBrush lock IV. How to empty the dustpan

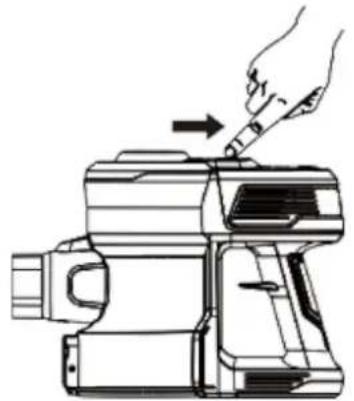

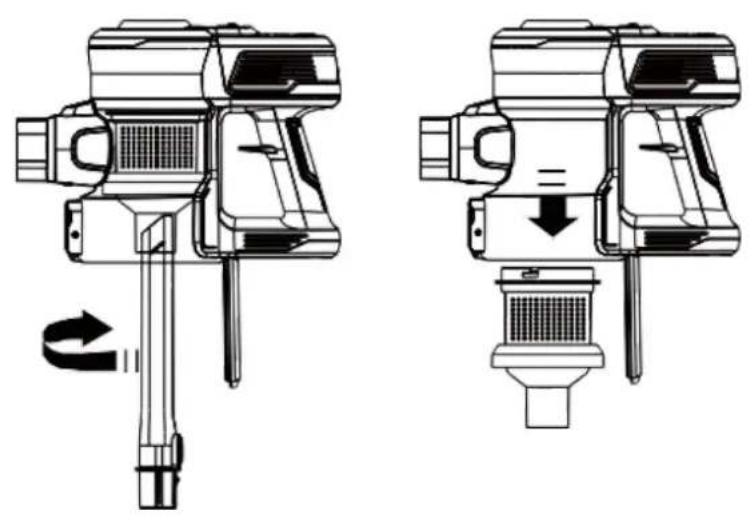

Press the dust removal button.2) Remove the filter and filter cover as shown below.

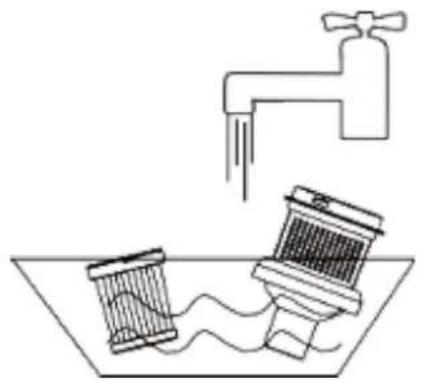

Wash the filter and filter cover.

Make sure the filter and filter cover are completely dry.5) Replace the filter housing in the dust cup.

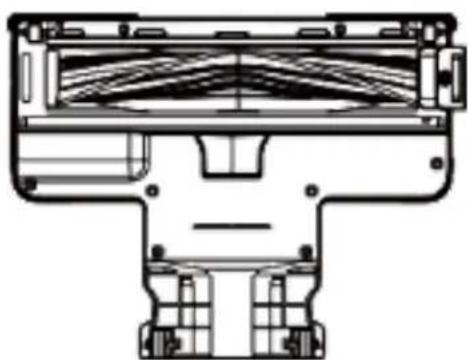

Method of removing the roller :

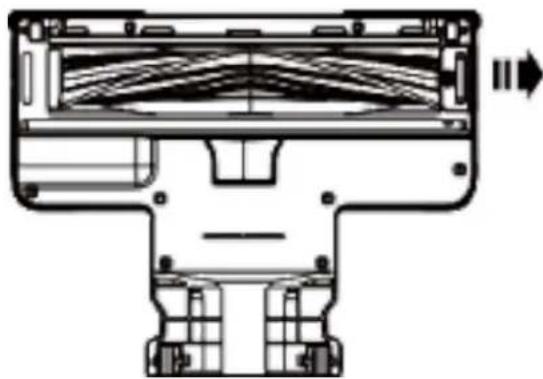

Unplug the power supply and slide the brush lock to the right, as shown in the diagram.

Slide the broom latch to the unlocked position.

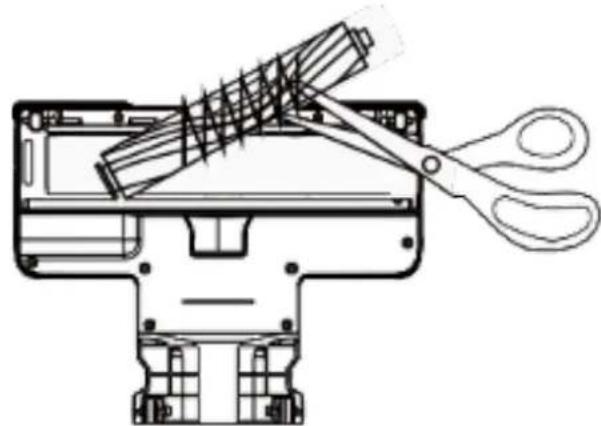

Remove the roller brush and clean any hair or other foreign matter from theroller brush.

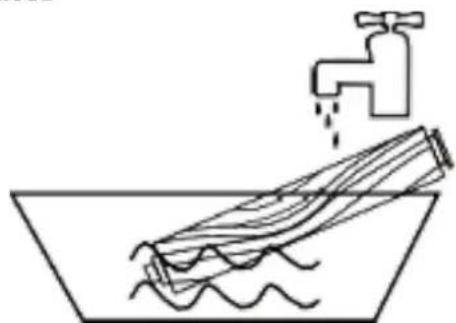

Wash the roller with water

Dry the roller for 24 hours.

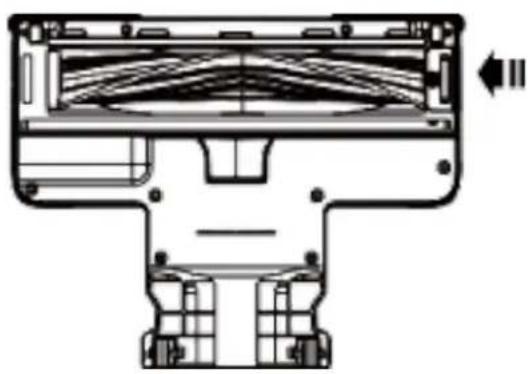

Put the roller back into the floor brush and slide the lock to the left until it locks.READ AND RETAIN THESE INSTRUCTIONS THIS

Do not use near flames Do not store near heat sources Keep your hands away from the roller when the appliance is in use. Do not suck up water or liquids Do not inhale burning objects SAFETY INSTRUCTIONS

CARPETS OR HARD FLOORS

Before vacuuming your floor coverings, carpets and rugs, check the condition of the hoover. the cleaning instructions recommended by the manufacturer.

The appliance's brush can damage certain types of carpets and floors. Some carpets will become covered in lint if a rotating brush bar is used

recommend that you vacuum without the power tool and consult the manufacturer of your floor covering.

Before vacuuming highly polished floors, such as wood or linoleum, first check that the underside of the hoover and its brushes are free of foreign bodies that could cause marks.MACHINE MAINTENANCE

Do not carry out any maintenance or repair work other than that indicated. and described in this user manual.

Keep the appliance indoors. Do not use or store it at temperatures below 3°C (37.4°F). Make sure the machine is at room temperature before use.

Clean the appliance only with a dry cloth. Do not use lubricants, cleaning products, polishes or deodorants on any part of the machine. ASPIRATION

Do not use the appliance without the dust tray and filters.

Fine dirt, such as plaster dust or flour, should only be vacuumed in very narrow spaces.

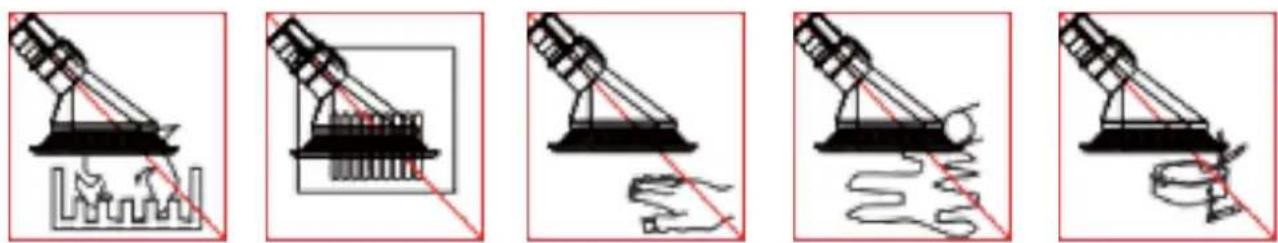

Do not use the appliance to pick up hard, sharp objects, small toys or pins, paper clips, etc. They could damage the device.

When vacuuming, some carpets may generate small static charges in the dustpan or brush. These charges are harmless and pose no electrical risk. To minimize the effects of this phenomenon, do not place the hoover in the dustpan.

Do not insert your hand or any object into the dust tray without first emptying it. Clean the dust tray with a damp cloth only.

Be very careful when cleaning on stairs.

Do not rest the machine on chairs, tables, etc.

Do not press down on the nozzle with excessive force when using the appliance. as this could damage it.

Do not leave the cleaner head in one place on delicate floors.

On waxed floors, the movement of the cleaner head can create an uneven shine. In this case, wipe with a damp cloth, polish the area with wax and wait for it to dry.

To make emptying the dust bin easier, it is advisable to remove the lance and floor tool.

To minimize contact between dust and allergens during emptying, seal the dust container in a plastic bag before emptying.

Carefully remove the dust container from the bag.

Seal the bag and dispose of as normal.CLEANING THE DUST BIN

Make sure that the device is disconnected from the charger before removing it from the waste bin.

Remove the strip and the floor tool.

Clean the dust tray with a damp cloth only.

Do not use detergents, polishes or deodorants to clean the dust tray.

Do not put the dust tray in the dishwasher.

Make sure the dust tray is completely dry before replacing it.

To replace the dust tray, align the tabs on the dust tray with the grooves on the main body and slide it upwards until the latch engages. WASHABLE PARTS Your appliance has washable parts that need to be cleaned regularly. Follow the instructions below. FILTER WASHING

Wash filters at least once a month

More frequent cleaning may be necessary, depending on the user: sucks up fine dust, uses the appliance intensively. WASHING FILTER

Make sure the appliance is disconnected from the charger before removing it. the filter.

Check and wash the filter regularly in accordance with the instructions to maintain water quality.

The filter may need to be washed more frequently if you are extracting fine dust.

To remove the filter, lift it from the top of the appliance.

Wash the filter in cold water only.

Run water over the outside of the filter until the water runs clear.

Squeeze and twist with both hands to ensure excess water is removed. deleted.

Lay the filter on its side to dry. Leave to dry completely for at least 24 hours.

Do not place the filter in a dishwasher, washing machine, tumble dryer, oven,microwave or near an open flame.

To replace the filter, replace the dry filter in the upper part of the appliance. Make sure it is firmly in place.

Do not charge the device before placing it in a place where the temperature is below 3°C (37.4°F) for storage purposes.

To prolong the life of the battery, avoid recharging it immediately after it has been completely discharged. Allow it to cool for a few minutes.

Avoid using the device with the battery flush against a surface. This will help it to run cooler and extend battery life. TROUBLESHOOTING

Does not clean well 1.empty the tank 2. Check that the dust container is correctly fitted 3.check that the filter is correctly fitted 4.clean the filter Stops or does not work 1 Charging the battery 2.clean the filter 3.check the battery installation The battery is not charged

1. check the power cord connections 2.check the wall socket

The electric brush doesn't work 1 Make sure the dust collector is correctly assembled and locked. 2. Make sure that the electric brush and the metal tube are securely connected. 3. check that the brush is not blocked

TECHNICAL SPECIFICATIONS Battery 22.2V / 2200mAh Charging period 4 hours Input 26.5V / 500mA Weight 3kg Engine power 155WWARRANTY The warranty period for our products is 2 years. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https:// sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

Accessories and wearing parts (*).

Normal maintenance of the device.

All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.

Damage of external origin: fire, water damage, electrical surge, etc.

Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).

The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.

The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate withtime and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https:// sav.hkoenig.com/.

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.
