USER MANUAL HW 630 CASO

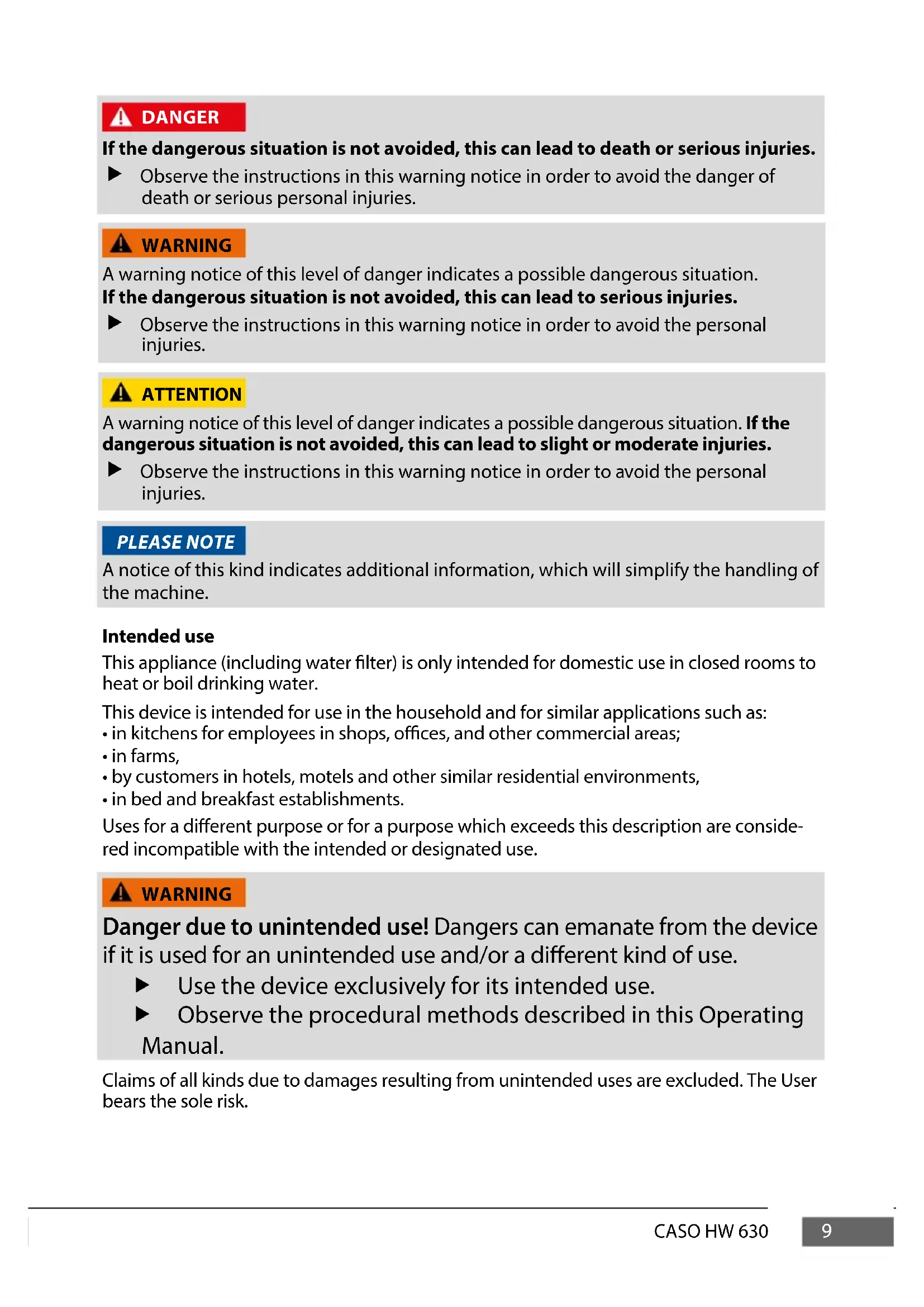

• in kitchens for employees in shops, oces, and other commercial areas;

• by customers in hotels, motels and other similar residential environments,

• in bed and breakfast establishments. Uses for a dierent purpose or for a purpose which exceeds this description are conside- red incompatible with the intended or designated use. WARNING Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a dierent kind of use. f Use the device exclusively for its intended use. f Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk. WARNING ATTENTION PLEASE NOTE10 CASO HW 630 General Safety information PLEASE NOTE Please observe the following general safety notices with regard to the safe handling of the device. f Use the appliance only as described in the user’s guide to avoid possi- ble injury from misuse. f This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. f Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. f Children are not allowed to play with the device. f The device and its connecting cable must be kept away from children who are less than 8 years old. f This appliance can be used by persons with reduced physical, senso- ry or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance safely and they understand the hazards involved. f Operate the appliance only in dry indoor areas. f Do not operate the appliance unattended. f Do not use the appliance:

• if the appliance itself or parts are damaged,

• if the power cord or plug is damaged,

• if the appliance has been dropped. f Always unwind the power cord completely before use. When doing so, ensure the power cord is not damaged by sharp edges or hot objects. f Pull the plug out of the socket:

• when you are not using the appliance,

• before cleaning the appliance or putting it away,

• if there is an obvious malfunction during operation,

• during a thunderstorm. f Do not make any modi cations to the appliance or the power cord. Only have repairs carried out by a specialist workshop, as appliances that have not been repaired properly endanger the user. Please also observe the enclosed warranty conditions.11 CASO HW 630 PLEASE NOTE f Only use the device with original accessories. f Place the appliance on a stable, level surface. Ensure su cient dis- tance between the appliance and strong heat sources such as hotpla- tes, heating pipes, etc. f Do not clean the appliance with hard, scratchy or abrasive cleaning agents such as steel wool or similar. f Defective components must always be replaced with original repla- cement parts. Only such parts will guarantee that the safety require- ments are fullled. Danger of burns WARNING The water heated in the device and the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others. f Do not touch the hot surface and not the spout when the device is in operation. Danger of burns. f The heating element surfaces and the warming plate still have resi- dual heat after use. Do not touch them until they have cooled down completely. f Always test the temperature of the water before you drink it. f Always check the temperature of food before you feed your baby. Shake the bottle carefully and check the temperature of the food by putting a few drops on the inside of your wrist. f Pay attention to the hot water steam that is produced during cooking process. Risk of burns. Dangers due to electrical power DANGER Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: f Do not dip the cable, device or plug into water or other liquid to prevent an electric shock.12 CASO HW 630 DANGER f If the power cord of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly quali ed person in order to avoid hazards. f Do not immerse the appliance in water for cleaning. f WARNING! Risk of electric shock! Do not allow any liquid to run over the appliance connector. f Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are tou- ched and the electrical or mechanical structure is altered. In addi- tion, functional faults on the device can also occur. Transport inspection WARNING f Do not allow children to play with packaging materials due to risk of suocation. PLEASE NOTE f Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage. f Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling. Setup location requirements In order to ensure the safe and trouble-free operation of the device, the setup location must full the following prerequisites:

• The device must be set up on a rm, at, horizontal surface with sucient load-be- aring capacity for the device.

• Place the device only on a waterresistent surface.

• Do not use the device outdoors.

• Do not operate the product near hot gas or hot stove.

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near am- mable material.

• The electrical socket must be easily accessible so that the power lead can be discon- nected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.13 CASO HW 630 Electrical connection In order to ensure the safe and trouble-free operation of the device, the following instruc- tions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequen- cy) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualied electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of re that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

• The electrical outlet must be protected by a 16A safety cut-out switch.

3.2.3 Fehlercode Lo Lack of water

These operating instructions are a component of the CASO HW 630 hot water dispenser (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instruc- tions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning, • Operation,

• Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

1.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and ndings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

• Technical alterations, modications of the device

• Use of unauthorized spare parts Modications of the device are not recommended and are not covered by the guaran- tee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

1.3 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

As a rule, the articles are delivered with the following components:

To unpack the device, proceed as follows: Remove the device out of the carton and remo- ve the packaging material. Remove the protective lm from the unit. f If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary. PLEASE NOTE53 CASO HW 630

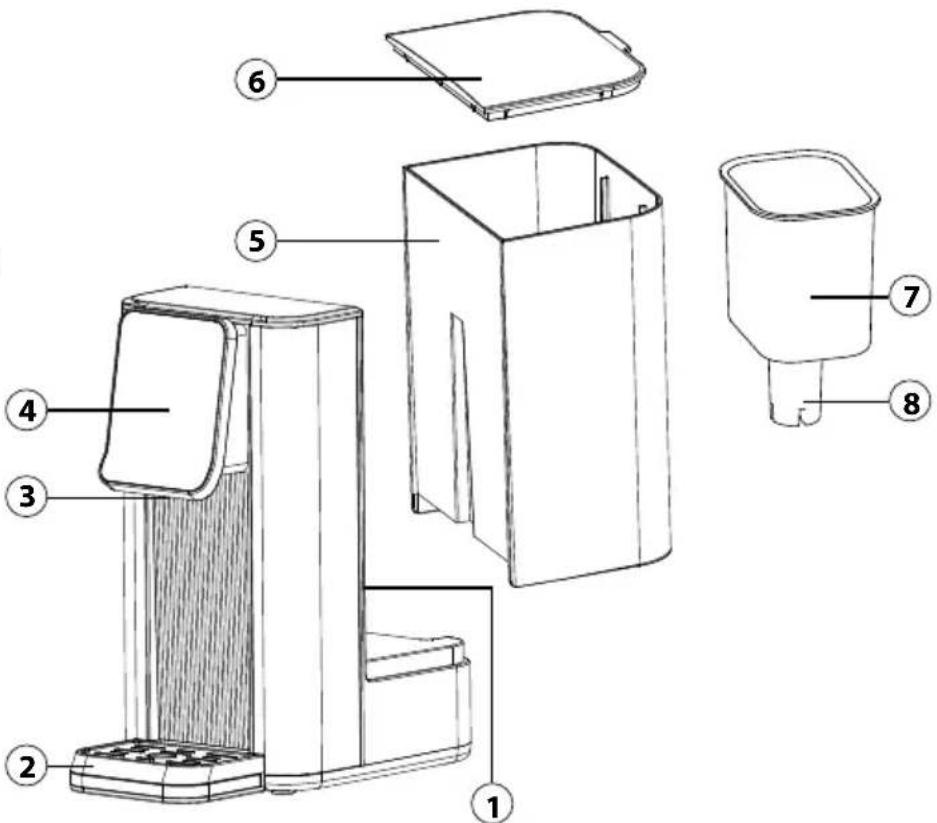

2 Design and Function This chapter provides you with important information of the design and function of the device.

Set the desired temperature according to 000 (normal temperature water), 40°C, 45°C, 50°C, 55°C, 60°C, 65°C, 70°C, 75°C, 80°C, 85°C, 90°C, 95°C, 100°C. Baby-button: For preparation of baby food. 37°C warm water will be dispensed for as long as you press the button. Do not ll milk into the device.Always check the temperature of food before you feed your baby.

Lack of water: Fill the water tank Descaling: De-scale the device Change lter: Change the lter Temperature display Water quantity indicator

WARNING f Caution hot steam can escape at device. Risk of burns. PLEASE NOTE f Please note that the dispensed water (at all temperature settings) is not boiled before. Therefore, especially when preparing baby food, we recommend rst boiling the water in a saucepan for at least 3 minutes; cooling it down to room temperature and then pouring it into the device’s water tank.

2.3 Overheating protection & reset

The device is equipped with an overheating protection facility. If the temperature of the device exceeds the critical limit the device shuts o further power supply for safety reasons. By pressing the reset button (1) the device can be reactivated. Unplug the device before reset. When the device is only producing cold water please press reset button. Please use the reset button, which is located on the underside of the device.

The rating plate with the connection and performance data can be founded beneath the device. 3 Operation and Handling This chapter provides you with important information and notes on the operation and basic settings of the appliance. WARNING f Do not leave the device unsupervised during operation.

Set the water volume according to 100ml, 150ml, 200ml, 250ml, 300ml, 350ml, 400ml, 000 (continuous water ow) “On / O” button: Turns the device on and o. Start and stop the dispense of water.

3.1.1 Preparation of the waterlter

1. Remove the waterlter from all packaging.

2. Wash your hands and clean the water

tank and the lter holder.

3. Remove the water lter from its packa-

ging and soak it in fresh tap water for 10 minutes.

4. Rinse the lter for around 10 seconds

under running water.

5. Insert the lter into the lter holder, en-

suring that it sits rmly. To do this, push it down with a slight turning movement, applying some pressure when doing so.

6. Insert the lter holder into the water tank.

Run water through the lter 2-3 times, using 1 litre each time, before you drink the water. PLEASE NOTE f The lifetime of the waterlter lasts about 4-6 weeks of normal use (ltering of appro- ximately 150 l water in total). f Despite soaking the lter beforehand, a small residue of black carbon particles may leak out during use. This is normal and harmless. f Make sure that the bottom of the lter is always in contact with water and never allow it to dry out. If the lter does dry out, then re-soak it for 10 minutes. f Change the water in the tank every 48 hours at the latest. f Store the water tank and lter in a cool place and keep them out of direct sunlight.

3.1.2 Preparation of the device

1. Place the device on a hard surface.

2. Fill the tank with approx. 1 litre of water.

3. Place a vessel which can hold approx. 700 ml water under the spout.

4. Start the device with 000 temperature setting until ca. 300 ml water is dispensed.

5. Set the device to 100°C and dispense 400 ml water.

6. The device can now be equipped with waterlter and lled with fresh water.

7. The device is ready for use.

3.1.3 Set the water hardness

Simultaneously press the and -buttons until the display shows “H1”, “H2” or “FIL” under “Volume”. “H1” stands for soft water. This means that „Descaling“ will light up in the display after 60 litres of water were dispensed. „H2“ stands for hard water. This means that “Descaling” will light up in the display after 25 litres of water were dispensed. Use the “FIL”56 CASO HW 630

option to set the device for use with a water lter. If you do so, then “Descaling” will appear on the control panel display when 150 litres of water has been dispensed. You can use the -button to change between the “H1”, “H2” and “FIL” modes. Follo- wing this, conrm your selection by pressing the - button for a few seconds.

1. Fill the watertank with water. Pay attention to the mark which shows the maximum

2. Insert the water tank into the device and place its lid on top of it.

3. Place your cup or container on the drip tray. Make sure that the cup is located

under the water spout.

4. Plug the power socket into mains power.

-button to turn on the device.

-button to choose your desired temperature and press -button to set the water volume.

-button to start the device. The pre-set water quantity will be dispen- sed from the water spout. If you want to stop the water ow in advance, press the -button again.

8. Alternatively: Press and hold

-button for dispensing of water with 37°C for preparation of baby food. Water with 37°C will be dispensed as long as button is pressed. PLEASE NOTE f If only a small amount of water is dispensed, then the desired temperature may dier. Preheat the vessel. f To protect the heating element from damage caused by dry operation, the device will draw water into its pipes the rst time it is used and when the plug is reinser- ted into the power socket. We therefore recommend initially dispensing 250 ml of water at 100°C. f If device was not used for longer time there could be scale deposits despite water lter. In this case let 100 ml with 100 °C run through the device. f The device has a reminder feature. The last settings which were saved will be stored even if the plug is removed. f The ambient temperature changes everyday. This leads to dierent amounts of water. It can vary up to +- 15%.57 CASO HW 630

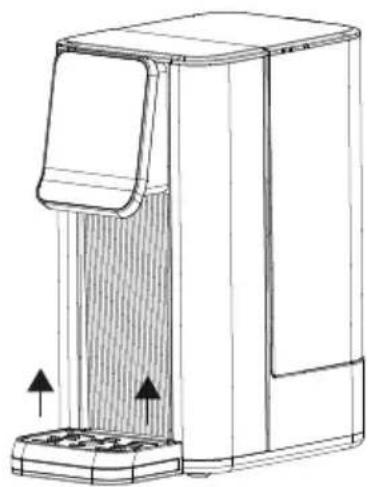

3.2.1 Water disposal from the drip tray

1. When the drip tray is full, grasp and stabilize the device

by one hand and use the other hand to lift up the drip tray slightly to remove it.

2. Lift it slightly to remove it.

3. Remove the water from the drip tray and then hook it

back onto the appliance. Make sure that the drip tray is xed to the device.

3.2.2 Replacing the waterlter

If the control panel starts to ash and displays the words “Change lter“, then the water lter must be changed. Proceed as follows:

1. Remove the water tank lid (A) and remove the lter holder (B) with the water lter (C).

2. Follow the steps described in Section “Preparation of the water lter”.

PLEASE NOTE f After 12 hours of operation the control panel will display the words “Change lter“. Change the lter and then simultaneously press the and buttons for a few seconds to reset the device. f Spare water lters are available separately. Set of 6 = Caso Item No. 1841, Set of 3 = Caso Item No. 1861

3.2.3 Error code Lo Lack of water

If the device stops and you hear a beep and see the error codes “Lo” and “Lack of water” on the control panel display, then this means that there is either not enough or no water in the tank. Fill the tank with water up to the “MAX.” mark.

If you want to optimize the temperature or volume of water, then you can calibrate the device. Fill the tank up to max marking. Place vessel below the spout which can collect whole content of watertank. Press and hold Temp. -button for 3 seconds until „CAL“ is displayed. Conrm the process by pressing the -button. The device perfoms the calibration and beeps once process is nished.

4 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and main- taining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

4.1 Safety information

ATTENTION Please observe the safety instructions, before cleaning your device: f Unplug the device when not in use and before any cleaning. f Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher. f Do not use iron brush, abradant, kitchen cleaner, or sharp cleaning tool for cleaning.

4.2 Cleaning and descaling

Wipe the device with damp cloth.

4.2.1 Cleaning and descaling function

When “Descaling” is blinking in the display then the device needs to be descaled, please proceed as follows:

1. Place device without drip tray and without water lter.

2. Fill the watertank up to max marking. Add a little bit of vinegar.

3. Fill the water tank up to the “MAX” mark with a mixture of water and a commerci-

ally available descaling agent. Read the instructions given on the descaling agent packaging for the correct mixing ratio.

4. Place vessel below the spout which can collect whole content of watertank.

5. Simultaneously press the

and -buttons. Depending on the instructions for the descaling agent, you can use the -button to select a temperature of 50°C, 80°C or 100°C.

-button to start the process. The device dispenses whole content of watertank and will be cleaned and descaled.

7. Following this, pour away the water.

8. Rinse the water tank carefully.

9. Then ll the tank with fresh water (without descaling agent) and start the device so

that the descaling agent is rinsed out of the pipes.

If you do not use the device very often, then remove the plug from mains power, clean the device and drain any residual water out of the device. Replace the device into its original packaging to protect the electrical components from becoming damp or getting damaged.59 CASO HW 630

4.3.1 Residual water plug

The residual water plug stops water from leaking out of the device. You can remove the plug (D) by unscrewing it with a screwdriver to drain o any residual water. Following this, replace the plug in the opening and screw it tight to seal the outlet. PLEASE NOTE f Drain the water out of the device if you have to send it to our Customer Service or will not be using it for a longer period of time. 5 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

ATTENTION f Repairs of electrical appliances must be carried out by qualied person who are trained by the manufacturer. f Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

5.2 Troubleshooting table

If an error occurs, then an error code will appear on the control panel display. It describes the reason for the error. Display Description Descaling The appliance must be descaled. Proceed as described in the “Cleaning and descaling feature” section. Change lter Change the water lter. Proceed as described in the “Changing the water lter” section. LO & Lack of Water There is not enough or no water in the tank. Fill the tank with fresh drin- king water up to the “Max.” mark. E0 The appliance has a defect. Contact our Customer Service. E4 The appliance has a defect. Contact our Customer Service. E5 The appliance has a defect. Contact our Customer Service. PLEASE NOTE f If you cannot solve the problem by carrying out the steps described above, our Customer Service will help you free of charge. f Clean the device before you send it to customer service. D60 CASO HW 630

6 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

f Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. f Ensure that your old device is stored safely away from children until it is taken away.

6.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packa- ging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer requi- red to “Green Dot” recycling collection points for disposal. 7 Guarantee We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 . German Civil Code (BGB) will remain unaec- ted by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product’s functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its perfor- mance is designed to meet the corresponding needs. The guarantee only covers commer- cial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notied to us within 14 days of the product’s delivery. Any further claims are excluded. When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details (“Guarantor”) are provided at the begin- ning of this instruction manual. PLEASE NOTE61 CASO HW 630
