USER MANUAL THINPAR36X1WRGB IBIZA SOUND

©Copyright LOTRONIC 2023 EXTRA FLAT PAR PROJECTOR - 18/36 X 1W RGB LED INSTRUCTION MANUAL UNPACKING INSTRUCTIONS Immediately upon receiving a 󰊟xture, carefully unpack the carton, check the contents to ensure that all parts are present and have been received in good condition. Notify the freight company immediately and retain packing material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mishandling. Keep the carton and all packing materials. In the event that a 󰊟xture must be returned to the factory, it is important that the 󰊟xture be returned in the original factory box and packing.

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example). An exclamation mark in a triangle indicates particular risks in handling or operating the appliance. The unit complies with CE standards For indoor use only 0.5m Minimum distance between the appliance and other objects Please read this manual carefully before operating this product. SAFETY RECOMMENDATIONS

• Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.

• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also re- ceives this instruction booklet.

• Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the bottom of the 󰊟xture.

• The appliance is part of class I and must exclusively connected to an earthed mains outlet.

• This product is intended for indoor use only!

• To prevent risk of 󰊟re or shock, do not expose 󰊟xture to rain or moisture. Make sure there are no 󰊠ammable materials close to the unit during operation.

• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.

• The minimum distance luminaire from that part of the luminaire or lamp to the lighted object is 0.5m. 0.5m

• •Maximum ambient temperature (Ta) is 104° F (40°C). Do not operate the 󰊟xture at temperatures higher than this.

• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on as sensitive persons may su󰊞er an epileptic shock (especially meant for epileptics)!.

• The product is for decorative purposes only and not suitable as a household room illumination. CAUTION

• If the external 󰊠exible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manu- facturer or his service agent or a similar quali󰊟ed person in order to avoid a hazard.

• The light source of this luminaire is not replaceable. When it reaches the end of its life time, the whole unit must be discarded.. DISCONNECT DEVICE Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. FUSE REPLACEMENT Locate and remove the unit’s power cord. Once the cord has been removed located the fuse holder located inside the power socket. Insert a 󰊠at-head screw driver into the power socket and gently pry out the fuse holder. Remove the bad fuse and replace with a new one.

Warning: If after replacing the fuse you continue to blow fuses, STOP using the unit. Contact customer support

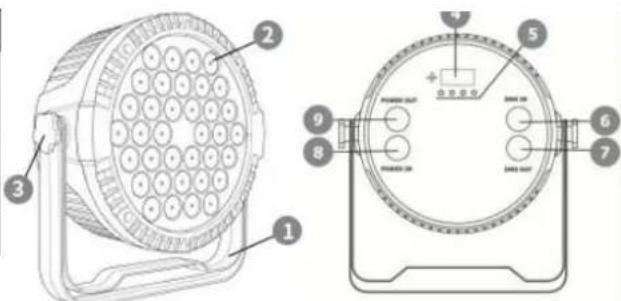

for further instructions. Continuing to use the unit may cause serious damage. INSTALLATION The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is 󰊟rmly 󰊟xed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Never stand directly below the device when mounting, removing or servicing the 󰊟xture. BUTTONS & CONNECTORS No. Designation No. Designation 1 Mounting Bracket 6 DMX Input (3-pole) 2 LEDs 7 DMX Output (3-pole) 3 Adjustment Screw 8 Power Input 4 Display 9 Power Output 5 Operating Buttons LED DISPLAY The LED display has 4 buttons: MENU / UP / DOWN / ENTER MENU STRUCTURE No. Display 1 d001 Address code (001-512)

7Ch 3Ch 7 / 3 channel selection

St16 St00 no 󰊠ash St01-St16 strobe from slow to fast

©Copyright LOTRONIC 2023

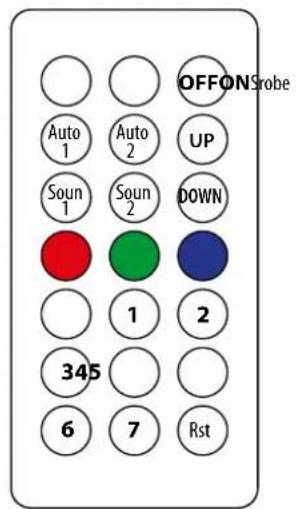

This symbol indicates that used batteries should not be disposed of with household waste but deposited in separate col- lection points for recycling. ATTENTION Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type. Keep new and old batteries out of the reach of children. If the battery compartment doesn’t close properly, stop using the product and keep it out of the reach of children. WARNING The supplied remote control contains a button cell. In case of ingestion, it might cause serious internal burns within only 2 hours that might lead to death. If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact imme- diately a doctor. CARE Before cleaning the unit, disconnect it if from the mains. Do not use aggressive cleaning agents. Use a clean cloth to wipe any dust or dirt from the product. We are not liable for damage arising from incorrect handing, improper use or wear and tear. We reserve the right to make technical modi󰊟cations. SPECIFICATIONS Model 18X1W 18X1RGB 36x1W-RGB Power supply 110-240V~50/60Hz Consumption 15W 28W 40W Beam angle 45° Light source 6xR; 6xG, 6xB 1W 18x 1W 3-in-1 RGB 36x 1W 3-in-1 RGB Remote control battery CR2025 - 3V Dimensions 185 x 185 x 80 mm Weight 0.95kgCodes: 16-2031 / 16-2032 / 16-2033

ibizashop.eu Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. PROJECTEUR PAR EXTRA-PLAT - 18/36 LED RGB 1W
