USER MANUAL Zense Alux CG3AB125 WILFA

Exterior view of a modern office building (no signage)

ZENSE

COFFEE GRINDER CG3B-125, CG3AB-125

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

4 IMPORTANT SAFETY INSTRUCTIONS
6 PRODUCT OVERVIEW
7 BEFORE FIRST USE
7 USING THE APPLIANCE
8 CLEANING AND MAINTENANCE
9 TROUBLESHOOTING
10 GUARANTEE
11 PRODUCT SPECIFICATIONS
11 SUPPORT AND SPARE PARTS
11 RECYCLABILITY

EN

IMPORTANT SAFETY INSTRUCTIONS

• Read this instruction manual thoroughly before use and save it for future reference. It is also available at our website; wilfa.com.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This product is intended for indoor, non-industrial, non-commercial, household use only.
• Always unplug the appliance after use and before cleaning.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Place the appliance on a flat and stable surface. Avoid contacting moving parts.

- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.

- Do not let power cord hang over edge of table or counter.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

– by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

EN

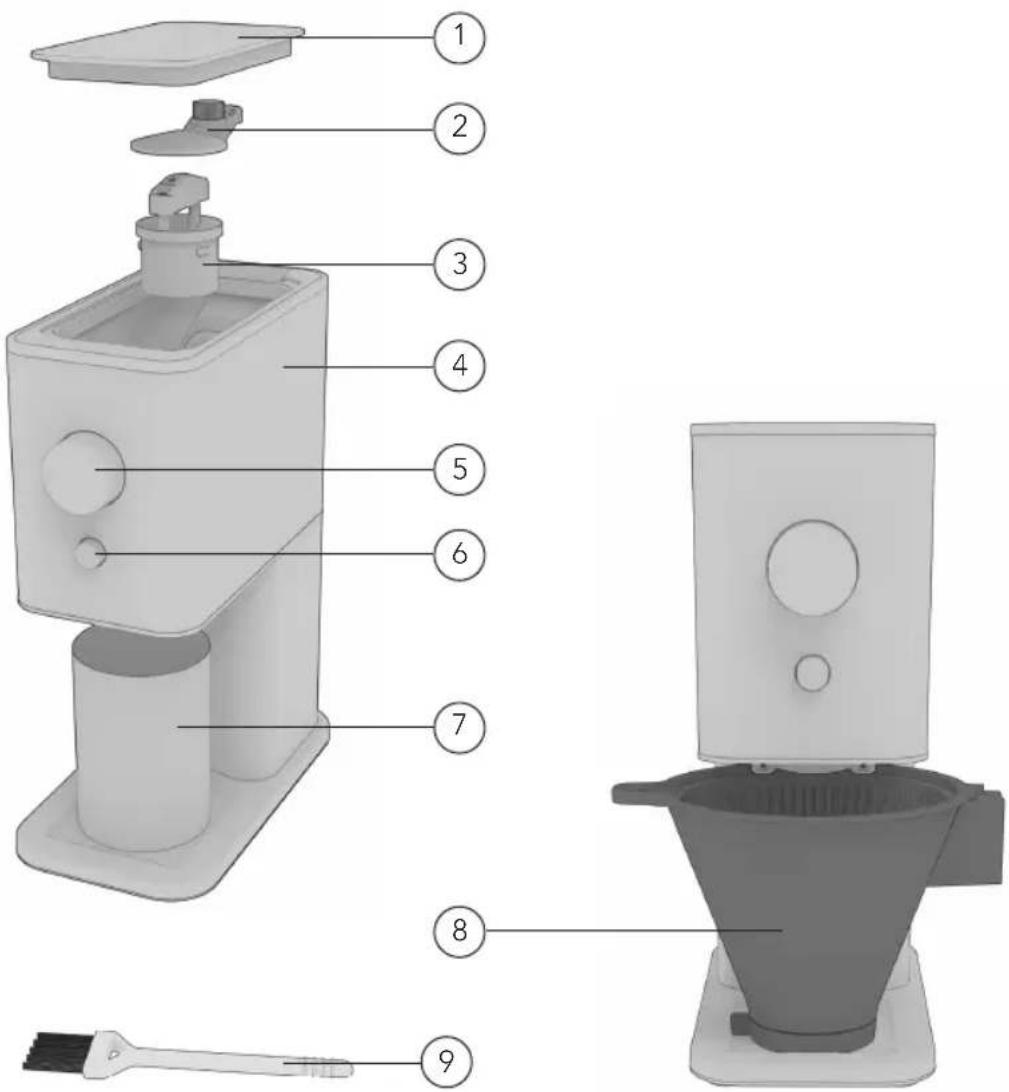

PRODUCT OVERVIEW

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

1. Bean container lid
2. Protective lid
3. Removable burr
4. Bean container (hopper)
5. Grind selection knob
6. START/STOP button

7. Ground coffee cup – Magnetic system for easy placement.

8. Filter holder; compatible with Wilfa Zense, Zense Alux, Performance, Precision and Compact coffee brewer filter holders.

9. Cleaning brush

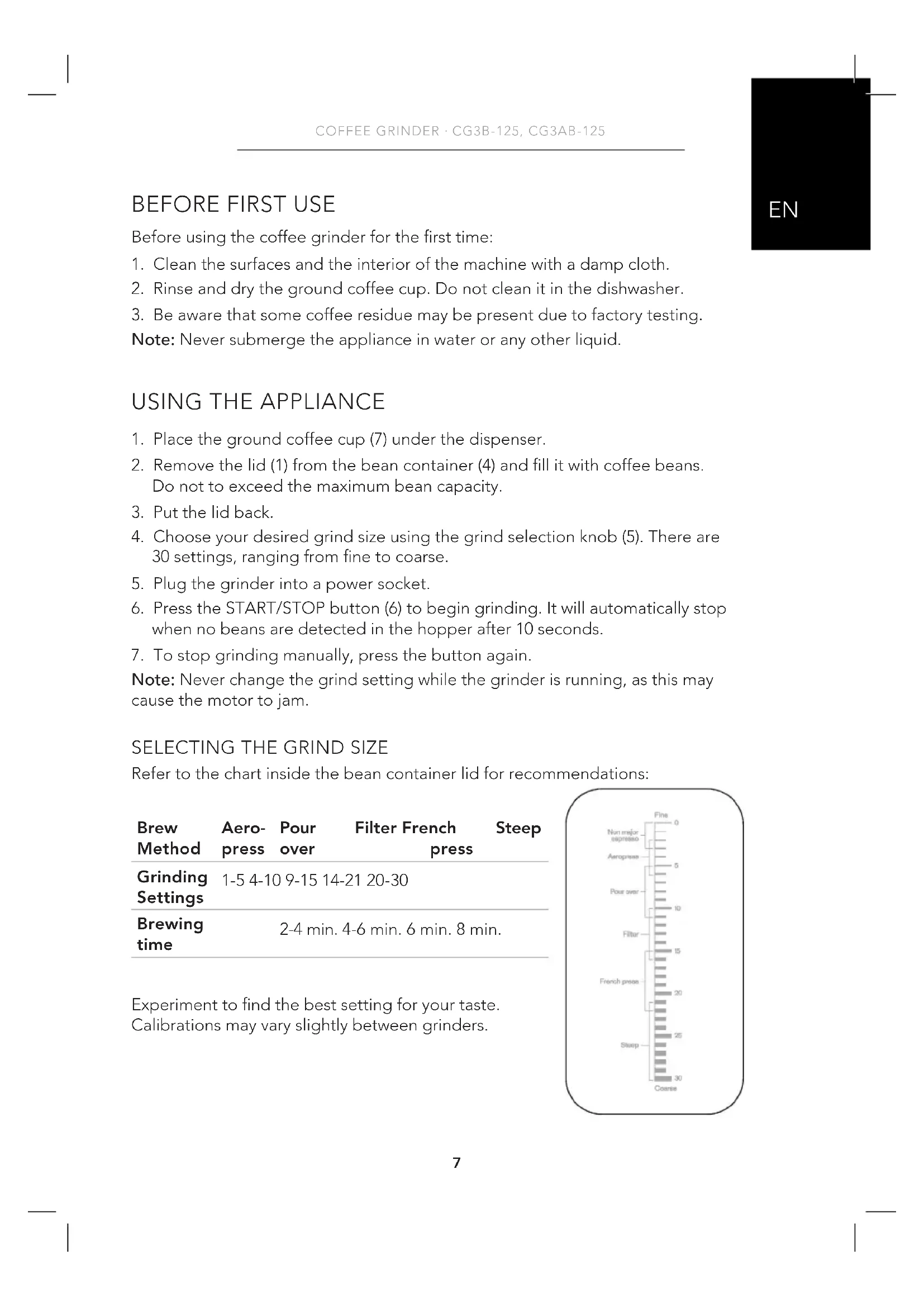

BEFORE FIRST USE

Before using the coffee grinder for the first time:

1. Clean the surfaces and the interior of the machine with a damp cloth.
2. Rinse and dry the ground coffee cup. Do not clean it in the dishwasher.
3. Be aware that some coffee residue may be present due to factory testing.

Note: Never submerge the appliance in water or any other liquid.

USING THE APPLIANCE

1. Place the ground coffee cup (7) under the dispenser.
2. Remove the lid (1) from the bean container (4) and fill it with coffee beans. Do not to exceed the maximum bean capacity.
3. Put the lid back.
4. Choose your desired grind size using the grind selection knob (5). There are 30 settings, ranging from fine to coarse.
5. Plug the grinder into a power socket.
6. Press the START/STOP button (6) to begin grinding. It will automatically stop when no beans are detected in the hopper after 10 seconds.
7. To stop grinding manually, press the button again.

Note: Never change the grind setting while the grinder is running, as this may cause the motor to jam.

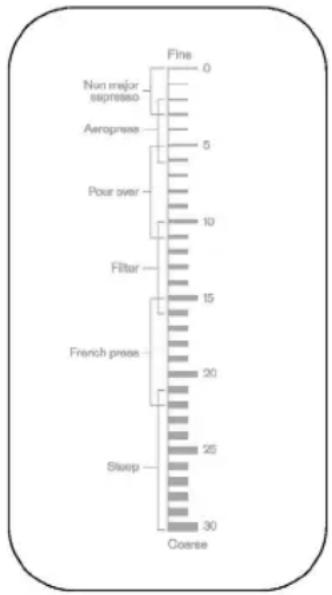

SELECTING THE GRIND SIZE

Refer to the chart inside the bean container lid for recommendations:

Brew Method	Aero-press	Pour over	Filter French press	Steep
Grinding Settings	1-5	4-10	9-15	14-21 20-30
Brewing time		2-4 min.	4-6 min.	6 min. 8 min.

Experiment to find the best setting for your taste.

Calibrations may vary slightly between grinders.

EN

CLEANING AND MAINTENANCE

Note: Always disconnect the appliance before cleaning or disassembling. Never submerge the appliance or its electrical parts into water or any other liquid. Do not use detergents or abrasive pads to clean the appliance.

• Clean the ground coffee cup with warm, soapy water or with a coffee cleaning agent.
• Note: Over time, plastic parts of the appliance may become stained by coffee oils. This is normal and does not affect performance. To remove stains, soak the parts in a mild, non-abrasive bleach solution after use.

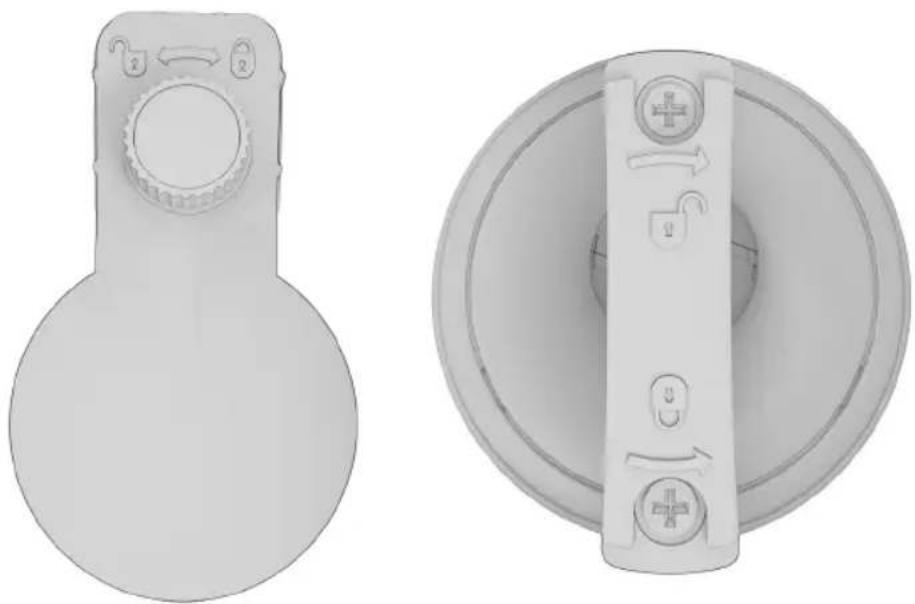

  • To remove the burr for thorough cleaning:
• Twist the protection cap anti clockwise to unlock and lift it out.
• Twist the burr clockwise and pull it upward to remove.

Two views of a white plastic mechanical component: one with a circular handle and two with a circular dial and control buttons (no text or symbols visible)

• Use the included cleaning brush to clean the interior of the bean container and the burr. Wipe the inside area with a damp cloth.
• Reinstall the burr and the protection cap.
• Carefully clean the ground coffee dispenser and the body of the appliance using a damp cloth.

Regular maintenance of your coffee grinder is recommended to maintain optimal performance throughout its lifespan. For heavy residue, use grinder cleaning pellets to achieve a deep clean.

TROUBLESHOOTING

Problem Solution

Coffee grinder does not start	Check the power connection.The protection cap must be correctly placed for the grinder to work.
It is grinding too course.	Choose a lower grinding level.Make sure the burr (3) is correctly assembled and locked into place.

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
• Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

220-240V\~50-60Hz 120W

The time for the equipment to enter off mode is less than 1 minute. The power consumption in off mode is 0.1W.

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

14 VIKTIGE SIKKERHETSANVISNINGER
16 PRODUKTOVERSIKT
17 F∅R F∅RSTE GANGS BRUK
17 SLIK BRUKER DU APPARATET
18 RENGJ∅RING OG VEDLIKEHOLD
19 PROBLEML∅SNING
20 GARANTI
21 PRODUKTSPESIFIKASJONER
21 SUPPORT OG RESERVEDELER
21 RESIRKULERING

NO

VIKTIGE SIKKERHETSANVISNINGER

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

RENGJ∅RING OG VEDLIKEHOLD

Two technical diagrams of a mechanical component, one showing a circular housing with adjustment knobs and a handle, the other showing a circular dial with directional arrows (no text or symbols)

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

Two views of a white plastic mechanical component, one with a circular handle and control knob, the other showing a circular dial with directional arrows (no text or symbols)

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

1. Låg til beholderen til kaffebønner
2. Beskyttelseslag
3. Aftagelig skive
4. Beholder til kaffebønner (tragt)
5. Knap til valg af formalingsgrad
6. START/STOP knap

7. Kop til malet kaffe– Magnetisk system for nem placering.

8. Filterholder, kompatibel med filterholdere til Wilfa Zense, Zense Alux, Performance, Precision og Compact kaffemaskiner.

9. Rengøringsbørste

INDEN IBRUGTAGNING

Two technical diagrams showing a spherical device with a handle and a circular mechanical component with directional arrows (no text or symbols)

Two views of a white plastic device with circular base and side panel, showing mechanical components (no text or symbols)

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

Two technical diagrams of a mechanical component, one showing a circular base with adjustment knobs and a handle, the other showing a circular dial with directional arrows and a plus symbol (no text or labels present)

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

REINIGING EN ONDERHOUD

Two views of a white plastic mechanical component, one with a circular base and two with directional arrows indicating rotation or movement (no text or symbols present)

Diagram of a coffee maker with numbered parts for identification and assembly reference.

Two technical diagrams showing a spherical device with a handle and a circular component with a switch mechanism (no text or symbols present)

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

FR

Two views of a white plastic mechanical component, one with a circular handle and two showing internal components (no text or symbols visible)

FR

CARACTÉRISTIQUES DU PRODUIT

220-240V\~50-60Hz 120W

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

Simple illustration of a laboratory flask with a circular top and side ports (no text or symbols)

Top-down view of a circular mechanical component with internal components and directional arrows (no text or symbols)

Diagram of a coffee maker with numbered parts for identification and assembly reference.

Two technical diagrams showing a spherical device with a knob and a circular component with directional arrows (no text or symbols)

FSC www.fsc.org 100% From well- managed forests FSC® C000000

CG3B-125_CG3AB-125_20_02
