Brand	Wilfa
Model	Svart Aroma CGWS130B
Type	Conical burr coffee grinder
Dimensions (approx.)	200 x 120 x 350 mm
Weight (approx.)	1.5 kg
Power supply	220-240 V ~ 50/60 Hz, 150 W
Bean hopper capacity	Approximately 250 g
Ground coffee container capacity	Not specified (built-in)
Grind adjustment	Variable by rotating the bean hopper
Timer	Yes, adjustable from 0 to approximately 30 seconds
Motor overload protection	Yes, automatic shut-off in case of jamming
Child safety	Locking if hoppers are incorrectly inserted
Housing material	ABS plastic
Maintenance	Clean removable parts with a dry cloth; do not immerse or put in dishwasher
Warranty	5 years (domestic use)
Spare parts	Available through Wilfa customer service
Country of manufacture	Not specified

Frequently Asked Questions - Svart Aroma CGWS130B WILFA

How to adjust the grind on the Svart Aroma grinder?

Adjustment is made by rotating the bean hopper to the right for a finer grind, or to the left for a coarser grind. Adjust before adding beans.

What to do if the grinder does not start?

Check that the plug is properly inserted, that the bean hopper and ground coffee container are correctly inserted, and that the timer is set to a non-zero time. If the problem persists, contact after-sales service.

How to clean the coffee grinder?

Unplug the appliance. Clean the housing, the bean hopper lid, and the grind disc with a dry cloth. Do not use liquid detergent or immerse in water. Do not put in dishwasher.

What is the maximum capacity of the bean hopper?

The hopper can hold approximately 250 g of coffee beans.

Can I use grains other than coffee?

No, this appliance is designed only for coffee beans. Using other grains could damage the mechanism.

What does the high-pitched noise with no ground coffee output mean?

This indicates a blockage of the grinder. Turn off the appliance, remove the beans, check that no foreign objects are present and that the parts are not damaged. Consult the troubleshooting guide.

Is the warranty valid for commercial use?

No, the 5-year warranty applies only for domestic use. Any commercial use voids the warranty.

How to replace the power cord?

The damaged power cord must be replaced by the manufacturer, an authorized technician, or a person with similar qualifications. Do not attempt to repair it yourself.

Can I remove the bean hopper during grinding?

No, never remove the bean hopper before the end of the cycle. This could cause injury or damage the appliance.

Where can I find spare parts?

Contact Wilfa customer service via their website or your retailer. Spare parts are available for this model.

USER MANUAL Svart Aroma CGWS130B WILFA

Black industrial griller with MAX and FILTER control panel, no visible text or symbols on main body

CLASSIC AROMA/SAVOUR

COFFE GRINDER CGWS-130B/WSCG-2/CGWS-130BUK/WSCG-2UK

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

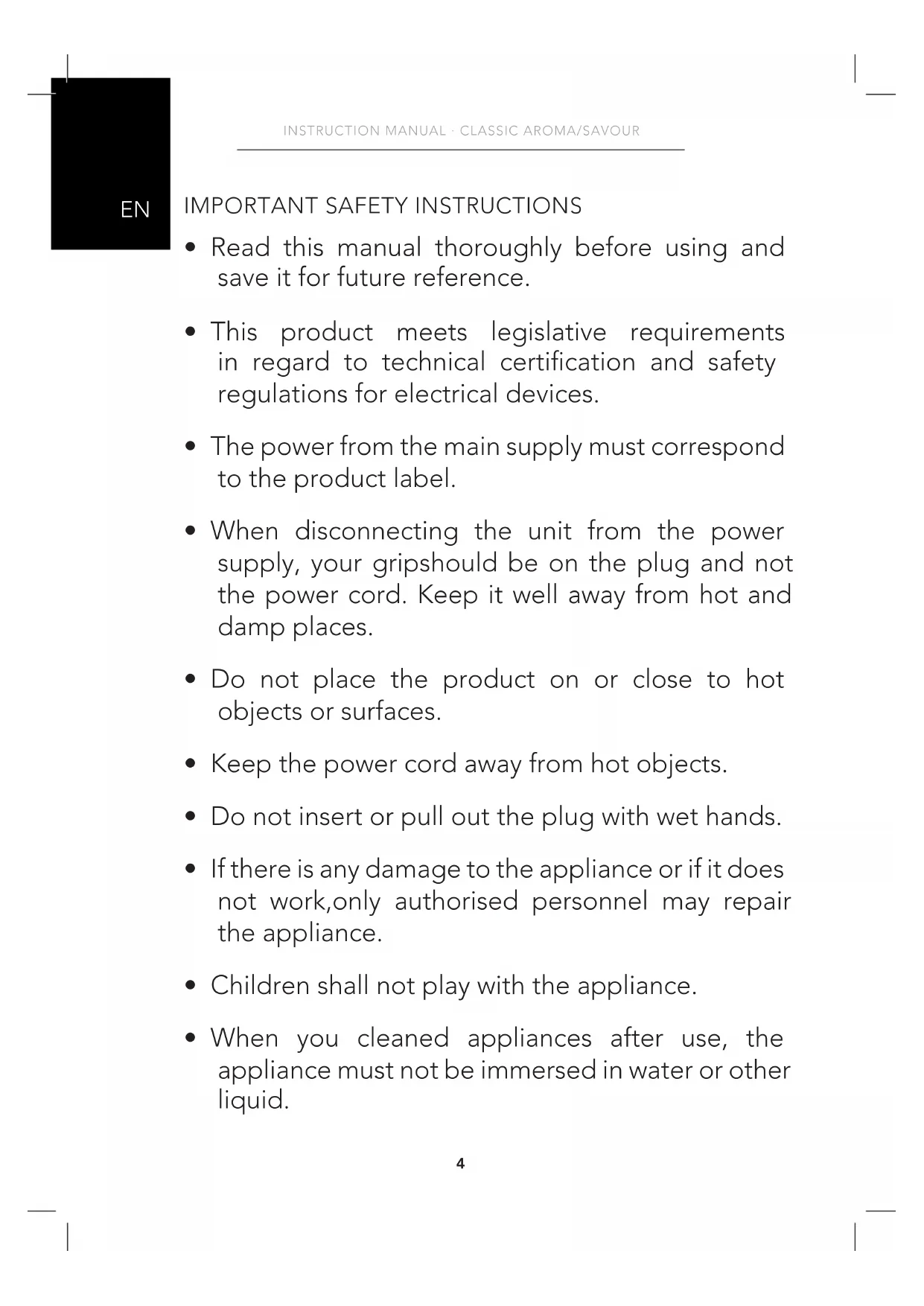

IMPORTANT SAFETY INSTRUCTIONS

• Read this manual thoroughly before using and save it for future reference.
• This product meets legislative requirements in regard to technical certification and safety regulations for electrical devices.
• The power from the main supply must correspond to the product label.
• When disconnecting the unit from the power supply, your grip should be on the plug and not the power cord. Keep it well away from hot and damp places.
• Do not place the product on or close to hot objects or surfaces.
• Keep the power cord away from hot objects.
• Do not insert or pull out the plug with wet hands.
• If there is any damage to the appliance or if it does not work, only authorised personnel may repair the appliance.
  • Children shall not play with the appliance.

• When you cleaned appliances after use, the appliance must not be immersed in water or other liquid.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.
• Regulatory empty the appliance for coffee bean residue.
• This product is intended for indoor, nonindustrial, non-commercial, household use only.

EN

- The main body of this product is made from black plastic material with a stainless steel surface. The accompanying bean cup and freshly ground coffee cup are made from transparent plastic material with UV filter. This product is intended for home use.

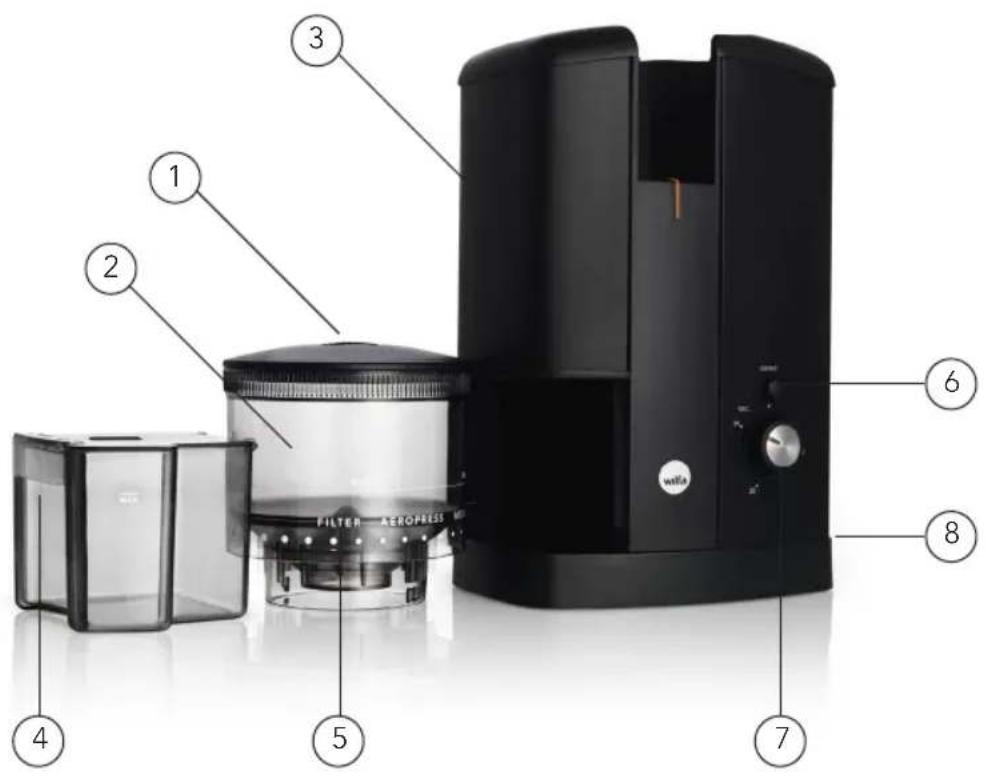

PRODUCT OVERVIEW

EN

1. Bean cup lid
2. Bean cup
3. Main body
4. Cup for freshly ground coffee
5. Grinding level indicator
6. Grinder (start button)
7. Timer
8. Power switch

EN

FUNCTIONS

• This coffee grinder uses a fine-toothed grinder, which guarantees fast feeding and grinding of beans and an excellent end product.
• The bean cup features variable adjustment to the grinding level. The appliance will not work if the freshly ground coffee cup is not inserted correctly.
• Turn the timer to the desired time.
• You can set the desired grinding level via the variable bean cup.
• The power cord is stored under the main body of the unit.
• This product features safety protection to prevent the motor from becoming overloaded.

Note: The grinding time depends on the type of coffee beans, amount of coffee, fineness of grind and your personal flavour preferences.

USE

The product is simple and safe to use. Please do a test-run before using:

• Place the grinding disc on the grinding head inside the main body. Insert the two latches so that they lie flat in the grooves.
• Carefully insert the empty bean cup in the appropriate position (turn to the right).
• Fill the bean cup with the desired amount of coffee beans and close the lid (about 250 g when completely full).
• Insert the cup for freshly ground coffee in the appropriate position on the main body.
• Connect the plug to a socket with the appropriate voltage.
• Turn the timer to the desired time (adjust the grinding time to obtain the desired amount of coffee).
• Turn on the power switch and press Grind (start button) to begin grinding coffee.

Warning:

• Never put coffee beans in the bean cup before it is properly inserted.
• Adjust the grinding level before adding the coffee beans.
• Never remove the bean cup before the grinder has finished operating.
• After grinding: turn the bean cup left to the "OFF" position before removing it and the grinding disc for cleaning. Reinsert the parts after cleaning.

MAINTENANCE AND CLEANING

• This product should be used and stored by adults.
• This product should be kept away from damp places. Do not clean it in washing-up liquid or a dishwasher.
• Do not immerse it in water.
• Do not clean or perform maintenance on the unit while the plug is connected to the mains supply.
• Clean the casing, the lid of the coffee bean cup, the coffeebean cup and coffee grinder disc with a dry cloth. Never use a wet or heavily chemical cleaning agent.
• Store the unit in a dry place out of the reach of children, and avoid direct sunlight.
• If the appliance breaks down or is dropped or damaged, stop using it immediately.
• Do not open the product, as this will invalidate the purchasewarranty.

TROUBLESHOOTING

If the appliance stops working, you can investigate the cause as follows. If the problem persists, please contact your dealer or an authorised service workshop.

Problem Possible causes Solution
Coffee grinder does not operate when the start switch is on.	The plug is not plugged in properly.	Push the plug in properly.
	The mains supply voltage does not correspond to the standard for input supply.	Check that the mains supply is 220 - 240 V.
	The bean cup is not inserted correctly and the grinding level is not set; points to “OFF”.	Reinsert the bean cup and set the grinding level by turning to the right.
	Cup for freshly ground coffee is not inserted correctly.	Insert the cup for freshly ground coffee in the appropriate position.
	The grinding time has not been set; timer points to “0”.	Rotate the timer button to set the grinding time.
	The motor stops due to overload	Contact your dealer or a technician for repair or replacement of the appliance
High-pitch sound, beans not fed into appliance; does not produce ground coffee	The grinder is stuck Switch off the machine and take out the coffee beans. Check to see whether any hard matter has been mixed in with the coffee beans, and check for damaged components

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

PRODUCT SPECIFICATIONS

220V\~240V\~50Hz

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.
