Daily CG2G-260 - Coffee grinder WILFA - Free user manual and instructions

Brand	Wilfa
Model	Daily CG2G-260
Product type	Electric coffee grinder
Usage	Domestic, indoor
Bean hopper capacity	Up to the indicated level (for 2 to 12 cups)
Grind settings	17 levels, from fine to coarse
Quantity selection	2 to 12 cups
Burr type	Removable upper burr (likely ceramic)
Power supply	Mains (wall plug)
Automatic stop	Yes, after grinding the selected quantity
On/off button	Start/Stop
Housing material	Plastic
Removable parts	Ground coffee container, lid, upper burr, protective cap
Cleaning	Do not immerse, clean with a damp cloth, use the provided brush
Dishwasher safe	No (do not wash parts in dishwasher)
Maintenance	Regular, possible use of cleaning tablets
Safety	Safety lid, ground coffee container lid must be properly assembled
Warranty	5 years (domestic use)
Included accessories	Cleaning brush
Support	Wilfa.com, customer service

Frequently Asked Questions - Daily CG2G-260 WILFA

How to use the Wilfa Daily coffee grinder?

Assemble the lid and ground coffee container, fill the bean hopper, select the quantity (2-12 cups) and grind level (17 levels), plug in and press START/STOP. The appliance stops automatically.

Can I adjust the grind while operating?

No, do not adjust the grind setting while operating, as this may block the motor.

How to clean the grinder?

Always unplug before cleaning. Clean removable parts with warm soapy water. Use the provided brush for the interior. Do not immerse the body of the appliance.

What to do if the machine does not work?

Check the electrical connections, ensure the protective cap and ground coffee container are properly installed. Consult the troubleshooting section of the manual.

How to remove the upper burr?

First remove the protective cap by turning the lock counterclockwise and pulling upward. Remove the burr by turning it clockwise and pulling upward.

Can I use cleaning tablets?

Yes, if the burrs are coated with excess powder, the use of coffee grinder cleaning tablets may be necessary.

What is the product warranty?

Wilfa offers a 5-year warranty from the date of purchase for domestic use. The warranty covers manufacturing defects, but not normal wear or misuse.

Can I wash parts in the dishwasher?

No, do not wash in dishwasher. Wash by hand with warm soapy water.

Where to download the manual?

The manual is available in PDF format at notice-facile.com or wilfa.com.

What to do if the grind selector is not working?

Check that the upper burr is in the correct position. Refer to the cleaning instructions for removing and replacing the burr.

USER MANUAL Daily CG2G-260 WILFA

Black Wilfa water heater with 'START/STOP' and 'MAX' labels, no visible text beyond branding

DAILY

COFFEE GRINDER CG2G-260

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

4 IMPORTANT SAFETY INSTRUCTIONS
6 PRODUCT OVERVIEW
7 BEFORE FIRST USE
7 USING THE APPLIANCE
8 CLEANING AND MAINTENANCE
9 TROUBLESHOOTING
10 GUARANTEE
11 PRODUCT SPECIFICATIONS
11 SUPPORT AND SPARE PARTS
11 RECYCLABILITY

EN

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• To protect against electrical shock, do not submerge, cord, plug or unit in water or other liquids.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• Avoid contact with moving parts.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not use other accessories than recommended by the supplier.

• This appliance is intended for households use only.

• The appliance is designed for indoor use only.
• Do not let the cord hang over the table or counter.
• Never tamper with the appliance. Also, do not disassemble or repair the product by yourself. When disconnecting the unit from the power supply do not pull the cord! Use the plug.
• Always operate the coffee grinder with the lid securely mounted. Never insert fingers or foreign objects into grinding spaces before and under operating the unit.
• Regularly empty the appliance for coffee bean residues

EN

PRODUCT OVERVIEW

Exploded view diagram of a microwave oven with numbered parts for identification

1. Lid for bean container
2. Protection lid
3. Removable burr
4. Bean container
5. START/STOP switch

6. Quantity selection knob

7. Grind selection knob

8. Cup for ground coffee
9. Lid of ground coffee cup

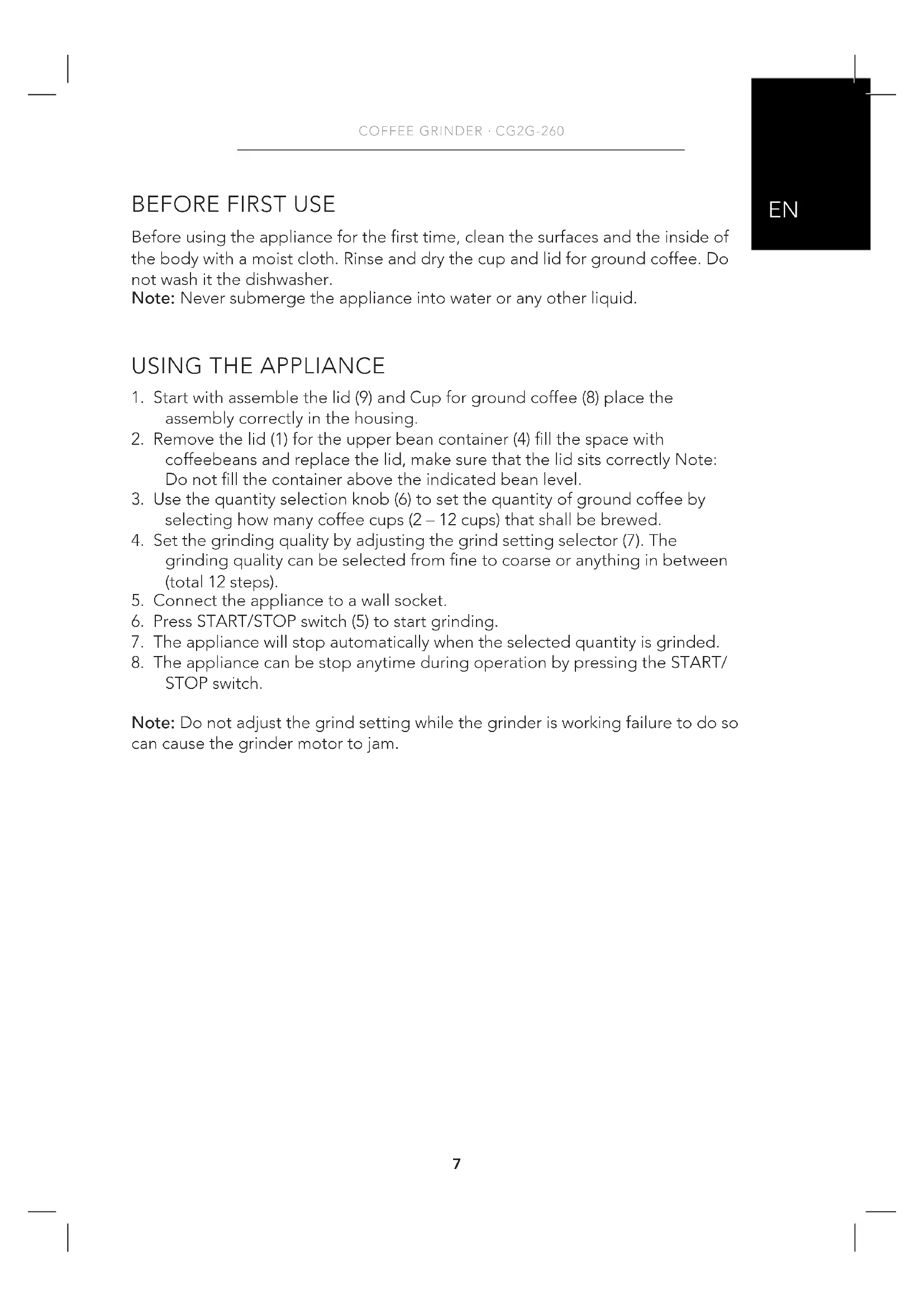

BEFORE FIRST USE

Before using the appliance for the first time, clean the surfaces and the inside of the body with a moist cloth. Rinse and dry the cup and lid for ground coffee. Do not wash it the dishwasher.

Note: Never submerge the appliance into water or any other liquid.

USING THE APPLIANCE

1. Start with assemble the lid (9) and Cup for ground coffee (8) place the assembly correctly in the housing.
2. Remove the lid (1) for the upper bean container (4) fill the space with coffeebeans and replace the lid, make sure that the lid sits correctly Note: Do not fill the container above the indicated bean level.
3. Use the quantity selection knob (6) to set the quantity of ground coffee by selecting how many coffee cups (2 – 12 cups) that shall be brewed.
4. Set the grinding quality by adjusting the grind setting selector (7). The grinding quality can be selected from fine to coarse or anything in between (total 12 steps).
5. Connect the appliance to a wall socket.
6. Press START/STOP switch (5) to start grinding.
7. The appliance will stop automatically when the selected quantity is grinded.
8. The appliance can be stop anytime during operation by pressing the START/STOP switch.

Note: Do not adjust the grind setting while the grinder is working failure to do so can cause the grinder motor to jam.

EN

CLEANING AND MAINTENANCE

Important: Always disconnect the appliance before cleaning or disassembling. Never submerge the appliance or its electrical parts into water or any other liquid. Do not use detergents or abrasive pads to clean the appliance.

• Clean the lid and the ground coffee holder in warm, soapy water.
  • Over time, color from coffee beans may stain on to plastic detachable parts of the appliance. This is normal and does not affect the performance. They may be cleaned by soaking them in mild bleach (non-abrasive) straight after use.

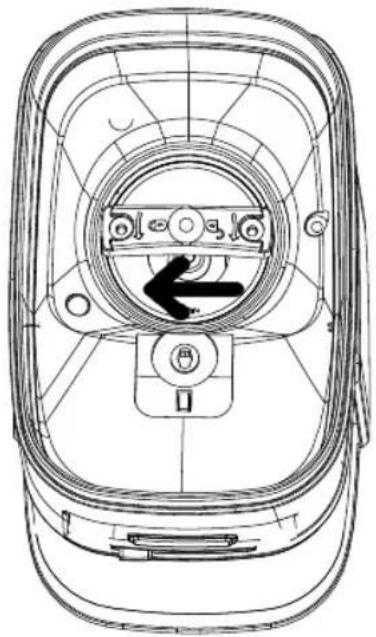

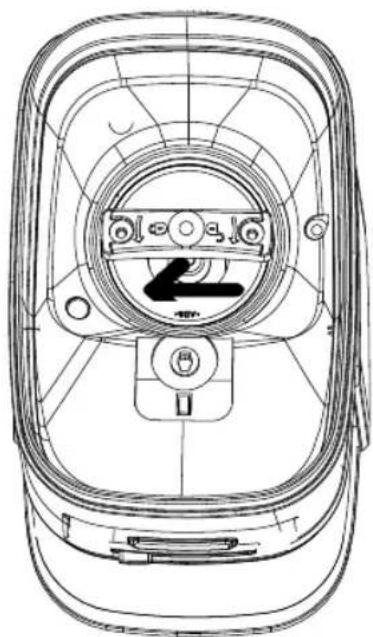

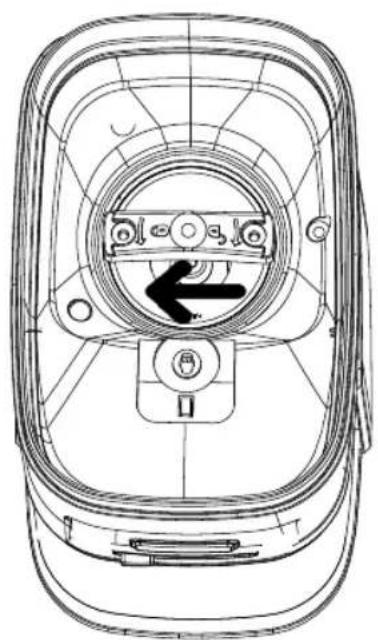

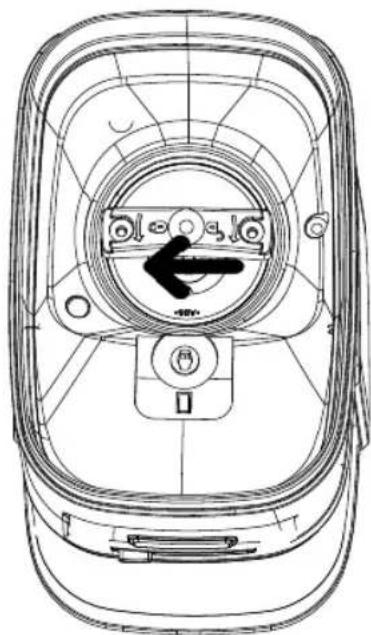

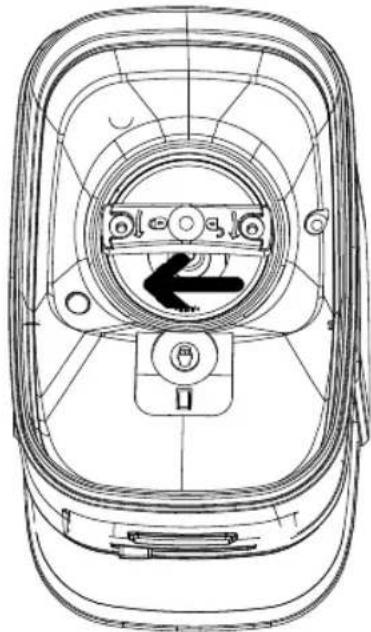

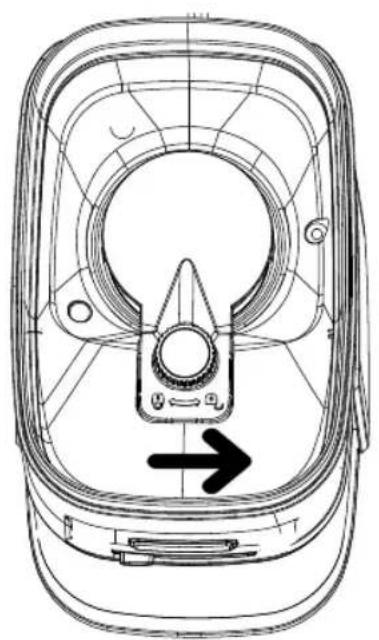

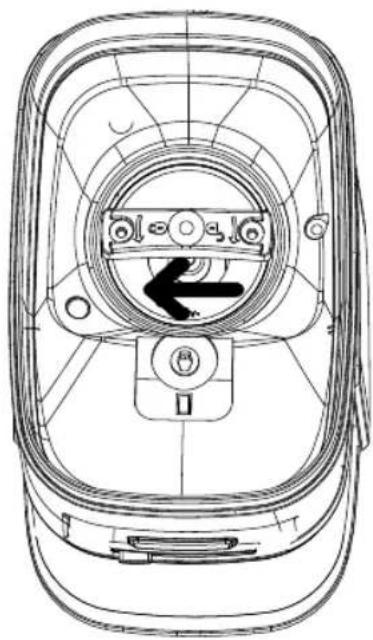

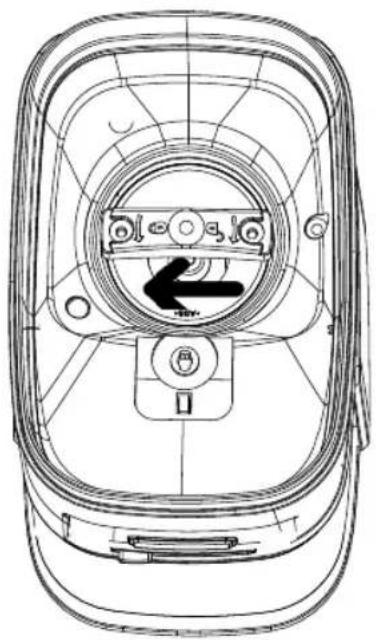

• To remove the burr, first remove the protection cap by twisting the lock anti clockwise, and pull it up. Remove the burr by twisting it clockwise and pulling it upwards to remove.
• Carefully clean the inside space of the upper bean container using the included cleaning brush afterwards wipe the space with a damp cloth.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

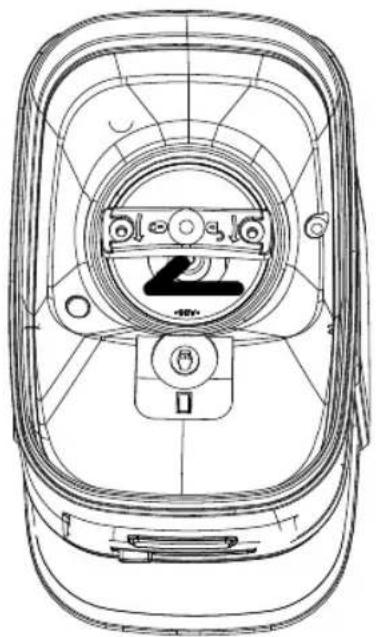

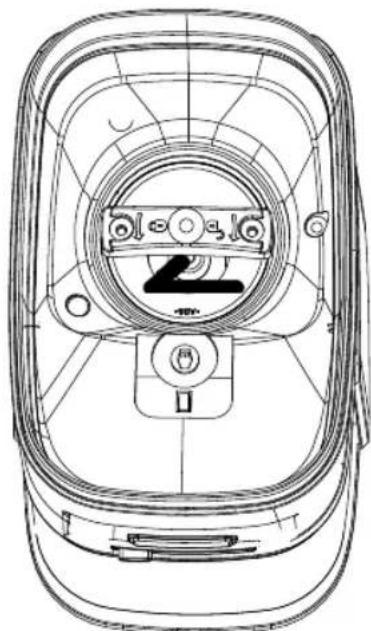

• Reinstall the burr and the protection cap.
• Carefully clean the ground coffee dispenser and the body of the appliance using a damp cloth.
• Regular maintenance of your coffee grinder is recommended to preserve optimal performance throughout the product's lifecycle.
• If the knives inside the grinder are heavily covered by coffee bean powder it may be necessary to use coffee grinder cleaning pellets to achieve good cleaning results.

TROUBLESHOOTING

Problem Solutions
The appliance does not operate or stops during operation.	Check the electrical connection.
	The protection cap or the coffee container is not installed correctly.
	The ground coffee container or its lid is not correctly attached to each other or the items are not correct placed in the coffee grinder.
The grind selector has stopped to work	Check that the burr is correctly positioned. (See cleaning instructions for more information about removing and replacing of the burr.)

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
• Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

PRODUCT SPECIFICATIONS

220V\~240V\~,50-60Hz

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

14 VIKTIG SIKKERHETSVEILEDNING
16 PRODUKTOVERSIKT
17 F∅R F∅RSTE GANGS BRUK
17 BRUKE APPARATET
18 RENGJ∅RING OG VEDLIKEHOLD
19 FEILS∅KING
20 GARANTI
21 PRODUKTSPESIFIKASJONER
21 SUPPORT OG RESERVEDELER
21 GJENVINNING

NO

VIKTIG SIKKERHETSVEILEDNING

Exploded view diagram of a microwave oven with numbered parts for identification

Technical line drawing of a device casing with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view diagram of a microwave oven with numbered parts for identification

Technical line drawing of a device casing with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and a black arrow indicating direction (no text or symbols)

Exploded view diagram of a microwave oven with numbered parts for identification

Technical line drawing of a device casing with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Exploded view diagram of a microwave oven with numbered parts for identification

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Simple line drawing of a rounded rectangular object with a labeled point (1) pointing to its edge, no text or symbols present.

Technical diagram of a microwave oven with numbered parts for identification

Technical line drawing of a device casing with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with concentric rings and a central dial (no text or symbols)

Simple line drawing of a rounded rectangular object with a labeled point (1) pointing to its edge, no text or symbols present.

Technical diagram of a microwave oven with numbered parts for identification

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with circular components and a central dial (no text or symbols)

Exploded view diagram of a microwave oven with numbered parts for identification

Technical line drawings of two views of a device casing with internal components and directional arrows (no text or symbols)

Simple line drawing of a rounded rectangular object with a labeled point (1) pointing to its edge, no text or symbols present.

Technical diagram of a microwave oven with numbered parts for identification

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with concentric rings and central dial (no text or symbols)

CARACTÉRISTIQUES DU PRODUIT

220V\~240V\~,50-60Hz

ASSISTANCE ET PIÈCES DÉTACHÉES

Simple line drawing of a rounded rectangular object with a labeled point (1) pointing to its edge, no text or symbols present.

Technical diagram of a microwave oven with numbered parts for identification

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view diagram of a microwave oven with numbered parts for identification

Technical line drawing of a device casing with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

FSC www.fsc.org 100% From well- managed forests FSC® C000000

CG2G-260_20_01
