MINI MIST / ULTRA COMFORT

Ultrasonic Cool Mist Humidifier

Owner's Manual

Two Honeywell air purifiers, one emitting steam from a control panel (no visible text or symbols)

HUL525/545 SERIES

If you have any questions about the operation of this product, please contact us:

1-800-477-0457

[e-mail]

www.HoneywellPluggedIn.com

⚠️ IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HUMIDIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. The humidifier should ALWAYS be placed on a firm, flat, waterproof surface at least three feet (1.2m) away from bedside, 12 inches (30cm) from the wall. KEEP OUT OF REACH OF CHILDREN AND PETS.
2. Be sure the humidifier is in a stable position and the power cord is away from heated surfaces and out of the way to prevent the humidifier from being overturned.
3. DO NOT leave the humidifier unattended in a closed room. Doing so may result in personal injury or property damage. If room becomes saturated, open the door and turn the humidifier off or down.
4. Before using the humidifier, extend the cord and inspect for any signs of damage. DO NOT use the unit if the cord has been damaged. DO NOT operate with power cord coiled or with twist tie in place.
5. The humidifier has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
6. CAUTION: To avoid fire or electric shock hazard, plug the humidifier directly into a 120V AC electrical outlet. To avoid risk of fire, electric shock, or personal injury, NEVER use an extension cord or power strip.
7. The humidifier should ALWAYS be

unplugged and emptied when not in operation or while being cleaned. Turn off and unplug humidifier before moving. DO NOT move or tilt humidifier while it is in operation. Plug and unplug unit with dry hands. NEVER pull by cord.

1. DO NOT operate the humidifier without water. Turn off and unplug unit when tank is empty.
2. Humidifier requires regular cleaning. Refer to and follow cleaning instructions.
3. DO NOT operate outdoors; this humidifier is intended for indoor residential use only.
4. DO NOT place in direct sunlight, high temperature areas or near computers or sensitive electronic equipment.
5. DO NOT cover or insert objects into any openings on the unit. DO NOT block intake or output vents.
6. DO NOT touch the nebulizer while the unit is plugged in, as burns could result.
7. DO NOT attempt to repair or adjust any electrical or mechanical functions on this humidifier. Doing so will void your warranty.
8. DO NOT add any essential oils or medications (e.g. Vicks VapoSteam®) into the Base Water Reservoir or Water Tank. Doing so could damage the humidifier and void the warranty.
9. For Residential Use Only.

SAVE THESE INSTRUCTIONS

GETTING TO KNOW YOUR COOL MIST HUMIDIFIER

How it Works

Water is released from the Water Tank into the Reservoir. A Nebulizer vibrates at ultrasonic frequency, breaking the water into a fine mist. The mist is quietly propelled by a fan up a vertical Mist Chamber to the Mist Outlet where the cool, visible mist enters the room. This humidifier will shut off when the water level is low or when the Tank is removed from the Base.

HUL545 tank is 1 gallon

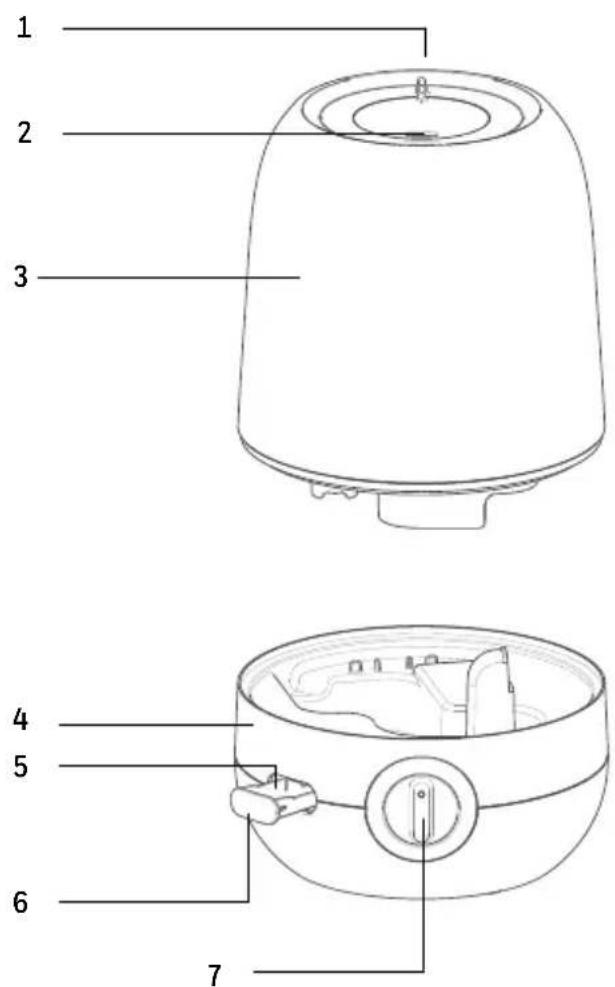

1 2 3 4 5 6 7

HUL525 tank is 1/2 gallon

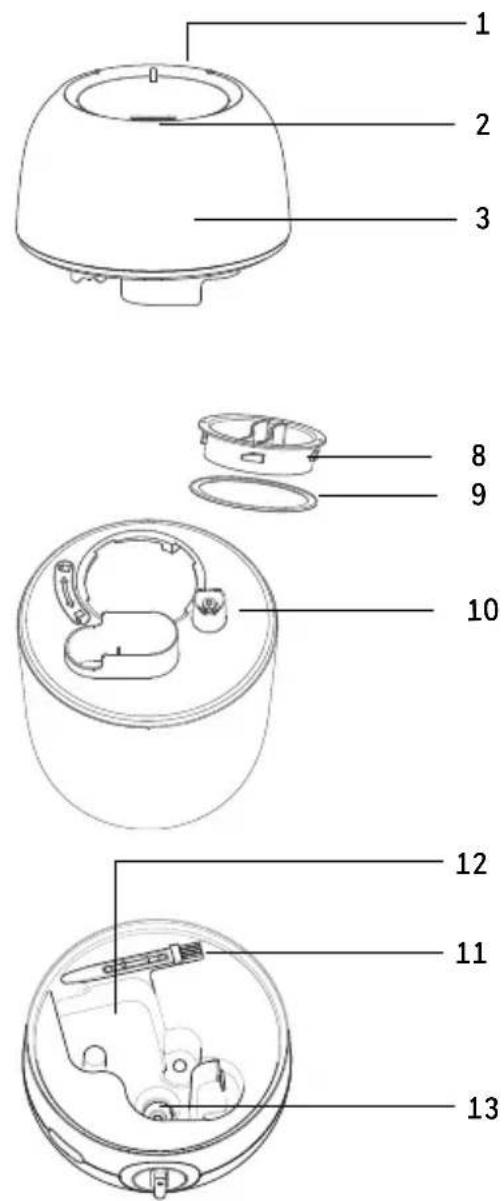

1 2 3 8 9 10 12 11 13

Components

1. Tank Handle (not shown)
2. Mist Outlet
3. Water Tank
4. Base
5. Essential Oil Pad
6. Essential Oil Tray

7. Power Knob

8. Tank Cap

9. Gasket
10. Plunger
11. Cleaning Brush
12. Reservoir
13. Nebulizer

SETTING UP YOUR HUMIDIFIER

Unpack the Humidifier

Keep this Owner's Manual for reference

• Remove packaging materials. Remove twist tie from power cord and extend power cord to full length.
• Place on a firm, level, water resistant surface a minimum of 12" (30cm) from any walls. Mist should be directed away from any walls, bedding and furniture.

12" (30 cm)

Hard Water and White Dust

• High mineral content in your water, also known as hard water, may cause a white mineral residue to accumulate on surfaces in the room near the humidifier. This mineral residue is commonly referred to as white dust. The higher the mineral content (hardness) of your water, the greater the potential that an ultrasonic humidifier may produce white dust.
• White dust is not a result of a defect or flaw in the humidifier. It is a result of the amount of minerals suspended in the water you are using.
• To reduce white dust, use distilled water or a Protec PDC51V2 (PDC51CV2 in Canada) Demineralization Cartridge available through Consumer Relations; see back of this manual.

FILLING/REFILLING

NOTE: Tank should be carried using two hands; one hand on the Tank Handle and the other supporting the bottom of the Tank.

Kaz USA, Inc. will not accept responsibility for property damage caused by water spillage.

⚠️ HUL525 holds 1/2 gallon (1.9L) of water and HUL545 holds 1 gallon (3.8L) of water (tank and reservoir combined).

Illustration of a laboratory gas collection apparatus with a central pump and side arm (no text or symbols)

Diagram of a mechanical component with rotating arrow and internal components (no text or symbols)

Diagram showing a device with a lid and a base, both pointing downward (no text or symbols present)

Filling:

ALWAYS turn the the humidifier off before removing the Water Tank.

1. Remove Water Tank and turn upside down. Remove Tank Cap by turning counterclockwise (left). Fill Tank with cool water. DO NOT fill with warm or hot water.
2. Replace Tank Cap by turning clockwise (right), aligning arrow to lock symbol. Be sure Gasket is in place.
3. Place Tank on Base. Water will drain from the Tank into the Reservoir when the Plunger is engaged.

Simple line drawing of a device's bottom base with a circular button and arrow indicating rotation (no text or symbols)

3 50% 76°C Honeywell 20% 40-80% 10-140%

NOTE: Position humidifier to direct mist output away from walls, furniture and bedding.

1. With the Power Knob in the OFF position ○, plug the humidifier into a polarized 120V outlet.

⚠️ CAUTION: TO AVOID ELECTRIC SHOCK, DO NOT PLUG HUMIDIFIER INTO AN OUTLET WITH WET HANDS.

1. Turn Power Knob to the right to turn on, then turn to left or right to set desired mist level.
2. Humidity Level: When a comfortable humidity level is reached, turn Power Knob to a lower setting.

A comfortable humidity level is between 40-60%. Consider using a humidity monitor (not included) to display current room humidity and temperature.

CONDENSATION: If you notice condensation on the walls, windows or around the humidifier, the humidity level is too high. Open doors to the room or turn off humidifier until humidity level drops.

Mist Outlet

This humidifier features a directional Mist Outlet. Use this feature to direct the mist where you want it most. The Outlet will rotate 90^ in each direction from front to reduce white dust ingestion in the rear air input vent.

Simple diagram of a device with a circular top and curved arrows indicating rotation or direction (no text or symbols)

HUL545

Simple line drawing of a circular device with directional arrows indicating rotation or movement (no text or symbols)

HUL525

USING YOUR HUMIDIFIER CONTINUED

Using The Essential Oil Tray:

Line drawing of a curved object with a knob and handle (no text or symbols)

Line drawing of a hand pouring liquid into a pipe fitting (no text or symbols)

Line drawing of a hand holding a tool over a circular component (no text or symbols)

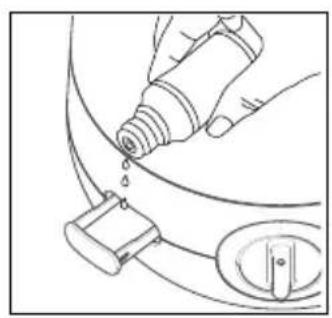

This humidifier features an Essentil Oil Tray that can be used with your favorite essential oil for added enjoyment. This is not a diffuser – the oil does not come in contact with water and is passively evaporated into the air.

Essential oils are not included.

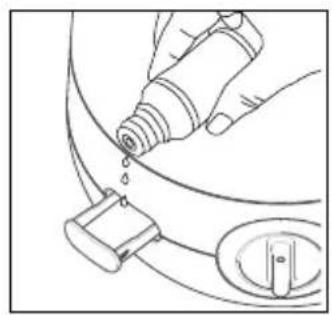

1. Push and release tray to open.

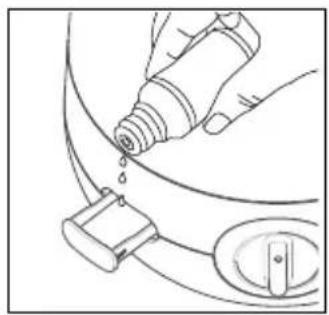

2. Add a few drops of essential oil to the Pad.

⚠ WARNING: DO NOT POUR ANY LIQUIDS INTO THE MIST OUTLET. DO NOT ADD LIQUID INHALANTS, ESSENTIAL OILS OR ANY ADDITIVES TO THE WATER TANK. DOING SO CAN HAVE ADVERSE EFFECTS ON THE HUMIDIFIER AND VOID THE WARRANTY.

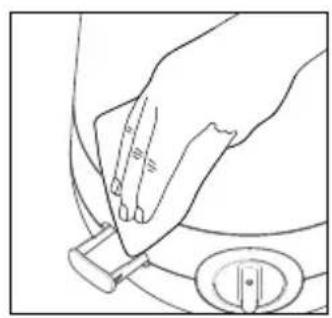

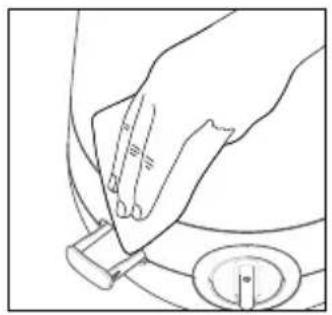

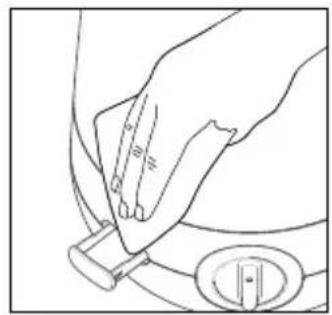

1. To clean the Essential Oil Tray, gently wipe residue from the Tray. Replacement essential oil pads can be ordered through Consumer Relations; see back of this manual.

Using The Demineralization Cartridge:

Line drawing of a robotic vacuum cleaner with a device inserted, showing internal components and no text or symbols.

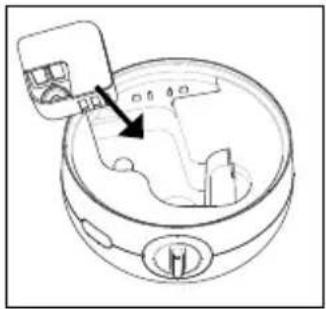

This humidifier has been designed to be used with the Protec PDC51V2 or PDC51CV2 Demineralization Cartridge (not included). In hard water areas, use of distilled water or a demineralization cartridge with tap water will help minimize the production of white dust. Cartridges can be ordered through Consumer Relations; see back of this manual.

Daily Maintenance

For best results, use fresh clean water every day.

CLEANING YOUR HUMIDIFIER

To keep your humidifier running efficiently, clean it regularly. Weekly cleaning is recommended. All maintenance should be done in the kitchen or bathroom on a water-resistant surface near a faucet.

To properly clean your humidifier, we recommend the separate processes of Scale Removal and Disinfecting. These two processes must be performed separately.

Before Cleaning

1

Simple line drawing of a cylindrical object with a handle and internal components, no text or symbols present.

1. Turn off and unplug humidifier. Never clean the humidifier when it is running.
2. Remove Water Tank and empty completely from the Tank and Base. Remove any accessories from the Water Tank and Base.

Scale Removal

Follow steps 1-2 in Before Cleaning section, then follow the additional steps below.

1 2C V

Diagram of a mechanical component with a rotating arrow, no text or symbols present

3 MINUTES 20

Illustration of two hands performing a circular tool on a surface, no text or symbols present

Simple line drawing of a cylindrical object with a curved top and stem, no text or symbols present

6 n=10

Simple line drawing of a cylindrical object with a stem, no text or symbols present

HUL525 HUL545

1. Pour 2 cups (.5 liters) of undiluted distilled white vinegar into the Water Tank.
2. Replace Tank Cap and swish vinegar in Tank to coat the inside of the Water Tank.
3. Place Tank on Base, allowing vinegar to drain into the Water Reservoir. The vinegar will loosen mineral buildup on the Nebulizer, Plunger and in the bottom of the Tank. Soak for 20 minutes.

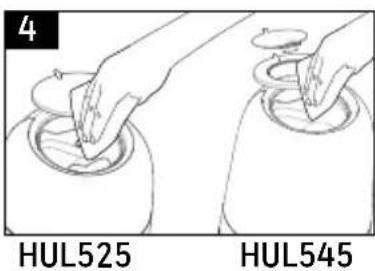

4. While soaking, remove the Mist Outlet and wipe with cloth soaked in vinegar.
5. Remove Water Tank and empty vinegar into sink.
6. Use a soft cloth or the included Cleaning Brush to gently clean Nebulizer, and all areas in the Reservoir. NOTE: Nebulizer is fragile. DO NOT apply extreme pressure.
7. Pour vinegar from the Base into the sink. Pour from the side to avoid leaking into Control Knob. Rinse the Tank and Reservoir with clean water until the smell of vinegar is gone.

⚠️ CAUTION: DO NOT SUBMERGE BASE IN WATER. DOING SO WILL DAMAGE THE HUMIDIFIER AND VOID THE WARRANTY.

CLEANING YOUR HUMIDIFIER CONTINUED

Disinfecting

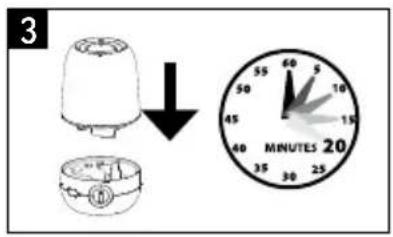

Before starting the disinfecting process, follow Steps 1-2 in the Before Cleaning section.

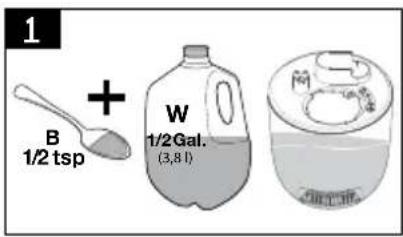

1 B + 1/2 tsp W 1/2 Gal. (3,8 l)

Simple diagram of a mechanical or fluidic device with a circular top and internal flow arrows, no text or symbols present.

3 MINUTES 20

Simple line drawing of a cylindrical object with a protruding rod, no text or symbols present

Simple line drawing of a circular object with a stem, no text or symbols present

NOTE: Bleach may stain clothes. It is recommended to wear rubber gloves during this process to protect your hands.

1. For HUL525, mix 1/2 tsp of bleach with 1/2 gallon (1.9L) of water. For HUL545, mix 1 tsp of bleach with 1 gallon (3.8L) of water and add to Water Tank.
2. Replace Tank Cap and swish bleach solution in Tank to coat the inside of the Water Tank.

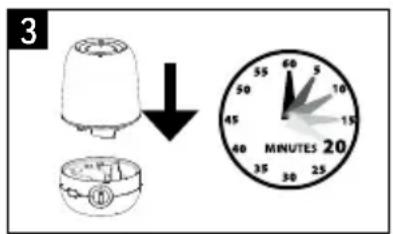

3. Place Tank on Base, allowing solution to drain into the Water Reservoir. Soak for 20 minutes.
4. Remove Water Tank and empty solution into sink.
5. Pour solution from the Base into the sink. Be sure to pour out of the side of the Base to avoid leaking into the Control Knob. Rinse Tank and Reservoir area with clean water until the smell of bleach is gone.

CAUTION: DO NOT SUBMERGE BASE IN WATER. DOING SO WILL DAMAGE THE HUMIDIFIER AND VOID THE WARRANTY.

END OF SEASON CARE AND STORAGE

Follow the cleaning instructions when the humidifier will not be used for at least one week, or at the end of the season. At the end of the season, remove any accessories from the humidifier.

Dry the humidifier completely before storing. DO NOT store with water inside the Water Tank. Pack unit in original carton and store in a cool, dry location.

PROBLEM POSSIBLE CAUSE SOLUTION
No power lights • Unit not plugged in		• Plug unit in
	• Unit is not turned on	• Turn unit on
Power is on and little or no mist is produced	• No water in Tank	• Fill Water Tank
	• Mineral deposits on Nebulizer	• Clean Nebulizer (Refer to Cleaning Your Humidifier section)
	• Power setting may be too low	• Turn power up by turning knob clockwise
	• Auto shut-off feature has been engaged	• Reset the humidifier by turning it off for a few seconds, then turn back on
	• The demineralization cartridge (sold separately) may be beyond its service life	• Remove Cartridge; contact Consumer Relations for replacement
Unit is leaking • Tank may be damaged		• Check for cracks on tank and contact Consumer Relations to replace, if necessary.
	• Tank Cap is not tight	• Tighten Tank Cap
	• Tank Cap Gasket may be missing	• Check to see if Gasket is attached to inside of Cap; contact Consumer Relations for replacement
	• Unit may not be on a level surface	• Be sure unit is level
Condensation forms around humidifier or on windows	• Mist intensity is set too high for room size or current humidity level	• Decrease mist output to low setting or open door to the room
White dust settling on surfaces in room	• Mineral content in hard water • Dilute tap water with distilled water to minimize white dust
		• Consider use of a PDC51V2 or PDC51CV2 Demineralization Cartridge; contact Consumer Relations to purchase

NOTE: Failure to keep this unit clean from mineral deposits normally contained in any water supply will affect the efficiency of operation of this unit. Customer failure to follow these instructions may void the warranty.

CONSUMER RELATIONS

We are here to help. Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.HoneywellPluggedIn.com

Please be sure to specify Model number HUL525 or HUL545

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

SPECIFICATIONS

Electrical rating: 120V, 60Hz., 25W

Capacity: HUL525 ½ gallon; HUL545 1 gallon

FCC COMPLIANCE

This device complies with Part 18 of the FCC rules.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply within the limits for Consumer ISM equipment, pursuant to Part 18 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee That interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.

2 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

This 2 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

A. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.
B. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
C. This warranty does not cover the filters, pre-filters, UV bulbs or other accessories (if included) except for material or workmanship defects.

MINI MIST / ULTRA COMFORT

Two Honeywell air purifiers, one emitting steam from a white lid (no visible text or symbols on the devices themselves)

HUL525/545 SÉRIES

Simple line drawing of a mechanical device with a central shaft and base, no text or symbols present.

Diagram of a mechanical component with a rotating arrow and internal components (no text or symbols)

Diagram showing a device with a lid and a base, both with an arrow indicating downward motion (no text or symbols present)

Remplissage :

Diagram of a device's bottom base with a circular button and directional arrow (no text or symbols)

3 50% 76° Honeywell 20% 40-80% 10-150%

Simple diagram of a device with circular components and curved arrows indicating rotation or motion (no text or symbols)

HUL545 HUL525

Diagram of a circular device with bidirectional arrows indicating rotation or movement (no text or symbols)

UTILISATION (SUITE)

Simple line drawing of a curved object with a knob and handle (no text or symbols)

Line drawing of a hand pouring liquid into a pipe with a valve (no text or symbols)

Line drawing of a hand holding a tool near a circular component (no text or symbols)

Technical diagram showing a device component with an arrow pointing to a labeled component, likely indicating assembly or inspection.

Line drawing of a cylindrical object with a handle and internal components, mounted on a stand (no text or symbols)

Simple line drawing of a container with internal components and a circular arrow below (no text or symbols)

3 MINUTES 20

4 HUL525 HUL545

Simple line drawing of a cylindrical object with a protruding rod, no text or symbols present

Hand placing a small object into a circular container with a label (no text or symbols on the object itself)

Simple line drawing of a circular object with a stem, no text or symbols present

Simple diagram of a container with internal components and a circular arrow indicating rotation (no text or symbols)

3 MINUTES 20

Simple line drawing of a cylindrical object with a flower-like shape on its side, no text or symbols present.

Simple line drawing of a circular object with a stem, no text or symbols present

CONFORMITÉ AUX NORMES FCC

Two Honeywell air purifiers, one emitting steam from a misty lid (no visible text or symbols)

HUL525/545 SERIES

Illustration of a laboratory gas collection apparatus with a central column and tubing (no text or symbols)

Diagram of a mechanical component with a rotating arrow and internal components (no text or symbols)

Diagram showing a device with a lid and a magnified view of its internal structure, labeled with Chinese text.

Llenado:

Diagram of a device's bottom panel with a circular button and directional arrow (no text or symbols)

3 50% 76° Hot Water heater Dry Comfort Number 1-2000 40-80% 2000mm Honeywell

Simple diagram of a device with circular ports and curved arrows indicating rotation or direction (no text or symbols)

HUL545

Diagram of a circular device with bidirectional arrows indicating rotation or direction (no text or symbols)

HUL525

Line drawing of a curved mechanical component with a knob and handle (no text or symbols)

Line drawing of a hand pouring liquid into a pipe fitting (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram of a device inside a circular housing with a labeled component (no text or symbols present)

Simple line drawing of a cylindrical object with a protruding rod, no text or symbols present

Illustration of two hands holding circular containers with handles, no text or symbols present

Simple line drawing of a cylindrical object with a handle and base, no text or symbols present

Hand placing a small object into a circular container with a lid, no text or symbols visible

Simple line drawing of a spherical object with a stem, no text or symbols present

HUL525 HUL545

Simple diagram of a mechanical component with a circular top and curved arrow below, no text or symbols present.

3 MINUTES 20

Simple line drawing of a cylindrical object with a stem, no text or symbols present

Simple line drawing of a circular object with a stem and a small protrusion, no text or symbols present.

© 2021 All rights reserved.

Manufactured by: Kaz USA, Inc., a Helen of Troy Company

400 Donald Lynch Blvd., Suite 300, Marlborough, MA 01752

Imported by: Kaz Canada, Inc., a Helen of Troy Company

6700 Century Avenue, Suite 210, Mississauga, Ontario L5N 6A4

Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited.

Honeywell International Inc. makes no representation or warranties with respect to this product.

Made in China

For Responsible recycling, please visit:

www.RecycleNation.com

www.RecycleNation.com

Helen of Troy

CREATIVE DEPARTMENT ARTWORK SPECIFICATIONS

Brand: Honeywell

Category: Humidifier

Model: HUL525/545 Series

Artwork Part #: A005409R0

Die Line Part #: N/A

Subject: Owner's Manual

Region: US & CA

Flat Size: IN: W11.0 x H8.5

MM: W279.4 x H215.9

Folded Size: IN: W5.5 x H8.5

MM: W139.7 x H215.9

Scale: 1/1

Material:

Page count: 38

Revision: 7

Date: 09MAR21

Release Date: 11MAR21

Rerelease Date:

Colors:

Dielines (Do not print)

Cyan

100%

Magenta

100%

Yellow

100%

Black

100%

Special Instructions:

Quality Requirement of Artwork and Quality

Clarification Process of Artwork Printing:

Meet Eng-QS-06&02

Kaz USA, Inc., a Helen of Troy Company

Creative Services

Marlborough, MA 01752 USA

[phone]
