Product type	Fan coil unit for air conditioning
Brand	HTW
Model	MKH2V500R3
Mounting	Floor or ceiling
Power supply	220-240 V ~ 50 Hz, single phase
Rated current	0.49 A
Power consumption	50 W
Air flow	790 m³/h
Cooling capacity	4.30 kW
Heating capacity	4.70 kW
Sound pressure	46 dB(A)

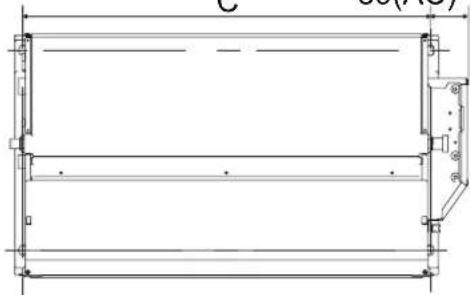

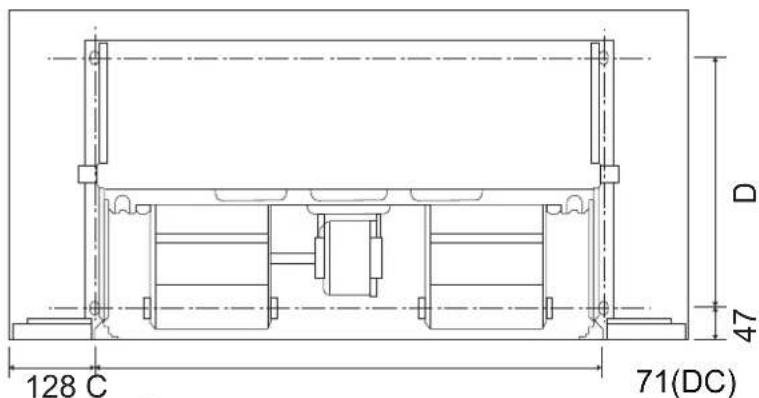

Dimensions (mm): A x B x C	1240 x 495 x 984
Dimensions (mm): D x E x F	375 x 123 x 93

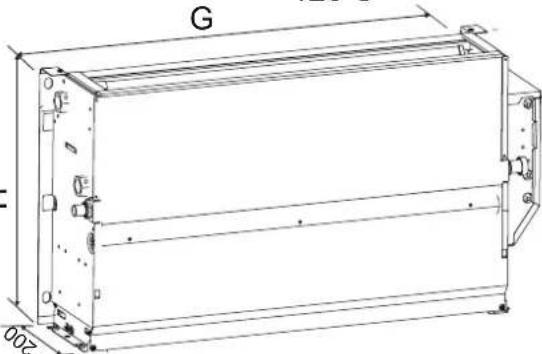

Dimensions (mm): G x H	1078 x 455
Coil connection	G 3/4"
Condensate drain connection	Outer diameter 18.5 mm
Air filter	Washable, nylon fiber
Fan speeds	7 manual speeds + automatic
Wired control (optional)	KJ R-75A/BK-E (CL97812) for DC or AC
Warranty	Not specified, see dealer
Other compatible models	MKH1, MKH2, MKH3 series V150 to V800

Frequently Asked Questions - MKH2V500R3 HTW

What type of device is the MKH2V500R3?

It is a fan coil unit designed for air conditioning, usable for floor or ceiling mounting.

What is the required power supply?

The device operates on single phase 220-240 V ~ 50 Hz, with a rated current of 0.49 A and power consumption of 50 W.

What are the cooling and heating performances?

The cooling capacity is 4.30 kW and the heating capacity is 4.70 kW under standard conditions.

How to adjust the air direction?

You can manually adjust the grille by removing the screws, turning the louver 180°, and putting it back.

What regular maintenance is required?

Clean the air filter at least once a month with compressed air or water. Check the heat exchanger and drainage every six months.

Can I install the device myself?

No, installation and repairs must be carried out by a qualified technician to avoid electrical risks and damage.

What are the important safety precautions?

Ensure reliable grounding. Do not wash the device with water. Use a residual current device. Cut off power before any maintenance.

Does the unit produce error codes?

Yes, if the central controller is used, codes like E7 (E2PROM error) or P1 (water temperature protection) may appear. Contact a professional.

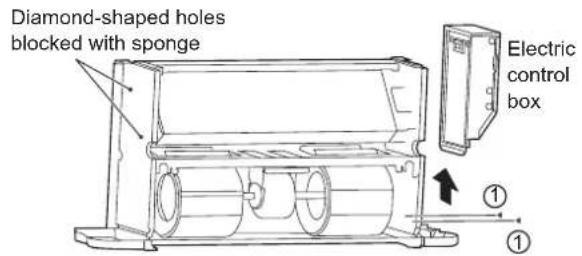

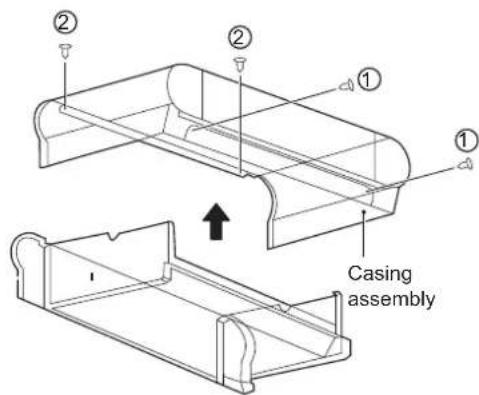

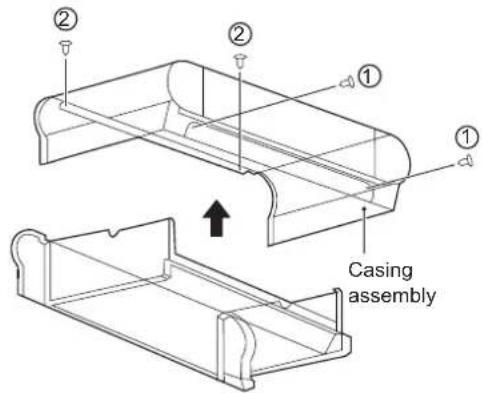

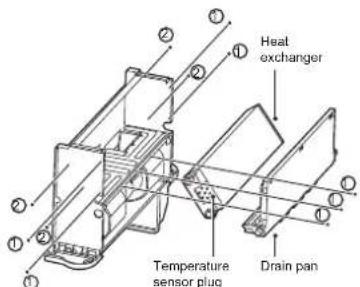

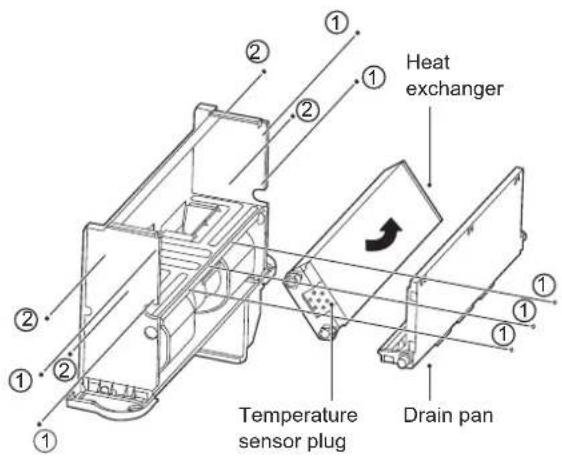

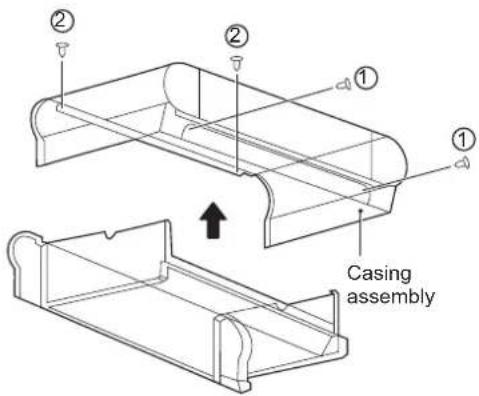

How to change the side of the water connections?

Disconnect the device, remove the casing, the condensate pan, the heat exchanger, turn it, then plug the holes with a sponge and reinstall.

What to do if white mist comes out of the unit?

This is normal in cooling mode with high humidity. If persistent, have a professional clean the inside to avoid deposits.

USER MANUAL MKH2V500R3 HTW

White rectangular electronic device labeled 'HTW' with ventilation grille (no additional text or symbols visible)

SUELO TECHO FANCOIL

MKH2

HTW-MKH2-V250-R3 | HTW-MKH2-V350-R3

HTW-MKH2-V500-R3 | HTW-MKH2-V800-R3

EN Owner's and Installation Manual

Please, read carefully before using the product.

Technical line drawing of a rectangular electronic device with mounting flanges and internal compartments (no text or symbols)

Entrada de aire

Figura 5-3

Line drawing of a rectangular device with a mesh grille and vertical supports (no text or symbols)

Pure technical diagram of a heat exchanger or cooling unit with no text, numbers, or symbols

Technical line drawing of a mechanical enclosure or enclosure with internal compartments (no text or symbols)

Figura 5-10

Technical line drawing of a mechanical component with labeled dimensions 'a' (no text or symbols beyond basic lines)

Technical diagram of a device rear panel with labeled ports (d and b) and internal components (no text or symbols beyond labels)

Figura 5 11-

FANCOIL CEILING FLOOR

MKH2

ENGLISH

Owner's and Installation Manual

HTW-MKH2-V250-R3 | HTW-MKH2-V350-R3

HTW-MKH2-V500-R3 | HTW-MKH2-V800-R3

CONTENTS

1 PRODUCT OVERVIEW 02

2 WARNING

• 2.1 Meaning of Various Labels ......03
• 2.2 Warning 03
• 2.3 Note 03
• 2.4 Information ......04

3 OPERATION INSTRUCTIONS

• 3.1 Standard Conditions for Use 04
• 3.2 Switch and Control 04
• 3.3 Air Supply Direction Adjustment 06

4 CLEANING AND MAINTENANCE

• 4.1 Maintenance by Customer 06
• 4.2 Professional Maintenance 06

5 INSTALLATION INSTRUCTIONS

• 5.1 Packaging and Assembly 09
- 5.2 Handling Instructions 09

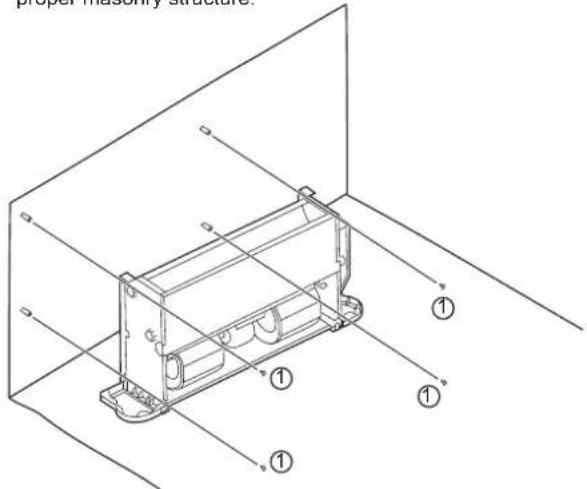

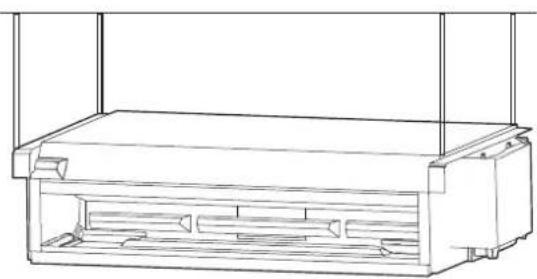

• 5.3 Installation 09
• 5.4 Liquid Pipe Connections ...... 12
• 5.5 Electrical Connection 14
• 5.6 Startup Guide ......16

6 SERVICE GUIDE

• 6.1 Troubleshooting ...... 16
• 6.2 Non-Unit Related Faults 17
  • 6.3 Product Data ......18

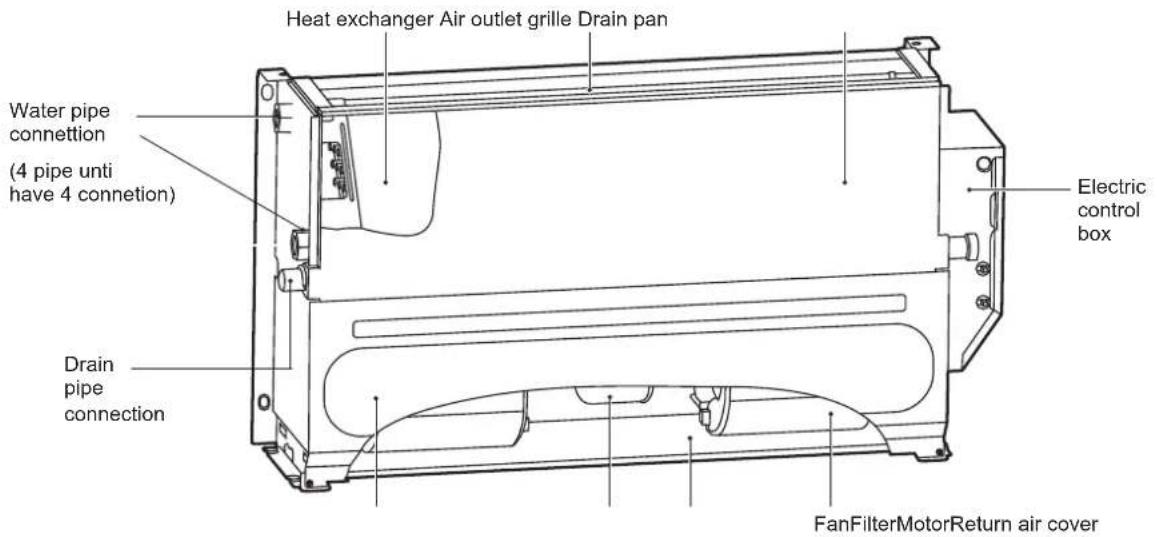

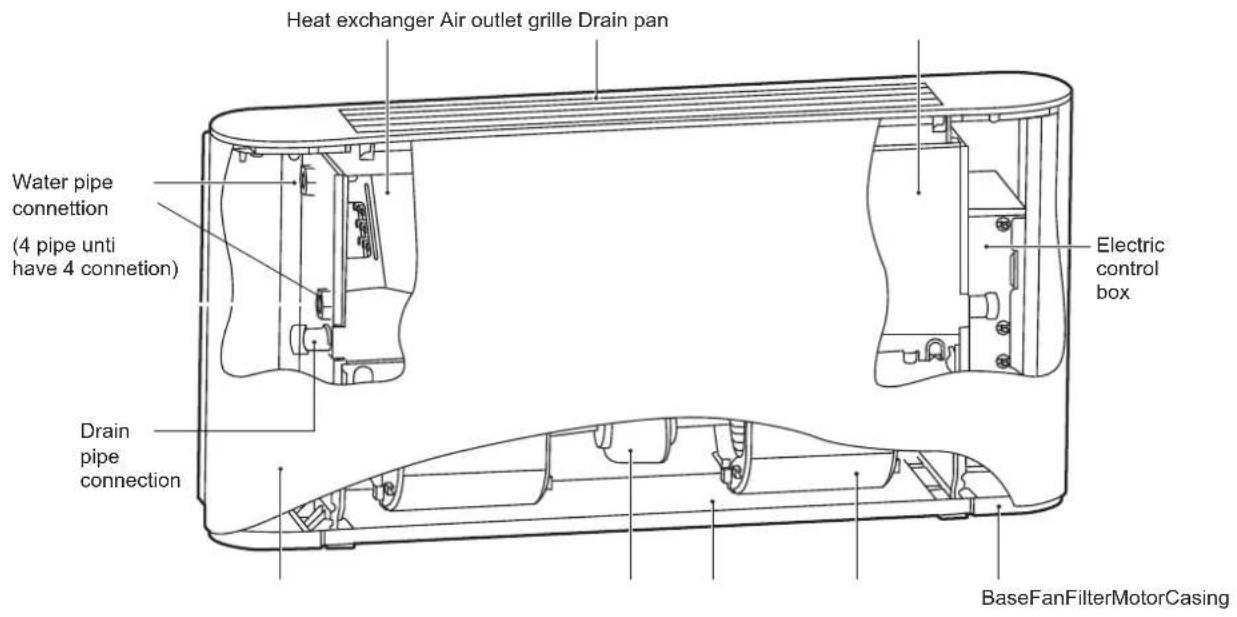

1 PRODUCT OVERVIEW

This ceiling and floor type unit is used for indoor air quality regulation in various scenes. This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.

NOTE

All the illustrations of this manual are for explanatory purpose only. If the appearance, functions and physical objects are inconsistent, refer to the actual product.

NO.	Name	Schematic Unit Qty Remarks
1	Operation and Installation Manual		Pcs Accessories
2	Fastening screw		Pcs 4	To be purchased separately
3	Three-way valve and its piping assembly		Set	1 To be purchased separately from manufacturer

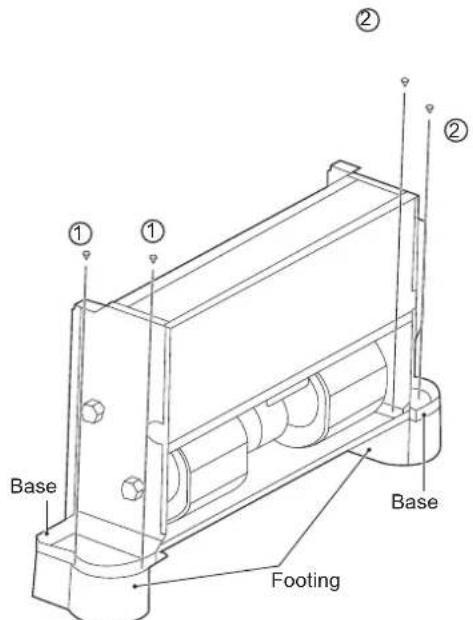

4	Footing		Set	1 To be purchased separately from manufacturer

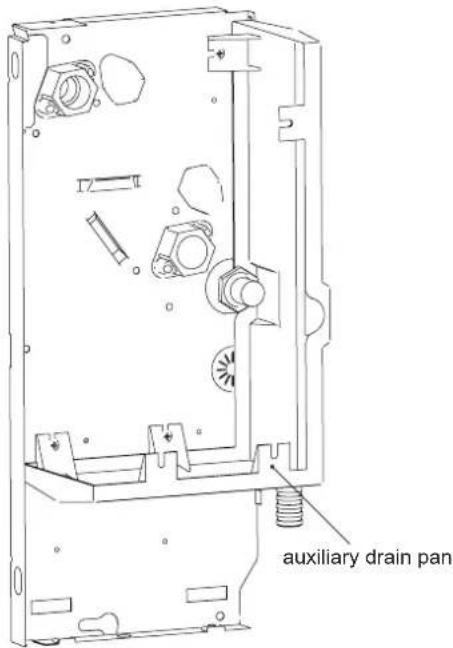

5	Auxiliary drain pan		Pcs 1	To be purchased separately from manufacturer
6	Wired controller	[2Y40]		To be purchased separatelyPcs 1
7	Inlet hose			To be purchased separatelyPcs 1
8	Outlet hose To be purchased separatelyPcs 1
9	Filter To be purchased separatelyPcs 1
10	Check valve (inlet and outlet pipes) To be purchased separatelyPcs 2
11	To be purchased separately

2 WARNING

This section describes important safety information.

Please read the Manual carefully, especially those operating standards with "Warning" or "Note" signs. Failure to abide by these standards may lead to personal injury or damages to the unit or other items.

For any faults not covered by the Manual, please contact the manufacturer immediately.

Tampering with the unit can result in very hazardous situations. The manufacturer is not liable for any damages caused by tampering with the unit. The consequences for failing to abide by the Manual shall be borne by the user on its own.

2.1 Meaning of Various Labels

WARNING

A situation that may lead to death or injury.

NOTE

A situation that may cause damage to the unit or loss of property.

INFORMATION

Indicates a useful hint or additional information.

2.2 Warning

• Ask professional staff to install (install for the first time, change the place of the unit or re-install) and repair the unit and its parts. The installation operator must have acquired the relevant professional qualification. Do not attempt to install or repair the air conditioner by yourself, as any improper operations may lead to fire, electric shock, personal injury or water leakage.
• Make sure the unit is grounded reliably in accordance with the laws. Otherwise, it may cause electric shock.
• Stop using the air conditioner and consult your dealer in case of any abnormalities. Otherwise, fire or electric shock may occur.
• Do not attempt to maintain or alter the unit by yourself. Improper operations may cause water leakage, electric shock or fire.
• Make sure the leakage protection device is installed, or electric shock may occur.
• Do not wash the unit with water, or electric shock may occur.
• To avoid electric shock, do not place any water-filled container on the unit.
• Do not operate the switch with wet hands, or electric shock may occur.
• Do not put your fingers or other objects into the unit, it can result in serious injury.
• Do not obstruct the air supply channel, it may result in personal injury or damages to the unit.
• Check that the supporting structure of the unit is securely installed after a long period of use, to prevent fall accidents.
• Make sure the installation base and hoisting are robust and reliable; otherwise, the unit may fall and lead to accidents.
• Do not expose yourself to cold air over a long period. Too low temperature may cause harm to your health.
• Do not expose animals or plants to air outlet to avoid any harm.

• This unit is intended for air handling only. Do not use it for animal rearing.

• Do not install the unit where flammable gas may leak. Otherwise, fire may occur. Do not install the unit in potentially explosive atmospheres.

• Keep the unit far away from combustible spray to avoid fire.
• Use proper fuse. Do not use iron wire or copper wire, as it may cause fire or unit abnormality.
• When connecting power supply to the unit, follow the regulations of the local electric company.
• Provide separate power switch to ensure the unit can be disconnected from power properly.
• Do not use this unit to store spare parts or other items.
• Please attach enough importance to the signs and symbols indicated on the unit. Any other potential hazards not covered in the Manual (if any) should be specified in labels attached to the unit.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

2.3 Note

• Read the Manual carefully and perform a safety inspection in advance so that you can be fully aware of the possible dangers as you use or install the unit.
• The manufacturer shall not be liable for any personal or animal injury or damage to any object caused by incorrect installation, adjustment, maintenance or improper use.
• The manufacturer is not held liable for any damages resulting from faulty operations against this Manual.
• Do not expose this unit to wet or humid environments as this may damage electrical components.
• Do not store this unit in the open air. Do not stack unpackaged units.
• Do not use this unit to store food, plants, precision instruments, artwork etc.
• To operate the unit for the first time, exhaust the air in the coil; otherwise, the performance may be compromised.
• Clean the inside of the water pipe before use.
• Remember to implement anti-freezing measures for coil in winter. For details, please refer to anti-freezing instructions herein.
• Keep the unit energized even if it is not in service over a long period.
• Adopt self-protection measures when you install, maintain or clean the unit.
• Do not press the unit. Handle it carefully as any damages may cause unit malfunction.

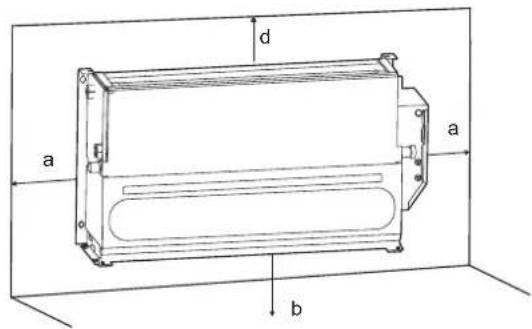

• Reserve enough space for installation and maintenance.
• Before installation, check whether the unit is reliably grounded. Otherwise, do not proceed with the installation. In no circumstances can the earth line for main power switch be disconnected.

• Rotate the fan impeller during installation. Contact the manufacturer if you hear any abnormal noises.

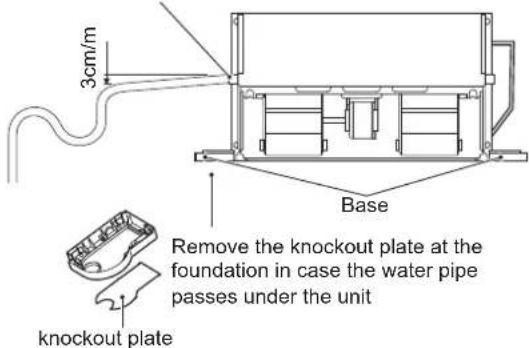

• Make sure that the water discharge pipeline can provide smooth drainage. Improper installation of the water discharge pipeline may lead to water leakage, and damages to furniture.

• Make sure the liquid pipeline and air duct are reliably supported. Make sure pipes and connectors are not distorted.
• The water inlet and outlet pipes must have check valves installed and be wrapped with insulation materials.
• Connect the wires as required. Otherwise, it may cause damage to electrical parts.
• The actual power supply must be consistent with the nominal nameplate value, or permanent damage may occur.
  • Use power cord with a proper diameter.
• Do not use damaged cables. Replace the damaged cables immediately if necessary. Do not attempt to repair the damaged cables.
• Keep for future reference.

2.4 Information

• Keep the unit serial number available for future reference and in case when you need to contact the after-sales service.
• Do not bring any combustible materials near the air outlet.
• Transport the unit as per requirements indicated on the package.
• Avoid crash, fall-over or squeeze and keep away from rain and snow during transportation.
• Store the unit in a clean, dry, fire-proof and well-ventilated place without any corrosive gas.
• To avoid shock during transportation, fix the unit and its accessories on the transportation platform with ropes or by other means.

3 OPERATION INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

- The manufacturer is not responsible for unit damages or personal injury resulting from unauthorized operations or use of non-original parts or accessories.

- Ventilation

Periodically ventilate the room where the unit is installed. Ventilation is especially important in case the room has many people in it or has flammable devices or gas sources. Poor ventilation may result in lack of oxygen.

• Before unit operation, clean water pipes to prevent them from being blocked.
• Upon FCU test run or switching between hot and cold water, open the vent valve to exhaust air in the coil until water flows out. Otherwise, the heat exchange performance may be significantly compromised.

- During operation

Filter is normally not removed except for maintenance purpose, as doing so may cause foreign objects to enter the unit.

• In normal cases

In cooling mode, fog may appear at the air outlet.

3.1 Standard Conditions for Use

Use the system in the following temperature for safe and effective operation.

Mode Indoor temperature
Cooling	17-32°C
Heating	0-30°C

If air conditioner is used outside the above conditions, it may cause the unit to function abnormally. Optimum performance will be achieved within these operating temperature range.

The unit can only operate normally as long as you strictly adhere to the regulations outlined in the Manual.

Water inlet temperature range is 3-75°C.

Water inlet temperature range recommended is 3-65°C.

Water inlet pressure range is 0-1.6MPa.

3.2 Switch and Control

The wired controller should be purchased separately from the manufacturer. Other wired controllers are not applicable.

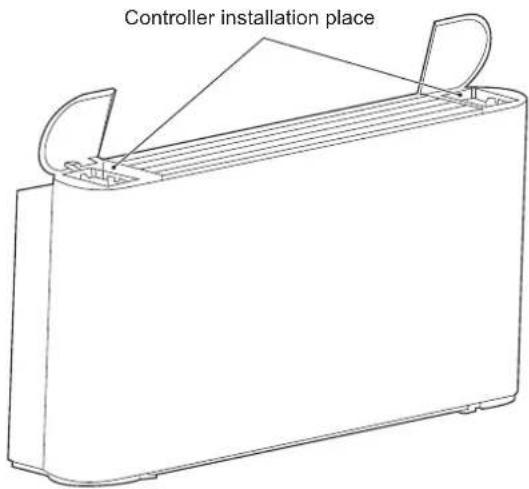

Installation position of wired controller

You can install the wired controller on the left, or right of the unit or on the wall as required. Make sure the wired controller is close to the electric control box.

Please refer to the Wired Controller Operation and Installation Manual for installation methods.

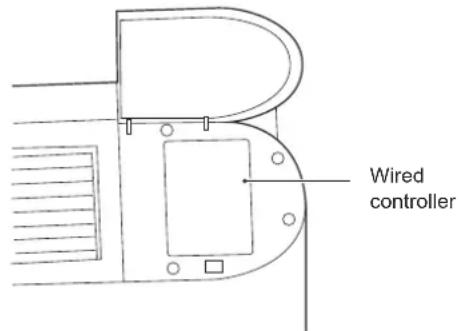

Figure 3-1 Installation position of wired controller

The Operation Manual is provided with the wired controller.

You can complete the following operations using the manufacturer's wired controller:

Start/stop the unit.

Switch between seven fan speeds and auto.

Constant temperature set within a desired range.

Switch among Cool, Heat, Dry, and Auto.

Figure 3-2 After installation of wired controller

DC unti	HTW-KJRP75ABKE
AC unti	HTW-KJRP86IMFKE

Table 3-1 wired controller and the unit correspond to the table

0-10V wired controller output DC voltage signal to main board. The main board receives the signal and controls the motor according to the corresponding speed.

Table 3-2 0-10Vwired controller output signal specification table

	Controller output voltage	Fan speed
Seven fan speeds	0≤voltage<1	shutdown
	1≤voltage<3	low
	3≤voltage<4	medium low
	4≤voltage<5	medium
	5≤voltage<6	medium high
	6≤voltage<7	high
	7≤voltage<8	super high
	8≤voltage<10	strong
Auto speed	The wired controller is adjusted according to the logic of the seven-level control system.

1) Start and stop

Start or stop the unit using the wired controller or centralized controller.

1 Start the unit after it has not been used for a long time	Before starting the unit again, you should:clean or replace the air filter.clean the heat exchanger.make sure the drain pipe for drain pan of heat exchanger is clean; if not, wash it.remove air from the water system.
2 Leave the unit unused for a long period	If the unit is not to be used in winter, drain the water system when appropriate. Otherwise, the water in the system may freeze, thus causing damage to the unit, or leading to water leakage, electric shock or damage to furniture.

3.3 Air Supply Direction Adjustment

You can manually adjust the louver to change the air supply direction.

NOTE

Do not touch the heat exchanger to avoid any personal injury.

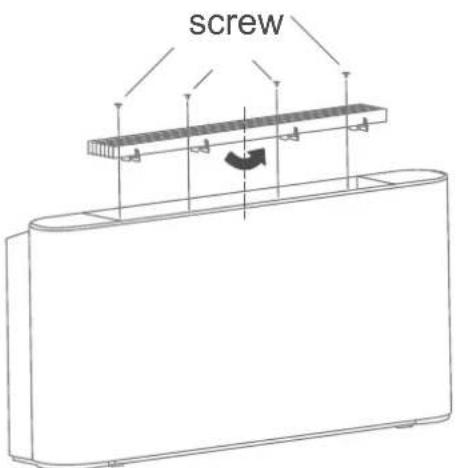

To adjust the air supply direction, do as follows:

1) Remove the screws (M3.9*10) fixing the louver.
2) Disassemble the louver manually.
3) Rotate the louver by 180^ and then put it back manually.
4) Put the screws back and fasten them.

Figure 3-3 Adjusting the air supply direction

4 CLEANING AND MAINTENANCE

4.1 Maintenance by Customer

NOTE

Cleaning and maintenance must not be performed by minors without supervision.

4.2 Professional Maintenance

4.2.1 Structure

Cleaning the outer surface of the unit is permitted. Dip a piece of soft cloth in cold water and alcohol to clean the unit. Do not use hot water, solvent, abrasive or corrosive substances.

NOTE

Disconnect the unit from power supply before cleaning or maintenance.

Do not spray water on the unit.

1) Cleaning the air filter

To ensure proper air return, clean the air filter at least once every month. If used in a dusty environment, the filter must be cleaned on a more frequent basis. Take the air filter out before you can clean it.

The filter is at the bottom of the unit, while the air return outlet is at the bottom or the rear side.

To take the air filter out, do as follows:

a) Remove the screws ① and ②.
b) Rotate the filter bracket.
c) Pull out the filter.

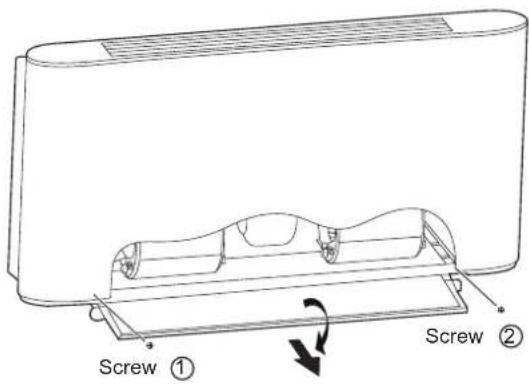

Figure 4-1 Diagram of removing the filter

Blow the air filter with compressed air or clean it in water.

Before putting the filter back, make sure it is clean and dry. If it is damaged, replace it with a new one.

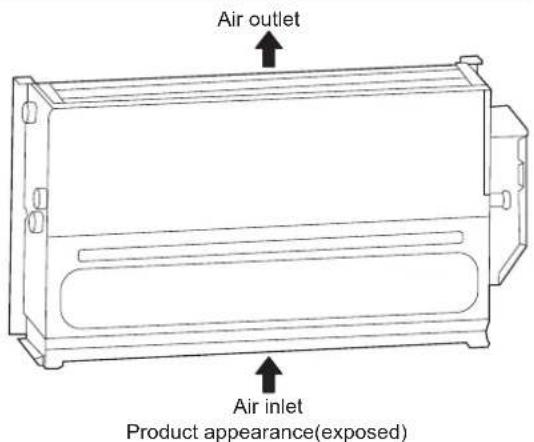

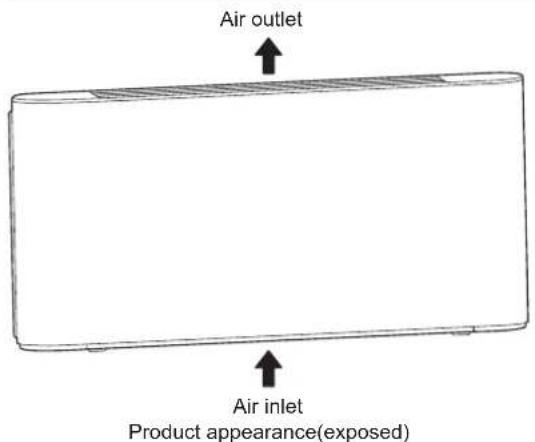

Figure 4-2 Diagram of unit (exposed)

Figure 4-3 Diagram of unit (concealed)

For dual-pipe system and four-pipe cold water coil, the water inlet and outlet joints are G3/4. For four-pipe hot water coil, the water inlet and outlet joints are G1/2.

The casing of the unit is made of galvanized steel; the air filter is made of nylon fibre, and the aluminum alloy air filter can be customized; the motor has internal overheat protection and overcurrent protection; a centrifugal rotating fan is used; a soundproof material such as sponge is used; the fin type heat exchanger is composed of copper pipe and aluminum foil, and the heat exchanger pipe connection can be changed on site.

4.2.2 Maintenance

NOTE

Only qualified technicians who have unit and refrigeration system experience can perform maintenance operation. Proper gloves are required.

Before maintenance or check, disconnect the unit from power supply, keep the main switch closed with warning sign attached, to prevent others from resuming the power accidentally.

1) Routine maintenance

2) Once every month

Check whether the air filter is clean. The air filter is washable as it is made of fibre. When the unit is operational, make sure you check the air filter every month.

3) Once every six months

Check whether the heat exchanger and condensate drain pipe are clean. After power disconnection, disassemble the unit to check the heat exchanger and condensate drain pipe.

4) If necessary, you should:

a) Remove any foreign matters that may impede air flow.

b) Remove the dust with compressed air or clean water and avoid damage to the heat exchanger.

c) Dry with compressed air.

d) Check for any impurities in the drain pipe that may impede water flow.

e) Check whether the system has air.

Start and let the system run for several minutes.

Stop the system.

- open air discharge valve to remove air.

Repeat this operation until the air is exhausted.

5) Maintain the circuits.

Check whether the power cord, electrical contacts, terminals etc. are loose or damaged.

6) If the motor needs to be replaced, follow the steps below:

a) Unplug the unit.

b) As shown in Figure 4-4, remove screws ①*2 and ②*2 and then the casing.

c) As shown in Figure 4-5, remove screws ①*2 to take the filter out.

Then, remove the upper volute.

After that, remove four screws (②) that fix the motor, to disconnect the motor cable and the main board. Then, take out the fan and the motor.

Disassemble the fan to get the motor.

Install back the motor in reverse order.

Figure 4-4 Removal of casing

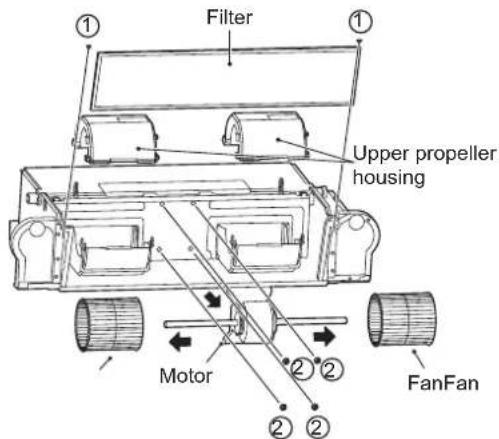

Figure 4-5 Removal of filter, upper volute and motor screws

7) If the heat exchanger needs to be replaced, follow the steps below:

a) Unplug the unit.

b) Shut off the water supply.

c) As shown in Figure 4-6, remove screws ①*2 and ②*2 and then the casing.

d) Drain the coil.

e) Disassemble the inlet and outlet pipes.

f) As shown in Figure 4-7, remove screws ①*2 to remove the electric control box.

g) As shown in Figure 4-8, remove screws ①*7 to take the drain pan out. Then, remove screws ②*4 to take the heat exchanger out.

h) Pull out the temperature sensor plug.

Install back the heat exchanger in reverse order.

Figure 4-6 Removal of casing Figure 4. Revolving the electric device exchanger

8) If the unit or its parts need(s) to be removed, make sure that:

Only a professional person can disassemble the unit.

The system with antifreeze must not be discarded; otherwise, it will cause pollution. It should be collected and then be disposed off properly.

As a special waste, electronic components must be handled by professional persons together with polyurethane foam, polyurethane and sound absorbing sponge.

5 Installation Instructions

NOTE

• The instructions are applicable to IDU only.
- Customization is required for use in salty surroundings (close to the shore).
• Install the water softening device if hard water that has a high salt content is to be supplied to the coil.
- Handle with care. Do not exert too much pressure on the unit.
- Any damages to the fan, unit surface or piping may cause faults.

5.1 Packaging and Assembly

Only trained professionals can move and lift the unit.

Upon arrival of the unit, you must check whether it is intact and provided with complete accessories. Using damaged unit may be hazardous.

1) When removing the unit package, follow the steps below:

Check whether the package and unit are intact and whether accessories are complete.

Unpack the unit.

Dispose off packaging materials at a suitable waste receiving or recycling station, depending on the laws of the country or locality where the installation is to be done.

Place the package out of the reach of children.

5.2 Handling Instructions

Wear personal protective equipment during handling.

To avoid damages to external structures, internal mechanical and electrical components, caution must be exercised during handling.

Make sure there are no obstacles or pedestrians along the way in case collisions or crushing occurs or lifting or handling equipment falls over.

All of the following operations must be performed in accordance with current health and safety regulations, including the equipment used and the procedures followed. Before operation, verify that the lifting device is capable of lifting the unit.

You can lift or move the unit using your hand or using a proper handcart. Move the unit in case it weighs over 30 kilograms and at this time, box it before it can be lifted using a crane or by similar means.

5.3 Installation

Follow the instructions when installing the unit.

Read the Manual carefully before proceeding with any operations. Installation can be only performed by a professional technician. Incorrect installation may lead to unit faults or degraded performance.

You must abide by the regulations of the country or locality where the installation is located.

Before installation, unpack the unit and its accessory, and find the attached Operation and Installation Manual and related assembly.

The support surface of installation must be strong enough to bear the weight of the unit.

Before installation, check with the customer whether the wall or ground where installation is located has buried wires, water pipes or gas pipes.

Make sure the inlet and outlet pipes and drain pipe are air-tight.

1) Check the space technically required for installation:

Space required for installation.

Space required for connecting the liquid lines and other valves.

Space required for connecting power supply.

Space required for connecting the unit to the external control panel (if any).

Space required for setting flow route and air inlet (for specific models).

Space required for correct and sufficient air flow.

Space required for removing condensate water.

Space required for cleaning the filter.

Space required for cleaning internal assembly and maintenance.

2) Installation guide:

Remove the casing:

Remove screws ①*2 and ②*2 and then the casing.

Figure 5-1

Mark the places for screws on the wall according to the unit mounting holes or dimensions specified in Figure 5-12. The drain pipe for condensate water must be smooth enough to allow unobstructed water discharge.

As shown in Figure 5-2, fasten four screws (①) into a proper masonry structure.

Figure 5-2 Diagram for fixing the unit body

The footings shown in Figure 5-3 are optional. You can purchase them separately and install them as follows:

1. Put the footings beside the unit to be installed.
2. Place the mounting holes on the unit base into the corresponding footing locating pin and install screws ①*2 and ②*2 to fix the footing according to Figure 5-3.

Figure 5-3

3) Install the unit following the steps below in case it is ceiling mounted.

To match the existing structure, set the screw pitch according to the unit dimensions.

Wood structure Original concrete slasb structure
Structure the square rod on the beam to set the lifting bolts.	Use embedded bolts, and pull bolts.

Steel framework Newly set concrete slab structureDirectly set and use an angle steel for support. Set using Suspension bolt

Sliding-type insertion piece Knife-type insertion piece

Reninforced bar Embedded bolt(hanging and embedded bolt of piping)

Sliding-type insertion piece
Figure 5-4 Installation of lifting bolts

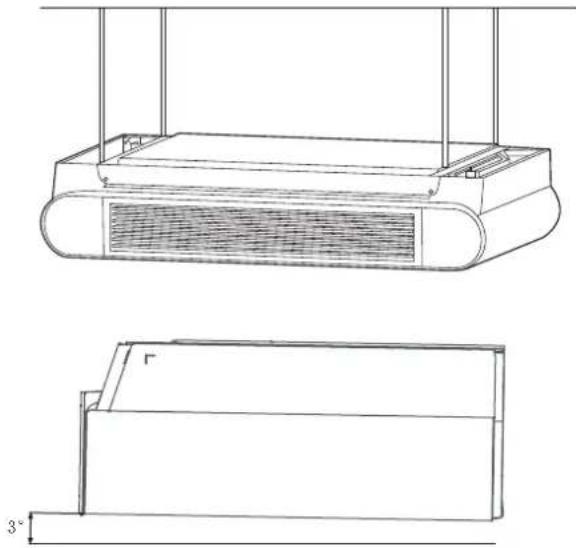

Technical line drawing of a rectangular device with internal grating and side supports, shown from top and front views (no text or symbols)

Please make 3 degrees to install the unit

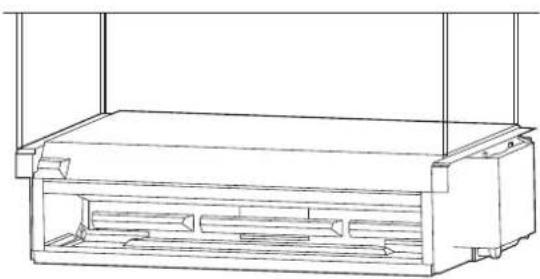

Figure 5-5 Diagram of ceiling exposed

Technical line drawing of a mechanical enclosure or enclosure with internal compartments and mounting brackets (no text or symbols)

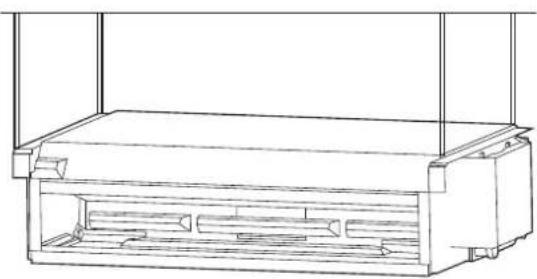

Figure 5-6 Diagram of ceiling concealed

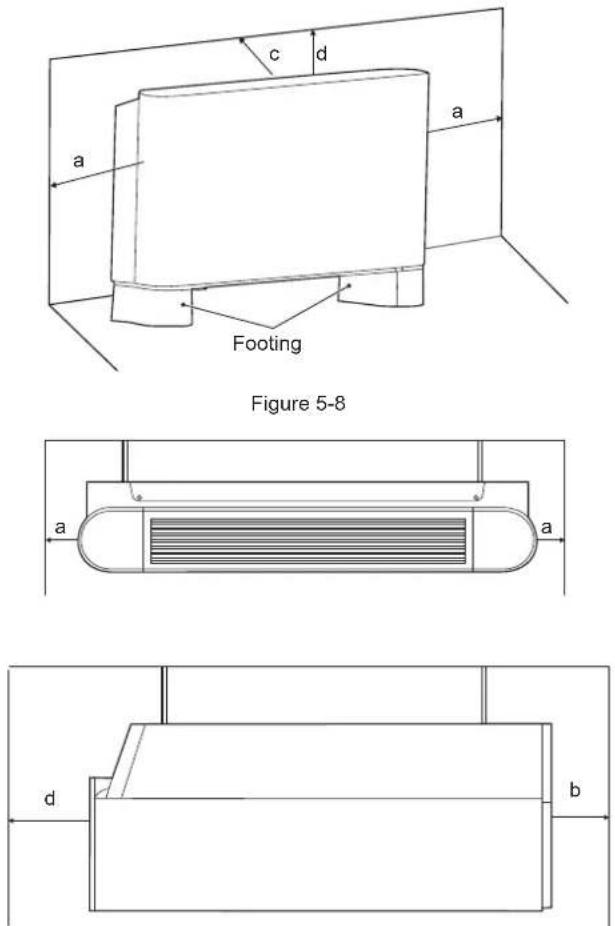

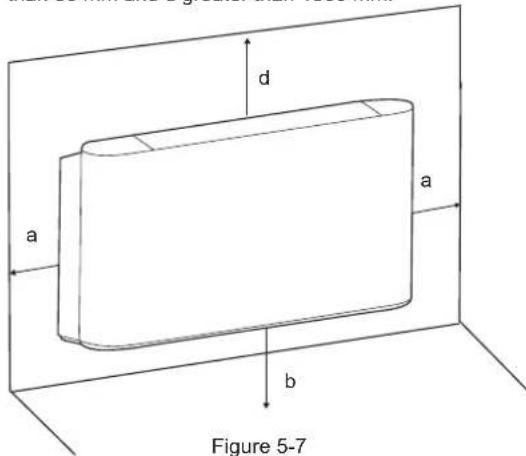

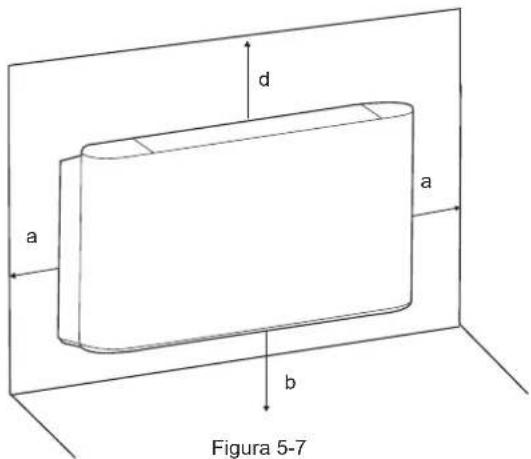

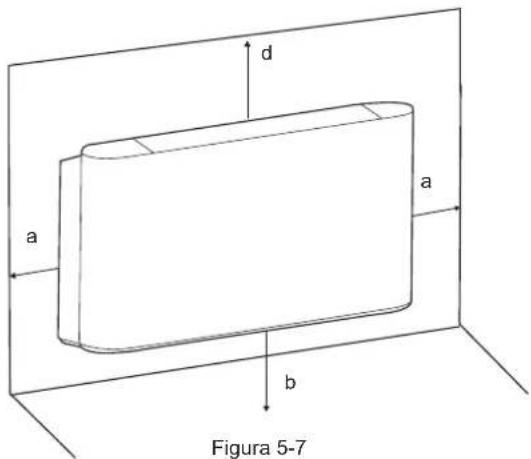

5.3.1 Spacing and Positioning

Incorrect positioning or installation may increase the noises and vibration of the unit during operation.

If not enough space is reserved during installation, the unit may face difficult maintenance and reduced performance.

The unit allows vertical installation, provided that correct positioning is arranged in advance. As shown below, a is greater than 150 mm, b greater than 90 mm, c greater than 50 mm and d greater than 1500 mm.

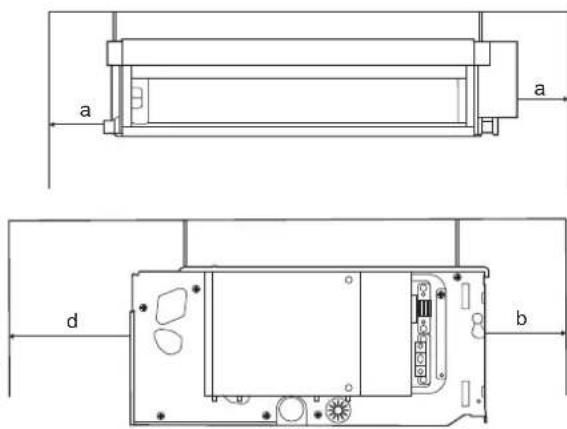

Figure 5-9 Ceiling exposed

Figure 5-10 Vertical type exposed

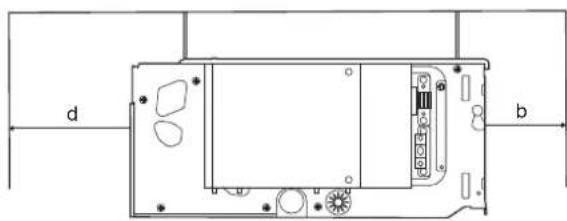

Figure 5-11 Ceiling concealed

NOTE

• Do not consider the unit as a surface that can be relied on during actual use. Reserve enough space during installation for ventilation purpose.
  • Using water or spray near the unit can cause electric shock and malfunction.

5.3.2 Dimensions

Unit: mm

C 39(AC)

Technical line drawing of a rectangular frame with mounting brackets and structural details (no text or symbols)

Figure 5-12
Table 5-1 Unit: mm

MODEL	HTW-MKH1(2.3)-150(V150)	HTW-MKH1(2.3)-250(V250)	HTW-MKH1(2.3)-350(V350)	HTW-MKH1(2.3)-500(V500)	HTW-MKH1(2.3)-700(V700)	HTW-MKH1(2.3)800(V800)
A	790	1020	1240	1240	1360	1360
B	495	495	495	495	495	591
C	534	764	984	984	1104	1104
D	375	375	375	375	375	391
E	123	123	123	123	123	219
F	93	93	93	93	93	102
G	628	858	1078	1078	1198	1198
H	455	455	455	455	455	551

5.4 Liquid Pipe Connections

1) Only professionals can operate the liquid pipes.

Drain pipe must be the different side with the electric control box.

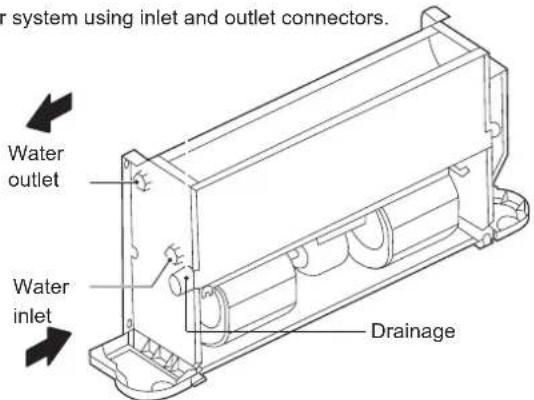

Connect the unit to the water system using inlet and outlet connectors.

Figure 5-13

All water system coils are equipped with discharge and drain valves.

Use a screwdriver or wrench to open and close the valve.

2) When installation is complete,

a) Remove air inside pipes.
b) Wrap the connecting pipes and all the valve body with anti-condensation material (EPDM or PE) of no less than 10 mm thick or install auxiliary drainage equipment.
c) Pour water into the drain pan and check it all the way until you can see water flows from the drain outlet. Alternatively, you may check the drain channel and remove impurities that may obstruct the flow.
d) Install the condensate drain system.
e) The condensate drain system must be properly lowered to ensure water discharge.

Follow the steps below to set the condensate drain system.

Make sure the drain connector is stress-free

Figure 5-14

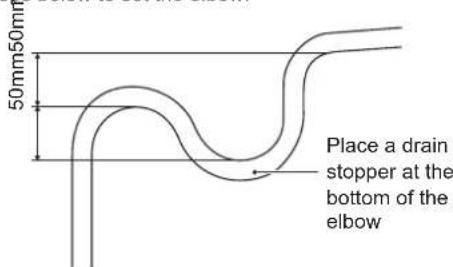

3) Set water storage elbow

The condensate drain system must be fitted with a suitable elbow to prevent odour penetration. Follow the steps below to set the elbow.

Figure 5-15

The customer has to purchase the three-way valve and its accessories (Operation and Installation Manual attached) separately from the manufacturer.

The customer may also need to purchase the auxiliary drain pan separately from the manufacturer if required. See the steps below for installation of auxiliary drain pan:

Figure 5-16

4) How to change the coil from left-hand connection to right-hand connection

Left-hand connection of the coil is adopted by default. You can rotate the coil and change to right-hand connection.

Before installation, you should change the direction of the coil on the ground.

Steps of changing the coil direction:

As shown in Figure 5-17, remove screws ①*2 and ②*2 and then the casing.

As shown in Figure 5-18, remove screws ①*7 to take the drain pan out.

Then, remove screws ②*4 to take the heat exchanger out.

Pull out the temperature sensor plug.

Rotate the coil in the direction as shown in Figure 5-18.

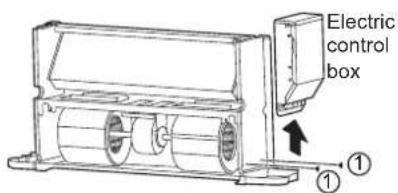

As shown in Figure 5-19, remove screws ①*2 to take the electric box out.

Fasten the screws on the coil.

As shown in Figure 5-19, block the diamond-shaped holes on the side plate (the plate without inlet and outlet pipes) with sponge.

Reverse the direction of drain pan plug.

Re-install the electric box to the side plate without inlet and outlet pipes.

Re-connect the wires.

Figure 5-17 Removal of casing

Figure 5-18

Figure 5-19 Removing the electric control box and blocking the diamond-shaped holes

5) Anti-freezing

The water in the unit may freeze when the unit is left unused in winter.

Drain the water system when appropriate if it is not used over a long period. Or you can simply add some antifreeze in water.

NOTE

• Mixing water with glycol will affect the unit performance.
• Please pay attention to the safety instructions attached to the glycol container.

5.5 Electrical Connection

NOTE

- Make sure that the power supply falls with 220-240V\~1ph 50Hz/60Hz and is able to provide enough wattage for the unit. The power supply system must comply with the current national safety regulations.

- The electrical connection must be completed by qualified professionals and must comply with local laws and regulations. The company is not responsible for personal or property damage resulting from any incorrect electrical connections.

- Provide dedicated and suitable leakage protection device for the unit, with a minimum distance of 3 mm among the wiring contacts. The unit must be grounded reliably.

- Make sure that the power cord has a large-enough cross section to withstand the maximum current required. Never use a damaged cable.

• Perform electrical connections according to the wiring nameplate (stick to the cover of the electronic box) of the unit.

- Secure the cable using clamps in the electric control box to ensure the safety of the power supply cable and the connection cable.

- Do not pull, step on or squeeze the cable. Do not use nails or staples to secure the power cord.

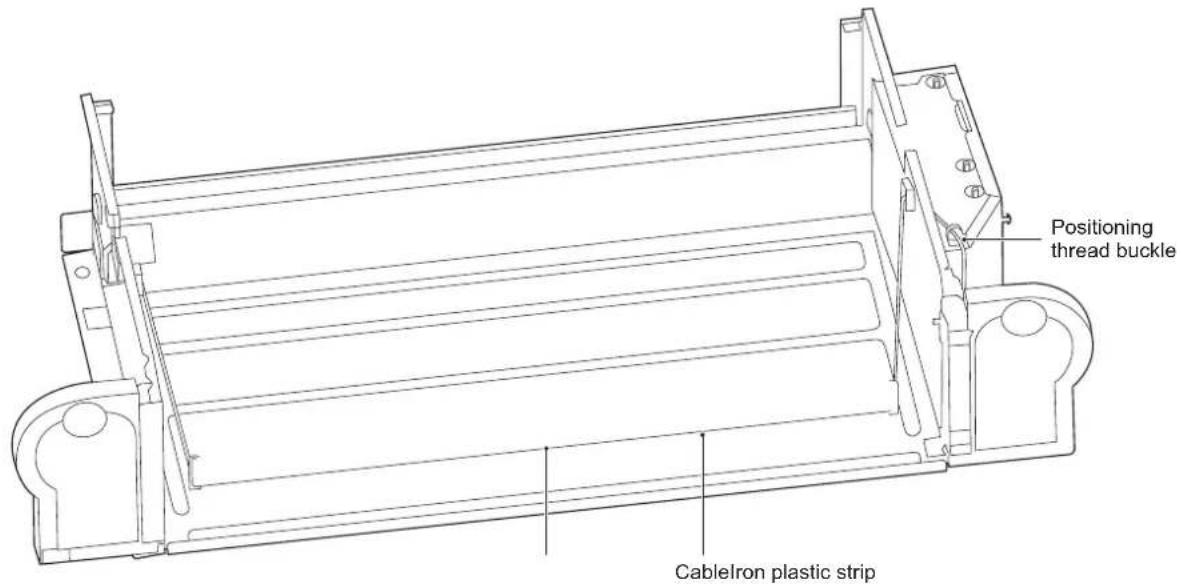

- You need to pass the cable through the knockout hole at the foundation.

- For this stationary appliance it is required to have for disconnection of mains supply and all-pole switch with a contact opening of at least 3mm in the fixed wiring.

- The grounding wire in the electrical control box needs to be longer than the current-carrying wire.

- For DC 4-Pipe series, the cooling water valve and heating water valve would open at the same time when the PCB receive the fan speed control signal from 0-10V wired controller. Please don't turn on the chiller and heat pump simultaneously, and we suggest to install another check valve to stop the water flow when it is necessary.

Figure 5-21 Cabling diagram(DC FAN)

Refer to Tables 5-2&5-3 for the specifications of the power cord and communication wire. A wiring capacity that is too small will cause the electrical wiring to become too hot, and lead to accidents when the unit burns and becomes damaged.

Select the wire diameters( minimum value) individually for each unit based on the table 5-3.

Maximum allowable voltage range variation between phases is 2%.

Select circuit breaker that having a contact separation in all poles not less than 3 mm providing full disconnection, where MFA is used to select the current circuit breakers and residual current operation breakers:

Table 5-2

Model		ALL
Power supply	Phase	1-phase
	Volt and frequency	220-240V~50/60Hz
Communication wire between indoor unit and wired controller *		Shielded ×AWG16-AWG18
CIRCUIT BREAKER/FUSE(A) 15/15

Please refer to the corresponding wired controller manual for the wired controller wiring.

Table 5-3

Rated current of appliance (A)	Nominal cross-sectional area ( mm^2 )
	Flexible cords	Cable for fixed wiring
≤3	0.5 and 0.75	1 and 2.5
>3 and ≤6	0.75 and 1	1 and 2.5
>6 and ≤10	1 and 1.5	1 and 2.5
>10 and ≤16	1.5 and 2.5	1.5 and 4
>16 and ≤25	2.5 and 4	2.5 and 6
>25 and ≤32	4 and 6	4 and 10
>32 and ≤50	6 and 10	6 and 16
>50 and ≤63	10 and 16	10 and 25

5.6 Startup Guide

Machine commissioning or first start-up must be performed by a professional.

Before startup, make sure that the installation and electrical connections are made in accordance with this Manual, and that no unauthorized personnel is near the machine during operation.

1) Before starting the unit, make sure that:

The device is positioned correctly.

The water system's flow and piping are correct.

The water pipe is clean.

The air can flow normally.

The condensate water can flow normally to the drain outlet and the elbow.

The heat exchanger is clean.

The electrical connection is correct.

The connecting cable is secure.

The power supply meets requirements.

The motor works normally within the maximum allowable value.

6 SERVICE GUIDE

Ask a professional technician to repair the unit in case it goes wrong.

Make sure the power supply is disconnected during repair.

6.1 Troubleshooting

The warranty does not cover the damage caused by dismantling or cleaning of the internal components by unauthorized agents.

WARNING

When any unusual situations arises (burning odour, etc.), stop the unit immediately and turn off the power.

As a result of a certain situation, the unit has caused damage, an electric shock or a fire. Please contact the agent.

The system maintenance must be carried out by qualified maintenance personnel.

Error Measures
If a safety device, such as a fuse, circuit breaker or a leakage circuit breaker is triggered frequently or the ON/OFF switch is not working properly.	Turn off the main power switch.
The operating switch is not functioning normally.	Turn off the power supply.
If a centralized controller is used, the unit number is displayed on the user interface, and the operating indicator is flickering, and an error code is shown on the screen as well.	Notify the installation personnel and report the error code.

Except as noted above, if the above faults are not typical and the unit still fails, follow the steps below.

Error Measures
If the system does not run at all.	Check whether there is a power failure. Wait for the power supply to be restored. If a power failure occurs when the unit is still running, the system will restart automatically once the power is restored.
The system is running but there is insufficient cooling or heating.	Check whether the air outlet is blocked by any obstacles.Remove the obstacles.Check whether the filter is blocked.Check the temperature setting.Check the fan speed settings on the user interface.Check whether the doors and windows are open.Close the doors and windows to shut out wind from the external environment.Check whether there are too many people in the room when the cooling mode is in operation.Check whether the heat source of the room is too high.Check whether there is direct sunlight into the room. Use curtains or blinds.Check whether the angle of air flow is appropriate.

1) Error code overview

If a centralized controller is used, error codes appear on the user interface. Contact the installation personnel and inform them of the error code, unit model and serial number (you can find the information on the nameplate of this unit).

NO.	Error	Name Running Indicator		Fault Indicator Buzzer action Error Code
1	Error	E?PROM communication error	Steady on	Flashes once every 3 seconds	Buzzes 2 times every 3 seconds	E7
2	Error	Room temperature sensor port abnormal	Steady on	Flashes 2 times every 3 seconds	Buzzes 2 times every 3 seconds	E2
3	Error	Coil sensor (T2C) port abnormal	Steady on	Flashes 3 times every 3 seconds	Buzzes 2 times every 3 seconds	E3
4	Error	Coil sensor (T2C) port abnormal	Steady on	Flashes 3 times every 3 seconds	Buzzes 2 times every 3 seconds	E4
	Error5	DC motor stall fault Steady on		Flashes 4 times every 3 seconds	Buzzes 2 times every 3 seconds	E8
6	Protection	Water level exceeding warning line	Blinking	Flashes once every 3 seconds	Buzzes 2 times every 3 seconds	EE
7	Protection	Model protection not set (model DIP switch not listed in the model table)	Blinking	Flashes 2 times every 3 seconds	Buzzes 2 times every 3 seconds	PH
8	Protection	Water temperature protection	Blinking	Flashes 3 times every 3 seconds	Buzzes 2 times every 3 seconds	P1
9	Protection	Anti-freezing protection	Blinking	Flashes 4 times every 3 seconds	Buzzes 2 times every 3 seconds	P0
10	Protection			Flashes 5 times every 3 seconds	Buzzes 2 times every 3 seconds	P2BlinkingRemote shutdown

Refer to Maintenance Manual for troubleshooting.

6.2 Non-Unit Related Faults

The following fault symptoms are not caused by the unit itself:

1) Fault symptom: Fan speed is not consistent with the setting

The fan doesn't respond to the controller. In cooling mode, when the pipe water temperature is outside the allowable range of room temperature, the fan speed will be maintained at a low level to avoid direct exposure to hot air. In heating mode, when the pipe water temperature reaches a certain low level, the fan speed will also be maintained at a low level to avoid direct exposure to cold air.

2) Fault symptom: Fan direction is not consistent with the setting

The fan direction is inconsistent with the direction indicated on the user interface. Swing is a customized function. If the customer customizes this function and the fan direction does not correspond to the set direction, this is because the unit is controlled

3) Fault symptom: white fog from a certain unit

This may result from high humidity during cooling mode. If the interior pollution of the fan coil unit is severe, the indoor temperature distribution may be uneven. At this time, you need to clean the inside of the unit. Ask the dealer for information on how to clean the unit. This operation must be carried out by qualified maintenance personnel.

4) Fault symptom: dust and dirt in the unit

This may happen after the unit is used again after being left idle for a long period. This is because there is dust inside the unit.

5) Fault symptom: odour from unit

This unit will absorb the odours of rooms, furniture, cigarettes and others, and then disperse the odours again. Odour might occur after small animals enter the unit.

6.3 Product Data

Table 6-1

MODEL	HTW-MKH2(3)-V150-R3	HTW-MKH2(3)-V150-R4	HTW-MKH2(3)-V250-R3	HTW-MKH2(3)-V250-R4	HTW-MKH2(3)-V350-R3	HTW-MKH2(3)-V350-R4
Air flow volume( m^3/h )	255	255	400	425	595	595
Cooling capacity(kW)(*)	1.50	1.95	2.35	2.85	3.50	3.90
Heating capacity(kW)(**)	1.57	2.05	2.60	2.95	3.80	4.00
Sound pressure(dB(A))(***)	34	39	29	32	38	40
Rated input(W)	15	20	17	20	26	29
Rated current(A)	0.18	0.21	0.20	0.22	0.26	0.28
Standard coil connections	G3/4
Condensation drain pipe connection	ODΦ18.5mm
Power supply	220-240V~ 50Hz

MODEL	HTW-MKH2(3)-V500-R3	HTW-MKH2(3)-V500-R4	HTW-MKH2(3)-V700-R3	HTW-MKH2(3)-V700-R4	HTW-MKH2(3)-V800-R3	HTW-MKH2(3)-V800-R4
Air flow volume( m^3/h )	790	800	1190	1190	1360	1300
Cooling capacity(kW)(*)	4.30	4.85	5.60	6.35	7.35	8.25
Heating capacity(kW)(**)	4.70	5.25	6.00	7.05	8.05	8.70
Sound pressure(dB(A))(***)	46	45	50	50	51	50
Rated input(W)	50	52	96	92	113	102
Rated current(A)	0.49	0.51	0.85	0.79	0.95	0.87
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~ 50Hz

MODEL	HTW-MKH2(3)-150-R3	HTW-MKH2(3)-150-R4	HTW-MKH2(3)-250-R3	HTW-MKH2(3)-250-R4	HTW-MKH2(3)-350-R3	HTW-MKH2(3)-350-R4
Air flow volume( m^3/h )	255	255	400	425	595	595
Cooling capacity(kW)(*)	1.65	2.25	2.65	3.05	3.85	4.2
Heating capacity(kW)(**)	1.85	2.35	3.05	3.15	4.1	4.3
Sound pressure(dB(A))(*** )	35	42	34	34	39	40
Rated input(W)	35	40	47	47	51	51
Rated current(A)	0.15	0.17	0.20	0.20	0.22	0.22
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~ 50Hz
MODEL	HTW-MKH2-500-R3	HTW-MKH2-500-R4	HTW-MKH2-700-R3	HTW-MKH2-700-R4	HTW-MKH2-800-R3	HTW-MKH2-800-R4
Air flow volume( m^3/h )	790	800	1190	1150	1300	1300
Cooling capacity(kW)(*)	4.65	5.35	6.00	6.75	7.35	8.25
Heating capacity(kW)(**)	5.2	5.7	6.15	7.15	8.20	8.50
Sound pressure(dB(A))(***)	48	47	50	50	50	50
Rated input(W)	91	91	123	110	123	118
Rated current(A)	0.40	0.40	0.53	0.48	0.53	0.51
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~ 50Hz

MODEL	HTW-MKH2(3)-V150F-R4	HTW-MKH2(3)- V250F-R4	HTW-MKH2(3)-V350F-R4	HTW-MKH2(3)-V500F-R4	HTW-MKH2(3)-V700F-R4	HTW-MKH2(3)-V800F-R4
Air flow volume( m^3/h )	255	425	595	800	1190	1300
Cooling capacity(kW)(*)	1.7	2.7	3.8	4.6	6.05	7.65
Heating capacity(kW)(**)	1.4	2.3	2.88	3.35	4.6	7.5
Sound pressure(dB(A))(***)	39	32	40	45	50	51
Rated input(W)	20	20	29	52	92	102
Rated current(A)	0.21	0.22	0.28	0.51	0.79	0.87
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~ 50Hz

MODEL	HTW-MKH2(3)-150F-R4	HTW-MKH2(3)-250F-R4	HTW-MKH2(3)-350F-R4	HTW-MKH2(3)-500F-R4	HTW-MKH2(3)-700F-R4	HTW-MKH2(3)-800F-R4
Air flow volume( m^3/h )	255	425	595	800	1190	1300
Cooling capacity(kW)(*)	1.95	2.89	4.09	5.05	6.4	7.65
Heating capacity(kW)(**)	1.69	2.45	2.95	3.64	4.65	7.3
Sound pressure(dB(A)) (***)	42	34	40	47	50	50
Rated input(W)	40	47	51	91	110	118
Rated current(A)	0.17	0.20	0.22	0.4	0.48	0.51
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~ 50Hz

MODEL:HTW-MKH2-V150-R3/HTW-MKH2-150-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.14/1.25	kW
Cooling capacity(latent)	Prated,c	0.36/0.4	kW
Heating capacity	Prated,h	1.57/1.85	kW
Total electric power input	Pelec	15/35	W
Sound power level(per speed setting, if applicable)	LWA	47/47	dB
contact details
MODEL:HTW-MKH2-V150-R4/MODEL:HTW-MKH2-150-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.42/1.65	kW
Cooling capacity(latent)	Prated,c	0.53/0.6	kW
Heating capacity	Prated,h	1.95/2.35	kW
Total electric power input	Pelec	20/40	W
Sound power level(per speed setting, if applicable)	LWA	52/53	dB
contact details

MODEL:HTW-MKH2(3)-V250-R3/HTW-MKH2-(3)250-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.79/2.05	kW
Cooling capacity(latent)	Prated,c	0.56/0.6	kW
Heating capacity	Prated,h	2.60/3.05	kW
Total electric power input	Pelec	17/47	W
Sound power level(per speed setting, if applicable)	LWA	43/46	dB
contact details
MODEL:HTW-MKH2(3)-V250-R4/HTW-MKH2(3)-250-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	2.06/2.23	kW
Cooling capacity(latent)	Prated,c	0.79/0.82	kW
Heating capacity	Prated,h	2.95/3.15	kW
Total electric power input	Pelec	20/47	W
Sound power level(per speed setting, if applicable)	LWA	46/47	dB
contact details

MODEL:HTW-MKH2-V350-R3/HTW-MKH2-350-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	2.65/2.91	kW
Cooling capacity(latent)	Prated,c	0.85/0.94	kW
Heating capacity	Prated,h	3.50/3.70	kW
Total electric power input	Pelec	26/51	W
Sound power level(per speed setting, if applicable)	LWA	52/52	dB
contact details
MODEL:HTW-MKH2-V350-R4/HTW-MKH2-350-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	2.90/3.05	kW
Cooling capacity(latent)	Prated,c	1.00/1.15	kW
Heating capacity	Prated,h	4.00/4.10	kW
Total electric power input	Pelec	29/51	W
Sound power level(per speed setting, if applicable)	LWA	52/52	dB
contact details
MODEL:HTW-MKH2(3)-V500-R3/HTW-MKH2(3)-500-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	3.25/3.58	kW
Cooling capacity(latent)	Prated,c	1.05/1.07	kW
Heating capacity	Prated,h	4.30/4.35	kW
Total electric power input	Pelec	50/91	W
Sound power level(per speed setting, if applicable)	LWA	59/59	dB
contact details

MODEL:HTW-MKH2(3)-V500-R4/HTW-MKH2(3)-500-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	3.63/3.96	kW
Cooling capacity(latent)	Prated,c	1.22/1.39	kW
Heating capacity	Prated,h	5.25/5.70	kW
Total electric power input	Pelec	52/91	W
Sound power level(per speed setting, if applicable)	LWA	59/59	dB
contact details

MODEL:HTW-MKH2(3)-V700-R3/HTW-MKH2(3)-700-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	4.62/4.83	kW
Cooling capacity(latent)	Prated,c	0.98/1.17	kW
Heating capacity	Prated,h	6.00/6.15	kW
Total electric power input	Pelec	96/123	W
Sound power level(per speed setting, if applicable)	LWA	64/64	dB
contact details
MODEL:HTW-MKH2(3)-V700-R4/HTW-MKH2(3)-700-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	4.98/5.09	kW
Cooling capacity(latent)	Prated,c	1.37/1.66	kW
Heating capacity	Prated,h	7.05/7.15	kW
Total electric power input	Pelec	92/110	W
Sound power level(per speed setting, if applicable)	LWA	62/62	dB
contact details
MODEL:HTW-MKH2(3)-V800-R3/HTW-MKH2(3)-800-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	5.87/5.63	kW
Cooling capacity(latent)	Prated,c	1.48/1.72	kW
Heating capacity	Prated,h	8.05/8.20	kW
Total electric power input	Pelec	113/123	W
Sound power level(per speed setting, if applicable)	LWA	63/63	dB
contact details
MODEL:HTW-MKH2(3)-V800-R4/HTW-MKH2(3)-800-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	6.12/6.08	kW
Cooling capacity(latent)	Prated,c	2.13/2.17	kW
Heating capacity	Prated,h	8.70/8.50	kW
Total electric power input	Pelec	102/118	W
Sound power level(per speed setting, if applicable)	LWA	63/63	dB
contact details

MODEL:HTW-MKH2(3)-V150F-R4/HTW-MKH2(3)-150F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.3/1.5	kW
Cooling capacity(latent)	Prated,c	0.4/0.45	kW
Heating capacity	Prated,h	1.4/1.69	kW
Total electric power input	Pelec	20/40	W
Sound power level(per speed setting, if applicable)	LWA	52/53	dB
contact details
MODEL:HTW-MKH2(3)-V250F-R4/HTW-MKH2(3)-250F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.9/2.05	kW
Cooling capacity(latent)	Prated,c	0.8/0.84	kW
Heating capacity	Prated,h	2.3/2.45	kW
Total electric power input	Pelec	20/47	W
Sound power level(per speed setting, if applicable)	LWA	46/47	dB
contact details

MODEL:HTW-MKH2(3)-V350F-R4/HTW-MKH2(3)-350F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	2.8/2.94	kW
Cooling capacity(latent)	Prated,c	1.0/1.15	kW
Heating capacity	Prated,h	2.88/2.95	kW
Total electric power input	Pelec	29/51	W
Sound power level(per speed setting, if applicable)	LWA	52/52	dB
contact details
MODEL:HTW-MKH2(3)-V500F-R4/HTW-MKH2(3)-500F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	3.5/3.8	kW
Cooling capacity(latent)	Prated,c	1.1/1.25	kW
Heating capacity	Prated,h	3.35/3.64	kW
Total electric power input	Pelec	52/91	W
Sound power level(per speed setting, if applicable)	LWA	59/59	dB
contact details
MODEL:HTW-MKH2(3)-V700F-R4/HTW-MKH2(3)-700F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	4.8/4.9	kW
Cooling capacity(latent)	Prated,c	1.25/1.5	kW
Heating capacity	Prated,h	4.6/4.65	kW
Total electric power input	Pelec	92/110	W
Sound power level(per speed setting, if applicable)	LWA	62/62	dB
contact details
MODEL:HTW-MKH2(3)-V800F-R4/HTW-MKH2(3)-800F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	5.9/5.85	kW
Cooling capacity(latent)	Prated,c	1.75/1.8	kW
Heating capacity	Prated,h	7.5/7.65	kW
Total electric power input	Pelec	102/118	W
Sound power level(per speed setting, if applicable)	LWA	63/63	dB
contact details

MODEL	HTW-MKH1-V150-R3	HTW-MKH1-V150-R4	HTW-MKH1-V250-R3	HTW-MKH1-V250-R4	HTW-MKH1-V350-R3	HTW-MKH1-V350-R4
Air flow volume( m^3/h )	245	245	380	380	580	580
Cooling capacity(kW)(*)	1.44	1.87	2.23	2.55	3.41	3.80
Heating capacity(kW)(**)	1.50	1.97	2.47	2.63	3.70	3.90
Sound pressure(dB(A)) (***)	34	39	30	33	39	39
Rated input(W)	19	20	20	21	27	30
Rated current(A)	0.2	0.21	0.21	0.22	0.26	0.28
Standard coil connections	G3/4
Condensation drain pipe connection	ODΦ18.5mm
Power supply	220-240V~ 50Hz

MODEL	HTW-MKH1-V500-R3	HTW-MKH1-V500-R4	HTW-MKH1-V700-R3	HTW-MKH1-V700-R4	HTW-MKH-V800-R3	HTW-MKH1-V800-R4
Air flow volume( m^3/h )	780	780	1050	1050	1150	1150
Cooling capacity(kW)(*)	4.25	4.73	4.94	5.60	6.21	7.30
Heating capacity(kW)(**)	4.64	5.12	5.29	6.22	6.80	7.70
Sound pressure(dB(A))(***)	46	46	52	52	53	53
Rated input(W)	50	52	98	99	105	105
Rated current(A)	0.49	0.51	0.85	0.85	0.9	0.9
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~ 50Hz
MODEL	HTW-MKH1-150-R3	HTW-MKH1-150-R4	HTW-MKH1-250-R3	HTW-MKH1-250-R4	HTW-MKH1-350-R3	HTW-MKH1-350-R4
Air flow volume( m^3/h )	245	245	380	380	580	580
Cooling capacity(kW)(*)	1.58	2.16	2.51	2.72	3.75	4.09
Heating capacity(kW)(**)	1.77	2.26	2.80	2.81	3.99	4.19
Sound pressure(dB(A))(***)	34	39	34	35	39	39
Rated input(W)	35	40	47	47	51	51
Rated current(A)	0.15	0.17	0.20	0.20	0.22	0.22
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~ 50Hz

MODEL	HTW-MKH1-500-R3	HTW-MKH1-500-R4	HTW-MKH1-700-R3	HTW-MKH1-700-R4	HTW-MKH1-800-R3	HTW-MKH1-800-R4
Air flow volume( m^3/h )	780	780	1050	1050	1100	1050
Cooling capacity(kW)(*)	4.59	5.21	5.29	6.16	6.22	6.66
Heating capacity(kW)(**)	5.13	5.33	5.42	6.53	6.94	6.86
Sound pressure(dB(A)) (***)	48	48	52	52	53	53
Rated input(W)	91	92	124	117	118	110
Rated current(A)	0.4	0.4	0.53	0.51	0.51	0.48
Standard coil connections	G3/4
Condensation drain pipe connection	ODΦ18.5mm
Power supply	220-240V~ 50Hz

MODEL	HTW-MKH1-V 150F-R4	HTW-MKH1-V 250F-R4	HTW-MKH1-V 350F-R4	HTW-MKH1-V 500F-R4	HTW-MKH1-V 700F-R4	HTW-MKH1-V 800F-R4
Air flow volume( m^3/h )	245	380	580	780	1050	1150
Cooling capacity(kW)(*)	1.63	2.41	3.70	4.49	5.34	6.77
Heating capacity(kW)(**)	1.35	2.06	2.81	3.27	4.06	6.63
Sound pressure(dB(A))(***)	39	33	39	46	52	53
Rated input(W)	20	21	30	50	99	105
Rated current(A)	0.21	0.22	0.28	0.51	0.85	0.9
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~50Hz
MODEL	HTW-MKH1-150F-R4	HTW-MKH1-250F-R4	HTW-MKH1-350F-R4	HTW-MKH1-500F-R4	HTW-MKH1-700F-R4	HTW-MKH1-800F-R4
Air flow volume( m^3/h )	245	380	580	780	1050	1050
Cooling capacity(kW)(*)	1.87	2.58	3.99	4.92	5.84	6.18
Heating capacity(kW)(**)	1.62	2.19	2.88	3.55	4.25	5.90
Sound pressure(dB(A))(***)	39	35	39	48	52	52
Rated input(W)	40	47	51	92	117	110
Rated current(A)	0.17	0.20	0.22	0.40	0.51	0.48
Standard coil connections	G3/4
Condensation drain pipe connection	OD 18.5mm
Power supply	220-240V~ 50Hz

MODEL:HTW-MKH1-V150-R3/HTW-MKH1-150-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.09/1.20	kW
Cooling capacity(latent)	Prated,c	0.35/0.38	kW
Heating capacity	Prated,h	1.5/1.7	kW
Total electric power input	Pelec	19/35	W
Sound power level(per speed setting, if applicable)	LWA	47/47	dB
contact details
MODEL:HTW-MKH1-V150-R4/MODEL:HTW-MKH1-150-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.36/1.58	kW
Cooling capacity(latent)	Prated,c	0.51/0.58	kW
Heating capacity	Prated,h	1.97/2.26	kW
Total electric power input	Pelec	20/40	W
Sound power level(per speed setting, if applicable)	LWA	52/52	dB
contact details

MODEL:HTW-MKH1-V250-R3/HTW-MKH1-250-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.70/1.94	kW
Cooling capacity(latent)	Prated,c	0.53/0.57	kW
Heating capacity	Prated,h	2.47/2.80	kW
Total electric power input	Pelec	20/47	W
Sound power level(per speed setting, if applicable)	LWA	43/47	dB
contact details
MODEL:HTW-MKH1-V250-R4/MODEL:HTW-MKH1-250-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.84/2.00	kW
Cooling capacity(latent)	Prated,c	0.71/0.72	kW
Heating capacity	Prated,h	2.63/2.81	kW
Total electric power input	Pelec	21/47	W
Sound power level(per speed setting, if applicable)	LWA	46/48	dB
contact details
MODEL:HTW-MKH1-V350-R3/HTW-MKH1-350-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	2.58/2.83	kW
Cooling capacity(latent)	Prated,c	0.83/0.92	kW
Heating capacity	Prated,h	3.7/3.99	kW
Total electric power input	Pelec	27/51	W
Sound power level(per speed setting, if applicable)	LWA	52/52	dB
contact details
MODEL:HTW-MKH1-V350-R4/MODEL:HTW-MKH1-350-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	2.83/2.97	kW
Cooling capacity(latent)	Prated,c	0.97/1.12	kW
Heating capacity	Prated,h	3.90/4.19	kW
Total electric power input	Pelec	30/51	W
Sound power level(per speed setting, if applicable)	LWA	52/52	dB
contact details

MODEL:HTW-MKH1-V500-R3/HTW-MKH1-500-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	3.21/3.53	kW
Cooling capacity(latent)	Prated,c	1.04/1.06	kW
Heating capacity	Prated,h	4.64/5.13	kW
Total electric power input	Pelec	50/91	W
Sound power level(per speed setting, if applicable)	LWA	59/61	dB
contact details
MODEL:HTW-MKH1-V500-R4/MODEL:HTW-MKH1-500-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	3.54/3.86	kW
Cooling capacity(latent)	Prated,c	1.19/1.35	kW
Heating capacity	Prated,h	5.12/5.33	kW
Total electric power input	Pelec	52/92	W
Sound power level(per speed setting, if applicable)	LWA	59/61	dB
contact details

MODEL:HTW-MKH1-V700-R3/HTW-MKH1-700-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	4.08/4.26	kW
Cooling capacity(latent)	Prated,c	0.86/1.03	kW
Heating capacity	Prated,h	5.29/5.42	kW
Total electric power input	Pelec	98/124	W
Sound power level(per speed setting, if applicable)	LWA	65/65	dB
contact details
MODEL:HTW-MKH1-V700-R4/MODEL:HTW-MKH1-700-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	4.39/4.65	kW
Cooling capacity(latent)	Prated,c	1.21/1.51	kW
Heating capacity	Prated,h	6.22/6.53	kW
Total electric power input	Pelec	99/117	W
Sound power level(per speed setting, if applicable)	LWA	65/65	dB
contact details
MODEL:HTW-MKH1-V800-R3/HTW-MKH1-800-R3
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	4.75/4.76	kW
Cooling capacity(latent)	Prated,c	1.46/1.46	kW
Heating capacity	Prated,h	6.80/6.94	kW
Total electric power input	Pelec	105/118	W
Sound power level(per speed setting, if applicable)	LWA	66/66	dB
contact details
MODEL:HTW-MKH1-V800-R4/MODEL:HTW-MKH1-800-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	5.41/4.91	kW
Cooling capacity(latent)	Prated,c	1.89/1.75	kW
Heating capacity	Prated,h	7.7/6.86	kW
Total electric power input	Pelec	105/110	W
Sound power level(per speed setting, if applicable)	LWA	65/65	dB
contact details

MODEL:HTW-MKH1-V150F-R4/HTW-MKH1-150F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.25/1.44	kW
Cooling capacity(latent)	Prated,c	0.38/0.43	kW
Heating capacity	Prated,h	1.35/1.62	kW
Total electric power input	Pelec	20/40	W
Sound power level(per speed setting, if applicable)	LWA	52/52	dB
contact details
MODEL:HTW-MKH1-V250F-R4/HTW-MKH1-250F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	1.7/1.83	kW
Cooling capacity(latent)	Prated,c	0.71/0.75	kW
Heating capacity	Prated,h	2.06/2.19	kW
Total electric power input	Pelec	21/47	W
Sound power level(per speed setting, if applicable)	LWA	46/48	dB
contact details

MODEL:HTW-MKH1-V350F-R4/HTW-MKH1-350F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	2.73/2.87	kW
Cooling capacity(latent)	Prated,c	0.97/1.12	kW
Heating capacity	Prated,h	2.81/2.88	kW
Total electric power input	Pelec	30/51	W
Sound power level(per speed setting, if applicable)	LWA	52/52	dB
contact details
MODEL:HTW-MKH1-V500F-R4/HTW-MKH1-500F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	3.41/3.71	kW
Cooling capacity(latent)	Prated,c	1.08/1.21	kW
Heating capacity	Prated,h	3.27/3.55	kW
Total electric power input	Pelec	52/92	W
Sound power level(per speed setting, if applicable)	LWA	59/61	dB
contact details
MODEL:HTW-MKH1-V700F-R4/HTW-MKH1-700F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	4.24/4.47	kW
Cooling capacity(latent)	Prated,c	1.10/1.37	kW
Heating capacity	Prated,h	4.06/4.25	kW
Total electric power input	Pelec	99/117	W
Sound power level(per speed setting, if applicable)	LWA	65/65	dB
contact details
MODEL:HTW-MKH1-V800F-R4/HTW-MKH1-800F-R4
Information to identify the model(s)to which the information relation:
Item	Symbol Value		Unit
Cooling capacity(sensible)	Prated,c	5.22/4.73	kW
Cooling capacity(latent)	Prated,c	1.54/1.45	kW
Heating capacity	Prated,h	6.63/5.90	kW
Total electric power input	Pelec	105/110	W
Sound power level(per speed setting, if applicable)	LWA	65/65	dB
contact details

(*) Conditions: ambient temperature 27°C DB/19°C WB; water inlet temperature 7°C; water outlet temperature 12°C; high speed.

(**) Conditions: ambient temperature 20°C DB/15°C WB; water inlet temperature (2 pipe:45°C,4 pipe:65°C); water outlet temperature (2 pipe:40°C,4 pipe:55°C); high speed.

(***) The sound pressure level in dB(A) indicates the value measured at 1 m away from an open air outlet. Sound pressure level is below 70 dB.

(****) The parameters of the H1 based on the case that the back return air is completely blocked.

HTW

QUALITY COMFORT EVERYWHERE

ALLÈGE PLAFONNIER FANCOIL

MKH2

FRANÇAIS

Technical line drawing of a rectangular electronic device with mounting brackets and internal slots (no text or symbols)

Line drawing of a rectangular electronic device with a handle and internal compartments (no text or symbols)

Illustr. 5-3

Line drawing of a rectangular electronic device with a textured base and vertical supports (no text or symbols)

Pure technical diagram of a heat exchanger or cooling unit with inlet and outlet arrows (no text or symbols)

Technical line drawing of a mechanical enclosure or enclosure with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of a mechanical component with labeled dimensions 'a' (no text or symbols beyond basic lines)

Technical diagram of a device rear panel with labeled ports (d, b) and internal components (no text or symbols beyond labels)

Illustr. 5-11

NOTE

Technical line drawing of a rectangular electronic component with mounting holes and internal slots (no text or symbols)

3

Line drawing of a rectangular electronic device with ventilation grilles and vertical supports (no text or symbols)

Technical diagram of a heat exchanger or cooling unit with labeled dimensions (a), showing no text, numbers, or symbols beyond measurement markers.

Line drawing of a rectangular electronic device with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of a rectangular mechanical component with labeled dimensions 'a' (no text or symbols beyond basic lines)

Top-down schematic of a device casing with labeled ports (d, b) and internal components (no text or symbols beyond labels)

Figura 5-11

Technical line drawing of a rectangular electronic device with mounting flanges and internal slots (no text or symbols)

Ingresso dell'aria

Figura 5-3

Line drawing of a rectangular device with a mesh grille and vertical supports (no text or symbols)

Pure technical diagram of a heat exchanger or cooling unit with no text, numbers, or symbols

Technical line drawing of a mechanical enclosure or enclosure with internal compartments (no text or symbols)

Figura 5-10

Technical line drawing of a mechanical component with labeled dimensions 'a' (no text or symbols beyond basic lines)

Technical diagram of a device rear panel with labeled ports (d, b) and internal components (no text or symbols beyond labels)

Figura 5 11-

[e-mail] - www.htwspain.com

FRANCE

[e-mail]

PORTUGAL

[e-mail]

ITALIA

[e-mail]

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority deifferentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-outwheeled dustbin.

AVERTISSEMENTS POUR L'ÉLIMINATION CORRECTE DU PRODUIT AUX TERMES DE LA DIRECTIVE 2002/96 / CE.
