USER MANUAL HWL05D01 HONEYWELL

Read and save these instructions before use

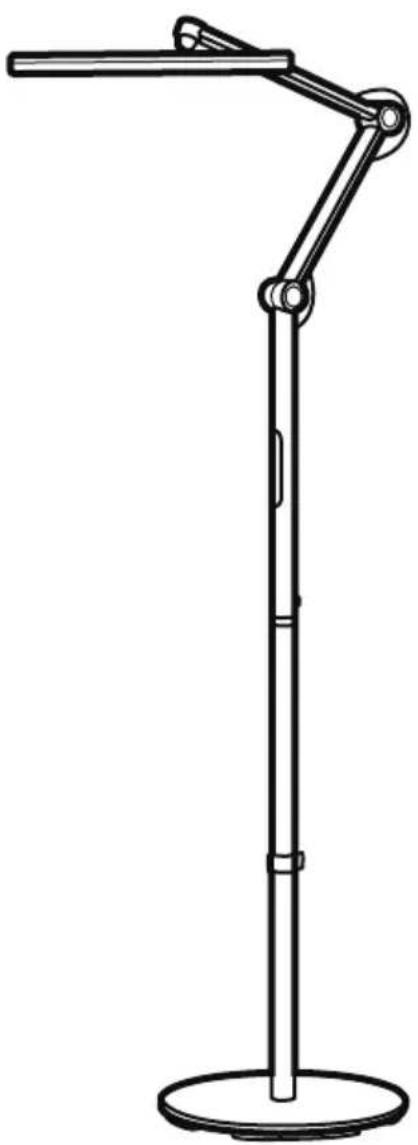

Line drawing of a desk lamp with adjustable arm and base (no text or symbols)

HWL-05D01

Email: [e-mail]

Telephone Number:

UK & EU: [phone]

US & Canada: [phone]

Website: honeywellsmartlighting.com

CONTENTS

Thank You 1

Product Introduction 1

Safety Warning 2

Cleaning and Maintenance 2

Technical Specifications 3

Package Contents 4

Parts Description 5

Installation Steps 6

Use and Operation 7

Troubleshooting 8

Warranty Card 9

THANK YOU

Thank you for purchasing our Honeywell Eye Protection Floor Lamp. Before using the product, please read this user manual carefully to understand its functions and safety precautions.

PRODUCT INTRODUCTION

The Honeywell HWL-05D01 Eye Protection Floor Lamp is equipped with 216 Sunturalux™ full-spectrum LED eye-friendly lamp beads, providing the closest light effect to natural light. With a CRI≥97, it restores true colors. The lamp head is equipped with a high-density prism plate, which can reduce the impact of light intensity differences on the eyes. The side of the light source also adopts a reflective cup design, which can reflect the light to other directions instead of directly entering the eyes, while enhancing the brightness of the illumination. With two rotary shafts and one spherical cardan shaft, it is easy to adjust the height and distance of the lamp head for a comfortable lighting experience.

- Eye protection: According to the 4 certifications from TUV SUD, the lamp has been verified to have no blue light, glare or flicker and meet or exceed international lighting standards. With a lifespan of over 30,000 hours, this lamp can create an eye-friendly lighting environment for work, study, reading, and entertainment.

- Mode Switching and Light Memory: With the touch panel on the lamp body, you can easily switch between Read-write Mode (4000K) and Painting Mode (5000K). You can also adjust the brightness level smoothly from 5% to 100% and set a 30-second delay for automatic shut-off. Additionally, the lamp automatically restores the last light settings when turned on.

- Even and High-Brightness Lighting Range: The square reflective cup effectively enhances the lighting intensity, with a high luminous flux of up to 1500 lumens. The prism plate structure allows the floor lamp's light to evenly spread throughout the entire space.

- Easy Installation: With minimal parts disassembly, the installation process is extremely simple. It only takes 3 steps to assemble into an excellent design. Transform your space without any stress.

- Sturdy and Safe Metal Material: The floor lamp body is made of high-strength aluminum alloy and iron, with a total weight of 18.74 pounds. And the stable base of the lamp prevents it from tipping over easily.

SAFETY WARNING

When you use this floor lamp, basic safety precautions should always be followed:

• Do not use a power supply that exceeds the rated voltage range. Long-term use outside the rated voltage range may damage the lamp.
• The product should be placed on a flat, solid surface (inclined to less than 6^ ) to avoid tipping, falling, and damaging due to instability.
• DO NOT submerge the product in water or use the product under conditions exceeding the operating temperature. For example, DO NOT place the lamp above the fireplace, gas, or exhaust pipe, as well as in bathrooms, outdoors, and other places that deviate from the standard use of the product. This product is for indoor use only.
• Please store the power cord of the lamp properly and do not place heavy objects on the power cord to avoid trampling or damaging it.
• Ensure that the connected power has grounding protection. Improper power connection may cause electric shock and lead to fatal risk.
• Consult an electrical professional when inspecting and repairing the lamp, non-professional operation is prone to danger.
• If the parts of the lamp are exposed, there is a possibility of electric shock, resulting in a fatal risk. Before connecting the power, please ensure that the lamp has been completely installed.
• Climbing and swinging are prohibited to avoid injuries caused by accidental lamp falling.
  • Installation and maintenance are prohibited when the power is on.

WARNING: To prevent the occurrence of accidents that threaten personal safety such as lamp damage, falling, electrical shock, fire, and so on, please strictly follow the instructions for installation and use, do not modify the lamp's structure, and exchange parts or accessories.

CLEANING AND MAINTENANCE

• Please clean and check the lamp regularly. Before care and maintenance, turn off the lamp and cut off the power to prevent electric shock.
• When cleaning the lamp, use a soft, lint-free cloth with a little diluted neutral cleaner to wipe the lamp's body. Do not use alcohol or any other kinds of chemical solvents, such as kerosene, stain removal oil, etc., as they may damage the lamp's housing.
• It is strictly forbidden to use water or other liquids to directly wash any lamp parts.

WARNING: Before the cleaning and maintenance of the lamp, the power must be cut off to prevent electric shock.

TECHNICAL SPECIFICATIONS

PARAMETERS	DETAILS SPECIFICATIONS
Basic	Model Number	HWL-05D01
	Material	Aluminum, Iron, Plastic
	Adapter Input	US&CA: 100-240V~50/60Hz 1.2AEU: 100-240V~50/60Hz 1.2AUK: 100-240V~50/60Hz 1.2A
	Adapter Output	DC 24V/1.5A
	Rated Power	28W
Light Source	LED Bead	SunturaluxTM Full Spectrum
	LED Beads Quantity	216 pcs
	Maximum Lumen	1500 LM
	CCT	4000K&5000K
	CRI(Ra)	97
	Lifespan	>30000h
Others	Net Weight 8.5kg/18.74lb
	Voltage Standard	US&CA: 120V/60HzEU: 220V~230V/50HzUK: 240V/50Hz

PACKAGE CONTENTS

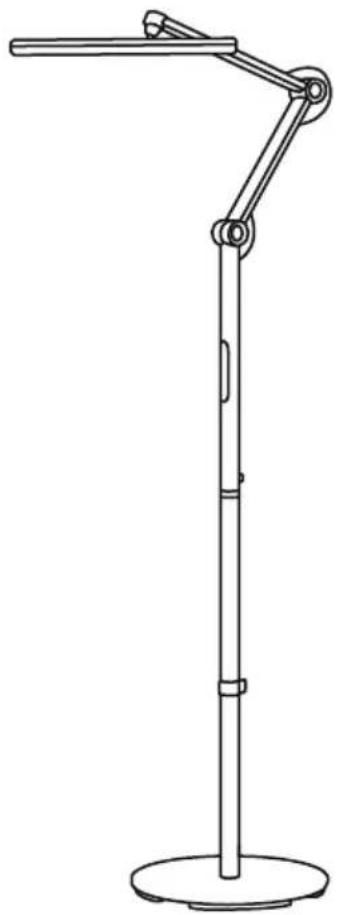

Line drawing of a adjustable desk lamp with adjustable arm and base (no text or symbols)

Floor Lamp*1

User Manual*1

Adapter*1

Check Screw*1

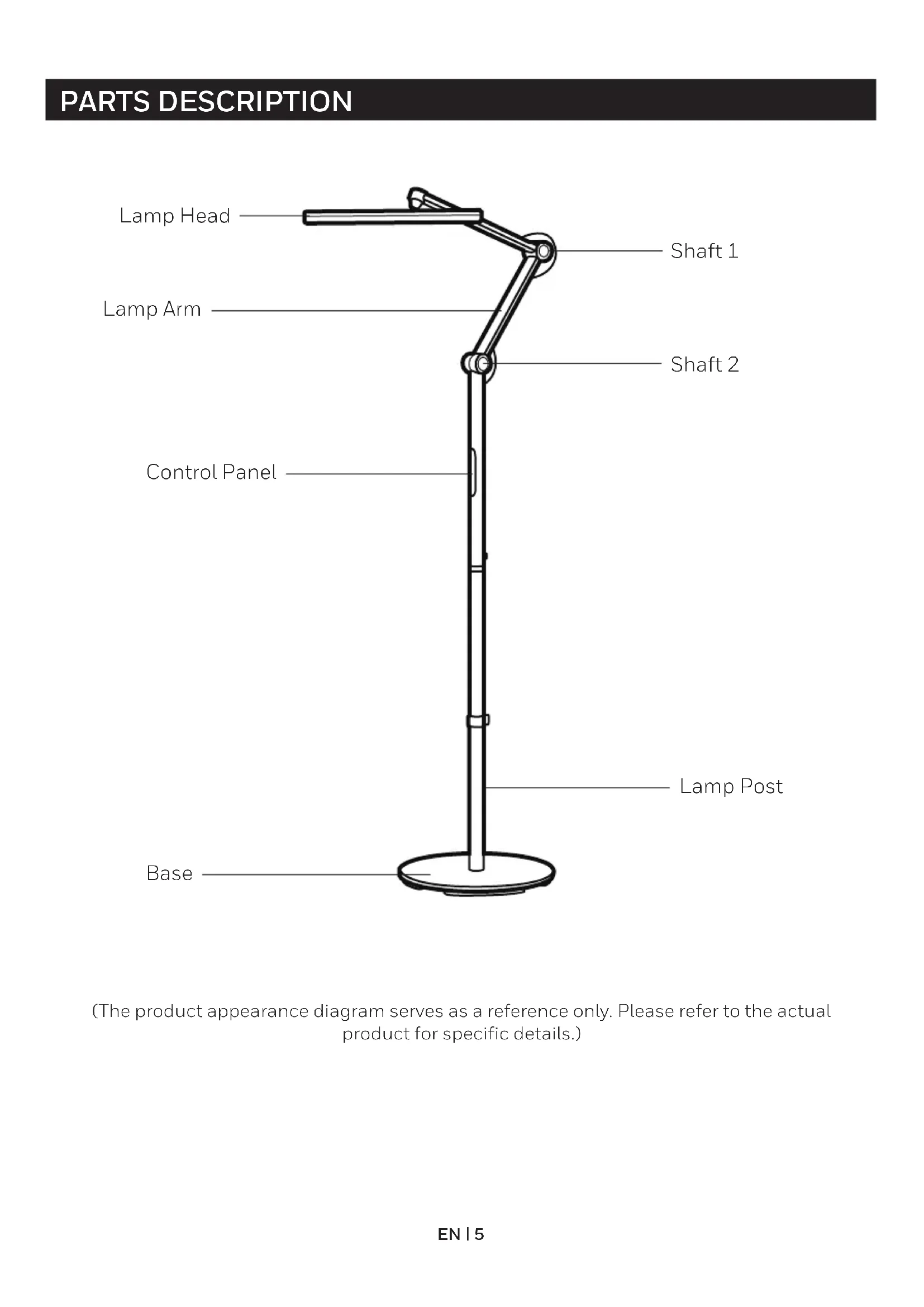

PARTS DESCRIPTION

Lamp Head Lamp Arm Control Panel Base Shaft 1 Shaft 2 Lamp Post

(The product appearance diagram serves as a reference only. Please refer to the actual product for specific details.)

INSTALLATION STEPS

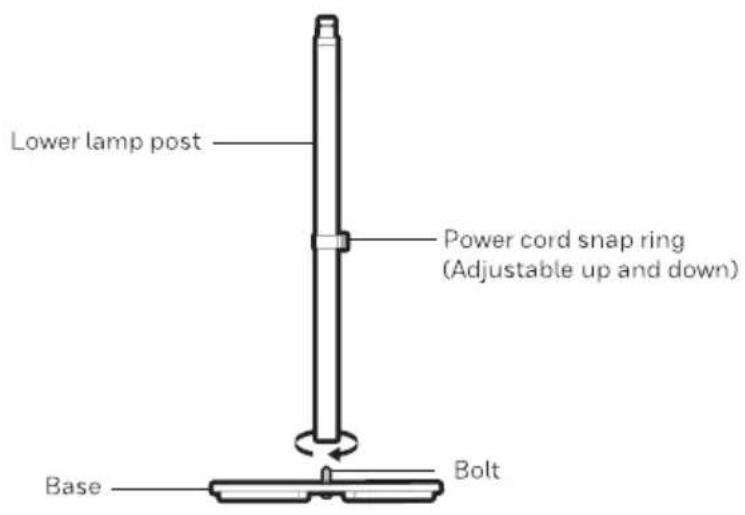

Lower lamp post Power cord snap ring (Adjustable up and down) Base Bolt

Step 1: Tighten the lower lamp post to the bolt on the base clockwise.

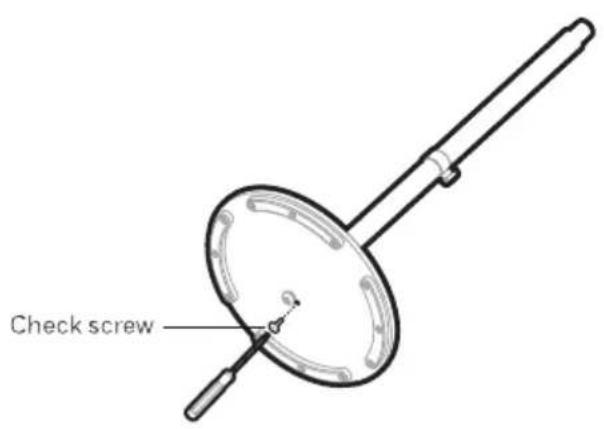

Check screw

Step 2: Tighten the check screw onto the base to secure the connection between the base and the lamp post.

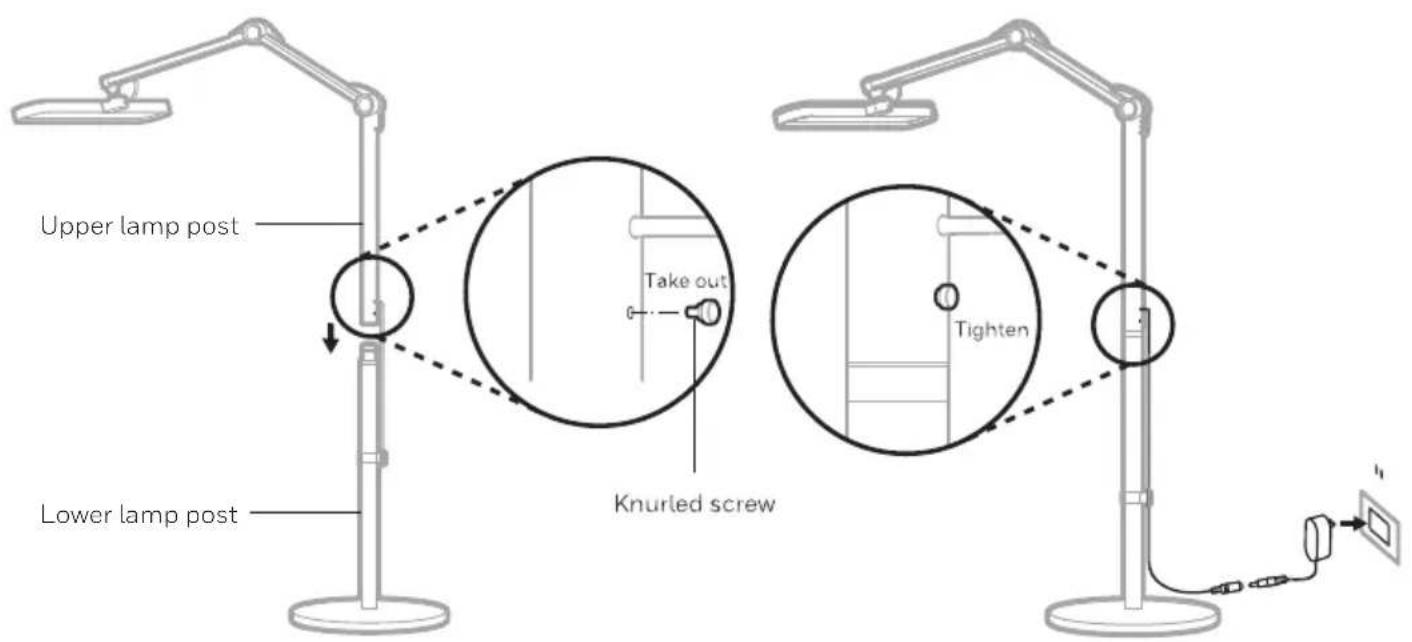

Upper lamp post Lower lamp post Take out Knurled screw Tighten

Step 3: Take out the knurled screw and insert the upper lamp post into the lower lamp post.
Step 4: Tighten the knurled screw to secure the upper and lower lamp posts and connect the power supply.

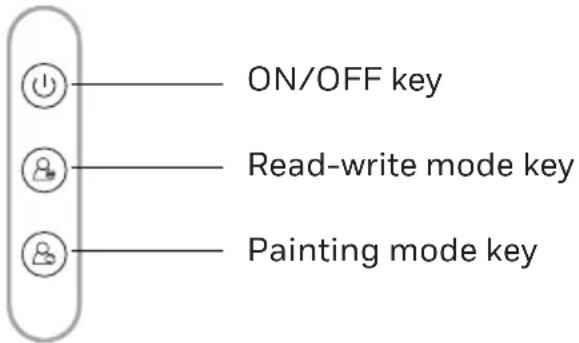

Control Panel

ON/OFF key Read-write mode key Painting mode key

1. ON/OFF key:

Turn on/off: touch the key to turn on/off the lamp. When turning on or off, the light gradually brightens or dims.

The light effect is memorized as the last setting and restored every time the light is turned on. The buzzer sounds 'beep-beep' when turning on the light, and 'beep' when turning off.

Brightness Adjustment: touch and hold the key to adjust the brightness. The brightness adjustment range is: 5%-100%-5%. After reaching the maximum/minimum value and releasing the key, the brightness can be adjusted reversely after holding the key again.

Delayed light off: when the light is on, quickly double-click to activate the delayed light-off function.

The light will then adjust to 5% brightness and automatically turn off after 30 seconds. When this function is activated, you can touch any key to restore the previous state and stop the function. The buzzer sounds 'beep' when this function is activated.

2. Read-write mode key:

When the light is on, touch the key to enter the read-write mode. The color temperature is set to 4,000K, and the buzzer will emit a 'beep' sound when the key is touched. It will also beep to indicate that the mode has been successfully activated.

3. Painting mode key:

When the light is on, touch the key to enter the painting mode. The color temperature is set to 5,000K, and the buzzer will emit a 'beep' sound when the key is touched. It will also beep to indicate that the mode has been successfully activated.

USE AND OPERATION (CONTINUED)

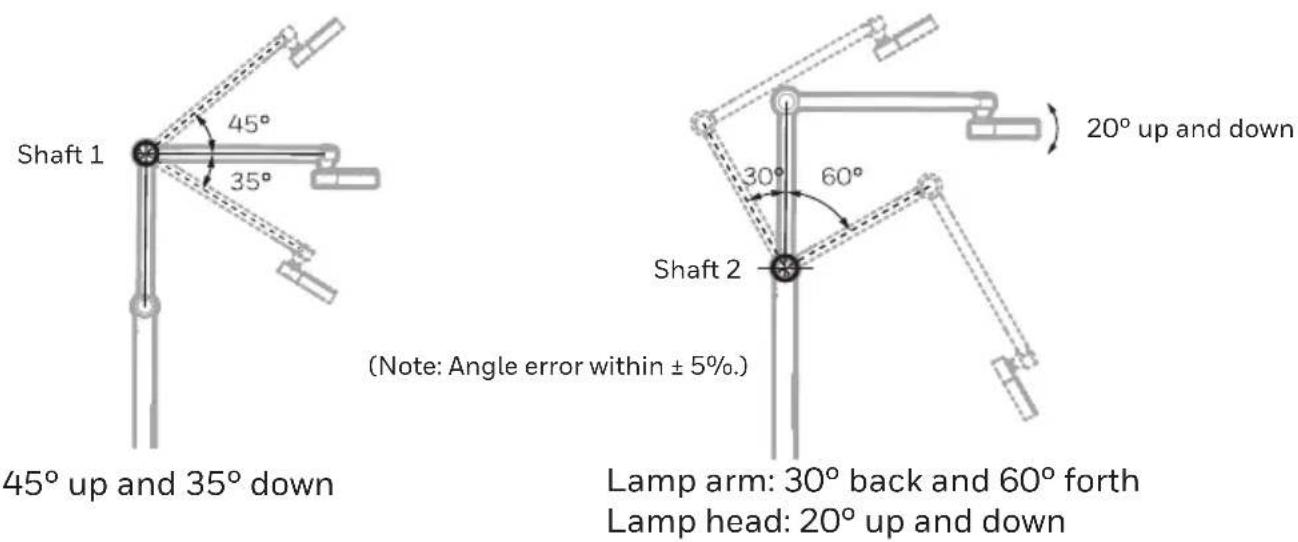

Angel Adjustment

Shaft 1 45° 35° 45° up and 35° down 20° up and down 30° 60° Shaft 2 (Note: Angle error within ± 5%.) Lamp arm: 30° back and 60° forth Lamp head: 20° up and down

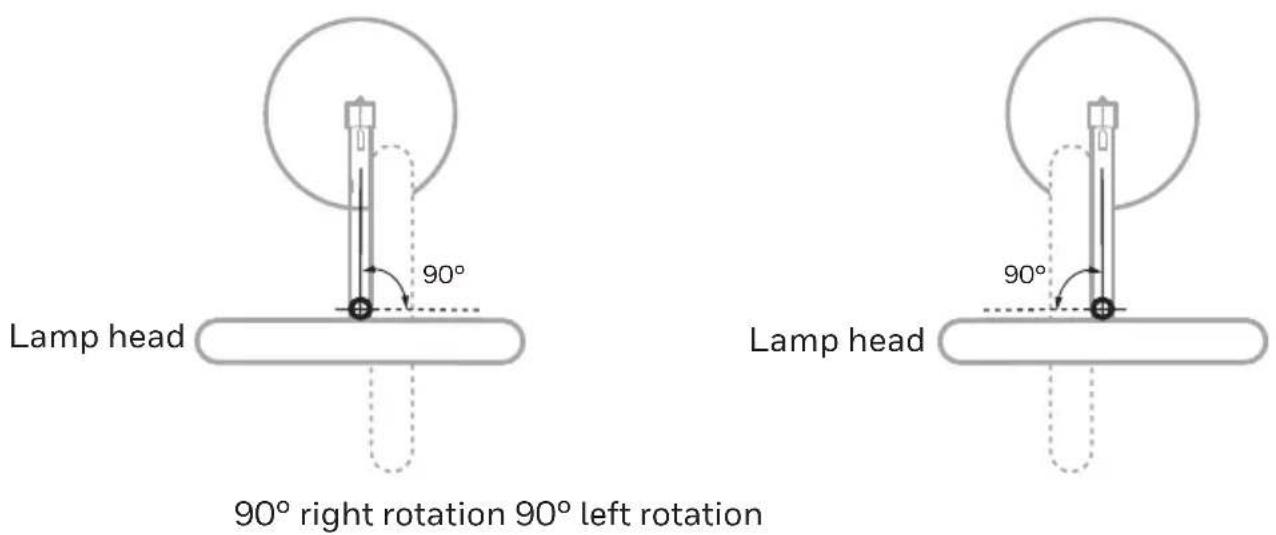

Lamp head 90° 90° right rotation 90° left rotation Lamp head 90°

TROUBLESHOOTING

If the floor lamp doesn't work, please follow these troubleshooting steps:

1. Please check if the floor lamp is connected to electricity, or check if the power cord is loose.
2. Please check if the keys on the control panel are damaged.

If you have completed the checks but the floor lamp still cannot be turned on, please contact our customer support team for assistance in resolving the issue.

Email: [e-mail]

WARRANTY CARD

Return and Exchange Notes

Huo Ming Technology Guangdong Co., Ltd. warranties this product to be free from defects in materials and workmanship for a period of 2 years and valid only in the United States, Canada, United Kingdom, Germany, France, Spain, and Italy.

This warranty only covers products that are properly installed, properly maintained and appropriately operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance.

Kind reminder: If you have a problem with your order and contact us for help, please be sure to attach your product order information and photos (if necessary) to get a quick solution.

IMPORTANT: If you experience product-related problems, please first contact our customer support center as soon as possible. We can help solve your problem before deciding to return the product. Do not attempt to disassemble the product or change any of the original parts or accessories. Doing so may void your warranty and cause damage to the product or personal injury.

The Warranty Does Not Cover:

1. Damage resulting from abusive, unreasonable use or supplemental damage.
2. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.
3. Damage resulting from any unauthorised attempts to repair or from any use not in accordance with the instruction manual.
4. Damage resulting from not following the instructions mentioned in "Safety Warning" and "Cleaning and Maintenance" sections.

Return or Exchange Information

Please complete the order, product, and user information below and return it in the package for collection.

Product Name:

Model Number:

Date of Purchase:

Purchased from:

Customer Name:

Phone Number:

Email:

If you have any questions, please feel free to contact us.

Huo Ming Technology Guangdong Co., Ltd.

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Customer Service ☒: [e-mail]

Customer Service B :

UK: [phone] Mon - Fri: 9:00am - 5:00pm (GMT)

EU: [phone] Mon - Fri: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Mon - Fri: 9:00am - 5:00pm (EST)

Website: honeywellsmartlighting.com
