HWT-H01 - Lamp HONEYWELL - Free user manual and instructions

USER MANUAL HWT-H01 HONEYWELL

Read and save these instructions before use

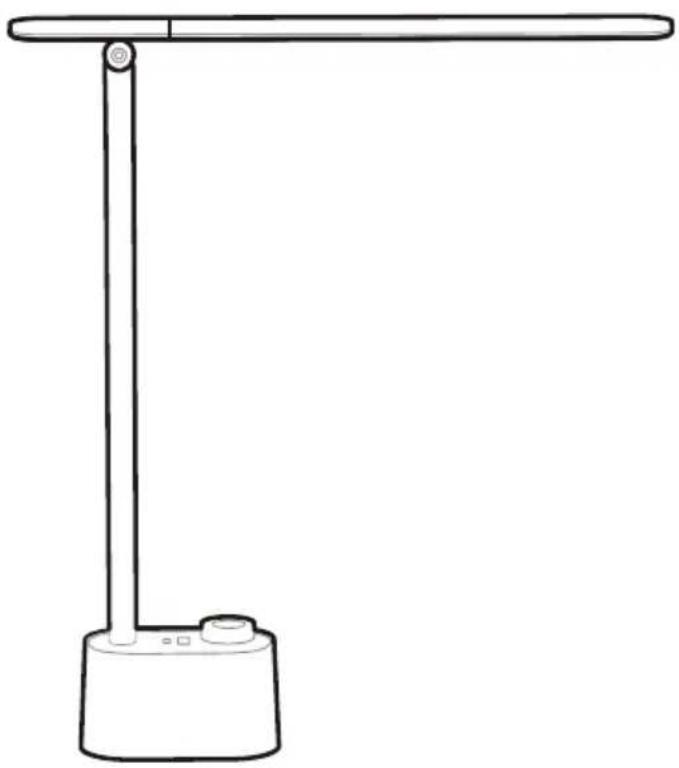

Line drawing of a simple desk lamp with adjustable arm and base (no text or symbols)

HWT-H01

HWT-H01W

HWT-H01G

CONTENTS

Thank You 1

Product Introduction 1

Safety Warning 2

Cleaning and Maintenance 3

Technical Specifications 3

Package Contents 4

Parts Description 5

Use and Operation 6

Troubleshooting 7

Warranty Card 7

THANK YOU

Thank you for purchasing our Honeywell Foldable Desk Lamp. Before using the product, please read this user manual carefully to understand its functions and safety precautions.

PRODUCT INTRODUCTION

Honeywell Foldable Desk Lamp

The Honeywell Foldable Desk Lamp adopts 48pcs Bridgelux Vesta® Thrive™ full spectrum LED lamp beads with a CRI≥95, which deliver the closest natural light. It also has no blue light, glare and flicker hazard. There are 3 kinds of color temperature for you to adjust, which can create a comfortable eye protection environment. A small and simple lamp body design, dual output charging ports (USB A+C) and foldable construction can not only meet the charging needs of various devices, but also greatly save desk space, which is ideal for reading, studying, drawing and other activities.

• Health and Safety Light Source: Strobe and blue light tests have been certified to meet or exceed standards to effectively protect users' eyes.
• Professional Eye Protection CCT and Multi-Angle Adjustment: 3 kinds of color temperatures, multi-level brightness adjustment and 0^ - 180^ free up-and-down angle adjustment can meet your different lighting needs.
• Dual Output Charging Ports: USB A+C dual output ports to meet your various electronic device charging needs.
• Foldable and Portable Design: Modern and simple desk lamp with a small and exquisite design is not only easy to carry, but also greatly saves desk top space.
• Convenient Rotary Knob: The rotary knob is easy to operate, which can achieve the function of brightness adjustment and color switching.

When you use the desk lamp, basic safety precautions should always be followed:

• Do not put the desk lamp in an unstable place in avoiding toppling causing lamp damage.
• The desk lamp is not waterproof or moisture-proof, and is suitable for dry areas only.
• Do not insert metals or flammables into the output charging ports to avoid short circuit, electric shock and fire etc.
• Please use the specialized adapter with 100-240V 50/60Hz. Long-term use under non-rated voltage may make the lamp overheat and cause a fire.
• Please keep the lamp away from direct sunlight and heating elements, otherwise the lamp may change color, damage or malfunction.
• You must cut off the power supply before cleaning, do not use liquid, spray cleaner or overly wet cloth to prevent inner circuit damage.
• Please unplug the adapter to prevent fire accidents when the lamp is not used for a long time.
• Do not handle any part of the plug or desk lamp body with wet hands.
• Do not disassemble the product by yourself when any malfunction occurs, contact us for support.

WARNING: To prevent the occurrence of accidents that threaten personal safety such as lamp damage, falling, electrical shock, fire, and so on, please strictly follow the instructions for installation and use, do not modify the lamp's structure, or exchange parts or accessories.

CLEANING AND MAINTENANCE

• Please clean and check the lamp regularly. Before care and maintenance, turn off the lamp and cut off the power supply to prevent electric shock.
• When cleaning the lamp, use a soft, lint-free cloth with a little diluted neutral cleaner to wipe the lamp's body. Do not use alcohol or any other kinds of chemical solvents, such as kerosene, stain removal oil, etc., as they may damage the lamp's housing.
• It is strictly forbidden to use water or any other liquids to directly wash any parts of the lamp.

WARNING: Before you clean and maintain the lamp, you must cut off the power supply to prevent electric shock.

TECHNICAL SPECIFICATIONS

Various Parameters	Details Specifications
Basic	Model Number	Black: HWT-H01White: HWT-H01WGrey: HWT-H01G
	Material	Plastic
	Output Current	2.1A
	Output Voltage	5V
	Rated Power	11W
Light Source	LED Bead	Full Spectrum 2835
	LED Beads Quantity	48 pcs
	Maximum Lumen	500 LM
	CCT	3000K/4000K/5500K
	CRI (Ra)	95
	Lifespan	30000h
Others	Net Weight	1.83lb/0.83kg
	Adapter	Input: 100-240V 50/60HzOutput: 12V/2A
	Voltage Standard	US&CA: 120V/60HzEU: 220V~230V/50HzUK: 240V/50Hz

PACKAGE CONTENTS

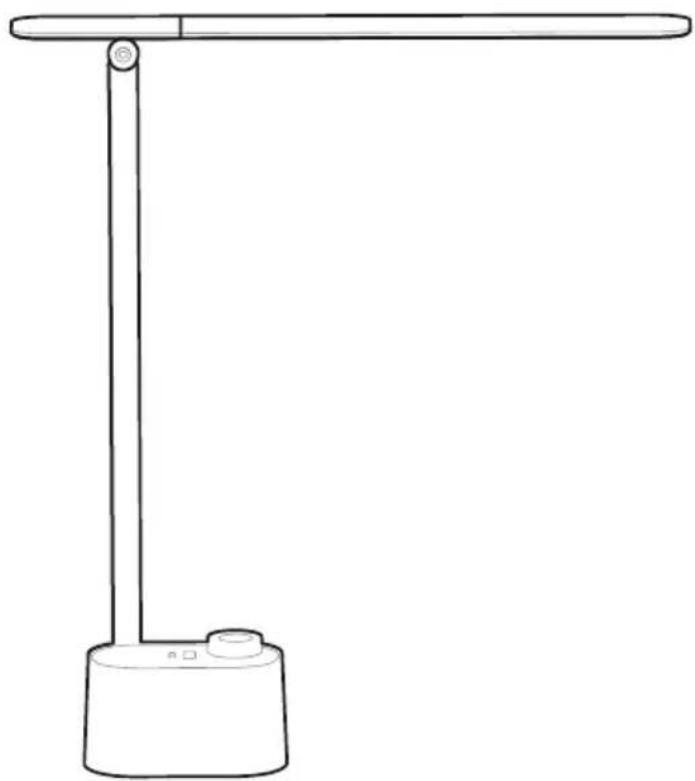

Line drawing of a simple desk lamp with adjustable arm and base (no text or symbols)

Desk Lamp*1

User Manual*1 Adapter*1

Simple line drawing of a U-shaped tube with a small connector (no text or symbols)

(The product does not need to be assembled)

PARTS DESCRIPTION

LEDs Rotating Joint (Horizontal Rotation) Rotating Joint (Vertical Rotation) Lamp Arm USB C Output Charging Port USB A Output Charging Port Knob Lamp Base

(The product appearance diagram is for reference only. For specifics, please refer to the actual product.)

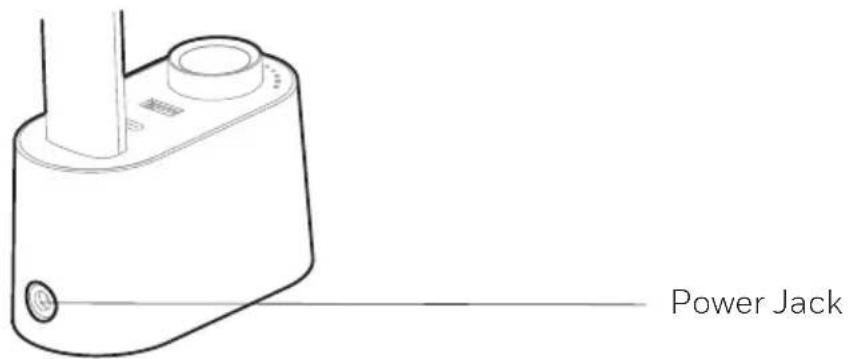

Power Jack

USE AND OPERATION

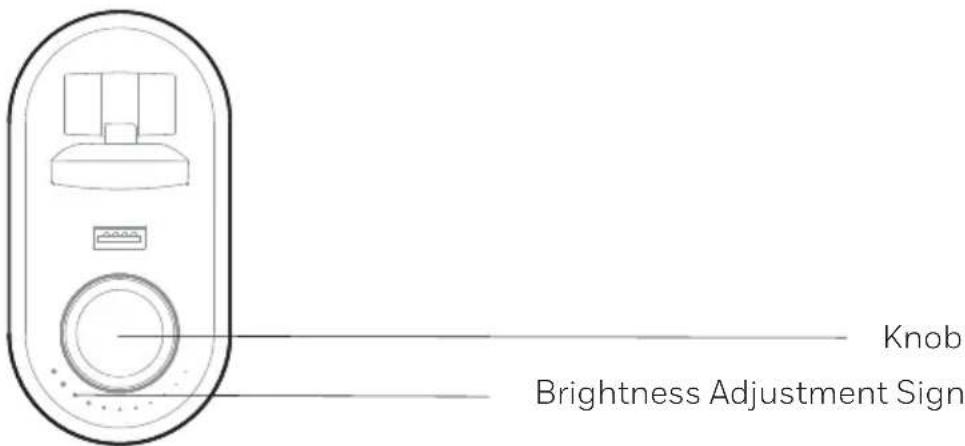

Knob Brightness Adjustment Sign

Turn on/off

Short press the knob to turn on the light. Long press the knob to turn off the light.

Color Temperature Setting

Short press the knob for color temperature setting(3000K/4000K/5500K)

Brightness Adjustment

Rotate to the bigger dots for high-brightness linear adjustment: 10%—100%. Rotate to the smaller dots for low-brightness linear adjustment: 100%—10%.

*If you encounter any issues, please feel free to contact us.

Brightness Memory Function

The lamp always remembers your previous brightness settings, so that when you turn it on next time, it will maintain the brightness you adopted when you turned it off.

USB Output Charging Ports

The 2 USB output charging ports can charge simultaneously, and the total output is 5V = 2.1A MAX.

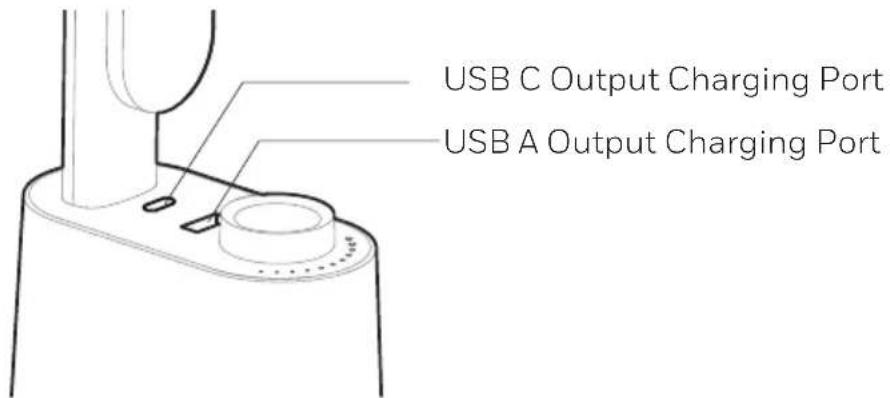

USB C Output Charging Port USB A Output Charging Port

TROUBLESHOOTING

If the desk lamp doesn't work, please check the following situations:

1. Check if the power supply is off.
2. If the power supply is on, please press down the knob to turn on the lamp.
3. If the lamp still doesn't work, please contact our customer service support team for help.

Email: [e-mail]

WARRANTY CARD

Return and Exchange Notes

Huo Ming Technology Guangdong Co., Ltd. warranties this product to be free from defects in materials and workmanship for a period of 2 years and valid only in the United States, Canada, United Kingdom, Germany, France, Spain, and Italy.

This warranty only covers products that are properly installed, properly maintained and appropriately operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance.

Kind reminder: If you need to contact us for help about any product issues, please make sure to attach your product order information and photos (if necessary) to get a quick solution.

IMPORTANT: If you experience product-related problems, please first contact our customer support center. We can help solve your problems before deciding to return the product. Do not attempt to disassemble the product or change any of the original parts or accessories. Doing so may void your warranty and cause damage to the product or personal injury.

The Warranty Does Not Cover:

1. Damage resulting from abusive, unreasonable use or supplemental damage.
2. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.
3. Damage resulting from any unauthorised attempts to repair or from any use not in accordance with the instruction manual.
4. Damage resulting from not following the instructions mentioned in Safety and Maintenance Guide.

WARRANTY CARD (CONTINUED)

Return or Replace Information

Please fill in the order, product, and user information down below, and put it back in the package.

Product Name:

Model Number:

Date of Purchase:

Purchased from:

Customer Name:

Phone Number:

Email:

If you have any questions, please feel free to contact us.

Huo Ming Technology Guangdong Co., Ltd.

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Customer Service ☒: [e-mail]

Customer Service B :

UK: [phone] Mon - Fri: 9:00am - 5:00pm (GMT)

EU: [phone] Mon - Fri: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Mon - Fri: 9:00am - 5:00pm (EST)

Vielen Dank 1

Produkteinführung 1

Line drawing of a simple desk lamp with a vertical pole and base (no text or symbols)

Schreibtischlampe*1

Simple line drawing of a U-shaped tube with a small outlet (no text or symbols)

Email: [e-mail]

GARANTIE KARTE

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Kundendienst ☒: [e-mail]

Kundendienst B :

UK: [phone] Mo - Fr: 9:00am - 5:00pm (GMT)

EU: [phone] Mo - Fr: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Mo - Fr: 9:00am - 5:00pm (EST)

Remerciements 1

INTRODUCTION AU PRODUIT

Honeywell Pliable Lampe de bureau

Line drawing of a simple desk lamp with a vertical pole and base (no text or symbols)

Lampe de bureau*1

Simple line drawing of a U-shaped tube with a small container (no text or symbols)

Line drawing of a door handle with control knob and buttons (no text or symbols)

Bouton

Technical line drawing of a mechanical component with no visible text or symbols

Email: [e-mail]

CARTE DE GARANTIE

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

UK: [phone] Lu - Ve: 9:00am - 5:00pm (GMT)

EU: [phone] Lu - Ve: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Lu - Ve: 9:00am - 5:00pm (EST)

Gracias 1

Line drawing of a simple desk lamp with a vertical pole and base (no text or symbols)

Simple line drawing of a U-shaped tube with a small outlet, no text or symbols present

Email: [e-mail]

TARJETA DE GARANTÍA

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Servicio al Cliente ☒: [e-mail]

EU: [phone] Lun - Vie: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Lun - Vie: 9:00am - 5:00pm (EST)

Ringraziamenti 1

Line drawing of a simple desk lamp with adjustable arm and base (no text or symbols)

Simple line drawing of a U-shaped tube with a small outlet (no text or symbols)

Manuale d'uso*1 Alimentatore*1

The lamp always remembers your previous brightness settings, so that when you turn it on next time, it will maintain the brightness you adopted when you turned it off.

Technical line drawing of a mechanical component with no visible text or symbols

Email: [e-mail]

GARANZIA

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Assistenza clienti ✉ : [e-mail]

UK: [phone] Lun - Ven: 9:00am - 5:00pm (GMT)

EU: [phone] Lun - Ven: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Lun - Ven: 9:00am - 5:00pm (EST)

The Honeywell Trademark is used under license from Honeywell International Inc.

Huo Ming Technology

Guangdong Co., Ltd.

Room 3501, Haijunda Plaza, Guizhou

Avenue, Foshan, China

[e-mail]

UK & EU: [phone]

US & Canada: [phone]

Honeywell International Inc. makes no representations or warranties with

respect to this product. This product is manufactured by Huo Ming Technology Guangdong Co., Ltd.

MADE IN CHINA
