USER MANUAL HWL-02E Pro HONEYWELL

Read and save these instructions before use

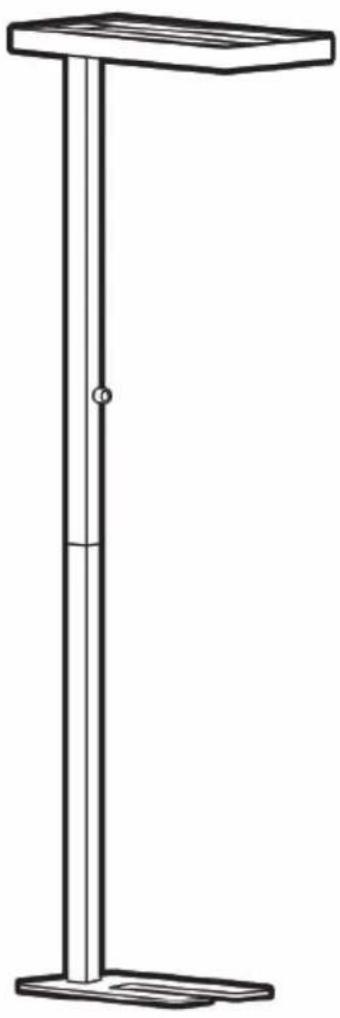

Simple line drawing of a vertical metal stand with a flat top and base (no text or symbols)

HWL-02E Pro

Email: [e-mail]

Telephone Number:

UK & EU: [phone]

US & Canada: [phone]

CONTENTS

Thank You 1

Product Introduction 1

Safety Warning 2

Cleaning and Maintenance 3

Technical Specifications 3

Package Contents 4

Parts Description 5

Installation Steps 6

Use and Operation 7

Troubleshooting 8

Warranty Card 8

THANK YOU

Thank you for purchasing our Honeywell Natural Light Floor Lamp. Before using the product, please read this user manual carefully to understand its functions and safety precautions.

PRODUCT INTRODUCTION

Honeywell Natural Light Floor Lamp

The Honeywell HWL-02E Pro Natural Light Floor Lamp adopts 528 Bridgelux Vesta® Thrive™'s full spectrum LED lamp beads which deliver the closest natural light. With a CRI≥97, they have no blue light, glare, and flicker. Made of aluminum alloy and iron, the lamp is strong and durable. With a 10400LM large light-emitting panel as well as upper and lower dual light sources, it can illuminate your entire space through the diffuse reflection of the ceiling to simulate sunlight. Creating a soft and comfortable eye environment, the lamp is ideal for reading, studying, drawing, and other activities.

- Healthy and Safety Light Source: Through strobe and blue light hazard tests, the lamp has been verified to meet or exceed standards to effectively protect users' eyes.

- Professional Eye Protection CCT: Under 4000K soft color temperature, users can quickly adjust the brightness through the knob.

- Upper and Lower Dual Light Source: Through diffuse reflection to simulate sunlight, the lamp provides high-brightness uniform light, which can reduce the difference from its ambient brightness.

- Tall Lamp Pole Ergonomic Design: Large rectangular luminous panel is placed overhead, filling the room with light like the sun. The diffuser of the lamp head is equipped with a prism structure, making the light soft and uniform.

- Solid Metal Design: The main body is made of aluminum alloy and iron material and a U-shaped body structure design makes it solid and durable.

When you use the floor lamp, basic safety precautions should always be followed:

• Ensure that the power voltage is consistent with the rated voltage and frequency of the lamp. If the power voltage doesn't match, it may cause parts damage, resulting in the malfunction of the lamp.
• Ensure that the product is correctly installed with fasteners and is placed on a flat, sturdy surface for use to avoid inclining, falling, product damage, personal injuries and property loss.
• Do not place the lamp beside high-temperature objects or in humid environments, such as stoves, gas and exhaust pipes, bathrooms, outdoors, etc., to prevent damage.
• Please store the power cord of the lamp properly and do not place heavy objects on the power cord to avoid trampling or damaging.
• Ensure that the connected power has grounding protection. Improper power connection may cause electric shock and lead to fatal risk.
• Do not put your fingers in the connection gap of the lamp post when installing, otherwise, injuries such as pinching can occur.
• Consult an electrical professional when inspecting and repairing the lamp, non-professional operation is prone to danger.
• If the parts of the lamp are exposed, there is a possibility of electric shock, resulting in a fatal risk. Before connecting the power, please ensure that the lamp has been completely installed.
• Climbing and swinging are prohibited to avoid injuries caused by accidental lamp falling.
  • Installation and maintenance are prohibited when the power is on.

WARNING: To prevent the occurrence of accidents that threaten personal safety such as lamp damage, falling, electrical shock, fire, and so on, please strictly follow the instructions for installation and use, do not modify the lamp's structure, and exchange parts or accessories.

CLEANING AND MAINTENANCE

• Please clean and check the lamp regularly. Before care and maintenance, turn off the lamp and cut off the power to prevent electric shock.
• When cleaning the lamp, use a soft, lint-free cloth with a little diluted neutral cleaner to wipe the lamp's body. Do not use alcohol or any other kinds of chemical solvents, such as kerosene, stain removal oil, etc., as they may damage the lamp's housing.
• It is strictly forbidden to use water or any other liquids to directly wash any parts of the lamp.

WARNING: Before the cleaning and maintenance of the lamp, the power must be cut off to prevent electric shock.

TECHNICAL SPECIFICATIONS

Various Parameters	Details Specifications
Basic	Model Number	HWL-02E Pro
	Material	Aluminum Alloy and Iron
	Input Voltage	110V-277V~50/60Hz
	Rated Power	100W
Light Source	LED Bead	Full Spectrum 2835
	LED Beads Quantity	528 pcs
	Total Lumens	10400LM
	Upper Lumens	7500LM
	Lower Lumens	2900LM
	CCT	4000K
	CRI(Ra)	97
	Lifespan	>30000h
Others	Net Weight 15KG/33lb
	Voltage Standard	US&CA: 120V/60HzEU: 220V~230V/50HzUK: 240V/50Hz

PACKAGE CONTENTS

Simple 3D line drawing of a rectangular block with horizontal lines inside, no text or symbols present.

Upper Lamp Post*1 Lower Lamp Post*1 Lamp Head*1

Pure technical line drawing of a U-shaped mechanical component (no text or symbols)

Lamp Base*1

Soft Light Diffusion Transmittance Plate*2 Pcs(Optional)

Power Cord*1

Screw A*4

Screw C*3Screw B*4

Simple line drawing of a handheld tool or device with a stem and handle (no text or symbols)

User Manual*1Hexago

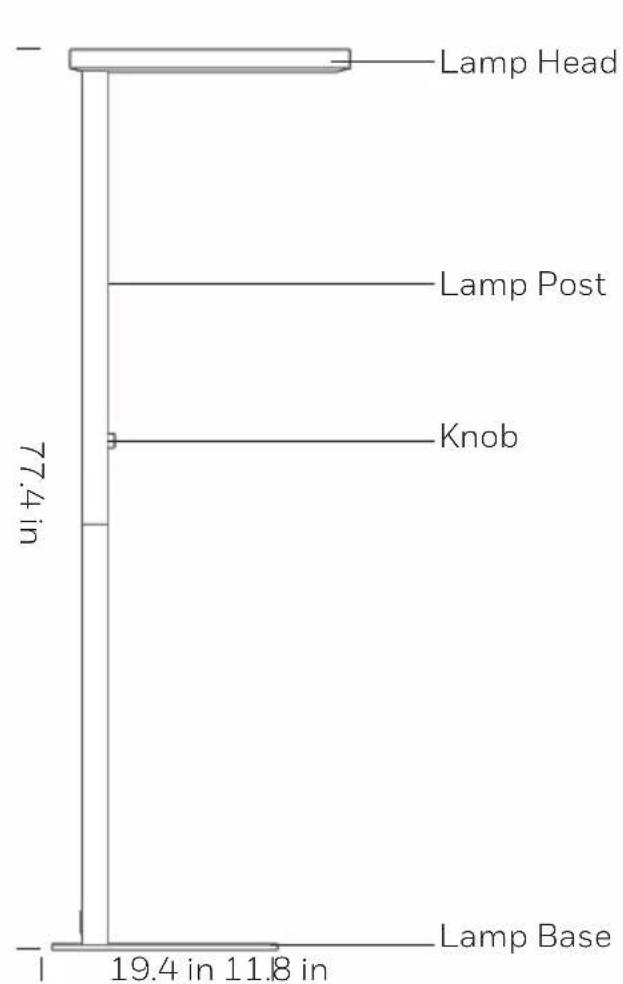

PARTS DESCRIPTION

24 in 11.3 in Top

Lamp Head Lamp Post Knob 77.4 in 19.4 in 11.8 in Lamp Base

Front Side

11.3 in

(The product appearance diagram is for reference only. For specifics, please refer to the actual product.)

INSTALLATION STEPS

Preparations before Installation

• Open the package, spread the pearl cotton on the ground, take out all the accessories and place them well. Put the remaining pearl cotton on the ground to prevent damage to the ground caused by falling and friction during the assembly process.
• Confirm whether the contents of the package are complete.

Steps

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating movement or force.

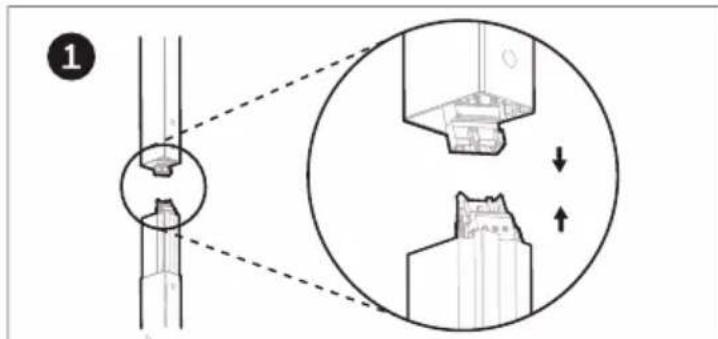

1. Connect the upper and lower lamp posts;

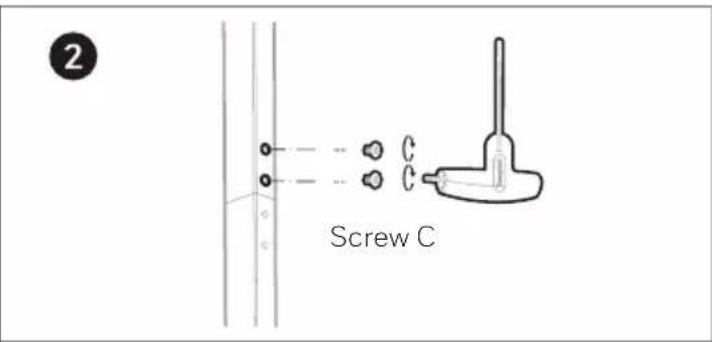

2 Screw C

1. Fix the connection with screw C;

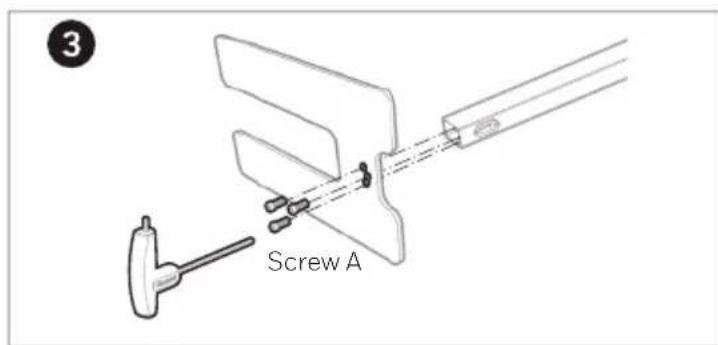

3 Screw A

1. Fix the lower lamp post that is near the power socket to the lamp base with screw A;

4

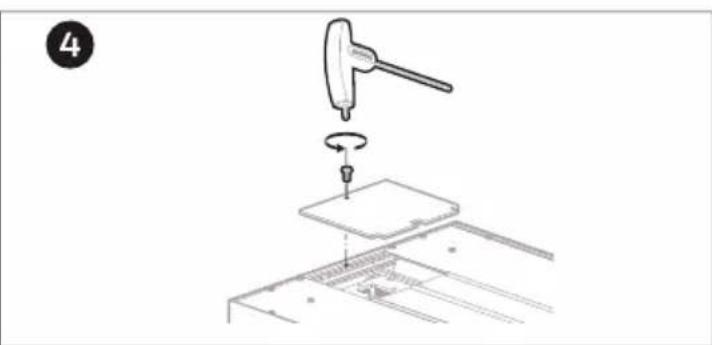

1. Remove the top cover of the lamp head with a hexagonal wrench;

5

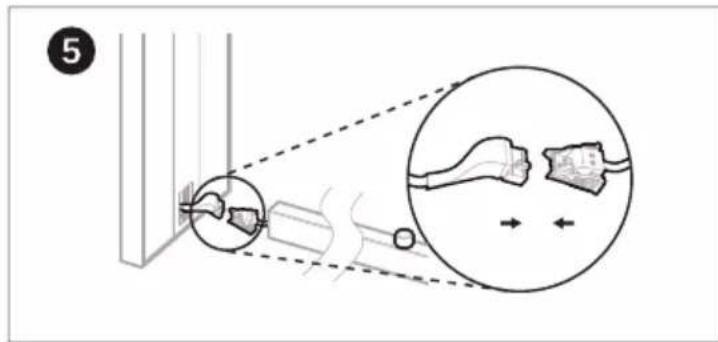

1. Connect the lamp post terminal to the lamp shade terminal;

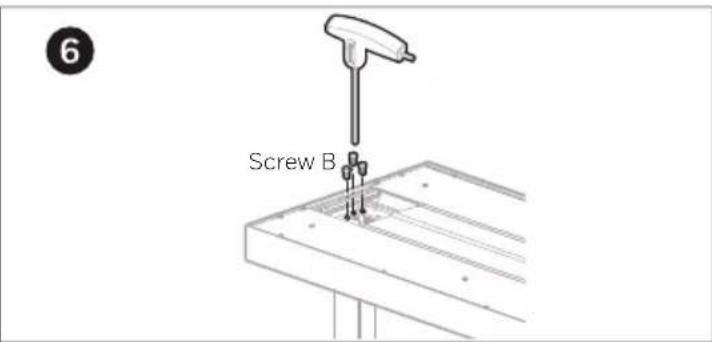

Screw B

1. Secure the lamp shade to the lamp post with screw B;

INSTALLATION STEPS (CONTINUED)

7

Technical line drawing of a hammer fastening a workpiece on a workbench (no text or symbols)

1. Cover the lid and secure it with the original fixing screws;

8

Diagram showing a mechanical assembly with a tool and a separate component, no text or symbols present.

1. Put the floor lamp upright, plug in the power cord and rotate the lamp knob for use.

9

Three parallel rectangular strips with dotted outlines, no text or symbols present

3D diagram of a rectangular plate with internal ribs and two parallel plates above it, showing alignment arrows (no text or symbols)

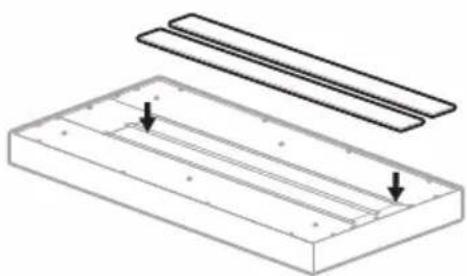

Additional Components: Soft light diffusion transmittance plate

Use Effect: Some light intensity can be reduced to make the light softer and more uniform.

1. Temporary use: The soft light diffusion transmittance plate can be directly placed on the top light transmittance plate respectively.
2. Fixed use: Remove the double-sided adhesive on the soft light diffusion light transmittance plate and fix it to the top light transmittance plate.

Please choose the usage method according to your personal preference.

USE AND OPERATION

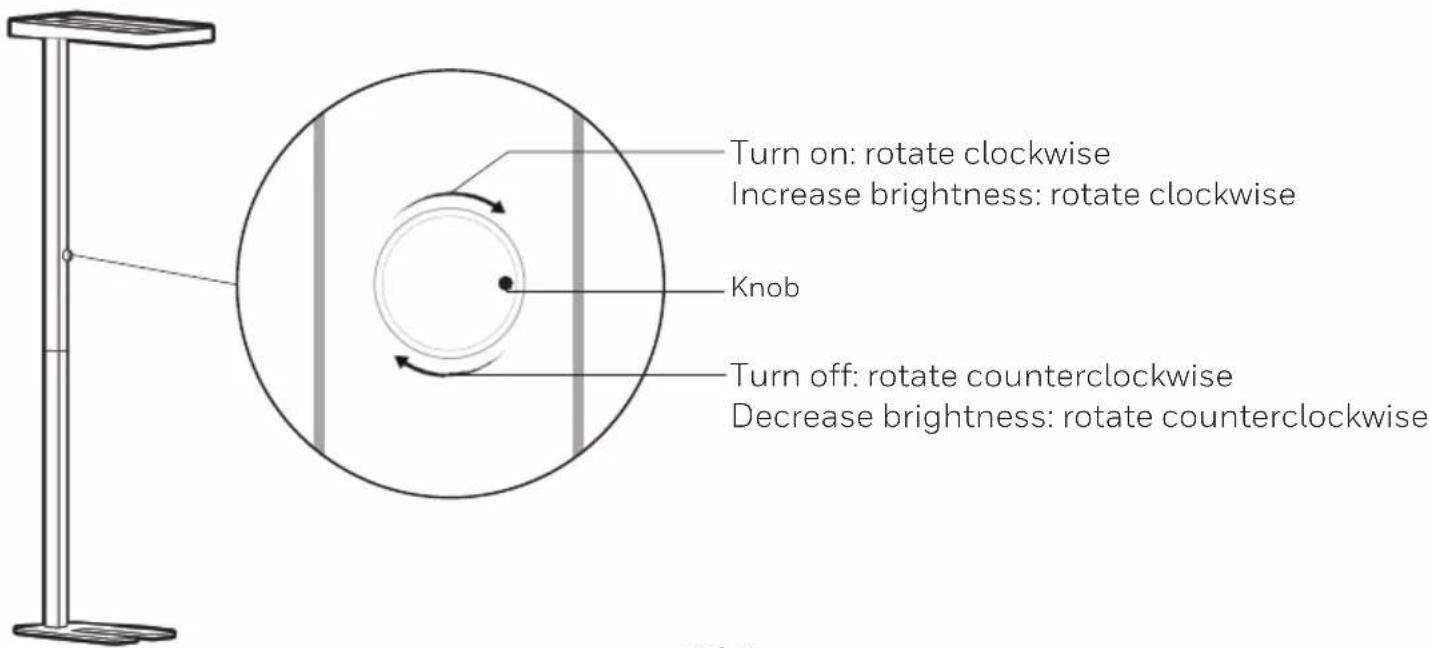

Turn on: rotate clockwise Increase brightness: rotate clockwise Knob Turn off: rotate counterclockwise Decrease brightness: rotate counterclockwise

TROUBLESHOOTING

If the floor lamp doesn't work, please check the following situations:

1. Check if the power is on.
2. If the power is on, please rotate the knob to turn on the lamp.
3. If the lamp still doesn't work, please contact our customer service support team for help.

Email: [e-mail]

WARRANTY CARD

Return and Exchange Notes

Huo Ming Technology Guangdong Co., Ltd. warranties this product to be free from defects in materials and workmanship for a period of 2 years and valid only in the United States, Canada, United Kingdom, Germany, France, Spain, and Italy.

This warranty only covers products that are properly installed, properly maintained and appropriately operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance.

Kind reminder: If you need to contact us for help about any product issues, please make sure to attach your product order information and photos (if necessary) to get a quick solution.

IMPORTANT: If you experience product-related problems, please first contact our customer support center. We can help solve your problems before deciding to return the product. Do not attempt to disassemble the product or change any of the original parts or accessories. Doing so may void your warranty and cause damage to the product or personal injury.

The Warranty Does Not Cover:

1. Damage resulting from abusive, unreasonable use or supplemental damage.
2. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.
3. Damage resulting from any unauthorised attempts to repair or from any use not in accordance with the instruction manual.
4. Damage resulting from not following the instructions mentioned in Safety and Maintenance Guide.

WARRANTY CARD (CONTINUED)

Return or Replace Information

Please fill in the order, product, and user information down below, and put it back in the package.

Product Name:

Model Number:

Date of Purchase:

Purchased from:

Customer Name:

Phone Number:

Email:

If you have any questions, please feel free to contact us.

Huo Ming Technology Guangdong Co., Ltd.

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Customer Service ☒: [e-mail]

Customer Service B :

UK: [phone] Mon - Fri: 9:00am - 5:00pm (GMT)

EU: [phone] Mon - Fri: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Mon - Fri: 9:00am - 5:00pm (EST)

Vielen Dank 1

Produkteinführung 1

Isometric view of a rectangular block with horizontal lines and a flat top (no text or symbols)

Lampenkopf*1

Pure technical line drawing of a U-shaped mechanical component (no text or symbols)

Lampensockel*1

Simple line drawing of a handheld tool or device with a handle and stem (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating movement or force.

Technical line drawing of a hammer striking a component on a workbench (no text or symbols)

Diagram showing a mechanical assembly with a pin and a connected tool (no text or symbols)

Three parallel horizontal lines with rounded ends, no text or symbols present

Technical diagram of a rectangular plate with two parallel plates above and below, showing internal structure and arrows indicating direction (no text or symbols)

Technical diagram of a structural support frame with circular components and directional arrows, no text or symbols present.

Email: [e-mail]

GARANTIE KARTE

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Kundendienst ☒: [e-mail]

Kundendienst Ⓒ :

UK: [phone] Mo - Fr: 9:00am - 5:00pm (GMT)

EU: [phone] Mo - Fr: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Mo - Fr: 9:00am - 5:00pm (EST)

Remerciements 1

INTRODUCTION AU PRODUIT

Simple line drawing of a rectangular block with horizontal lines and a grid pattern on top (no text or symbols)

Tête de lampe*1

Two vertical cylindrical objects symmetrically placed at the edges (no text or symbols)

Pure technical line drawing of a U-shaped mechanical component (no text or symbols)

Socle de lampe*1

Simple line drawing of a handheld tool or device with a stem and handle (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating movement or force.

Technical line drawing of a hammer striking a workpiece on a workbench (no text or symbols)

Diagram showing a mechanical assembly with a tool and a separate component, no text or symbols present.

Two parallel rectangular strips with labeled ends (a and b) and a small top section, no text or symbols present.

Technical diagram of a rectangular plate with two parallel plates above and below, showing internal structure and arrows indicating direction (no text or symbols)

Technical diagram of a structural column with an inset showing rotational motion around a circular component (no text or labels)

Email: [e-mail]

CARTE DE GARANTIE

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

UK: [phone] Lu - Ve: 9:00am - 5:00pm (GMT)

EU: [phone] Lu - Ve: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Lu - Ve: 9:00am - 5:00pm (EST)

Isometric line drawing of a rectangular block with horizontal lines and a flat top (no text or symbols)

Pure technical line drawing of a U-shaped component without any text, numbers, or symbols

Simple line drawing of a handheld tool or tool with a handle and stem (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating movement or force.

1. Conecte los postes de luz superior e inferior;

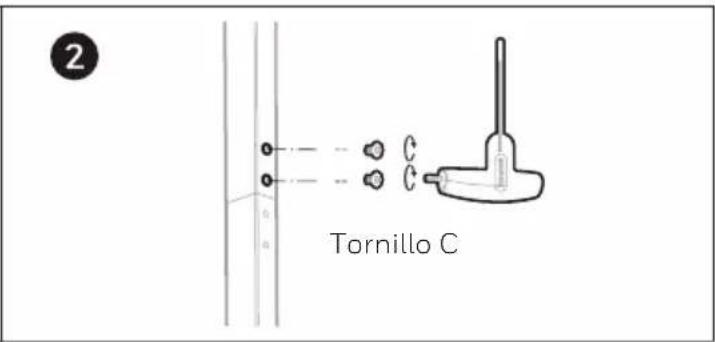

Tornillo C
