USER MANUAL HWL-F01 HONEYWELL

Read and save these instructions before use

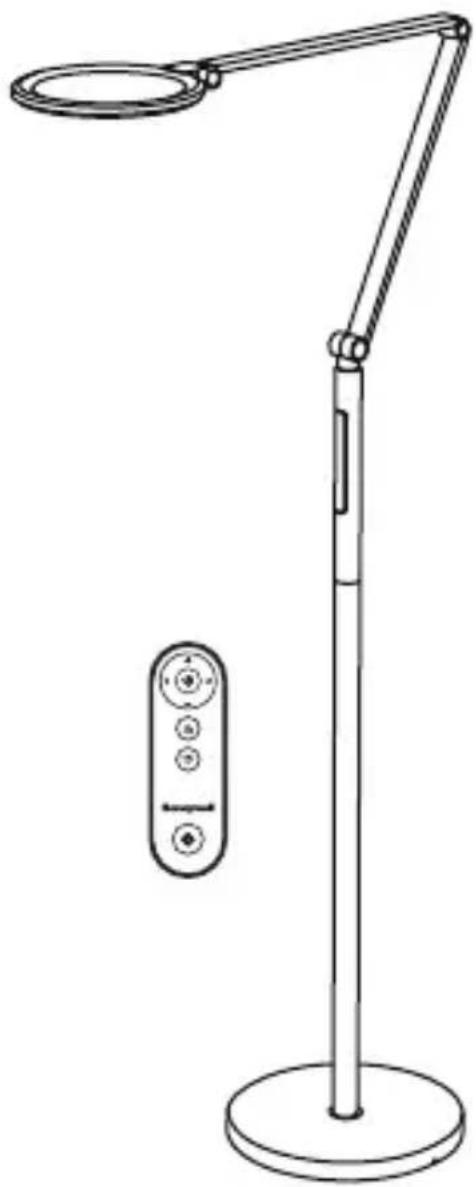

Line drawing of a adjustable floor lamp with adjustable arm and control panel (no text or symbols)

HWL-F01WT

HWL-F01BK

Email: [e-mail]

Telephone Number:

UK & EU: [phone]

US & Canada: [phone]

Website: honeywellsmartlighting.com

CONTENTS

Thank You 1

Product Introduction 1

Safety Warning 2

Cleaning and Maintenance 2

Technical Specifications 3

Package Contents 4

Parts Description 5

Installation Steps 6

Use and Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7

Troubleshooting 8

Warranty Card 8

THANK YOU

Thank you for purchasing our Honeywell Dimmable Swing Arm Floor Lamp. Before using the product, please read this user manual carefully to understand its functions and safety precautions.

PRODUCT INTRODUCTION

Honeywell HWL-F01 Dimmable Swing Arm Floor Lamp - Illuminate Your Space with Style and Comfort!

Experience Lighting Perfection: Immerse yourself in the brilliance of 96 Sunturalux™ full-spectrum LED lamp beads, which deliver lighting that mimics natural daylight. You can enjoy the exceptional CRI of ≥95 and also bid farewell to blue light, glare, and annoying flickers. The floor lamp incorporates cutting-edge three-dimensional lighting technology, seamlessly blending with your surroundings while ensuring that your eyes remain unaffected by abrupt changes in lighting intensity. It's like having natural sunlight at your fingertips.

• Tailored to Your Needs: With double folding arms, this lamp offers ultimate flexibility, allowing you to have complete control over the direction and height of the lamp head. It is perfectly adaptable for work, study, or reading - all with a simple adjustment.
• Endless Ambiance: Personalize your lighting with a wide color temperature range from 2700K to 5700K, creating the ideal atmosphere for any occasion.
• Effortless Control: Seamlessly switch between touch and remote control for unparalleled convenience. Finding the perfect lighting has never been easier.
• Effortless Installation: Our lamp's user-friendly design ensures a hassle-free setup, reducing the complexity of the installation process. Transform your space without any stress.

Elevate your lighting experience with the Honeywell HWL-F01 Dimmable Swing Arm Floor Lamp - where wellness meets style in perfect harmony. Illuminate your world with elegance and precision.

When you use this floor lamp, basic safety precautions should always be followed:

• Do not use a power supply that exceeds the rated voltage range. Long-term use outside the rated voltage range may damage the lamp.
• The product should be placed on a flat, solid surface (inclined to less than 6^ ) to avoid tipping, falling, and damaging due to instability.
• DO NOT submerge the product in water or use the product under conditions exceeding the operating temperature. For example, DO NOT place the lamp above the fireplace, gas, or exhaust pipe, as well as in bathrooms, outdoors, and other places that deviate from the standard use of the product. This product is for indoor use only.
• Please store the power cord of this product properly, do not place heavy objects on the power cord, to avoid trampling or damaging it.
• Avoid putting your fingers between the connecting rods of the lamp arm when adjusting the angle, otherwise, injuries such as pinching can occur.
• Consult an electrical professional when inspecting and repairing the lamp, non-professional operation is prone to danger.

WARNING: To prevent the occurrence of accidents that threaten personal safety such as lamp damage, falling, electrical shock, fire, and so on, please strictly follow the instructions for installation and use, do not modify the lamp's structure, and exchange parts or accessories.

CLEANING AND MAINTENANCE

• Please clean and check the lamp regularly. Before care and maintenance, turn off the lamp and cut off the power to prevent electric shock.
• When cleaning the lamp, use a soft, lint-free cloth with a little diluted neutral cleaner to wipe the lamp's body. Do not use alcohol or any other kinds of chemical solvents, such as kerosene, stain removal oil, etc., as they may damage the lamp's housing.
• It is strictly forbidden to use water or other liquids to directly wash any lamp parts.

WARNING: Before the cleaning and maintenance of the lamp, the power must be cut off to prevent electric shock.

TECHNICAL SPECIFICATIONS

PARAMETERS	DETAILS SPECIFICATIONS
Basic	Model Number	HWL-F01WT (White)HWL-F01BK (Black)
	Material	Aluminum, Iron and Plastic
	Adapter Input	US&CA: 100-240V~50/60Hz 0.7AEU: 220-240V~50/60Hz 0.4AUK: 100-240V~50/60Hz 0.7A
	Adapter Output	DC 12V/2A
	Rated Power	18W
Light Source	LED Bead	SunturaluxTM Full Spectrum
	LED Beads Quantity	96 pcs
	Maximum Lumen	1000 LM
	CCT	2700K-5700K
	CRI(Ra)	95
	Lifespan	>30000h
Others	Net Weight 4.8kg/10.6lb
	Voltage Standard	US&CA: 120V/60HzEU: 220V~230V/50HzUK: 240V/50Hz

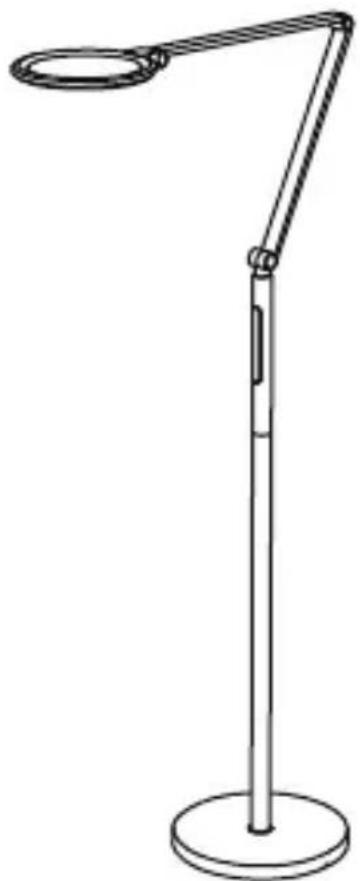

PACKAGE CONTENTS

Line drawing of a standard adjustable desk lamp with a circular handle and base (no text or symbols)

Floor Lamp*1 Remote*1

User Manual*1 Adapter*1

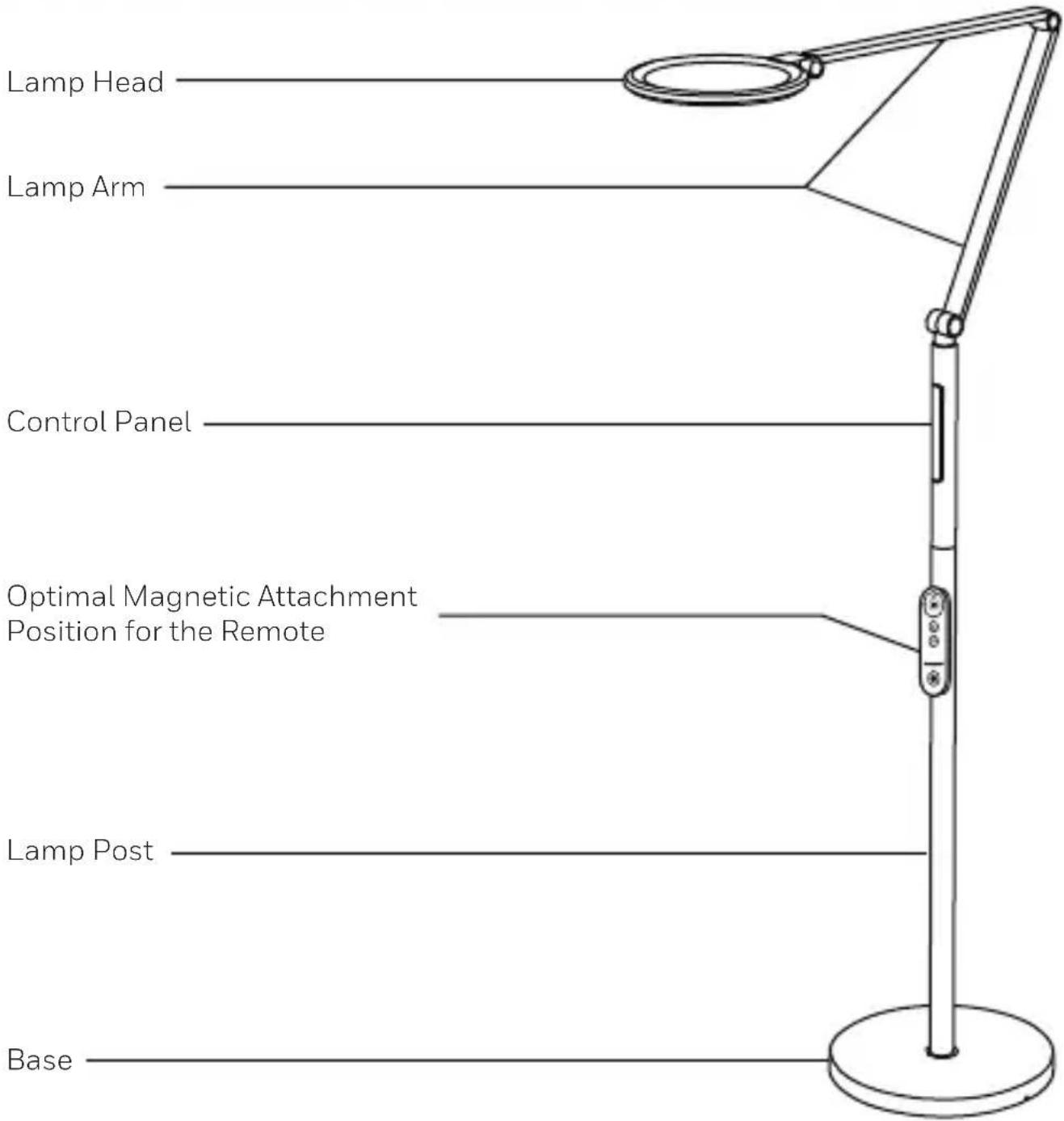

PARTS DESCRIPTION

Lamp Head Lamp Arm Control Panel Optimal Magnetic Attachment Position for the Remote Lamp Post Base

(The product appearance diagram serves as a reference only. Please refer to the actual product for specific details.)

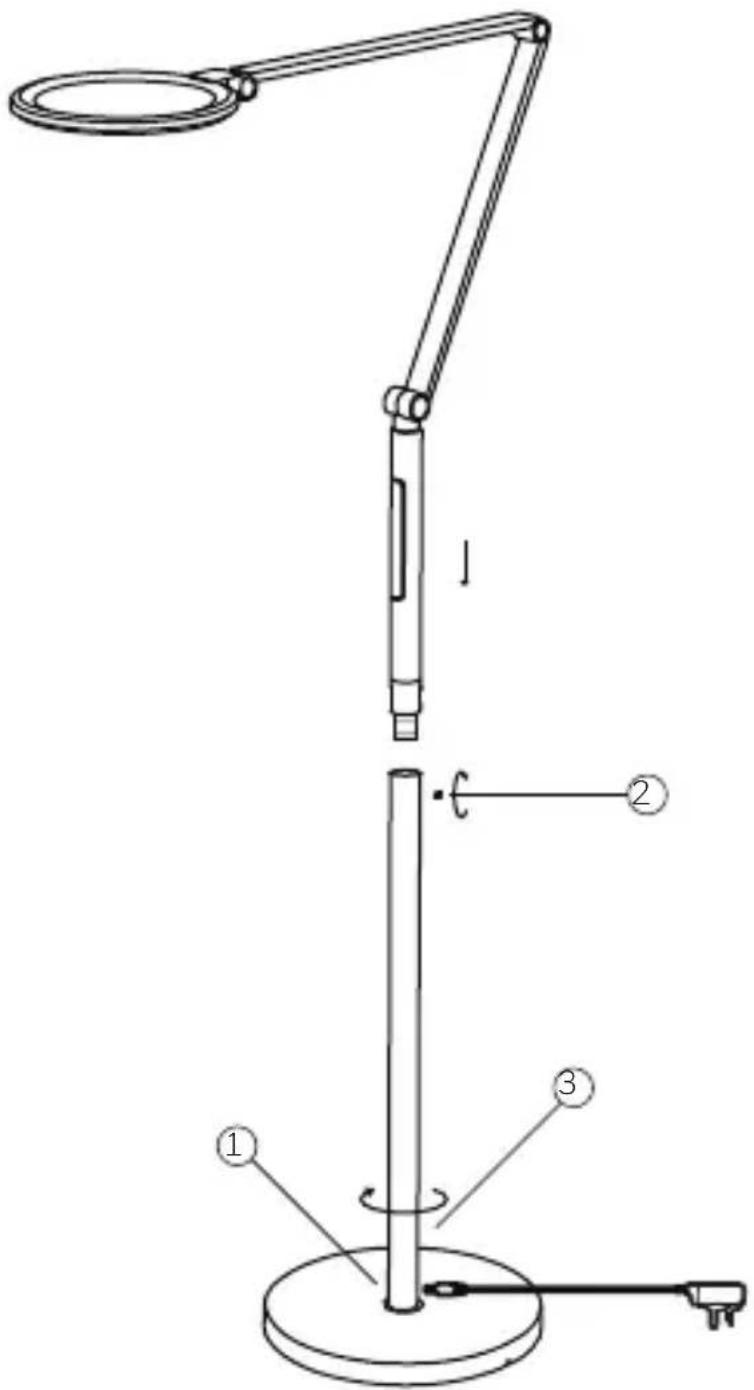

INSTALLATION STEPS

Technical diagram of a desk lamp with labeled parts including stand, lamp arm, and base components

Insert the lamp post into the base and tighten it clockwise along the thread.
② Insert the lamp arm into the lamp post and secure it with the included screws.
③ Insert the power cord into the lamp post and connect the adapter to the socket.

USE AND OPERATION

Control Modes

1. Lamp Body Touch Control

On/Off Switch: Touch to turn on the light and adjust the color temperature (5 levels); long press to turn off the light.

Slider: Slide up to increase brightness; slide down to decrease brightness.

2. Remote Control

• 5-level brightness adjustment
• 5-level color temperature adjustment
• One-button switch to reading mode
• 30-minute automatic shutdown timer

Control Panels

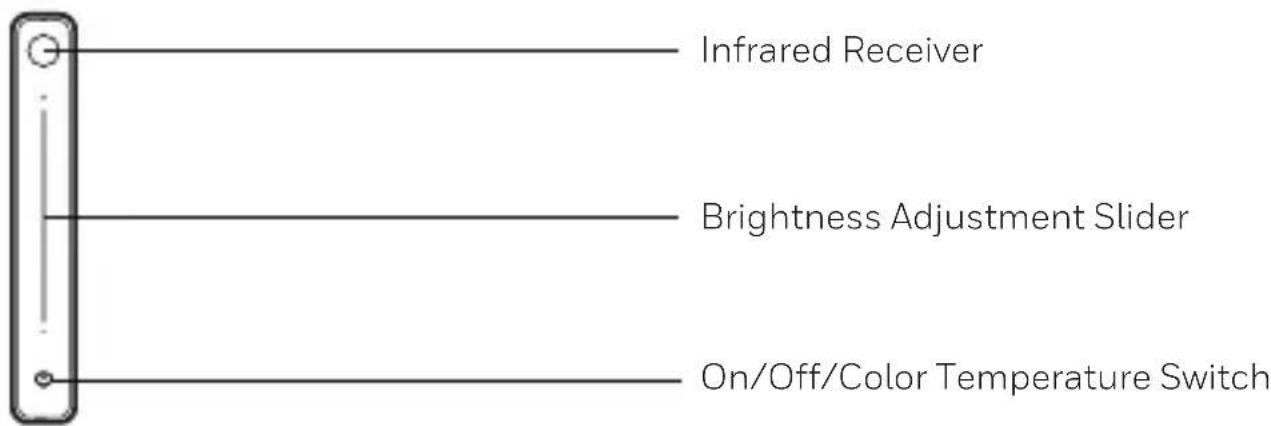

1. Lamp Body Touch Control Panel

Infrared Receiver Brightness Adjustment Slider On/Off/Color Temperature Switch

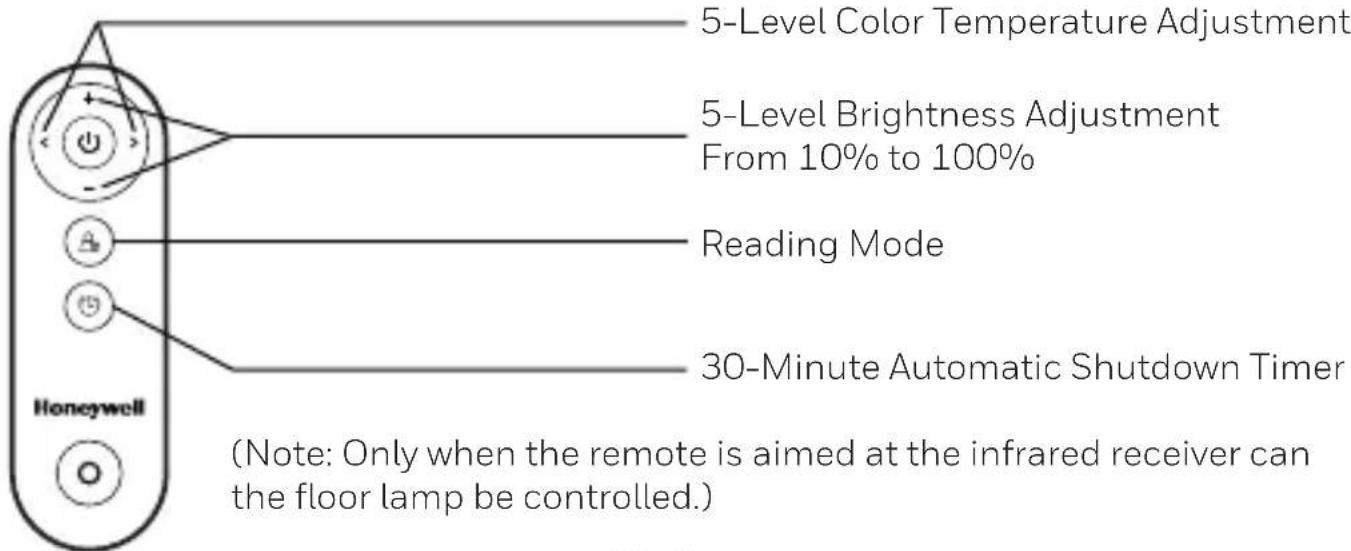

2. Remote Control Panel

5-Level Color Temperature Adjustment 5-Level Brightness Adjustment From 10% to 100% Reading Mode 30-Minute Automatic Shutdown Timer Honeywell (Note: Only when the remote is aimed at the infrared receiver can the floor lamp be controlled.)

TROUBLESHOOTING

If you are experiencing issues, please follow these troubleshooting steps:

1. Check if the power cord is loose.
2. Check if the batteries in the remote need to be replaced. If the touch panel on the lamp is working properly but the remote is not working, it may be due to low battery power and you need to replace the batteries. If the problem persists after replacing the batteries, please contact our customer support team for assistance.
3. Tap the touch panel on the lamp to check if it's working properly. If the remote is working properly but the touch panel is not responding, it may be a panel malfunction and you need to contact our customer support team for assistance.

If you have checked the above three points but the floor lamp still cannot be turned on, it may be due to internal circuit damage of the product. Please contact our customer support team to resolve the issue.

Email: [e-mail]

WARRANTY CARD

Return and Exchange Notes

Huo Ming Technology Guangdong Co., Ltd. warranties this product to be free from defects in materials and workmanship for a period of 2 years and valid only in the United States, Canada, United Kingdom, Germany, France, Spain, and Italy.

This warranty only covers products that are properly installed, properly maintained and appropriately operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance.

Kind reminder: If you have a problem with your order and contact us for help, please be sure to attach your product order information and photos (if necessary) to get a quick solution.

IMPORTANT: If you experience product-related problems, please first contact our customer support center as soon as possible. We can help solve your problem before deciding to return the product. Do not attempt to disassemble the product or change any of the original parts or accessories. Doing so may void your warranty and cause damage to the product or personal injury.

The Warranty Does Not Cover:

1. Damage resulting from abusive, unreasonable use or supplemental damage.
2. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.
3. Damage resulting from any unauthorised attempts to repair or from any use not in accordance with the instruction manual.
4. Damage resulting from not following the instructions mentioned in Safety and Maintenance Guide.

WARRANTY CARD (CONTINUED)

Return or Replace Information

Please complete the order, product, and user information below and return it in the package for collection.

Product Name:

Model Number:

Date of Purchase:

Purchased from:

Customer Name:

Phone Number:

Email:

If you have any questions, please feel free to contact us.

Huo Ming Technology Guangdong Co., Ltd.

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Customer Service 📋: [e-mail]

Customer Service Ⓞ :

UK: [phone] Mon - Fri: 9:00am - 5:00pm (GMT)

EU: [phone] Mon - Fri: 9:00am - 5:00pm (GMT+2)

US & Canada: [phone] Mon - Fri: 9:00am - 5:00pm (EST)

Website: honeywellsmartlighting.com
