USER MANUAL HWT-01A HONEYWELL

Read and save these instructions before use

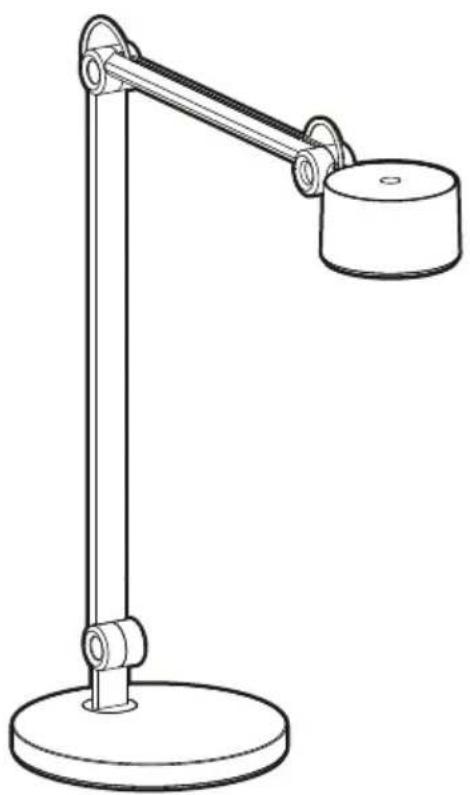

Line drawing of a desk lamp with adjustable arm and base (no text or symbols)

HWT-01A

CONTENTS

Thank You 1

Product Introduction 1

Safety Warning 1

Cleaning and Maintenance 2

Technical Specifications 3

Package Contents 4

Parts Description 5

Use and Operation 6

Troubleshooting 7

Warranty Card 7

THANK YOU

Thank you for purchasing our Honeywell LED Desk Lamp. Before using the product, please read this user manual carefully to understand its functions and safety precautions.

PRODUCT INTRODUCTION

Honeywell LED Desk Lamp

The Honeywell HWT-01A LED Desk Lamp adopts 30pcs Bridgelux Vesta® Thrive™ full spectrum LED lamp beads which deliver the closest natural light; CRI≥95, no blue light, no glare, and no flicker. The main body is made of aluminum alloy with multi-angle flexible adjustment, linear brightness adjustment, sensitive touch control, and eye protection function, that help create a soft and comfortable eye environment. Ideal for home office, reading, studying, drawing, and other activities.

• Health and Safety Light Source: Anti-stroboscopic and blue light hazard tests have been certified to meet or exceed standards to effectively protect users' eyes.
• Professional Eye Protection CCT: Under 4000K soft eye-caring color temperature, the user can adjust the brightness as needed.
• Multi-Angle Adjustment: The 3.4-inch small round head design with double swing arms has the flexibility to be adjusted at multiple angles; the sensitive touch control switch is also freely adjustable.
• Solid Metal Design: The main body is made of aluminum alloy and iron material, and the total 6.8 lb body weight makes the lamp firmly stand on the desktop.

SAFETY WARNING

When using electrical appliances, basic safety precautions should always be followed:

• Do not use a power supply that exceeds the rated voltage range. Long-term use outside the rated voltage range may damage the lamp.
• Please make sure to use the original adapter. Using a non-original adapter may damage the product and bring security risks.

SAFETY WARNING(CONTINUED)

• The product should be placed on a flat, solid surface (inclined to less than 6°) to avoid tipping, falling, and damaging the product due to instability.
• The product will generate heat during operation, please keep the area surrounding the product clear to mitigate heat generation.
• DO NOT submerge the product in water or use the product under conditions exceeding the operating temperature. For example, DO NOT place the lamp above the fireplace, gas, or exhaust pipe, as well as in bathrooms, outdoors, and other places that deviate from the standard use of the product. This product is for indoor use only.
• Please store the power cord of this product properly, do not place heavy objects on the power cord, to avoid trampling or damaging it.
• Avoid putting your fingers between the connecting rods of the lamp arm when adjusting the angle, otherwise, injuries such as pinching can occur.
• Consult an electrical professional when inspecting and repairing the lamp, non-professional refurbishing is prone to danger.
• If the external cable or cord of the lamp becomes damaged, it should be replaced by professional repair personnel for safety reasons.

WARNING: To prevent the occurrence of accidents that threaten personal safety such as lamp damage, falling, electrical shock, fire, and so on, please strictly follow the instructions for installation and use, do not modify the lamp's structure, and exchange parts or accessories.

CLEANING AND MAINTENANCE

• Please clean and check the lamp regularly. Before care and maintenance, turn off the lamp and remove the power adapter from the power socket to prevent electrical shock.
• When cleaning the lamp, use a soft, lint-free cloth with a little diluted neutral cleaner to wipe the lamp's body. Do not use alcohol or any other kinds of chemical solvents, such as kerosene, stain removal oil, etc., as they may damage the lamp's housing.
• It is strictly forbidden to use water or other liquids to directly wash any lamp parts.

WARNING: Before cleaning and maintaining the lamp, the power must be cut off to prevent electrical shock.

TECHNICAL SPECIFICATIONS

Various Parameters	Details	Specifications
Basic	Model Number	HWT-01A
	Material	Aluminum, Iron, Plastic
	Input Current	0.3A
	Input Voltage	DC 24V
	Rated Power	8W
Light Source	LED Bead	Full Spectrum 2835
	LED Beads Quantity	30 pcs
	Maximum Lumen	500 LM
	CCT	4000K
	CRI (Ra)	95
	Lifespan	30000h
	PF	0.5
Others	Ingress Protection	IP20
	Net Weight	3.4KG/7.5lb
	Adapter	Input: 100-240V 50/60HzOutput: DC 24V/0.63A
	Voltage Standard	US&CA: 120V/60HzEU: 220V~230V/50HzUK: 240V/50Hz

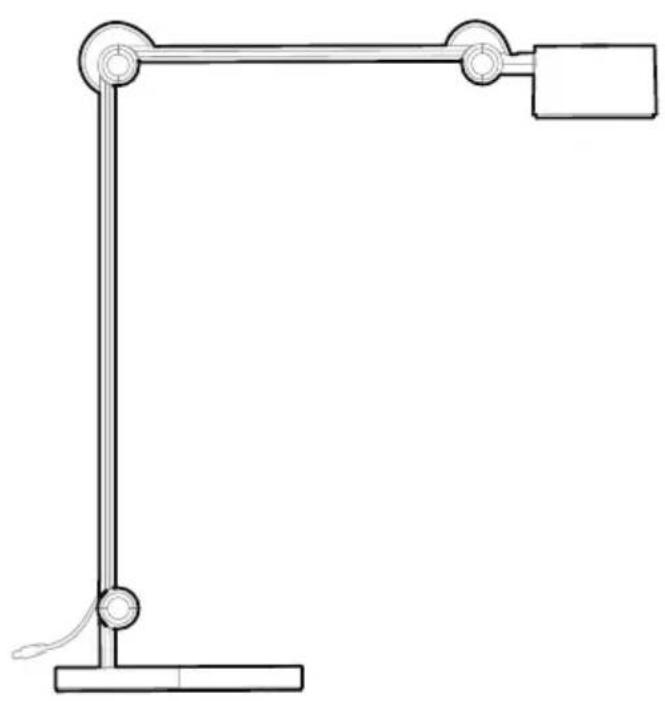

Simple line drawing of a mechanical lever system with a fulcrum and base (no text or symbols)

Desk Lamp*1

User Manual*1 Adapter*1

(The product does not need to be assembled)

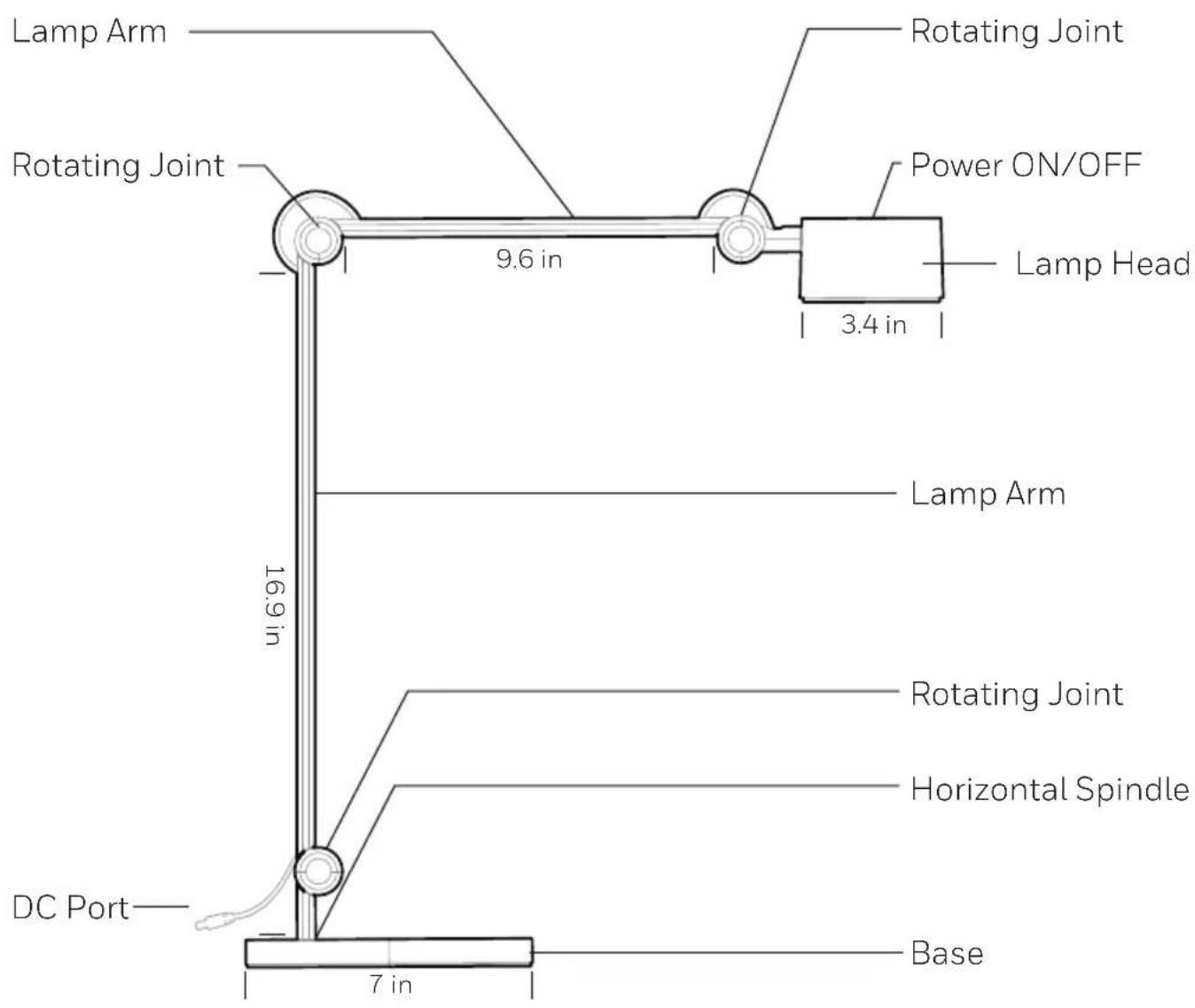

Lamp Arm Rotating Joint 9.6 in Rotating Joint Power ON/OFF Lamp Head 3.4 in 16.9 in DC Port 7 in Lamp Arm Rotating Joint Horizontal Spindle Base

(The product appearance diagram is for reference only. For specifics, please refer to the actual product.)

USE AND OPERATION

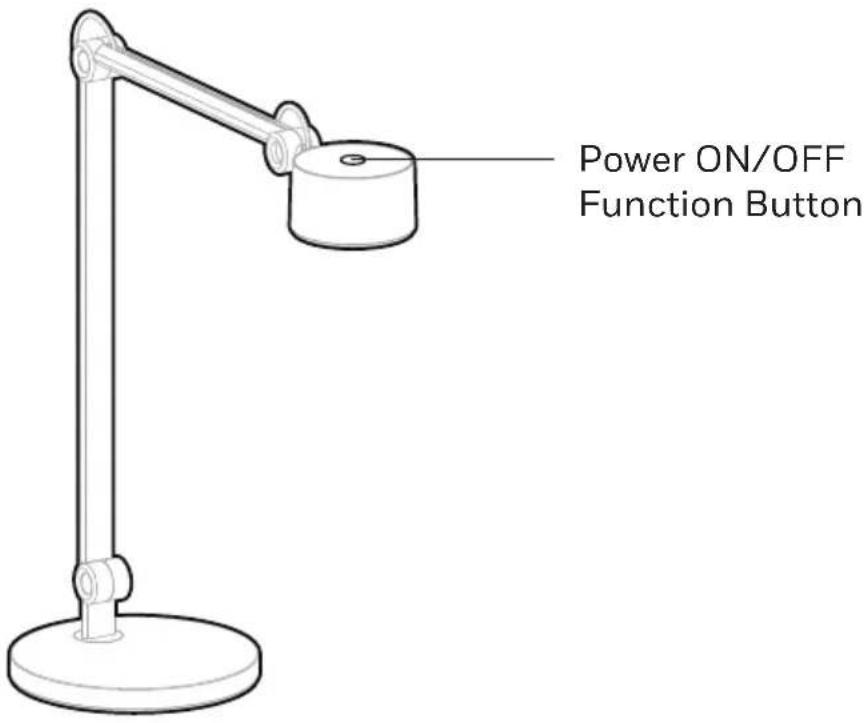

Power ON/OFF Function Button

Power Button ⏻

One Touch: Turn on, turn off

Long Press: Increase brightness or decrease brightness

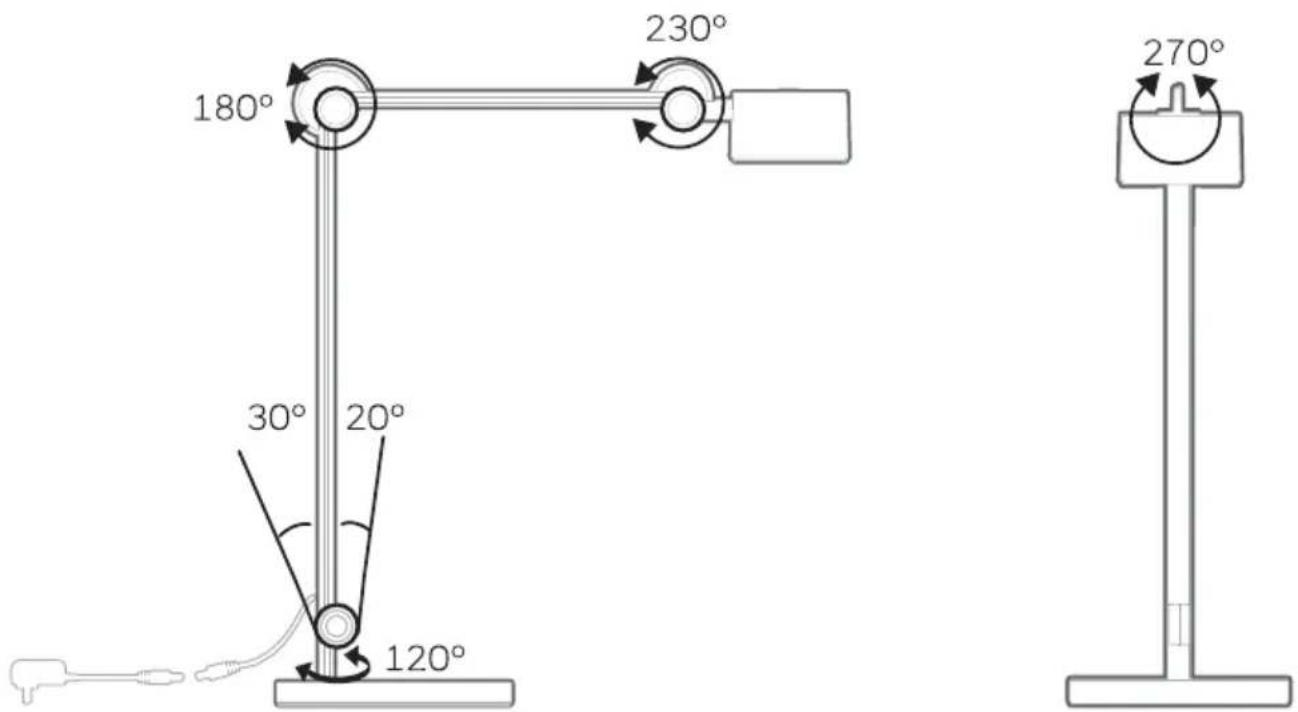

180° 230° 30° 20° 120° 270°

Adjust the angle of use: one hand holds the base, and the other hand adjusts the lamp head to the desired position.

TROUBLESHOOTING

If the desk lamp doesn't work, please check the following situations:

1. Check if the power supply is off.
2. If the power supply is on, please touch the switch to turn on the lamp.
3. If the lamp still doesn't work, please contact our customer service support team for help.

Email: [e-mail]

WARRANTY CARD

Return and Exchange Notes

Huo Ming Technology Guangdong Co., Ltd. warranties this product to be free from defects in materials and workmanship for a period of 2 years and valid only in the United States, Canada, United Kingdom, Germany, France, Spain, and Italy.

This warranty only covers products that are properly installed, properly maintained and appropriately operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance.

Kind reminder: If you have a problem with your order and contact us for help, please be sure to attach your product order information and photos (if necessary) to get a quick solution.

IMPORTANT: If you experience product-related problems, please first contact our customer support center as soon as possible. We can help solve your problem before deciding to return the product. Do not attempt to disassemble the product or change any of the original parts or accessories. Doing so may void your warranty and cause damage to the product or personal injury.

The Warranty Does Not Cover:

1. Damage resulting from abusive, unreasonable use or supplemental damage.
2. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.
3. Damage resulting from any unauthorised attempts to repair or from any use not in accordance with the instruction manual.
4. Damage resulting from not following the instructions mentioned in Safety and Maintenance Guide.

WARRANTY CARD(CONTINUED)

Return or Replace Information

Please fill in the order, product, and user information down below, and put it back in the package for collection.

Product Name:

Model Number:

Date of Purchase:

Purchased from:

Customer Name:

Phone Number:

Email:

If you have any questions, please feel free to contact us.

Huo Ming Technology Guangdong Co., Ltd.

Room 3501, Haijunda Plaza, Guizhou Avenue, Foshan, China

Customer Service ☒: [e-mail]

Customer Service Ⓐ :

UK & EU: [phone] Mon - Fri: 9:00am - 5:00pm (GMT)

US & Canada: [phone] Mon - Fri: 9:00am - 5:00pm (EST)
