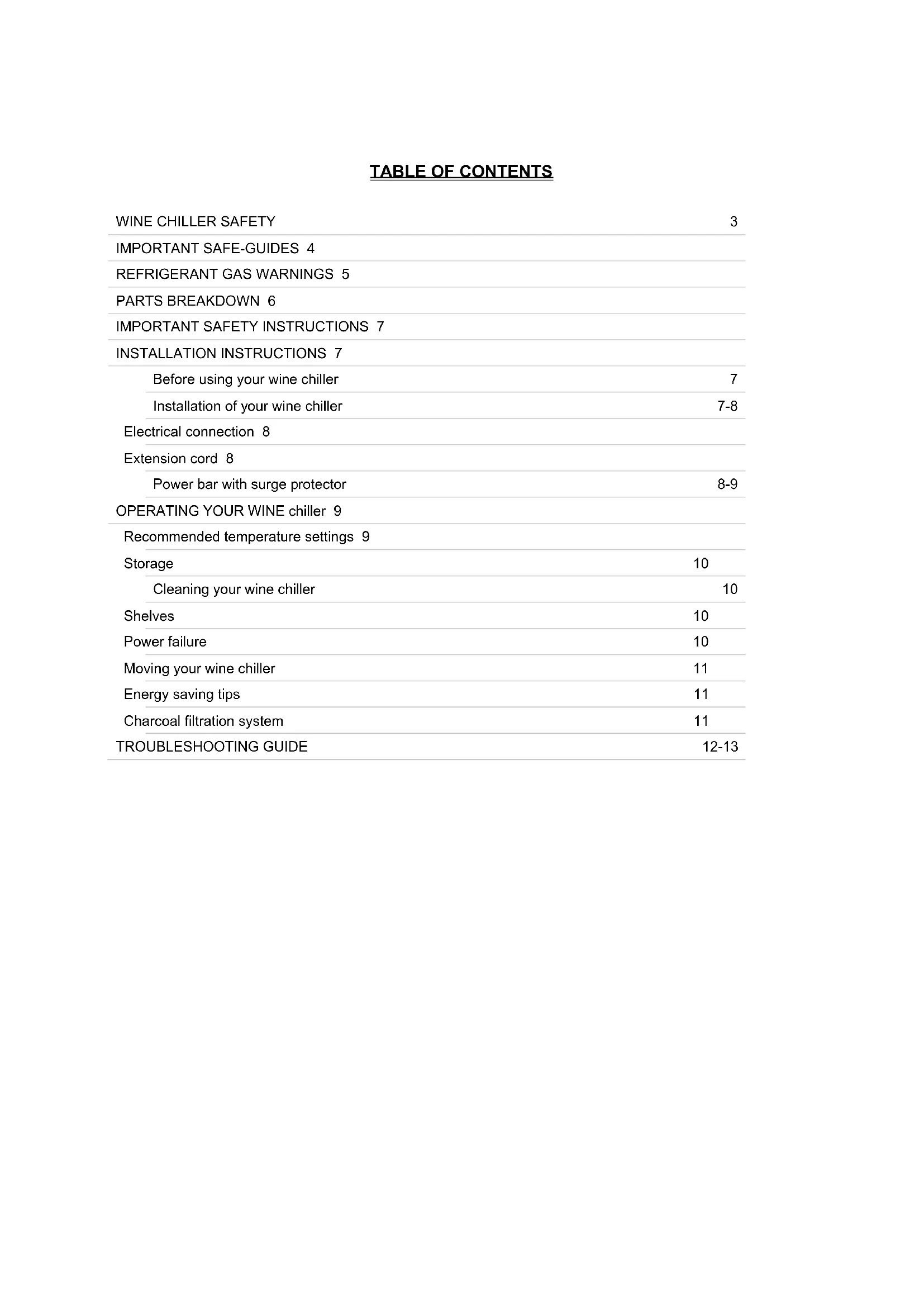

INSTALLATION INSTRUCTIONS 7 Before using your wine chiller 7 Installation of your wine chiller 7-8 Electrical connection 8 Extension cord 8 Power bar with surge protector 8-9 OPERATING YOUR WINE chiller 9 Recommended temperature settings 9 Storage 10 Cleaning your wine chiller 10 Shelves 10 Power failure 10 Moving your wine chiller 11 Energy saving tips 11 Charcoal filtration system 11

Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words “DANGER”, “WARNING” or “CAUTION”.

Danger means that failure to heed this safety statement may result in severe personal injury or death.

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.4 IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.

• Replace all panels before operating.

• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.

• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapour and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.

• Do not connect or disconnect the electric plug when your hands are wet.

• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.5

• Use two or more people to move and install appliance. Failure to do so can result in back or other injury.

• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 16°C (60°F) and below 32°C (90°F). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.

• The appliance should not be located next to ovens, grills or other sources of high heat.

• The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (220V/50Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.

• Do not kink or pinch the power supply cord of appliance.

• The fuse (or circuit breaker) size should be 13 amperes.

• It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.

• Never allow children to operate, play with or crawl inside the appliance.

• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolour the interior.

• Do not use this apparatus for other than its intended purpose.

DANGER - Risk of fire or explosion. Flammable refrigerant used. DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing. DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. DO NOT puncture refrigerant tubing. CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s guide before attempting to service this product. All safety precautions must be followed. CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. Flammable refrigerant used. CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used. CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of the cooler.6 PARTS BREAKDOWN

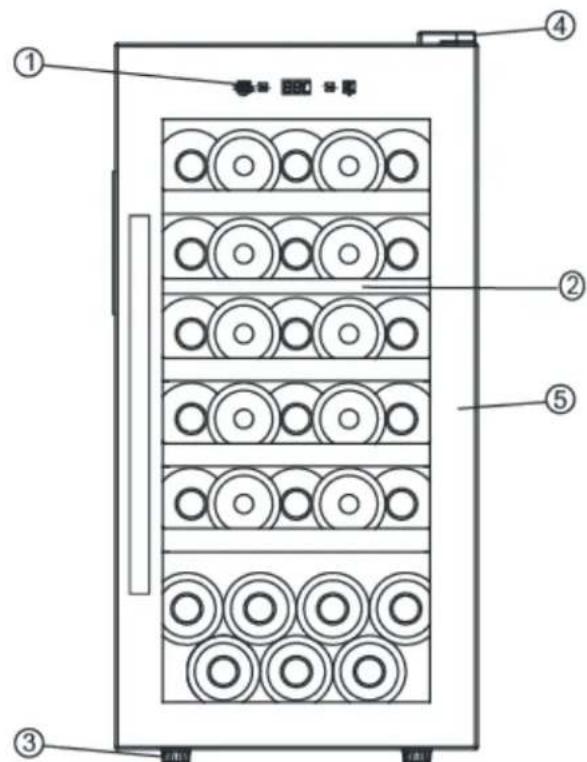

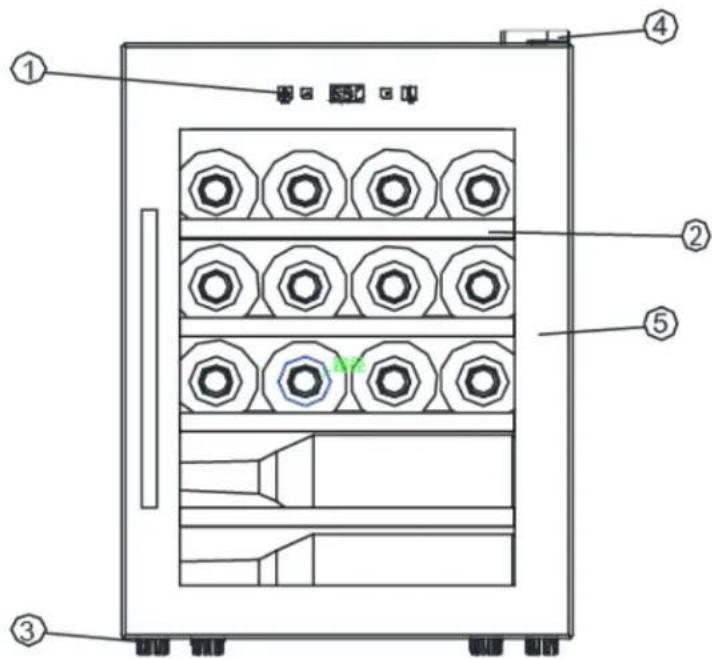

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the wine chiller.

• DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous.

• Before you throw away your old wine chiller, take off the door but leave the shelves in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the appliance.

• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. -Save these instructions- INSTALLATION INSTRUCTIONS Before using your wine chiller − Remove the exterior and interior packing. − Check to be sure you have all of the following parts: o shelves o Stainless Steel Handle o Instruction Manual − Before connecting the Wine Chiller to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. − Clean the interior surface with lukewarm water using a soft cloth. − Install the handle on the left side of the door. Installation of your wine chiller − This appliance is designed to be for free standing installation or flush-in. − Place your wine chiller on a floor that is strong enough to support it when it is fully loaded. To level your wine chiller, adjust the front leveling legs at the bottom of the wine chiller. − Locate the wine chiller away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct8 sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. − Avoid locating the unit in moist areas. − Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center. Electrical connection

Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is

damaged, have it replaced by an authorized service center. This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded. This appliance requires a standard 220V/50Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury. The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord. Extension cord Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 220 volts and at least 13 amperes. Power bar with surge protection Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed. If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you9

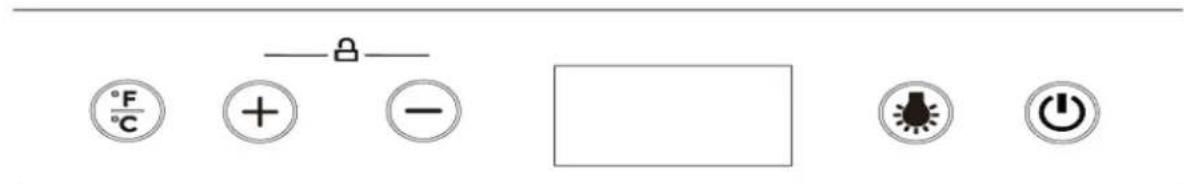

Adjusts the temperature in 1 degree increments Adjusts the temperature in 1 degree decrements Toggles the temperature display between Celsius and Fahrenheit

Press for 3 seconds to turn on /off the appliance

*Temperature ºC may varies between < + 2 ºC Red wines: 14°C-18ºC (59°F-65ºF) Dry/white wines: 9°C-12ºC (48°F-53ºF) Rose and sparkling wines: 5°C-8ºC (41°F-46ºF) Wine conservation: 12°C-14ºC (53°F-57ºF) Recommended temperature settings reached. conditions may cause interior temperatures to fluctuate. The range of 5°C-18°C(41°F-65°F) may not be temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot (66ºF-75ºF), and humidity is under 60%. If the ambient temperature is above or below recommende

It is recommended you install the wine chiller in a place where the ambient temperature is between 19ºC-24ºC

OPERATING YOUR WINE CHILLER

warranty. Damages due to power surges are not considered a manufacturer covered defect and will void your product area. have any questions regarding the type and size of surge protector needed contact a licensed electrician in your10

Power failure Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

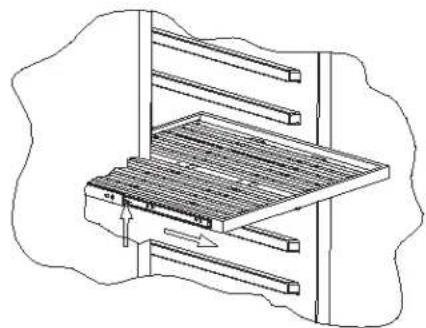

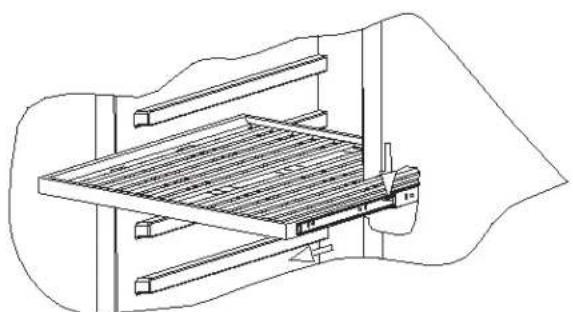

Figure A Figure B then slowly pull the shelf out,

remove the shelves from the track, pull each shelf out

again, Shelves steel particles and rusting may occur. cloth.

the stainless steel. These will contaminate the stainless steel with Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with

clean soft area of the controls,

any electrical parts. Wash the shelves with

mild detergent solution. Wring excess water out

cloth when cleaning water.

warm water and baking soda solution. The solution should

Turn off the power, unplug the appliance, and remove all items including shelves. Wash the inside surfaces with Cleaning your wine chiller may vary. You can place

RVF 10032 & 51 bottles in RVF 10051. Many bottles may differ

size and dimensions.

store Storage11 − Remove all items (bottles) − Tape down securely all loose items (shelves) inside your appliance. − Turn the adjustable leg up to the base to avoid damage. − Tape the door shut. − Be sure the appliance stays secure in the upright position during transportation. If you absolutely need to transport the chiller horizontally, transport the chiller on its back (door on top). Also protect outside of appliance with a blanket, or similar item. Energy saving tips The wine chiller should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight. Charcoal filtration system Your wine is a living object that breathes through the cork of its bottle. In order to preserve the quality and taste of your fine wines, they must be stored at the ideal temperature and ambient conditions. Your cellar is equipped with an active charcoal filtration system to ensure air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines. The filter assembly is located at the rear panel inside your cellar. Keep in mind, that this filter must be changed every 12 months.

1 Remove the bottles of wine stored on the two (2) shelves in front of the filter.

Turn Left to remove filter. 2 Remove the shelves and set aside to be replaced once you have changed the filter 3 Hold the filter and turn it at 45 degrees in the counter-clockwise direction and then pull it out. 4 Remove the existing filter and replace with a new one. 5 Put the new filter into the hole and then turn the filter at 45 degrees in clockwise direction.

Moving your wine chiller12 You can solve many common wine chiller problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

PROBLEM POSSIBLE CAUSE SOLUTION

chiller does not operate. Not plugged in. The appliance is turned off. The circuit breaker tripped or a blown fuse. Plug the unit. Press to turn on the unit. Check the breaker and/or fuses. chiller is not cold enough. External environment may require a higher setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly. Check the temperature control setting. Close the door properly. Check the door gasket. The compressor turns on and off frequently. The room temperature is hotter than normal. A large amount of contents has been added to the chiller. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. Close the door properly. Check the door gasket. The fans turn on and off frequently. In order to circulate the air and maintain the set temperature inside the cabinet the fans must cycle on and off even when the compressor is off. The fans will cycle ON and OFF while the compressor is off approximately every 10 seconds, this is called “Semi-speed status”. This cycle is normal and meant both to circulate the air as well as ensure the continued operational status of the fans. If the fan stops completely and does not complete this cycle the fan is non-operational. The light does not work. Not plugged in. The circuit breaker tripped or a blown fuse. The light button is “OFF”. Plug the unit. Check the breaker and/or fuses. TROUBLESHOOTING GUIDE13

The bottles are vibrating. There is an object under the chiller. Make sure the bottles don’t touch each others. Remove the object. The chiller seems to make too much noise. The chiller is not level. Level the chiller. The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your chiller. Contraction and expansion of the inside walls may cause popping and crackling noises. The door will not close properly. The chiller is not level. The door was reversed and not properly installed. The gasket is dirty. The shelves are out of position. Level the chiller. Close the door properly. Clean the door gasket. Place the shelves properly. Error Code: E1-E2-E3- E4-E7-E8 A sensor has failed. Contact us for a service call. Vibrations. The chiller is not leveled Check to assure that the chiller is level.MANUAL DE INSTRUCCIONES
