RVU 10020 GBK - Wine cellar TEKA - Free user manual and instructions

Brand	Teka
Model	RVU 10020 GBK
Product type	Wine cellar (wine refrigerator)
Storage capacity	20 bottles (approximate)
Dimensions (W x D x H)	315 x 524 x 820-885 mm (height adjustable)
Weight	Approximately 30 kg (estimate)
Temperature range	5 °C to 18 °C (adjustable in 1 °C increments)
Power supply	220-240 V, 50 Hz (estimate)
Refrigerant	R600a (flammable)
Energy efficiency class	Not specified (LED light source class G)
Interior lighting	LED, automatic shut-off after 10 minutes (adjustable)
Reversible door	Yes, left hinge kit included
Installation type	Free-standing or built-in
Memory function	Retains settings after power outage
Temperature alarm	Yes, "HI" alert (>23°C) and "LO" alert (<0°C)
Adjustable feet	Yes, with sliding pads for built-in installation
Cleaning	Warm water and baking soda; mild detergent for exterior
Spare parts available	Thermostats, sensors, lights (7 years); handles, hinges, shelves (7 years); door gaskets (10 years)
Ambient operating temperature	Class SN to T: from +10°C to +43°C depending on class
Energy consumption	Not specified

Frequently Asked Questions - RVU 10020 GBK TEKA

How to adjust the temperature of the wine cellar?

Use the ⊕ (increase) and ⊖ (decrease) buttons on the control panel. Each press changes the temperature in 1 °C increments. The adjustment range is 5 °C to 18 °C. To view the actual temperature, press either button for 3 seconds.

What to do if the display shows 'HI' or 'LO'?

'HI' indicates that the interior temperature exceeds 23 °C: the alarm sounds after one hour. 'LO' means a temperature below 0 °C. Check that the door is properly closed, that the appliance is not near a heat source, and that ventilation is not obstructed.

How to reverse the door opening direction?

The appliance comes with a right-hinged door, but a left hinge kit is provided. Follow the steps: open the door 90°, remove the screws from the lower hinge pin, remove the door, unscrew the end stop device, remove the top right hinge, install the replacement left hinge, then repeat for the bottom hinge. Refer to the diagram in the manual.

Why is the wine cellar not cooling?

Check that the appliance is plugged in, that the circuit breaker has not tripped, and that the set temperature is not too high. Make sure the door closes properly and the gasket is clean. The appliance may require a 3-5 minute delay before restarting after a power cut.

How to clean the interior of the wine cellar?

Unplug the appliance and remove all items. Wash interior surfaces with a solution of warm water and baking soda (2 tablespoons per liter). Clean shelves with a mild detergent. Wring out the sponge thoroughly for electrical areas.

Can I freeze food in this wine cellar?

No, this appliance is designed exclusively for wine or beverage storage. It is not suitable for freezing food.

What to do in case of a power outage?

Most outages are short and do not affect the temperature if you open the door sparingly. The appliance memorizes settings. If the outage is long, protect the contents and, after power restoration, wait 3 to 5 minutes before restarting.

Why is the interior light not turning on?

Check that the appliance is plugged in and that the 'LIGHT' button is not turned off. The LED light turns off automatically after 10 minutes to save energy. For permanent lighting, press and hold the button for 5 seconds until 'LP' is displayed.

How to use the temperature memory function?

In case of a power outage, the appliance automatically saves the last temperature setting. When power returns, it resumes the same value. No action is required.

How to save energy with my wine cellar?

Place the appliance in a cool location, away from sunlight and heat sources. Do not cover the shelves. Leave the LED light in automatic mode (turn off after 10 min): press and hold the 'LIGHT' button for 5 seconds until 'LF' is displayed.

USER MANUAL RVU 10020 GBK TEKA

Modern kitchen interior with black cabinets and wood flooring, featuring a 'TEKA' logo in the top right corner (no other text or symbols visible)

User Manual

RVU 10020 GBK

ES PT EN FR DE

• ① Botón « ⏻ 3s»

NOTA:

Symbol of a trash bin crossed with no visible text or labels

Thanks for buying our wine cooler, Hope our advanced product will give your wine a different joyful taste. Before use, please read and follow all safety rules and operating instructions.

WARNING!

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location. Do not move your Cabinet while loaded with wine. You might distort the body. The wine cellar should be installed in a suitable place in order to avoid Touching the compressor with the hand.
  Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a similarly qualified person in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children aged from 3 to 8 years are allowed to load and unload-wine cooler.

To avoid contamination of wine, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with bottles and accessible drainage systems.
  – Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

- WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

PLEASE DON'T TRY TO PLUG INTO OR EXTENSION THE CABLE IN ANY CASE.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the Wine cooler.DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine cooler: Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.If the refrigerant of these appliances are R600a , Flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused.-Save these instructions-

This refrigerating appliance is not suitable for freezing foodstuffs.

INSTALLATION INSTRUCTIONS

Before Using Your Wine cooler

• Remove the exterior and interior packing.
• Before connecting the Wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• When disposing your appliance, please choose an authorized disposal site.

Installation of Your Wine Cooler

• This appliance is designed to be for free standing installation or built-in (fully recessed) (Refer to sticker location the back of this appliance).
  • This appliance is intended to be used exclusively for the storage of wine or beverages.
• Place your Wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the Wine cooler.
• This appliance is using flammability refrigerant. So never damage the cooling pipework during the transportation. Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

- Avoid locating the unit in moist areas.

- Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

Attention

• Store wine in sealed bottles;
• Do not overload the cabinet;
• Do not open the door unless necessary;
• Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation;
• Should the Wine cooler be stored without use for long periods it is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible formations of condensation, mold or odors.

Ambient Room Temperature Limits

This appliance is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.

Class	Symbol	Ambient Temperatures range
Extended Temperate	SN	+ 50°F to + 90°F(+ 10°C to + 32°C)
Temperate	N	+ 60°F to + 90°F(+ 16°C to + 32°C)
Subtropical	ST	+ 60°F to + 100°F(+ 16°C to + 38°C)
Tropical	T	+ 60°F to + 110°F(+ 16°C to + 43°C)

OPERATING YOUR WINE COOLER/BEVERAGE COOLER AND SETTING THE TEMPERATURE CONTROL

▶ Control System Instruction

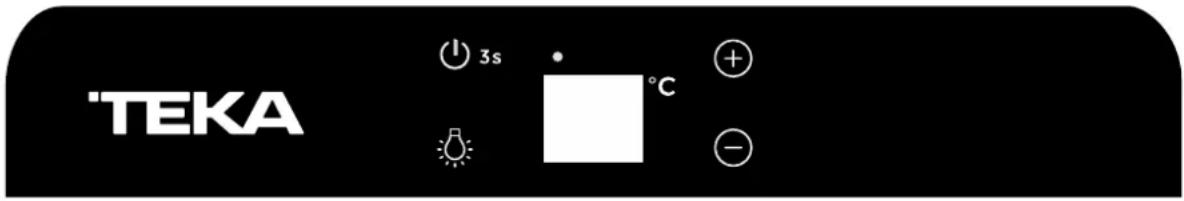

• ① “ ⏻ 3s ” Button

To control this appliance turn on/off (press and hold this buttons for approximately 3 seconds).

• ② “ ” Button

To control the inner light turn on/off.

• ③ “+” Button

Used to raise(warm) the temperature in 1^ F ( 1^ C).

• ④ “—” Button

Used to lower(cool) the temperature in 1^ F ( 1^ C).

• ⑤ “0”

Indicator light illuminates to signify the cooling mode is currently in operation.

- ⑥ "DISPLAY"

To shows the set temperature.

Setting The Temperature Controls

Set the desired cooling temperature by pressing the buttons adjacent to the "⊕" or "⊖" indicators. Each press of the buttons will scroll through the available temperature settings in increments of 1°C.

The temperature setting can be adjusted from 5^ C to 18^ C.

- If you want to reveal actual temperature, please press and hold the "UP" or "DOWN" button for 3 seconds, the LED will flash and display the actual temperature. After stopping pressing the button for 5 seconds, LED figure will stop flash, then revert back to display the set temperature.

Flashing LED = Cabinet temperature

Steady LED = Set temperature

Replaceable (LED only) light source by a professional

This product contains a light source of energy eciency class G.

Temperature Alarm

If the temperature inside is higher than 23 °C, it will display "HI" on the display panel, and after one hour after the alarm / buzzer will sound. This indicates that the temperature inside is too high. If the temperature inside is lower than 0 °C, it will display "LO" on the display panel and at the same time the alarm also malfunction indicator is active.

Temperature Recollection Function

In the event of a power interruption, wine chiller can remember the previous temperature settings, and when the power is recovery, the cooler temperature will go back the same setting temperature as power off.

Internal light

In order to reduce energy consumption, this wine cabinet will automatically switch off the LED lights after 10 minutes.

If you want the LED light to remain on continuously, this is possible. Please press and hold the "LIGHT" button for 5 seconds, the display will show "LP". After 4 seconds the display will revert back to normal and the light will remain on until manually switched off.

If you want to revert back and conserve energy (recommended), please press and hold the "LIGHT" button for 5 second, the display will show "LF", after 4 seconds the display will revert back to normal, and the light will automatically switch off after 10 minutes.

Shelves

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.

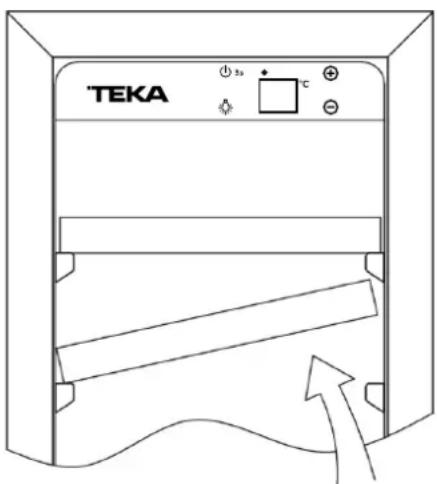

• For easy access to the storage content, you must pull the shelves approximately 1/3 out of the rail compartment, however this unit was designed with a notch on each sides of the shelf tracks to prevent bottles from falling.
• When removing any of these shelves out of the rail compartment, To fit or remove the shelf, tilt the shelf as per the diagram and simply pull out, or push in the shelf until it sits on the support brackets securely.

NOTE:

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler/beverage cooler will not start.
• When you use the Wine cooler/beverage cooler for the first time or restart the Wine cooler/beverage cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine cooler/beverage cooler is running for a few hours everything will be back to normal.

How to change the door opening

This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.

1. Lower hinge (Right) 2. Screws 3. Door axis
2. Door 5. Top hinge (Right) 6. Hinge Screws
3. Top hinge (Left) 8. Hole cover 9. Lower hinge (Left)
4. Door limit device 11. Screw

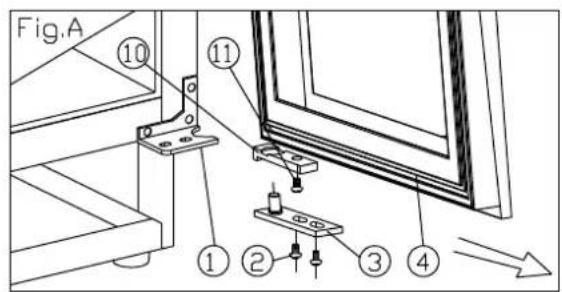

1. Open the door to a 90 degrees angle, take out the 2 screws (2) from lower door axis (3), remove the door (4), Remove the axis plate (3) from the door, (Fig. A).

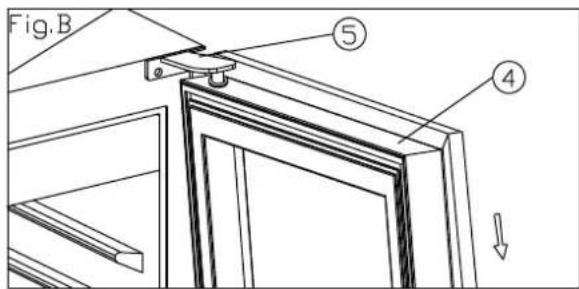

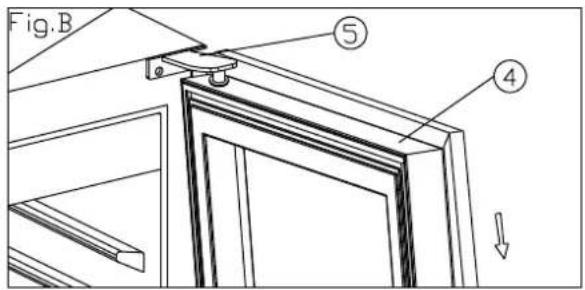

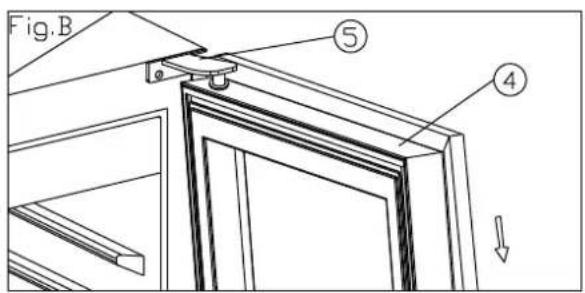

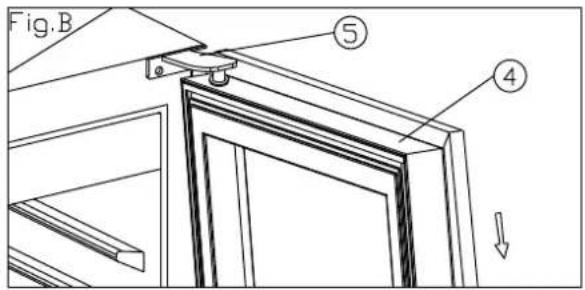

2. Unscrew the screw (11) located underneath the door frame and the limit device (10), and relocate it at left end side of the door frame. (Fig. A/B)

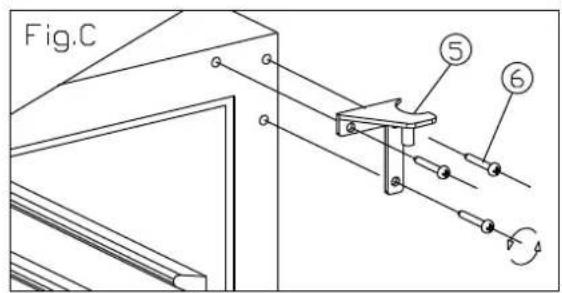

3. Take out the 3 hinge screws (6) from the top hinge (right) (5) and remove it. (Fig. C)

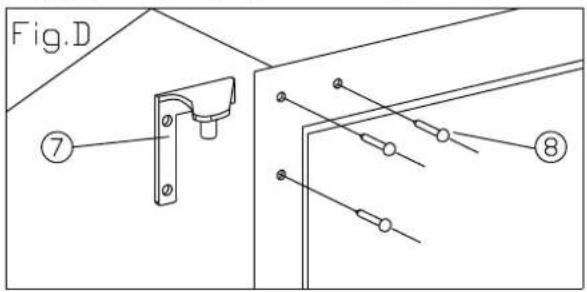

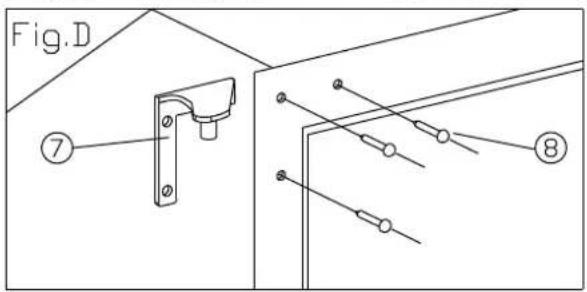

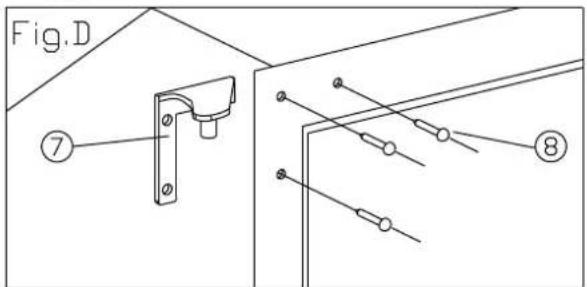

4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top of cabinet with 3 screws. (Fig. D)

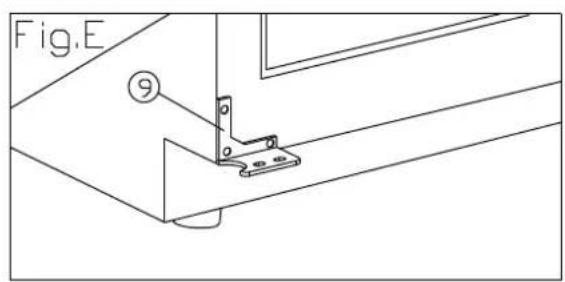

5. Following the above procedure, install the spare lower hinge to the left (9). (Fig. E)
6. Install and aligned the door.
7. Insert the plastic caps to cover the holes(8).

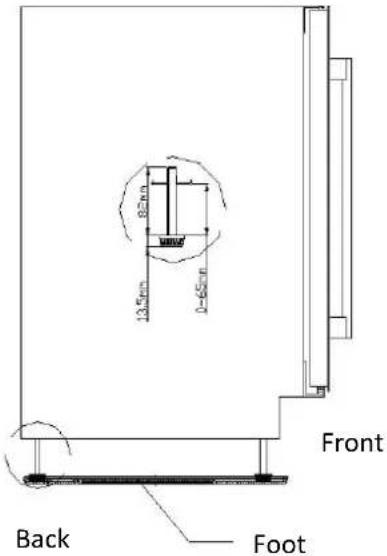

USING THE FOOT SLIDERS

If you want to adjust the height over 820mm, please install the product using the foot sliders provided. These are provided to help prevent the feet catching on the floor when sliding the appliance into the aperture. Place the back foot in the location marked 'Back' below and the front foot in the location marked 'Front'. Once fitted to both sides of the wine cabinet the appliance can be gently positioned into the aperture, taking care not to place excess pressure on the feet when locating the cabinet.

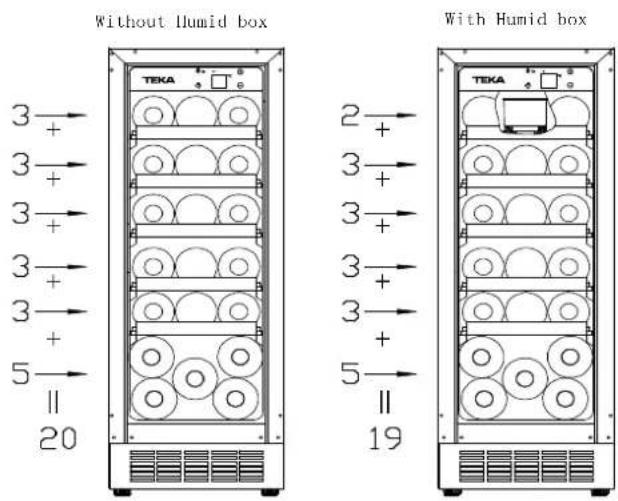

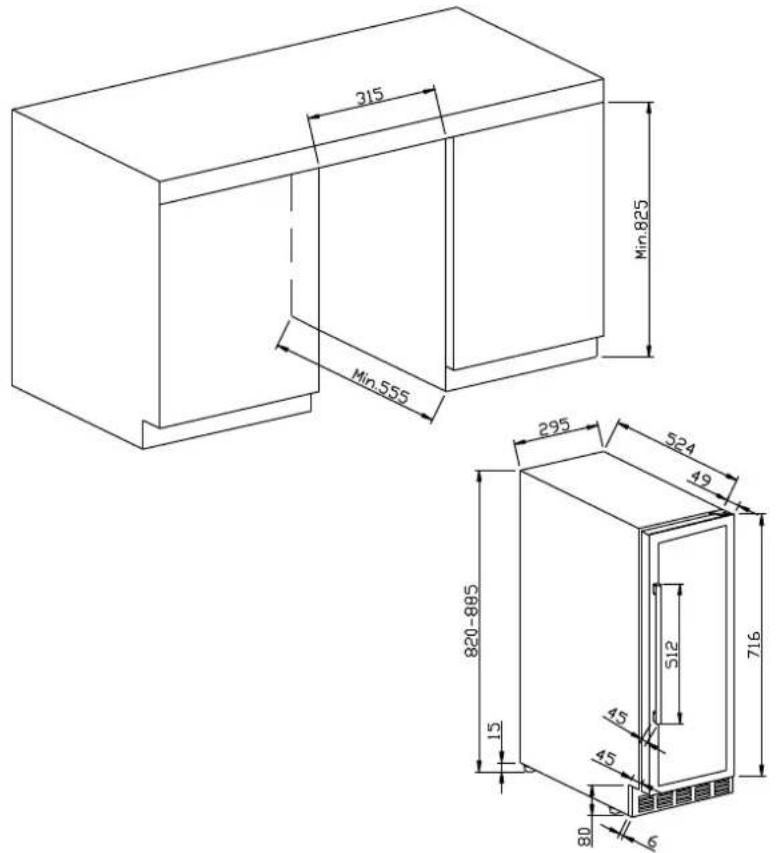

Storage diagram

According to the actual configuration of your product, please check the relative Storage diagram.

The most energy-saving configuration requires food box not to be positioned in the product

➢ Installation specifications for built-in purposes

The following (approximate) temperatures are recommended for wine drinking:

○ For storing ALL TYPES OF WINES 12 – 14 °C
○ Champagne NV, Sparkling 6 °C
○ Champagne Vintage 10 °C
- Dry White Semillon, Sauvignon Blanc 8 °C
o Dry White Gewürztraminer, Riesling 10 °C
o Dry White Chardonnay 10 °C
○ Vintage Chardonnay 14 °C
○ Sweet White Sauternes Monbazillac, Late Harvest ice wine 10 °C
○ Sweet whites vintage Sauternes 14 °C
○ Beaujolais 13 °C
○ Red Pinot Noir 16 °C
○ Vintage Pinot Noir red 18 °C
○ Red Grenache, Syrah 16 °C
○ Red Cabernet, Merlot, French, Australian, New Zealand, Chilean, Argentinean, Italian, Spanish, Californian 18 °C

CARE AND MAINTENANCE

▶ Cleaning Your Wine Cooler

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Vacation Time

• Short vacations: Leave the Wine Cooler operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

▶ Moving Your Wine Cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

- The Wine Cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

PROBLEMS WITH YOUR WINE COOLER/BEVERAGE COOLER?

You can solve many common Wine cooler/beverage cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine cooler/beverage cooler does not operate.	Not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
Wine cooler/beverage cooler is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
Turns on and off frequently.	The room temperature is hotter than normal.A large amount of contents has been added to the Wine cooler/beverage cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is “OFF”.
Vibrations.	Check to assure that the Wine cooler/beverage cooler is level.
The Wine cooler/beverage cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler/beverage cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine cooler/beverage cooler is not level.
The door will not close properly.	The Wine cooler/beverage cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

Before disposal of the appliance.

1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased the product.
