USER MANUAL RVI 30097 GBK TEKA

Modern kitchen interior with black cabinets and wood flooring, featuring a 'TEKA' logo in the top right corner (no other text or symbols visible)

User Manual

RVI 30097 GBK

ES PT EN FR DE

MANUAL DE USUARIO PARA

Diagram of a refrigerator interior showing a rack with a handle and a rotation arrow indicating clockwise motion (no text or symbols)

Fig. B

Technical diagram of a device with labeled components and cross-sectional view showing internal structure and assembly.

- Para remover as prateleiras:

Technical line drawing of a refrigerator interior showing a rack with a handle and a curved arrow indicating rotation (no text or symbols)

Fig. B

Technical diagram of a device with labeled components (a, b, c, d) and cross-sectional view showing internal structure.

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location. Do not move your Cabinet while loaded with wine. You might distort the body. The wine cellar should be installed in a suitable place in order to avoid Touching the compressor with the hand. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a similarly qualified person in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

To avoid contamination of wine, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with bottles and accessible drainage systems.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the wine storages compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

- WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

PLEASE DON'T TRY TO PLUG INTO OR EXTENSION THE CABLE IN ANY CASE.

IMPORTANT SAFETY INSTRUCTIONS

WARNING	To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:
Read all instructions before using the Wine cooler.DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine cooler: Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.If the refrigerant of these appliances are R600a , Flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused.
-HT7W]
-Save these instructions-

This refrigerating appliance is not suitable for freezing foodstuffs.

INSTALLATION INSTRUCTIONS

Before Using Your Wine cooler

• Remove the exterior and interior packing.
• Before connecting the Wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;

– farm houses and by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments;

– catering and similar non-retail applications.

- When disposing your appliance, please choose an authorized disposal site.

Installation of Your Wine Cooler

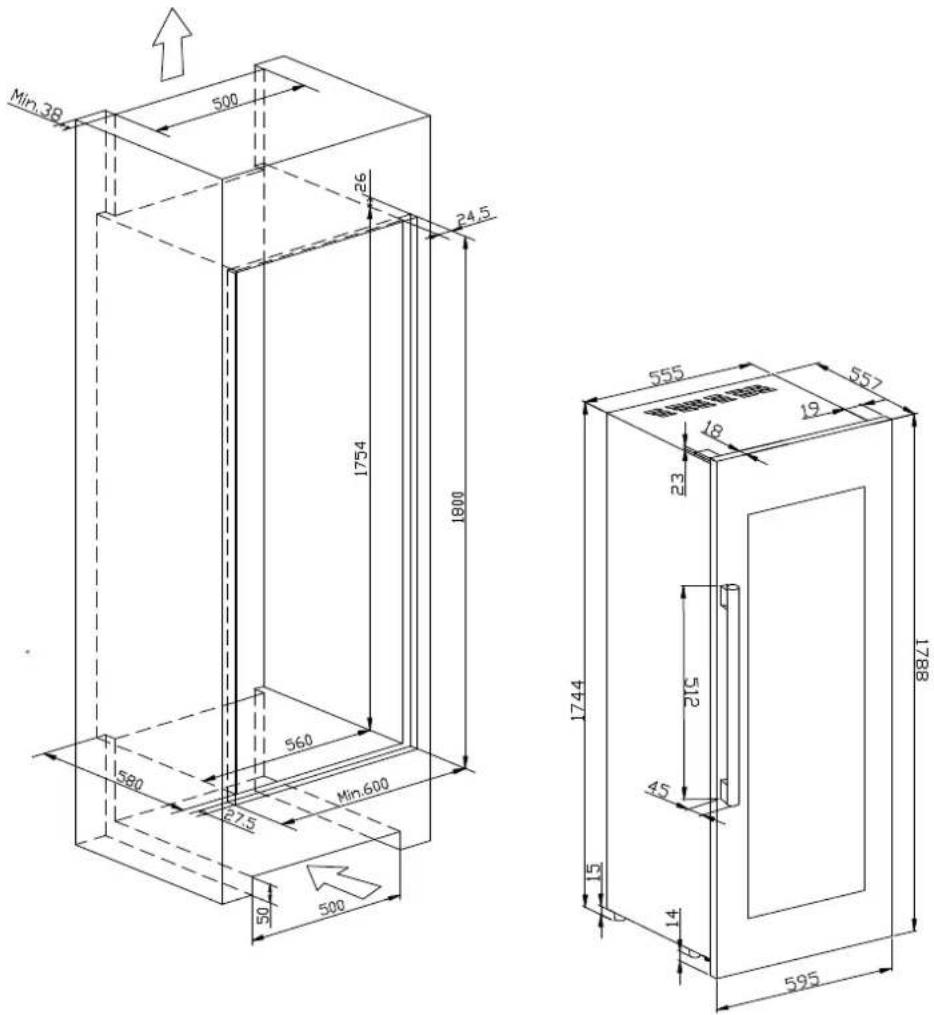

• This appliance is designed to be for built-in (fully recessed) (Refer to sticker location the back of this appliance).
  • This appliance is intended to be used exclusively for the storage of wine.
• Place your Wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the Wine cooler.
• This appliance is using flammability refrigerant. So never damage the cooling pipe work during the transportation. Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• Avoid locating the unit in moist areas.
• Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

Attention

• Store wine in sealed bottles;
• Do not overload the cabinet;
• Do not open the door unless necessary;
• Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation;
• Should the Wine cooler be stored without use for long periods it is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible formations of condensation, mold or odors.

Ambient Room Temperature Limits

This appliance is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.

Class	Symbol	Ambient Temperatures range(°C)
Extended Temperate	SN	+ 10 to + 32
Temperate	N + 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

The controls of your Wine cooler (the upper zone and middle zone)

TEKA 3s °C °C + -

1) “ ⏻3s ” button

To control this unit's power, ON/OFF. (press and hold this button for approximately 3 seconds).

2) “+” button

To set the temperature of the upper chamber. (Press once the button, the temperature will increase 1^ C)

3) “—” button

To set the temperature of the middle chamber. (Press once the button, the temperature will decrease 1^ C)

4) LED display window Display temperature for upper zone.

5) LED display window Display temperature for middle zone.

6) “ ” button

To control the inner light turn on/off. (If you press this button, the inner light is not controlled by the reed switch, and keep lighting.)

7) indicator light Compressor in operation display.

Setting the Temperature Control

Each cooling compartment of the wine cooler (upper & middle) is independently controlled.

To set the temperature:

Connect the power cord to a properly grounded outlet. In the event of a power interruption.

- When pressing + or button, the system will be entering the set up mode in the upper or middle compartment automatically. The LED will flashing and display the setting temperature.

Press once the button, the temperature will decrease or increase 1^ C. After stopping pressing the button for 5 seconds, LED figure will stop flash, then exit setting model.

Upper compartment::The temperature setting can be adjusted from 5°C to 18 °C.

Middle compartment: The temperature setting can be adjusted from 5°C to 10°C.

- If you want to reveal actual temperature, please press and hold the " " or " " button for 3 seconds, the LED will flash and display the actual temperature. After stopping pressing the button for 5 seconds, LED figure will stop flash, then revert back to display the set temperature.

The controls of your Wine cooler (the Lower zone)

1) indicator light Compressor in operation display.
2) LED display window Display temperature for lower zone.
3) “” button (right) To set the temperature of the lower chamber. (Press once the button, the temperature will increase 1^ C.)
4) “” button (right) To set the temperature of the lower chamber. (Press once the button, the temperature will decrease 1^ C.)

Setting the Temperature Control

- To set the temperature: Connect the power cord to a properly grounded outlet. In the event of a power interruption.

- When pressing or button, the system will be entering the set up mode in the lower compartment automatically. The LED will flashing and display the setting temperature.

Press once the button, the temperature will decrease or increase 1^ C. After stopping pressing the button for 5 seconds, LED figure will stop flash, then exit setting model.

• The temperature setting can be adjusted from 10^ to 18^
• This appliance memorizes and saves its set temperature. In case of a power outage, the unit adjusts to its previous temperature setting when power resumes

Replaceable (LED only) light source by a professional This product contains a light source of energy efficiency class G.

Internal light

- In order to reduce energy consumption, this wine cabinet will automatically switch off the LED lights after 10 minutes.

- If you want the LED light to remain on continuously, this is possible. Please press and hold the " 🔍 " button for 5 seconds, the display will show "LP". After 4 seconds the display will revert back to normal and the light will remain on until manually switched off.

- If you want to revert back and conserve energy (recommended), please press and hold the " 🔍" button for 5 second, the display will show "LF", after 4 seconds the display will revert back to normal, and the light will automatically switch off after 10 minutes.

Function Instruction

• Temperature Recollection Function

In the event of a power interruption, wine cooler can remember the previous temperature settings, and when the power is recovery, the cooler temperature will go back the same setting temperature as power off.

• Temperature Alarm

If inner temperature is higher than 23^ C, The "HI" is shown in display panel, and the buzzer alarm after one hour continuously. It inform that the inner temperature is too high, please check the reason.

If inner temperature is lower than 0^ C, The “LO” is shown in display panel, and the buzzer alarm and the malfunction indicator light light at the same time.

Note

- If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine Cooler will not start.

- When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine cooler is running for a few hours everything will be back to normal.

Shelves

- To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.

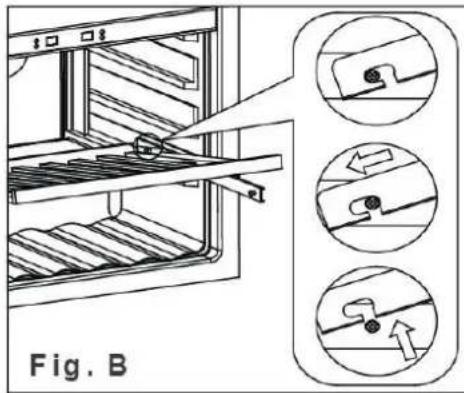

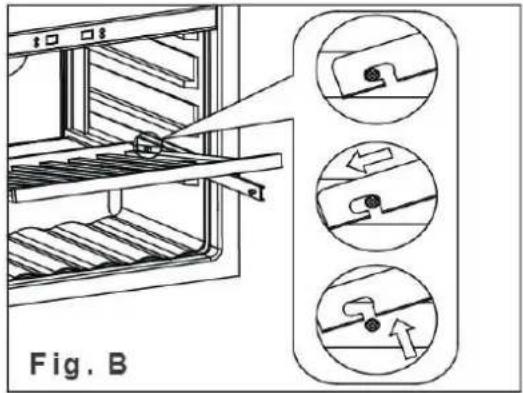

• To Remove Shelves:

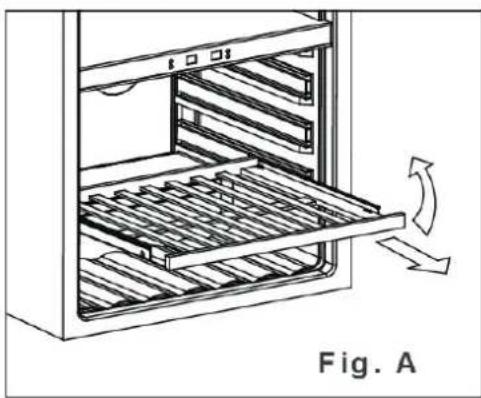

1. Fully extend the shelf you wish to remove (Fig. A)

2. Lift the front of the shelf up (Fig. A)

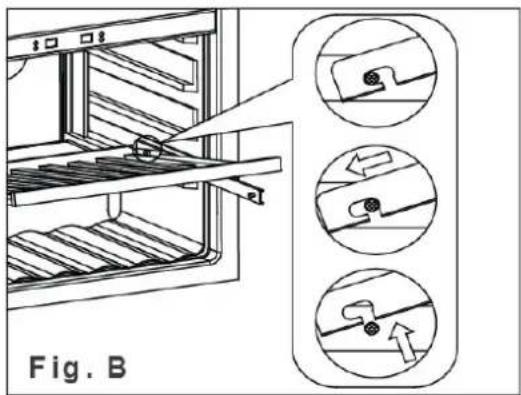

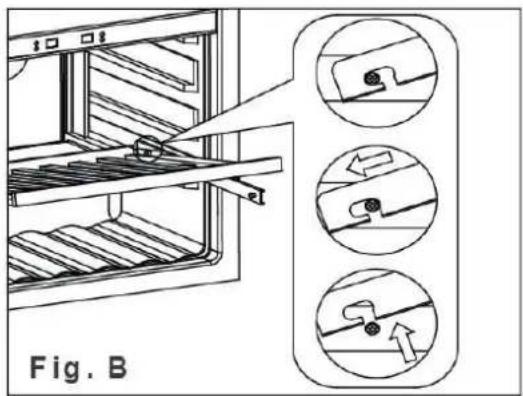

3. Holding the shelf track, push the shelf in, then up to release from the rear dampers (Fig. B)

Diagram of a refrigerator interior showing a rack with an open door and a directional arrow indicating rotation (no text or symbols)

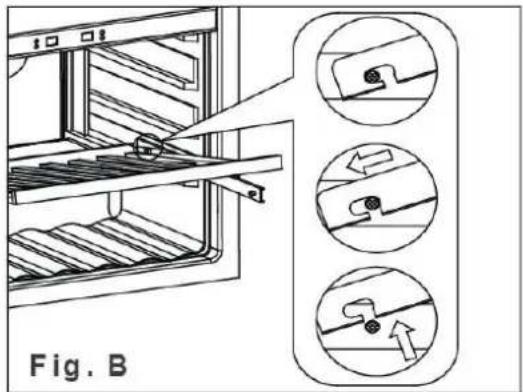

Fig. B

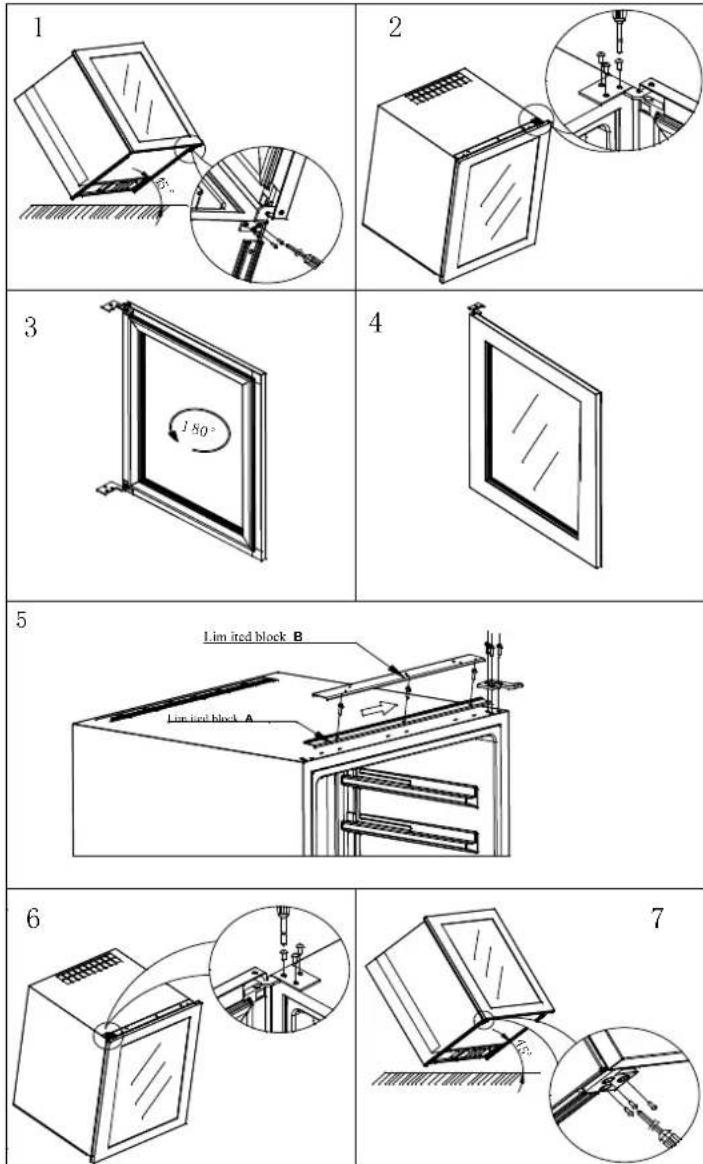

How to change the door opening

The door can be changed from left and right side. No special requirement, all the door is opened from left side. If require to open from right side, please refer to the following direction:

1. Incline the wine cooler with 45 degrees, take out right lower hinge's screws with screwdriver (Fig.1)
2. Level the wine cooler Hold the door and take out right upper hinge's screws with screwdriver, then take out the door, put the door safety, rotate door at 180 degree (Fig.2 & Fig.3 & Fig.4)
3. Remove limited block B as per the arrows in picture, then release all the screws on limited block A, and take away limited block A. Install the limited block A at the right side with screws, then install limited block B, then fit the door with screws. (see Fig.5& Fig.6& Fig.7)

Note: This is a two person operation.

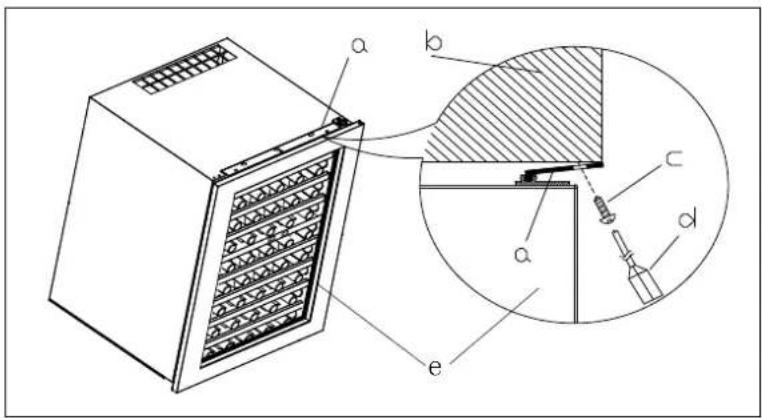

➢ Installation specifications for built-in purposes

1. After installed wine cooler into kitchen cabinet, please adjust limited block (a) close to kitchen cabinet (b),
2. Please fix the 3 pcs screws through the limited block (a) screw hold into kitchen cabinet (b), please find below picture for reference.

Technical diagram of a device with labeled components (a, b, c, d, e) and a magnified cross-section showing internal structure.

a、Limited block b、Kitchen cabinet c、Screw d、Screwdriver e、Wine cooler

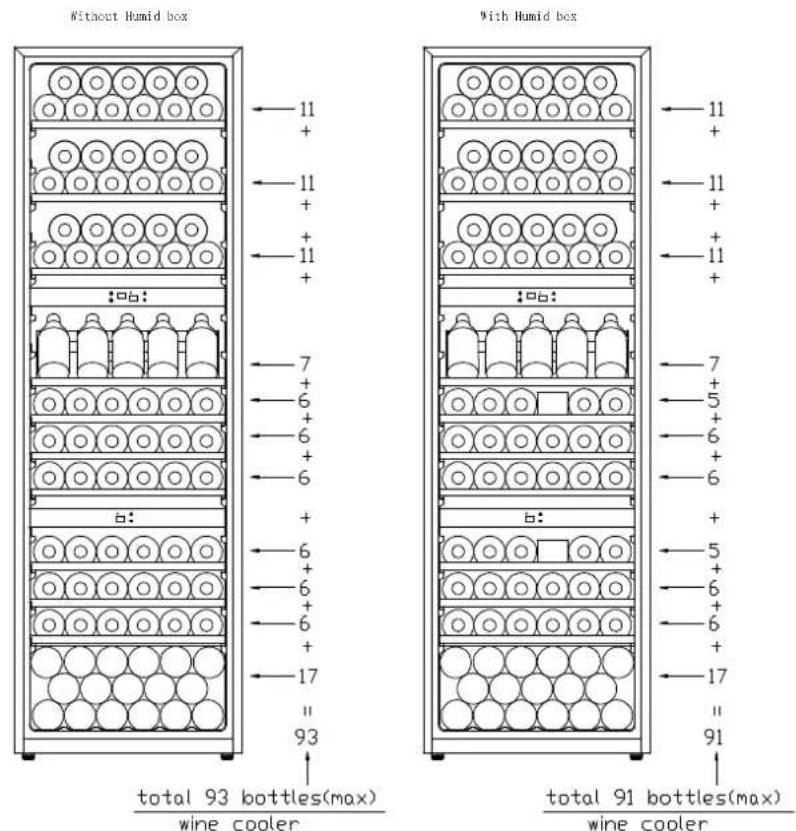

Storage Diagram

(for 750 ml Bordeaux bottles)

Without Humid box With Humid box ←11 + ←11 + ←11 + →7 + →6 + →6 + →6 + →6 + →6 + →6 + →17 ←93 total 93 bottles(max) wine cooler with humid box ←11 + ←11 + ←11 + →7 + →5 + →6 + →6 + →5 + →6 + →6 + →17 ←91 total 91 bottles(max) wine cooler

The most energy-saving configuration requires food box not to be positioned in the product

CARE AND MAINTENANCE

▶ Cleaning Your Wine Cooler

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

▶ Vacation Time

- Short vacations: Leave the Wine Cooler operating during vacations of less than three weeks.

- Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Wine Cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.

- Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

- The Wine Cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

The following (approximate) temperatures are recommended for wine drinking:

○ For storing ALL TYPES OF WINES	12 – 14 °C
○ Champagne NV, Sparkling	6 °C
○ Champagne Vintage	10 °C
○ Dry White Semillon, Sauvignon Blanc		8 °C
○ Dry White Gewürztraminer, Riesling		10 °C
○ Dry White Chardonnay	10 °C
○ Vintage Chardonnay	14 °C
○ Sweet White Sauternes Monbazillac, Late Harvest ice wine		10 °C
○ Sweet whites vintage Sauternes		14 °C
○ Beaujolais		13 °C
○ Red Pinot Noir		16 °C
○ Vintage Pinot Noir red		18 °C
○ Red Grenache, Syrah		16 °C
○ Red Cabernet, Merlot, French, Australian, New Zealand,Chilean, Argentinean, Italian, Spanish, Californian		18 °

PROBLEMS WITH YOUR WINE COOLER?

You can solve many common Wine Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine Cooler does not operate.	Not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough. Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
Turns on and off frequently. The room temperature is hotter than normal.A large amount of contents has been added to the wine cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is “OFF”.
Vibrations. Check to assure that the Wine Cooler is level.
The Wine Cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine Cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine Cooler is not level.
The door will not close properly.	The Wine Cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

Before disposal of the appliance.

1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased the product.
