304520 - Garage door opener Brandson - Free user manual and instructions

Product type	Garage door opener (duplication remote)
Brand	Brandson
Model	304520
Power supply	2 CR2016 3V batteries
Frequency	433.92 MHz
Max. transmission power	-19.51 dBm
Outdoor range (without obstacles)	Approx. 50-80 m
Range inside car	Approx. 10-15 m
Operating temperature	-15 °C to +55 °C
Compatibility (rolling code brands 433 MHz)	BFT MITTO2/MITTO4, BENINCA TO GO WV, DOORHAN TX4, NICE FLORS, HÖRMAN EcoStar, FAAC XT4 433RC, KEY TXB-43R, ATA PTX4, GBD AU1600, Nice-Smilo, ROSSI, MotorLine MX4SP DSM, DEA MIO TR2, Peccinin TX3C, Centurion NOVA, AN MOTOR AT-4, FADINI JUBI
Main functions	Remote duplication, memory erasure, restoration of last deleted code
Maintenance	Battery replacement (CR2016); clean with a dry cloth
Safety	Do not open, repair or modify; use away from humidity; keep out of reach of children
Disposal	Device and batteries must not be disposed of with household waste; observe WEEE directive
Certification	Compliant with directive 2014/53/EU; declaration of conformity available upon request

Frequently Asked Questions - 304520 Brandson

How to erase the memory of the remote before a new programming?

Press simultaneously the A and B buttons until the LED flashes three times. Release button B (keep A pressed) and press button 2 slowly three times. The LED flashes rapidly. Release both buttons: the memory is erased.

How to duplicate an original remote?

Place the duplicator near the original transmitter. To duplicate a button: press and hold the desired button on the duplicator, then quickly press the button on the original transmitter until the LED flashes twice. Two variants are possible (A or B) depending on the chosen mode.

Which batteries to use and how to change them?

Use two CR2016 3V batteries. To change, unlock the battery compartment with a pointed object, remove the old batteries and insert new ones respecting the indicated polarity (+/-).

Is the remote compatible with my garage door opener?

It is compatible with many brands using the frequency 433.92 MHz and rolling code: BFT, BENINCA, DOORHAN, NICE, HÖRMAN, FAAC, etc. See the full list in the manual.

What to do if the duplication does not work?

Check that the memory has been erased beforehand (see question 1). Bring the two remotes closer and try different positions (Pos.1, 2, 3). If the failure persists, repeat the operation.

How to copy a BFT code (MITTO2/MITTO4 old version)?

Erase the memory (chap.4). Press A until the LED flashes twice then turns off. Press B once (keep A pressed). On the BFT remote, simultaneously press and hold buttons 1 and 2 (Seed Code mode). The LED flashes twice then turns off. Release the BFT buttons and press any button on the BFT: the LED flashes three times then stays on: copy successful.

Can I restore a accidentally deleted code?

Yes, press simultaneously the C and D buttons and hold them for 10 seconds. The LED flashes twice then turns off: the last deleted code is restored.

What safety precautions should be observed?

Do not open the device, do not repair it yourself. Use it only in dry conditions, away from humidity, snow and extreme temperatures. Avoid shocks. Keep out of reach of children.

How to dispose of the device at end of life?

Do not throw away the device or batteries with household waste. Deposit them at a public collection point, at the retailer or return them to the manufacturer in accordance with the WEEE directive (no. DE 67896761).

Where can I find the declaration of conformity?

The full declaration of conformity (directive 2014/53/EU) can be obtained by contacting: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, or via the link: http://downloads.ganzielfach.de/search/model/304520

USER MANUAL 304520 Brandson

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased.

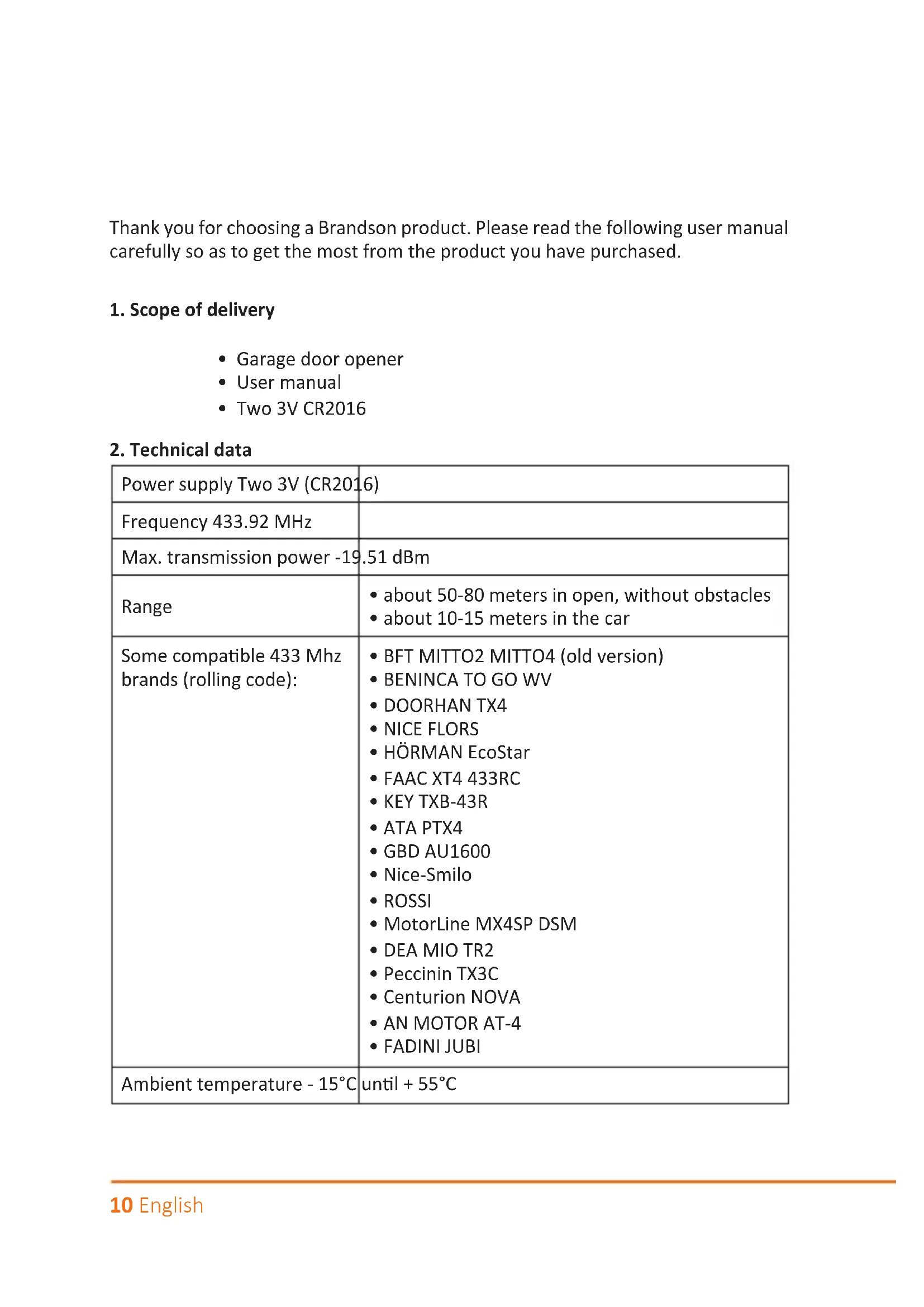

1. Scope of delivery

• Garage door opener
• User manual
• Two 3V CR2016

2. Technical data

Power supply Two 3V (CR2016)
Frequency 433.92 MHz
Max. transmission power -19.51 dBm
Range	·about 50-80 meters in open, without obstacles ·about 10-15 meters in the car
Some compatible 433 Mhz brands (rolling code):	·BFT MITTO2 MITTO4 (old version) ·BENINCA TO GO WV ·DOORHAN TX4 ·NICE FLORS ·HÖRMAN EcoStar ·FAAC XT4 433RC ·KEY TXB-43R ·ATA PTX4 ·GBD AU1600 ·Nice-Smilo ·ROSSI ·MotorLine MX4SP DSM ·DEA MIO TR2 ·Peccinin TX3C ·Centurion NOVA ·AN MOTOR AT-4 ·FADINI JUBI
Ambient temperature - 15°C	until + 55°C

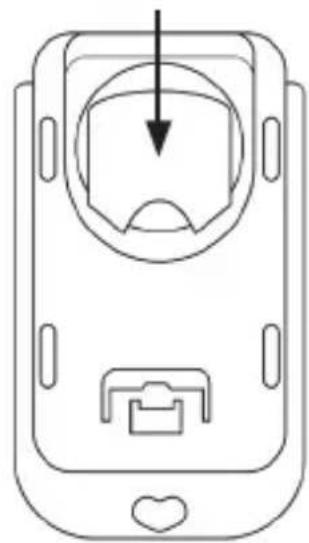

3. Product details

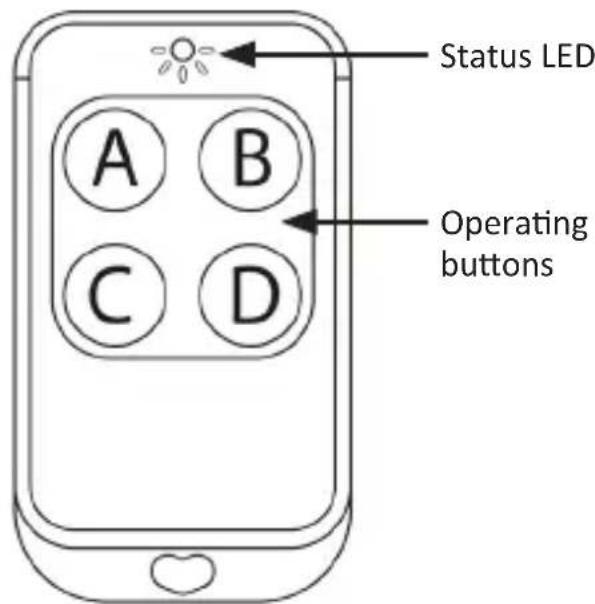

Front side

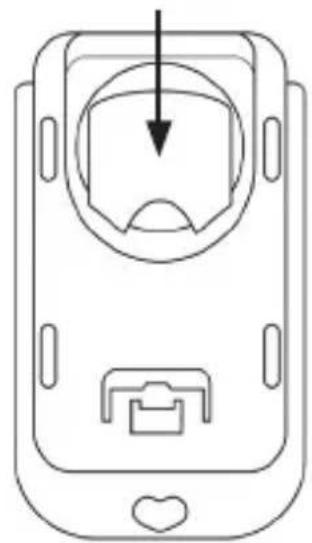

Back side

Battery compartment unlock button

Battery compartment

4. Clearing the memory (recommended each time before reprogramming)

1. Press the A and B buttons simultaneously until the LED flashes three times.
2. Release the B button (press and hold the A button), and press the button 2 slowly three times. The LED flashes rapidly.
3. Release both the buttons, the garage door opener is ready for copying.

5. Duplication

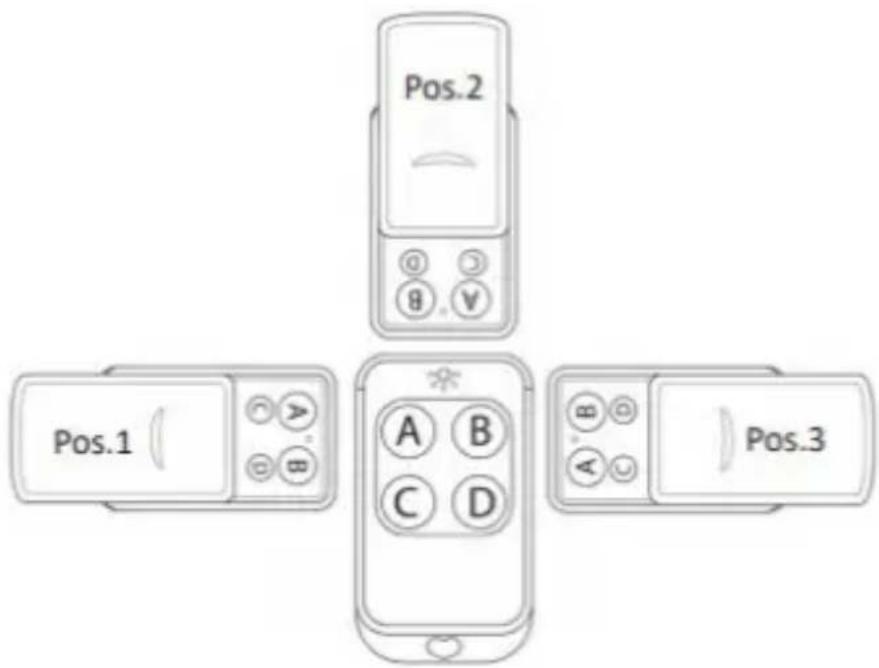

When duplicating, place the duplicator as close as possible to the desired original transmitter (a little to the side (Pos.1 or Pos. 2 or Pos. 3) if there are problems with the connection).

6.Duplicating individual buttons

Variant A: Press and hold the desired button of the garage door opener to which you want to copy the signal. Then quickly press the button of the original transmitter. The status LED flashes briefly. Please keep the button pressed until you see that the garage door opener's LED flashes twice. This means that the duplication was successful.

Variant B:

Press and hold the desired key of the original transmitter and then press the key to which you want to copy the signal. The status LED flashes briefly. Please keep the button pressed until you see that the garage door opener's LED flashes twice. This means that the duplication was successful.

Repeat the above step for the remaining buttons. The unit is now ready for operation. The status LED flashes as soon as a signal is emitted when the button is pressed.

If the operation was not successful, repeat it. It is advisable to clear the memory of the remote control again.

7. Special programming steps for BFT MITTO2 & MITTO4 (old version)

1. Clear the memory as described in Chapter 4 of this user manual.
2. Press and hold the button A on the garage door opener until the LED flashes twice and goes off. Press the B button once. Keep the A button pressed and the garage door opener goes to BFT copying mode.
3. Press and hold the 1 (A) and 2 (B) buttons of the BFT simultaneously (seed code transmitting mode). The LED on the garage door opener flashes twice and goes off. Release both the BFT buttons and then press any button on the BFT. The LED on the garage door opener flashes three times and remains on. This indicates that the BFT copying is complete.

Comments: Keep button A of the garage door opener pressed from step 2 to step 3. To send the seed code of the BFT: Press button 1 (A) and (D) simultaneously.

8. Recovering the last deleted code

If you accidentally delete the code, you can recover it again by pressing and holding the two buttons "C" and "D" simultaneously on the remote control. After 10 seconds, the LED flashes twice and goes off. This indicates that the old code has been recovered.

Note: For remote controls with fixed code and learning code, the duplicator works after duplication.

However, for the rolling code make mentioned above, follow the original user manual to program the duplicator after duplicating it on the receiver.

9. Replacing the battery

Press the battery compartment unlock button using a sharp object and slide the battery compartment open. Remove the empty batteries and replace them with two new CR2016 batteries. Always pay attention to the correct polarity of the batteries. (+ polarity in the direction of the latch/ battery compartment cover)

10. Safety instructions and disclaimer

Never try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the device for damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions.

Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void the warranty or warranty claims. The device should only be used by those who have read and understood this manual. The specifications of the device may be changed without any special prior notification.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

12. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU
WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304520 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover; http://downloads.ganziinfach.de/search/model/304520
