USER MANUAL Silverline 86815 UNOLD

This symbol indicates potential hazards that may result in injury or damage to the appliance. Please read the following instructions and keep them on hand for later reference. Instructions for persons in the household

1. The appliance can be used

by children age 8 and up and by persons with limited physical, sensory or men- tal abilities or with lack of experience or limited know- ledge, if they are supervised or have been instructed how to use appliance safely and have understood the dan- gers associated with using the product. The appliance is not a toy. Children may clean and care for the appli- ance only under supervision.

Children should be super- vised to ensure that they do not play with the appliance.

Keep the appliance out of the reach of children. Safety instructions for set-up and operation of the appliance

4. Only switch the appliance

on when it has been properly assembled.

5. Ensure that there is suffici-

ent space where the appli- ance is located. A minimum distance of 50 cm must be maintained between the appliance and other objects.

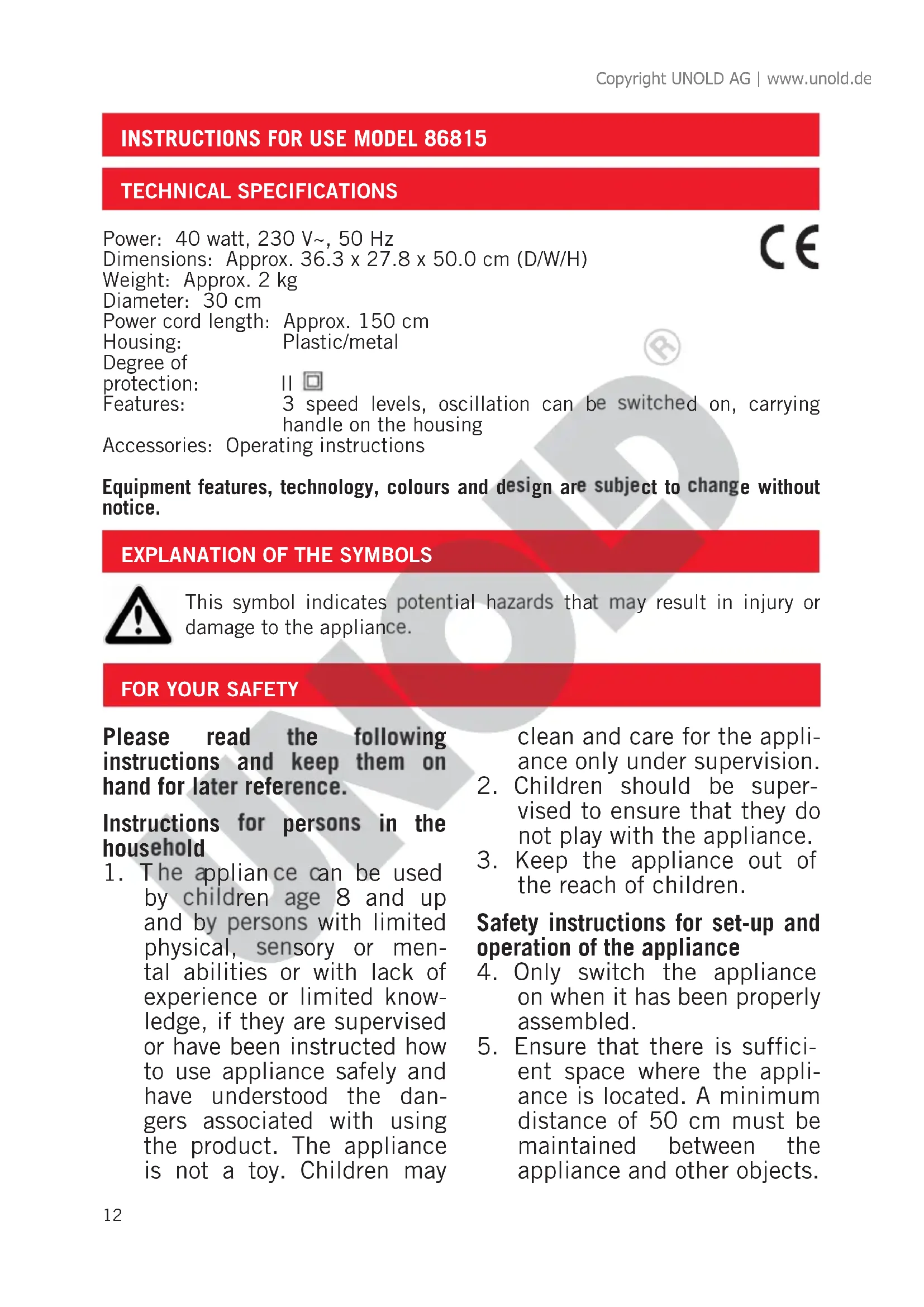

Power: 40 watt, 230 V~, 50 Hz Dimensions: Approx. 36.3 x 27.8 x 50.0 cm (D/W/H) Weight: Approx. 2 kg Diameter: 30 cm Power cord length: Approx. 150 cm Housing: Plastic/metal Degree of protection: II Features: 3 speed levels, oscillation can be switched on, carrying handle on the housing Accessories: Operating instructions Equipment features, technology, colours and design are subject to change without notice. Copyright UNOLD AG | www.unold.de13

6. Do not use the appliance

in rooms that are extremely dusty or in the vicinity of flammable substances.

7. Only connect the appliance

to alternating current with voltage in accordance with the rating plate.

8. This appliance may not be

operated with an external timer or a remote control system.

ance or the power cord in water or other liquids - life- threatening danger!

Do not open the motor housing under any circum- stances, there is danger of electric shock!

The appliance is intended for household use only, or for similar areas of use, such as, in kitchenettes in busines- ses, offices or other work- places, for use by guests in hotels, motels or other lodgings, in private guest houses or holiday homes.

12. Ensure that the power cord

is laid out in such a manner that there is no possibility of stumbling over it.

13. To avoid damage to the cord,

never wrap the power cord around the appliance.

14. To avoid damage to the cord,

always unplug the mains plug from the electrical out

let by grasping the plug, never pull the power cord to unplug the appliance.

Ensure that the electrical outlet used is easily acces- sible, in order to unplug the appliance in an emergency.

To avoid damage to the power cord, ensure that it is not pinched or pulled over corners.

17. If possible, do not use an

extension cord. If you must use an extension cord, com- pletely unwind the extension cord and comply with the power limits of the respec- tive extension cord.

The appliance must never be used in wet/wet and cold rooms - danger of electric shock!

19. Keep the appliance out of

20. Never stick objects such as

fingers, needles, pins, etc. through the basket grille into the interior of the appliance - danger of injury!

21. Ensure that long hair cannot

be caught by the impeller.

ance, the plug and the power cord for wear or damage.

case of damage, please send the appliance for inspection and repair to our customer service department. Unau- thorised repairs can result in serious hazards for the user and void the warranty.

If the supply cord is dama- ged, it must be replaced by the manuafacture, its service agent or similarly qualified persons to avoid a hazard. Copyright UNOLD AG | www.unold.de14

24. To avoid damage, do not use

the appliance with accesso- ries of other manufacturers or brands.

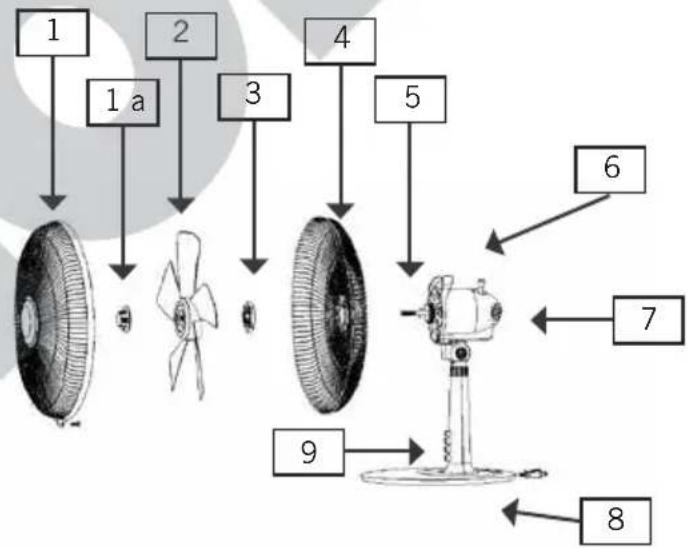

Pull the mains plug out of the socket after use, as well as before cleaning. Never leave the appliance unat- tended if the mains plug is plugged in. Never stick objects such as fingers, needles, pins, etc. through the basket grille into the interior of the appliance - danger of injury! Only operate the appliance on a level, stable substrate, so that it does not tip over. The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. ASSEMBLY 1 Front basket cover 1 a Fastening ring 2 Impeller 3 Guard lock nut

Rear basket cover 5 Axle 6 Oscillation button 7 Motor housing 8 Base 9 Switch

1. Before assembling, ensure that

you are assembling the appliance on a level, dry, place.

2. Remove all packaging materials

and transport safeguards. Keep the packaging material, such as plastic bags or Styrofoam away from small children - danger of suffocation!

4. Pull the supply line of the motor

housing through the opening in the base.

5. Fix the base and motor housing in

place by firmly turning the motor housing clockwise, until the motor housing audibly locks in place (tab on the motor housing and recess must be properly fitted into each other).

6. Remove guard lock nut from the

motor shaft spindle.

7. Fasten the rear basket cover by

fixing the cover in place with the nut.

8. Place the impeller on the axle on

the motor housing. Check whe- ther the fan blades move freely. Fix the impeller in place with the fastening ring (turn counter- clockwise).

9. Connect the front basket cover to

the rear basket cover. Ensure that the holes for the fastening screw at the bottom of the basket covers one above the other. Fix the bas- ket covers in place with the screw.

10. Check whether all parts have been

correctly assembled and fixed in place. OPERATION

1. Ensure that the appliance is stan-

ding on a suitable, level subst- rate, and has been set up so that it is safe and stable.

2. Plug the mains plug of the appli-

ance into an electrical outlet (230 V~, 50 Hz).

3. If moving the fan to a different

location, switch off and unplug from the mains. Setting the tilt angle

4. You can tilt the motor housing

verticaly to a certain extent. To do this, press the motor housing into the desired tilt angle. To avoid damage to the appliance, do not use force. Setting the speed

5. Switch on the appliance by selec-

ting one of the three speed levels and pressing the appropriate but- ton: Level 1: Light breeze Level 2: Moderate breeze Level 3: Strong breeze The level “0” switches off the appliance.

6. You can change the speed levels

at any time. Swing function/oscillation function

7. Press the oscillation button on the

head of the appliance downward. The appliance now swings auto- nomously. Copyright UNOLD AG | www.unold.de16 Switch off the appliance, by pressing the “0“ button, and unplug it from the electrical outlet. Wait until the appliance has come to a complete standstill. Never immerse the appliance in water. The motor or electrical components of the appliance must not get wet.

1. Never use any abrasive scouring

agents, steel wool, metal objects, hot cleaning agents or disinfec- tants.

2. Wipe off the base, and grille of

the fan with a slightly damp cloth.

3. Store the fan in a dry, safe place

so that it is protected from dust, shocks, heat and moisture.

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the re- sponsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. The instruction booklet is also available for download: www.unold.de

8. If you want to switch off the swing
