USER MANUAL IGP1271 LEVELONE
Quick Installation Guide
( TURING™ Industrial Series )
Digital Data Communications GmbH, Germany.
http://www.level1.com
Content
English 2
Deutsch....5
Français 8
Español....11
Italiano 14
Português 17
This Quick Installation Guide only describes the most basic situations and settings. All detailed information is described in the user manual.

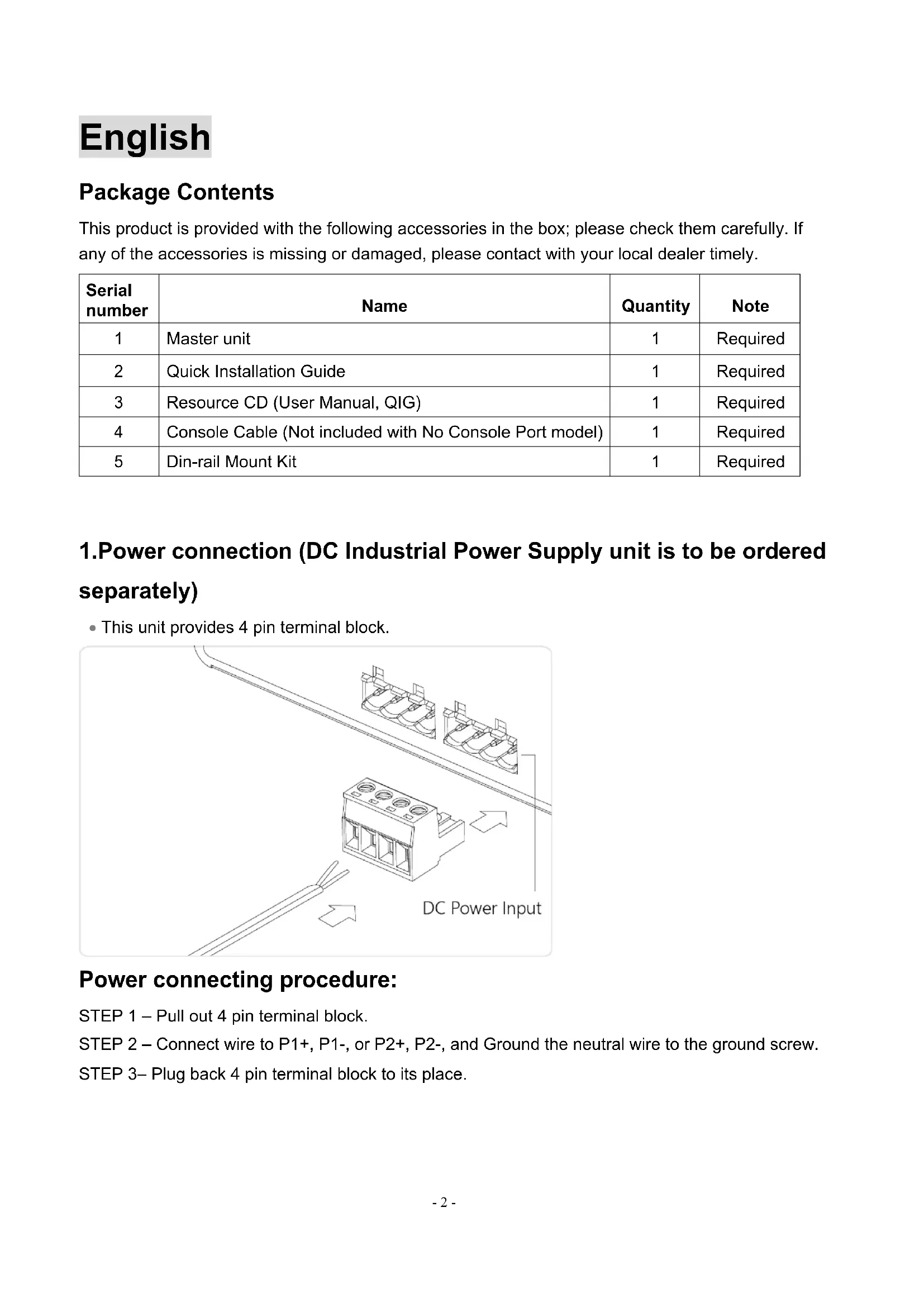

English
Package Contents
This product is provided with the following accessories in the box; please check them carefully. If any of the accessories is missing or damaged, please contact with your local dealer timely.
| Serial number | Name | Quantity | Note |
| 1 | Master unit | 1 | Required |
| 2 | Quick Installation Guide | 1 | Required |
| 3 | Resource CD (User Manual, QIG) | 1 | Required |
| 4 | Console Cable (Not included with No Console Port model) | 1 | Required |
| 5 | Din-rail Mount Kit | 1 | Required |
1. Power connection (DC Industrial Power Supply unit is to be ordered separately)
- This unit provides 4 pin terminal block.
STEP 1 – Pull out 4 pin terminal block.
STEP 2 – Connect wire to P1+, P1-, or P2+, P2-, and Ground the neutral wire to the ground screw.
STEP 3— Plug back 4 pin terminal block to its place.
2.Perform InitialConfiguration (For model with console port)


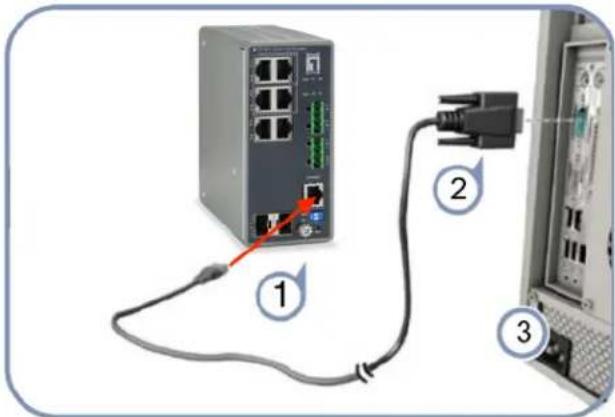

Diagram showing connection between a network switch and computer interface with labeled components- Connect a PC to the switch console port using the included console cable.
- Configure the PC's serial port: 115200 bps, 8 characters, no parity, one stop bit, 8 data bits, and no flow control.
3.Log in to the CLI using default settings: Username "admin" and password "admin."
Note: For further information on switch configuration, refer to the Web Management Guide and CLI Reference Guide.
3. Logging on to the equipment
- Connect the RJ-45 interface cable of a switch with a computer using a network cable.
- Set the TCP/IP properties of the computer, see the Appendix: Setting up your computer.

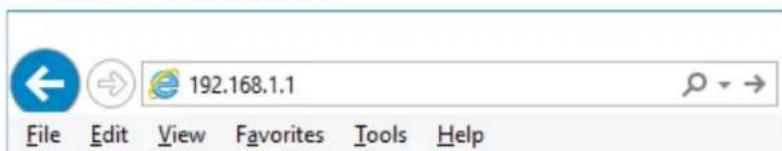

- Logging on to the equipment: Open a browser and type 192.168.1.1 in the address bar, and then press Enter; in the pop-up login interface, enter the factory logon username "admin", password "admin" and click OK.
Windows

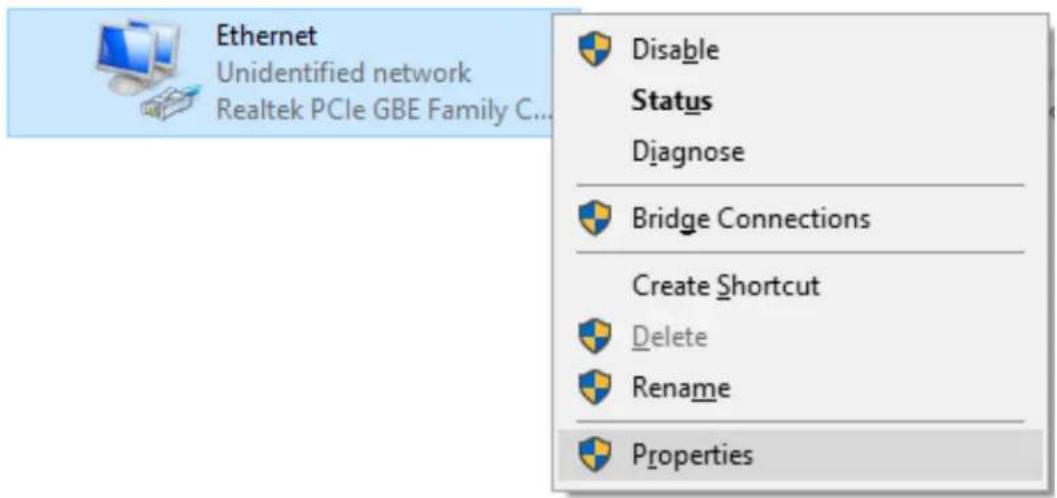

- Click Start—> Control Panel—> Network and Internet—> Network and Sharing Center—> Change adapter settings, right click Local connection and select Properties;


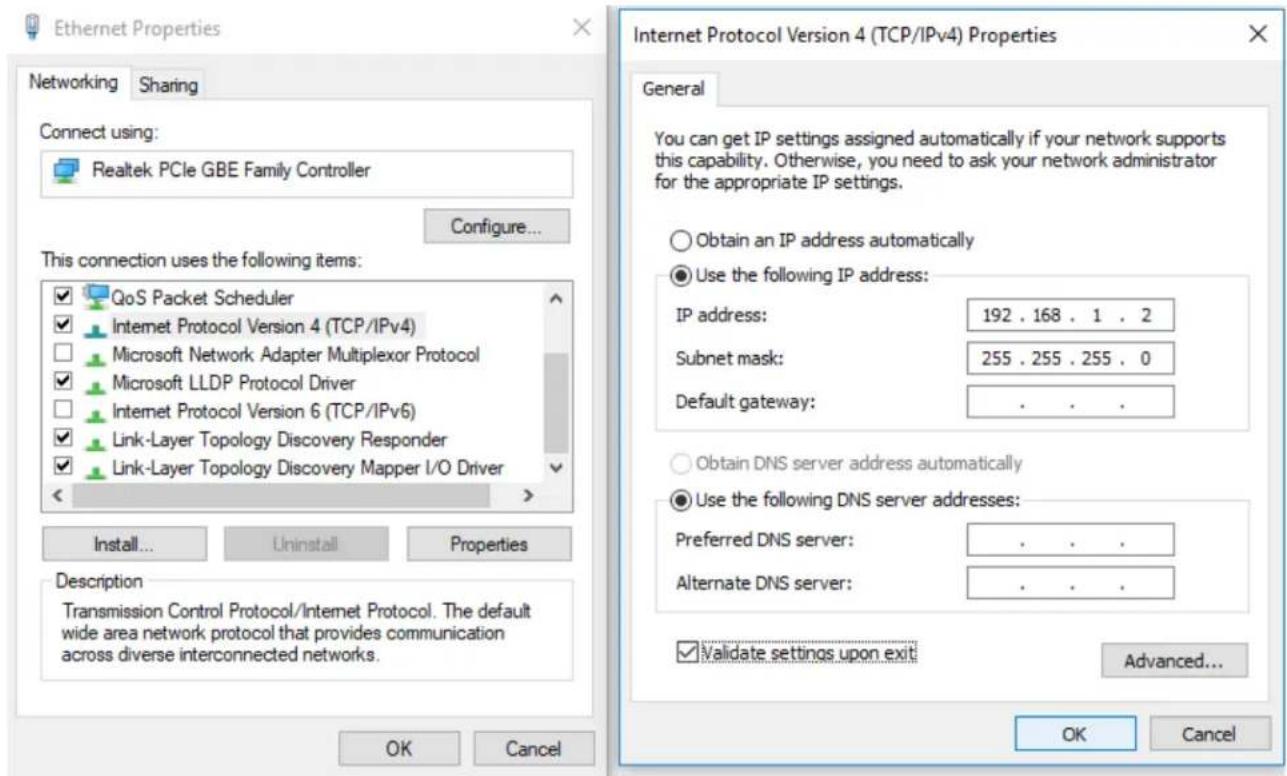

Ethernet Unidentified network Realtek PCIe GBE Family C... Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties- Double-click Internet Protocol 4 (TCP/IPv4);
Deutsch
Lieferumfang
Ethernet Unidentified network Realtek PCIe GBE Family C... Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Propertiestext_image

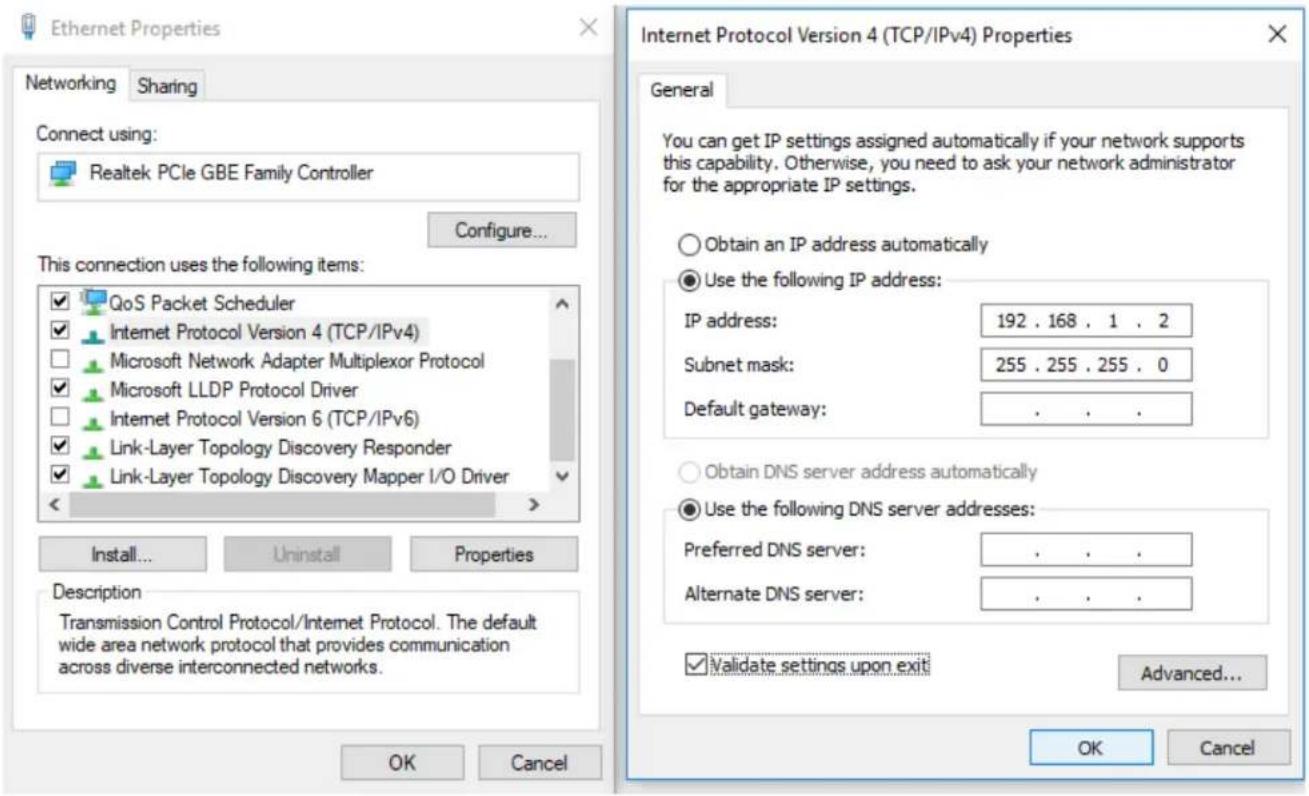

Ethernet Properties Networking Sharing Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: QoS Packet Scheduler Internet Protocol Version 4 (TCP/IPv4) Microsoft Network Adapter Multiplexor Protocol Microsoft LLDP Protocol Driver Internet Protocol Version 6 (TCP/IPv6) Link-Layer Topology Discovery Responder Link-Layer Topology Discovery Mapper I/O Driver Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 2 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Canceltext_image
Diagram showing connection between a network switch and an external device, labeled with components 1, 2, and 3.text_image
Ethernet Unidentified network Realtek PCIe GBE Family C... Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties- Double-cliquez sur Internet Protocol 4 (TCP/IPv4);


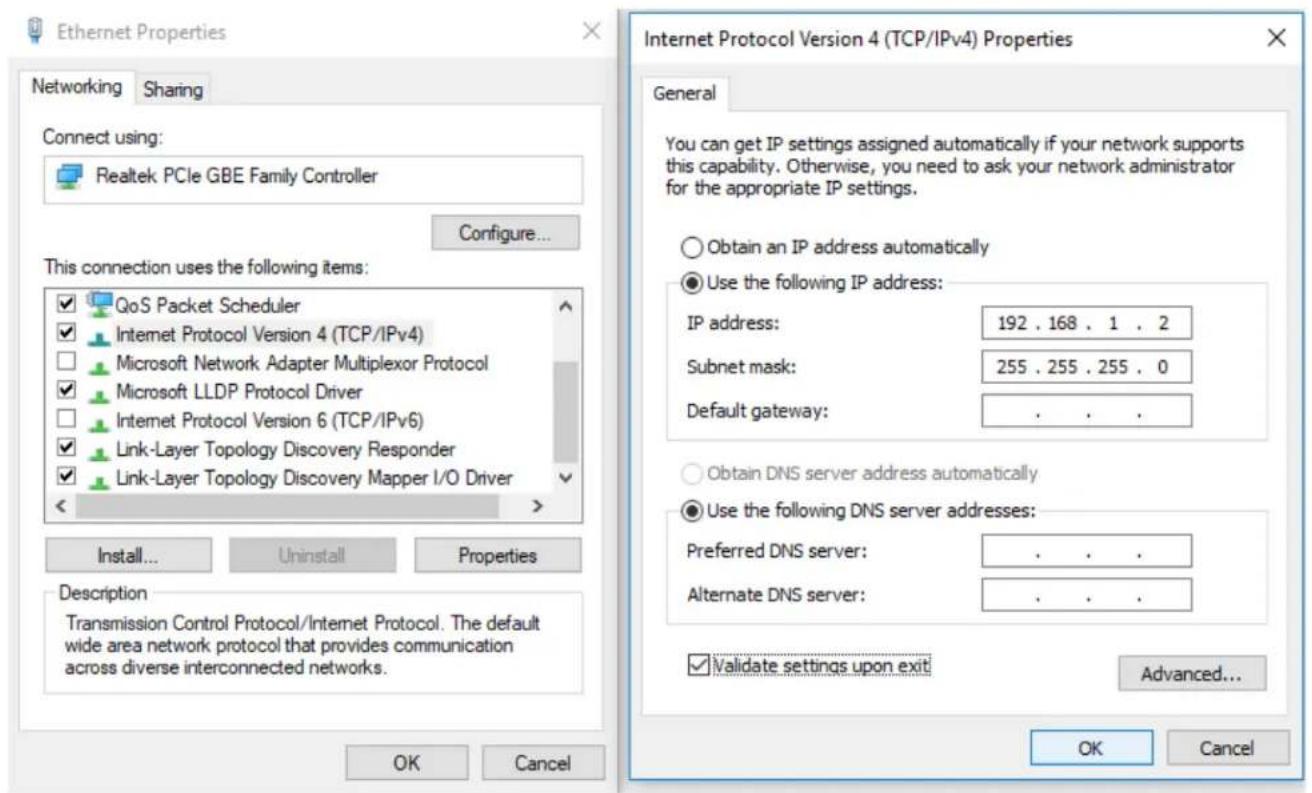

Ethernet Properties Networking Sharing Connect using: Realtek PCIe GBE Family Controller Configure... This connection uses the following items: ✓ QoS Packet Scheduler ✓ Internet Protocol Version 4 (TCP/IPv4) □ Microsoft Network Adapter Multiplexor Protocol ✓ Microsoft LLDP Protocol Driver □ Internet Protocol Version 6 (TCP/IPv6) ✓ Link-Layer Topology Discovery Responder ✓ Link-Layer Topology Discovery Mapper I/O Driver Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. ○ Obtain an IP address automatically ● Use the following IP address: IP address: 192 . 168 . 1 . 2 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . ○ Obtain DNS server address automatically ● Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . ✓ Validate settings upon exit Advanced... OK Cancel OK Canceltext_image
Diagram showing connection between a network switch and an external device, labeled with components 1, 2, and 3.text_image
Ethernet Unidentified network Realtek PCIe GBE Family C... Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties- Haga doble clic en Protocolo de Internet 4 (TCP/IPv4);
