USER MANUAL SteamClean Caddy Di4

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING DI4, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1 Switch. Power ON/OFF
2 LED light. Display the steam states.
3 Steam gun. Steam pour out
4 trigger. Release steam
5 handle. Pick up by hand
6 Children lock. Unlock or lock the steam
7 Safety cap. Steam protection
8 Hose. Deliver steam from unit to gun

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The appliance shall not be left unattended while it is connected to the supply mains.

The filling aperture shall not be opened during use

The appliance is not to be used if it has been dropped, if there

are visible signs of damage or if it is leaking.

Keep the appliance out of reach of children when it is energized or cooling down.

Steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

Appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

Plug must be removed from socket-outlet before cleaning or maintaining the appliance.

WARNING: Danger of scolding. If this symbol is market in the appliance means that hot steam is emitted by this appliance- sequente.

CAUTION. Hot surface. If this symbol is marked on the appliance means that surfaces are liable to get hot during use

IMPORTANTWARNINGS

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not pull on the connection cord in order to unplug it.

Do not use, connect or disconnect the device to the mains with your hands or feet wet.

Proceed according to the conservation and cleaning section of this manual for cleaning.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an authorised Technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device.

Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorised technical support service centre may carry out repairs on this product.

This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use. In case of misuse or tampering with the product, it will be out of warranty.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observation of these warnings.

INSTRUCTIONS FOR USE

Before connecting the product, check that the mains voltage is the same as that indicated in The product label.

The mains cable must not be entangled or wrapped around the product during Use of this.

Do not pull on the connecting cable to unplug it.
Do not use plug or unplug the appliance if your hands or feet are wet. Proceed as directed.

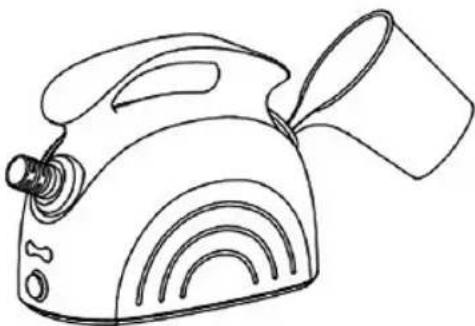

Please kindly fill water before using.

Remark:

• please make sure that no residual water in the boiler before adding water. Pour out the rest water after finish using and clean the boiler. There will be calcification inside which may clog the steam after long time.

• Method of cleaning boiler: first add small amount of water in the boiler, fully shaking hands rock the machine, and then pour out the water completely. Suggest you can repeat above action if the water contains a lot of impurity.

• In order to get idea steam, please be sure to fill 1 liter water. You can check the scale in the cup.

• Please screw the safety valve when water filled.

Do not inject any liquid except clean water

2. Power on

• Please ensure that the boiler with water and the safety valve in a tight status before power on.
• Put the plug into socket and open the power switch. If the power is on, the red light will on

Do not use wet hand to touch the power

Do not use any power cord & socket in broken status.

3. Operation

After about 5 minutes, the green light will show on, it means steam is ready.

Hold the steam gun by hand, press the children lock. At the same time, use other four finger to press the steam trigger. Steam come out directly.

• The green light will be on and off during usage. If it is on, it means the pressure reach to 4bar, But it will not influence use when off.

There will be some water come out at first time as of condensate in the pipe. Do not use to clean carpet, ironing clothes etc. Suggest you can spray to some container. It will be dry after 2-3seconds.

• Please choose the appropriate accessories to clean according to the actual situation. Detailed please refer to the accessories instructions.

Do not screw the safety valve during using or power is on or hot steam & water will be released

• Red light show on it means short of water.

Following steps from 1~3 for repeat using.

4. Storage & Cleaning

After use, please turn the power off.

If the steam has not fully released, please open the safety valve until cooling and then pour out the water.

Please note that there is a risk of burns when pouring water since it is still hot.

• If there is dirt on the surface of body, please use dry dishcloth with some water to wipe gently.

Do not use water to spray the machine

Don't place it under damp which may cause short circuit

• Small accessories can be stored in the wheeled box.

After cleaning please keep it in a dark and dry place.

INSTRUCTION USING FOR ACCESSORIES

1. Extension tube

Assemble the extension tube if the steam cleaner is to be used to clean floor or high place windows or difficult to reach areas. To do this, push the open end of the tube into the steam gun until the release button of the steam gun clicks into place. And one or two extension tube if required. Press in the appropriate release button and pull the tubes apart with a download movement to take the extension tube off.

2. Big nozzle

This nozzle makes it possible to clean hard to reach places such as corners, joints and toilets with ease. Simple push the bent nozzle firmly into the gun directly.

3. Round brush

The metal and nylon round brush are pushed. Firmly into the big nozzle until you hear a sound. Even the most stubborn dirt can be removed. e.g. blinds, central heating radiators etc. Please use small mental brush. The nylon brush is suitable for heavy staining on less sensitive materials such as stainless steel. Simply pulling it off with a downward movement can remove it directly.

4. Ironing brush

To iron the cloth, sofa etc, put the white ironing towel on the ironing brush and connect with steam gun. Besides, you can fixed the extension tube in the hole by open the back cover to put the clothes hanger on the extension tube.

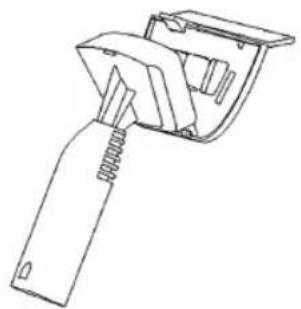

5. Window brush

To clean window, mirrors, or tiles those which with smooth surface objects, please use the window brush which is with rubber blade combined with brush sprayer to clean. When installed, knot on two prominent part of the hook on to the glass scraper, then put the whole cover of glass brush to ironing, issued a "clicking" sound, then installation is complete

If temperature is lower than 0^ please do not use this product to clean glass

Do not placed in the same position more than 2 seconds

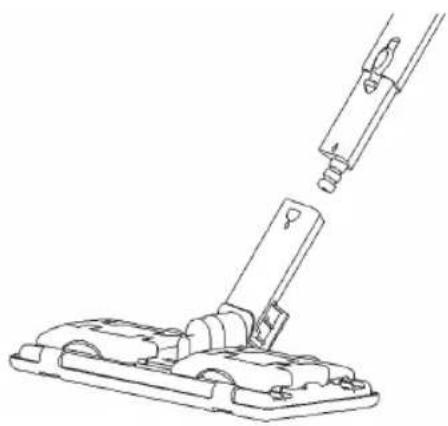

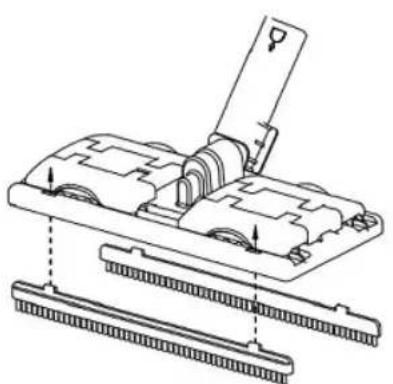

6. Floor brush

Floor brush nozzle to the end of extension tube. Ensure that nozzle clicks into place on assembly. The floor brush is ideal for cleaning washable wall and floor coverings. It may be used with or without the towel. Pressure on the inner side of the holder, open the clips to hold the towel.

Add the carpet glider if you need to clean the carpet.

Or add the brush if you need to clean the geostrophy etc.

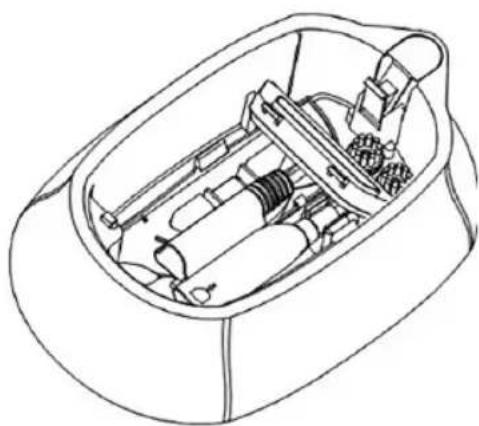

PACKINGWAY

Use your hand to hold is directly.

You can use strap to pack on the shoulder.

You can use on the floor when together with wheeled box. Please kindly noted all small accessories can be stored in the box.

TROUBLE SHOOTING

ISSUE PLEASE CHECK AS BELOW SOLUTION
NO SPRAY STEAM	Plug not insert to the power socket tightly	Insert again or change the socket
	Switch indicator light off	Turn on the switch
	No water	Fill water
	Not press the steam lock	Press on children lock
	Other questions	Ask professional service
WATER IS FLOWING FROM NOZZLE	There may some water in the steam for first usage or stopped for a while.	Normal phenomenon. Will disappear quickly
	Influence the normal use	Ask professional service
OTHERS Steam come out besides the nozzle		Ask professional service
			plastic deformation and softening phenomenon
			Other electric equipment cannot be used
			Steam come out from safety valve

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

MERCI D'AVoir PLACÉ LEUR CONFIANCE EN DI4 ET NOUS ESPÉRONS QUE CE PRODUIT VOUS DONNERA ENTière SATISFACTION ET PLAISIR.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÜR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

ÉLIMINATION DU PRODUIT

B&B TRENDS, SL. guarantees compliance of this product for the purpose for which it is intended for a period of two years for the entire Spanish territory. In the case of breakdown during the term of this warranty, you are entitled to repair or to the replacement of the product at no charge if the former is unavailable, unless one of these options prove impossible or disproportionate. In this case, you can then choose a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is unaccredited by B&B TRENDS, SL. This warranty does not affect your rights as a consumer in accordance with the provisions of Law 23/2003 dated 10 July 2003 on warranties on the sale of consumer goods in the Spanish territory.

USE OF WARRANTY

Consumers should contact a technical service centre authorised by B&B TRENS, SL. for repair of the product as any tampering thereof by persons not authorised by B&B TRENS, SL., as well as misuse or inappropriate use, will lead to the cancellation of this warranty. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

Claims must take place within three years from delivery of the product according to the provisions of the warranty, and the consumer must inform the sales vendor of the lack of conformity, provided that such claim is made within the statutory period of warranty. This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item or by contacting B&B TRENS, SL.
