USER MANUAL BeerTender VB32 KRUPS

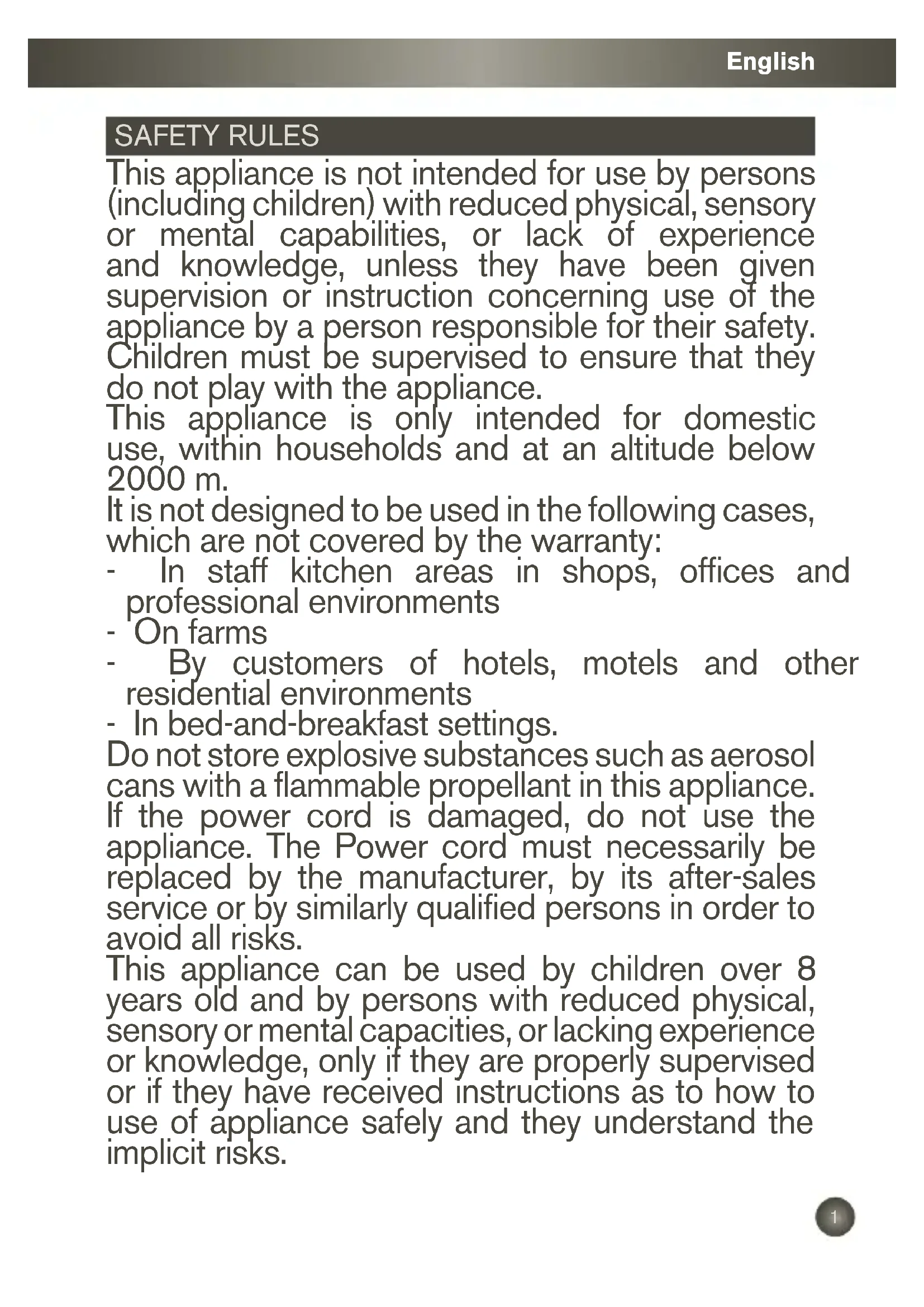

koszt jak za połączenie lokalne Groupe SEB Polska Sp. z o.o. Gdański Business Center II D ul. Inflancka 4C 00-189 Warsaw1 English SAFETY RULES This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance. This appliance is only intended for domestic use, within households and at an altitude below 2000 m. It is not designed to be used in the following cases, which are not covered by the warranty: - In staff kitchen areas in shops, offices and professional environments - On farms - By customers of hotels, motels and other residential environments - In bed-and-breakfast settings. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. If the power cord is damaged, do not use the appliance. The Power cord must necessarily be replaced by the manufacturer, by its after-sales service or by similarly qualified persons in order to avoid all risks. This appliance can be used by children over 8 years old and by persons with reduced physical, sensory or mental capacities, or lacking experience or knowledge, only if they are properly supervised or if they have received instructions as to how to use of appliance safely and they understand the implicit risks.2 English Children must not play with the appliance. Children should not clean or perform maintenance procedures on the appliance unless they are supervised by a responsible adult.

WARNING: When positioning the device, ensure

that the power cord is not jammed or damaged.

WARNING: Do not place any power bars or

power blocks behind the appliance. Only connect the machine to a mains voltage supply that coincides with the voltage indicated on the sign plate of your appliance. The connection to an incorrect supply voltage will invalidate the guarantee and could be dangerous. In case of inappropriate use or failure to follow the instructions, the manufacturer guarantee is declared void. Use only «Beer Tender Compatible» barrels. Always use the machine on a flat, stable, heat- resistant surface which is protected from other heat sources or water splashes.

WARNING: Keep the ventilator grill located

behind the machine clean and dust it regularly using a vacuum cleaner. To protect individuals against fire, electric shock and personal injury, refrain from immersing the mains cable, the appliance’s plug or the appliance in water or other liquids. Never unplug the appliance with wet hands. In case of an emergency, unplug the the appliance immediately. Do not use the appliance without its draining tray and grill. After use, empty and clean the draining tray every day. Unplug the machine from the mains whenever you are not using it. Unplug the machine from the mains before cleaning. The machine may be cleaned using a damp cloth, but not using a sponge saturated with water, and do not soak it in a liquid. Never use detergents to clean the machine. Clean the machine using only soft sponges and brushes. In case of a prolonged period without use (vacations, storage, etc.), unplug, empty and clean the machine. Any functioning, cleaning or maintenance which is outside the limits of normal use should be reserved to the staff at the local authorized service centres. Do not disassemble the appliance or place any objects in any of its openings.3 English The use of accessories not recommended by the manufacturer could cause fires, electric shocks or wounds. Do not let the power cord hang from the edge of a table or work top, nor come into contact with hot surfaces or sharp edges. Do not let the electric cord hang (to avoid the risk of stumbling). Never touch the cord with wet hands. Do not place the machine on a gas or electric stove, nor near such heat sources, nor inside a hot oven. Before unplugging the appliance, make sure the ON/OFF button is set to OFF, then remove the plug from the outlet. Do not unplug the machine by pulling on the cord. In case you need to use the machine with an extension cord, respect the corresponding load recommendations for the extention. If the wall outlet does not correspond to the machine plug, have the plug replaced by the after-sales service or by similarly qualified persons in order to avoid all risks. The wrapping is made up of recyclable materials. Contact the local authorities for more information on recycling programs. Your machine contains materials that can be recovered or recycled. IMPORTANT: Always leave the beer engine on if you have a barrel inside the machine. NEVER PLACE POWERED COMPONENTS IN CONTACT WITH WATER. THERE IS A DANGER THAT THIS MAY CAUSE A SHORT CIRCUIT. INTENDED USE This appliance has been manufactured exclusively for dispensing beer in a domestic setting. Only original Beertender

Kegs mentioning “Compatible Beertender

” can be used with the appliance; you should not use any other commercially available beer containers. Before using a keg, check the “best before end” date shown at the bottom of the keg. Do not insert or use Beertender

Kegs after the date shown. You should not use the appliance for purposes or with containers other than those specified above. You should not introduce any materials other than Beertender

system Using the keg Getting the Beertender

appliance Connecting to the power supply Using the Beertender

keg Control panel Sound emitted by the Beertender

is designed to dispense cool beer from a special container (Beertender

Keg) fitted inside the appliance itself. This machine was intended for household use and is contraindicated for professional continuous operation. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

WARNING: The manufacturer will accept no liability for damage caused as a result of:

- Improper use and use for purposes other than those envisaged; - Repairs not performed at authorised service centres; - Tampering with the power cord; - Tampering with any Beertender

appliance component; - Use of spare parts and accessories other than those supplied by the manufacturer; - Attempts to access internal parts of the appliance. The guarantee will be invalidated in such cases. Please see full guarantee terms and conditions in the leaflet enclosed or on our web site: www.krups.com

GUIDELINES FOR READING THESE INSTRUCTIONS

THE WARNING INDICATES INSTRUCTIONS THAT ARE IMPORTANT FOR THE USER’S SAFETY. Strictly follow these instructions to avoid any usage errors and serious injuries. This symbol highlights information that is especially important for getting the best out of the machine.

USING THESE OPERATING INSTRUCTIONS

Keep these operating instructions in a safe place and make them available to any other person who uses the appliance. If you have any problems or queries please contact our Customer Relations Team first for help and advice. (see details at the end of this manual)

Keg Control panel Top Operating conditions With 80% R.H. min 12°C max 30°C The manufacturer reserves the right to make constructive and engineering changes as warranted by technological advances. Appliance complying with European Directive 89/336/EEC (Legislative Decree 476 of 04/12/92) concerning electromagnetic compatibility. MACHINE COMPONENTS Beertender

4. Lid opening handle

5. LED control panel

6. Upper part of the dispensing head

• depending on model7 English CAUTIONARY NOTES

SYSTEM To obtain draft beer of optimal quality you should keep two basic factors in mind, the temperature of the beer and hygienic conditions.

1. Pre-chill the beer keg to prevent excess foam. Always use a chilled keg. If you fail to chill

the keg sufficiently too much foam will be produced when you start to pour your beer.

2. Always clean the appliance after use. Beer is a natural product that can spoil. Therefore,

you should always keep the appliance clean to maintain the quality of the beer dispensed and prevent unpleasant odours (see “Cleaning”). The dispensing spout should be cleaned before a new keg is installed and the drip tray and grate should be emptied after every use - fig. 3. You should also follow these other rules when using the Beertender

keg in the freezer; the Beertender

keg may explode. Moreover, freezing diminishes the quality of the beer - fig. 29.

in a place where the temperature is between 12°C and 30°C. At colder temperatures the appliance cooling system could be damaged, whereas at warmer temperatures the system will not be able to reach the ideal beer dispensing temperature. Store the beer keg at room temperature - fig. 4. WARNING! To avoid overheating, keep the Beertender

WARNING! Do not use the handle or power cord to lift the Beertender

Make sure that you chill the keg before using it. If you fail to chill the keg sufficiently too much foam will be produced when you start to pour beer. Please also be aware that the first glass that you pour from every new keg will contain mostly foam. Draught beer in a bar behaves in exactly the same way! The Beertender

” features a patented system for storing and dispensing beer. It guarantees beer of higher, long-lasting quality and a Beertender

system that is very easy and pleasant to use. IMPORTANT: before installing a keg inside the appliance, check the “best before end” date shown at the bottom of the keg. This date is a reliable indication if the keg has been stored at room temperature. The use of kegs “Compatible Beertender

system necessitate the use of beer tubes - fig. 7. A bag of tubes is delivered with the Beertender

appliance. To receive additional tubes, contact our after-sales service or the La Bière Pression website. (See details at the end of this manual)

WARNING: contents under pressure. Do not shake or drop. Do not expose to

sunlight or temperatures above 30°C. Even when the keg is empty, do not force it open and do not expose to flame or fire.8 English

READY FOR YOUR OWN AND OTHERS’ SAFETY, PLEASE KEEP METICULOUSLY TO THE “SAFETY RULES”.

kegs must be chilled before use. Using a Beertender

keg that is too warm will result in too much foam. There are two ways to chill the Beertender

(see “Using the Beertender

”). It will take about 15 hours to cool the keg down to 4°C if the Beertender

Keg and the appliance are stabilized at a room temperature of 20°C.

2. in a refrigerator. This will take about 12 hours depending on the cooling capacity of your

refrigerator. Tip: we recommend that you always keep an extra Beertender

Keg in the refrigerator. That way you will always have a chilled keg available. We also recommend that you switch the appliance on at least one hour before intended use to get full benefit from the pre-cooling of the keg. WARNING! Do not attempt to chill the keg in a freezer. The kegs are at risk of exploding if they are frozen. Moreover, freezing diminishes the quality of the beer - fig. 29.

APPLIANCE The original packing is designed and made to protect the appliance. It is recommended that you keep it for future transport. Remove the Beertender

appliance from the packaging and place it on a dry, clean, level, stable surface that is sufficiently large to accommodate it. Remove all packaging, stickers or various accessories both inside and outside the product. The temperature of the room must be between 12°C and 30°C. At temperatures above 30°C, the system will not be able to sufficiently cool the beer. - fig. 4. Set the drip tray and grate in place at the front of the appliance. Make sure the drip tray is properly fitted and positioned. Do not install the appliance near sources of heat or in places exposed to direct sunlight. Note: keep in mind that during use the drip tray will have to be emptied and rinsed regularly. When the Beertender

system is not in use, you can remove the drip tray and place it elsewhere to save space. Note: The drip tray must be positioned on a level surface and must not jut out from the surface it is resting on. After installing the Beertender

appliance you must clean the dispensing spout; this is the only part of the appliance that will come into contact with the beer - fig. 8. It is essential that you wash the dispensing spout before using the appliance for the first time and at least every time a new keg is connected inside the Beertender

system. The nozzle is dishwasher-safe - fig. 9. To clean the spout, remove it from its housing by turning it clockwise. After washing the spout, screw it back into place - fig. 8.9 English

CONNECTING TO THE POWER SUPPLY

Electricity can be dangerous! Therefore you must always scrupulously abide by the safety rules. The appliance must be plugged into a suitable, properly installed electric socket. The voltage of the appliance has been set in the factory. Check that the mains voltage matches the voltage indicated on the rating plate on the rear of the appliance. Make sure the main switch on the rear of the machine is set to “0” before connecting the Beertender

to the mains. Insert the plug into a socket with the correct voltage and turn on the appliance by moving the main switch to “I” - fig. 10. The appliance will immediately start cooling the inner chamber as soon as the main switch is set to “I”.

may only be used with Beertender

containing beer sold by the Heineken group. The appliance can only be used if it contains a Beertender

Keg and only if the main switch is set to “I”. The LED on the left side of the control panel, when illuminated, tells you that the appliance is switched on. You can open the appliance by pressing the handle on top of the lid. When the handle is released, you can lift the lid up - fig. 11-12. Note: do not force the lid beyond the set opening position as this could damage it. When the lid is completely open, insert a Beertender

Keg as shown in the figure - fig. 13. Remove the upper part of the dispensing head (6) by lifting it upwards as indicated in the illustration - fig. 14. Note: this cover can be removed for cleaning. Install the Beertender

keg tap. Note: Do not try to actuate the tap of the Beertender

Keg by hand. Position the beer tube as shown on drawing - fig. 15. Return the upper part of the dispensing head in its initial position. Note: The upper part of the dispensing head cannot be repositioned (fig. 16) if the Beertender

keg tap has not been properly set up. Ensure that the upper part of the dispensing head is positioned in the beer pump mechanism before closing the lid. Ensure that the positioning of the upper part of the dispensing head conforms to the one in the illustration so as not to damage the beer pipe - fig. 16. Gently close the appliance lid again until it lock - fig. 17.10 English CONTROL PANEL Two LEDs on the top of the lid provide important indications: Green ON LED on the left of the panel: when lit, it indicates that the appliance is operating - fig. 18. Green beer-temperature LED on the right side of the panel: when the Beertender

Keg has reached the ideal temperature the LED switches on and the appliance goes into “stand-by” cooling mode - fig. 19.

APPLIANCE The cooling function of the Beertender

features a cooling system which controls the temperature of the Beertender

Keg. There are two cooling modes:

1. stand-by cooling corresponds to the main operating conditions. In this mode the cooling

fan produces a barely audible noise;

2. active cooling is triggered when temperature inside the cooling chamber is too high.

Once the beer keg reaches the target temperature, the beer pump shifts into standby cooling mode. DISPENSING BEER Note: always check the “best before end” date shown on the bottom of the Beertender

Keg beyond this date. Note: the beer must be dispensed into suitable containers; the dispensing function is started and stopped manually by the user. Step 1 – Preparing a glass To pour a perfect glass of beer, it is essential to use a clean, fresh glass. Rinse the glass in cold water before dispensing beer (the colder the glass the better) - fig. 20. Tip: we recommend that you use your beer glasses for drinking beer alone. Some beverages, like milk, leave a small residue in the glass which will reduce the head on your beer. Step 2 – Dispensing beer Tip: Look at the control panel to check that the beer has reached the right drinking temperature. Position a glass beneath the tap, holding it at an angle of 45 degrees (see picture) - fig. 21. Firmly and quickly pull the handle down as far as it will go. Let the beer run into the glass. Avoid contact between the dispensing spout, the glass and the beer already in the glass. This could cause excessive foaming. Note: every time you install a new keg in the Beertender

, the first glass of beer will fill up with too much foam. When this occurs, allow the glass to stand on the drip tray. As soon as the foam has settled, continue filling the glass. Note: too much foam will also be generated if the tap handle is opened just slightly or slowly; several beers can be dispensed in sequence when the tap handle is open. The beer will flow out more slowly after the first glass has been filled.11 English Step 3 – Beer in the glass Place the glass of beer on the drip tray and wait for the foam to settle - fig. 22. Step 4 – The quality of a glass of beer An excellent draft beer has the following characteristics:

1. a head of about 3 cms;

2. a head evenly distributed around the wall of the glass that adheres to the surface of

3. The beer must be clear with bubbles.

4. a temperature of 4°C to 6°C (in the glass).

Note: to prevent excessive foam from forming, always use a pre-chilled Beertender

Keg and a clean glass rinsed in cold water. CLEANING In addition to routine cleaning, the Beertender

should be cleaned after daily use and when you install a new Beertender

Keg. Keep the ventilator grill located behind the machine clean and dust it regularly using a vacuum cleaner.

CLEANING AFTER DAILY USE

The drip tray and grate should be cleaned after every use. Remove the grate before emptying out the drip tray. The grate must be set back in place during normal use of the Beertender

- fig. 23. Note: You can wash the drip tray with warm water and a mild detergent. Note: Never use aggressive cleaning agents such as vinegar, acids, solvents or petrol.

CLEANING AFTER INSTALLATION

Keg you must clean the dispensing spout. The spout is the only part of the appliance that comes into contact with the beer - fig. 24. It is essential to wash the tap nozzle using hot water. Note: the dispensing spout comprises plastic and metal parts that are permanently joined together and do not pose any problems of hygiene. Do not attempt to separate these parts. The beer dispensing mechanism must be cleaned using a damp cloth and a mild detergent - fig. 25. Note: the upper part of the dispensing head may be washed with water if it is then properly dried - fig. 26. Note: Do not try to clean the mechanism using hard and/or sharp objects, since doing so would risk damaging the machine.12 English ROUTINE CLEANING Clean the appliance cooling chamber on a regular basis using a damp cloth and mild detergent - fig. 27. Note: Do not fill the cooling chamber with water as this may result in permanent damage. Never use aggressive agents such as vinegar, acids, solvents or petrol. The upper part of the cooling head must be removed. Wash the cooling head with hot water and a gentle detergent. Note: Do not wash the upper part of the dispensing head in a dishwasher, as doing so could damage it and eliminate its shine.

To prevent children from using it, the tap’s handle may be removed. To remove the handle, make sure it is in an upright position and pull it upwards - fig. 28. LEGAL INFORMATION These operating instructions contain the necessary information for the proper use and upkeep of the appliance. It is essential to read this information and comply with these instructions in order to use and maintain the appliance in complete safety. Please note, moreover, that the contents of these operating instructions do not form part of a previous or already existing legal agreement or contract, hence they do not affect the terms of the latter. The manufacturer’s obligations are based solely on the contract of sale, which also contains complete an exclusive terms pertaining to the warranty service provided. The warranty conditions as set forth in the contract are neither limited nor extended on the basis of the explanations herein. These operating instructions contain information protected by copyright. They may not be photocopied or translated into another language without the manufacturer’s prior written consent.

DISPOSAL AND ENVIRONMENT PROTECTION

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.13 English Appliances that are no longer used should be rendered unusable. Unplug the appliance and cut the power cable. Appliances no longer in use must be taken to a suitable waste collection facility so that the special components contained in the appliance may be duly disposed of. The “TEM – Module” (or Peltier’s cell) must be disposed of in accordance with the regulations currently in force in the user’s country.14 English TROUBLESHOOTING Problem Possible causes Remedies The appliance does not come on. The appliance is not connected to the mains power supply. Connect the appliance to the power supply. The upper part of the dispensing head is not properly positioned. The Beertender

Keg tap has been activated by hand. Put the Beertender

Keg tap back in its original position. The Beertender

Keg tap or tube is not inserted correctly. Remove the Beertender

Keg tap from the appliance and fit it again following section: Using the Beertender

No beer is being dispensed. The Beertender

Keg is empty. Replace the Beertender

Keg with a new one. There is no keg inside the Beertender

appliance. Install a keg inside the Beertender

appliance. The Beertender

appliance tap handle is not correctly installed/ positioned. Install/position the tap cover correctly. You cannot close the upper part of the dispensing head. The upper part of the dispensing head was improperly positioned. Properly position the upper part of the dispensing head.15 English The Beertender

appliance produces too much foam when dispensing beer (see also section: Dispensing beer). The Beertender

Keg has not reached the right dispensing temperature. Allow the Beertender

Keg to cool to the right temperature. You can rely on the temperature indicator on the control panel of your Beertender

appliance. The Beertender

Keg has been shaken. Wait 4 hours before dispensing beer. The tap handle is being moved too slowly. Firmly and quickly pull the handle down and forward as far as it will go. The glass is not clean or was not rinsed in cold water. Use a clean glass that was previously rinsed in cold water. The dispensing nozzle is dirty. Clean the dispensing nozzle. Beer flows out too slowly. The tap handle is not open all the way. Open the tap completely. The Beertender

appliance is dispensing warm beer. The Beertender

Keg has not been chilled for long enough and is thus not at the right serving temperature. Allow the Beertender

Keg to cool long enough in the appliance. The temperature indicator on the control panel lights up. The Beertender

appliance is exposed to too hot a temperature or direct sunlight (see also section: Cooling the keg and Installing the Beertender

Use the appliance indoors and move it to a room where the ambient temperature does not exceed 30°C. The appliance heats the beer instead of cooling it The Beertender

has a cooling issue Unplug the appliance and bring it to the after- sales center If you have any problems or queries please contact our Customer Relations Team first for expert help and advice. (Refer to the list of service contacts included in the guarantee leaflet enclosed with the product.)Français
